Loading type	Front (porthole)
Washing capacity	8 kg
Maximum spin speed	1,400 rpm
Brand	NEW POL
Model reference	XF81408DG
Color	Dark Grey
Type of machine	Freestanding washing machine

Frequently Asked Questions - XF81408DG NEW POL

What is the capacity of the NEW POL XF81408DG washing machine?

The NEW POL XF81408DG is a front-loading washing machine with a capacity of 8 kg of dry laundry. This volume is suitable for a household of 4 to 5 people. Do not exceed the maximum load to preserve the drum and ensure effective washing.

What is the maximum spin speed of the XF81408DG?

The maximum spin speed is 1,400 rpm. You can reduce the speed according to the type of fabric: 400 to 600 rpm for delicate items, 800 to 1,000 rpm for standard cotton.

The machine won't start, what should I do?

Check that the door is properly closed (a click should be heard), that a program is selected, and that the start button has been pressed. Also, ensure that the water supply tap is open and that the machine is properly plugged into the mains.

The door is locked at the end of the cycle, how can I open it?

The door lock deactivates about 2 to 3 minutes after the end of the cycle, allowing time for the drum to stop and the internal pressure to drop. If the door remains locked, check that there is no water left in the drum (start a spin/drain program).

The machine vibrates or makes a lot of noise, is this normal?

Excessive vibrations often indicate that the transport bolts were not removed during installation. Also, check that the machine is placed on a stable, level floor, and that all four adjustable feet touch the ground. An overloaded drum or a single heavy item can also cause vibrations.

What detergent should be used and in what quantity?

Use a detergent designed for washing machines (liquid or powder detergent). Dose according to the detergent manufacturer's instructions and the hardness of your water. Compartment I is for pre-wash, compartment II for the main wash, and compartment * for fabric softener.

How to activate and deactivate the child lock?

The child lock is generally activated by holding two buttons simultaneously for 3 seconds (refer to the provided manual for the exact combination for your model). A light or key symbol will illuminate to confirm activation. The same procedure deactivates it.

The machine displays an error code, what does it mean?

The most common codes are: E1 or F1 (water supply issue - check the tap and hose filter), E2 or F2 (drainage issue - clean the pump filter), E4 (door not properly closed). Refer to the manual for the complete list of codes for your appliance.

How to clean the drain filter?

The filter is located behind the flap at the bottom front of the machine. Place a towel and a container, slowly unscrew the cap to drain residual water, remove and rinse the filter under running water. Perform this operation every 2 to 3 months or in case of drainage issues.

Can laundry be added during the cycle?

Most front-loading washers do not allow the door to be opened during the cycle for safety reasons. If the program has just started and the water temperature is still low, some models offer a pause-add function: press pause, wait for the door to unlock, add the laundry, then restart.

How to maintain the drum and prevent bad odors?

Regularly run a cycle at 60°C or 90°C empty or with a machine cleaner. Leave the door and detergent drawer ajar between washes to ventilate. Wipe the rubber door seal after each use to prevent mold.

What is the warranty period for the NEW POL XF81408DG?

NEW POL generally provides a 2-year manufacturer warranty on its household appliances, in accordance with European regulations. For any service request, contact NEW POL via their official website newpol.es or the retailer where you purchased the appliance.

USER MANUAL XF81408DG NEW POL

"STOP" SUL PROGRAMMATORE:

VOCE: Ha efectuado un reset + beep-beep (sonido)

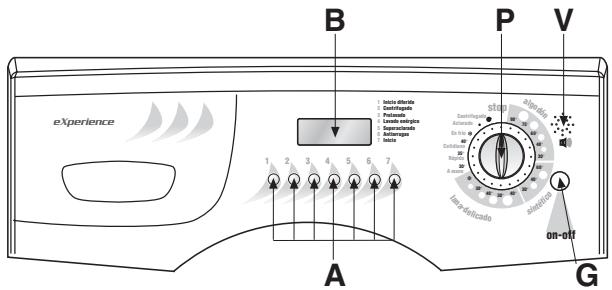

MAIN FUNCTIONS OF THE WASHING MACHINE

A Optional function buttons
B Display
G On/Off button
P Program and temperature knob
V Loud speaker

USING THE WASHING MACHINE

Wash cycle:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door.
2. Load the washing in the drum and close the door securely.

Warning: Do not overload the washing machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent dispenser (see chapter "USE OF DETERGENTS).

2. Close the detergent drawer. Do not open the drawer while the machine is working as this may cause water to spill out.

3. Press the On/Off button (G).

4. Rotate the programmer knob (P) to select the required program and temperature according to the type of fabric to wash (see: "PROGRAM TABLES"), then press the start button (7) and the cycle will start. N.B. Once the programmer knob has been set, the display will automatically show the duration of the selected cycle in minutes, together with the symbol corresponding to the phase at which the wash cycle will start. As the program is being executed, this symbol will change to indicate the current wash phase. On completion of the wash program, the word END will be displayed.
5. Select the required spin speed by pressing button (2) (see

"VARIABLE SPIN".

1. Select the (A) buttons with the functions required (see "OPTIONAL FUNCTIONS"). The buttons pressed will light-up, and the time indicated on the display will vary according to the functions selected.
2. Press button (1) if required (see "DELAYED START").
3. Press button (7) to start the wash cycle.
4. At the end of the wash, press the On/Off button (G) to switch off the washing machine.
5. Open the door and remove the washing.
6. With dry hands, unplug the washing machine from the mains supply.
7. Close the water feed valve.

ON/OFF BUTTON:

Press the button to switch on the washing machine. The display will light up and three flashing lines will appear if the programmer

knob is in position "0" (otherwise, the duration of the selected program and functions will appear).

VARIABLE SPIN:

VOCE: Sin centrifugado

• Values may vary according to the model

The machine offers a wide selection of spin speeds that can be selected before starting the wash program. To change the spin speed, simply press button (2) until the value required is displayed; (fig. 1). If the spin is to be excluded, press the button until the spin symbol itself appears on the display together with "00" (fig. 2).

N.B. the maximum spin speed will vary according to the model and is indicated on the washing machine display. The maximum spin speed that can be selected for each

program is that indicated automatically when the wash program is selected.

Spin load imbalance control: This washing machine is equipped with a special electronic control system for correctly balancing the wash load.

Prior to each spin, the system ensures that the washing is evenly distributed in the drum. If the washing is not evenly distributed, the final spin speed is reduced, and if the load is very unbalanced, the spin is not effected.

The display can be used to monitor the progress of the selected wash program. At the end of the wash cycle, all the symbols will disappear and the word "END" will appear.

The washing machine is effecting the pre-wash or main wash.

The washing machine is effecting the rinse cycle.
The washing machine is effecting the spin cycle.

DISPLAY AND DURATION OF THE WASH CYCLE:

At each program position selected with knob (P), the display will indicate the corresponding spin speed, the wash phase and the cycle duration time. The time display will reduce as the cycle progresses to arrive at zero on completion of the program. At this point, the word "END" will appear on the display. The washing can now be removed from the machine.

N.B. In the cotton programs, the duration of

the wash cycle is purely indicative, in that this can depend on a number of factors such as the temperature and pressure of the feed water and the quantity of washing loaded in the drum. During the wash, the machine's electronics will automatically modify the time necessary to complete the selected wash on the basis on these factors. This will produce the best wash performance in the shortest time period.

DELAYED START:

VOCE: El programa se inicia al cabo de : 1 hora 2 horas, 3 horas, 4 , 5, 6, 7 ,8, 9, 10, 11,12,13,14, 15,16 horas * Values may vary according to the model

The washing machine is equipped with a function that allows the start of the wash to be delayed for up to a maximum of 16 hours. Each time button (1) is pressed, the number of hours from 1 to 16 that the washing machine will wait until starting the wash cycle is displayed (e.g. H.3 indicates that the wash

cycle will start in three hours' time). After pressing button (7) the washing machine will automatically start the wash cycle after the preset delay period.

START BUTTON:

After all the operations described in points 1 to 10 of paragraph "WASH CYCLE" have been carried out, pressing this button will start the wash cycle.

When the button is pressed, it will light up after approximately 2-3 seconds to indicate that the wash program has started.

"STOP" ON PROGRAMMER:

VOCE: Ha efectuado un reset + beep-beep (sonido)

The stop function resets the washing machine.

If, for any reason, you want to change the wash program or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP" (3 lines will flash on the display and the "START" button light will go out).

Then re-position the knob on the new program and press the "START" button.

Warning!! only use this function if strictly necessary and then only if the program to reset has not been running for more than 3 minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

OPTIONAL FUNCTIONS

If one of the following buttons is selected, it will light up. If a function button has been pressed by mistake or is no longer required, the option can be cancelled by simply re-pressing the button.

PREWASH:

VOCE: Prelavado

Press this button to obtain a short prewash of maximum temperature 40^ and approximately 10 minutes duration. This function can only be used with "COTTON, SYNTHETIC and DAILY" programs.

Button 3 will light up.

NB: Pressing this button for 3 seconds enables/disables the voice function

When this button is pressed, the washing machine will run a wash cycle at the set temperature, though with a longer duration.

The button is enabled for the "COTTON" and "SYNTHETICS" programs.

EXTRA RINSE:

VOCE: Superclarado

The washing machine has been designed to reduce water consumption to a minimum. In very soft water areas, or in the case where

detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the program.

ANTI-CREASE:

Antiarrugas

When this button is pressed, at the end of the wash cycle, the items loaded in the washing machine will continue to rotate for a further thirty minutes to reduce creasing. With this function enabled, the spin speed is 800 rpm. The function cannot be activated for the "WOOL" program.

NB. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see "PROGRAMME TABLE").

Prewash

3

Energetic wash

4

Extra rinse

5

Anti crease

6

PROGRAMME TABLES

	PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	BUTTONS ENABLED
						Prewash	Energetic wash	Extra rinse	Anti crease
Algodon 90° para blanco muy sueio	COTTON	90°	90°	Heavily soiled white cotton fabrics with organic stains.	2+1
Algodon 75° para blanco normal	COTTON	75°	75°	Sheets, shirts, tablecloths, towels that are resistant and heavily soiled	2+1
Algodon 60° para colocores resistentes	COTTON *	60°	60°	For shirts, tablecloths, towels that are resistant and normally soiled	2+1
Algodon 40° para colocores delicados	COTTON	40°	40°	White and coloured fabrics that are resistant and heavily soiled	2+1
Algodon 30° para lavado economico	COTTON	30°	30°	Delicate coloured fabrics that are lightly soiled	2+1
Sintético 60° para cargas mixtas	SYNTHETICS	60°	60°	Colourfast synthetic fabrics that are heavily soiled	2+1
Sintético 40° para blancos resistentes	SYNTHETICS	40°	40°	Colourfast synthetic fabrics that are normally soiled	2+1

PROGRAMME TABLES

	PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	BUTTONS ENABLED
						Prewash	Energetic wash	Extra rinse	Anti crease
Sintético 30° para colores delicados	SYNTHETICS	30°	30°	Delicate coloured synthetic fabrics that are lightly soiled	211	●	●	●	●
Delicado 40° para cortinas	DELICATES	40°	40°	Delicate cotton, viscous and mixed delicate fabrics	211	○	○	○	●
Delicado 30° para poliester	DELICATES	30°	30°	Delicate cotton, viscous and mixed delicate fabrics	211	○	○	○	●
Lavado lana 40°	WOOL ★★★	40°		Machine washable wool	211	○	○	○	○
Lavado seda 30°	WOOL	30°	30°	Machine washable wool	211	○	○	○	○
Lavado frio para tejidos delicados	WOOL	COLD	—	Machine washable wool	211	○	○	○	○
Lavado a mano 30°	HAND WASH	30°		Hand washable fabrics	211	○	○	○	○
Rápido 35°	QUICK WASH	35°	35°	Delicate cotton, viscous and mixed delicate fabrics lightly soiled	211	○	○	○	○
Diario 40°	DAILY WASH	40°	40°	Delicate cotton fabrics, delicate coloureds that are lightly soiled	211	●	○	●	●
Lavado frio	COLD WASH COLD	COLD	—	Delicate fabrics	211	○	○	●	●
Aclarados	RINSES	—	—	To rinse and refresh the washing	211	○	○	●	○
Vaciado y centrifugado	DRAIN AND SPIN	—	—	Drain and final spin	211	○	○	○	●

FUNCTION ENABLED FUNCTION DISABLED 1 OPTIONAL WITH PREWASH BUTTON PRESSED

• Reference programme for energy classification purposes according to standard EN 60456
  *** Reference program for pure new wool.

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is equipped with a special system that automatically recognises the amount of washing loaded in the drum. The machine can thus regulate the amount of water to use for the wash and proportion the wash

time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the

wash will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed. N.B. This function is only activated for cotton programmes.

TECHNICAL CHARACTERISTICS

MODELLO →		XF81208DG	XF81408DG	XF71207DG	XF71407DG
Dimensions:	Width cm.:	59.5	59.5	59.5	59.5
	Height cm.:	85.0	85.0	85.0	85.0
	Depth cm.:	57.0	57.0	55.0	55.0
Maximum recommended load:		8 Kg	8 Kg	7 Kg	7 Kg
		4 Kg	4 Kg	3,5 Kg	3,5 Kg
		2 Kg	2 Kg	1,5 Kg	1,5 Kg
Max. spin: (rpm)		1200	1400	1200	1400
Water pressure:		min. 0,05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see plate with technical feature
