1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The Mini display fridge is designed for cooling beverages in bottles and cans.

Do not use the Mini display fridge for:

• storing flammable or explosive materials such as ether, oil and glue;
• storing pharmaceutical products or blood.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

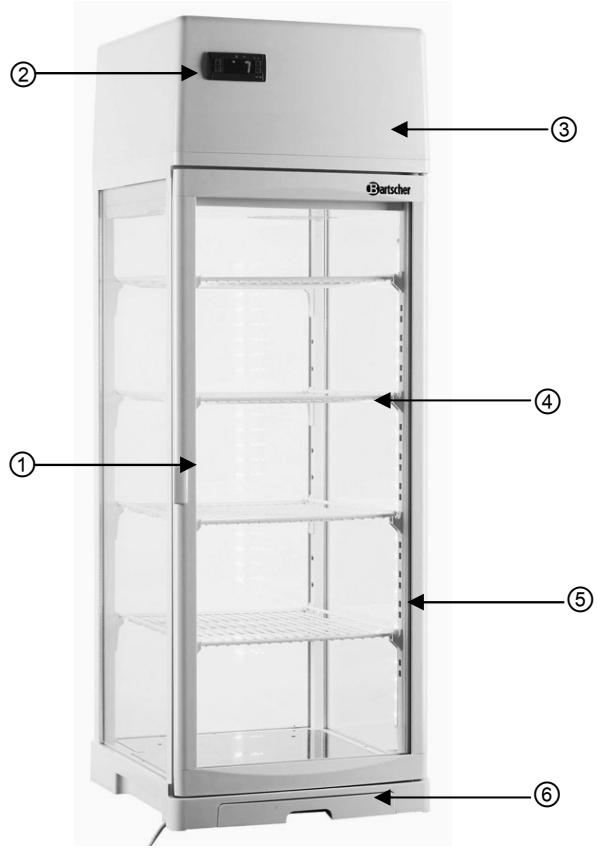

4.1 Overview of parts

① Glass door
② Digital temperature regulator
③ Casing
④ Removable shelf
⑤ LED lighting
⑥ Removable drip tray

4.2 Technical specification

Name	Slim-Line 80L Mini display fridge
Article no.	700.180G
Capacity:	80 litres
Coolant:	R600a
Temperature range:	approx. 2°C – 10°C
Power:	230 V ~ 50 Hz 160 W
Energy safety class:	I
Device dimensions:	W 375 x D 385 x H 1050 mm
Adjustable shelf dimensions:	W 315 x D 325 mm
Weight:	36.2 kg
Equipment:	3 adjustable shelves

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the device.
• Not at any time should you place the device on an inflammable surface.
• Do not place the device in the vicinity of open sources of fire, electric cookers, furnaces or other sources of heat such as e.g., in places exposed to direct sunlight.

The heat can damage the surface of the device, as well as have a negative effect on the cooling power and increase the consumption of energy.

• To avoid damage to the compressor, do not tilt the device to an angle greater than 45^ during setup or transport. Be careful when touching the condenser and doors, as damage to them will negatively impact the working of the device.
• Place the device in such a manner that there is a minimum of 10cm between it and other objects, including walls, in order to ensure proper air circulation.
• Do not place the device where humidity or temperature are high as the device may be damaged.
• Before the first use the device should stand for at least 2 hours before it is connected to the power source.
• Do not drill holes in the device nor mount other objects to it.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

Preparation

• Clean the device and equipment prior to first use (see 6.2 Cleaning).
• After cleaning, insert the shelves at heights appropriate for the bottles or cans with beverages that will be cooled in the device. To do so, mount the guides at the desired height and place the removable shelves on them.
• Connect the device to a single, grounded outlet.
• Beverages in bottles or cans can only be placed inside when the device has reached the appropriate cooling strength.

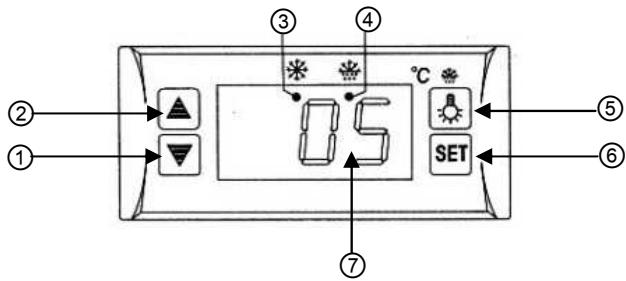

Digital temperature regulator

• The digital temperature regulator is located at the front of the device, on the left side.

① Lower temperature button
② Raise temperature button
③ LCD compressor control light (cooling)
④ LCD defrost control light
⑤ Lighting button
(6) Settings button
⑦ Display

• The primary temperature is pre-set at the factory, and is set to ensure a working temperature range of approx. 2^ - 10^ .
• To change temperature settings, proceed as follows:

Press SET to display the current temperature.
Press or to adjust the temperature.
Press SET to complete setup and display the internal temperature.

If no button is pressed within the next 10 seconds, the internal temperature will appear on the digital regulator display.

NOTE!

To make further adjustments or changes to parameters, contact a sales agent or assign the work to a qualified service technician.

Lighting

• The device is equipped with 2 LED lights. They are located at the front of the door frame, in the centre of the device.
• Press „ for one second to turn the device's lighting on. By pressing „ a second time, the lighting will be turned off.

LED control lights

LED compressor control light (cooling):

The control light comes on during cooling, goes off when the temperature inside the chamber is stable, and flashes when there is a delay in activating the cooling.

LED defrost control light:

The control light comes on during defrost, goes off when defrost is completed, and flashes when there is a delay in the defrost process.

Automatic defrost

The device automatically defrosts 4 times every 24 hours.

Manual defrost

If cooling power decreases, manual defrost must be performed. To begin manual defrost, press "and hold for 6 seconds. The LED control light will come on.

NOTE!

To change other settings or parameters, information on doing so is contained in the attached documentation of temperature control. Such changes can also be performed by a qualified technician.

Tips for the user

• To reduce loss of cold, keep the door open for as short of a time as possible. The door should also not be opened more often than is necessary.
• Do not block the display fridge's air ducts. Air circulation is necessary for the device to function properly.
• Beverages stored in the display fridge must be kept an appropriate distance apart from other beverages. If stored too closely together, they will not cool as effectively.
• Regularly empty the drip tray. It is located at the front of the device, under the glass door.
• Do not open the door during a sudden power outage, to avoid loss of cold.
• After an interruption in the power supply or after removing the plug from its socket, do not connect the Mini display fridge to a power source for at least 5 minutes.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Clean the display fridge regularly.
○ Remove the shelves and wash them with a gentle cleaning agent and soft cloth.
○ Wash the inside and outside of the display fridge with warm water, a moist cloth and gentle cleaning agent. Wipe down with clean water.
- Never use aggressive cleaning substances, such as those containing alcohol or solvents that may damage plastic parts and/or paint.
Use only soft cloths, never use sharp cleaning tools that may damage the device's surface.
After cleaning, use a soft, dry cloth to dry and polish the device.

If the Mini display fridge is to remain unused for a longer period of time:

remove the plug from its socket;
remove all beverages from inside the Mini display fridge;
o wash the inside and outside of display fridge. Remove water and traces of mold;
leave the door open until the Mini display fridge is completely dry.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre. Pay attention to the troubleshooting tips in pt. 7.
○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Possible Malfunctions

Problem	Cause	Solution
Device not cooling	Plug not in socket. Damaged fuse. Power outage.	Insert the plug into the socket. Check the power supply. Check the power supply.
Device is not providing enough cooling power	Direct sunlight or heat source nearby. Poor air circulation around device. Door not closed fully or left open for too long. Seals around door damaged or deformed. Space between bottles and cans is too small, or there are too many bottles and cans in the device.	Move the device away from heat sources. Ensure proper distance from walls and/or other objects. Close door fully, keep door open for as short a time as possible. Contact a sales agent. Ensure sufficient space between bottles and cans in the device, remove unneeded objects.
The device is too loud	The device is not on a level surface. The device is touching a wall or other objects.	Place the device on a level surface. Ensure sufficient distance between the device and walls or other objects.
The compressor does not turn on automatically	The device is overfilled. The door has been left open too long.	Remove unneeded objects. Keep door open for as short a time as possible.

The above described problem cases are given for orientation and as examples. Should these or similar problems occur, please turn off the machine immediately and don't use it anymore. In order to check and repair your machine, please contact a qualified expert or the manufacturer immediately.

The following events are not indicators of malfunction:

1. The sound of running water. This is normal when the device is functioning properly. It is coolant flowing through the cooling system.
2. Condensation forming on the glass side walls during periods of high humidity is normal. Wipe with a dry cloth.

8. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques
