USER MANUAL G-FORCE TC ELECTRONIC

Program change mapping

Offset des Prg. Change

mode Mapping

Custom map

Mapping du N^ de Prg.

Change

Into Preset

Reset Custom Map

Control

Setup bank

Sélection de banque

Board factory defaults

Modèle

In Level, Out Level, Digital In

Program change offset

Pitch bend: Pitch bend MIDI standard.

Aftertouch: Aftertouch MIDI standard.

Note-on-key: Note-on MIDI standard.

Feedback 1 to 1/Feedback 2 to 2

Feedback 1 to 2/ Feedback 2 to 1.

Slope/BW (bandwidth)

Interface de Conrole

"How to identify and Resolve Radio/TV interference Problems."

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Certificat de conformité

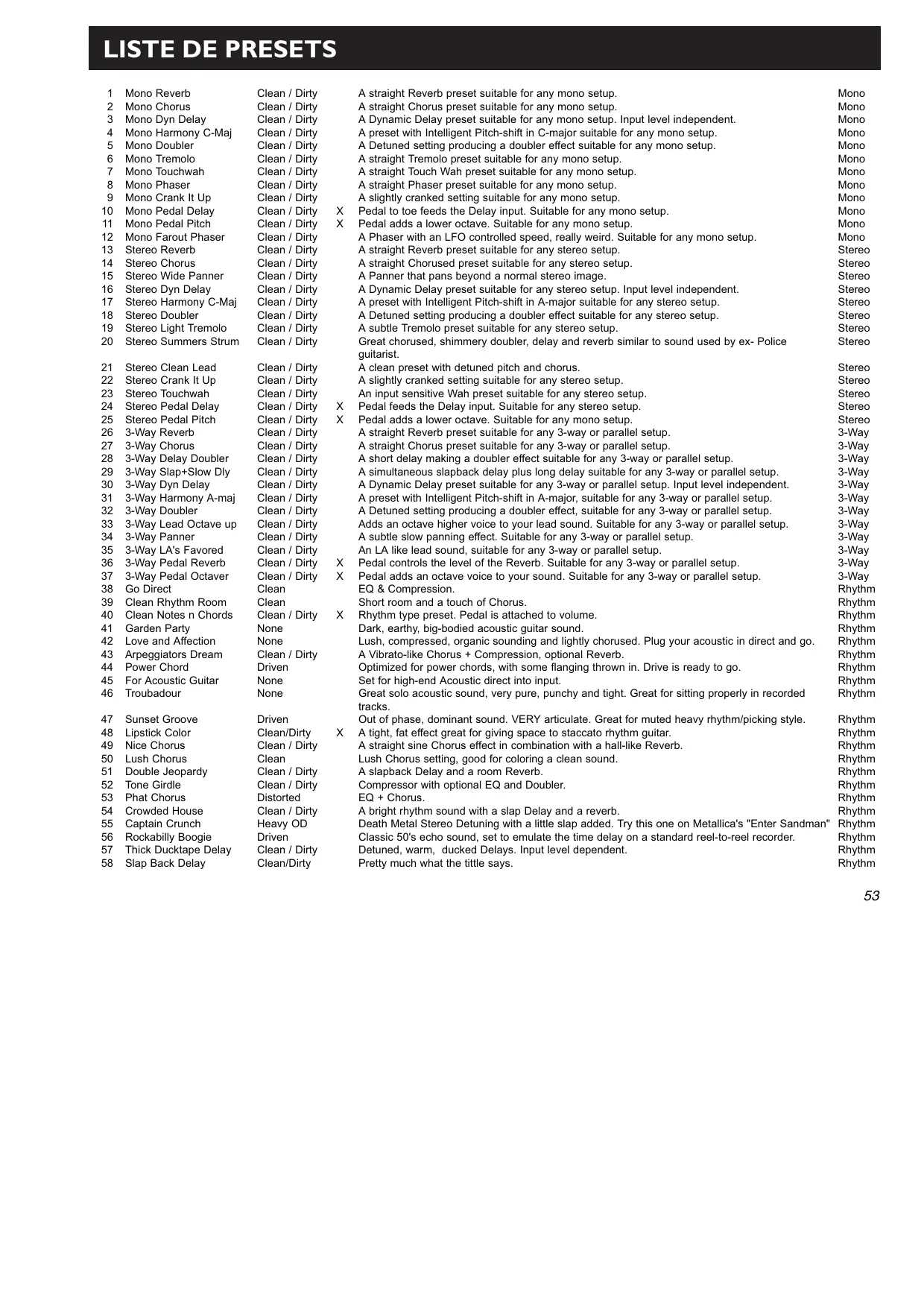

1 Mono Reverb Clean / Dirty A straight Reverb preset suitable for any mono setup. Mono

2 Mono Chorus Clean / Dirty A straight Chorus preset suitable for any mono setup. Mono

3 Mono Dyn Delay Clean / Dirty A Dynamic Delay preset suitable for any mono setup. Input level independent. Mono

4 Mono Harmony C-Maj Clean / Dirty A preset with Intelligent Pitch-shift in C-major suitable for any mono setup. Mono

5 Mono Doubler Clean / Dirty A Detuned setting producing a doubler effect suitable for any mono setup. Mono

6 Mono Tremolo Clean / Dirty A straight Tremolo preset suitable for any mono setup. Mono

7 Mono Touchwah Clean / Dirty A straight Touch Wah preset suitable for any mono setup. Mono

8 Mono Phaser Clean / Dirty A straight Phaser preset suitable for any mono setup. Mono

9 Mono Crank It Up Clean / Dirty A slightly cranked setting suitable for any mono setup. Mono

10 Mono Pedal Delay Clean / Dirty X Pedal to toe feeds the Delay input. Suitable for any mono setup. Mono

11 Mono Pedal Pitch Clean / Dirty X Pedal adds a lower octave. Suitable for any mono setup. Mono

12 Mono Farout Phaser Clean / Dirty A Phaser with an LFO controlled speed, really weird. Suitable for any mono setup. Mono

13 Stereo Reverb Clean / Dirty A straight Reverb preset suitable for any stereo setup. Stere

14 Stereo Chorus Clean / Dirty A straight Chorused preset suitable for any stereo setup. Stere

15 Stereo Wide Panner Clean / Dirty A Panner that pans beyond a normal stereo image. Stere

16 Stereo Dyn Delay Clean / Dirty A Dynamic Delay preset suitable for any stereo setup. Input level independent. Stere

17 Stereo Harmony C-Maj Clean / Dirty A preset with Intelligent Pitch-shift in A-major suitable for any stereo setup. Stere

18 Stereo Doubler Clean / Dirty A Detuned setting producing a doubler effect suitable for any stereo setup. Stere

19 Stereo Light Tremolo Clean / Dirty A subtle Tremolo preset suitable for any stereo setup. Stereod

20 Stereo Summers Strum Clean / Dirty Great chorused, shimmery doubler, delay and reverb similar to sound used by ex- Police Stere

21 Stereo Clean Lead Clean / Dirty A clean preset with detuned pitch and chorus. Stereo

22 Stereo Crank It Up Clean / Dirty A slightly cranked setting suitable for any stereo setup. Stereo

23 Stereo Touchwah Clean / Dirty An input sensitive Wah preset suitable for any stereo setup. Stereo

24 Stereo Pedal Delay Clean / Dirty X Pedal feeds the Delay input. Suitable for any stereo setup. Stereo

25 Stereo Pedal Pitch Clean / Dirty X Pedal adds a lower octave. Suitable for any mono setup. Stereo

26 3-Way Reverb Clean / Dirty A straight Reverb preset suitable for any 3-way or parallel setup. 3-Way

27 3-Way Chorus Clean / Dirty A straight Chorus preset suitable for any 3-way or parallel setup. 3-Way

3-Way Delay Doubler Clean / Dirty A short delay making a doubler effect suitable for any 3-way or parallel setup.

29 3-Way Slap+Slow Dly Clean / Dirty A simultaneous slapback delay plus long delay suitable for any 3-way or parallel setup. 3-Way

30 3-Way Dyn Delay Clean / Dirty A Dynamic Delay preset suitable for any 3-way or parallel setup. Input level independent. 3-Way

31 3-Way Harmony A-maj Clean / Dirty A preset with Intelligent Pitch-shift in A-major, suitable for any 3-way or parallel setup. 3-Way

32 3-Way Doubler Clean / Dirty A Detuned setting producing a doubler effect, suitable for any 3-way or parallel setup. 3-Way

33 3-Way Lead Octave up Clean / Dirty Adds an octave higher voice to your lead sound. Suitable for any 3-way or parallel setup. 3-Way

34 3-Way Panner Clean / Dirty A subtle slow panning effect. Suitable for any 3-way or parallel setup. 3-Way

35 3-Way LA's Favored Clean / Dirty An LA like lead sound, suitable for any 3-way or parallel setup. 3-Way

36 3-Way Pedal Reverb Clean / Dirty X Pedal controls the level of the Reverb. Suitable for any 3-way or parallel setup.

37 3-Way Pedal Octaver Clean / Dirty X Pedal adds an octave voice to your sound. Suitable for any 3-way or parallel setup.

38 Go Direct Clean EQ & Compression. Rhythm

39 Clean Rhythm Room Clean Short room and a touch of Chorus. Rhy

40 Clean Notes n Chords Clean / Dirty X Rhythm type preset. Pedal is attached to volume. Rhythm

41 Garden Party None Dark, earthy, big-bodied acoustic guitar sound. Rhythm

42 Love and Affection None Lush, compressed, organic sounding and lightly chorused. Plug your acoustic in direct and go. Rhy

43 Arpeggiators Dream Clean / Dirty A Vibrato-like Chorus + Compression, optional Reverb. Rhythm

44 Power Chord Driven Optimized for power chords, with some flanging thrown in. Drive is ready to go. Rhythm

45 For Acoustic Guitar None Set for high-end Acoustic direct into input. Rhythm

46 Troubadour None Great solo acoustic sound, very pure, punchy and tight. Great for sitting properly in recorded

47Sunset Groove Driven Out of phase, dominant sound.VERY articulate.Great for muted heavy rhythm/picking style. Rhythm

48 Lipstick Color Clean/Dirty X A tight, fat effect great for giving space to staccato rhythm guitar. Rhythm

49 Nice Chorus Clean / Dirty A straight sine Chorus effect in combination with a hall-like Reverb. Rhythm

50 Lush Chorus Clean Lush Chorus setting, good for coloring a clean sound. Rhythm

51 Double Jeopardy Clean / Dirty A slapback Delay and a room Reverb. Rhythm

52 Tone Girdle Clean / Dirty Compressor with optional EQ and Doubler. Rhythm

53 Phat Chorus Distorted EQ + Chorus. Rhythm

54 Crowded House Clean / Dirty A bright rhythm sound with a slap Delay and a reverb. Rhythm

55 Captain Crunch Heavy OD Death Metal Stereo Detuning with a little slap added. Try this one on Metallica's "Enter Sandman" Rhythm

56 Rockabilly Boogie Driven Classic 50's echo sound, set to emulate the time delay on a standard reel-to-reel recorder. Rhythm

57 Thick Ducktape Delay Clean / Dirty Detuned, warm, ducked Delays. Input level dependent. Rhythm

58Slap Back Delay Clean/Dirty Rhythm

LISTE DE PRESETS

59	A Little Bit Country	Clean	Howdy, check out this preset with a Ultra clean and bright sound.	Rhythm
60	On The Edge	Clean / Dirty	U2 inspired Delays like on "Where The Streets Have No Name".	Rhythm
61	A Clean Fortress	Clean	Sting's "Fortress Around Your Heart" or Andy Summer's sound on "Every Breath You Take".	Rhythm
62	Gated Delay	Clean / Dirty	The Delay plays with you, but not without you.	Rhythm
63	60's Flangging	Clean / Dirty	Actually Flanges through zero by delaying the straight signal though the Delay block in parallel.	Rhythm
64	Funky Chorus	Clean	Good for R&B on a clean setting.	Rhythm
65	Flange Yer Face	Clean / Dirty	All purpose Flanger, great for guitar and vocal effects. Super for acoustic guitar.	Rhythm
66	Dream Phaser	Driven	Ambient, spacey, stereo Phase-Shifting sound.	Rhythm
67	Churner	Clean	Slow sweeping resonant Flanger, Phaser with Chorus, Pitch Detune and slap Delay into small Room.	Rhythm
68	Stereo Tremolo	Driven	A simple Tremolo, but opposite in left and right.	Rhythm
69	Beatle Chords	Clean	X Pedal to heel = Stereo guitar / Pedal to toe = Fast rotating cabinet effect.	Rhythm
70	Phased Tremolo	Clean	Great for folk ballads or Tex-Mex tunes on clean setting. Heavy on Tremolo.	Rhythm
71	In My Room	Clean	Clean surf guitar sound reminiscent of Beach Boys' ballads, The Surfaris or The Ventures.	Rhythm
72	Spin Off	Clean / Dirty	X Rotary effect. Use Ext. 1 to control the speed.	Rhythm
73	Vibropedal Room	Clean / Dirty	Fast Vibrato from Chorus with dual detune and room reverb. Pedal slows Vibrato and lowers Reverb.	Rhythm
74	Tremolo + Reverb	Clean / Dirty	Pretty straight preset with a classic Tremolo and a Hall.	Rhythm
75	Day at the Beach	Clean	Pedal to heel = Surfers dream / Pedal to toe = Tremolo.	Rhythm
76	Spinner	Clean / Dirty	Pedal to heel = Direct guitar / Pedal to toe = Spinning guitar.	Rhythm
77	Wahble Gatelike	Clean / Dirty	A fast Wah Filter into a Chorus and Gate-like reverb, good for anything funky. Pedal to heel lowers Wah.	Rhythm
78	Filterfun Funkypick	Clean	Envelope controlled fast downward-sliding Wah Filter with slow rise time + some Chorus and a small Reverb Hall.	Rhythm
79	Park the Wah Here	Driven	X A parked Wah effect. Sounds like Dire Strait's "Money for Nothing", or Boston's "Long Time".	Rhythm
80	Tube Scream	Clean	Pedal to heel = Clean rhythm sound, Pedal to toe = Vintage Tube screamer + Room.	Rhythm
81	Raunchy Rhythm	Clean	Basic grunge rhythm guitar patch.	Rhythm
82	Malcolm	Clean	Great rhythm sound, useful with multiple guitar players in one band. Great overall rock/blues sound.	Rhythm
83	Rubbery Room	Clean	X Smooth Drive fuzz with dynamic Chorus, smooth Phaser, a Detuner and a nice Room. Good for comping Chord work.	Rhythm
84	Crunch Phasecomp	Clean	X A thick, fuzzed and phased effect, good for choppy comping chords.	Rhythm
85	Fuzzphaser Pedal	Clean	Pedal controls the amount of low end. Set pedal to toe for thin fuzzed sound.	Rhythm
86	A Little Crunch	Clean	Feed the G-Force with a clean setting, and have a little crunch. Good for rhythm.	Rhythm
87	Loose Tubes	Clean	Gives you that crunch with a loose bottom that you know from older tube amps. Good for rhythm.	Rhythm
88	Les is Paul	Clean	Gets that mid-rangy sound. Great rhythm sound.	Rhythm
89	Yee Ha	Clean	Compressed Country twang.	Lead
90	Flange Box	Clean/Dirty	Slow semi-resonant Flange in a very small "box" like reverb. Good for distorted chunks.	Lead
91	Flanger In Verb	Clean/Dirty	Slow rolling Flanger with feedback.	Lead
92	Surround Reverb	Clean	Slow moving reverb. Great for clean ballad leads.	Lead
93	Guitar Hero	Major OD	Steve Lukather, Mike Landau, Dan Huff. Think big 80's sound. Add major solo overdrive.	Lead
94	Landau Clean	Clean	LA studio session player's clean sound.	Lead
95	Ballad Clean	Clean	Smooth, pretty, Clean Shaven!!	Lead
96	Ed Now and Then	Heavy OD	Van Halen Present = Pitch-shift / Past = Phaser. Select either Pitch or Filter effect button for era.	Lead
97	So Stern	Clean	Inspired by Miles Davis' guitarist Mike Stern. Jazzy Ultra "Womanizer" effect.	Lead
98	LA Studio Rack	Clean / Dirty	A bright "LA-like" lead preset. Optional Pitch octave up.	Lead
99	Straight Lead	Clean / Dirty	An all purpose preset ready for pop leadlines.	Lead
100	Lead	Clean / Dirty	A nice tail of Delay and Reverb.	Lead
101	Westcoast Lead	Clean / Dirty	A bit of Delay reverb and chorus. Add a crunchy tone and enjoy the California feel.	Lead
102	Fusionlead	Clean	A Chorus lead sound inspired by guys like Mike Stern.	Lead
103	Clean Chorus Delay	Clean / Dirty	A Reverb and Chorus Delay that will Chorus only your long notes.	Lead
104	Clean Ducked Swell	Clean	Dynamic Delays.	Lead
105	Echocomplex	Clean / Dirty	The classic dull sound of an Echoplex with a slight moving detune to create flutter.	Lead
106	Pedal Feed Delay	Clean / Dirty	X Pedal to heel = no Delay / Pedal to toe = feeds the Delay input.	Lead
107	Final Frontier	Clean	Good for dream like application on clean sound.	Lead
108	Wishey Wash Tap	Clean / Dirty	Fast subtle Phaser into detune and Dly/Verb wash + Chorus. Good for clean chords, fuzzed lead.	Lead
109	Twang Slap	Dirty	X Feed with a dirty setting. Chorus and a Delay slap makes it wide and full. Good for rhythm.	Lead
110	Answering Echo	Clean / Dirty	Bryan May in Brighton Rock or Steve Vai on David Lee Roth's "Skyscraper" album.	Lead
111	Wes M Jazz Lead	Clean	X For Octave lead jazz la la Wes Montgomery.	Lead
112	Low Note Thicken	Clean	Pedal to heel = shimmering rhythm guitar / Pedal to toe = Added low octave.	Lead

113	Pitch -12 and -5	Dirty	X	Pedal to heel = Straight clean sound / Pedal to toe = two voice Pitch-shifting -12 and -5.	Lead
114	C+W Diaton Solo in A	Clean / Dirty		Play single-note runs for instant twangy Georgian C&W harmonies. Works best on higher strings.	Lead
115	Eats Your Attack	Clean / Dirty		Envelope controlled input volume. Will perform the Volume knob trick automatically.	Lead
116	Pedal Octave Down	Clean / Dirty	X	Pedal performs a Whammy down when set to heel.	Lead
117	Pedal Octave Up	Clean / Dirty	X	Pedal performs a Whammy up when set to toe.	Lead
118	Pitch Dm 5 and 3	Clean / Dirty		Single note lead. Play in D-minor with a third and a fifth added.	Lead
119	Pedal Add Octave Up	Clean	X	Pedal to heel = crunchy lead sound, Pedal to toe = adds an octave voice.	Lead
120	Flanger Beautyverb	Clean		Dense, thick reverb with medium long decay through a slow flanger. Good for leads and chords.	Lead
121	Verb Morphed to Dly	Clean / Dirty		An Envelope controlled crossfade between Reverb and Delay. Reverb when you play, Delay when you stop.	Lead
122	I've Been Drinking	Distorted	X	Pedal to heel = Phased guitar / Pedal to toe = Room spinning.	Lead
123	Panner Pedal	Clean / Dirty	X	Pedal pans from left to right.	Lead
124	Picking Style	Clean / Dirty		Input sensitive parallel Wah Filter, great for picking guitar.	Lead
125	Envelope Filter	Clean / Dirty		Envelope Filter effect. Input level threshold dependent.	Lead
126	Nervosa Doubler	Clean / Dirty		Fluttery Phaser and Panning with Chorus and Pitch-shifter doubles. Good on both lead and chords.	Lead
127	Blues Room	Clean		Nice for blues.	Lead
128	Hammer to Fall	Clean		Totally dominant distorted main rhythm guitar sound, inspired by the famed Queen song.	Lead
129	Iron Man	Clean		The Ultimate power chord sound. Metallica, saturated, ominous. Check the tittle, need we say more?	Lead
130	Thick'n Juicy Lead	Clean		Nice greasy lead.	Lead
131	Smooth Tuberate	Clean		Gives you that drive with a loose bottom that you know from older tube amps. Good for lead.	Lead
132	Duckman Lead	Clean / Dirty		Quacks like a duck, thanks to a Wah-Wah. Brings back the 70's.	Lead
133	Lead Pedal Wah	Clean	X	Feed the G-Force with a clean tone and Wah away with your pedal. Great for leads.	Lead
134	Touch Wah Driven	Clean		Feed the G-Force with a clean tone and Wah away with your picking power. Great for leads.	Lead
135	Pedal liaahh	Dirty	X	Feed the G-Force with a dirty tone and talk away with your pedal. Very special lead sound.	Lead
136	Driven Lead	Clean		Overdriven lead sound with an octave shifter feed into a big hall.	Lead
137	Octavia Lead	Clean		Works well on distortion setting for wild "Yes" type solos.	Lead
138	The Smiths	Clean		Wide tremolo sound on top of a punchy distorted sound. Inspired by ....guess who!	Wack
139	Cyber Sci-fi Surfer	Clean		Fast Panning Chorus, sweeping Phaser and Pitch-shifter doubles into filtered slap Delays and very small Reverb.	Wack
140	Steppers in Time	Clean / Dirty		Stepped Formant Filter that steps in time with repeating Delays. Play along with Delay time for best effect.	Wack
141	Spaceplace	Clean / Dirty	X	Slow echoes and a big Reverb. Pedal controls Phaser level.	Wack
142	Bluebox Echophased	Clean		The kitchen sink, full fuzz, deep Phaser, pitch at -12 and -5, panned echo and Chorus. Good on leads.	Wack
143	Echoverb	Clean / Dirty		Smooth chorus, echo + a long hall Verb makes you sound like an ECM artist.	Wack
144	Duality Effects	Clean / Dirty	X	Two separate effect chains. Pedal controls the speed and level of the Phaser.	Wack
145	Bowling Multitaps	Clean / Dirty		Play melodically in time with the echoes for fun and turn on the Drive for a fuzziest sound.	Wack
146	Slow Swell Pad	Clean / Dirty		Dreamy "attack free" sound designed for slow chord or melody passages. Input level dependent	Wack
147	Expandelay	Clean / Dirty		First four repeats become increasingly louder before subsequent repeats decrease in volume.	Wack
148	Infinity and Beyond	Clean / Dirty	X	Long Reverb and Delays.	Wack
149	Deep Bass 9	Clean		Highly compressed bass sound, designed for ambient/Techno/TR303 emulation.	Wack
150	Flange Pedal Speed	Clean / Dirty	X	Pedal controls the speed of the Flanger.	Wack
151	Duck on Crack	Distorted		Pedal to heel = Moderately normal guitar / Pedal to toe = Dynamically contr. duck (1 Octave up).	Wack
152	Sus4 Dreamscape	Clean / Dirty		Dual Shifters add a fourth and a fifth creating a sus4 chord with lots of Chorus, Delay and Reverb	Wack
153	Crazy Brown Lead	Clean / Dirty		Sounds best on leads. Shifter adds Octave up and down with a crazed Pan and Phaser. Dynamic Delay.	Wack
154	Eastern Ocean	Clean / Dirty	X	Dual shifters at a 5th and octave above feed into a chorus + a very wet long Reverb. Good for slow leads.	Wack
155	Skysaw Doubler	Clean	X	Crashy fuzz into dual Pitch-shifters set an octave up with sweeping high feedback Flanger. Great for leads.	Wack
156	Synthesized Leads	Clean		Fuzz, pitched an octave up and down into Compressor with Touchwah and slap Delays. Good on soft leads.	Wack
157	Sexwah Pedalead Fuzz	Clean	X	A complex distorted effect with an octave + a fifth feeding a Chorus and some tap Delays. Pedal controls the Formant filters.	Wack
158	Industrial Mayhem	Clean / Dirty		Touchwah and a low octave shifter. Input level dependent.	Wack
159	Electric Church	Clean / Dirty		Removes your attack. Sounds very synth-like.	Wack
160	Trance Yer Ass Off	Clean / Dirty	X	For single note lines. Use Ext. 1 to morph from Flanger to Detuned Octaver to Touchwah and vice-versa.	Wack

LISTE DE PRESETS

161	Owner Solo	Clean / Dirty
162	Double Fridge Solo	Clean / Dirty
163	Tribute 2 Bootsy	Clean
164	War of the Worlds	Clean / Dirty
165	Inside Out Dyn Pan	Clean / Dirty
166	Far Away Vibrato	Clean / Dirty
167	Dynamic Lesley	Clean / Dirty
168	Varispeed Phaser	Clean / Dirty
169	Dark Envelope Filter	Clean / Dirty
170	Touch Wah + Octave	Clean / Dirty
171	Who's Next.	Clean / Dirty
172	Broken Speaker	Clean / Dirty
173	Touch Res and Delay	Clean / Dirty
174	Jam With Loop	Clean / Dirty
175	Pedal Hold + Reverb	Clean / Dirty
176	Very Scary Horror	Clean / Dirty
177	Talking Whales	Clean / Dirty
178	Flyverb Ducker	Clean / Dirty
179	Chord Stabs	Driven
180	Bright Room	Clean / Dirty
181	Church	Clean / Dirty
182	Grand Hall	Clean / Dirty
183	Cathedral	Clean / Dirty
184	Spring Reverb	Clean / Dirty
185	Slow Reverb	Clean / Dirty
186	Chorus Straight	Clean / Dirty
187	Chorus Straight Fast	Clean / Dirty
188	Flanger Straight	Clean / Dirty
189	Flanger Straight Fast	Clean / Dirty
190	Vibrato	Clean / Dirty
191	Classic Tremolo	Clean / Dirty
192	Stereo Tremolo	Clean / Dirty
193	Square Tremolo	Clean / Dirty
194	Stereo Pan Tap Tempo	Clean / Dirty
195	Surround Panner	Clean / Dirty
196	Straight Delay	Clean / Dirty
197	Two Delays	Clean / Dirty
198	Tape Delay	Clean / Dirty
199	Triplet Ping-Pong	Clean / Dirty
200	4 Tap Delay Pedal	Clean / Dirty
201	Dynamic Delay	Clean / Dirty
202	Soft Compressor	Clean / Dirty
203	Hard Compressor	Clean / Dirty
204	Limiter	Clean / Dirty
205	Dual Detune Pedal	Clean / Dirty
206	Whammy Down	Clean / Dirty
207	Whammy Up	Clean / Dirty
208	G-major Pitch Pedal	Clean / Dirty
209	D-minor 5 and 3	Clean / Dirty
210	Octave Dubbing	Clean / Dirty
211	Phase Off	Clean / Dirty
212	Phaser Pedal Speed	Clean / Dirty
213	Clean Wah Pedal	Clean / Dirty
214	Clean Touch-Wah	Clean / Dirty
215	Clean Auto Wah	Clean / Dirty
216	Formant Touch	Clean / Dirty
217	Formant Pedal	Clean / Dirty
218	Resonance Pedal	Clean / Dirty

Creates a guitar synth-like texture for over-the-top soloing. Wacky

If you weren't using the G-Force, you might need two racks of gear to create this sound. Wacky
Funky bass rig. Wacky
Play single note melodies to create instant cheesy Sci-fi tones. Wacky
Slow Panner speeds up as signal fades. Wacky
You're sitting far away with your Vibrato sound. Wacky
Spins fast with louder signals. Wacky
This Phaser changes speed all the time. Wacky
Compressed Envelope-Filtered Reverb. Input level dependent. Wacky
Pretty much what the name says. One octave up and a Touchwah. Wacky
Square Tremolo and an Autowah. Wacky
Transistor radio guitar. Wacky

X An input level dependent Resonance Filter and some Delay. Wacky
X Create a 1000ms loop and jam over it. Ext. 1 controls the looping, Ext. 2 controls the adding of Wacky the loop/ playing on top of the loop.
X Strike a chord, move the pedal to toe, and you have a nice background to play on. Wacky
X Push the pedal back and forth while playing, but watch out for the Demons. Wacky
X Push your pedal gently while playing long sustaining notes and listen to the talking whales. Wacky

Heeelllp meee!!. A fly caught in the sound! Chorused doubled sound into long Reverb, shifted an Wacky octave and into Phaser. Good leads.
X Pedal to heel = Mono guitar signal / Pedal to toe = Stereo octave up. Wacky
A single block with an all-purpose Reverb Room. Block
A single block with an all-purpose Church Reverb. Block
A single block with an all-purpose Grand Hall Reverb. Block
A single block with an all-purpose Cathedral Reverb. Block
A single block with an all-purpose Spring Reverb. Block
A single block with an all-purpose slow-reacting Reverb. Block
A single block with an all-purpose straight Chorus. Block
A single block with an all-purpose straight Chorus a bit faster. Block
A single block with an all-purpose straight Flanger. Block
A single block with an all-purpose straight Flanger a bit faster. Block
A single block with an all-purpose Vibrato (100% Chorus). Block
A single block with an all-purpose Classic Tremolo. Block
A single block with an all-purpose Tremolo, opposite in left and right. Block
A single block with an all-purpose Square Tremolo also known as transforming.
A single block with an all-purpose Panner. Tap the tempo that you want. Block
A single block with an all-purpose Panner that pans past normal stereo image. Block
A single block with an all-purpose 500ms Delay. Block
A single block with an all-purpose Delay. Left = 500ms / Right = 400ms .
A single block with an all-purpose Highcut Filtered Delay, like an old tape Delay. Block
A single block with an all-purpose Ping-Pong Delay. Block
A single block with an all-purpose 4-tap Delay. Pedal controls the mix level of the Delay. Block
A single block with an all-purpose Delay. Input level dependent, plays when you stop playing. Block
A single block with an all-purpose Soft Compressor. Block
A single block with an all-purpose Hard Compressor. Block
A single block with an all-purpose Limiter.
X A single block with an all-purpose Pitch Detune setting. Pedal controls the detuning of Voice 1. Block
X A single block with an all-purpose octave down Pitch-shifter. Pedal controls the pitch. Block
X A single block with an all-purpose octave up Pitch-shifter. Pedal controls the pitch. Block
X A single block with an Intelligent Pitch-shifter set for G-major. Pedal controls the level of the third. Block A single block with an Intelligent Pitch-shifter set for D-minor with a fifth and a third added. Block
A single block with an Octave down Pitch-shift. Block
A single block with an all-purpose Phaser. Block
X A single block with another all-purpose Phaser. Pedal controls the speed of the Phaser. Block
X A single block with an all-purpose Wah Wah. Pedal controls the Wah frequency. Block
A single block with an all-purpose Touchwah. Input level dependent. Block
A single block with an all-purpose Autowah. An external LFO controls the Wah frequency. Block
A single block with an all-purpose touch-sensitive Formant Filter. Input level dependent. Block
X A single block with an all-purpose Formant Filter. Pedal controls the Formant frequency. Block
X A single block with an all-purpose Resonance Filter. Pedal controls the Resonance frequency. Block

LISTE DE PRESETS

219 Auto Resonance Clean / Dirty A single block with an all-purpose Auto-Resonance Filter. An external LFO controls the Block
Resonance filter.
220 Drive 1 Clean / Dirty A single block with an all-purpose Drive. Block
221 Drive 2 Clean / Dirty A single block with an all-purpose Drive. Block
222 Drive 3 Clean / Dirty A single block with an all-purpose Drive. Block
223 Noise Gate Slow Clean / Dirty Pretty much what the title says. Block
224 Noise Gate Slow Clean / Dirty Pretty much what the title says. Block
225 Empty Routing Clean / Dirty An Empty Routing, good for beginning building your own presets. Block
