Users manual

TABLE OF CONTENTS

Introduction 4

Vintage Compressor ....5

Vintage Tremolo ....8

Vintage Overdrive ....11

Vintage Distortion .....14

Vintage Dual Distortion .....17

Vintage Delay 20

Vintage Tube Primer .....24

Vintage Octa Screamer .....28

Congratulations on the purchase of your new Vintage pedal from TC Electronic.

The Vintage pedals from TC Electronic will awaken any slumbering desire to revisit the past with today's knowledge. All pedals are build on a classical approach to guitar effects and sport a perfect symbiosis with the TC Guitar legacy. From giants of the past like the SCF pedal, over newly released VPD1 and G-System, TC Electronic offers you a complete range of guitar effects.

This manual covers the following products:

Vintage Compressor, Vintage Tremolo, Vintage Overdrive, Vintage Distortion, Vintage Dual Distortion and Vintage Delay.

t.c. electronic ULTIMATE SOUND MACHINES

INTRODUCTION

Do you want true and original compression? The Vintage Compressor gives you an uncolored and unbiased sound. With clarity and dynamics of virtuosic dimensions and steadfast character, you can crank up the compression level to max. Even out any indecisive signals by cranking down the high-input signals and boosting the low ones - and do it without loosing any of the tasty lucidity and dynamics of your original sound. From classic percussive compression types to loads of sustain, the options are right here.

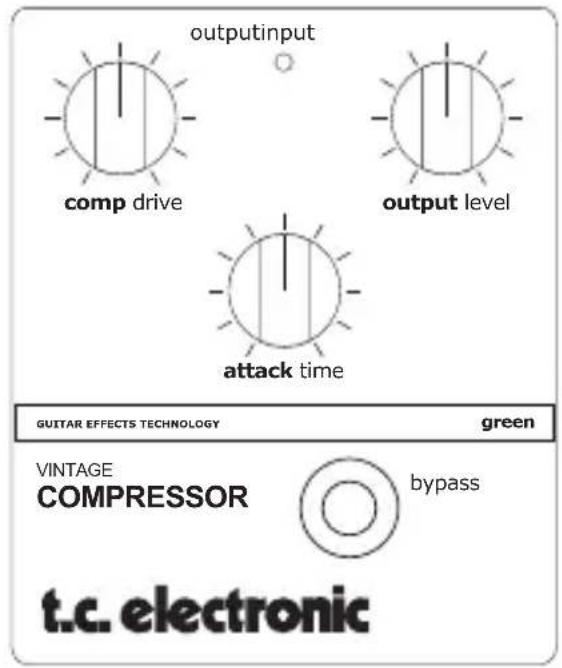

outputinput comp drive output level attack time GUITAR EFFECTS TECHNOLOGY green VINTAGE COMPRESSOR bypass t.c. electronic

OPERATION

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp or mixer.

LED - On/Off indication.

Controls

Comp Drive - Sets the compression amount. The higher setting the lower Threshold and the more makeup-gain is applied.

Attack Time - Determines how fast the compression is achieved. A short Attack time combined with a high Comp Drive setting gives a very aggressive compression, where a longer attack time gives a more subtle compression that reduces the dynamics of the signal.

Output Level - Output level control that in maximum position gives a boost of approximately 3dB.

SPECIFICATIONS

Controls Comp Drive, Attack Time, Output Level

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

Remember those tube amps with that extremely creamy and alluring tremolo? The Vintage Tremolo reconstructs exactly that sound, yet it gives you all the power to adjust according to your taste or mood. If you dig a more saturated expression, just boost the signal. If you want to go really slow and really deep adjust the speed and depth knobs. The mode knob lets you switch between soft and hard tremolo.

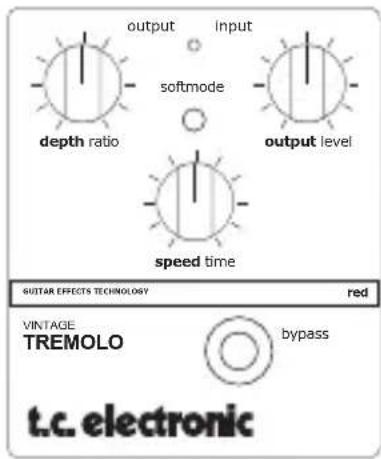

output input softmode depth ratio output level speed time GUITAR EFFECTS TECHNOLOGY red VINTAGE TREMOLO bypass t.c. electronic

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp or mixer.

Controls

Mode - The Vintage Tremolo has both a hard mode and a more subtle soft mode. Use the MODE switch to switch between the two modes.

Depth Ratio - Sets the intensity of the effect.

Output Level - Controls the overall output volume.

Speed time - Sets the speed of the tremolo effect.

TECHNICAL SPECIFICATIONS

Controls Mode, Depth Ratio, Output Level, Speed Time

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

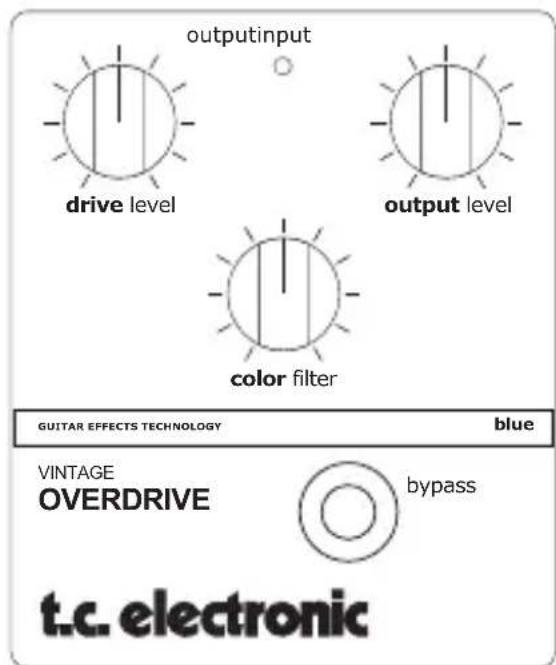

The soft yet crusty and crunchy sound that comes from the Vintage Overdrive will make your guitar sing. Normally you would have to use an old tube amp of the past to acquire the balmy overdrive that this pedal delivers. Your dynamics are loyally reproduced and the Vintage Overdrive will give you delicious harmonics and a broad natural sounding tonal spectrum.

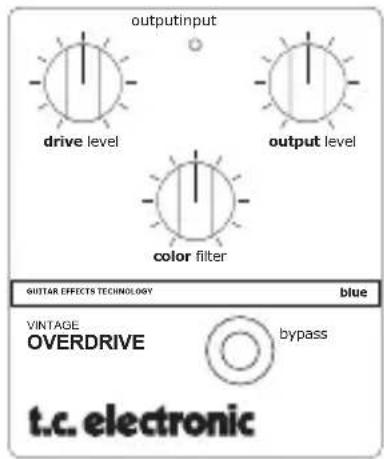

outputinput drive level output level color filter GUITAR EFFECTS TECHNOLOGY blue VINTAGE OVERDRIVE bypass t.c. electronic

OPERATION

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp.

Controls

Drive Level - Controls the amount of overdrive.

Color Filter - This control adds or subtracts the high end frequencies of your signal allowing you to match the driven signal with the bypassed.

Output Level - Sets the overall output level.

TECHNICAL SPECIFICATIONS

Controls Drive Level, Color Filter, Output Level

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

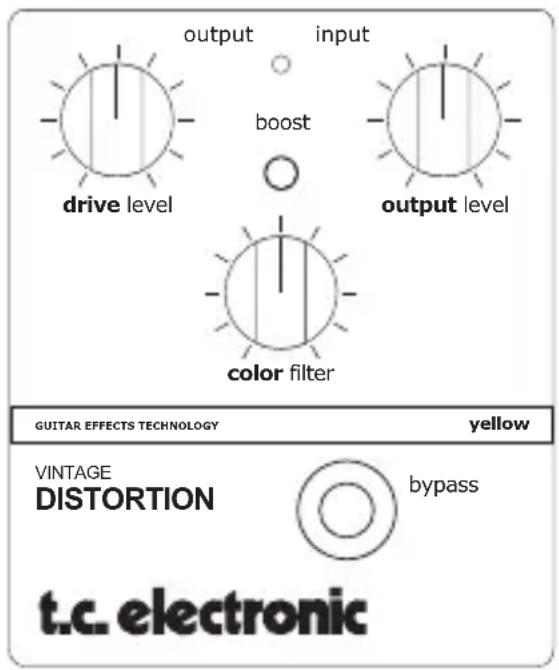

Often versatility is called upon and the Vintage Distortion pedal gives you all the choices you need, with a vintage twist. Go from jazzy laid-back sounds to mega fuzz sledge hammer action that will blow your toupee off. With the boost function bypassed you'll get a sound that makes you think of late night jazz sessions. Turn on the boost and your guitar is on the fast track to roaring thunders similar to legend rock albums of the past. Adjust the TONE knob for that extra edge to your sound - it won't have an effect on your original sonic quality, so don't be a cheapskate, crank it up!

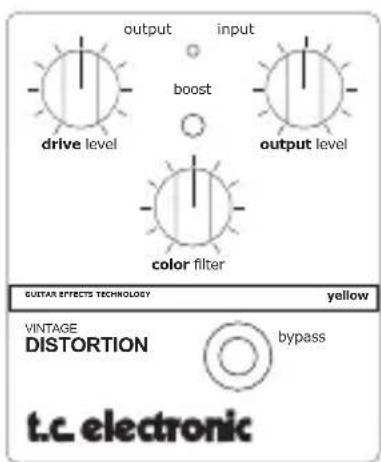

output input boost drive level output level color filter GUITAR EFFECTS TECHNOLOGY yellow VINTAGE DISTORTION bypass t.c. electronic

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp.

Controls

Drive Level - Controls the amount of distortion.

Color Filter - This control adds or subtracts the high end frequencies of your signal allowing you to match the driven signal with the bypassed.

Output Level - Sets the overall output level.

Boost - Depending on your pickup types and the used amp you may chose between the Moderate and High-gain modes to achieve just the sound you need. Press to activate.

TECHNICAL SPECIFICATIONS

Controls Drive Level, Color Filter, Output Level, Boost

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

The Vintage Dual Distortion brings you back in time. The full-bodied vintage sound is pleasantly warm and crispy, and adds solidness to the bottom that spurs memories of the past. Switch between the two gain settings and enjoy the power and the mood of dual distortion. With the COLOR FILTER knob you can get that extra edge to the top end, while keeping the original sound intact. Satisfy your longing for vintage distortion - Savor all the flavors that you can add and experiment, explore, enjoy.

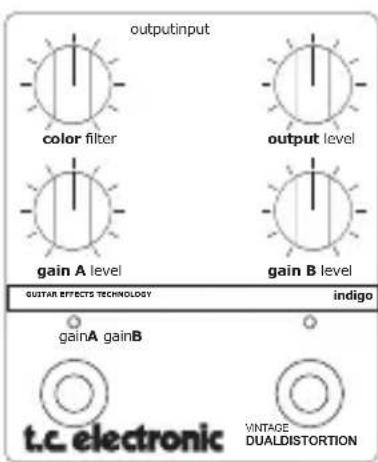

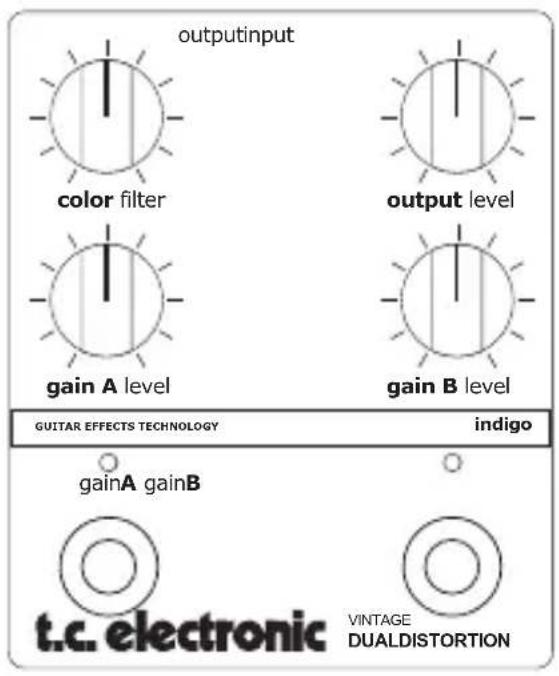

outputinput color filter output level gain A level gain B level GUITAR EFFECTS TECHNOLOGY indigo gainA gainB t.c. electronic VINTAGE DUALDISTORTION

OPERATION

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp.

Controls

Gain A Level - Sets the amount of distortion on channel A.

Gain B Level - Sets the amount of distortion on channel B.

Press GAIN A or GAIN B to activate the respective channels. Both channels cannot be active at the same time.

Example: Pressing GAIN B while GAIN A is active automatically deactivates GAIN A and activates GAIN B.

Output Level - Sets the overall output level.

Color Filter - This control adds or subtracts the high end frequencies of your signal allowing you to match the driven signal with the bypassed.

TECHNICAL SPECIFICATIONS

Controls Gain A Level, Gain B Level, Output Level, Color Filter

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

The Vintage Delay will instantly bring you back to the time of warm, lush vintage echoes, and at the same time it can deliver clean state-of-the-art digital delays. Resurrect the tape echo of the 60'ies, recreate the "analog" temperate sound of the tubes, or be cool with the studio quality delays. Tap-tempo lets you set the pace, and combined with the Triplets function many of the common delay functions are covered. If there was such a thing as a reincarnation of the ultimate delay, the Vintage Delay pedal could be it.

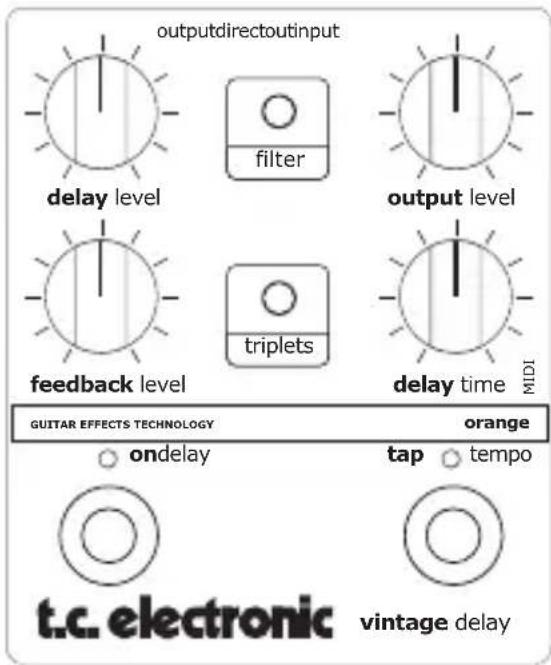

outputdirectoutinput filter delay level output level feedback level triplets delay time MIDI GUITAR EFFECTS TECHNOLOGY orange ondelay tap tempo t.c. electronic vintage delay

Connections

Input - 1/4" connection for input signal. Connect your guitar here. The input also accepts a line signal (sensitivity is -10dB as on most common semi professional equipment).

Output - 1/4" connection for output. Connect the output to your amp.

MIDI - Two functions can be externally controlled from and external MIDI device sending MIDI CC's. Send MIDI CC 20 to control the Tap Tempo. Send MIDI CC 21 to switch the delay On/Off.

Direct - The direct output sends unprocessed signal to e.g. a tuner or a second amp.

Controls

Delay time - Sets the delay time. The delay time can be set from approx 10ms to 1500ms.

Feedback Level - Sets the amount of signal that is fed back to the input of the delay line. The higher setting the more delay repeats.

OPERATION

Delay Level - Controls the level of the delay repeats.

Output Level - Output level for the effect.

Filter - To reproduce the slight deterioration of the delay repeats that was significant to old tape echoes the Filter can be switched on. This function gives a warmer sound on the delay repeats that allows long relatively loud delay repeats to blend much better in your overall sound.

Triplets - In off position (up), the tapped tempo equals the delay time between the repeats. If you e.g. tap quarter notes at tempo 120BPM, the delay will repeat times 2 per second pr. second.

When the triplet function is acivated - the delay repeats will play quarter note triplets according to the tapped tempo. That means 6 repeats per bar.

TECNICAL SPECIFICATIONS

Controls Delay Time, Feedback Level, Delay Level, Filter, Triplets

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus), MIDI In

Power Supply Supplied external PSU. 12V AC min 300mA*

Effect Usage 12VAC, 300mA, 5Watts

Dimensions 100mm x 120mm x 50mm

* Use ONLY with the supplied PSU.

INTRODUCTION

If you're looking for that unique vintage flavored sound that has a wide and warm overdrive combined with an authentic charisma, the Tube Primer will be the perfect choice. This pedal gives you exquisite tonal control and a separate 0-20 dB adjustable clean boost that can be toggled on and off. What really makes the Tube Primer stand out is the unique direct level mix function that gives you full control to blend the overdrive with the dry and original signal. Use the Tube Primer for solos and punch in the boost, with or without the overdrive, and if you mix in the full enchilada of overdrive you will get the original vintage sound of an old tube amp.

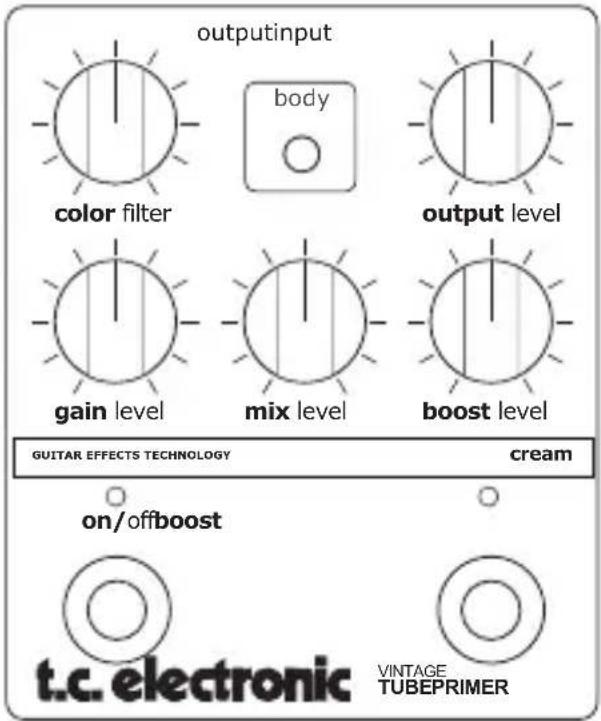

outputinput body color filter output level gain level mix level boost level GUITAR EFFECTS TECHNOLOGY cream on/offboost VINTAGE TUBEPRIMER t.c. electronic

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output. Connect the output to your amp or mixer.

Power - This pedal runs on either a 9v DC power-supply or a 9v battery.

Controls

Color Filter - This control adds or subtracts the high-end frequencies of your signal allowing you to match high ends of the driven signal with the bypassed.

Gain - Controls the amount of pre-gain/overdrive. Notice how the signal stays fullrange with plenty of body even a low gain settings.

Mix Level - This is the magic of the Tube Primer. With the Mix level knob you mix the amount of driven signal with your clean tone. Dubbing a guitar track with both a clean and a driven sound is a

OPERATION

commonly used technique in recording studios for excellent clarity and punch. Now you can have this type of effect in live situations also.

Body - The body switch gives you two different Io/mid EQ flavours. Which setting that works best with your particular guitar and setup is for you to try and decide.

Boost Level - Sets the level for the boost function that is activated with the BOOST switch. Use the boost switch when you need that extra punch for a solo or a powerful part of the music. The boost switch does not add extra gain/drive to the signal but simply boosts the overall output level.

Output Level - Adjusts the general output volume. Notice that the boost function has a separate volume control as described above.

TECHNICAL SPECIFICATIONS

Controls Gain Level, Mix Level, Boost Level, Output Level, Color Filter.

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 20mA

Dimensions 100mm x 120mm x 50mm

INTRODUCTION

The Vintage Octa Screamer is not for the faint at heart! It recreates the famous and instantly recognizable octave doubling effect immortalized by Jimi Hendrix. The Vintage Octa Screamer is based on a unique new circuit design that greatly improves tracking and doesn't kill sustain and overtones like other Octavia-pedals are prone to do. It also includes innovative new features refining an already legendary effect. Use the mix knob to blend in the octave effect and transform the pedal from a

full-blown Octavia to a Fuzz... and everything in between. The built-in 30dB(!!!) treble boost features a specially tuned filter circuit that pushes the octave effect to new extremes. Activate it to generate screaming overtones from outer space and blast your tone beyond the stratosphere.

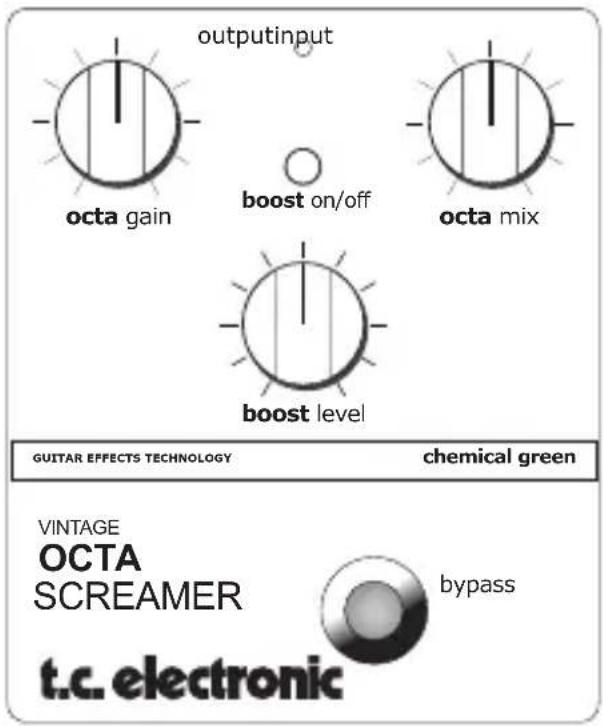

outputinput octa gain boost on/off octa mix boost level GUITAR EFFECTS TECHNOLOGY chemical green VINTAGE OCTA SCREAMER bypass t.c. electronic

Connections

Input - 1/4" connection for input signal. Connect your guitar here.

Output - 1/4" connection for output signal. Connect the output to your amp or mixer.

Power - This pedal runs on either a 9v DC power-supply or a 9v battery.

Controls

Octa Gain - Sets the drive of octaving effect. The higher setting the more overtones and more extreme the effect.

Octa Mix - Mix control between the octascream and the clean signal.

Boost Level & Boost On/Off - With the Boost switch in “off” position the pedal adds no or only little level. However, you may prefer a level boost when using the Octa Screamer. If so, set the Boost switch to “on” and adjust the boost level.

SUGGESTED SETTINGS

These are a few settings you should try out and maybe use as starting points. How you perceive these settings is of course strongly related to the guitar and PU type you play.

Boost: Off OctaMix: 10 OctaGain: 0 Level: 2 Your amp: Crunch

Fantastic overdrive effect, even when soft-plugging strings; sharp with Bridge PU, sweet with Neck PU. OctaMix regulates the effect amount.

Note: Bass gets fuller when OctaMix is <10

Boost: On OctaMix: 10 OctaGain: 10 Level: 2 Your amp: Crunch

Screaming “feedbacking” midrangy tone. OctaGain regulates the amount of distortion; OctaMix regulates the effect amount.

Note: Bass gets fuller when OctaMix is <10

Boost: On OctaMix: 0 OctaGain: 10 Level: 2 Your amp: Crunch

A “Rangemaster” overdrive sound with a little touch of “screaming effect”. Voulme is equal when bypassed.

Note: Full bass response.

Boost: On OctaMix: 0 OctaGain: 0 Level: 10 Your amp: Crunch

Overdrive booster intended to overdrive you amps input. Increased "boost volume" for solo-guitar with a touch of "screaming effect".

Note: Full bass response.

TECHNICAL SPECIFICATIONS

Boost: Off OctaMix: 10 OctaGain: 0 Level: 2 Your amp: Distorted

Fantastic overdrive effect even when soft-plugging the strings. Sharp with the Bridge PU, sweet with the Neck PU. OctaMix regulates the effect amount.

Note: Bass gets fuller when OctaMix<10

Boost: Off OctaMix: 0 OctaGain: 0 Level: 2 Your amp: Clean

This is a great setting for bassguitar that enhance presence similar to a synthbass. OctaMix regulates the effect amount.

Note: Bass gets fuller when Octamix is <10

Technical specifications

Controls Octa Gain, Octa Mix, Boost Level, Boost On/Off.

Connections 1/4 inch input jack, 1/4 inch output jack, DC jack 2mm (center is minus)

Power Supply 9-12 Vol DC or battery 9V Alkaline.

Effect Usage 30mA

Dimensions 100mm x 120mm x 50mm
