USER MANUAL WT300 WEED EATER

Copyright ©2002 Electrolux Home Products, Inc. 530088156 4/24/02 N HSTION3 TIONVdS3 SIVÔNVEH

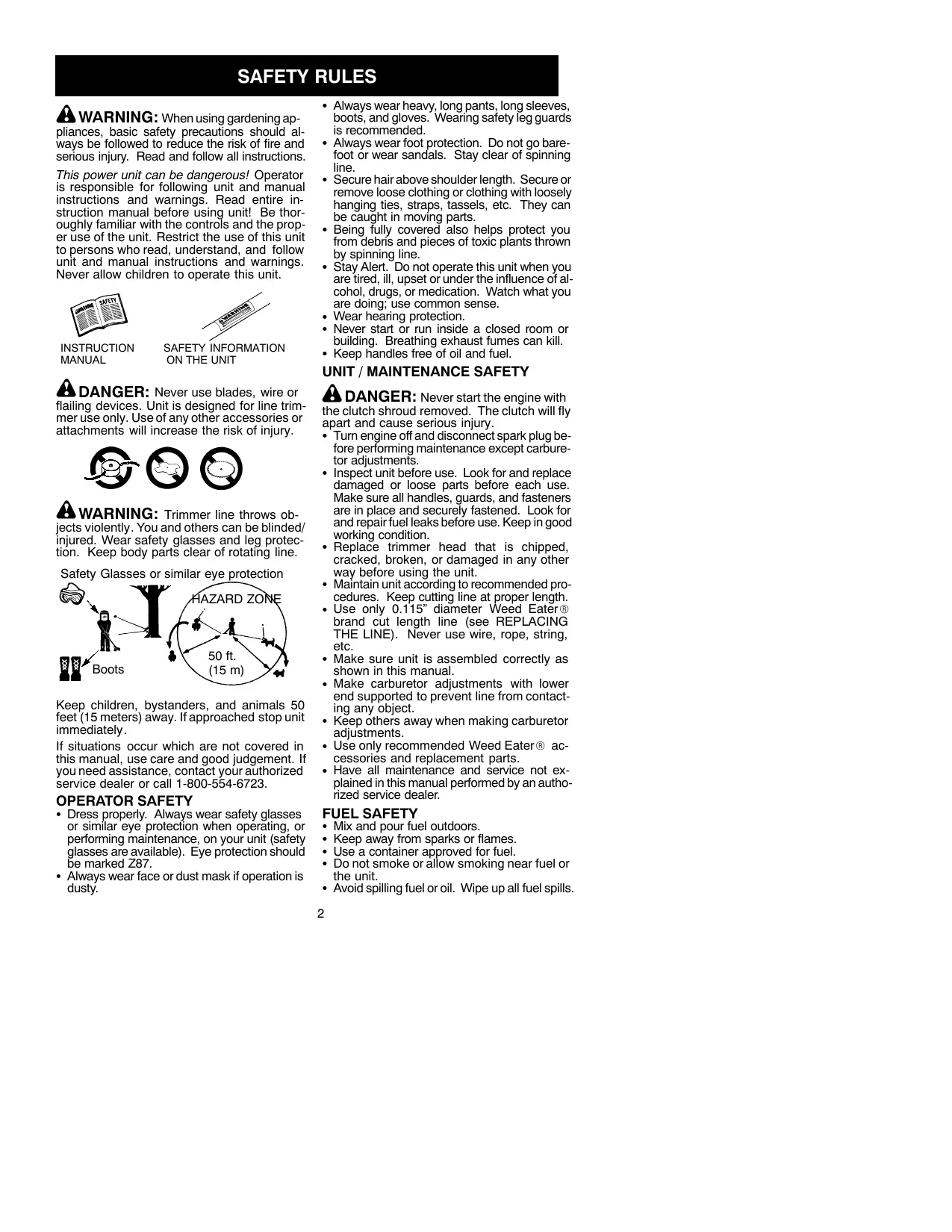

SAFETY RULES À WARNING: wnen using gardening ap- planes, basic safety precautions should al- ways be followed to reduce the risk of fire and serious injury. Read and follow all instructions. This power unit can be dangerous! Operator is responsible for following unit and manual instructions and warings. Read entire in- struction manual before using unit! Be thor- oughly familiar with the controls and the prop- er use ofthe unit. Restrict the use of this unit to persons who read, understand, and follow unit and manual instructions and warnings. Never allow children to operate this unit.

À DANGER: Never use blades, wire or flailing devices. Unit is designed for line trim- mer use only. Use of any other accessories or attachments will increase the risk of injury.

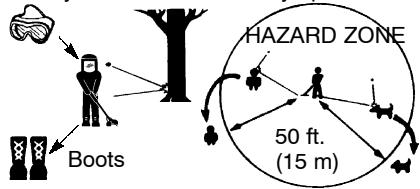

À WARNING: Trimmer ne throws ob- jects violently. You and others can be blinded/ injured. Wear safety glasses and leg protec- tion. Keep body part clear of rotating line. Safety Glasses or similar eye protection Keep children, bystanders, and animals 50 feet (15 meters) away. lfapproached stop unit immediately . If situations occur which are not covered in this manual, use care and good judgement. If you need assistance, contact your authorized service dealer or call 1-800-554-6723. OPERATOR SAFETY + Dress properiy. Always wear safety glasses or similar eye protection when operating, or perfomming maintenance, on your unit (safety lasses are available). Eye protection Should e marked Z87. + Always wear face or dust mask if operation is dusty. + Always wear heavy, long pants, long sleeves, boots, and gloves. Wearing safety leg guards is recommended. Always wear foot protection. Do not go bare- foot or wear sandals. Stay clear of spinning line. Secure hair above shoulder length. Secure or remove loose clothing or clothing with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts. Being fully covered also helps protect you from debris and pieces of toxic plants thrown by spinning line. Stay Ale. Do not operate this unit when you are tired, il, upset or under the influence of al- cohol, drugs, or medication. Watch what you are doing; use common sense. Wear hearing protection. Never start or run inside a closed room or building. Breathing exhaust fumes can kil. + Keep handles free of oil and fuel.

UNIT / MAINTENANCE SAFETY

À DANGER: Never start the engine with the cluich shroud removed. The clutch will fly apart and cause serious injury. + Turn engine off and disconnect spark plug be- fore performing maintenance except carbure- tor adjustments. Inspect unit before use. Look for and replace damaged or loose parts before each use. Make sure all handies, guards, and fasteners are in place and securely fastened. Look for and repair fuel leaks before use. Keep in good working condition. Replace trimmer head that is chipped, cracked, broken, or damaged in any other way before using the unit. Maintain unit according to recommended pro- gedures, Keep cuting ne at proper length Use only 0.115” diameter Weed Eater® brand cut length line (see REPLACING THE LINE). Never use wire, rope, string, etc. Make sure unit is assembled correctly as shown in this manual Make carburetor adjustments with lower end supported to prevent line from contact- ing any object. Keep others away when making carburetor adjustments. Use only recommended Weed Eater® ac- cessories and replacement parts. Have all maintenance and service not ex- plained in this manual performed by an autho- rized service dealer. FUEL SAFETY + Mix and pour fuel outdoors. + Keep away from sparks or flames. Use a container approved for fuel. + Do not smoke or allow smoking near fuel or the unit. + Avoid spiling fuel or oil. Wipe up all fuel spills.

+ Move at least 10 feet (3 meters) away from fueling site before starting engine. + Stop engine and allow to cool before remov- ing fuel cap. + Always store gasoline in a container ap- proved for flammable liquids. CUTTING SAFETY À WARNING: Inspect the area before each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by or become entangled in line. Hard objects can damage trimmer head and be thrown causing serious injury. Use unit properiy. Use only for trimming, mowing, and sweeping. Do not use for edg- ing, pruning, or hedge timming. Do not force unit. It will do the job better, and with less risk of injury, athe ra for which it was designed. Keep firm footing and balance. Do not over- reach. Keep all parts of pour body away from spi ning line and muffler. Keep engine and cutting head below waist level. A cause serious burns. Cut only from your right to your left. Cutting with the line on right side of the shield will throw debris away from the operator. + Use only in daylight or in good artificial light. Use only for jobs explained in this manual

TRANSPORTING AND STORAGE

+ Stop the unit when not in use. + Carry or transport the unit with engine stopped. + Allow the engine to cool; secure unit before storing or transporting in vehicle. + Empty the fuel tank before storing or trans- poring the unit. Use up fuel left in the car- uretor by starting the engine and letting it run until it stops. hot muffler can + Store unit and fuel in an area where fuel va- pors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc. + Store the unit out of the reach of children SPECIAL NOTICE: This unit is not equipped with a temperature limiting muffler and Spark arresting screen which meets the requirements of California Codes 4442 and 4443. AI U.S. forest land and the states of California, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion engines to be equipped with a spark arrestor screen. If you operate in a locale where such reguia- tions exist, you are legally responsible for installing and maintaining the operating con- dition ofthese parts. Failure to do sois a viola- tion of the law. If a spark arrestor is required in your area, contact your authorized service dealer for the proper kit. SAFETY NOTICE: Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or ab- normal swellings. Prolonged use in cold weather has been linked to blood vessel dam- age in otherwise healthy people. Ifsymptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek med- ical attention. An anti-vibration system does not guarantee the avoidance of these prob- lems. Users who operate power tools on à continual and regular basis must monitor closely their physical condition and the condi- tion of this tool. ASSEMB À WARNING: 1 received assembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure. Examine parts for damage. Do not use dam- aged paris. NOTE: if you need assistance or find parts missing or damaged, call 1-800-554-6723. It is normal for the fuel filter to rattle in the empty fuel tank. Finding fuel or oil residue on muffler is normal due to carburetor adjustments and testing done by the manufacturer.

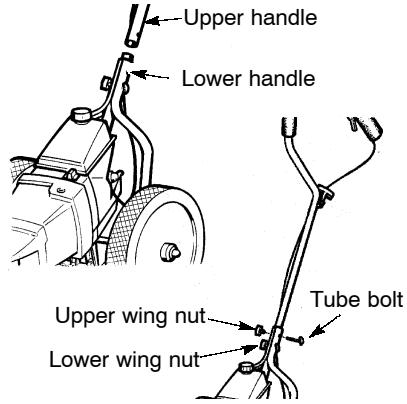

1. Remove upper wing nut and curved head

tube boit from upper handle.

2. Loosen lower wing nut on lower handle.

3. Insert upper handle over lower handle.

NOTE: Ensure upper handle grips are in position as shown in the following illustrations (throttle handle grip on left side).

4. Align holes and insert curved head tube

boit through upper and lower handles.

5. Re-install and securely tighten upper wing

6. Retighten lower wing nut securely.

{pvp handle y Lower handle Tube bolt

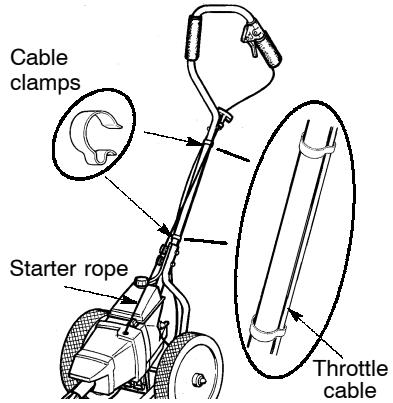

NOTE: When performing the following step, be sure the starter rpe is not caught under the cable clamps. The starter rope must hang freely to operate properly. Cable clamps Throttle cable

7. Align one cable clamp above the tube bolts

and the other below the starter rope han- die. Install the cable clamps one at atime around the tube and throttle cable. NOTE: Ensure throttle cable is in groove of clamps and lies flat against the upper handle tube after installation (see illustration above) OPERATION

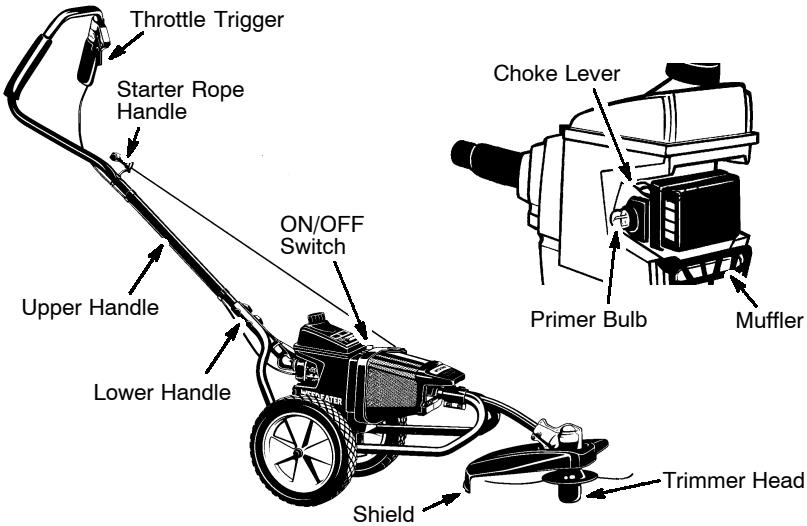

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Throttle Trigger Ÿ Starter Rope Handie ON/OFF Switch Upper Handie Lower Handle

The ON/OFF switch is used to stop engine. To stop the engine, move the switch to the OFF position. PRIMER BULB The PRIMER BULB removes air from the car- buretor and fuel lines and fils them with fuel. This allows you to start the engine with fewer pulls on the starter rope. Activate the primer bulb by pressing it and allowing it to return to its original form. Choke Lever Primer Bulb Muñfler > Trimmer Head CHOKE The CHOKE helps to supply fuel to the engine to aid in cold starting. Activate the choke by moving the choke lever to the FULL CHOKE position. After the engine attempts to start, move the choke lever to the HALF CHOKE position. Once engine hes started. move the choke lever to the OFF CHOKE position.

À WARNING: 8e sure to read the fuel information in the safety rules before you be- gin. you do not understand the safety rules, do not _attempt to fuel your unit. Cal 1-800-554-6723. FUELING ENGINE À WARNING: Remove fuel cap slowiy when refueling. This engine is Certified to operate on unleaded gasoline. Before operation, gasoline must be mixed with a good quality synthetic 2-cycle air- cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline. DO NOT USE automotive oil or boat oil. These oils will cause engine damage. When mixing fuel, follow instructions printed on container. Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed. Always read and follow the safety rules relating to fuel before fueling your unit. IMPORTANT Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during stor- age. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, empty the fuel syStem before stor- age for 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. Never use engine or carburetor cleaner product in the fuel lank or permanent damage may occur. See the STORAGE section for additional information.

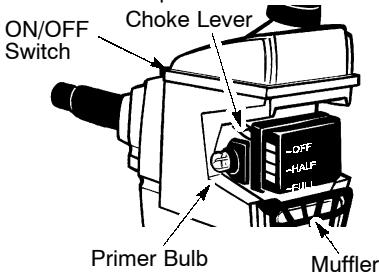

HOW TO STOP YOUR UNIT

+ To stop the engine, move the ON/OFF switch to the OFF position until the unit has fully stopped.

  • lf engine does not stop, move choke to the FULL CHOKE position. ON/OFF Switch Primer Bulb Muñfler

HOW TO START YOUR UNIT

À WARNING: The trimmer head will tum while starting the engine. Avoid any con- tact with the muffler. A hot muffler can cause serious burns. STARTING A COLD ENGINE (or a warm engine after running out of fuel) . Move ON/OFF switch to the ON position.

2. Slowiy press the primer bulb 6 times.

3. Move choke lever to the FULL CHOKE posi-

tion. . Squeeze the throttle trigger fully and hold through al! remaining steps. .. Pull starter rope handle Sharply until engine sounds as ifit is trying to start, but do not pull rope more than 6 times.

6. As soon as engine sounds as ff i is trying to

start, move choke lever to HALF CHOKE osition. ll starter rope sharply until engine runs, but no more than 6 pulls. NOTE: if the en- gine doesn't start after 6 pulls (at the HALF CHOKE position), move the choke lever to the FULL CHOKE position and press the primer bulb 6 times. Squeeze and hold the throtie trigger and pui the starter rope 2 more times. Move the choke lever to the HALF CHOKE position and pull the starter rope until the engine runs, but no more than 6 pulls. Ifthe engine still doesn't start, itis probably flooded. Proceed to START- ING À FLOODED ENGINE.

8. Once the engine starts, allow it to run 10

seconds, then move the choke lever to the OFF CHOKE position. Allow the unit to run for 30 more seconds at OFF CHOKE be- fore releasing the throttle trigger. NOTE: If engine dies with the choke le- ver in the OFF CHOKE position, move the choke lever to the HALF CHOKE position and pull the rope until engine runs, but no more than 6 pulls.

2. Move the choke lever to the HALF CHOKE

3. Squeeze and hold the throttle trigger. Keep

throtile trigger fully squeezed until the engine runs smoothly.

4. Pull starter rope sharply until engine runs,

but no more than 5 pulls.

5. Allow engine to run 15 seconds, then move

the choke lever to OFF CHOKE. NOTE: if engine has not started, pull starter rope 5 more pulls. lf engine still does not run, it is probably flooded.

STARTING A FLOODED ENGINE

Flooded engines can be started by placing the choke lever in the OFF CHOKE position: then, pull the rope to clear the engine of ex- cess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded. If_the unit still doesn't start, refer to TROUBLESHOOTING TABLE or call 1-800-554-6723.

OPERATING INSTRUCTIONS OPERATING POSITION ALWAYS USE: Eye Protection Heavy Long Pants Cut from your right to your left. NOTE: Keep left and right hands on grips during operation of unit as shown above to avoid coVering air intake holes located on un- derside of upper handle. À WARNING: Aiways wear eye protec- tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. Do not run the engine at a higher speed than necessary. The cuttng line will cut efficiently when the engine is run at less than full throttle. At lower speeds, there is less engine noise and vibration. Always release the throttle trigger and allow the engine to return to idle speed when not cutting. To stop engine: + Release the throtile trigger. + Move the ON/OFF switch to the OFF posi- tion. MAINTENANCE À WARNING: Disconnect the spark plug before performing maintenance except for carburetor adjustments.

WORN PARTS Contact an authorized service dealer for re- placement of damaged or worn parts. + ON/OFF Switch - Ensure ON/OFF switch functions properly by moving the switch to the OFF position. Make sure engine tops; then restart engine and continue. + Fuel Tank - Discontinue use of unit if fuel tank shows signs of damage or leaks. + Debris Shield - Discontinue use of unit if debris shield is damaged.

INSPECT AND CLEAN UNIT AND

LABELS + After each use, inspect complete unit for loose or damaged parts. Clean the unit and labels using à damp cloth with a mild deter- gent. + Wipe off unit with a clean dry cloth.

CLEAN THE AIR INTAKE SCREEN

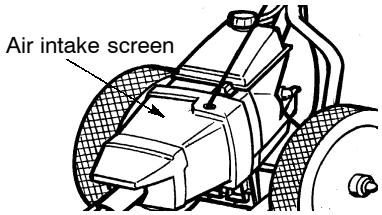

The air intake screen allows air to circulate to keep the engine functioning properly and pre- vents debris from entering the engine. À WARNING: Stop your unit before at- tempting to clean îhe intake screen. DO NOT

USE GARDEN HOSE OR PRESSURE

WASHER TO CLEAN THIS UNIT! + Clean the intake screen periodically with a nylon brush.

CLEAN THE AIR FILTER

À dirty air filter decreases engine perfor- mance and increases fuel consumption and harmiul emissions. Always clean with engine stopped. Clean filter after every 5 hours of op- eration.

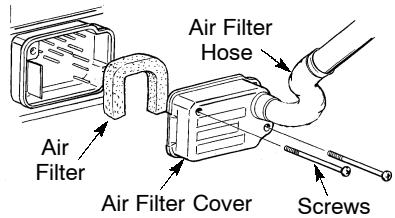

1. Clean the air filter cover and the area

around the cover to prevent dirt from falling into the carburetor chamber when the cov- er is removed.

2. Remove paris asillustrated. lt is not nec-

essary to remove the air filter hose from the air filter cover. NOTE: {f the air filter hose becomes unat- tached from the cover or lower handle during cleaning, reattach before attempting to restait the engine or operate the unit. 1e engne

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Add 10 - 15 drops of oil to the filter;

squeeze the filter to distribute oil NOTE: FILTER MUST BE OILED!

Replace the spark plug each year to ensure the engine starts easier and runs better. Set spark plug gap at 0.025 inch. Ignition timing is fixed and nonadjustable. SERVICE AN

For unit to operate properly, the cutting line should be replaced when line becomes wo to less than 3 inches in length from the edge ofthe line exit tunnels on each side ofthe cutting head. À WARNING: on replace cuttng line with engine switch in the OFF position.

1. Remove and discard worn line before

installing new line.

2. Use only .115” diameter Weed Eater®

brand cut length line.

3. Insert one end of the line through the posi-

4. Continue to feed line through tunnel until

line is centered (leaving equal amounts on each side). See illustration below. Positioning _\ tunnel A WARNING: Periom the following steps after each use: + Allow engine to cool, and secure the unit before storing or transporting. Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc. Store unit with all guards in place. Position unit so that any sharp object cannot acci- dentally cause injury. Store unit and fuel well out of the reach of children. SEASONAL STORAGE Prepare unit for storage at end of season or if it will not be used for 30 days or more. If your unit is to be stored for a period of time: + Clean the entire unit before lengthy storage. + Store in a clean dry area. + Lightly oil external metal surfaces. FUEL SYSTEM Under FUELING ENGINE in the OPERA- TION section of this manual, see message la- beled IMPORTANT regarding the use of ga- sohol in your engine. Twist, then pull off spark plug boot. : Remove spark plug from cylinder and dis- card.

3. Replace with Champion RCJ-6Y spark plug

and tighten securely with a 3/4 inch socket wrench.

5. Insert ends ofline one at atime through the

6. Pull the line and make sure the line is ex-

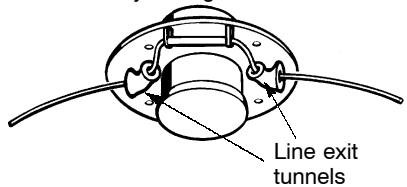

tended fully through the tunnels. Line exit tunnels

7. Correctly installed line will be the same

length on both ends. CARBURETOR ADJUSTMENTS Your carburetor is equipped with limiter caps. Carburetor adjustments is a complicated task. We recommend that you take your unit to an authorized service dealer. Damage will occur if you turn the needies beyond the limit- er stops. an acceptable altemative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to the gasoline in the fuel tank or fuel storage container. Fol- low the mix instructions found on stabilizer container. Run engine at least 5 minutes after adding stabilizer. ENGINE + Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil Replace spark plug wilh new one of recom- mended type and heat range. Clean air filter. Check entire unit for loose screws, nuts, and bolts. Replace any damaged, broken, or worn parts. At the beginning of the next season, use only fresh fuel having the proper gasoline to oil ratio. OTHER + Do not store gasoline from one season to another. + Replace your gasoline can ifitstarts to rust.

TROUBLESHOOTING TABLE À WARNING: Always stop unit and disconnect spark plug before performing al ofthe recommended remedies below except remedies that require operation of the unit.

TROUBLE CAUSE REMEDY

Engine will not | 1. Engine flooded. . See “Starting a Flooded Engine” in start. Operation Section. Fuel tank empty. . Fill tank with correct fuel mixture. Spark plug not firing. Install new spark plug. Fuel not reaching - Check for dirty fuel filter; replace. carburetor. Check for kinked or split fuel line; repair or replace.

5. Carburetor requires 5. See “Carburetor Adjustment” in

adjustment. Service and Adjustments Section. Engine will 1. Carburetor requires 1. See “Carburetor Adjustment” in not idle adjustment. Service and Adjustments Section. properly. 2. Crankshaft seals wo. | 2. Contact an authorized service dealer.

3. Compression low. 8. Contact an authorized service dealer.

Engine will not | 1. Air filter dirty. 1. Clean or replace air filter. accelerate, 2. Spark plug fouled. 2. Clean or replace plug lacks power, and regap. or dies under | 3. Carburetor requires 3. See “Carburetor Adjustment” in a load. adjustment. Service and Adjustments Section.

4. Carbon build-up on 4. Contact an authorized service dealer.

muffler outlet screen.

5. Compression low. 5. Contact an authorized service dealer.

Engine 1. Choke partially on. 1. Adjust choke. smokes 2. Fuel mixture incorrect. | 2. Empty fuel tank and refill with excessively. correct fuel mixture.

3. Air filter dirty. 3. Clean or replace air filter.

4. Carburetor requires 4. See “Carburetor Adjustment” in

adjustment. Service and Adjustments Section. Engine runs |1. Fuel mixture incorrect. | 1. See ‘Fueling Engine” in Operation hot. section. . Replace with correct spark plug. See “Carburetor Adjustment” in Service and Adjustments Section. Contact an authorized service dealer. Spark plug incorrect. Carburetor requires adjustment. Carbon build-up on muffler outlet screen. F5 SN F5 ®N

LIMITED WARRA ELECTROLUX HOME PRODUCTS, INC., warrants to the original purchaser that each new Weed Eater brand gasoline tool or at- tachment is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase. 2 YEARS - Parts and Labor, when used for household purposes. 60 DAYS - Parts and Labor, when used for commercial, professional, or'income produc- ing purposes. 30 DAYS - Parts and Labor, if used for rental purposes. This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance, or the use of accessories and/or attachments not spe- cifically_ recommended by ELECTROLUX HOME PRODUCTS, INC. for this tool. Ad tionally, this warranty does not cover tune- ups, spark plugs, filters, starter ropes, starter springs, cutting line, or rotating head parts that Will wear and require replacement with reasonable use during the warranty period. This warranty does not cover predelivery set- up or normal agjustments explained in the op- erator's manual.

OTHER RIGHTS WHICH VARY FROM

WARRANTIES EXCEPT THOSE EX-

LIMITATIONS OF INCIDENTAL OR CON-

SEQUENTIAL DAMAGES, SO THE ABOVE

LIMITATIONS OR EXCLUSION MAY NOT

The policy of ELECTROLUX HOME PROD- UCTS, INC., is to continuousiy improve its products. Therefore, ELECTROLUX HOME PRODUCTS, INC. reserves the right to change, modify, or discontinue models, de- signs, specifications, and accessories of all products at any time without notice or obliga- tion to any purchaser.

TIONS: The U. S. Environmental Protection Agency. Environment Ganada and POULAN/

ED EATER, DIVISION OF WCI OUT-

DOOR PRODUCTS, INC., are pleased to ex- plain the emissions control system warranty on your year 2001-2004 small off-road engine. POULANWEED EATER must warant the emission control system on your small off-road engine for the periods of time listed below pro- vided there has been no abuse, neglect, or im- proper maintenance of your small off-road en- gine. Your emission control system includes parts such as the carburetor and the ignition system. Where a warrantable condition exists, OULAN/WEED EATER will repair your small off-road engine at no cost to You. Expenses covered under warranty include diagnosis, parts and labor. MANUFACTURER'S RANTY COVERAGE: [f any emissions related part on your engine (as listed under Emissions Control Warranty Parts List) is defective or a de- fect in the materials or workmanship of the en- gine causes the failure of such an emission re- jated part the part wil be repaired or roplaced by POULANWEED EATER. _ OWNER'S WARRANTY RESPONSIBILITIES: As the small off-road engine owner, you are responsi- ble for the performance of the required mainte- nance listed in your instruction manual. POU- LANWEED EATER recommends that you retain all receipts covering maintenance on your small off-road engine, but POULANWÉED EATER cannot deny warranty solely for the lack of receipts or for your failure to ensure the per- formance of all scheduled maintenance. Asthe small off-road engine owner, you should be aware that POULAN/WEED EATER may deny you warranty coverage if your small off-road engine or a part of it has failed due to abuse, ne- giect:improper maintenance, unapproved mod- ffications, or the use of parts not made or ap- groved by the original equipment manufacturer ou are responsible for presenting your small off-road engine to a POULANWÉED EATER authorized repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilties, you should contact your nearest authorized service center or cal POULANWEED EATER at

1-800-554-6723. WARRANTY COM-

MENCEMENT DATE: The warranty period be gins on the date the small off-road engine is purchased. LENGTH OF COVERAGE: This warranty shall be for a period of two years from the initial date of purchase. WHAT IS COV-

ÉRED: REPAIR OR REPLACEMENT OF

PARTS. Repair or replacement of any war- ranted part will be performed at no charge to the owner at an approved POULAN/WEED EAT- ER servicing center. If you have any questions regarding your warranty rights and responsibil- ties, you Should contact your nearest authorized service center or call POULAN/WEED EATER

at 1-800-554-6723. WARRANTY PERIOD: Any warranted part which is not scheduled for replacement as required maintenance, or which is Scheduled only for regular inspection to the ef- ect of "repair or replace as necessary” shall be warranted for 2 years. Any warranted part which is scheduled for replacement as required main- tenance shall be warranted for the period of time up to the first scheduled replacement point for that part. DIAGNOSIS: The owner shall not be charged for diagnostic labor which leads to the determination that a warranted part is defective if the diagnostic work is performed at an ap- proved POULANWEED EATER servicing cen- ter. CONSEQUENTIAL DAMAGES: POU- LANMIEED EATER may be iabl for damages to other engine components caused by the fail- ure of a warranted part still under warranty. WHAT IS NOT COVERED: AI failures caused by abuse, neglect, orimproper maintenance are not covered. ADD-ON OR MODIFIED PARTS: The use of add-on or modified parts can be grounds for disallowing a warranty claim. POULANWEED EATER is not liable to cover failures of warranted parts caused by the use of add-on or modified parts. HOW TO FILE À CLAIM: If you have any questions regarding your warranty rights and responsibilities, you Should contact your nearest authorized service center or call POULANWEED EATER at 1-800-554-6723. WHERE TO GET WAR- RANTY SERVICE: Warranty services or re- pairs shall be provided at al POULANWEED ATER service centers. Call 1-800-554-6723.

MAINTENANCE, REPLACEMENT AND RE-

PAIR OF EMISSION RELATED PARTS: Any POULAN/WEED EATER approved replace- ment part used in the performance of any war- ranty maintenance or repair on emission related parts will be provided without charge to the own- er if the part is under warranty. EMISSION CONTROL WARRANTY PARTS LIST: Car- buretor, Ignition System: SJ * Plug (covered up to maintenance schedule), Ignition Module. MAINTENANCE STATEMENT: The owner is responsible for the perfommance of al required maintenance as defined in the instruction manual The information on the product label indicates which standard your engine is certified. Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.

IMPORTANT ENGINE INFORMATION

THIS ENGINE CONFORMS TO EMISSIONS

SPECIFICATIONS AND ADJUSTMENTS. This engine is certified to be emissions compliant for the following use: D Moderate (50 hours) [lintermediate (125 hours) [Extended (800 hours)
