USER MANUAL TWIST N EDGE WEED EATER

Please do not return unit to retailer.

Read and follow all Safety Rules and Operating Instructions before using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

WCI Outdoor Products, Inc.

SAFETY RULES

WARNING: When using gardening appliances, basic safety precautions should always be followed to reduce the risk of fire and serious injury. Read and follow all instructions.

This power unit can be dangerous!Operator is responsible for following unit and manual instructionsand warnings.ReadentireOperator's Manual before using unit!Bethoroughly familiar with the controls andthe properuse of the unit. Restrict the use of this unit to persons who read, understand, and follow unit andmanualinstructionsand warnings.Never allow children to operate this unit.

Safety information on the unit

DANGER: Never use blades, wire or flailing devices. This unit is designed for line trimmeruseonly.Useofanyotheraccessorsor attachments will increase the risk of injury.

WARNING: Trimmer line throws objects violently. You and others can be blinded/injured. Wearsafety glasses andlegprotection. Keep body parts clear of rotating line.

Safety Glasses or similar eye protection

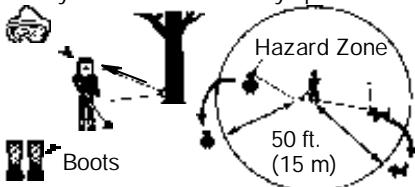

Keep children, bystanders, and animals 50 feet(15 meters) away. If approached stop unit immediately.

If situations occur which are not covered in this manual, use care and good judgement. If you need assistance, contact your Authorized Service Dealer or call 1-800-554-6723.

OPERATOR SAFETY

S Always wear safety eye protection.
Always wear long pants, long sleeves, boots, and gloves. Wearing safety leg guards is recommended. Don't gobarefoot or wear sandals. Stay clear of spinning line.
$ Secure hair above shoulder length. Secure or remove loose clothing of clothing

with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts.
S Donot operate this unit when you are tired, ill, upset, or under the influence of alcohol, drugs, or medication.
S Wear hearingprotectionif you use this unit for more than 1- 1/2 hours per day.
S Never start or run inside a closed roomor building. Breathing exhaustfumes can kill.
S Keep handles free of oil and fuel.

UNIT / MAINTENANCE SAFETY

$ Disconnect the sparkplug before performing maintenance except carburetor adjustments.
S Look for and replace damaged or loose parts before eachuse. Look for and repair fuel leaks before use. Keep in good working condition.
$ Replace trimmer head parts that are chipped, cracked, broken, or damaged in any other way before using the unit.
S Make sure unit is assembled correctly as shown in this manual.
$ Make carburetor adjustments with lower endsupportedtopreventlinefromcontacting any object.
S Keepothersawaywhenmakingcarburetor adjustments.
S UseonlyrecommendedWEEDEATERaccessories and replacement parts.

FUEL SAFETY

S Mix and pour fuel outdoors.
$ Keep away from sparks or flames.
$ Use a container approved for fuel.
S Donot smoke or allows smoking near fuel on the unit.
S Wipe up all fuel spills
S Move at least 10 feet (3 meters) away from fueling site before starting engine.
$ Stop engine and allow to cool before removing fuel cap.

CUTTING SAFETY

S Use only for trimming, mowing, edging and sweeping. Donotuse for pruning or hedge trimming.
Inspect the area before each use. Remove objects (rocks, broken glass, nails, wire, etc.) which can be thrown by line or become entangled. Hard objects can damage trimmerhead and bthrow causing serious injury.
$ Keepfirmfootingandbalance.Donotoverreach.
S Keepall parts of your body away from spinning line and muffler. Keep engine below waist level.Ahot muffler can cause serious burns.
S Cutting with the line on left side of the shield will throw debris away from the operator.

TRANSPORTING AND STORAGE

S Allowthe engine to cool; secure unit before storing or transporting in vehicle.

$ Empty the fuel tank before storing or transporting the unit. Use up fuel left in the carburetor by starting the engine and letting it run until it stops.
$ Store unit and fuel in an area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.
S Store unit soline limiter cannot accidentally cause injury. Unit can be hung by the tube.
$ Store the unit out of the reach of children

SPECIAL NOTICE: This unit is not equipped with a temperature limiting muffler and spark arresting screen which meets the requirements of California Codes 4442 and 4443. All U.S. forest land and the states of California, Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion engines to be equipped with a spark arrester screen. If you operate in a locale where such regulations exist, you are legally responsible for installing and maintaining the operating condition of these parts. Failure to do so is aviolation of the law. If a spark arrester is required in your area, contact your Authorized Service Dealer for the proper kit.

SPECIAL NOTICE: Exposure to vibrations through prolonged use of gasolinepowered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swellings. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthy people. If symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An anti-vibration system does not guarantee the avoidance of these problems. Users who operate power tools on a continual and regular basis must monitor closely their physical condition and the condition of this tool.

ASSEMBLY

WARNING: Makesure unitis properly as-sembled and all fasteners are secure.

ATTACHING THE HANDLE

$ Assemble handle to the unit as shown; makesurebottomofhandleis seated inthe groove in the trigger housing.

NOTE: Adjustment knob must be assembled on the side of the unit opposite the operator's position.
$ Pivot handle to a comfortable position. Tighten handle securely.

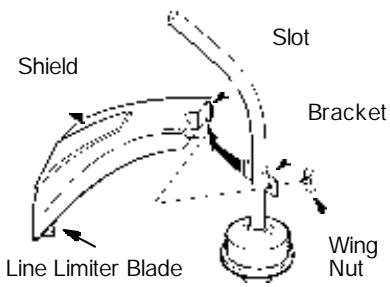

ATTACHING THE SHIELD

WARNING: The shield helps to protect the operator and others from thrown objects, and is equipped with a line limiter blade which cuts excess line. This blade (on underside of shield) is sharp and can cut you.

$ Remove wing nut from shield.
$ Insert bracket into slot as shown.
S Pivot shield until bolt passes through hole in bracket.
$ Securely tighten wing nut onto bolt.

FUEL YOUR UNIT

This engine is certified to operate on unleaded gasoline. Gasoline must be mixed with a good quality 2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand oil is recommended. (A 40:1 ratio is obtained by mixing 3.2 ounces of oil with 1 gallon of unleaded gasoline). When mixing fuel follows the instructions printed on the container. Always read and follow the safety rules under FUEL SAFETY.

STARTING

For occasional use only.

Starting Position

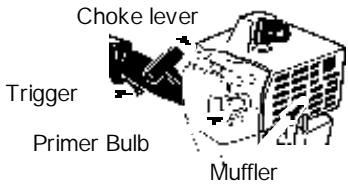

HOW TO STOP YOUR UNIT

Push and hold engine stop switch in the STOP or OFF position until the unit has fully stopped.

WARNING: The trimmer head will turn while starting the engine. A hot muffler can cause serious burns.

HOW TO START YOUR UNIT

WARNING: The trimmer head will turn while starting the engine. A hot muffler can cause serious burns.

COLD ENGINE STARTING OR STARTING AFTER REFUELING

$ Set unit on a flat surface.
$ Slowly press the primer bulb 6 times.
S Move choke lever to FULL CHOKE position.
S Squeeze the throttle trigger fully and hold through all remaining steps.
$ Pull starter rope handle sharply 6 times.
S Move choke lever to HALF CHÖKE position.
S Pull starter rope handle no more than 6 pulls, until engine runs.
S Allowengine torun 10 seconds, then move choke lever to OFF CHoke position.

RESTARTING A WARM ENGINE

$ Movechokelever toOFF CHOKEposition.
$ Pull starter rope handle until engine runs.
$ If engine does not start in 5 pulls, follow instructions in STARTING A COLD ENGINE.

USING YOUR UNIT

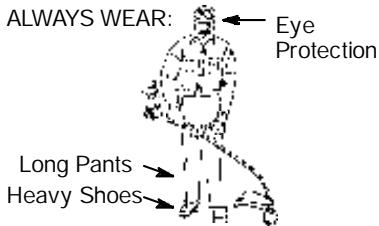

OPERATING POSITION

Cut from your right to your le

ADVANCING THE CUTTING LINE

Advance line by tapping the bottom of the cutting head lightly on the ground while engine is running at full speed. Ametal blade attached to the shield will cut the line to the proper length.

TWIST-N-EDGE

$ Pull the tab toward the engine.
S Twist the tube to the edging position; release the tab.

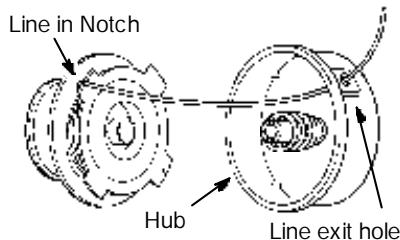

REPLACING THE LINE

S Remove spool by firmly pulling on tapbutton.
S Clean entire surface of hub and spool.
S Replace with a pre-wound spool, or cut a length of 20 feet of .080" (2 mm) diameter Weed Eaterr brand line. Never use wire, rope, string, etc., which can break off and become a dangerous missile.
$ Insert one end of the line about 1/2 inch (1 cm) into the small hole on the inside of spool.

S Wind the line evenly and tightly onto the spool. Wind in the direction of the arrow found on the spool.
S Push the line into the notch, leaving 3 to 5 inches (7 - 12 cm) unwound.
S Insert the line into the the exit hole in the hub as shown in the illustration.
S Align the notch with the line exit hole.
$ Pushspoolintohubuntilitsnaps into place.
$ Pull the line extending outside of the hub to release it from the notch.

SERVICE

Werecommend all service and adjustments not listed in this manual be performed by an Authorized Service Dealer.

CARBURETOR ADJUSTMENTS

Your carburetor is equipped with limiter caps. Carburetor adjustment is a complicated task. We recommend that you take your unit to an Authorized Service Dealer. Damage will occur if you turn the needles beyond the limiter stops.

IGNITION TIMING

The ignition timing is fixed, non-adjustable.

SPARK PLUG

Replace the spark plug yearly using a Champion RCJ-8Y plug. Spark plug gap is .025".

TROUBLESHOOTING

Engine will not start.

S Fuel tank empty.
Engine flooded
$ Spark plug not firing.
$ Fuel not reaching carburetor.
S Carburetor requires adjustment.

Engine will not idle properly.

S Carburetor requires adjustment.
S Throttle trigger screw too tight.

Engine will not accelerate, lacks power, or dies under a load.

$ Air filter dirty.
$ Spark plug fouled
S Carburetor requires adjustment.

Engine smokes excessively.

$ Air filter dirty.
$ Too much oil mixed with gasoline.
S Carburetor requires adjustment.

Line does not advance or breaks while cutting.

S Line improperly routed in head.
S Line improperly wound on spool.
$ Line size incorrect.

Line welds onto spool.

S Line size incorrect
$ Line improperly wound on spool.
S Crowding line on material being cut.

Line pulls back into head

$ Too little line outside of head.
$ Line size incorrect.

NEED ASSISTANCE?

Need Assistance?

Call 1-800-554-6723.

Need Service Parts?

Contact your dealer

LIMITED WARRANTY

FRIGIDAIREHOMEPRODUCTS,Div.WCI

OutdoorProducts, Inc. warrantstotheoriginal purchaser that each new Weed Eater brand gasoline tool or attachment is freefrom defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase.

2 YEARS- Parts and Labor, when used for household purposes.

90 DAYS - Parts and Labor, when used for commercial, professional, or income-producing purposes.

30 DAYS - Parts and Labor, if used for rental purposes.

This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance, or the use of accessories and/or attachments not specifically recommended by FRIGDAIRE

HOMEPRODUCTSforthis tool.Additionally, this warranty does notcover tune-ups,spark plugs, filters, starter ropes, starter springs, cutting line, or rotating head parts that will wear and require replacement with reasonableuseduringthe warrantyperiod. This warrantydoesnotcoverpredeliverysetupornormal adjustments explained in the operator's manual.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

NO CLAIMS FOR CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE ARE NO OTHER EXPRESS WARRANTY EXCEPTION THOSE EXPRESSLY STIPULATED HEREIN.

SOME STATES DO NOT ALLOW LIMITATIONSONHOWLONGAN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.

FRIGIDAIRE HOMEPRODUCTS' policy is to continuously improve its products. Therefore, FRIGIDAIRE HOMEPRODUCTS reserves the right to change, modify, or discontinue models, designs, specifications, and accessories of all products at any time without notice or obligation to any purchaser.

U.S. EPA / ENVIRONMENT CANADA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS: The U. S. Environmental Protection Agency/Environment Canada and POULAN/WEED EATER, DIVISION OF WCI OUTDOORPRODUCTS are pleased to explain the emissions control system warranty on your lawn and garden equipment engine. All new utility and lawn and garden equipment engines must be designed, built, and equipped to meet the stringent anti-smog standards. POULAN/WEED EATER must warrant the emission controlsystem on your lawn and garden equipment engine for theperiods of time listed below provided there has been no abuse, neglect, or improper maintenance of your lawn and garden equipment engine. Your emission control system includes parts such as the carburetor and the ignition system. Whereawarrantableconditionexits, POULAN/WEED EATER will repair your lawn and garden equipment engine at no cost to you. Expenses covered under warranty included diagnosis,partsandlabor.MANUFACTURER'SWARRANTYCOVERAGE:Ifany emissions related part on your engine (as listed under Emissions Control Warranty Parts List) is defective or a defect in thematerialsorworkmanshipoftheenginecauses the failure of such an emission related part, the partwillberepaired or replaced by POULAN/ WEED EATER. OWNER'S WARRANTY RESPONSIBILITIES: As the lawn and garden equipment engine owner, you are responsible for the performance oftherequired maintenance listed in your Owner's Manual. POULAN/WEED EATER recommends that you retain allreceipts covering maintenance on your lawn and garden equipment engine, but POULAN/WEED EATER cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the lawn and garden equipment engine owner, you should be aware that POULAN/WEED EATER may deny youwarranty coverageif your lawn and garden equipment engine or a part of it has failedduetoabuse,neglect,improper maintenance,unapproved modifications,ortheuse of parts not made or approved by the original equipment manufacturer. You are responsible for presenting your lawn and garden equipment engine toa POULAN/WEED EATER authorized repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, nottoexceed30days.Ifyouhave any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center or call POULAN/WEED EATER at 1-800-554-6723. WARRANTY COMMENCEMENT DATE: The warranty period begins on the date the lawnand gardenequip

WARRANTY PERIOD: Anywarranted part which is not scheduled for replacement as required maintenance, or which isscheduedonlyfor regular inspection to the effect of "repair or replace as necessary" shallbewarrantedfor 2years. Anywarranted part which is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part. DIAGNOSIS: The owner shall not be charged for diagnostic labor which leads to the determination that a warranted part is defective if the diagnostic work is performed at an approvedPOULAN/WEED EATERservicing center. CONSEQUENTIAL DAMAGES: POULAN/WEED EATER may be liable for damages to other engine components caused by the failure of a warranted part still under warranty. WHAT IS NOT COVERED: All failures caused by abuse,neglect,or improper maintenanceare not covered. ADD-ON OR MODIFIED PARTS: The use of add-on or modified parts canbegroundsfordis allowingawarrantyclaim. POULAN/WEED EATER is not liable tocover failures of warranted parts causedby the use of add-on or modified parts. HOWTO FILEA CLAIM: If you have any questions regarding yourwarranty rights and responsibilities, you should contact your nearest authorized service center or callPOULAN/WEED EATERat 1-800-554-6723.WHERE TO GET WARRANTYSERVICE: Warranty services or repairs shall be provided at allPOULAN/WEED EATERservicecenters call1-800-554-6723 MAINTENANCE,REPLACEMENTANDREPAIROFEMISSIONRELATEDPARTS: Any POULAN/WEED EATERapprovedreplacementpartusedinthe performanceofanywarranty maintenance or repair on emissionrelated parts will be provided without charge to the owner if the partis under warranty. EMISsION CONTROL WARRANTY PARTS LIST: Carburetor, Ignition System: Spark Plug (coveredup to maintenanceschedule), Ignition Module. MAINTENANCE STATEMENT: The owner is responsible for the performance of all required maintenance as defined in the owner's manual.
