Product Type	Infrared mini-controller for universal remote control
Brand	X10
Model	IR7243W
Power Supply	230 V ~ 50 Hz
Number of Controllable Modules	Up to 8 X10 modules (16 with universal remote)
Range	Throughout the house via powerline carrier (PLC)
Coding	House code (A-P) and unit code (1-16)
Main Functions	On/off, dimming, all lights on, all devices off
Remote Compatibility	X10 and other universal infrared remotes with appropriate code
Dimensions (approx)	10 x 6 x 4 cm
Weight (approx)	150 g
Material	ABS plastic
Color	White
Installation	Simple: plug into a power outlet, select house code
Maintenance and Cleaning	Clean with a soft, dry cloth
Safety	Do not use to control radiators or powerful heating appliances
Spare Parts and Repairability	Not specified; sealed product, not user-serviceable
Warranty	See manufacturer's terms

Frequently Asked Questions - IR7243W X10

How to install the IR7243W mini-controller?

Plug the mini-controller into a 230 V - 50 Hz outlet. Using a small screwdriver, select one of the 16 letters (A to P) on the house code selector located on the top right of the unit. This code must be the same as that of your X10 modules and your remote control.

How to program a universal remote with this system?

Consult the list of home automation codes supplied with your remote to find the appropriate X10 code. Program this code on a mode key of your remote (e.g., for VCR or SAT). Refer to your remote's user guide for the exact method.

What to do if the remote does not control the modules?

Make sure the remote is in Home Automation mode. Check that the house code of the mini-controller matches that of the modules. Point the remote correctly towards the front of the mini-controller. If the problem persists, replace the remote's batteries.

Can I control more than 8 modules?

Yes, with an appropriate universal remote you can control up to 16 modules. Use the numeric keys for unit codes 1 to 9, then for 10 to 16 follow specific combinations (e.g., press '0' then 'Chan+' for code 10).

How to turn a specific light on or off?

Point the remote towards the mini-controller. Select Home Automation mode. Press the unit code of the module (1-9) on the numeric keypad. Then press Channel UP to turn on or Channel DOWN to turn off.

How to dim the light?

Point the remote towards the mini-controller in Home Automation mode. Select the unit code of the module. Press Volume UP to increase brightness or Volume DOWN to decrease it. Note: this function requires a lamp connected to an X10 'lamp' module.

How to turn all lights on at once?

Point the remote towards the mini-controller. Select Home Automation mode. Press the Power key on your remote. All lights connected to X10 modules will turn on.

How to turn all devices off?

Point the remote towards the mini-controller. Select Home Automation mode. Press the Mute key on your remote. All X10 modules (lights and devices) will turn off.

What are the unit codes for numbers 10 to 16?

For code 10: press '0' then command keys. For 11: 'A.B' then command. For 12: 'Record' (③) then command. For 13: 'Square' (■) then command. For 14: 'R' (®) then command. For 15: press 'R' again then command. For 16: '--/--' then command. Use Chan+ to turn on, Chan- to turn off, Vol+ for brightness+, Vol- for brightness-.

What safety precautions should I take?

Do not use this system to control electric radiators or other powerful heating appliances, as accidental activation could cause a fire. Avoid plugging in empty appliances (e.g., coffee maker) that could be damaged. Unplug the mini-controller during thunderstorms.

USER MANUAL IR7243W X10

Infra-Red Mini-Controller -

Owner's Guide

Infrarot Mini-Controller -

Bedienungsanleitung

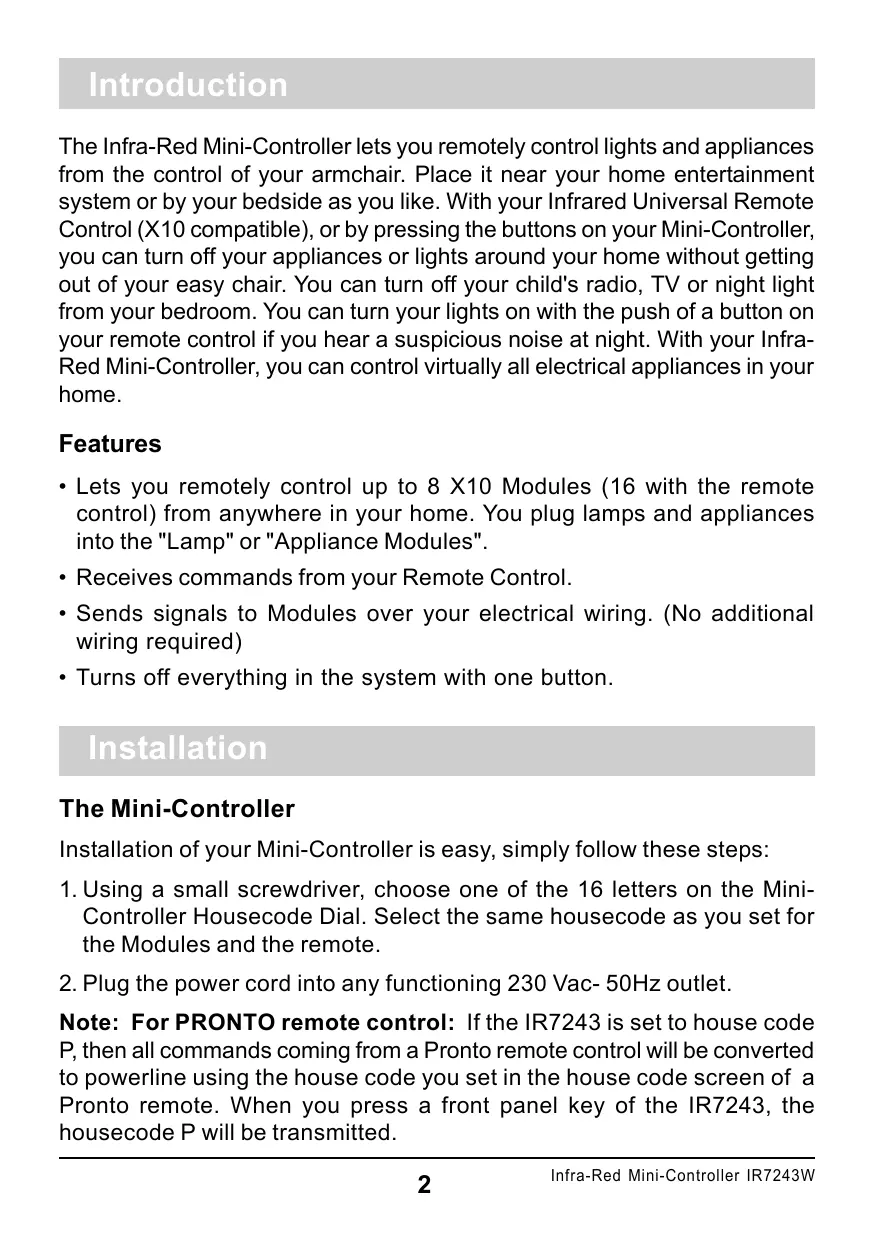

The Infra-Red Mini-Controller lets you remotely control lights and appliances from the control of your armchair. Place it near your home entertainment system or by your bedside as you like. With your Infrared Universal Remote Control (X10 compatible), or by pressing the buttons on your Mini-Controller, you can turn off your appliances or lights around your home without getting out of your easy chair. You can turn off your child's radio, TV or night light from your bedroom. You can turn your lights on with the push of a button on your remote control if you hear a suspicious noise at night. With your Infra-Red Mini-Controller, you can control virtually all electrical appliances in your home.

Features

• Lets you remotely control up to 8 X10 Modules (16 with the remote control) from anywhere in your home. You plug lamps and appliances into the "Lamp" or "Appliance Modules".
• Receives commands from your Remote Control.
• Sends signals to Modules over your electrical wiring. (No additional wiring required)
  Turns off everything in the system with one button.

Installation

The Mini-Controller

Installation of your Mini-Controller is easy, simply follow these steps:

1. Using a small screwdriver, choose one of the 16 letters on the Mini-Controller Housecode Dial. Select the same housecode as you set for the Modules and the remote.
2. Plug the power cord into any functioning 230 Vac- 50Hz outlet.

Note: For PRONTO remote control: If the IR7243 is set to house code P, then all commands coming from a Pronto remote control will be converted to powerline using the house code you set in the house code screen of a Pronto remote. When you press a front panel key of the IR7243, the housecode P will be transmitted.

Setting up your X10 Infrared Remote Control:

To control X10 device you need to enter the Home Automation code in your X-10 remote. You can find this code in the Code Book of your remote control. To enter the code, please refer to the user guide of your remote control (same procedure as the setting of a VCR or SAT ... code). Note that you need to dedicate one mode key of your remote control to this home automation code.

For a non X10 remote control, please refer to its user guide and code list.

Control with your IR Remote Control

To Turn On / Off a Light or Appliance:

1. Aim the remote at the front plate of the Mini-Controller.
2. Press the mode key dedicated to Home Automation on your remote control.
3. Press the Module's Unit Code (1-9) on the numeric keypad of your remote control.
4. Press Channel up/ down to turn it on/off on your remote control.

To Dim / Bright a Light:

1. Aim the remote at the front plate of the Mini-Controller.
2. Press the mode key dedicated to Home Automation on your remote control.
3. Press the Module's Unit Code (1-9).
4. Press Volume UP/DOWN to bright/dim.

Note: To control modules with unit codes higher than 9, on most X10 remote control, you can use the following keys :

• "10", press the 0 key and then on (Chan+), off ( Chan- ), bright ( Vol+) or dim ( Vol- )
• "11", press the A.B key and then on ( Chan+ ), off ( Chan- ), bright ( Vol+) or dim ( Vol- )
• "12", press the (or the record) key and then on (Chan+), off (Chan-), Bright (Vol+) or Dim (Vol-)
• "13", press the key and then on (Chan+), off ( Chan-), bright ( Vol+) or dim (Vol-)
• "14", press the key and then on (Chan+),off (Chan-),bright (Vol+) or dim (Vol-)
• "15", press the key and then on (Chan+),off ( Chan-),bright ( Vol+) or dim (Vol-)
• "16", press the --/-- key and then on (Chan+),off (Chan-),bright (Vol+) or dim (Vol-)

To Turn All Lights On:

1. Aim the remote at the front plate of the Mini-Controller.
2. Press the mode key dedicated to Home Automation on your remote control.
3. Press the Power key of your remote control.

To Turn All Lights and Appliances Off:

1.Aim the remote at the front plate of the Mini-Controller.
2. Press the mode key dedicated to Home Automation on your remote control.
3. Press the Mute key of your remote control.

Control with your Mini-Controller

To use the Mini Controller's Command Center's control panel:

1. Press and release the on or off side of one of the four number keys corresponding to the Unit Code set on the Module(s) to be controlled.
2. To change the light intensity : press on DIM/BRIGTH button (note : this feature works if your selected lamp is plugged into a "lamp" module)
3. To switch on all the lights : press "ALL LIGHTS ON" button
4. To switch off all the lights and appliances : press "ALL UNITS OFF"

The Selector Switch determines which group of four Unit Codes will be affected (1-4 or 5-8).

Safety warning:

Keep in mind that your Infra-Red Mini-Controller will always turn lamps and appliances on or off when you use your Remote Control or press the Mini-Controller buttons. That's obvious - but there can be some unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot may be damaged from overheating. If an electric heater is turned on by remote control while clothing is draped over it, a fire could result. Do not use the system for the control of high power heating appliances such as portable heaters.
