USER MANUAL RMB-1077 ROTEL

Seven-Channel Power Amplifier

PykoBoDCTBO noIb3OBaTeTg 7-KaHaJIbHOrO yCnJIteTg MoUHOCTN

Important Safety Information

WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, be sure that the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit.

Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords.

Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit.

The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
• The unit has been exposed to rain.
• The unit shows signs of improper operation
• The unit has been dropped or damaged in any way

Please use Class 2 Wiring when connecting the speaker terminals of the unit to ensure proper insulation and minimize the risk of electrical shock.

Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCSELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND.

This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock.

This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

This symbol means that this unit is double insulated.

An earth connection is not required.

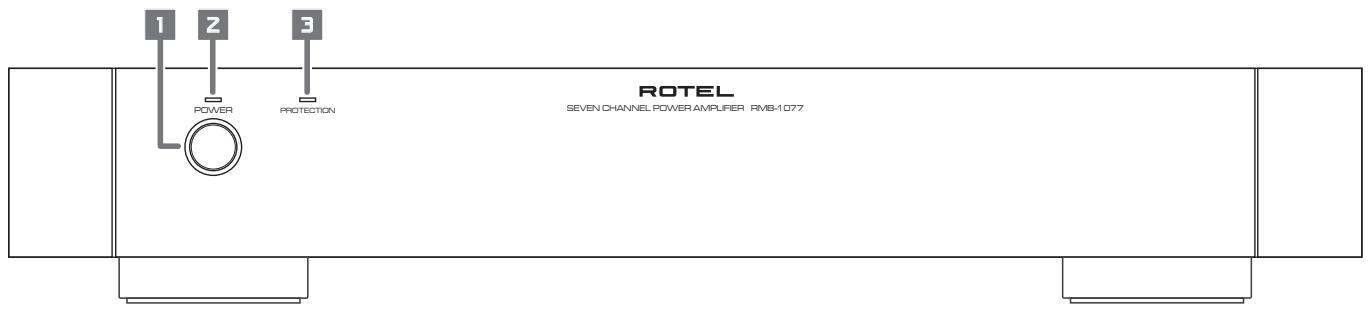

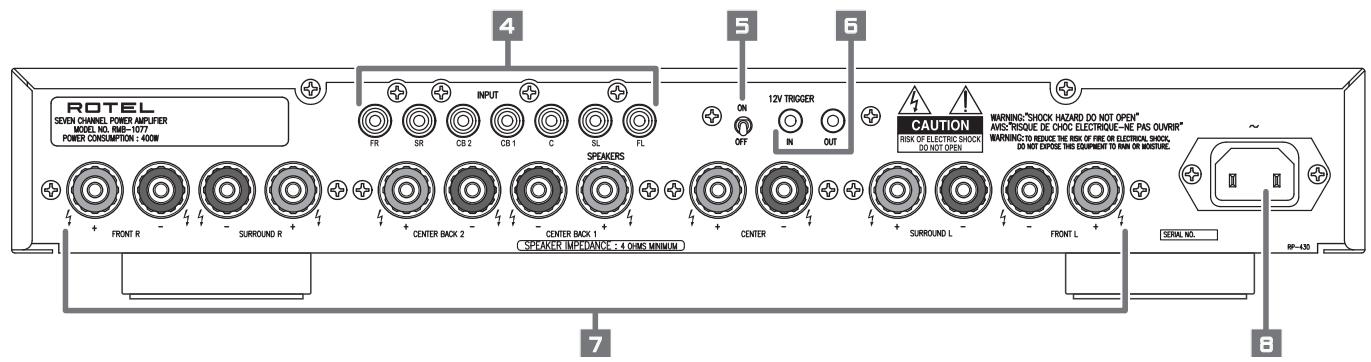

Figure 1: Controls and Connections

Anschlussdiagramm

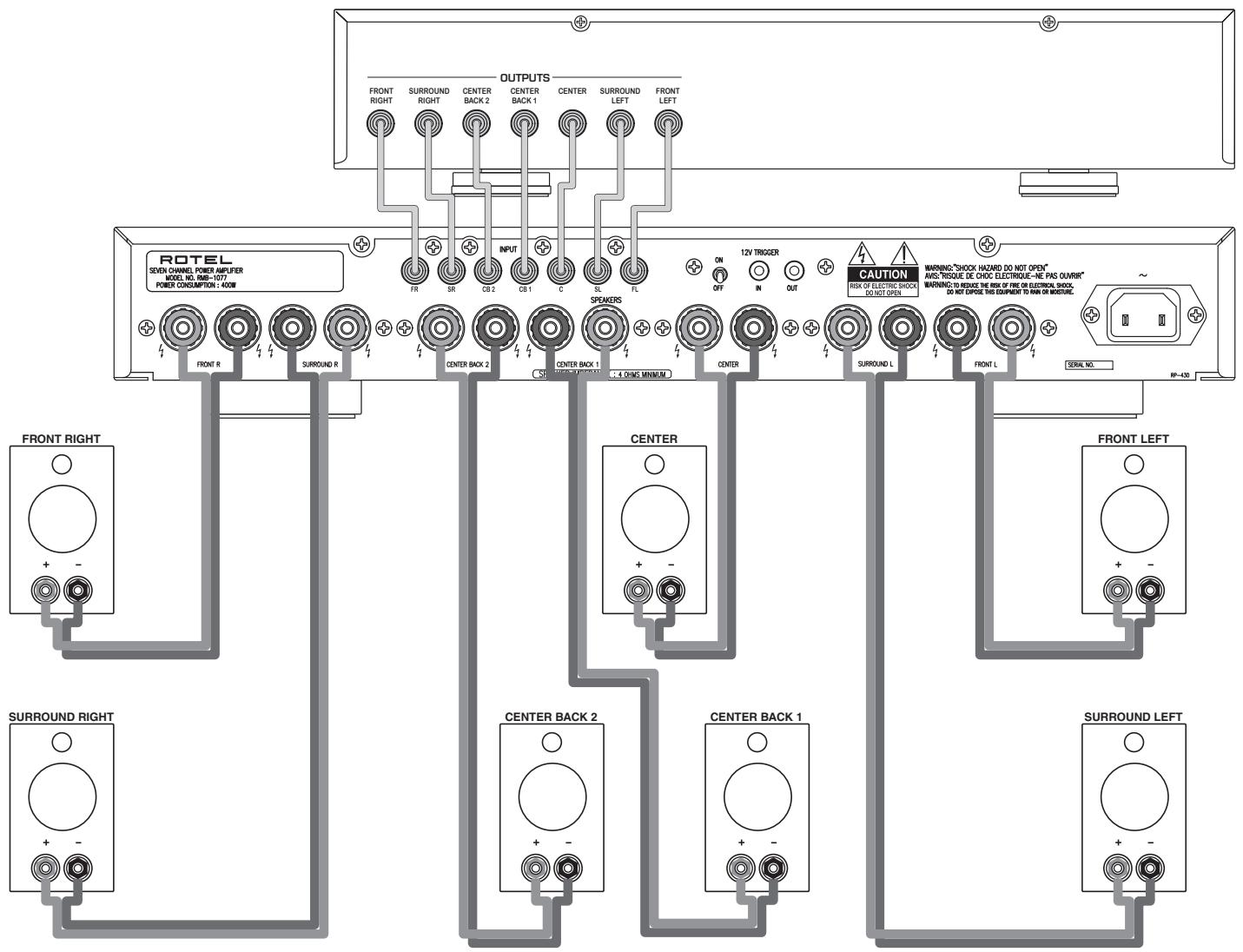

Figure 2: Input and Output Connections

Contents

Important Safety Information 2

Figure 1: Controls and Connections 3

Figure 2: Input and Output Connections 4

About Rotel 5

Getting Started. 5

Operating Features 5

A Few Precautions 5

Placement 5

AC Power and Control 6

AC Power Input 6

Power Switch and Indicator 1 Z 6

Turn On/Off Mode Selector 5 6

+12V Trigger Input and Output 6

Protection Indicators 3 6

Input Signal Connections 4 7

Speakers 7

Speaker Selection 7

Speaker Wire Selection 7

Polarity and Phasing 7

Speaker Connections 7

Troubleshooting 8

Front Panel Power Indicator Is Not Lit 8

No Sound 8

Protection Indicator Is Lit 8

Specifications 8

About Rotel

A family whose passionate interest in music led them to manufacture high fidelity components of uncompromising quality founded Rotel over 40 years ago. Over the years that passion has remained undiminished and the goal of providing exceptional value for audiophiles and music lovers regardless of their budget, is shared by all Rotel employees.

The engineers work as a close team, listening to, and fine tuning each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semiconductors from Japan or the United States, and toroidal power transformers manu-factured in Rotel's own factory.

Rotel's reputation for excellence has been earned through hundreds of good reviews and awards from the most respected reviewers in the industry, who listen to music every day. Their comments keep the company true to its goal - the pursuit of equipment that is musi cal, reliable and affordable.

All of us at Rotel thank you for buying this product and hope it will bring you many hours of enjoyment.

Getting Started

Thank you for purchasing the Rotel RMB-1077 Seven-Channel Power Amplifier. When used in a high-quality music or home theater system, your Rotel amplifier will provide years of musical enjoyment.

The RMB-1077 is a sophisticated seven-channel power amplifier. It's digital amplifier circuitry, switching power supply, premium components, and Rotel's Balanced Design ensure superb sound quality. High current capability allows the RMB-1077 to drive difficult speaker loads with ease.

Operating Features

• Seven amplifier channels.

• User selectable power on/off configuration: manual or controlled by remote 12 volt trigger signal.

• Protection circuitry with front panel indicators.

A Few Precautions

Please read this manual carefully. In addition to installation and operating instructions, it provides information on various RMB-1077 system configurations. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

Save the RMB-1077 shipping carton and packing material for future use. Shipping or moving the RMB-1077 in anything other than the original packing material may result in severe damage to your amplifier.

Be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required.

Placement

The RMB-1077 generates heat as part of its normal operation. The heat sinks and ventilation openings in the amplifier are designed to dissipate this heat. The ventilation slots in the top cover must be unobstructed. There should be 10cm (4 inches) of clearance around the chassis, and reasonable airflow through the installation location, to prevent the amplifier from overheating. Likewise, remember the weight of the amplifier when you select an installation location. Make sure that the shelf or cabinet can support its weight.

AC Power and Control

AC Power Input

The RMB-1077 is supplied with the proper AC power cord. Use only this cord or an exact equivalent. Do not use an extension cord. A heavy duty multi-tap power outlet strip may be used, but only if it is rated to handle the current demand of the RMB-1077.

Be sure the Power Switch on the front panel of the RMB-1077 is turned off. Then, plug one end of the cord into the AC power connector on the back panel of the amplifier. Plug the other end into an appropriate AC outlet.

Your RMB-1077 is configured at the factory for the proper AC line voltage in the country where you purchased it (USA: 120 volts/60 Hz, Europe: 230 volts/50 Hz). The AC line configuration is noted on a label on the back panel.

NOTE: Should you move your RMB-1077 to another country, it is possible to configure your amplifier for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the enclosure of the RMB-1077 exposes you to dangerous voltages. Consult a qualified technician or the Rotel factory service department for information.

If you are going to be away from home for an extended period of time, it is a sensible precaution to unplug your amplifier.

Power Switch and Indicator 12

The Power Switch is located on the front panel. To turn the amplifier on (or to activate either of the optional automatic power-on modes), push the switch in. The LED indicator above the switch will light, indicating that the amplifier is turned on. To turn the amplifier off, push the button again and return it to the out position.

Turn On/Off Mode Selector

The RMB-1077 can be turned on and off automatically by using its "12V Trigger" system. The Turn On/Off Mode Selector switch is used to select which method is used.

• With the switch in the OFF position, the amplifier is turned on or off manually using the front panel power switch.
• With the switch in the 12V TRIG. position, the amplifier is turned on automatically when a 12 volt trigger signal is applied to the 3.5mm Jack labeled IN. The front panel POWER SWITCH overrides this function. It must be ON for the +12V trigger to work. Turning the switch OFF cuts power to the amplifier, regardless of whether or not a trigger signal is present.

+12V Trigger Input and Output

The jack labeled IN is for connecting the 3.5mm Plug/Cable carrying a +12 volt trigger signal to turn the amplifier on and off. To use this feature the adjacent switch must be set in the 12V TRIG position (see previous section). This input accepts any control signal (AC or DC) ranging from 3 volts to 30 volts.

The jack labeled OUT is for connecting another 3.5mm plug/cable to provide a 12V trigger signal to other components. The 12V output signal is available whenever a +12 volt trigger signal is applied to the IN connector.

Protection Indicators 3

Thermal and protection circuits protect the amplifier against potential damage in the event of extreme or faulty operating conditions. Unlike many designs, the RMB-1077's protection circuit is independent of the audio signal and has no impact on sonic performance. Instead, the protection circuit monitors the temperature of the output devices and shuts down the amplifier if safe limits are exceeded.

In addition, the RMB-1077 includes overcurrent protection which operates only when load impedances drop too low. This protection is independent for each of the seven channels.

Should a faulty condition arise, the amplifier will stop playing and the PROTECTION LED on the front panel will light.

If this happens, turn the amplifier off, let it cool down for several minutes, and attempt to identify and correct the problem. When you turn the amplifier back on, the protection circuit will automatically reset and the PROTECTION LED should go out.

In most cases, the protection circuitry activates because of a fault condition such as shorted speaker wires, or inadequate ventilation leading to an overheating condition. In very rare cases, highly reactive or extremely low impedance speaker loads could cause the protection circuit to engage.

Input Signal Connections 4

See Figure 2

The RMB-1077 has standard unbalanced RCA-type input connectors, the type used on nearly all audio equipment. There is an RCA input for each of the seven amplifier channels. These RCA inputs accept audio signals from preamplifiers or surround sound processors. Use high quality audio interconnect cables for best performance.

Speakers

The RMB-1077 has seven sets of speaker connection terminals, one for each amplifier channel.

Speaker Selection

The nominal impedance of the loudspeaker(s) connected to each channel of the RMB-1077 in the various operating modes should be no lower than 4 ohms.

Speaker Wire Selection

Use insulated two-conductor stranded wire to connect the RMB-1077 to the speakers. The size and quality of the wire can have an audible effect on the performance of the system. Standard speaker wire will work, but can result in lower output or diminished bass response, particularly over longer distances. In general, heavier wire will improve the sound. For best performance, you may want to consider special high-quality speaker cables. Your authorized Rotel dealer can help in the selection of appropriate cables for your system.

Polarity and Phasing

The polarity – the positive/negative orientation of the connections – for every speaker and amplifier connection must be consistent so all the speakers will be in phase. If the polarity of one connection is mistakenly reversed, bass output will be very weak and stereo imaging degraded. All wire is marked so you can identify the two conductors. There may be ribs or a stripe on the insulation of one conductor. The wire may have clear insulation with different color conductors (copper and silver). There may be polarity indications printed on the insulation. Identify the positive and negative conductors and be consistent with every speaker and amplifier connection.

Speaker Connections 7

See Figure 2

The RMB-1077 has two color coded terminals for each amplifier channel. These speaker terminals accept bare wire, connector lugs, or "banana" type connectors (except in the European Community countries where their use is not permitted).

Route the wires from the RMB-1077 to the speakers. Give yourself enough slack so you can move the components to allow access to the speaker connectors.

If you are using banana plugs, connect them to the wires and then plug into the backs of the speaker connectors. The collars of the speaker connectors should be screwed in all the way (clockwise).

If you are using terminal lugs, connect them to the wires. If you are attaching bare wires directly to the speaker connectors, separate the wire conductors and strip back the insulation from the end of each conductor. Be careful not to cut into the wire strands. Unscrew (turn counterclockwise) the speaker connector collar. Place the connector lug around the shaft, or insert the bundled wire into the hole in the shaft. Turn the collars clockwise to clamp the connector lug or wire firmly in place.

NOTE: Be sure there are no loose wire strands that could touch adjacent wires or connectors.

Troubleshooting

Most difficulties in audio systems are the result of poor or wrong connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the RMB-1077, refer to the suggestions for the following conditions:

Front Panel Power Indicator Is Not Lit

No main power to the RMB-1077. Check AC power connections at the amplifier and the AC outlet. Check the front panel power switch. Make sure that it is set to the ON position. If using 12V trigger power-on, make sure that a trigger signal is present at rear panel 12V TRIG IN jack.

No Sound

If the amp is getting AC power, but is producing no sound, check the PROTECTION INDICATOR on the front panel. If lit, see below. If not, check all of your connections and control settings on associated components. Make sure that your input connections and speaker connections match your system configuration.

Protection Indicator Is Lit

The front panel PROTECTION INDICATOR light when the RMB-1077 protection circuits have shut off the amplifier. Typically, this occurs only when the amplifier has overheated, when there is faulty speaker wiring, or after a period of extreme use. Turn off the system and wait for the amp to cool. Then push the front panel power switch in and out to reset the protection devices. If the problem is not corrected or reoccurs, there is a problem with the system or the amplifier itself.

Specifications

Power Configurations (FTC)

7 × 100 Watts

Watts/Channel

100 watts, all channels driven, with 20KHz filter,

8 ohm load, 20-20 kHz, 0.03% THD

Total Harmonic Distortion (20Hz-20kHz, 8 ohms)

Continuous Rated Power

<0.03%

One-Half Rated Power

<0.03%

One Watt per Channel

<0.03%

Power Output (4 Ohms, 0.09% THD)

200 watts

Intermodulation Distortion 60 Hz:7 kHz, 4:1

< 0.03%

Damping Factor (8 ohms)

400

Amp Gain

27.4dB

Input Sensitivity/Impedance

1.2 V / 8.3 k ohms

Frequency Response

10-80KHz (± 3dB)

Signal to Noise Ratio (IHFA)

105 dB

Power Requirements

USA

120 Volts, 60 Hz

Europe

230 Volts, 50 Hz

Power Consumption

400 Watts

Panel Height (for rack mounting)

60 mm, 23/8 in

Weight (net)

7.8kg 17.2 lb.

All specifications are accurate at the time of printing.

Rotel reserves the right to make improvements without notice.

Pa3beMbI InI BxOaHbIX CInrHaNoB 4

Гомкоговорпел... 42

Bb6op rpoMkoROOBpnten 42
Bb6op akcytneckoro ka6eIa 42
PonpaHocb nΦa3npOBka 42
PnncoeHneHne rpoMkoROBOpnteJe 7 41

Bo3MOxHbIe HEnCnPabBHOCTN 43

Hndkatop nitaHa na nepedne nnenn
He CBetntcra 43
Her3Byka 43
Hndkatop 3auntb CBETTC4 43

XapakTepeHCTnKn 43

O kompann Rotel

KoMaHnR RoTeI OchoBaHa 6Oone 40 net Ha3a ceMbey, KOTOPa H3-3a CtpaTHO NIOBn K My3bKe 3aHApacb npOn3BoDCTBOM hi-fi KOMnoHETOB. C rOamn 3Ta CtpaTb He yTHxna, n ceroJnA CTpeMneHHe CeMbN K ObcpeeHnO aYInoΦHOB n MeNoMAHOB, He3ABNCmO OT IN φINAHCOBOrO nonOJeHnA, annapatypoB BbICoyaWero KaueCTBa, pa3dEJIhot BCE cotpydnKn RoTeI.

Дужная KMанда Инжehеров послшьает Ин Habраньет кождое HOBOE ИЗДENUE, NOKA Оно He 6удET COOTBETCTBOBATcMbIM BbICOKIM Стандэртам. ИnpededoctabNeHa CB6ODA bI6Opa КOMПпгктуюши NO BCEMY MИР, YTO6bl CDEnATb Annapat kAK моЖно Лчse. БерогTHO, Bbl CMoxKete Найtn KOнDEHcatopbl n3 BenHKo6pHTAHIN n Германи, РынpoBoDнIKN n3ЯнOHи nCIIa, a Тakke TopoHdANbHble снOBBLE trPahCΦopMAtopbl, n3rTOBLeHHBe Ha co6CTBeHHOM 3aBODe Rotel.

Pennyatau KOMpanHHn Rotel kak npon3BOinte nIpeBocxOAnHO TexNKn NODTBepXdeHa COTHaMn IonoXteNBHX OT3bIBOB Harpad ot Han6oJee yBaKaembIX 3KcneptOB, KOtOpBle CnyShaOT My3bIKy ExedHeBNO. INKOMMeHTapnn NOMOraHT KOMpanHHn TOHNO pIndepXkVBbC8 ee Kypca Ha npOn3BOCTBO KaueCTBeHHoro, HAdexHoro n DoctynHoro O6OpYDoBAHn.

Mbl, cotpydnkn KOMnHn Rotei, 6naorapm Bac 3a nOKyIKY 3TOI 03dEInN, n HnAeemC, yTO OHO IOCTABNT BAM MHOrO YACOB yDOBOJIbCTBn.

BbO B 3KcPnyatauHIO

Bnaoradapn BAC 3a npno6pTeHne 7-kaHAnbHorO ycnntenmouocn Rotel RMB-1077.Pnp nCnOJIb3OBaHHN B BbICOKOKaueCTBeHHoN CnCTeMe IINBOCPON3BedeHnMy3bIK NIN DOMaHHeRo KInHOteatpa, BAw ycnntenB Rotel o6ecneHT roDb yDOBOJbCTBnOt OPiocnyuBaHHn.

RMB-1077 ABnIeTc CnoXhbIM 7-KaHaJIbHbIM ycHnITenEM MoUHocTn. Ero CXemOTexNkauΦpOBOrO ycHnITen, HmynbChbI NCTouHNK nHTAHn, OT6OpHbIe KOMnIeKToUoJne I c6aAnHCnpOBaHHa KOnctpyKcua RoteI o6ecNeuBaHOT npEBCxOdHoe KaueCTBO 3ByaHn. CnocO6HocTb RMB-1077 OTdaBAt 6onbWoi TK IO3BONJeT Emy Ierko CnpabJIbTcBc C TpyDhbIMn HArpy3kAMn B VIne rPOMKOrOBopHTenei.

OchOBhbie XapakTepnCTnK

CembkaHANOBycHnITeNei;

KoHnIpyaunBkIIOueHn/ByIKIOueHnniTaHnNo BbIbOpny NOnb3OBateJpyHoe nInDnCTaHnOHHoe npn NMOuN 12-BONbTOBOrO NyCKOBOrO CnHa;
Cxema 3auntbotkopoTkoT 3ambikaHn Hndkatopom Ha nepeedne nahehi.

HekotopbIe Mepbl

npeoctopoxknoctn

IoxaynuCTa, npouHTaTe daHnoe PykOBoCTBO BHNMaTeNbHO. KpOME oChOBhIX HactabNeHHIO no yCTAHOBKe n 3KcPnPyatauIN, OHO cOepXHT INΦopMaunO o pa3NnUhIX KOHpyraunx CnCTeMbHa oCHObE RMB-1077. IoxaynctA, 6paaJIteCb K BAWeM y ABTOPI3OBAHOMy DInepy Rotel 3a OTBeTAMn HA NIObIe BONpOcI, KOtOpBIE MOrYT Bo3NHKNHyb. KpOME tOrO, NIO6oI cOTpydNk Rotel c YDOBoNbCTBHeM IpImET BaUn BONpOcI N KOMMeHTapHn.

CoxpaHnTe TpaHcnpOthyKapToHHy Kopo6Ky ot RMB-1077 n BCE BloXeHNbIe ynaKOBouHbIe MaTePnAbI bIra dAJIbHeMWeIO hCnoNb3oBaHn. TpaHcnpOtpOBaHne HnI nepeMeueHne RMB-1077 B IIO6oTape N yNaKOBKe, KpomeOpHnHaBHO, MoXet npNbEcbTn K cepBe3HOMy NOBpeJdeHIO BAwero YcINNTeIa.

CoxpaHnTe yek o npoJaXe. OH aBJIaETc HauhyuWe perInctpaUne dAtb npNo6peTEnHa, KOTOPa 6yDat BoCTpe6oBaHa B Cnyae rapaHTnHOrO 06CnyKbAHnE, eCn OHO KOla- nIb6o NoHaDo6ntc.

Pazmeuenie

RMB-1077 BbIeJraTe TENn npHopMaIbHO pa6ote. TeNnoOTBoaBb I BeHTnlaUIOHHbIe OTBepCTNa B YcunNTene CnpoeKTHPOBaHOblIpaPaccenBaHnA 3TOrO TEnna. BeHTnlaUIOHHbIe npope3n B BepXHe KpbIeke KopnyCa DOnkHb6bIb CBO6oHNb.I CneyET OCTABnIb He MeHee 10 cm CBO6oHOrO npocTpaHCTBa BOKpyr Kopnya np6opa, a TaKxe HaNDexKauei Bo3DyHbN botok B Mecte UcTahOBKn, UTo6blpeDTbpATnb YcunNTenB ot npepeReBa.KpOme toro, NOMHnte o Bece DaHHO rCUnNTeJI, KOrDa BbIbPaTe Me cto dIeraero UcTahOBKn. Y6eInTeCb, UTo noIka HnI CTennlax MOrY T BiIDepKAtb erO Bec.
