USER MANUAL RMB-1076 ROTEL

Six-Channel Power Amplifier

This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock.

This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

This symbol means that this unit is double insulated. An earth or ground connection is not required.

Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

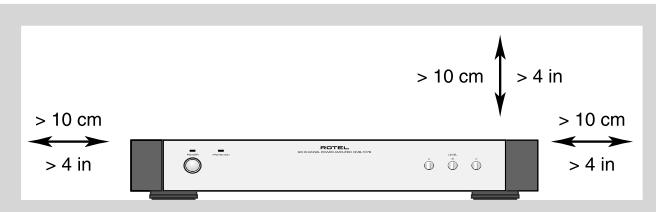

You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat.

The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit.

Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords.

Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit.

The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.
• Objects have fallen or liquid has been spilled into the unit.
• The unit has been exposed to rain.
• The unit shows signs of improper operation.
• The unit has been dropped or damaged in any way.

Please use Class 2 Wiring when connecting the speaker terminals of the unit to ensure proper insulation and minimize the risk of electrical shock.

Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over.

1: Controls and Connections

2: Stereo Connections

Figure 1: Controls and Connections 3

Figure 2: Stereo Connections 4

About Rotel 5

Getting Started. 5

Operating Features 5

A Few Precautions 5

Placement 5

AC Power and Control 6

AC Power Input 6

Power Switch and Indicator 12 6

Auto Turn On/Off Mode Selector 6

+12V Trigger Input and Output 6

Protection Indicator 3 6

Stereo Mode Selection. 6

Input Select Switches 6

Signal Connections 7

RCA Inputs 5

Input Level Controls 4

Signal Output Link 7

Speakers 7

Speaker Selection 7

Speaker Wire Selection 7

Polarity and Phasing 7

Speaker Connections 7

Specifications. 8

Troubleshooting. 8

Front Panel Power Indicator Is Not Lit 8

No Sound 8

Protection Indicator Is Lit 8

Specifications. 8

About Rotel

A family whose passionate interest in music led them to manufacture high fidelity components of uncompromising quality founded Rotel over 45 years ago. Over the years that passion has remained undiminished and the goal of providing exceptional value for audiophiles and music lovers regardless of their budget, is shared by all Rotel employees.

The engineers work as a close team, listening to, and fine tuning each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semiconductors from Japan or the United States, and toroidal power transformers manufactured in Rotel's own factory.

Rotel's reputation for excellence has been earned through hundreds of good reviews and awards from the most respected reviewers in the industry, who listen to music every day. Their comments keep the company true to its goal - the pursuit of equipment that is musical, reliable and affordable.

All of us at Rotel thank you for buying this product and hope it will bring you many hours of enjoyment.

Getting Started

Thank you for purchasing the Rotel RMB-1076 Six-Channel Power Amplifier. When used in a high-quality music or home theater system, your Rotel amplifier will provide years of musical enjoyment.

The RMB-1076 is a sophisticated six-channel power amplifier. Discrete output devices, a switching power supply, premium components, and Rotel's Balanced Design ensure superb sound quality. High current capability allows the RMB-1076 to drive difficult speaker loads with ease.

Operating Features

• Three pair of amplifier channels.
• User selectable power on/off configuration: manual, automatic signal sensing, or controlled by remote 12 volt trigger signal.
• Front panel input level controls.
• Protection circuitry with front panel indicator.
• Signal link output to pass-through the input signal to another component.

A Few Precautions

Please read this manual carefully. In addition to installation and operating instructions, it provides information on various RMB-1076 system configurations. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

Save the RMB-1076 shipping carton and packing material for future use. Shipping or moving the RMB-1076 in anything other than the original packing material may result in severe damage to your amplifier.

Be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required.

Placement

The RMB-1076 generates heat as part of its normal operation. The heat sinks and ventilation openings in the amplifier are designed to dissipate this heat. The ventilation slots in the top cover must be unobstructed. There should be 10cm (4 inches) of clearance around the chassis, and reasonable airflow through the installation location, to prevent the amplifier from overheating. Likewise, remember the weight of the amplifier when you select an installation location. Make sure that the shelf or cabinet can support its weight.

AC Power and Control

AC Power Input

The RMB-1076 is supplied with the proper AC power cord. Use only this cord or an exact equivalent. Do not use an extension cord. A heavy duty multi-tap power outlet strip may be used, but only if it is rated to handle the current demand of the RMB-1076.

Be sure the Power Switch on the front panel of the RMB-1076 is turned off. Then, plug one end of the cord into the AC power connector on the back panel of the amplifier. Plug the other end into an appropriate AC outlet.

Your RMB-1076 is configured at the factory for the proper AC line voltage in the country where you purchased it (USA: 120 volts/ 60Hz , Europe: 230 volts/ 50Hz ). The AC line configuration is noted on a label on the back panel.

NOTE: Should you move your RMB-1076 to another country, it is possible to configure your amplifier for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the enclosure of the RMB-1076 exposes you to dangerous voltages. Consult a qualified technician or the Rotel factory service department for information.

If you are going to be away from home for an extended period of time, it is a sensible precaution to unplug your amplifier.

Power Switch and Indicator 12

The Power Switch is located on the front panel. To turn the amplifier on (or to activate either of the optional automatic power-on modes), push the switch in. The LED indicator above the switch will light, indicating that the amplifier is turned on. To turn the amplifier off, push the button again and return it to the out position.

Auto Turn On/Off Mode Selector

The RMB-1076 provides three options for manual or automatic power on/off operation. These modes are selectable using a three-position slide switch on the back panel:

• With the switch in the OFF position, the amplifier is turned on or off manually using the front panel power switch. Use this mode if you are using a switched AC outlet to control power to the amplifier.
• With the switch in the SIGNAL SENSING position, the amplifier turns on automatically when a signal is sensed at the inputs. The amplifier will go into standby mode with no signal. The front panel power switch overrides this function. It must be ON for the signal sensing to work. Turning the switch OFF cuts power to the amplifier, regardless of whether or not a signal is present.
• With the switch in the 12V TRIG. position, the amplifier is turned on automatically when a 12 volt trigger signal is applied to the 3.5mm jack to the left of the switch. The amplifier will go into standby mode with no signal if the +12 volt signal is not present. The front panel POWER SWITCH overrides this function. It must be ON for the +12V trigger to work. Turning the switch OFF cuts power to the amplifier, regardless of whether or not a trigger signal is present.

+12V Trigger Input and Output

The jack labeled IN is for connecting the 3.5mm Plug/Cable carrying a +12 volt trigger signal to turn the amplifier on and off. To use this feature the adjacent slide switch must be placed to the left position (see previous section). This input accepts any control signal (AC or DC) ranging from 3 volts to 30 volts.

The jack labeled OUT is for connecting another 3.5mm plug/cable to provide a 12V trigger signal to other components. The 12V output signal is available whenever a +12 volt trigger signal is applied to the IN connector.

Protection Indicator 3

Thermal and protection circuits protect the amplifier against potential damage in the event of extreme or faulty operating conditions. Unlike many designs, the RMB-1076's protection circuit is independent of the audio signal and has no impact on sonic performance. Instead, the protection circuit monitors the temperature of the output devices and shuts down the amplifier if safe limits are exceeded.

In addition, the RMB-1076 includes overcurrent protection which operates only when load impedances drop too low. This protection is independent for each of the three pair of channels and is indicated by the front panel PROTECTION LED.

Should a faulty condition arise, the amplifier channel at fault will stop playing and the PROTECTION LED on the front panel will light.

If this happens, turn the amplifier off, let it cool down for several minutes, and attempt to identify and correct the problem. When you turn the amplifier back on, the protection circuit will automatically reset and the PROTECTION LED should go out.

In most cases, the protection circuitry activates because of a fault condition such as shorted speaker wires, or inadequate ventilation leading to an overheating condition. In very rare cases, highly reactive or extremely low impedance speaker loads could cause the protection circuit to engage.

Stereo Mode Selection

It is useful to think of the RMB-1076 as three stereo amplifiers in a single chassis.

• Stereo mode: Conventional 2-channel stereo operation for a pair of amplifier channels. Minimum speaker load: 4 ohms.

Input Select Switches 5

A rear panel switch adjacent to the inputs can select LINK to be On or Off for the first pair of amplifier channels.

For Stereo mode: Slide the switch associated with the desired pair of amplifier channels to the right or OFF position. Use both LEFT and RIGHT input connectors, and connect one speaker to each pair of speaker connectors.

NOTE: For groups "B" and/or "C", you can also place the INPUT SELECT switch to the ON position for Stereo mode. This routes the input signals from the "A" group to the inputs for that pair of amplifier channels.

Signal Connections

The RMB-1076 provides standard conventional input connections — unbalanced RCA type connections as found on nearly all audio equipment.

There is also a pair of SIGNAL OUTPUT LINK connections for passing the input signal connected to the "A" pair of channels on to another audio component. Additionally, the input signal to the "A" pair of channels can be automatically linked to the inputs for the "B" and/or "C" channels, so that a separate input signal cable is not required for those channels, for example in large systems where the RMB-1076 is being used to drive multiple pairs of speakers in stereo mode.

RCA Inputs

See Figure 2

There are two RCA inputs for each of the three pairs of amplifier channels. These RCA inputs accept audio signals from preamplifiers or surround sound processors. Use high quality audio interconnect cables for best performance.

NOTE: You can link the inputs for group "A" to groups "B" and/or "C" by placing the INPUT SELECT switch in the left LINK position. No input connection is required for that group. Placing the switch in this position leaves that pair of channels in Stereo mode.

Input Level Controls 4

Three controls on the front panel, one for each pair of amplifier channels, provide input level adjustments. These allow you to adjust the gain of the amplifiers to match other components in an elaborate system.

Turn the small knob clockwise to increase gain. Turn the knob counterclockwise to reduce gain.

Signal Output Link 7

This pair of RCA connections can be used to pass unprocessed input signals to another audio component, for example to "daisy-chain" an additional amplifier to drive a second set of speakers.

The input signals connected to the "A" inputs are always available at SIGNAL OUTPUT LINK connections. These input signals can also be linked to the "B" and/or "C" inputs by playing the INPUT SELECT switch associated with that pair of inputs in the LINK position.

Speakers

The RMB-1076 has three groups of speaker connectors, one for each pair of amplifier channels.

Speaker Selection

The nominal impedance of the loudspeaker(s) connected to the RMB-1076 in Stereo mode is a minimum of 4 ohms.

Speaker Wire Selection

Use insulated two-conductor stranded wire to connect the RMB-1076 to the speakers. The size and quality of the wire can have an audible effect on the performance of the system. Standard speaker wire will work, but can result in lower output or diminished bass response, particularly over longer distances. In general, heavier wire will improve the sound. For best performance, you may want to consider special high-quality speaker cables. Your authorized Rotel dealer can help in the selection of appropriate cables for your system.

Polarity and Phasing

The polarity – the positive/negative orientation of the connections – for every speaker and amplifier connection must be consistent so all the speakers will be in phase. If the polarity of one connection is mistakenly reversed, bass output will be very weak and stereo imaging degraded. All wire is marked so you can identify the two conductors. There may be ribs or a stripe on the insulation of one conductor. The wire may have clear insulation with different color conductors (copper and silver). There may be polarity indications printed on the insulation. Identify the positive and negative conductors and be consistent with every speaker and amplifier connection.

Speaker Connections

See Figure 2

The RMB-1076 has two pair of color coded connections for each group of amplifier channels. Labels above the connectors show the proper connections for connecting speakers in Stereo mode.

These speaker connectors accept bare wire, connector lugs, or "banana" type connectors (except in the European Community countries where their use is not permitted).

Route the wires from the RMB-1076 to the speakers. Give yourself enough slack so you can move the components to allow access to the speaker connectors.

If you are using banana plugs, connect them to the wires and then plug into the backs of the speaker connectors. The collars of the speaker connectors should be screwed in all the way (clockwise).

If you are using terminal lugs, connect them to the wires. If you are attaching bare wires directly to the speaker connectors, separate the wire conductors and strip back the insulation from the end of each conductor. Be careful not to cut into the wire strands. Unscrew (turn counterclockwise) the speaker connector collar. Place the connector lug around the shaft, or insert the bundled wire into the hole in the shaft. Turn the collars clockwise to clamp the connector lug or wire firmly in place.

NOTE: Be sure there are no loose wire strands that could touch adjacent wires or connectors.

In Stereo mode: Connect the left speaker to the pair of speaker connectors labeled LEFT. Connect the right speaker to the speaker connectors labeled RIGHT. Follow the labels printed above the connectors, observe correct polarity.

Troubleshooting

Most difficulties in audio systems are the result of poor or wrong connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the RMB-1076, refer to the suggestions for the following conditions:

Front Panel Power Indicator Is Not Lit

No main power to the RMB-1076. Check AC power connections at the amplifier and the AC outlet. Check the front panel power switch. Make sure that it is set to the ON position. If using signal sensing auto power-on, make sure that a signal is present at the inputs. If using 12V trigger power-on, make sure that a trigger signal is present at rear panel screw terminals.

No Sound

If the amp is getting AC power, but is producing no sound, check the PROTECTION INDICATOR on the front panel. If lit, see below. If not, check all of your connections and control settings on associated components. Make sure that your input connections and speaker connections match your selected configuration.

Protection Indicator Is Lit

The front panel PROTECTION INDICATOR is lit when the RMB-1076 protection circuits have shut off the amplifier. Typically, this occurs only when the ventilation openings are blocked, when there is faulty speaker wiring, or after a period of extreme use. Turn off the system and wait for the amp to cool. Then push the front panel power switch in and out to reset the protection devices. If the problem is not corrected or reoccurs, there is a problem with the system or the amplifier itself.

Specifications

Power Configurations 6 x 100 watts

Watts/Channel 100 watts

All channels driven, with 20kHz filter unbridged, 8ohm, 20 to 20kHz, < 0.02% THD

Total Harmonic Distortion < 0.02%

At rated power, 20-20,000Hz

Intermodulation Distortion < 0.03%

At rated power, 60Hz:7kHz 4:1

Power Output 4 ohms, 1.0% THD 180 watts

Frequency Response ±3 dB 10Hz-40kHz

Damping Factor 8 ohms 200

Signal to Noise Ratio IHFA network

Amp Gain 27.2dB

Input Sensitivity / Impedance

Auto Turn On Threshold Level (if activated)

Power Requirements

USA:

Europe:

Power Consumption

Output Peak Current

Idling Power Consumption

Standby Power Consumption

Dimensions (W× H× D)

Front Panel Height (for rack mount)

Weight (net)

120 Volts, 60 Hz

230 Volts, 50 Hz

300 Watts

11A

70 watts

6 watts

432× 72× 382mm

17^1 / 8 × 9^3 / 8 × 15^1 / 8 in

60mm

5.7 kg, 12.5 lb.

All specifications are accurate at the time of printing.

ATTENTION :

RISQUE D'ÉLECTROCUTION. NE PAS OUVRIR

ATTENTION: POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE PAS RETIRER LE CAPOT. IL N'Y A À L'INTEREUR AUCUNE PIECE SUSCEPTIBLE D'ETRE MODIFIÉE PAR L'UTILISATEUR. EN CAS DE PROBLEME, ADRESSEZ-VOUS À UN RÉPARATEUR AGREE.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCSE ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND.

Signal Output Link 7 18

Laufsprecher 18

Signal Output Link 7

Signal Output Link 7 34

Diffusori 34

Signal Output Link 7

PerylnpoBkA BxoDhbIX ypOBHei 4

Tpnypuyknperyjatopob rpoMkoCTnHa nepeDne naneJIn, no OndHn KaKdyu npay KaHAnOB ycunlnteJ, o6ecneuBaHOT BO3MOxHOCTb yCTaHOBKn BXOHDoro yPoBnJ. 3TO TAKKe NO3BOJareT Bam NODcTpanBaTb Ko3ΦoNciNeHTb ycUJIeHn yCUnIeTeJ dJa corLacOBAHnix CdpYrMM KOMNoHEHTAMn B CNOXHOH CNTMe.

PobepHnTe MaJIeHbKyIO pyKy no yacOBo CTpeIke IJIa IOBbIeHnKa O3OcHnIeHtA YCINJIeHnI NII nIpOTnB - IJIa erO yMeHbIeHnI.

BbIXoHbIe pa3'beMbI IJI nponycka BxOJHOrO cnHaJa

3ta npapa pa3bemOB RCA moKet 6bItb NcNoIb3ObaHa IJn npOnycka Heo6pa6oTahHbIX BXoIbIX CnIHaIOB Ha dpyrne aydno KOMHOENTbl, HApnpMe npuNOCoEINHeHHn NO «CenOChE» DOnONHITeBLHOrO ycNlTeJIa, cnoc6Horo pa6oTaTB ceJe odHoi npoi KOJIOHOK.

BxOaHbIe CnHaJIbI, NoaHbIe Ha BxoAbI "A", BcERda npncyTCTByIOt Ha pa3beMax SIGNAL OUTPUTLINK. 3Tu CnHaJIbI moXHO taKke nepeDaTa h BaXoAbI "B" n/Inn "C" c nomoCbIO nepeKnIOuatoTeIA INPUT SELECT, CBa3aHORo CToI npoI, nepeBeJaero B noJoxKeHne LINK.

ГROMΚΟΥΒΟΡΙΤΕΝ

Ycnilntelb MoUHocn RMB-1076 nmeet trp rpyinb pa3beMOB IJa rpoMkoROBOpNTeien, IO ONDOMI JIA KAKDoI napbl KaHaIIOB ycnilntela.

BbI6Op rpoMkoROBopnTeJra

HomHaJIbHoe BxOJHoe cOpOTnBJIeHne rpOMKOrOBOpHTeJI (rpOMKOrOBOpHTeJI), npCoeINHeHHoro K KaxdOMy KaHany RMB-1076 B Ctepeo pexmE, He DoJnxHO 6bITb MeHbWe 4 OM.

Bb6op akcytneckoro ka6eJra

NcnoB3yIte n3oJnpoBaHbI dByxnpoB OBOHOCKpyeHHbK6ebI Jn npcoeHNHeHRA RMB-1076 K rpoMkoROBoPHTeAM.Pa3mep n KaeeCTBO npOBoA HMeOT CbluIMOe BnnaHne Ha napAmetpbl CnCTeMb.I CTanapThbI aKyctnueckn Ka6eb 6yed pa6oTaB, Ho MoXe TnpBeCTN K CHNXHIO rPoMkOCTN IINOCa6NeHIO Hn3KnX hactOT, oO6eHNo HA 6oNbShx pacCToHnx.B 6Obem cnyae, 6Oone ToJIbIK Ka6eJIb yNyUaET 3ByaHne. IIra HanLyUHX NapametPOB, Bbl MoXeTe npImeHNTcneuaJIbHbIe aKyctnueckne Ka6eJIb BbcOKoro KaeeCTBa.BaW abTopn3OBaHHbI dInIep ROTEL moXeT nomOy bAM B Bbl6ope COOTBETCTByIoUxN Ka6eJIe Dnla BAwe CNCTeMbI.

Pojapnoctb m c3npobka

Iopnoctb nI IIOJNtBHa/otpuataeBbHApOpHeTauCncoEHHn dKaKdoI rpoMkoROBOPTeN aOJIxHb 6bItb corlaocBaHb, yTo6b BCErpoMkoROBOPTeN 6bln BΦa3e. EcnI POJrPoCtB oNDoro coeHNHeN no OUn6Ke cDeNa o6paTHo, 3ByaHne Hn3KnX qactOT 6yDet OueHb Cna6bIM, aCTpeoKaptnHa derpaHpyet. Bce AkyctuYeCKne Ka6eIN npomapKupOBaHb, 4TO6bBl MOrIn OTlUHTb DBA npOBOnHka. 3To MoXet 6bTB NOnOca nII npChJeHne Ha n3OJIaun OndHO rpoBODnHa. Ka6eB MoXet NMeTB npO3paHyIO n3OJIaunO c npOBdNkAmn pa3HOrO uBETA (Mehbl n Cepe6pAh). 3To Moryt 6bIt b MeTKn POJrPoHcTn, HaneYataHHble Ha n3OJIaun. OnpeDenite NOLOXtBeHbN m OTPuaTeBbHb II npOBDoNkn n CorLnacyte C KaxDbM pa3bEmOM rpoMkoROBOPTeN n YcNJTEA.

PnncoeHneHne

rporkoROBOpHTeJeI 10

Cm. pncyHOK 2

YcHInTeJIb MoUHocTn RMB-1076 nMeet IBe Napbl pa3bemOB CUBETOBoM MapKnupOBKoI JI KAKDOI rpynnI b KaHAIOB ycHInTeJIa. MapKnupBka HAD pa3bemAMN NOKa3bIbAeT, KAK npabINbHO NOdcoEHNrTb KOLOHKn B Ctepeo peKeIme.

3Tn pa3bembl npHHMaHOT 3aunueeHHbI npBOoD, HAKOHeuHNKu TnPa «JONaTka» IIN «6aHAn» (3a NCKLIoueHneM eBponecknx Ctpan, rnde nx npImeHne 3anpeueho).

IpoJoxHte npObOa ot RMB-1076 K rPOMKOROBOpnteMa. OcTaBte Inla ce6raIOCTaTOUhbl 3anac, YTO6bl Hmetb BO3MOxHOCTb nepemeueHnKOMNoHEHTOB C cEJIbIO DOCTyNa K pa3bEmam rPOMKOROBOpnteNei.

EcnBbl npmeheTe wTekepbI -6aHahbl》，npncoeHNHTe N K npoBOdAm 3atEm BCTabBe T B pa3bEmbl rpoMko- roBOpHTeJe.3axmHbIe BtynkPa3bEMOB rpoMkoROBOpHTeJe DOJXHbI 6bl3ABHHcHbHa BCIO dInHy (no yacobOBJ cTpeKe).

EcnBbI NcNoJIb3yTe «NOnATKn》，CMHTnpuyTe nX Ha npoBOa. EcnBbI pIncoeINHReTe 3aunuennHe Ka6en HnncpeCTBeHHO K pa3bEMAM rPOMKOrOBOpNTeNe，OTDeJnte npoBOHNK u CHIMTE uOJNU C KOHua KaxDoro npoBOHa.ByNbTe BHNMaTeJbHbI, YTO6bl He NOBPeINb TOKONpOBODUaune Xnbl. OTBnHTnte (npotNB uacoboi cTpeJIKN) 3aJmHyIO Btynk Pa3bema rPOMKOrOBOpNTePaCNOJxte HAKOHeuH NK BOKpyr OCN BtynK，nnn IpocYbTe ORoJIENbI npoBOB B OTBepCTne B Ocn. 3aBepHnTe BtynK No uacOBn CTpeJIke, YTO6bl NaedxHO 3aΦNKcnpOBaTB HAKOHeuH NK nn npoBOd.

PIMMEAHNE: Y6eHntecb, yTO OTJeIbHbIe «pa3IOXmaueHHbIe» XINbl npBOOJa He KacaHTc8 COceHNx npBOOJB Nn pa3bEmOB.

B pexme Stereo: noDCoeHNHtenebyo AC K nape KOIohOHybIX pa3bEmOBc HADnncbIO LEFT. 3aTeM noDCoeHNHtepaByo AC K nape KOIohOHybIX pa3bEmOBc HADnncbIO RIGHT.CneNTe 3a HADnncsMaHd KJIeMMAMN, co6JIoDaIte NOLpHoctbNOKJIUoyehn.

Bo3MOxHbIe

HencnpaBHOCTN

BolbunHCTBO Tpydnocte B 3BykoBbx CnCTeMax ABJIOCTc pe3yblTATOM NIOxN INN HeBepbIX COeINHeHH, INN HEnpabInbHbIX UnpabJIooXn HAcTpoek. Ecn Bbl CTOLKHylnbc c npo6IeMaMn, INOInpuyTe O6JIaTb IN Bo3HNKHOBeHH, npOBepbTe HAcTPOkN, ONpeJeIte npuHny HEnCnPabHocTN n CdeNaTE Heo6XoINMbIe IN3MeHENHa. Ecn Bbl He MoXeTe Do6ntbC 3Byka ot RMB-1076, o6paTInTeCB K CoBETAM IJa CneDyUOxN cnTuaun:

HndkaTOp nHTaHnaHa

peedne naneHn He CBetntcra

Ha ycnntelb RMB-1076 He nodaetcnaTahne. PpOBepbte ceteBbIe pa3beMbHa ycNtTeNe Bpo3eTke. PpOBepbte BblKIOuATEb NITAHnHa nepeHne nanei. Y6eNTecb, 7TO OH HaxoJNTcB NoJoxKeHHN ON. Ecnn IcNoJIb3yETcB KJIIOUChEne 12-BOJbTOBbIM 3aynckAHOUM cnHAnOM, y6eNTecb, 7TO 3aynckAHOUI CNrHnI npCytCTByET B rHe3De 12V TRIG IN Ha 3aDHe n anen.

Het 3Byka

Ecnn Ha ycnnteJb noaetc ceteBoe HanpjaKeHne, Ho 3ByK He Bocpnn3B0nTcra, npOBepbTe HndnKaTop 3auntb PROTECTION INDICATOR Ha nepedHe naHeJI. EcIn OH CBeNTcra, nepexoNte K cnedyUoemy pa3dny. Ecn Het, npOBepbTe BCE BAuIN BXOHNbIe pa3bEmbl COeINHeHn rPOMKOrOBOpHTeJe, yIOBnETBOPaUoHne KOHnpyaounn BaWe CNCTeMbl.

HdNkATop 3aunItb1 CBETnTc8

HnDnKATOp 3aunTbHa nepeDeHne naHEn RMB-1076CBETTC, KOrDa CXembl 3aunTb OTKIOUHNy ycHnnteJb. O6bIuHO, 3TO npOxCODNT, KOrDa ycHnnteN bnerperenc, KOrDa npCooEHHen HeNCnpabHbI rPOMKOROBOPHTeB Hnn Nocne nepNoDA pa60tB Ha MaKcMaJIbHOH MoUHOCTH. BbIKIOHte CNTEmY nNOJXdnte, YTObI ycHnnteJB OctBJ. 3aTeM HaxMMte NOTOXMITE KHONKY BKIOUHeH NITAHIN HA nepeHne NaHEEN, YTO6bI c6pocNTb np6Opbl 3aunTb.EcIn npo6Lema He yCTpaHeHa HII npoRbIaETc CHObA, 3HAuNT,OTKa3ana BaIa CNTEm HIN CAM ycHnnteB.

XapakTepnctnkn
