USER MANUAL RCD-971 ROTEL

CLASS 1 LASER PRODUCT

Complies with DHHS 21 CFR 1040.10 and 1040.11

SPECIFIED IN THIS MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product’ enclosure that may constitute a risk of electric shock. This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

To reduce the risk of fire or electric shock, do not expose the RCD-971 to moisture or water. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs. Read all the instructions before connecting or operating the RCD-971. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the RCD-971 only with a dry cloth or a vacuum cleaner. Keep the ventilation inlets on the unit unobstructed. For example, do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. Ifthe RCD-971 is placed in a bookcase or cabinet, there must be sufficient clearance around the unit and ventilation of the cabinet to allow proper cooling Keep the RCD-971 away from radiators, heat registers, stoves, or any other appliance that produces heat. The RCD-971 must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the RCD-971 to the power outlet only with the supplied 2-pin polarized power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. The cable should be connected to a 2-pin polarized wall outlet, matching the wide blade ofthe plug to the wide slot of the receptacle. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. immediately stop using the RCD-971 and have it inspected and/or serviced by a qualified service agency if: The power supply cord or plug has been damaged. Objects have fallen into or liquid has been spilled into the unit. The unit has been exposed to rain. The unit shows signs of improper operation The unit has been dropped or damaged in any way Place the RCD-971 on a fixed, level surface strong enough to support its weight. Do not place the RCD-971 on a moveable cart that could tip over.

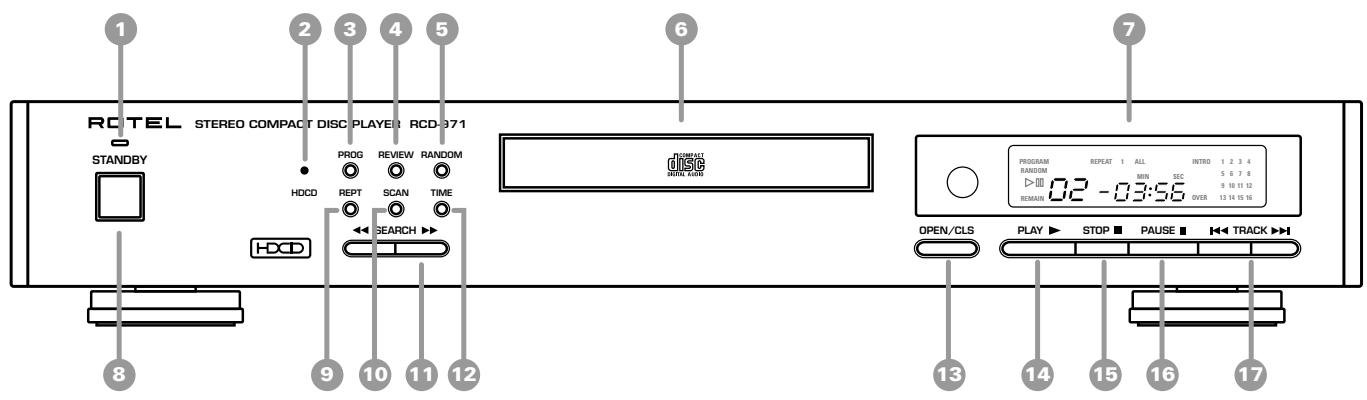

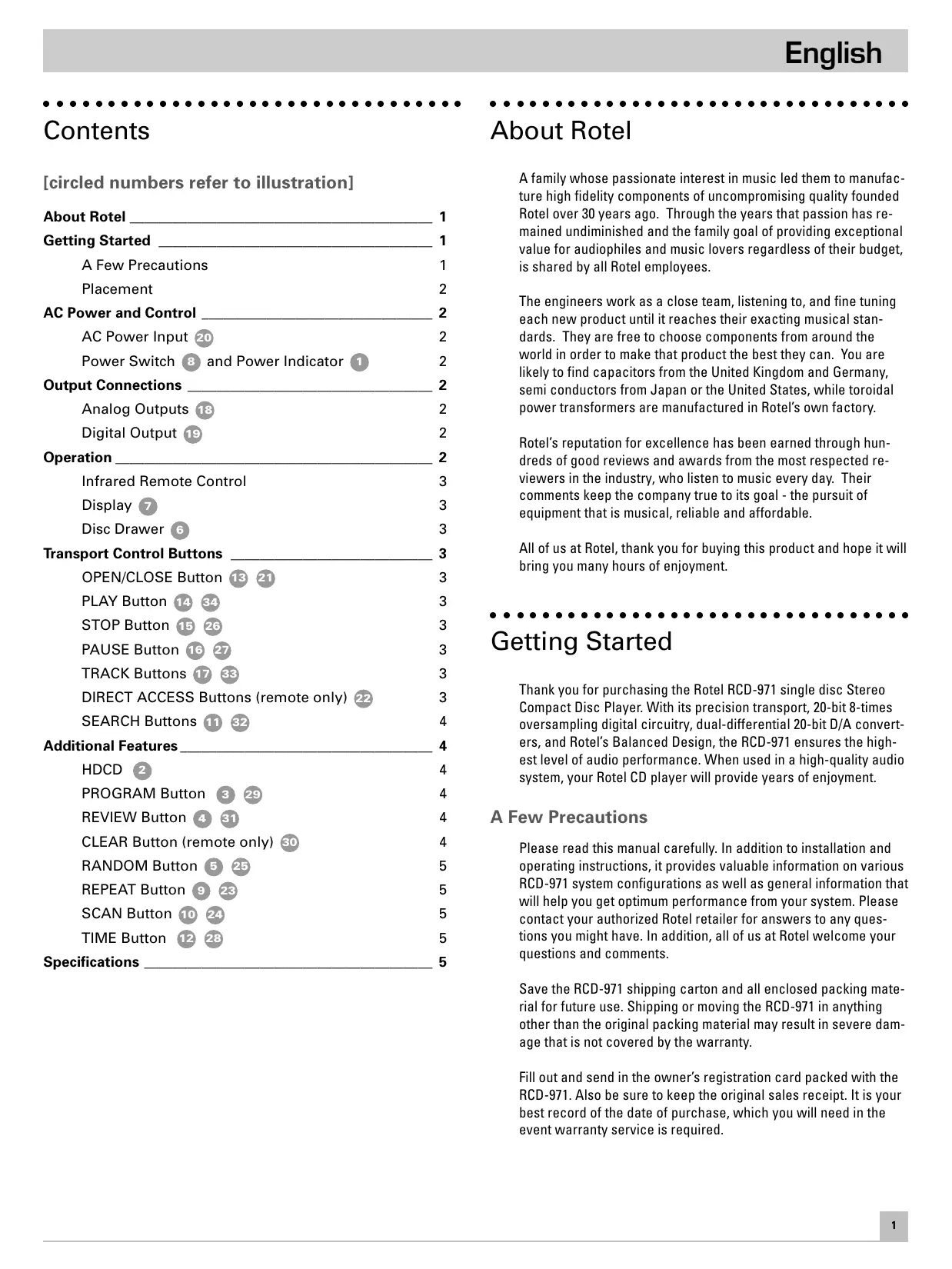

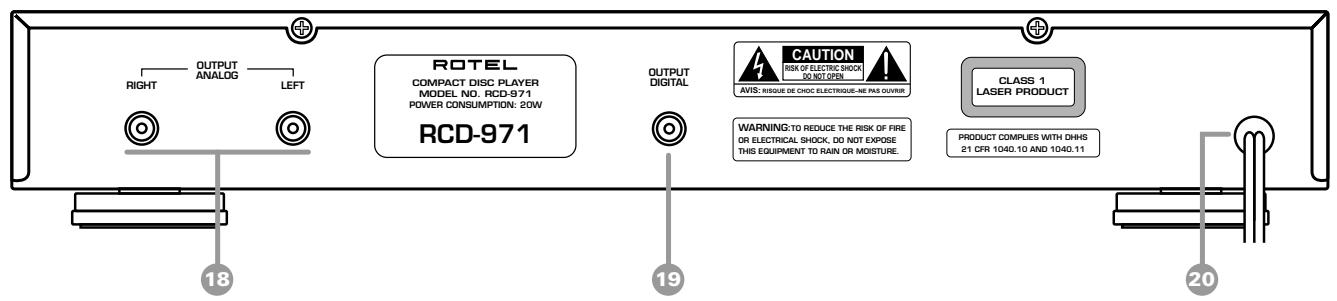

Contents [circled numbers refer to illustration] About Rotel Getting Started A Few Precautions Placement AC Power and Control AC Power Input ) Power Switch D and Power Indicator € Output Connections Analog Outputs Œ Digital Output Œ) Operation Infrared Remote Control Display @ Disc Drawer ©) Transport Control Buttons OPEN/CLOSE Button © &) PLAY Button © @ STOP Button Œ & PAUSE Button Œ) 4 TRACK Buttons Œ) © DIRECT ACCESS Buttons (remote only) Æ) SEARCH Buttons ) © Additional Features HDcD @ PROGRAM Button €) REVIEW Button ©@ G) CLEAR Button (remote only) Go] RANDOM Button €) REPEAT Button ©) SCAN Button Œ) TIME Button @ © Specifications GW OU OO OU OU OR À À À À À W W WW W WW W W W W W N ND ND N D ND NR ND = = = English About Rotel A family whose passionate interest in music led them to manufac- ture high fidelity components of uncompromising quality founded Rotel over 30 years ago. Through the years that passion has re- mained undiminished and the family goal of providing exceptional value for audiophiles and music lovers regardless of their budget, is shared by all Rotel employees. The engineers work as a close team, listening to, and fine tuning each new product until it reaches their exacting musical stan- dards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semi conductors from Japan or the United States, while toroidal power transformers are manufactured in Rotel's own factory. Rotel's reputation for excellence has been earned through hun- dreds of good reviews and awards from the most respected re- viewers in the industry, who listen to music every day. Their comments keep the company true to its goal - the pursuit of equipment that is musical, reliable and affordable. All of us at Rotel, thank you for buying this product and hope it will bring you many hours of enjoyment. Getting Started Thank you for purchasing the Rotel RCD-971 single disc Stereo Compact Disc Player. With its precision transport, 20-bit 8-times oversampling digital circuitry, dual-differential 20-bit D/A convert- ers, and Rotel's Balanced Design, the RCD-971 ensures the high- est level of audio performance. When used in a high-quality audio system, your Rotel CD player will provide years of enjoyment. A Few Precautions Please read this manual carefully. In addition to installation and operating instructions, it provides valuable information on various RCD-971 system configurations as well as general information that will help you get optimum performance from your system. Please contact your authorized Rotel retailer for answers to any ques- tions you might have. In addition, all of us at Rotel welcome your questions and comments. Save the RCD-971 shipping carton and all enclosed packing mate- rial for future use. Shipping or moving the RCD-971 in anything other than the original packing material may result in severe dam- age that is not covered by the warranty. Fill out and send in the owner's registration card packed with the RCD-971. Also be sure to keep the original sales receipt. Itis your best record of the date of purchase, which you will need in the event warranty service is required.

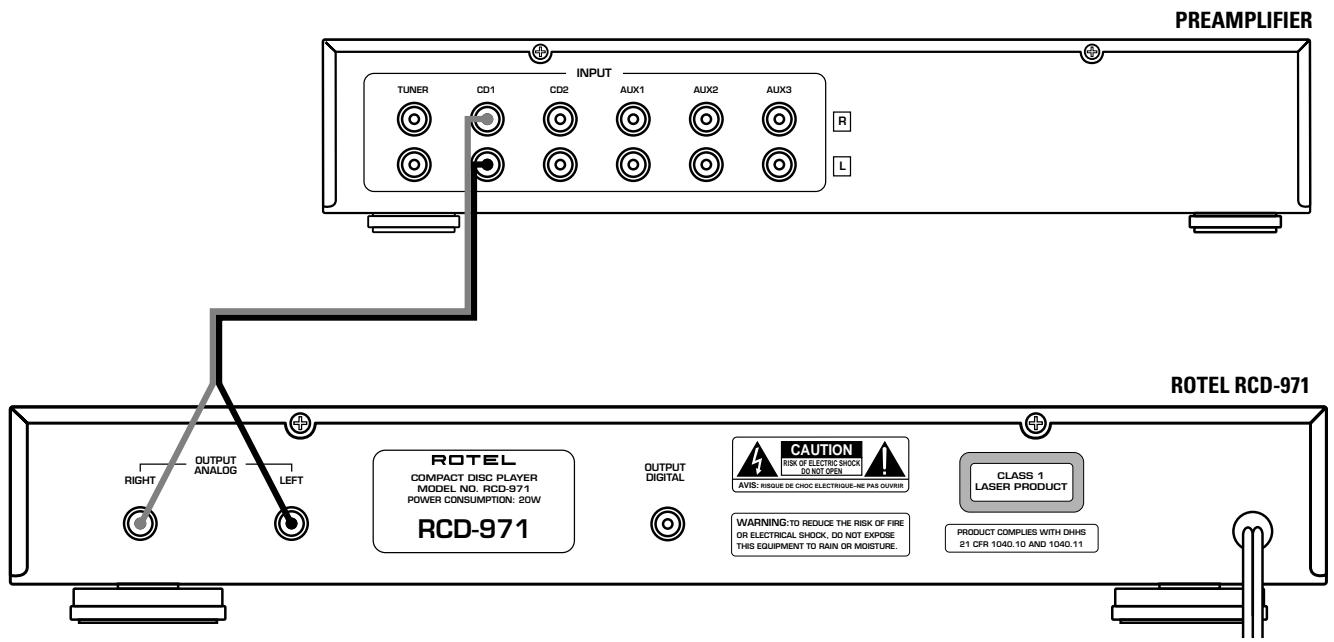

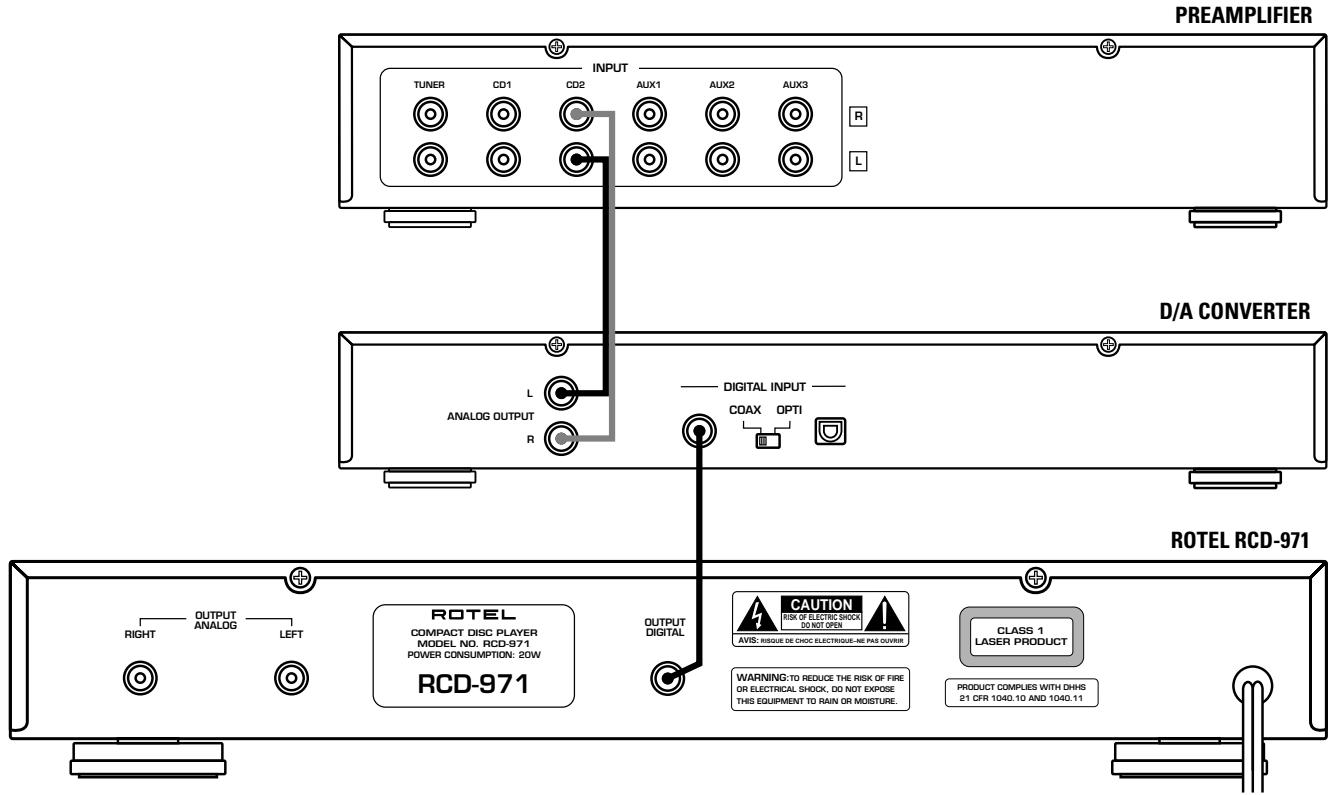

R O T E L STEREO COMPACT DISC PLAYER RCD-971 Placement Use common sense when placing the RCD-971 in a cabinet or when stacking other equipment. Make sure that the shelf or cabi- net can support its weight. Do not stack heavy components on top ofthe RCD-971. Avoid placing the unit where it may be subject to excessive heat such as on top of a large power amplifier or near a heat register. For best performance, avoid placing the unit where it may be subject to vibration, such as near a speaker. AC Power and Control AC Power Input Your RCD-971 is configured at the factory for the proper AC volt- age in the country where you purchased it (either 115 volts or 230/ 240 volts. The AC line configuration is noted on a decal on the back panel. Note: Should you move your CD player to another country, it may be possible to reconfigure it for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the en- closure ofthe RCD-971 exposes you to dangerous voltages. Con- sult a qualified service person or the Rotel factory service department for information. The RCD-971 should be plugged directly into a 2-pin polarized wall outlet or into the switched outlet on another component in your audio system. Do not use an extension cord. Be sure the power switch on the front panel of the RCD-971 is turned off (in the out" position). Then, connect the supplied power cord to the AC power receptacle on the rear of the unit and the AC power outlet. If you are going to be away from home for an extended period of time such as a month-long vacation, it is a sensible precaution to unplug your CD player (as well as other audio and video compo- nents) while you are away. Power Switch and Power Indicator The power switch is located on the front panel of your CD player. To turn the CD player on, push the switch in. The LED indicator above the switch and the Display will light up, indicating that the CD player is turned on. To turn the CD player off, push the button again and return it to the "out" position. Note: If you are using a switched outlet to turn on and off your CD player, you should leave the power switch in the ‘on" position. When AC power is applied to the unit, it will power up in fully ac- tive mode. Output Connections The RCD-971 gives you a choice of two different kinds of output connections — an analog output signal from the built-in D/A con- verter for use with conventional analog audio components and a coax digital output which provides an unprocessed digital data signal for use with outboard D/A converters or digital processors. Note: To prevent loud noises that neither you nor your speakers will appreciate, make sure the CD player is turned off when you make any signal connections. Analog Outputs [See Figure 2 for wiring illustration] A pair of standard RCA jacks supplies an analog output signal from the RCD-971 to the source inputs of an audio preamplifier, in- tegrated amplifier, or receiver. Select high quality audio interconnect cables. Connect the left channel output of the RCD-971 to the left channel source input on the preamplifier or other component. Connect the right output of the RCD-971 to the right channel source input on the preamplifier or other component. Digital Output [See Figure 3 for wiring illustration] If you are using an outboard D/A converter or other digital proces- sor, you will need an unprocessed digital data stream from the RCD-971, taken before the built-in D/A converter. This signal is supplied by the RCD-971's back-panel digital output jack. Using a standard 75 ohm coax digital cable, connect the RCD-971's coax digital output to the coax digital input connector on the outboard D/A converter. Operation The RCD-971 can be operated using its front panel buttons or from corresponding buttons on the supplied infrared remote control. Specific instructions for each of these controls are detailed be- low. Most of the buttons are duplicated on the front panel andon the IR remote control. However, there are a few exceptions where the buttons are only available on one or the other. These excep- tions are noted in the instructions.

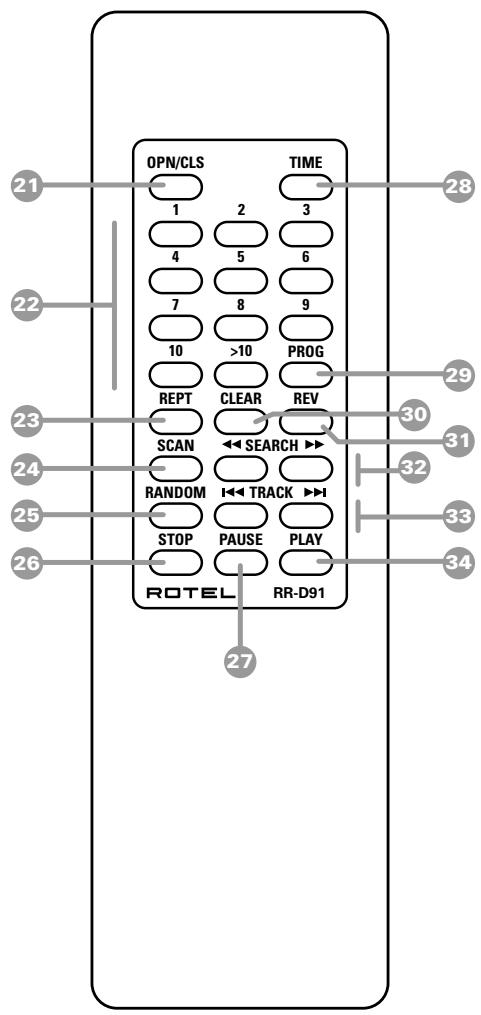

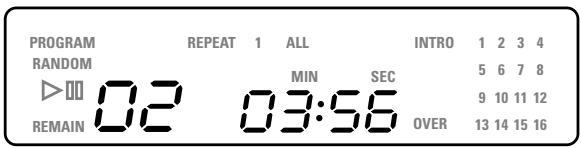

Infrared Remote Control Before using the IR remote control, it is necessary to install two AAA" batteries (supplied). Remove the plastic cover on the back of the IR remote, install the batteries (observing the + and— polarity indications), and reinstall the cover. To use the IR remote control, aim it at the IR sensor located in the Display area on the front panel of the RCD-971. Display @ A lighted Display on the front panel of the RCD-971 provides use- ful information about the status of the unit, activation of special features, and track/time information for the disc being played. Each of these indicators is described in the detailed operating instructions that follow. PROGRAM REPENT 1 AU mmo 1234 RANDOM 5670 DIU 91 sun OVER 13141516 senan IE Disc Drawer Q A motor-driven disc drawer, located in the center ofthe RCD-971, slides out to accept a compact disc and retracts to play the disc. Place the compact disc in the drawer label-side up. Make sure the disc is properly centered in the tray. The drawer can be closed in two ways: pushing the OPN/CLS button or pushing the PLAY button. Transport Control Buttons These buttons provide basic control functions for the disc trans- port mechanism. Except where noted, all functions are available on the RCD-971 front panel and the IR remote control. The circled numbers provide a convenient reference for finding the button onthe illustrations of the RCD-971 and the IR remote control at the front of this manual. OPEN/CLOSE Button © 4 When the transport disc drawer is closed, pressing this button automatically opens the drawer. To close the drawer, press this button again. The drawer can also be closed by pressing the PLAY button. When the drawer is open, the Display will read “OPEN”. When it is closed with no disc, the display will read “NO DISC”. When the drawer closes with a disc inserted, the Display will indicate the number of tracks on the disc and the total time of the disc in min- utes and seconds. English PLAY Button ® @ Press the PLAY button to start playing the disc. lf the disc drawer is open, it will close automatically. The number of the track being played and the elapsed time will be shown in the display, along with the PLAY indicator. Normally, the disc will start playing with the first track. How- ever, you can select a different track using the TRACK but- tons or the DIRECT ACCESS buttons (see below) before pressing the PLAY button to start playing a different selec- tion. STOP Button © © This button stops a disc that is playing and resets the player, ie. if play is resumed, the disc will start over from the first track. Pressing the STOP button twice quickly in succession cancels any programmed selections (see below). PAUSE Button © & This button is used to temporarily suspend play. The disc continues to spin and play will be resumed from the current position. The PAUSE indicator will light in the Display. To resume playing the disc, press the PAUSE button again or press the PLAY button. TRACK Buttons © & These buttons are used to select tracks on the disc. When a disc is playing, pressing the right TRACK button advances to the beginning of the next track. Pressing the left TRACK but- ton returns to the beginning of the current track. Pressing twice quickly in succession returns to the beginning of the previous track. The new track number appears in the Display. These buttons are also used to select a track before pressing the PLAY button or when memorizing tracks for the PRO- GRAM play mode (see below). These selections are made by continuously pressing the TRACK buttons until the desired track is reached. In PROGRAM mode, the TRACK buttons advance or reverse to the next track in the memorized selection list. DIRECT ACCESS Buttons (remote only) These eleven numeric buttons (labeled 1 through 10 and >10) are used to directly access a track from the IR remote con- trol instead of stepping through the tracks using the TRACK buttons. The first ten tracks on a disc can be selected by pressing the corresponding button. For example, to play the third track, press the 3 button on the remote control. When accessing track numbers greater than 10, press the >10 button followed by the track number. For example, to se- lect track 12, press the >10 button followed by the 1 button and then the 2 button.

R O T E L STEREO COMPACT DISC PLAYER The number of the selected track will appear in the main numeric area atthe center of the Display. There is also a four by four matrix of track numbers (1 — 16) lo- cated at the right side of the display. This display indicates all of the tracks on the disc. lfthere are more than 16 tracks on the disc, all of the digits will light accompanied by the word OVER, regard- less of which track is playing. This matrix is independent of the main numeric area of the Display, which will always indicate the currently playing track, even if above 16. The DIRECT ACCESS buttons may also be used to memorize tracks in PROGRAM mode (see below). SEARCH Buttons ® © These buttons fast forward or fast reverse through the currently playing disc as long as they are pressed. While the buttons are pressed, you will hear high-speed audio. Releasing the buttons re- turns to PLAY mode. Additional Features These convenience features add extra functionality to the RCD-971, including the ability to play high-definition HDCD discs, to memorize a group of tracks to be played, to repeat a disc, pro- gram, or track over and over, to play the tracks on a disc in ran- dom order, to automatically play the first 10 seconds of each track, and to select from several available time displays. HDCD @ HDCDP® is an encoding technique that allows a CD to have greater effective dynamic range, reduced distortion, and increased detail. When playing HDCD encoded discs, the RCD-971 can reproduce as much as 20-bit dynamic range. HDCD discs are indentified by an HDCD logo on the package. No user action is required to play an HDCD recording. The CD player automatically senses HDCD encoding and enables the cir- cuitry. The HDCD LED on the front panel will light to indicate that an HDCD disc is being played. PROGRAM Button © © This button, labeled PROG, allows you to memorize as many as 20 tracks on the current disc for playback in a specific order. For ex- ample, you could instruct the RCD-971 to play track 5, followed by track 3, followed by track 8. To begin a program:

1. Insert a disc and press the OPEN/CLOSE button to close the

drawer. The RCD-971 will read the contents of the disc.

2. Press the PROGRAM button on the front panel or the remote

control. The PROGRAM indicator will light up in the Display, along witl ” indicating that the unit is waiting for the first track to be memorized. RCD-971

3. To program tracks from the handheld remote control, enter the

first track number using the DIRECT ACCESS buttons. Your selec- tion will be memorized automatically and the Display indicator will change to “P:01”, indicating that one track has been memorized. Continuing entering the rest of your selections using the DIRECT ACCESS buttons. Note that there is no need to press the PRO- GRAM button as each selection is memorized as itis entered.

4. To program tracks from the front panel, select the first track

number using the TRACK buttons. The track number and the pro- gram number in the display will flash for 3 seconds. While the dis- play is flashing, press the PROGRAM button to memorize your selection. Note that once the flashing stops, you will no longer be able to memorize your selection. To memorize additional tracks, select them with the TRACK buttons, pressing the PROGRAM but- ton after each selection. Once you have memorized a play list, the RCD-971 remains in PROGRAM mode until you open the disc drawer or press the STOP button twice in succession. lf you press the PLAY button, the memorized program will play instead of the entire disc, start- ing with the first selection in the memorized list. When a PROGRAM has been memorized, most functions that would normally effect the entire disc operate on just the memo- rized program. For example, the TRACK buttons advance to the next track in the memorized program, not the next track on the disc. Likewise, the REPEAT button (see below) continuously plays the memorized program, not the entire disc. REVIEW Button @ © This button is used to review the memorized tracks in PROGRAM mode. Press the button and the first memorized track number will appear in order in the Display, flashing for approximately five sec- onds. Pressing the REVIEW button again while the track number is flashing will continue the review sequence, showing the next memorized track. Continue pressing the REVIEW button to see the complete memorized track list. If you do not press the REVIEW button while the track number is flashing, the review process is terminated and the unit resumes whatever mode it was in before you started to review, except that the last reviewed track number will remain active and shown in the display. Note that you may remove a selection from the play list during the review procedure using the CLEAR button, as described below. CLEAR Button (remote only) © This button allows you to remove a track selection from the memorized program play list during the review procedure de- scribed above. Follow the review procedure until the desired track number is flashing. Then, instead of pressing the REVIEW button to continue, remove the displayed track by pressing the CLEAR button while the number is still flashing. You may then con- tinue the review procedure.

RANDOM Button This instructs the CD player to play tracks from the entire disc in random order. Once all of the selections have been played once, the disc will stop playing, unless the REPEAT Button (see below) has been engaged, in which case the random play will continue until the STOP button is pressed. When the RANDOM button is en- gaged, the word RANDOM appears in the Display. REPEAT Button This button allows you to repeat the current track or the entire disc continuously until the feature is cancelled by disengaging the REPEAT button or pressing STOP. The REPEAT button steps se- quentially through the available options. Press the button once and the RCD-971 will repeat just the current track, displaying the indicators REPEAT 1 in the Display. Press the button a second time and the RCD-971 will repeat the entire disc, displaying REPEAT ALL in the Display. Press the button a third time to cancel the RE- PEAT function. As noted above, REPEAT can be used in conjunction with the RANDOM play feature. Note: The REPEAT function is automatically cancelled when the disc drawer is opened. SCAN Button This feature automatically plays the first ten seconds of each track on the disc (or the memorized program). To activate the fea- ture, press the SCAN button. The word INTRO appears in the Dis- play. To stop scanning and resume normal operation at the current track, press the SCAN button again or press the PLAY button. TIME Button Normally, the RCD-971 displays the elapsed time of the currently playing track. The TIME button allows you to step through two al- ternative time displays. Pressing the button once displays the time remaining in the current track, which counts down as the track continues playing. Pressing the button a second time displays the time remaining on the entire disc (or memorized program). Press- ing the button a third time reverts to the standard elapsed time display. When the TIME feature is activated, the word REMAIN appears in the Display. English Specifications 0.0035% @ 1kHz 0.0035% @ 1kHz 20-20,000 Hz Total Harmonie Distortion + Noise Intermodulation Distortion Frequency Response (2-05 dB) Channel Balance 20.5 dB Phase Linearity 20.5 degree Channel Separation > 110 dB @ 1kHz Signal to Noise Ratio > 107 dB Dynamic Range > 100 dB Digital to Analog Converters Digital Filter Speed Accuracy, Wow & Flutter Dual 20 Bit, precision DAC 20 Bit, 8x oversampling Quartz Crystal Precision Output Impedance 100 Ohms Digital Output 0.5 Volt, Peak to Peak Load Impedance 75 Ohms Power Requirements 120 Volts, 60 Hz or 220-240 Volts, 50 Hz 20 Watts 440 x 72 x 316 mm 17378 x 27/8 x 12716 inches

Power Consumption Dimensions (W, H, D) Weight (net) Al specifications are accurate at the time of printing. Rotel reserves the right to make improve- ments without notice. Rotel and the Rotel HiFi logo are registered trademarks of The Rotel Co, Ltd. Tokyo, Japan. HDCD is a registered trademark of Pacific Microsonies, Inc., Berkeley, CA, USA.

PROGRAM REPEAT 1 AU INTRO
