Congratulations and thank you for buying this SYNQ® product. Please read these operating instructions carefully so you will know how to operate this product properly. After you have finished reading the instructions, put them in a safe place for future reference.

DON'T FORGET TO REGISTER YOUR NEW SYNQ® PRODUCT. YOU WILL AUTOMATICALLY RECEIVE A

REMARKER WHEN NEW SOFTWARE UPDATES ARE AVAILABLE!

SURF TO: WWW.SYNQ-AUDIO.COM/REGISTER/

FEATURES

This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

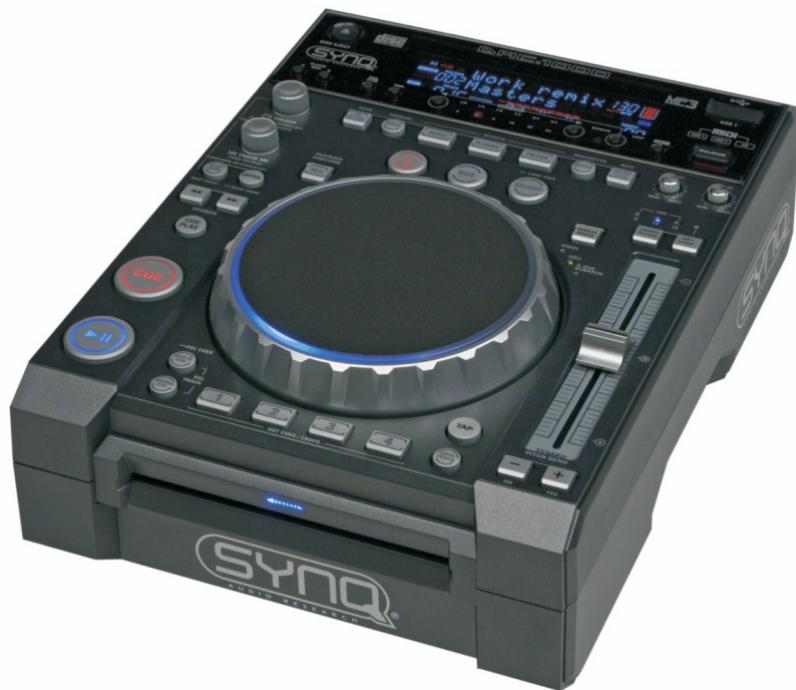

This professional digital media controller will even satisfy the most demanding DJs! You can play and scratch music from different sources, including CDs (audio+MP3) and MP3 from FAT32 USB-drives. With its MIDI features DMC1000 even controls any DJ-software you can imagine! Additionally the unit is packed with tons of features like:

Full WAV / MP3 Playback compatibility!

• MPEG1 layer3 (32 + 44,1 + 48kHz)
• MPEG2 layer3 (16 + 22,05 + 24kHz)
• MPEG2.5 layer3 (8 + 11,025 + 12kHz)

Supports both CBR and VBR bitrate modes
- USB-link: simultaneous playback from one USB-drive on 2 decks!
- Q-DBase system: smart, fully featured database lookup system to find your tracks very easily, even on big hard disks!

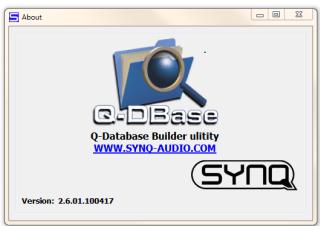

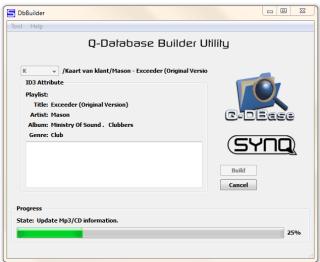

- Free Windows Q-DBase-builder software included.
- The digital effects (echo, flange, filter) can be used manually or fully beat synchronized with presets.
- Manual and beat synchronized loops with real-time loop edit and divide/extend functions
- PCMS (Permanent Cue Memory System): for each track up to 4 cue points and seamless loops can be stored/recalled at any moment
- High precision scratch function and pitch bend, thanks to the touch sensitive jog wheel
- Several jog wheel modes: vinyl, CDJ and A.CUE scratch!
- 2x 10 character alphanumeric VFD-display shows all information, including ID3-tags & CD-text.
- Fully customizable setup menu for MIDI and other functions.
- Pitch control (+/-6%, 10%, 16%, 100%) also on MP3
- Pitch lock (Master Tempo)
- Reliable slot-in CD-mechanism
- Instant reverse playback
- Headphones output with adjustable volume.
Relay play allows consecutive playback on two decks
- Fader start/stop (back cue), compatible with most professional DJ-brands.
S/PDIF digital audio RCA coaxial
.

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused

by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.

• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.
• To protect the environment, please try to recycle the packing material as much as possible.

Check the contents:

Check that the carton contains the following items:

• DMC1000 unit
• Operating instructions
  1 cinch (RCA) cord
• 1 USB cable
• 1 fader start cable
  1 AC power cord

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol means: Safety Class II appliance

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• No naked flame sources, such as lighted candles, should be placed on the appliance.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• Minimum distances around the apparatus for sufficient ventilation is 5cm .
• Always unplug the unit when it is not used for a longer time or before you start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The socket inlet shall remain operable for disconnection from the mains.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Never let the power-cord come into contact with other cables!

• When the power switch is in OFF position, this unit is not completely disconnected from the mains!

• In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the appliance and contact your dealer immediately.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

INSTALLATION GUIDELINES:

• Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc. will affect its performance and may even damage the unit.
• Take care to minimize shocks and vibrations during transport.
• When installed in a booth or flight case, please make sure to have good ventilation to improve heat evacuation of the unit.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance.
• Choose the place where you put your installation very carefully. Avoid presence of heat sources. Avoid places with vibrations or places that are dusty and humid.
• The player will work normally when installed on a surface with max. 15^ inclination.
• Be very careful while handling CDs, do not touch them with wet or dirty hands.
• Discs that are dirty must be cleaned with special designed cloth and cleaning products.
• Do not use CDs that are badly damaged (scratched or deformed) they can damage your appliance.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• In order to prevent electric shock, do not open the top cover. If a problem occurs, contact your dealer.
• Do not place metal objects or spill liquid inside the CD player. Electric shock or malfunction may result.
• This CD player uses the semiconductor laser. To allow you to enjoy music at a stable operation, it is recommended to use this in a room of 5^ - 35^ .
• The compact disc player should not be adjusted or repaired by anyone except properly qualified service personnel.
• This unit may cause interference to radio and television reception.

CLEANING THE CD-PLAYER:

Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit.

CONTROLS AND FUNCTIONS

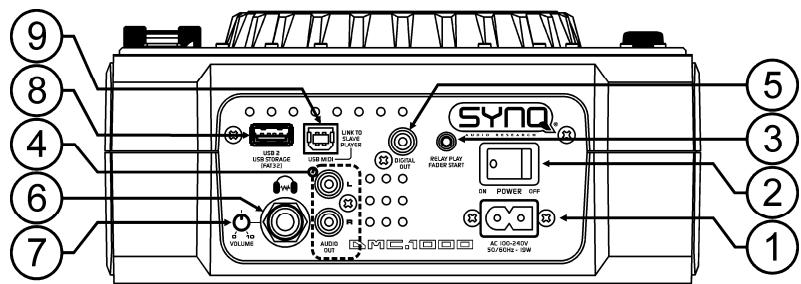

1. MAINS input: connect the CD player to the 100-240V AC mains, using the supplied power-cord.
2. POWER ON/OFF switch: switches the CD-player on and off.

3. FADER START Socket: If you are using a mixer with fader start function, connect the player with the fader start of the mixer. You can connect the fader start inputs of the 2 decks if you want to use the "relay play" function, also check the chapter "how to use". Please note that these sockets must never be connected with any voltage.

4. AUDIO output: Output for the audio signal from the CD-player. Use the supplied cinch/cinch cable to connect this output to a CD/line input of your mixing unit.

5. DIGITAL OUT socket: Use this connector to connect the digital signal (S/PDIF format) to the input of a digital amplifier or digital recorder (ex. Mini disc)
6. HEADPHONE output: if you like you can connect your headphone here.
7. HEADPHONE VOLUME: controls the sound level of the headphone output.
8. USB 2 connection: this is the second (type-A) USB-connection, used to connect any USB mass storage device that was formatted in FAT or FAT32. By default this input is used to connect a hard disk which can be linked to the second deck. (see chapter "connections")

9. MIDI / LINK USB connection: this (type-B) USB-connection is used to connect the player:

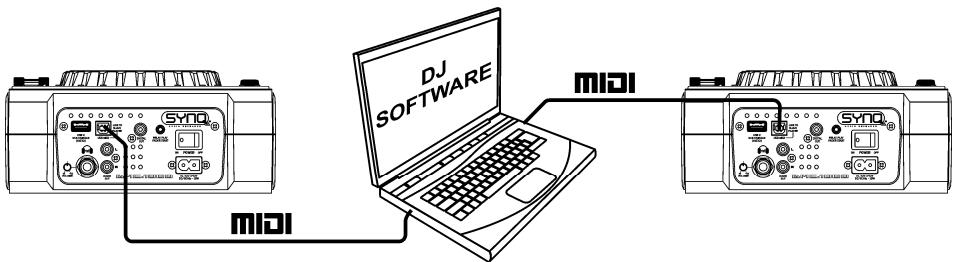

10. To a computer with MIDI DJ-software

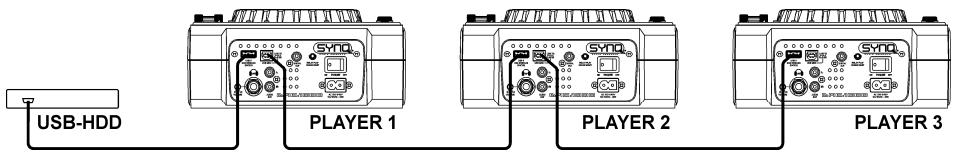

11. To another deck for "hard disk sharing"

Please check the chapter "connections" for more information.

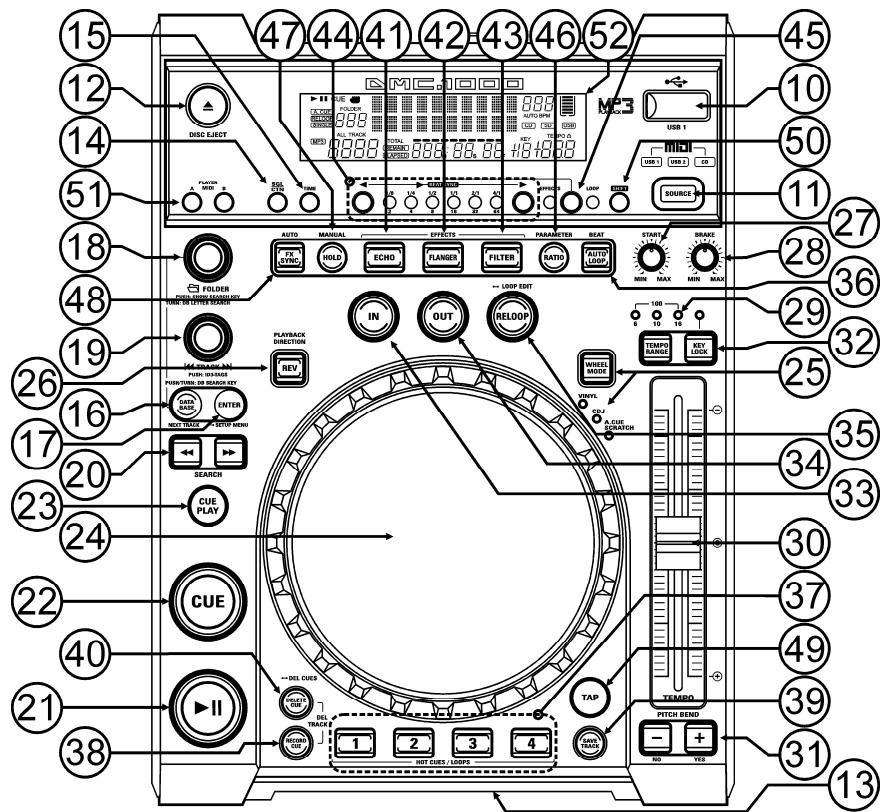

1. USB 1 connection: this is the first (type-A) USB-connection, used to connect any USB mass storage device that was formatted in FAT or FAT32. By default this input is used to connect an occasional USB-drive like USB-sticks etc.
2. SOURCE SELECT switch: use this button to select the desired audio source: CD, USB1 or USB2. If the MIDI/LINK connection (9) is set to work in MIDI mode, you can press the SOURCE SELECT switch for about 2 seconds: the unit will now act as a full featured MIDI controller. (see the chapter "MIDI OPERATION" for more information)

3. CD EJECT button: press this button to eject the inserted CD. To prevent the CD from being ejected by accident, this button is disabled during playback.

4. DISC LOADING SLOT: to load a CD, slide it gently into the slot with the printed side facing up. Halfway the CD will automatically be pulled inside, don't press the CD in the slot with force, this will damage the loading mechanism!

5. SGL/CTN: You can choose between "single track mode" and "continuous play".

6. Continuous play: the complete CD will be played without interruption. (mostly used in pubs)

7. Single track: player stops at the end of each track and waits at the beginning of the next track. (mostly used by deejays)

Push the SGL/CNT button for more than 1second to switch between normal and "auto cue" mode. In "auto cue" mode the player waits at the first music note of each track. This means that badly indexed CDs will not interfere with the instant start capabilities of this CD player. This is a very useful feature for deejays!

1. TIME Button: The TIME button switches between elapsed playing time, remaining time in a selection and total remaining time of the disc. (standard = remaining /track) The "total remaining time of the disc" is not available on MP3-tracks.

2. DATABASE / NEXT TRACK button: a very important button if you want to find your next track easily and fast, even while the previous track is still playing! This button works in two different ways:

3. NEXT TRACK function: will be used while searching on CDs and mass storage devices that don't have the "Q-DBase system" files installed. You can only search on track and folder numbers.

4. DATABASE function: will be used while searching mass storage devices that have the "Q-DBase system" files installed. You can alphabetically search on artist, track title, genre or album. Very fast and no need for you to know where your files are located!

Once you have found the desired song, just press the ENTER-button (17) to load the track.

For both functions, please refer to chapter "HOW TO USE" for more information.

1. ENTER button: this button has different functions:

2. Load a track: that was found using the database/next track function.

3. Open setup menu: press the ENTER button for about 3seconds.
4. Close setup menu: press the ENTER button shortly to leave setup.

Please refer to chapters "HOW TO USE" & "SETUP MENU" for more information.

1. FOLDER button: this buttons has different functions:

2. CDs or no Q-Dbase: turn this knob to browse the folders of a CD or storage device while you don't use the Q-Dbase system.

3. During Q-Dbase search: turn the knob to select the first character of the string you're looking for, press the knob to change the contents of the 2^nd text line of the display.
4. Setup menu: turn the knob to browse the different menu options.

Please refer to chapters "HOW TO USE" & "SETUP MENU" for more information.

1. TRACK button: this buttons has different functions:

2. CDs or no Q-Dbase: turn this knob to browse the tracks inside a folder of a CD or storage device while you don't use the Q-Dbase system.
   Q-Dbase search: two options:

3. Turn the knob to browse all files with the same first character that was first selected with the FOLDER button.

4. Press the knob while you turn it to change the search key in the database, you can search the keys:

5. Art: search for "artist names" in alphabetical order (default search key)

6. Alb: search for "album names" in alphabetical order
7. Gen: search for "Genres" in alphabetical order

8. Std: don't use the Q-Dbase system, just folders and tracks manually.

9. During playback: press the knob to see the different ID3-tags on the display:

10. Press 1x: Album name of the current track is shown

11. Press 2x: Genre of the current track is shown
12. Press 3x: Bitrate information of the current track is shown
13. Setup menu: turn the button to change the settings of the selected menu option.

Please refer to chapter "HOW TO USE" for more information.

20.SEARCH buttons: used to search quickly inside a track.

1. PLAY/PAUSE button: every time you press the PLAY/PAUSE button the CD player changes from play to pause or from pause to play. The button blinks as long as the player is set to pause.
2. CUE button: Pressing the CUE button during playback provides an immediate return to the position at which play was started. Playback starts immediately from the programmed cue point for as long as the CUE button is pressed. The CD player jumps back to the cue point as soon as the CUE button is

released. Also with the unit in pause mode (Play/Pause button blinks) the jog wheel is used to set a different start point. By pressing "PLAY/PAUSE" or "LOOP IN" button followed by "CUE", you can confirm this new cue point.

1. CUE PLAY button: playback starts immediately from the current cue point (same as pressing the RELOOP button (35)

2. TACTILE JOG-WHEEL: The jog-wheel on this player has 3 parts:

3. Tactile center part: to match the vinyl feel as close as possible and largely improve scratch performance, the central part of the jog-wheel uses a patented touch-sensitive technology. With the WHEEL MODE button (25) you can change the behavior of this central part. Check the description of the WHEEL MODE button (25) for more information.

4. Outer ring: silver colored part of the jog wheel which is not touch sensitive. Regardless of the selected wheel mode the outer ring can be always be used for pitch bending, except while using one of the digital effects.

5. Jog-indicator: this blue light runs at playback speed to indicate the exact player position, very helpful while scratching or setting a new cue point. Please refer to chapter "SETUP MENU" if you want to change the look of the jog-indicator.

6. WHEEL MODE button: toggles between 3 different modes for the tactile jog-wheel. The tactile center part and outer ring behave differently:

7. VINYL-mode: used for extremely realistic scratching of any CD or MP3 file.

8. Tactile center part: During playback, the music stops immediately when you touch the jogwheel: playback speed and direction are now fully controlled by the movements of your hand. In pause mode you can easily set a new cue point.

9. Outer ring: During playback you can use the outer ring for pitch bending to synchronize the beats of 2 tracks. In pause mode you will hear the typical very small loops that give you the possibility to set a cue point with 1frame (1/75seconds) accuracy.

10. CDJ-mode: this is the standard mode, used by most DJ CD-players. Both the tactile center part and the outer ring behave identically. While the track is playing, the jog wheel temporarily bends the pitch of the music up to +/-100% by rotating the wheel clockwise to speed it up or counterclockwise to slow it down. The amount of pitch change is determined by the speed of rotation. In pause mode you will hear the typical very small loops that give you the possibility to set a cue point with 1frame (1/75seconds) accuracy.

11. A.CUE SCRAMTCH-mode: very similar to VINYL mode but scratching always starts from the actual cue point, the behavior of the outer ring is identical to that of vinyl mode:

12. Tactile center part: During playback, the music stops immediately and returns to the actual cue point each time you touch the jog-wheel: playback speed and direction are now fully controlled by the movements of your hand. In pause mode you can easily set a new cue point but the player first returns to the actual cue point.

13. Outer ring: During playback you can use the outer ring for pitch bending to synchronize the beats of 2 tracks. In pause mode you will hear the typical very small loops that give you the possibility to set a cue point with 1frame (1/75seconds) accuracy.

14. REVERSE PLAY button: press this button to switch reverse playback on and off. Even loops can be played in reverse order.

15. START knob: determines acceleration speed until full playback speed. Speed acceleration can be set gradually between 0,0s (instantly) and 10,0s. Behavior changes with different wheel modes:

16. CDJ-mode: set the acceleration speed after pressing the PLAY/PAUSE button (21): simulates a turntable platter starting with the needle on the record.

17. VINYL & A.CUE SCRATCH mode: set the acceleration speed after a backspin of the JOG-WHEEL (24).

18. BRAKE knob: determines deceleration speed from full playback speed to stop. Speed deceleration can be set gradually between 0,0s (instantly) and 10,0s. Behavior changes with different wheel modes:

19. CDJ-mode: set the deceleration speed after pressing the PLAY/PAUSE button (21): simulates a turntable platter slowing down with the needle on the record.
20. TEMPO RANGE button: press this button to select the different available speed ranges: +/-6% , +/-10% , +/-16% , +/-100% . The lower ranges make the SPEED-fader (30) more precise, the higher ranges are suitable for special effects. To turn the speed function off simply press the button for 1second, until the speed indicators turn off. Press the button again to re-activate speed control.
21. SPEED-fader: used to adjust the playback speed of the playing track. You can turn the speed function on/off or change the range with the TEMPO RANGE-button (29)
22. PITCH BEND buttons: The speed rises while the "+" button" is pressed and returns to the original pitch when the button is released. The speed drops when the " - button" is pressed and returns to the original

pitch when the button is released. These buttons can be used to synchronize the beats of 2 tracks. They are also used to confirm (or not) the questions that are sometimes shown on the display.

1. KEY LOCK Button: (Master tempo) activates the Pitch Lock function. This function allows you to make adjustments to a tracks speed using the SPEED-fader without altering the tonal pitch.

2. LOOP IN button: Allows you to set a new cue point without stopping playback (CUE ON THE FLY). This button also sets the beginning of a seamless loop:

3. Manual loop mode: marks the beginning of the loop, you have to press the LOOP OUT button to mark the end of the loop and start playback in loop mode.

4. Auto loop mode: marks the beginning of the automatic loop, the end point of the loop is set automatically. The length of the loop depends on the loop parameter you selected.

Please refer to the chapter "HOW TO USE" for more information.

1. OUT/EXIT button: Used to set the endpoint when looping music manually. The player starts seamless loop playback until you press this button again to exit. When a loop is programmed but not active you can also restart the loop. The point where you press the button will be memorized as the new end point of the loop. In loop edit mode pressing the OUT/EXIT button stops the loop editing and saves the new loop endpoint.

2. RELOOP/STUTTER button: This button has 3 functions:

3. RELOOP: When a loop was programmed and you have hit the OUT/EXIT button, press the reloop button to enter the loop again. To exit the loop press the OUT/EXIT button. (intro and end points of the loop are unchanged)

4. STUTTER: When a loop is playing you can press this button to restart the loop at once. You can also press this button when a track is not playing in loop. Every time the RELOOP/STUTTER button is pressed, it will restart the music from the actual cue point. The stutter effect adds extra creativity to your performance.

5. ENTER EDIT LOOP MODE: When a loop is programmed (LOOP IN and OUT/EXIT buttons are on) you can enter loop edit mode by pressing the RELOOP/STUTTER button until the display shows "OUT EDIT". While in loop edit mode you toggle between "OUT EDIT" and "IN EDIT".

6. AUTO LOOP button: with the autoloop function activated you can make automatic loops, based on the information of the automatic BPM-counter: choose the desired loop length with the LOOP SYNC Buttons (44) and press the LOOP IN button (33) at the right moment. The loop will start playing automatically! For more information on this function, please refer to the chapter "HOW TO USE".

7. HOT CUE buttons: 4 programmable buttons where you can store ordinary cue points and/or loops. When a normal cue point is stored, the corresponding button is green, when a loop is stored the corresponding button turns red. All stored cue points and loops can be backed up to permanent memory for future use. This feature is called "PCMS Permanent Cue Memory System". Check the chapter "HOW TO USE" for more information on how to program cue points etc.

8. RECORD CUE: press this button prior to one of the 4 HOT CUE buttons (37) to save a new cue point or loop. See the chapter "HOW TO USE" to learn how you save cue points and loops.

9. SAVE TRACK: the hot cue system uses 2 kinds of memory: temporary "track memory" and "permanent" memory. New hot cues are only saved to the temporary "track memory". If you want to keep the hot cues for future use you must save the information to permanent memory, using the SAVE TRACK-button (39).

10. DELETE CUE: this button has several functions:

11. DELETE 1 HOT CUE: press the DELETE CUE button, followed by the HOT CUE button that you want to delete from track memory. The deleted button will turn black.

12. DELETE 4 HOT CUES: press the DELETE CUE button for about 2 seconds to erase all 4 hot cues from track memory.
13. DELETE TRACK: press the DELETE CUE button and RECORD CUE button (38) together to delete the hot cues for the entire track from permanent memory. Because there will be no way back, the display first asks you if you're sure: using the PITCH BEND buttons (31) you can choose YES or NO.

Please refer to the chapter "HOW TO USE" for more information.

1. ECHO EFFECT button: press this button to activate the echo effect. Depending on the sync-mode (manual or beat synchronized), different settings are possible:

2. Manual mode: the FX-SYNC button (48) is dark. You can set all parameters manually, use the following controls:

3. Jog-wheel (24): used to set the echo time from 1ms to 2000ms.

4. HOLD button (47): When the button is lit: the jog-wheel parameters are preserved. When the button is dark: as soon as you don't touch the jog-wheel anymore, the parameters return automatically to the previous settings.

5. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (dry/wet) of the effect.

6. Beat synchronized mode: the FX-SYNC button (48) is lit. You can use the following controls:

7. EFFECT SYNC Buttons (44): choose one of the beat synchronized echo presets.

8. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (dry/wet) of the effect signal.

9. FLANGER EFFECT button: press this button to activate the flanger effect. Depending on the syncmode (manual or beat synchronized), different settings are possible:

10. Manual mode: the FX-SYNC button (48) is dark. You can set all parameters manually, use the following controls:

11. Jog-wheel (24): used to manually change the effect.

12. HOLD button (47): When the button is lit: the jog-wheel parameters are preserved. When the button is dark: as soon as you don't touch the jog-wheel anymore, the parameters return automatically to the previous settings. The time to return to the previous settings can be changed in the setup menu.

13. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (dry/wet) of the effect.

14. Beat synchronized mode: the FX-SYNC button (48) is lit. You can use the following controls:

15. EFFECT SYNC Buttons (44): choose one of the beat synchronized sweep presets.

16. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (dry/wet) of the effect signal.

17. FILTER EFFECT button: press this button to activate the filter effect. Depending on the sync-mode (manual or beat synchronized), different settings are possible:

18. Manual mode: the FX-SYNC button (48) is dark. You can set all parameters manually, use the following controls:

19. Jog-wheel (24): used to manually change the cutoff frequency of the filter.

20. HOLD button (47): When the button is lit: the jog-wheel parameters are preserved. When the button is dark: as soon as you don't touch the jog-wheel anymore, the parameters return automatically to the previous settings. The time to return to the previous settings can be changed in the setup menu.

21. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (Q-factor) of the filter.

22. Beat synchronized mode: the FX-SYNC button (48) is lit. You can use the following controls:

23. EFFECT SYNC Buttons (44): choose one of the beat synchronized sweep presets.

24. RATIO button (46): as long as the RATIO-button is lit you can use the jog-wheel (24) to change the impact (Q-factor) of the filter.

25. EFFECT / LOOP SYNC-bar: this LED-bar helps you choosing the right beat presets for your effects (green lights) and loops red lights). With the buttons on both sides of the sync-bar you can divide/multiply the presets.

26. EFFECT / LOOP SELECT button: with this button you can select if the sync-bar buttons are used to change the effect sync (green light) or loop length (red light)
27. RATIO button: while this button is lit, you can change some parameters of the 3 effects. Please refer to points (41)+(42)+(43) for more information.
28. HOLD button: in manual mode you can press this button to activate the hold function. While the button is lit, the parameter changes in manual mode are preserved, otherwise the parameters return to the previous values as soon as you take your hand off of the jog wheel. Please refer to points (41)+(42)+(43) for more information.
29. FX SYNC button: press this button to toggle between manual and beat synchronized effect model! Please refer to points (41)+(42)+(43) for more information.
30. TAP button: This player has a full automatic BPM-counter. In some rare cases the automatic beat counter doesn't count as it should do (beats are out of the normal range or there's simply no beat to detect). In these cases you can help the beat counter by manually tapping this button to the rhythm of the beat. You can switch back to the automatic beat counter by pressing the TAP button until the "AUTOBPM" in the right upper corner of the display turns on.
31. SHIFT button: only used while the player is used as a MIDI controller. The shift function doubles the functions of each control: press the shift button while using another control to obtain an extra, secondary, function. See the chapter "MIDI MAP" for more information.
32. MIDI PLAYER A/B button: if 2 decks are connected to your PC, use this button to assign the deck as MIDI controller A (left player) or B (right player)

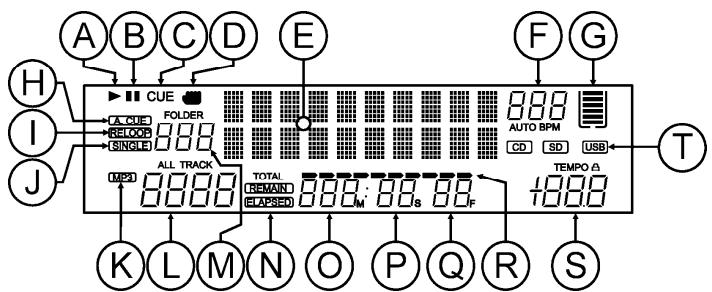

33. VFD DISPLAY: Shows all important information needed during playback.

A. PLAY: appears while the unit is playing a CD.
B. PAUSE: appears while the player is in pause or cue mode.
C. CUE: appears when the player is waiting at the CUE-point.
D. TOUCH INDICATOR: appears when the touch sensitive part of the jog wheel is active.
E. ALPHANUMERIC DISPLAY: Shows all kinds of important information like effect parameters, loop information, ID3-tags, ...
F. BPM DISPLAY: the automatic beat counter shows the number of Beats Per Minute on the display. In manual mode the display shows "BPM". In automatic mode the display shows "AUTOBPM". (press the TAP button for 2seconds to switch to automatic mode)
G. MEMORY BUCKET: shows the status of the buffer memory needed for anti-shock and some special functions. Each bar of the bucket represents 2seconds buffer memory.
H. AUTO CUE: appears when the "auto cue" function is active. See SGL/CTN button (14).
I. RELOOP: shows when a loop is programmed. (repeating a particular area)
- RELOOP Flashing: Loop is programmed and currently playing.
- RELOOP on: Loop is programmed but not playing.
J. SINGLE: appears when the unit is set to play just one track at a time. When it is not shown, the CD plays continuously through all tracks. The function is controlled by the SGL/CTN button (14).
K. MP3 indicator: appears when an MP3-file is playing.
L. TRACK indicator: shows the number of tracks available in your current selection.
- Standard lookup: (no Q-Dbase) the track numbers in the current folder (M) are shown.
- Q-Dbase lookup: the track numbers that correspond to your Q-Dbase pre-selection.
M. FOLDER/SEARCH KEY indicator: the information depends on the lookup mode you selected.
- Standard lookup: (no Q-Dbase) the current folder number is shown.
- Q-Dbase lookup: the current search key (Art, Alb or Gen) is shown.
N. ELAPSED, TOTAL REMAIN: indicates that the time shown on the display is the track elapsed, remaining or total remaining time.
O. MINUTE: Shows "minutes" time information of current track.
P. SECOND: Shows "seconds" time information of current track.
Q. FRAME: Shows "frame" time information of current track. (1 frame = 1/75^th sec.)
R. TIME BAR: has 2 functions:
- During normal playback: shows either time remaining or elapsed depending on the setting of the TIME button. Starts flashing at the end of each track to alert the user to take action.
- During loop playback: shows the time remaining until the end of the loop. This visual aid helps you to see where and when the seamless loop starts again.
S. PITCH DISPLAY: Shows the actual percentage of speed change, selected with the SPEED slider (30). The small red colored padlock is shown when the pitch lock function (Master Tempo) is active.
T. CD / USB INDICATOR: indicates the current input source: USB or CD.

CONNECTIONS

SIMPLE SETUP - 1 DECK

• Connect the supplied cinch (RCA) cable between the audio output (4) of the player and the line level input of your audio mixer.
• If available, connect the supplied fader start cable between the fader start output (3) of the player and the fader start input on your mixer.
• Connect the supplied power cord between the mains input (1) on the player and the mains socket.
  You can now play CDs and connect USB-storage, loaded with MP3 and WAV files.

SETUP - 2 OR 3 DECKS

For each deck follow the instruction for "simple setup - 1 deck".

• Connect a USB hard disk to the USB2-connection (8) of player1.

Note 1: the hard disk must be formatted in FAT32! A hard disk formatted in NTFS (mostly drives with big capacity) will NOT be recognized: such hard disk should be re-formatted in FAT32! (this can be done under Windows, we can't offer any support for this!)

Note 2: the USB-slots on this player can each deliver 1A power to the connected hard disk. However we suggest using a hard disk with separate power supply for better reliability.

• Use the supplied USB-cable to connect the USB-link connection (9) of player1 to the USB2-connection (8) of player2. (if you have a 3^rd player, connect players 2 and 3 in the same way)
• Use the SOURCE SELECT button (11) to select USB2 on the decks: the players will connect to hard disk.
  You can now play CDs and MP3 / WAV files from the connected hard disk.

IMPORTANT: for good, stable performance only use a good quality USB-cable with a maximum length of 1meter!

SETUP-MIDICONTROLLER

For each deck follow the instruction for "simple setup - 1 deck".

• Use the supplied USB-cable to connect the USB-link connection (9) of player1 to one of the USB-connections on your computer.
• Use the supplied USB-cable to connect the USB-link connection (9) of player2 to one of the USB-connections on your computer.
• In the setup menu: set option A (MIDI setup) to USB = MIDI. (see chapter SETUP MENU for support)
• Use the MIDI PLAYER A/B button (51) to select player1 as MIDI-controller A and player2 as MIDI-controller B.
• Configure your DJ software so it can be used with the DMC1000: this configuration depends completely on the PC-program you will use. This part of the installation and the use of the PC software is not supported by Synq! However we advise you to check our website to see if we have a midi-map file for the PC software of your choice available for download.

You can now control MIDI-software, play CDs and connect USB-storage, loaded with MP3 and WAV files.

SETUP MENU

For maximum flexibility this unit is highly customizable. Therefore a lot of parameters can be set via the setup menu. To be able to enter the setup menu, the player should NOT be in MIDI mode.

• To enter the SETUP menu, press the ENTER button (17) for about 3seconds.
• Use the FOLDER knob (18) to browse the different menu options.
• Use the TRACK knob (19) to browse the sub menus (if any)

• Use the JOG WHEEL (24) to change the settings (parameters) of the selected menu option.
  To save your settings: choose menu option G (EXIT & SAVE) and press the TRACK knob (19)

• JOGlight: you can adapt the look of the jog wheel light.

Turn the JOG WHEEL (24) to select one of the 23 possibilities.

1. Sensitivity: you can change the sensitivity of the tactile jog wheel to optimize the jog wheel performance.

Turn the JOG WHEEL (24) to select one of the 41 possibilities:

ADJ. = 0 : neutral setting (default setting, OK in most cases)
ADJ. = -20 : lowest sensitivity
ADJ. = +20 : highest sensitivity

1. Pitch BEND: you can change the impact of the PITCH BEND buttons (31).

Turn the JOG WHEEL (24) to select one of the 101 possibilities:

Pitch Range: (default setting) the maximum impact of the pitch bend buttons is limited to the pitch range selected with the TEMPO RANGE button (29).
+/-1% → +/-100%: select a fixed %-impact for the pitch bend buttons.

1. Line Setup: you can configure how the two text lines show information that is longer than 10 characters. For both text lines you can choose 3 different modes + some extra fine-tuning:

There are 4 submenus: turn the TRACK knob (19) to select a submenu.

Submenu 1-L1 Mode:

Turn the JOG WHEEL (24) to select the desired setting:

• L1 Mode = 1: text line scrolls and waits for a certain time before scrolling starts again. You can set the waiting time in submenu3.
• L1 Mode = 2: text line scrolls only one time, then stops.
• L1 Mode = 3: text line scrolls continuously.

Submenu 2-L2 Mode:

Turn the JOG WHEEL (24) to select the desired setting:

• L2 Mode = 1: text line scrolls and waits for a certain time before scrolling starts again. You can set the waiting time in submenu3.
• L2 Mode = 2: text line scrolls only one time, then stops.
• L2 Mode = 3: text line scrolls continuously.

Submenu 3 - start/stop waiting time for scrolling:

Turn the JOG WHEEL (24) to select the desired value:
- Dis. = 0.5s 12.0s : waiting time in seconds.

Submenu 4 - scrolling speed:

Turn the JOG WHEEL (24) to select the desired value:
- Run = 50 → 2000ms: 50ms = fast speed / 2000ms = slow speed

1. FX Return Time: while the effects are used in manual mode and the HOLD function (15) is not active, the parameters (set with the jog wheel) return automatically to the previous setting. You can set how long it takes to return back to the previous setting.

Turn the JOG WHEEL (24) to select the desired FX return time: 0sec (instantly) 3.0sec (slow)

1. LOAD HOTCUES: you can choose if the saved hot cues of a track should be recalled automatically.

Turn the JOG WHEEL (24) to select one of the 2 possibilities:

• First Ask: when a track contains hot cues, the display asks if you want to load the hot cues or not. You can reply with the YES/NO buttons (31).
  o Autoload: when a track contains hot cues, they will be loaded automatically.

• SLEEP TIME: to extend the lifetime of the laser, the unit goes automatically to sleep mode while not used for 15 minutes (default). In this menu option you can change, the time it takes to enter sleep mode:

Turn the TRACK knob (19) to select the desired time: "No SLEEP" 120 minutes.

1. INTENSITY: used to adapt the brightness of the VFD-display.

Turn the JOG WHEEL (24) to select one of the 4 possibilities.
ADJ. = 1 4 .. 1 = low brightness, 4 = high brightness (default)

1. A.CUE Level: the auto cue function detects where the music really starts, this avoids blanks when a track is not well indexed. You can select one of eight detection level presets:

Turn the JOG WHEEL (24) to select one of the 8 possibilities.
ADJ. = -78dB -36dB : the default setting = -48dB

A. MIDI CC Type: for maximum flexibility the CC-type (Control Change message) of some controls can be adapted:

There are 3 submenus: turn the TRACK knob (19) to select a submenu.

Submenu 1 - Folder knob (18):

Turn the JOG WHEEL (24) to select the desired setting:

• FOLD. = REL.: CC type = relative
  FOLD. = ABS.: CC type = absolute
• FOLD. = Note : CC type = note

Submenu 2-Track knob (19):

Turn the JOG WHEEL (24) to select the desired setting:

• TRACK = REL.: CC type = relative
• TRACK = ABS.: CC type = absolute
• TRACK = Note : CC type = note

Submenu 3-JOG WHEEL (24):

Turn the JOG WHEEL (24) to select the desired setting:

WHEEL = REL.:CC type = relative
WHEEL = Note : CC type = note

B. MIDI SETUP: for maximum flexibility a lot of other MIDI parameters can be set as well:

There are 9 submenus: turn the TRACK knob (19) to select a submenu.

• Submenu 1 - MIDI/LINK USB connection (9) functionality:

Turn the JOG WHEEL (24) to select the desired setting:

• USB = LINK: the USB-connection (9) is used to share connected USB-storage with another player.
• USB = MIDI: the USB-connection (9) is used to communicate MIDI-messages with software on a computer.

Submenu 2 - Linking of USB-storage:

Turn the JOG WHEEL (24) to select the desired setting:

• LINK = USB1: the USB-storage connected to USB1-input (10) will be shared with another player.
• LINK = USB2: the USB-storage connected to USB2-input (8) will be shared with another player.

Submenu 3 - MIDI channels:

Turn the JOG WHEEL (24) to select the desired setting:
- Chan = 1,2 → 15,16: select on which MIDI channels the unit player should send.

Submenu 4 - SHIFT button (50) functionality: you can choose how the SHIFT-button works in MIDl-mode.

Turn the JOG WHEEL (24) to select the desired setting:

• SHIFT = HOLD: similar to the SHIFT-key on your PC-keyboard → the MIDl-code of a button/knob changes only when you use it while the SHIFT-button (50) is pressed.
• SHIFT = SW. : similar to the CAPS LOCK-key on your PC-keyboard press the SHIFT-button (50) to turn the shift-function on: as long as the display shows "SHIFT" the MIDl-code of most buttons/knobs changes so they get a second (double) function.

Submenu 5 - JOG WHEEL (24) data delay: some DJ-software is limited to the number of MIDI events per second that can be handled, therefore you can set a delay for the JOG WHEEL MIDI-data. (default = 0ms)

Turn the JOG WHEEL (24) to select the desired setting:
- JOGOut = 0ms → 30ms: adjustable MIDI message delay

Submenu 6-JOG WHEEL (24) pulse rate: default setting is 1024ms. If your DJ-software does not respond well, you can change the setting to 512ms

Turn the JOG WHEEL (24) to select the desired setting:

• Pulse = 1024: default jog wheel resolution
• Pulse = 512: reduced jog wheel resolution

Submenu 7 - MIDI message display: you can select if the MIDI I/O messages should appear on the display or not. This can be helpful while making MIDI configuration files.

Turn the JOG WHEEL (24) to select the desired setting:

• I/O = Hide : don't show MIDI messages that are sent / received
• I/O = DIS.: show MIDI messages that are sent / received

Submenu 8 - MIDI edit ON/OFF: in the menu "B. MIDI NOTE Edit" you can adapt the MIDI-commands that are send/received. In this submenu you can select if the adapted MIDI-commands are used or not.

Turn the JOG WHEEL (24) to select the desired setting:

• Edit = ON : the adapted MIDI-command are used in the MIDI-communication.
• Edit = OFF : the default MIDI-command are used in the MIDI-communication. Your adapted MIDI-command are ignored.

Submenu 9 - Name : this is the hardware ID, used to recognize each player on your computer.

Turn the JOG WHEEL (24) to select the desired setting:
- Name = DMC1K → DMC1KH : seven possible names can be selected.

C. MIDI NOTE Edit: the default MIDI commands of this player (see MIDI-map) are fully editable. So if you want to assign a different MIDI command to one or more controls, you are free to do so. On the left side is the original MIDI command, on the right side you can set the new MIDI command.

Turn the TRACK knob (19) to select the MIDI command you want to change (left side)
Turn the JOG WHEEL (24) to select the new MIDI command (right side)

D. MIDI LED Edit: the default MIDI commands to control the lights on the unit (see MIDI Map) are also fully editable. So if you want to assign a different MIDI command to one or more lights, you are free to do so. On the left side is the original MIDI command, on the right side you can set the new MIDI command.

Turn the TRACK knob (19) to select the MIDI command you want to change (left side)
Turn the JOG WHEEL (24) to select the new MIDI command (right side)

E. Firmware version / upgrading: use this option to check and/or upgrade the firmware versions.

Turn the TRACK knob (19) to select the 4 firmware parts:

CON:xx:shows the version of the control firmware
SER:xx:shows the version of the servo firmware
BUF:xx:shows the version of the buffer firmware
DSP:xx:shows the version of the DSP firmware
Upgrade: blinks when the unit is ready to check if there are new firmware versions available. See "FIRMAWARE UPGRAING" for more information.

F. Load defaults: as you already noted this unit is highly configurable but that means also that you can mess up a lot of settings as well. If you really messed up things, you can still reload the default setting!
While "Enter Load" is blinking in the display: press the TRACK knob (19) to load the defaults.
G. Exit & Save: if you want your changes to the setup menu to be permanently saved (also after switching the unit off) you MUST use this option!
Press the TRACK knob (19): the display shows "Saving" and exits the setup menu.

FIRMWAREUPGRADING

We strongly suggest to register your player on our website (www.synq-audio.com/register/) so we can inform you if new firmware updates are available. Upgrading firmware should always be done very carefully!

• Download the file containing the upgrade file(s)
• Read the instructions and follow them strictly, otherwise you could damage your equipment...
• Put the files on an EMPTY (important!) USB-stick.
• Press the ENTER button (17) for about 3seconds to enter the setup menu.
• Use the FOLDER knob (18) to browse to menu option "E. Version".
• Turn the TRACK knob (19) until the display shows "Upgrade".

• Use the SOURCE SELECT button (11) to select USB1 input (10).

• Insert the USB-stick with firmware files in USB1-input (10)
  Upgrading will start automatically: WAIT (!) until the upgrading process is finished. NEVER turn the player off while upgrading the software!!!

• If the display asks you to turn off the unit: turn the unit off, wait 3 seconds and turn it back on.
• Check if the software version corresponds to the version marked in theREADME file that came with the update.

MIDI MAP (default settings)

To improve compatibility these default settings can be adapted by the user at any moment.

SW name	Type	MIDI	MIDI2(Hold SHIFT)	Remarks
FOLDER	SW/ENC	2B/31	6A/70	CC TYPE = RELATIVE
TRACK	SW/ENC	25/33	64/72	CC TYPE = RELATIVE
JOG	SW/ENC	13/35	52/74	CC TYPE = RELATIVE
FOLDER	CW/CCW	31/32	70/71	CC TYPE = NOTE
TRACK	CW/CCW	33/34	72/73	CC TYPE = NOTE
JOG	CW/CCW	35/36	74/75	CC TYPE = NOTE
FOLDER	ENC/CENTER	31/0F	70/4E	CC TYPE = ABSOLUTE
TRACK	ENC/CENTER	33/15	72/54	CC TYPE = ABSOLUTE
Pitch Slider	VR/CENTER	PITCHBEND/18	76/57
START	VR	27	66
BRAKE	VR	2D	6C
II	SW/LED	02/02	41/02
CUE	SW/LED	2E/2E	6D/2E
DATABASE	SW/LED	10/10	4F/10
FX SYNC	SW/LED	11/11	50/11
HOLD	SW/LED	0B/0B	4A/0B
FX RATIO	SW/LED	2F/2F	6E/2F
ECHO	SW/LED	05/05	44/05
FLANG.	SW/LED	29/29	68/29
FILTER	SW/LED	23/23	62/23
LOOP	SW/LED	30/30	6F/30
IN	SW/LED	04/04	43/04
OUT	SW/LED	17/17	56/17
RELOOP	SW/LED	1D/1D	5C/1D
REV	SW/LED	0A/0A	49/0A
DELETE CUE	SW/LED	08/08	47/08
RECORD CUE	SW/LED	0E/0E	4D/0E
SAVE TRACK	SW/LED	2C/2C	6B/2C
KEY LOCK	SW/LED	1E/1E	5D/1E
< >	SW/LED(Fx SYNC)	0C/0C	4B/0C
<	SW/LED(1/4)	19/19	58/19
>	SW/LED(4/1)	12/12	51/12
WHEEL MODE	SW/LED(VINYL)	24/24	63/24
TEMP RANGE	SW/LED(10)	2A/2A	69/2A
1	SW/LED/LED2	14/14/31	53/14/31
2	SW/LED/LED2	1A/1A/32	59/1A/32
3	SW/LED/LED2	20/20/33	5F/20/33
4	SW/LED/LED2	26/26/34	65/26/34
½(RED)	LED	35	35
1(RED)	LED	36	36
2(RED)	LED	37	37
4(RED)	LED	38	38
8(RED)	LED	39	39
16(RED)	LED	3A	3A
½(GREEN)	LED	3B	3B
3/4(GREEN)	LED	3C	3C
1/1(GREEN)	LED	3D	3D
2/1(GREEN)	LED	3E	3E
TEMP RANGE 6	LED	3F	3F
TEMP RANGE 16	LED	40	40
LOOP SET	LED	41	41
A.CUE SCRATCH	LED	42	42
CDJ	LED	43	43
DISC EJECT	SW	0D	4C
SGL/CTN	SW	01	40
TIME	SW	1F	5E
SHIFT	SW	45	--
ENTER	SW	16	55
<<	SW	1C	5B
>>	SW	22	61
CUE PLAY	SW	28	67
TAP	SW	07	46
PITCH BEND -	SW	03	42
PITCH BEND +	SW	09	48

CC-ABSOLUTE (VR)

Control Change messages are sent with status 0xBn, where n is the channel, for the specified CC controller. Thus the controller MIDI ID is indicated with the channel along with the CC number. The value from 0x00 to 0x7F, directly related to the location of the controller.

CC-RELATIVE (ENC)

Control Change messages are status 0xBn, where n is the channel, for the specified CC controller. Thus the controller MIDI ID is indicated with the channel along with the CC number. The value 0x40 is the reference value of the controller. This is an offset to 0x40 "one's complement" notation.

A message with data 0x43 indicates a positive change of 3.

A messages with data 0x31 indicates a negative change of 9.

SWITCH ON/OFF (SW,CENTER, CW, CCW)

These messages are used for switches.

Control Change messages are sent with status 0x9n, SWITCH On and Off value are 0x7F and 0x00, where n is the channel.

LED ON/OFF (LED)

These messages are used for LED.

Control Change messages are sent with status 0x9n, LED On and Off value are 0x7F and 0x00, where n is the channel.

INSTALLING THE Q-DBASE SOFTWARE

The DMC1000 works perfectly without the Q-DBASE database files but if you want to search your tracks easily and lightning fast than you should install the Q-DBASE software on your computer! Please note that the program currently only works under Windows (XP, Vista, Win7). To be sure that you always have the latest version, you can download the software from our website. Installing the program is very easy: just double-click the file and follow the instructions on your screen.

USING THE Q-DBASE SOFTWARE

Each time you add or remove tracks from your USB hard disk, you must run the Q-DBASE software again to update the database files!

After the installation you will see a new program directory called "SYNQ". In this directory you will find 2 files:

Uninstall (to uninstall the software)
- Q-DBASE (to start the software)

• Connect your USB-hard drive to your PC and check which drive letter was assigned to it.
• Click on the Q-DBASE icon to start the software: the main screen is shown.
• In the upper left corner choose your USB-drive.
• Press the BUILD-button on the right side.

The software starts scanning the USB-drive for compatible audio files and extracts the ID3-tags to build the Q-DBASE files, needed to speed up the search function on player. Once the progression bar on the bottom is full, the database building process is finished and a short summary is shown.

• The program wrote the Q-DBASE files (file extensions: .DBH + .dat + .DBX) to the USB-drive so now you can remove it from your PC and connect it to the DMC-1000.

To achieve the best results, please always use the latest version of the database software. You can find the software version at the bottom left of the "About" screen.

! IMPORTANTMESSAGEFORVISTAUSERS!

Many Vista users will not be able to run the Q-DBASE software. This problem is caused by the UAC (User Account Control) limitation, a security option limiting the user privileges in Vista. To overcome this problem, right-click the Q-DBASE program icon and choose "Run as administrator" in the popup menu. Windows will respond with the window shown on the right: just click "Allow".

HOW TO USE ...

Most of the common functions are explained in the previous chapter "controls and functions" In this chapter we talk about the functions that need a little more explanation.

SOME GENERAL FUNCTIONS:

SEARCH A TRACK WITH THE Q-DBASE SYSTEM:

Important: before you can use the Q-DBASE system, you should scan your USB-drive so it contains the necessary files.

You can choose the search key at any moment by pressing the TRACK-knob (19) while you turn it. You can search for Art(artist), Alb(album) or Gen(genre).

• Press the DATABASE-button (16) to start the lookup function the first character of the list you want to search is blinking in the display.
• Turn the FOLDER knob (18) to change the first character.
• Turn the JOG WHEEL (24) to browse the list that corresponds to your demand at high speed. If you want to search more precisely track by track, you can also turn the TRACK knob (19).
• Once you have found the right track: press the ENTER-button (17).

SEARCH A TRACK WITHOUT THE Q-DBASE SYSTEM:

Press and turn the TRACK-knob (19) to select Std(standard lookup system). If the USB-drive has no Q-DBASE files, the player automatically selects the standard lookup system. You have Two options:

Option 1:

Simply use the FOLDER and TRACK knobs to browse the different directories.

Option 2:

• Press the DATABASE-button (16) to start the lookup function both the FOLDER and TRACK displays start blinking.
• Turn the FOLDER knob (18) to browse the folders (press and turn to browse by 10 steps).
• Turn the JOG WHEEL (24) to browse the selected folder at high speed. If you want to search more precisely track by track, you can also turn the TRACK knob (19).
• Once you have found the right track: press the ENTER-button (17).

- SLEEP MODE:

When source select is set to CD, the CD player automatically shuts off the transport and laser after about 5~120 minutes (selectable in the setup menu), while in pause or cue mode. This extends the life of your motor drive and laser. During sleep mode the display shows the word "z Z SLEEP...". To wake up the player, just press the cue or play button, the display turns to normal and is ready to receive instructions.

- RELAY FUNCTION:

First connect the FADER START inputs (3) on both players using the supplied fader-start cable. Use the SGL/CNT-button (14) to select "single" mode on both units. Open the 2 faders of the CD inputs on your mixer. Put a disc in both players and start playback on one of the units. Alternately a track will be played from both units until the relay function is disengaged. You can always put a new CD in the player that is waiting in pause. In this way you can create an endless program, perfect for use in pubs etc.

PITCH BENDING:

This function is used to synchronize the beats of two tracks. This can be done in two ways:

• PITCH BEND buttons: The speed increases or decreases respectively as long as the PITCH BEND+ or PITCH BEND- buttons are pressed.
• JOG WHEEL: During CDJ-play mode the JOG WHEEL will temporarily bend the pitch of the music by turning the JOG WHEEL clockwise to speed up or counterclockwise to slowdown. The rotation speed the JOG WHEEL determines the percent of pitch bend.

User Account Control

An unidentified program wants access to your computer

- CD-TEXT:

Not only MP3 files can show the track name on the display. Some normal audio CDs use CD-TEXT to show the track names. Also some CDR burning software (ex. Nero) can add CD-TEXT to a normal audio CD. When the DMC1000 detects these CD-TEXT data, the display will show them automatically.

- PLAYING/RECORDING CD-R and CD-RW:

Apart from normal audio CD's the DMC1000 can play both CD-R (CD recordable) and CD-RW (CD rewriteable). Please note that you should always use the "disc at once" and "track at once" disc writing options! Although the DMC1000 is capable of reading CD-R and CD-RW recorded at higher speeds, we suggest not using recording speeds more than x12 to increase readability. Always buy good quality brands for CD-R and CD-RW!

If the disc is multi session, it will only play the first session:

• if the first session is CD-DA you can only play CD-DA tracks.
• if the first session is MP3 you can only play MP3 files.

ABOUT LOOPS:

- CREATE AN AUTO LOOP:

Make sure the automatic beat counter is active and its readout is stable.

• Press the AUTOLOOP-button (36) to activate the auto loop function:
• Check if the EFFECT/LOOP SELECT button (45) is set to loop (red light)
• Use the buttons on both sides of the EFFECT/LOOP SYNC bar (44) to choose the length of the loop you want to make. (for example: a 1/1LOOP, which is a standard 4beat loop)
• Press the LOOP IN-button (33) at the right moment.

The DMC1000 automatically calculates the endpoint of the loop and starts playing the loop instantly.

You can use the buttons on both sides of the EFFECT/LOOP SYNC bar (44) to instantly cut/extend the playing loop.

NOTE: This function only works well when the music contains continuous and steady beats.

- CREATE A LOOP MANUALLY:

Make sure that the AUTOLOOP-button (36) is switched off.

While a track is playing, press LOOP IN button (33) to program the starting point of the loop. Now press the OUT button (34) to program the endpoint of the loop. The seamless loop starts playing at once. (With some practice you will be able to create perfect loops!) While the loop is playing, you can press the OUT button (34) again to exit the loop and continue the rest of the track.

It is possible to program a new loop, even when the current loop is still playing. While the loop is playing, simply press the LOOP IN button (33) to set the starting point of the new loop. Now enter the endpoint by pressing the OUT button (34). Your new loop is programmed and playing.

- RESTART A LOOP:

This can be done in 3 ways:

• When a loop is programmed and you left it by pressing the OUT button (34), just press RELOOP (35) to restart the loop.
• When a loop is programmed and you left it by pressing the OUT button (34), just press OUT again to restart the loop. The point where you pressed OUT is now programmed as the new endpoint of the loop.
• When the loop is still playing, press the RELOOP button (35) to restart the loop immediately. You can repeat this several times to create a "Stutter" effect.

- EDIT A LOOP:

First check if the EFFECT/LOOP SELECT button (45) is set to effect (green light)

When a loop is programmed, press the RELOOP button (35) for about 2 seconds to enter "loop edit" mode. While the loop is seamlessly playing, the alphanumeric display shows the time information of the loop endpoint. Use the jog wheel to set the new loop endpoint. To make things very easy you can hear your modifications to the loop endpoint continuously. If you also want to edit the loop intro point, press the RELOOP-button (35) to toggle between the loop start and endpoint. When the loop is perfect, press the LOOP OUT button (34) to save the new loop endpoint.

- CUT/EXTEND LOOP FUNCTION:

First check if the EFFECT/LOOP SELECT button (45) is set to loop (red light)

While a loop is playing you can you can use the buttons on both sides of the EFFECT/LOOP SYNC bar (44) to instantly cut/extend the playing loop:

• CUT FUNCTION: press the button on the left side of the EFFECT/LOOP SYNC bar (44) to cut the loop in half. Every time you press this button the loop is cut in half until you reach "1/64 Loop". You will notice a "" character on the left side of the display appearing and disappearing. This is a visual aid that tells you when it is safe to cut the loop in half without a "false" skip in the loop: when it is safe to cut the loop, the "" appears. When the "**" is not visible, you will risk a false skip in the loop while cutting.

• EXTEND FUNCTION: press the button on the right side of the EFFECT/LOOP SYNC bar (44) to double the loop length by 2. With every extra click the loop is doubled until you reach "32/1 Loop". You will notice a "" character on the left side of the display appearing and disappearing. This is a visual aid that tells you when it is safe to turn the extend function off or to cut the loop in half without a "false" skip in the loop: when it is safe to stop the extend function or to cut the loop, the "" appears. When the "**" is not visible, you will risk a false skip in the loop while cutting.

ABOUT EFFECTS:

In the description of the effects you can already find a lot of information, don't forget to also check that part!

- USE THE EFFECTS IN BEAT SYNCHRONIZED MODE:

Press the FX-SYNC button (48) so it's lit and check if the EFFECT/LOOP SELECT button (45) is set to effect (green light).

While music is playing you can press any of the 3 effects: the effect works in beat synchronized mode. Use the buttons on both sides of the EFFECT/LOOP SYNC bar (44) to choose different beat presets. Use the RATIO-button (46) to adapt the impact of the effect.

- USE THE EFFECTS IN MANUAL MODE:

Press the FX-SYNC button (48) so it's dark.

While music is playing you can press any of the 3 effects: use the JOG WHEEL (24) to change the effect in real-time. Use the HOLD button (44) to choose if the effect parameters need to be preserved or not. You can also check the description of the HOLD-button 44) for more information. Use the RATIO-button (46) to adapt the impact of the effect.

ABOUT MEMORY:

DIFFERENT MEMORIES:

Before we talk about using the memory, we have to know the difference between "track memory" and "permanent memory":

• Track Memory: This is the memory where the DMC1000 stores a set of up to four cue points and/or loops for one track. You can set up a "track memory" for every single track on a CD or USB-drive. Example: your CD contains 16 tracks for every track you can store up to 4 cue points and/or loops. This makes a total of 16 × 4 = 64 cue points and/or loops on one CD! Also on a USB-hard disk you can store 4 cue points and loops for as many tracks as you like.

• Permanent Memory: This is the large memory where all the cue points and loops are permanently stored. In fact it's an indexed collection of "track memories". When you recall previously stored cue points of a certain track, you make a transfer from "permanent memory" to "track memory".

USING THE "TRACK MEMORY":

- STORING A MASTER CUE POINT:

There are 2 ways to set a master cue point:

• Press the LOOP IN (33) button during normal playback to set the new cue point ("CUE on the fly").
• Put the player in pause and use the jog/shuttle wheel to search for the exact location for the cue point. Once this location is found, press LOOP IN button (33) to set the new cue point. (or press PLAY/PAUSE button)

Once the cue point is programmed, just press the CUE button (22) to recall it.

- STORING A SIMPLE CUE POINT TO THE "HOT CUE" BUTTONS:

First press the RECORD CUE button (38) to make the unit enter hot cue memory mode (RECORD CUE button is on):

• Press one of the four HOT CUE buttons (37) at the right moment during normal playback: the HOT CUE button you just pressed changes to green color to indicate that the desired cue point is stored.

("Cue on the fly").

• Put the player in pause and use the jog/shuttle wheel to search for the exact location for the cue point. Once this location is found, press one of the four HOT CUE buttons to set the new cue point: the HOT CUE button you just pressed changes to green color to indicate that the desired cue point is stored. Once the cue point is programmed, just press the HOT CUE button to start playback from the stored cue point.

STORING A LOOP TO THE "HOT CUE" BUTTONS:

This is very similar to storing a simple cue point. The only difference is that you have to put the DMC1000 in loop mode first. When the loop is playing, you press the RECORD CUE button (38) to make the player enter hot cue memory mode (RECORD CUE button is on). After this press one of the four HOT CUE buttons (37): the HOT CUE button you just pressed changes to red color to indicate that the loop, playing at that moment, is stored. You can store up to 4 loops per track!

- DELETE THE "HOT CUE" BUTTONS:

You can easily delete the contents of a HOT CUE button by pressing the DELETE CUE button (40), followed by the HOT CUE button you want to delete. Or simply store a new cue point or loop to this HOT CUE button. You can also erase all four HOT CUE buttons together by pushing the DELETE CUE button (40) for more than 2 seconds. You will notice that all 4 HOT CUE buttons turn dark to indicate that the HOT CUE buttons are empty.

USING THE "PERMANENT MEMORY":

For security reasons the cue points and loops stored in the HOT CUE buttons are not automatically stored to the permanent memory. This means that if you recall a set of cue points and loops from permanent memory to the HOT CUE buttons (which is track memory), you can change, edit and delete them as much as you want. The permanent memory will not be affected until you make a backup of the HOT CUE buttons to permanent memory.

STORING TO "PERMANENT MEMORY":

Press the SAVE TRACK button (39). The display shows "Now saving" to indicate that the cue points and loops in the HOT CUE buttons for that track are stored to permanent memory.

- DELETE A TRACK IN "PERMANENT MEMORY":

Select the track that you want to delete. Press the "DELETE CUE" and "RECORD CUE" buttons together. The display asks "Del Track?" if you press the YES button (PITCH BEND+ button), the track information will be deleted in the permanent memory.

- RECALLING “HOT CUE POINTS/LOOPS” FROM PERMANENT MEMORY:

Because it takes some seconds to load the permanent cue points, they are not automatically restored. Sometimes you simply don't need them so why would you wait for them? Below we explain how everything works:

• No cue points stored: When you select a track that has no cue points or loops stored in permanent memory, nothing happens: you can start playback right away.

• Cue points stored: When you select a track where cue points or loops are stored in permanent memory, the DMC1000 shows "Load Cues?" and wants to know if you want to load the cue points. This is what you can do:

• You press the YES button: Press yes (pitch bend + button) to load the pre-stored cue points and loops. The display shows RECALL while the Hot cue buttons are filled up.

• You press the NO button: the cue points are not loaded and the display becomes normal.
  You can start playback right away.
• You do nothing: after some seconds the display becomes automatically normal and of course the cue points are not loaded.

SPECIFICATIONS

Power Supply: AC 100 - 240V, 50/60Hz

Power Consumption: 19W

Output level CD: 2,0Vrms +/-0,5dB @ 1kHz,0dB

Output level USB1 / USB2: 1,85Vrms +/-0,5dB

Frequency response CD: 17-20.000Hz (+/-0,4dB@0dB output)

Frequency response USB1 / USB2: 17-16.000Hz (+/-0,2dB)

THD + noise CD: 0.006% @ 1kHz, 0dB

THD + noise USB1 / USB2: 0.007% @ 1kHz, 0dB

S/N Ratio (IHF-A): >126dB @ 1kHz, 0dB (IHF-A weighted)

0,35V +/-0,5dB

Digital output level: 0,5V +/-0.03V P-P @ 75Ω

Electronic tracking: Full automatic digital tracking.

DISC FORMAT:

Possible file extensions: .mp3 ~ .MP3 ~ .mP3 ~ .Mp3

ISO9660:

Joliet:

CD-ROM sector format:

Max.Folders: 255

Max Tracks / Folder: 255

Max Tracks: 999

Max. number of hot cues:

USB FORMAT:

File System: FAT12/16/32

Max. Hard disk capacity:

Max.Folders: 999

Max Tracks / Folder: 999

Max. Q-DBASE track capacity:

WAV FORMAT:

MP3 FORMATS:

MPEG1 Layer3 (ISO/IEC11172-3): mono / stereo sampled at: 32 - 44,1 - 48kHz

Bitrates: 32-320Kbps

Bitrate modes:

MPEG2 Layer3 (ISO/IEC13818-3):

Bitrates:

Bitrate modes:

MPEG2,5 Layer3:

Bitrates:

Bitrate modes:

Q-DBASE Software :

File extensions : .DBH + .dat + .DBX

System requirements :

Dimensions:

Weight:

.DBH + .dat + .DBX

RAM 512MB

100MB free disk space

Microsoft® Win XP SP3 ~ Win Vista SP2 ~ Win 7

296(D) x 218(W) x 103,5(H) mm

2,5kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

- REDÉMARRER UNE BOUCLE:

- ADAPTER UNE BOCLE:

DIFFERENTES MEMOIREs:

2,0 V rms +/-0,5 dB @ 1 kHz, 0 dB

1,85 V rms +/-0,5 dB

17-20.000 Hz (+/-0,4 dB @ 0 dB output)

17-16.000 Hz (+/-0,2 dB)

0.006 % @ 1 kHz, 0 dB

0.007% @ 1 kHz, 0 dB

126 dB @ 1 kHz, 0 dB (IHF-A weighted)

0,35V+/-0,5dB

0,5 V +/-0.03V P-P @ 75 Ω

Microsoft®Win XP SP3 Win Vista SP2 Win 7

296 (P) x 218 (L) x 103,5 (H) mm

2,5 kg

MAAK EEN MANUELE LOOP:

- DE "HOT CUE" TOETSEN WISSEN:

max. 63 character style

max. 63 character style

mode-1 only

255

255

999

2000 (op 500 CDs)

FAT12/16/32

500GB

999

999

9999

PCM, 1411kbps.

mono / stereo sampled at: 32 - 44,1 - 48kHz

32 - 320 Kbps

CBR (Constante Bitrate) of VBR (Variabele Bitrate)

mono / stereo sampled at: 16 - 22,05 - 24kHz

32 - 160 Kbps

CBR (Constante Bitrate) of VBR (Variabile Bitrate)

mono / stereo sampled at: 8 - 11,025 - 12kHz

32 - 160 Kbps

CBR (Constante Bitrate) of VBR (Variabele Bitrate)

.DBH ^+ .dat ^+ .DBX

RAM 512MB

100MB vrijeschijfruimte

Microsoft® Win XP SP3 ~ Win Vista SP2 ~ Win 7

296(D) x 218(B) x 103,5(H) mm

2,5kg

EINFACHER AUFBAU -1 DECK

Microsoft® Win XP SP3 ~ Win Vista SP2 ~ Win 7

296(T) x 218(B) x 103,5(H) mm

2,5kg

LIMPIANDO SU REPRODUCTOR:
