USER MANUAL BEAT 6 MK2 JBSYSTEMS LIGHT

Copyright © 2004 ~ 2006 by BEGLEC cva.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

Version: 1.2

JBSYSTEMS

THE POWER SOURCE FOR DJ'S

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully.

FEATURES

This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• 12 inputs on 6 channels (7line, 2phones, 3micros)
  1 separate balanced DJ micro with talkover
• Gain, treble, mid, bass controls on all channels
• Assignable and easy replaceable crossfader
• High quality, easy gliding "steel rail" DJ faders
  2 Master outputs with individual balance controls
• Master1 with balanced XLR outputs
• LED VU-meters on input channels and masters
  Automatic beat counters with offset indicators
  Crossfader starts for compatible CD players
• Pre-fade listening with cue mix option

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.
• To protect the environment, please try to recycle the packing material as much as possible.

Check the contents:

Check that the carton contains the following items:

• Mixer
• Mains cable
• Operating instructions

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only.

This symbol means: Read instructions.

• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• No naked flame sources, such as lighted candles, should be placed on the appliance.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
• Maximum save ambient temperature is 45^ . Don't use this unit at higher ambient temperatures.
• Minimum distances around the apparatus for sufficient ventilation is 5cm .
• Always unplug the unit when it is not used for a longer time or before you start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The socket inlet shall remain operable for disconnection from the mains.
• The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged.
• Never let the power-cord come into contact with other cables!
• When the power switch is in OFF position, this unit is not completely disconnected from the mains!
• This appliance must be earthed to in order comply with safety regulations.
• In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!

• In the event of serious operating problems, stop using the appliance and contact your dealer immediately.

• Please use the original packing when the device is to be transported.

• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

INSTALLATION GUIDELINES:

• Install the unit in a well-ventilated location where it will not be exposed to high temperatures or humidity.
• Placing and using the unit for long periods near heat-generating sources such as amplifiers, spotlights, etc. will affect its performance and may even damage the unit.
• The unit can be mounted in 19-inch racks. Attach the unit using the 4 screw holes on the front panel. Be sure to use screws of the appropriate size. (screws not provided) Take care to minimize shocks and vibrations during transport.
• When installed in a booth or flight case, please make sure to have good ventilation to improve heat evacuation of the unit.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance.

CLEANING THE MIXER:

Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit.

CONNECTIONS

Except for microphones, headphone and master outputs, all connections are cinch. Use good quality cinch-cinch cables to prevent bad audio quality. (example: JB Systems code: 2-0370)

For more information on connections, please refer to the next chapter.

Be sure to turn off the mixer before you make changes to the different connections.

In this manual we talk about "line inputs". This is a global name for inputs with a level between 750mV and 2V. This includes tuners, videos, CD-players, etc.

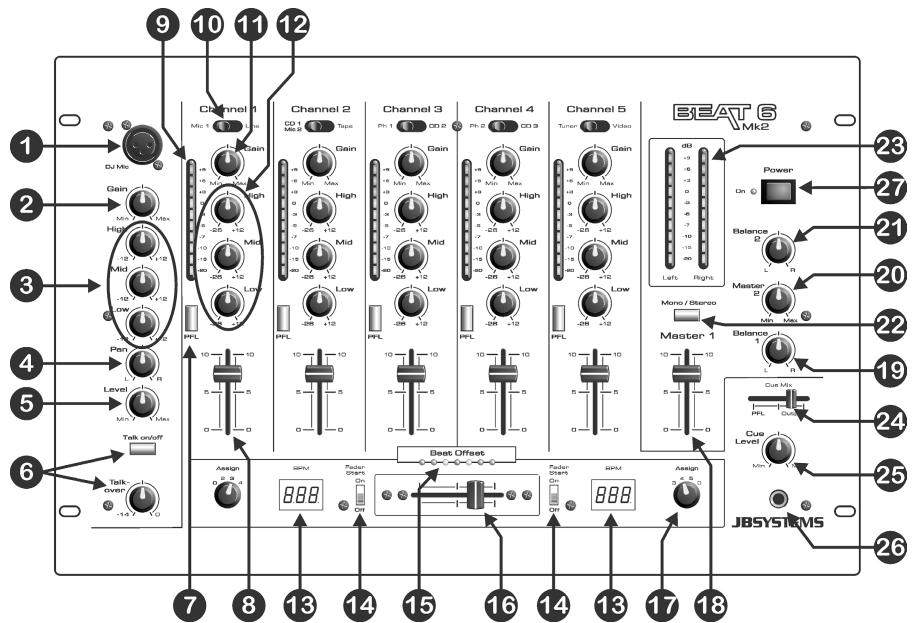

CONTROLS AND FUNCTIONS

1. DJ MIC INPUT JACK: Combo jack. Accepts either a balanced microphone with an XLR connector or an unbalanced microphone with 1/4 mono jack. This input is mainly used as DJ-microphone. The talk over does not affect the signal level of this input.
2. GAIN LEVEL: Adjusts the input level of the DJ input. Use this control to adjust the level of the DJ microphone on the VU-meter at about 0dB.
3. 3-BAND TONE CONTROL: The frequency of the DJ micro can be controlled over a +/-12dB range.
4. PANPOT CONTROL: Used to place the sound from the DJ micro somewhere in the stereo field. A panpot control does the same for mono signals as a balance control does for stereo signals.
5. DJ MIC VOLUME: Used to adjust the level of the DJ micro.
6. TALKOVER: Use the switch to automatically mute the input channels 1 to 5 while you are talking through the DJ microphone. You can adjust the amount of muted on input channels 1 to 5. The more you turn the talkover level to the right, the more these channels are muted while talking through the DJ Micro(1).
7. PFL SELECTOR: Used to select the source (CH-1 to CH-5) to be monitored via the headphones output. Pressing multiple Cue Buttons makes it possible to derive a mixed sound from the selected sources.
8. CHANNEL FADER: Used to set the level of each channel separately.

9. CHANNEL VU METER: Each channel has its own LED VU-meter so you can adjust the gain level (11) very quickly. Make sure the levels do not exceed 0dB (or 100% ). The audio risks to be distorted when the signal level comes in the red zone of the VU-meter.

10. INPUT SOURCE SELECTOR: Used to select the correct input on each channel: Phono, line, aux or mic. On some channels there are additional input selectors on the back.

Hint: Line, Aux, CD, Tuner, etc... are different names for inputs with almost the same signal levels.

1. GAIN LEVEL: Adjusts the input level on each channel. Use this control to adjust the level on the VU-meter at about 0dB.

12.3-BAND TONE CONTROLS: The frequency of each channel can be controlled separately over a range from -26dB to +12dB. In the center position the tone control is flat. (switched off)

1. BEAT COUNTER DISPLAY: Shows the number of beat per minute (BPM) of the music on the channel selected with the crossfader assign selector (17). To have a reliable result on the display the music must have a clear and steady beat.

14.FADER START ON/OFF SWITCH: When you have a compatible CD-player connected to the fader control connectors, you can control its start/stop (re-cue) functions with the cross fader. With this switch you can turn the fader start control on and off.

1. BEAT OFFSET INDICATOR: This indicator has several colored LEDs which indicate if the beat on both beat counters are well synchronized. When both beat counters are completely out of sync, the red LEDs will be lit. You will have to adapt the speed of the connected audio sources so the beats will be nicely synchronized. When the synchronization becomes better the yellow LEDs will turn on. Finally, when both beats are in perfect sync, the green led in the center turns on. Now you can mix the beat of 2 audio sources together.

2. CROSSFADER: With this fader you can mix over between the channels you selected with the crossfader assign selectors (17). The crossfader only works when you move the selected channel faders (8) to the desired level! The crossfader also integrates the optical fader starts. See the next chapter for more information on this issue.

3. CROSSFADER ASSIGN: Selects the input channels to be used with the crossfader (16) and beat counters (13). When set to "0" the crossfader is switched off.

4. MASTER1 LEVEL: Used to adjust the level of the balanced Master1 output.

19.BALANCE MASTER1: used to adjust the balance between left and right output on Master1.

1. MASTER2 LEVEL: Used to adjust the level of the unbalanced Master2 output.

21.BALANCE MASTER2: used to adjust the balance between left and right output on Master2.

1. MONO/STEREO SWITCH: used to switch both masters in mono or stereo mode.

2. MASTER1 VU METERS: Monitors the output level of master1. Make sure the levels do not exceed 0dB (or 100% ). The audio risks to be distorted when the signal level comes in the red zone of the VU-meter.

3. CUE MIX: With this fader you can mix the master output and any of the input channels through the headphone output (26):

4. Put the fader in the extreme left position to monitor a selected PFL signal (7).

5. Put the fader in the extreme right position to hear the master output.
6. Put the fader in any other position to hear a mix of the two signals.

This option makes it possible to check your mix before you put it on the master output.

25.CUE LEVEL: Used to control the output level of the headphone output.
26. HEADPHONE jack: You can monitor all inputs/outputs when you connect any modern stereo headphone to this 6.3mm jack.
27. POWER switch: Used to turn the power of the mixer on and off. The blue led is lit when the mixer is turned on.

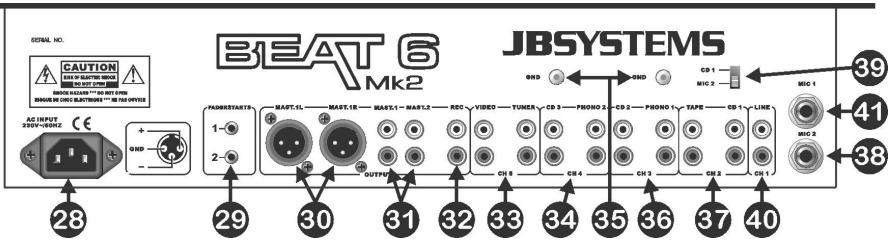

REAR PANEL

1. MAINS CABLE: connect this cable to a 230V/50Hz mains outlet. Before use, inspect the cable to be sure it's not damaged!
   29.FADER CONTROL: When connected to these inputs, compatible CD-players can be controlled by the fader starts of this mixer.
   30.MASTER1 BALANCED OUTPUT: The XLR-connectors can be used to connect this mixer to any balanced amplifier input, using special balanced signal cables.
2. MASTER UNBALANCED OUTPUTS: The "mast.1" output has the same output signal as the balanced master output(30) but unbalanced. The "mast.2" output carries the same signal but can be controlled independently by the master2 level/balance (20/21). Use the outputs to connect unbalanced amplifiers.
3. RECORD OUTPUT: Carries the same signal as the master outputs but is not influenced by the master level, balance and mono/stereo controls. Used to connect analog recording equipment.
4. INPUT CHANNEL 5: used to connect two different line level audio signals. The input source selector (10) on the front determines which input will be active.
5. INPUT CHANNEL 4: used to connect a turntable and/or a line level audio signal. The input source selector (10) on the front determines which input will be active.
   35.GROUND (GND) CONNECTION: Many Turntables have a GND-connection. It is preferable to connect this signal ground to the GND-connector. If your turntable does not have a ground wire, you don't have to use this connector.
6. INPUT CHANNEL 3: used to connect a turntable and/or a line level audio signal. The input source selector (10) on the front determines which input will be active.
7. INPUT CHANNEL 2: used to connect two different line level audio signals. Refer to switch (39) to change one line input to microphone level. The input source selector (10) on the front determines which input will be active.
   38.MIC2 INPUT: Used to connect an unbalanced microphone to channel 2. Refer to switch (39) to change the CD1 input to mic2.
   39.MIC2/CD1 SWITCH: This switch makes it possible to switch between the CD1 input (37) and the mic2 input (38) on channel2.
   40.LINE INPUT CHANNEL1: used to connect a line level audio signal to channel1.
   41.MIC1 INPUT CHANNEL1: used to connect a microphone to channel1.

CROSSFADER STARTS

The crossfader integrates the optical fader start switches. These fader starts are compatible with all current JB Systems CD-players. This is how it works:

A. CROSSFADER IN LEFT POSITION:

CD-player connected to fader start connector 1 is playing, the other CD-player is paused.

B. CROSSFADER MOVES TO THE RIGHT: CD-player connected to fader start connector 1 stops playing, returns to its previously programmed cue point and waits in pause. The other CD-player starts playing from its previously programmed cue point.

C. CROSSFADER IN RIGHT POSITION:

CD-player connected to fader start connector 2 is playing, the other CD-player is paused.

D. CROSSFADER MOVES TO THE LEFT: CD-player connected to fader start connector 2 stops playing, returns to its previously programmed cue point and waits in pause. The other CD-player starts playing from its previously programmed cue point.

Important: Both fader start switches must be in "ON" position!

A

B

C

D

SPECIFICATIONS

Power Supply: AC 230 V, 50Hz

Frequency response: 20-20.000Hz (+/-2dB)

THD + noise: <0.09% @ 1kHz, 0dB

S/N Ratio (IHF-A): >86dB @ 1kHz.

Micro inputs: 1.5mV @ 10kΩ

Line/CD inputs: 150mV @ 22kΩ

Phono inputs: 3mV @ 47kΩ

Record output: 775mV @ 600Ω

Master A/B output: 1.5V @ 4k7Ω unbal.

Master A/B output: 850mV @ 600Ω bal.

Talkover: 0dB → -15dB

Tone controls: +12dB / -26dB

Headphone: 1.5V@33Ω

Dimensions: 483(W) x 308(H) x 95(D) mm (19"7U)

Weight: 6kg
