USER MANUAL FNDP15W FRIGIDAIRE

D 1 Left Front bracket. E 1 Right Front bracket. F 2 Rear brackets.

• Failure to disconnect from power source before stacking could result in personal injury or even death.
• Improper installation of dryer venting could result in personal injury or damage to property.
• To avoid back or other injury, have more than one person move or lift the washer or dryer. English continued on page 2.

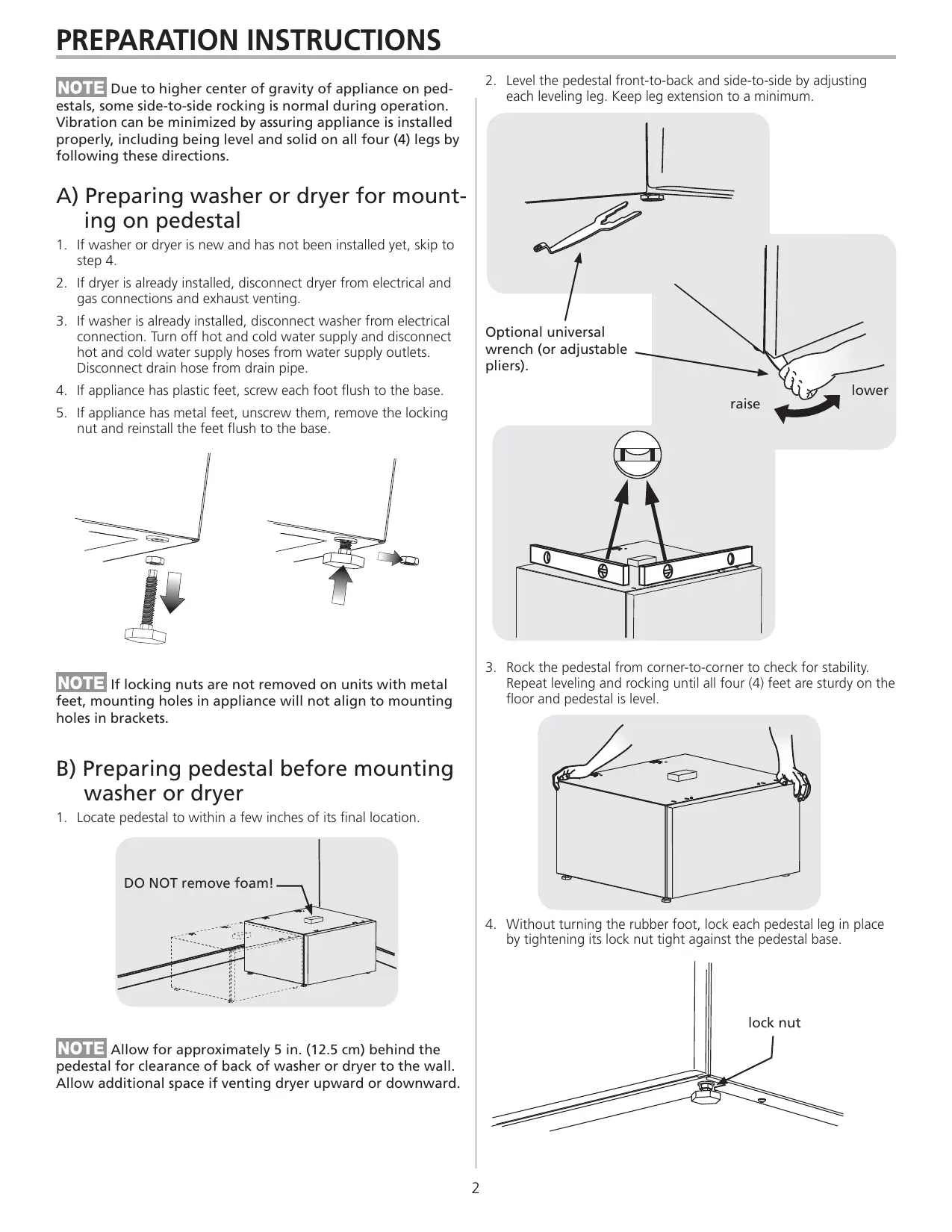

• Para evitar lesiones en la espalda u otro tipo de lesiones, procure levantar o mover la lavadora o secadora con la ayuda de más de una persona. La versión en español continúa en la página 14. 137147600 B (0906) PREPARATION INSTRUCTIONS

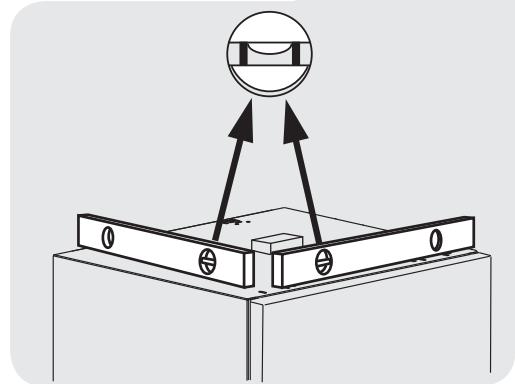

2. Level the pedestal front-to-back and side-to-side by adjusting

each leveling leg. Keep leg extension to a minimum. Due to higher center of gravity of appliance on pedestals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed properly, including being level and solid on all four (4) legs by following these directions. A) Preparing washer or dryer for mounting on pedestal

1. If washer or dryer is new and has not been installed yet, skip to

2. If dryer is already installed, disconnect dryer from electrical and

gas connections and exhaust venting.

3. If washer is already installed, disconnect washer from electrical

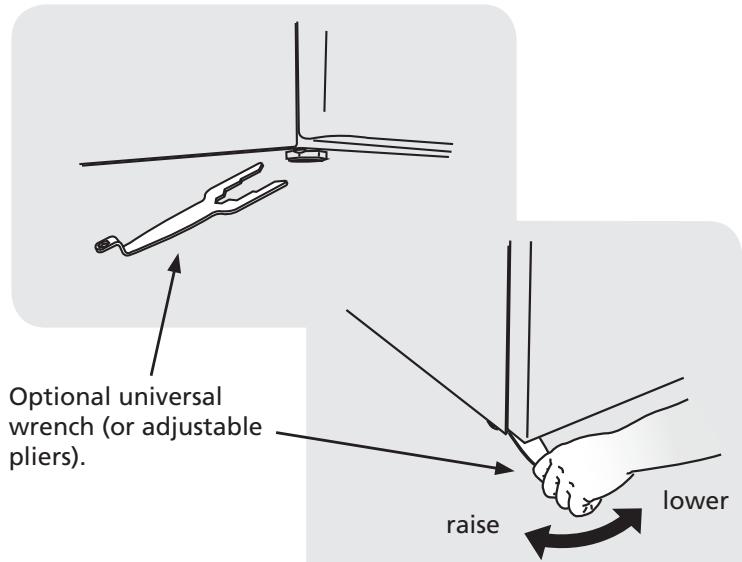

connection. Turn off hot and cold water supply and disconnect hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe. Optional universal wrench (or adjustable pliers).

4. If appliance has plastic feet, screw each foot flush to the base.

5. If appliance has metal feet, unscrew them, remove the locking

nut and reinstall the feet flush to the base. lower

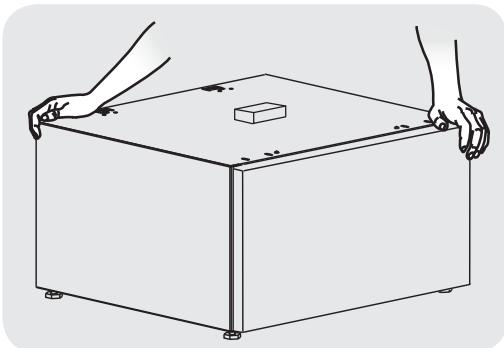

3. Rock the pedestal from corner-to-corner to check for stability.

Repeat leveling and rocking until all four (4) feet are sturdy on the floor and pedestal is level. If locking nuts are not removed on units with metal feet, mounting holes in appliance will not align to mounting holes in brackets. B) Preparing pedestal before mounting washer or dryer

1. Locate pedestal to within a few inches of its final location.

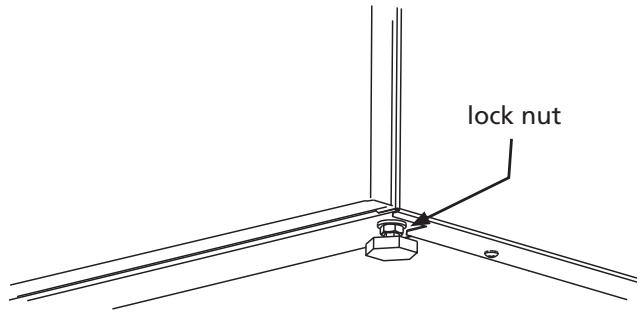

4. Without turning the rubber foot, lock each pedestal leg in place

by tightening its lock nut tight against the pedestal base. lock nut Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow additional space if venting dryer upward or downward.

C1) Attaching washer mounting hardware D1) Mounting washer

1. Use the following instructions for mounting either of these types

of washers to the pedestal:

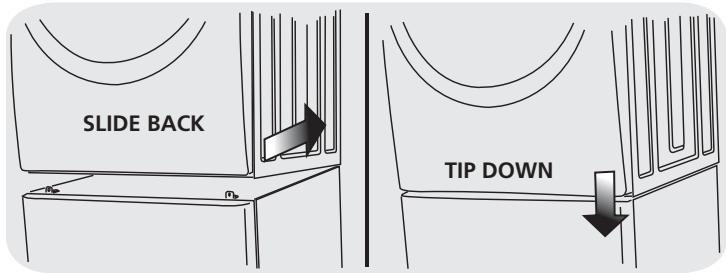

1. Using two or more persons, slightly tip the washer back and lift it

onto the pedestal. Still tipped, slide the washer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets. SLIDE BACK TIP DOWN

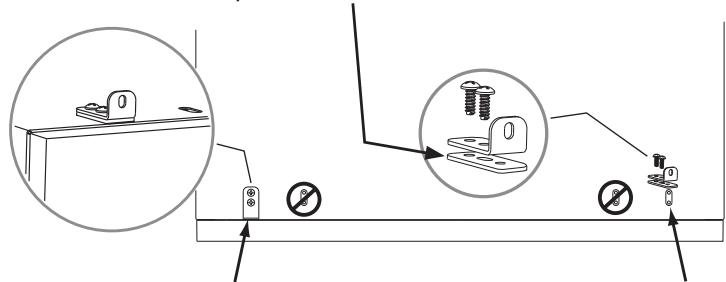

2. Attach each front clip to outer-most set of holes with 2 screws

and supplied spacer.

2. Adjust the appliance side-to-side to align its mounting holes with

the pedestal’s bracket holes. Locate spacer under each front bracket.

3. Install 2 screws through each rear bracket into the base of the

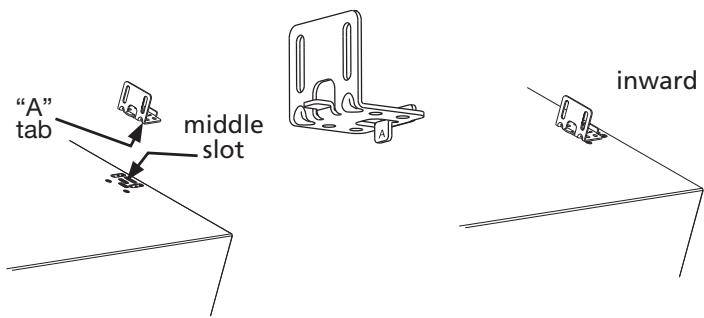

3. Insert “A” tab of each rear bracket into the middle slots on rear

of pedestal. Orient bracket inward for washer mounting.

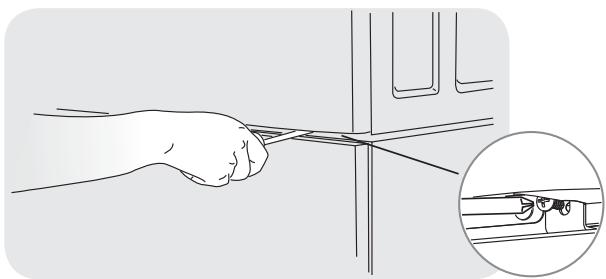

4. Install a screw through each front bracket into the base of the

washer. inward “A” tab middle slot E1) Installing or re-installing washer

4. Install 2 screws through each rear bracket into aligning pedestal

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

3. Refer to Washer Installation Instructions for complete details

on installing water, drain, or electrical.

• GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the washer.

7.0 cu ft DRYER (STYLE 1) INSTRUCTIONS (GREEN KIT)

• GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • C2) Attaching dryer (style 1) mounting hardware D2) Mounting dryer (style 1) - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the dryer.

1. Use the following instructions for mounting any of these types of

dryers to the pedestal:

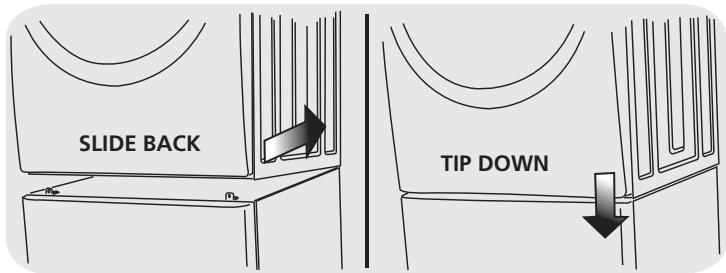

1. Using two or more persons, slightly tip the dryer back and lift it

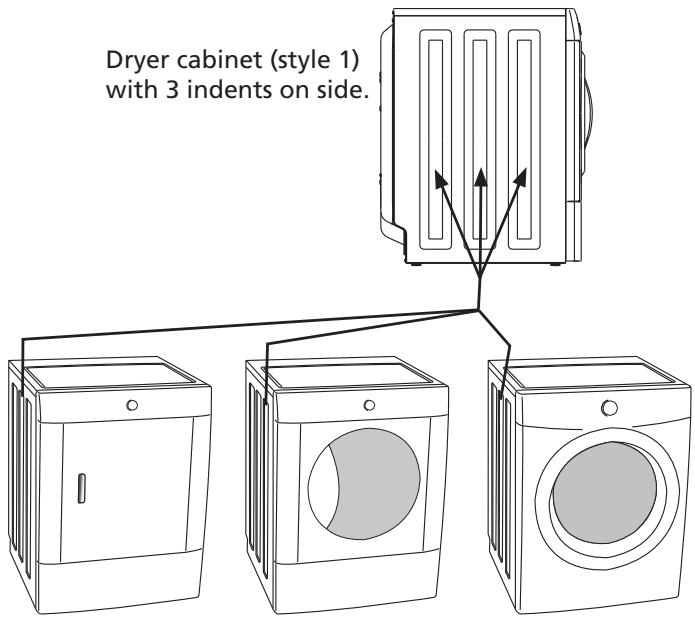

onto the pedestal. Still tipped, slide the dryer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets. Dryer cabinet (style 1) with 3 indents on side. SLIDE BACK TIP DOWN

2. Adjust the appliance side-to-side to align its mounting holes with

the pedestal’s bracket holes.

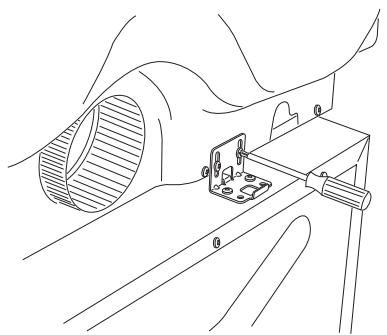

3. Install 2 screws through each rear bracket into the base of the

2. Attach each front clip to outer-most set of holes with 2 screws.

NO spacers under front brackets.

4. Install a screw through each front bracket into the base of the

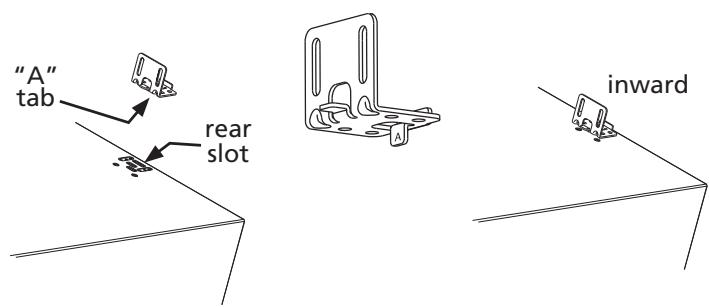

3. Insert “A” tab of each rear bracket into the rear slots on rear of

pedestal using rear bracket spacers. Orient bracket inward for “style 1” dryer mounting. “A” tab inward rear slot E2) Installing or re-installing dryer (style 1)

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

3. Refer to Dryer Installation Instructions for complete details on

installing electrical, gas, or exhaust venting.

4. Install 2 screws through each rear bracket into aligning pedestal

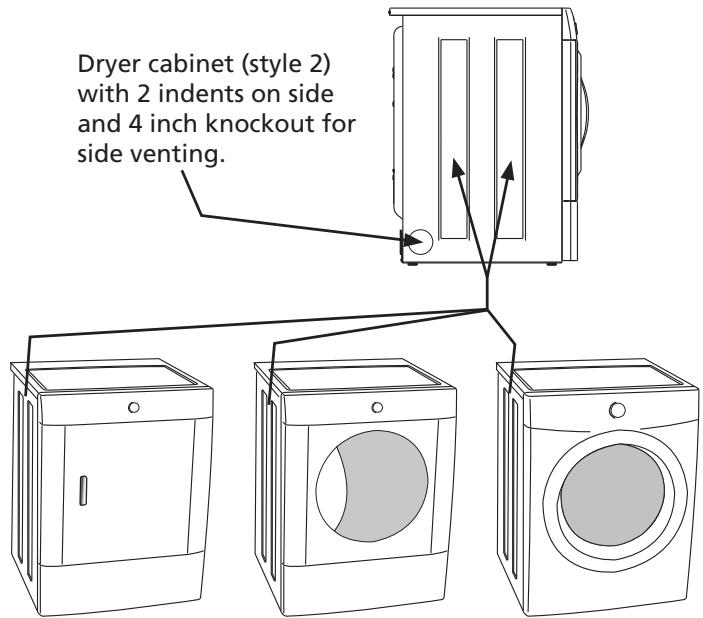

C3) Attaching dryer (style 2) mounting hardware D3) Mounting dryer (style 2) Dryer cabinet (style 2) with 2 indents on side and 4 inch knockout for side venting.

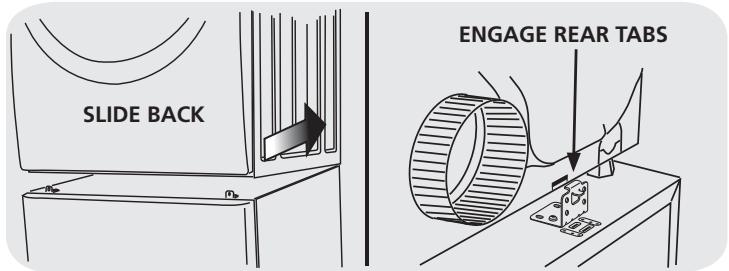

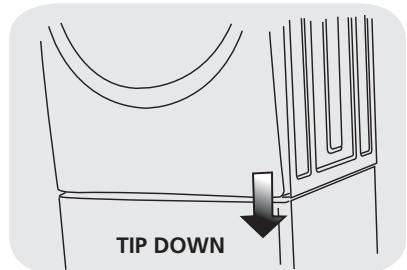

1. Using two or more persons, slightly tip the dryer back and lift it

onto the pedestal. Still tipped, slide the dryer back against the rear brackets so tabs on rear brackets engage the slots on the back of the dryer. Gently set down the front so the appliance is between the front and rear brackets.

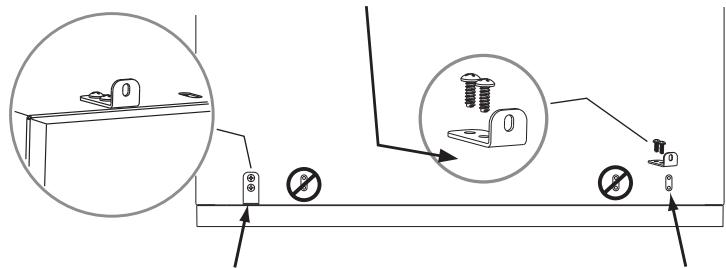

2. Attach each front clip to outer-most set of holes with 2 screws.

NO spacers under front brackets. TIP DOWN

2. Adjust the appliance side-to-side to align its mounting holes with

the pedestal’s bracket holes.

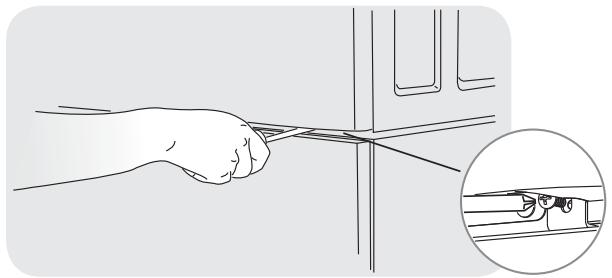

3. Install a screw through each front bracket into the base of the

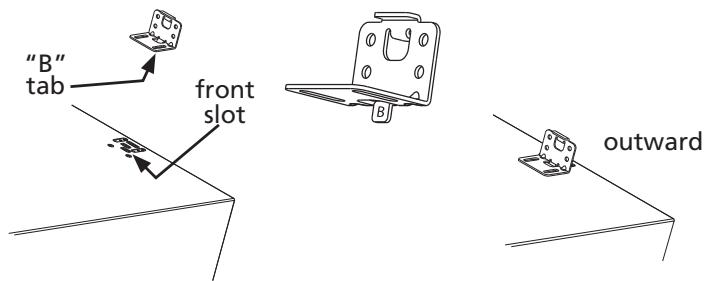

3. Insert “B” tab of each rear bracket into the front slots on rear of

pedestal. Orient bracket outward for “style 2” dryer mounting. “B” tab front slot outward E3) Installing or re-installing dryer (style 2)

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

3. Refer to Dryer Installation Instructions for complete details on

installing electrical, gas, or exhaust venting.

4. Install 2 screws through each rear bracket into aligning pedestal

• GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • GREEN KIT • - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the dryer.

1. Use the following instructions for mounting any of these types of

dryers to the pedestal:

C4) Attaching washer mounting hardware D4) Mounting washer

1. Use the following instructions for mounting this type of washer

to the pedestal: - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the washer.

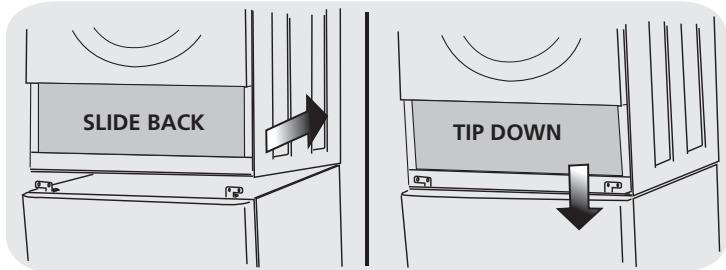

1. Using two or more persons, slightly tip the washer back and lift it

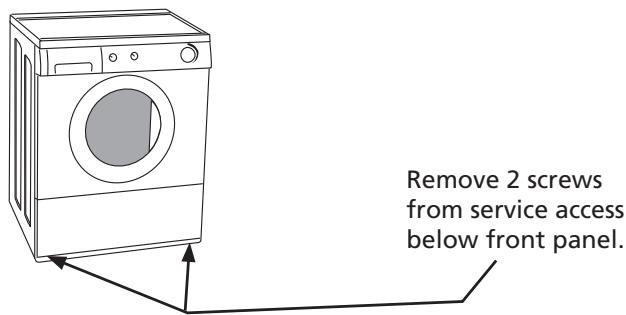

onto the pedestal. Still tipped, slide the washer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets. Remove 2 screws from service access below front panel. SLIDE BACK TIP DOWN

2. Remove lower service access panel.

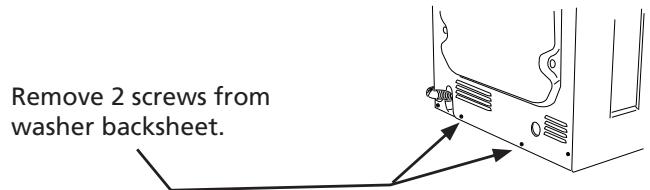

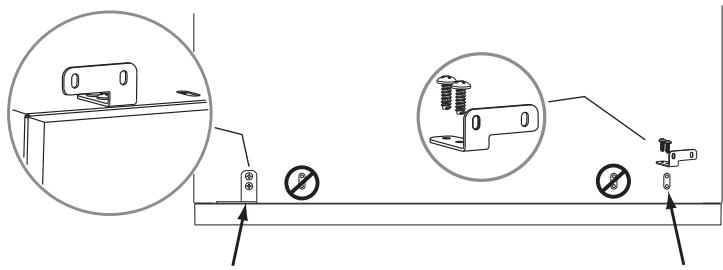

3. Remove 2 lower screws from backsheet of washer. Save screws to

2. Adjust the appliance side-to-side to align its mounting holes with

the pedestal’s bracket holes. Remove 2 screws from washer backsheet.

3. Reinstall backsheet screws removed earlier through each rear

bracket into the base of the washer.

4. Attach each front clip to outer-most set of holes with 2 screws.

4. Reinstall the lower service access panel.

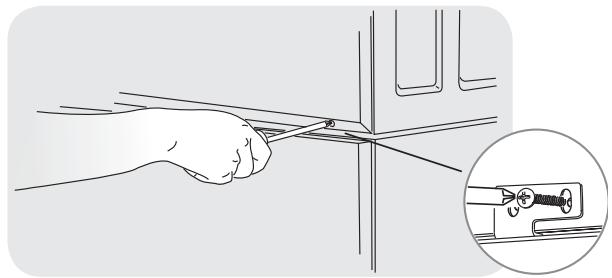

5. Reinstall the 2 screws removed earlier through the outer hole of

each front bracket into the base of the washer.

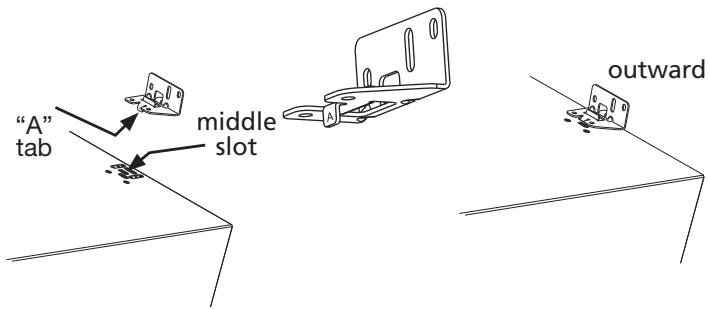

5. Insert “A” tab of each rear bracket into the middle slots on rear

of pedestal. Orient bracket outward for washer mounting. outward “A” tab middle slot E4) Installing or re-installing washer

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

6. Install 2 screws through each rear bracket into aligning pedestal

3. Refer to Washer Installation Instructions for complete details

on installing water, drain, or electrical.

D5) Mounting dryer (style 3) - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the dryer.

1. Use the following instructions for mounting this type of dryer to

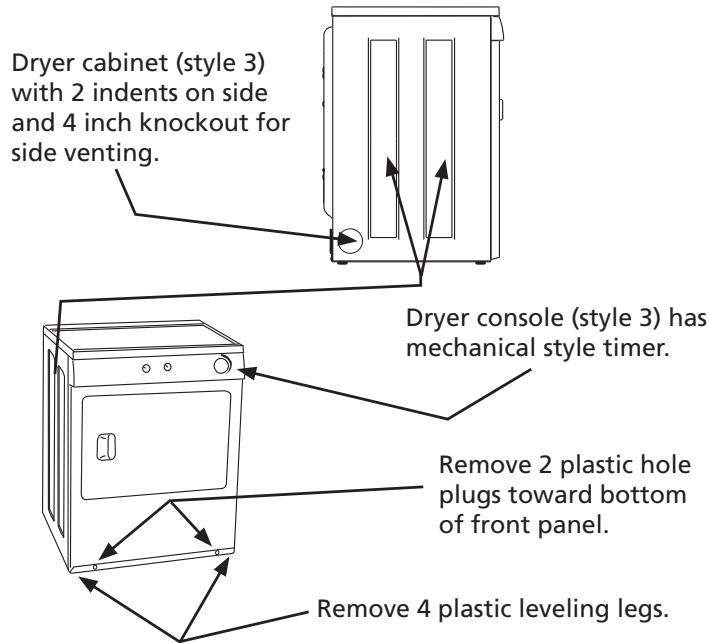

the pedestal: Dryer cabinet (style 3) with 2 indents on side and 4 inch knockout for side venting.

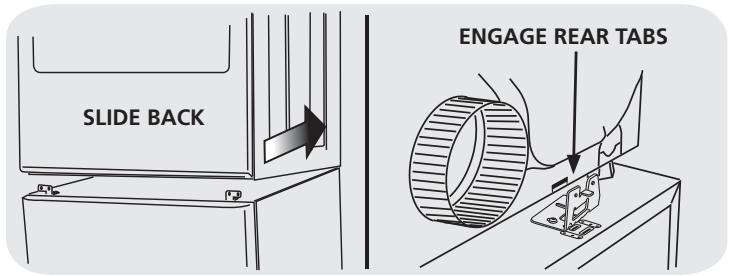

1. Using two or more persons, slightly tip the dryer back and lift it

onto the pedestal. Still tipped, slide the dryer back against the rear brackets so tabs on rear brackets engage the slots on the back of the dryer. Gently set down the front so the appliance is between the front and rear brackets.

Dryer console (style 3) has mechanical style timer. SLIDE BACK Remove 2 plastic hole plugs toward bottom of front panel. Remove 4 plastic leveling legs.

2. Remove all 4 adjustable leveling legs from the appliance base

and save for future use.

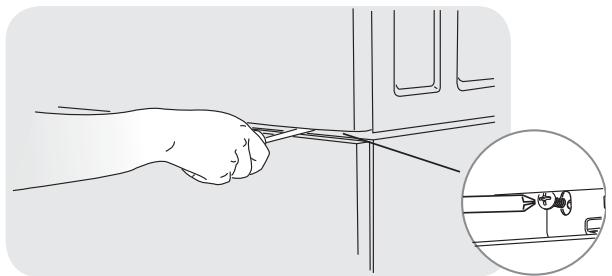

3. Remove 2 plastic hole plugs toward bottom of front panel.

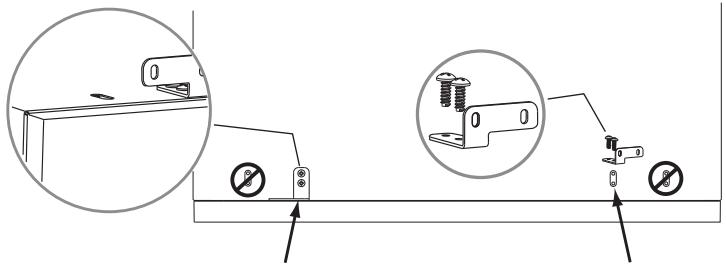

4. Attach each front clip to outer-most set of holes with 2 screws.

2. Adjust the appliance side-to-side to align its mounting holes with

the pedestal’s bracket holes.

3. Install a screw through the inner hole of each front bracket into

the base of the dryer.

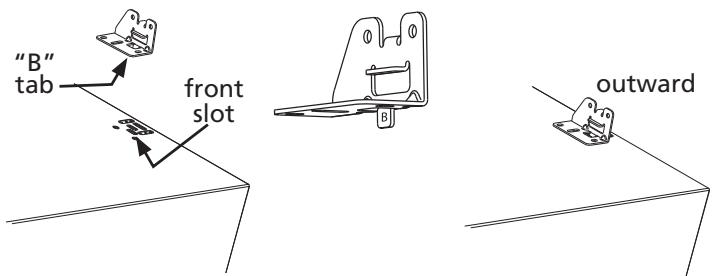

5. Insert “B” tab of each rear bracket into the front slots on rear of

pedestal. Orient bracket outward for “style 3” dryer mounting. “B” tab front slot

4. Reinstall the plastic hole plugs in front panel.

outward E5) Installing or re-installing dryer (style 3)

1. Slide appliance/pedestal into place.

2. Check for levelness and rock all four (4) legs again. Repeat until

3. Refer to Dryer Installation Instructions for complete details on

installing electrical, gas, or exhaust venting.

6. Install 2 screws through each rear bracket into aligning pedestal
