USER MANUAL EXPRESS 9 NERO

Copyright and Trademark Information

This document, like the software described therein, is provided as a license and may only be used or reproduced in accordance with the licensing agreement. The contents of this document, as well as the associated software, is subject to change without prior notice. Nero AG rejects any responsibility for the correctness of the contents of this document and rejects any claims that transcend the clauses of the guarantee agreement.

This document and all of its contents are protected by copyright and are the property of Nero AG. All rights reserved. In addition, this document contains material that is protected by internationally valid copyright. This document may not be reproduced, transmitted, or transcribed in whole or in part without the express written permission of Nero AG.

Please keep in mind that existing graphics, pictures, videos, music titles or other materials that you may wish to insert or transcribe into projects may be protected by copyright. The unauthorized use of this type of material in your projects may violate the rights of the owner of the copyright. Make sure that you obtain all necessary authorizations from the owner of the copyright.

Unless you own the copyright, have permission from the copyright owner or your actions fall under the "fair use" provisions of copyright law, you may be violating national or international copyright laws. The transcribing, re-formation, modification or publication of copyright-protected material may lead to claims for damages and the enforcement of other legal measures against you. If you are unsure of your rights, you should contact your legal advisor.

Some Nero Suite applications require technologies developed by third-party manufacturers, some of which are contained in the Nero Suite as demo versions. These applications can be activated online free of charge or by sending an activation fax to have unlimited use of the version. Nero will only transmit the data necessary for activation of the technology licensed from third parties. For unlimited use of Nero Suite, it is therefore necessary to have an Internet connection or a fax machine.

Copyright © 2006-2008 Nero AG and its licensors. All rights reserved.

Nero, the Nero logo, Nero Digital, Nero Essentials, Nero Express, Nero ImageDrive, Nero LiquidTV, Nero MediaHome, Nero PhotoSnap, Nero Recode, Nero RescueAgent, Nero ShowTime, Nero SecurDisc, Nero StartSmart, Nero Vision, InCD, Move it, and UltraBuffer are brands or protected trademarks of Nero AG.

gracenote.

Gracenote® is either a registered trademark or a trademark of Gracenote, Inc. in the United States and/or other countries. The Gracenote logo and logotype, and the "Powered by Gracenote" logo are trademarks of Gracenote.

Adobe, Acrobat, Acrobat Reader and Premiere are brands or protected trade names of Adobe Systems, Incorporated.

AMD Athlon, AMD Opteron, AMD Sempron, AMD Turion, ATI Catalyst and ATI Radeon are brands or registered trademarks of Advanced Micro Devices, Inc.

ATSC is a brand of the Advanced Television Committee.

ICQ is a registered trademark of AOL, LLC.

Apple, iPhoto, iPod, iTunes, iPhone, FireWire, and Mac are brands or registered trade names of Apple, Inc.

ARM is a registered trademark of ARM, Ltd.

AudibleReady is a registered trademark of Audible, Inc.

BenQ is a brand of the BenQ Corporation.

Blu-ray Disc is a brand of Blu-ray Disc Association.

CyberLink is a registered trademark of CyberLink Corp.

DLNA is a registered trademark of Digital Living Network Alliance.

DivX and DivX Certified are registered trademarks of DivX, Inc.

Dolby, Pro Logic and the double-D symbol are brands or registered trademarks of Dolby Laboratories, Inc.

DTS and DTS Digital Surround are registered trademarks of DTS, Inc.

DVB is a registered trademark of the DVB Project.

Freescale is a brand of Freescale Semiconductor, Inc.

Google and YouTube are brands of Google, Inc.

WinTV is a registered trademark of Hauppauge Computer Works, Inc.

Intel, Intel XScale, Pentium and Core are brands or registered trademarks of Intel Corporation.

Linux is a registered trademark of Linus Torvalds.

Memorex is a registered trademark of Memorex Products, Inc.

ActiveX, ActiveSync, DirectX, DirectXShow, Internet Explorer, Microsoft, HDI, MSN, Outlook, Windows, Windows Mobile, Windows

NT, Windows Server, Windows Vista, Windows Media, Xbox, Xbox 360, the Windows Vista start button and the Windows logo are brands or registered trademarks of Microsoft Corporation.

My Space is a brand of MySpace, Inc.

NVIDIA, GeForce and ForceWare are brands or registered trademarks of NVIDIA Corporation.

Nokia is a registered trademark of Nokia Corporation.

CompactFlash is a registered trademark of SanDisk Corporation.

Sony, Memory Stick, PlayStation, PLAYSTATION and PSP are brands or registered trademarks of Sony Corporation.

HDV is a brand of Sony Corporation and Victor Company of Japan, Limited (JVC).

UPnP is a registered trademark of the UPnP Implementers Corporation.

Labelflash is a registered trademark of Yamaha Corporation

The trademarks mentioned here are named for information purposes only. All trade names and trademarks are the property of their respective owners.

Nero AG, Im Stoeckmaedle 13-15, D-76307 Karlsbad, Germany

Table of contents

1 Start Successfully 5

1.1 About the manual 5
1.2 About Nero Express 5
1.3 Working with Nero Express 6

2 Launching the program 7

3 Start screen 8

3.1 Extended area (start screen) 9

4 Compilation screen 11

5 Data Disc 13

5.1 Compiling data CDs/DVDs 13

5.2 Enabling SecurDisc settings 15

5.3 Saving Data Tracks 18

6 Music 20

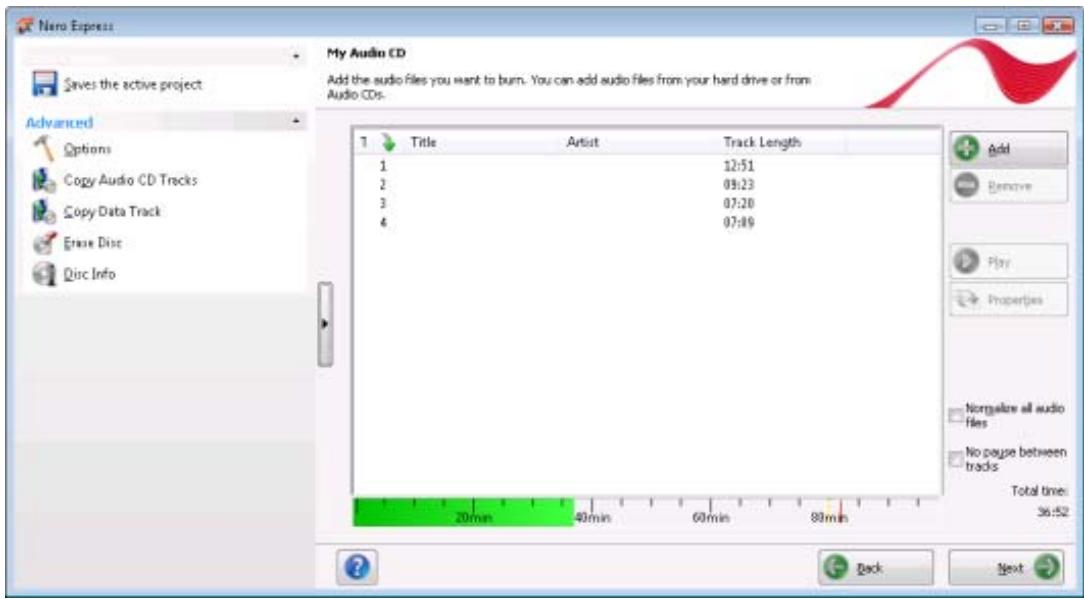

6.1 Compiling Audio CDs 20
6.1.1 Customizing properties of the audio file 21
6.2 Compiling jukebox disc 25
6.3 Compiling an audio book CD 25
6.4 Automatic Music Recognition 26

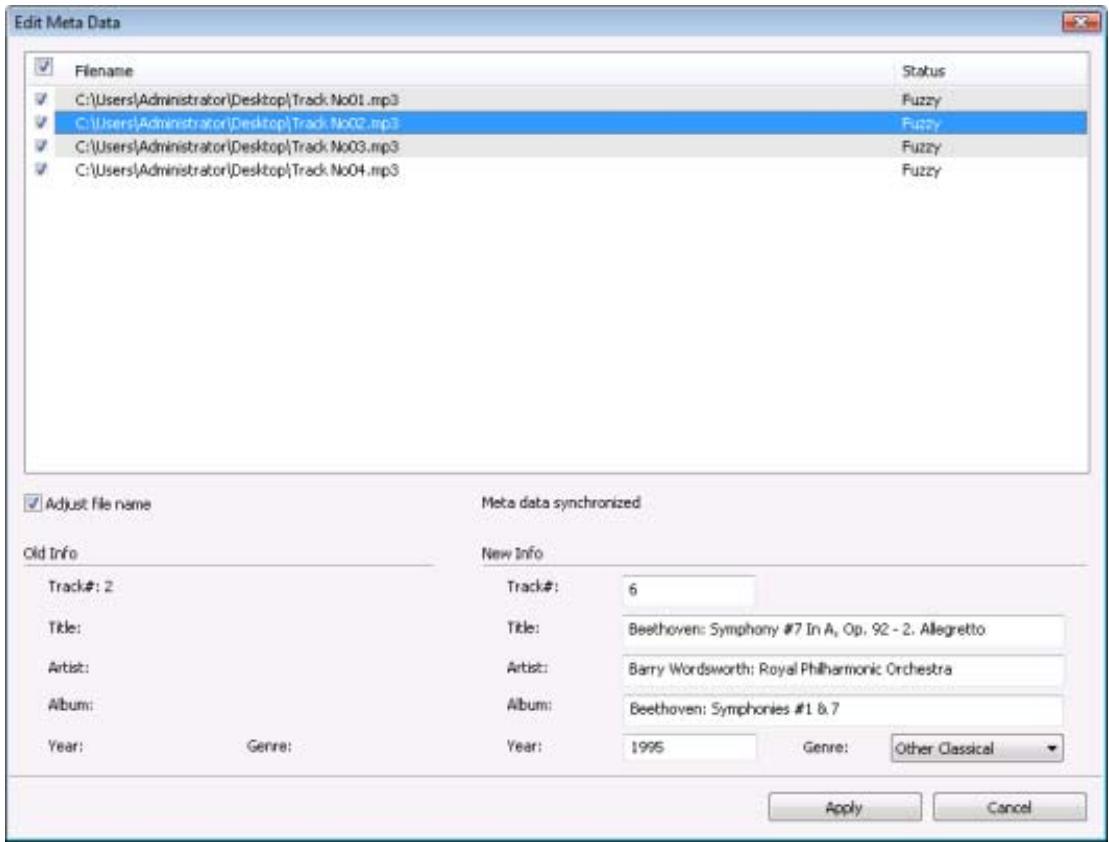

6.4.1 Identifying Audio Files 26

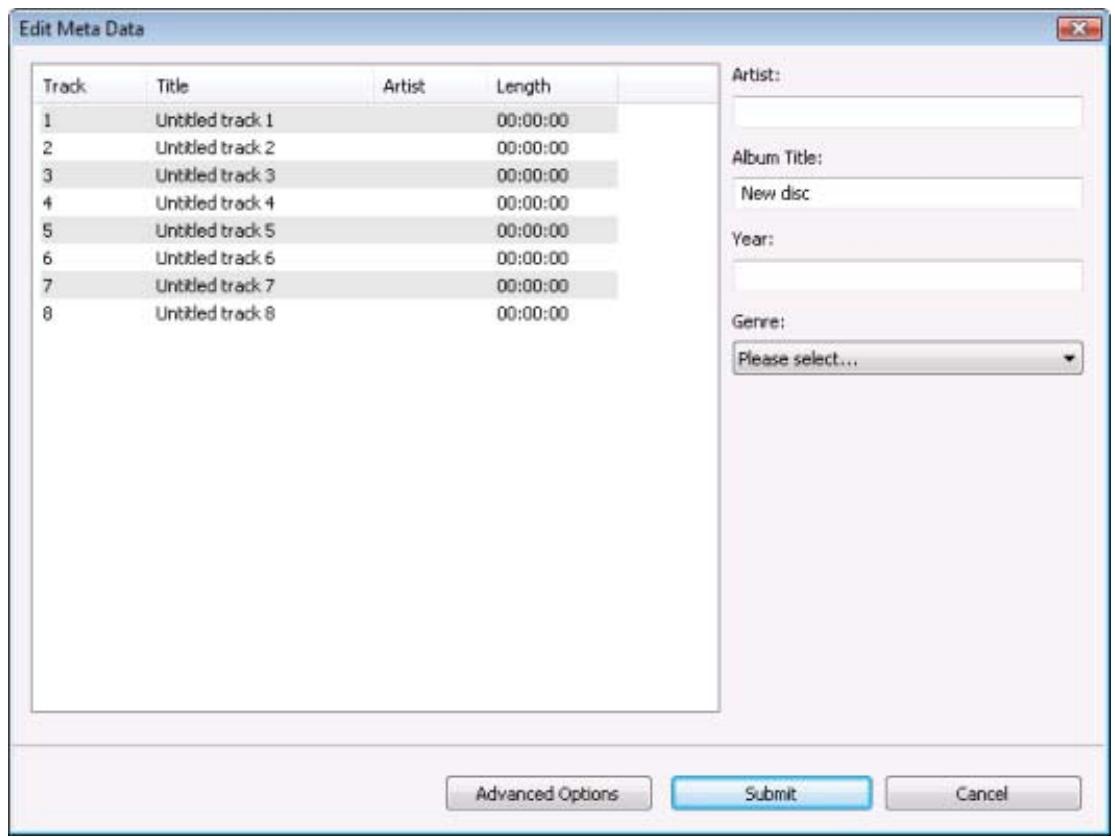

6.5 Copy Audio CDs to Hard Drive 27
6.5.1 Copy Audio CDs to Hard Drive 30

7 Video and Slide Show 34

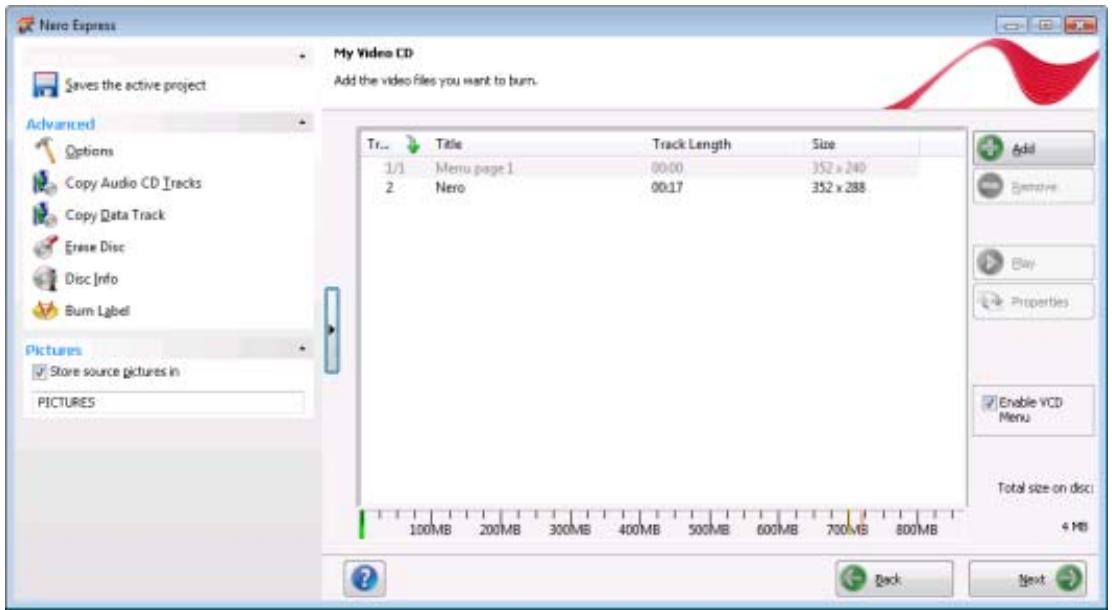

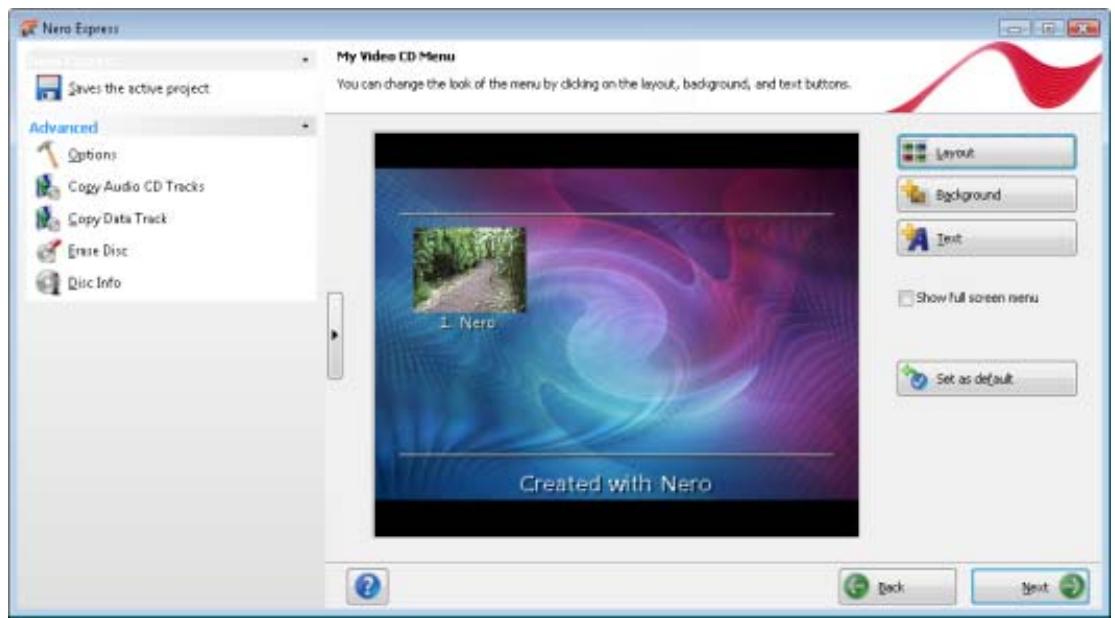

7.1 Compiling Video CDs/Super Video CDs 34

7.1.1 Customizing the menu 36

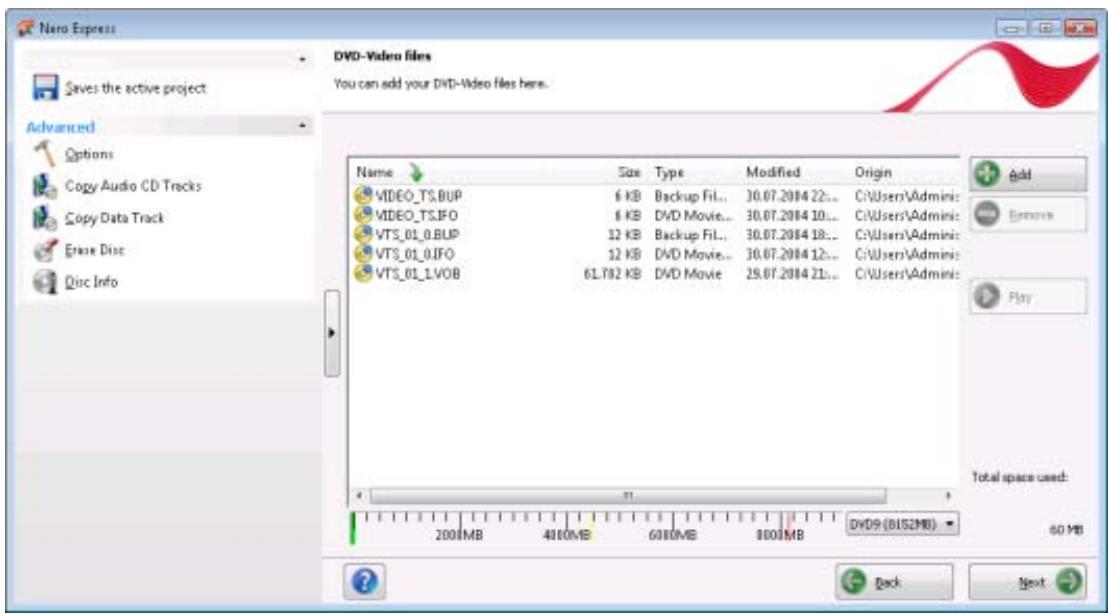

7.2 Compiling DVD-Video 36

8 Loading a disc image or saved project 38

9 LightScribe 39

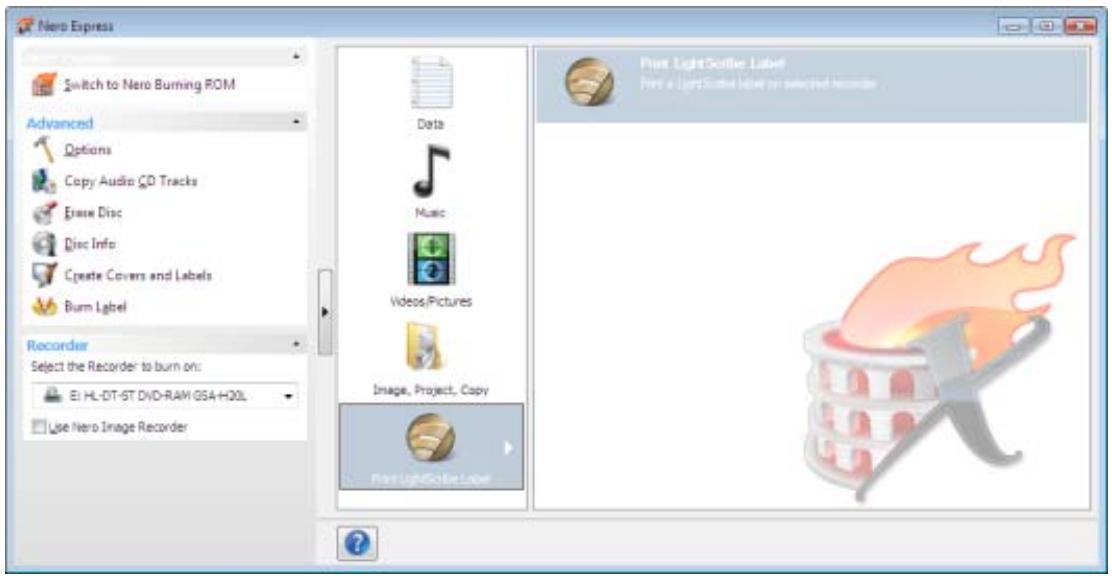

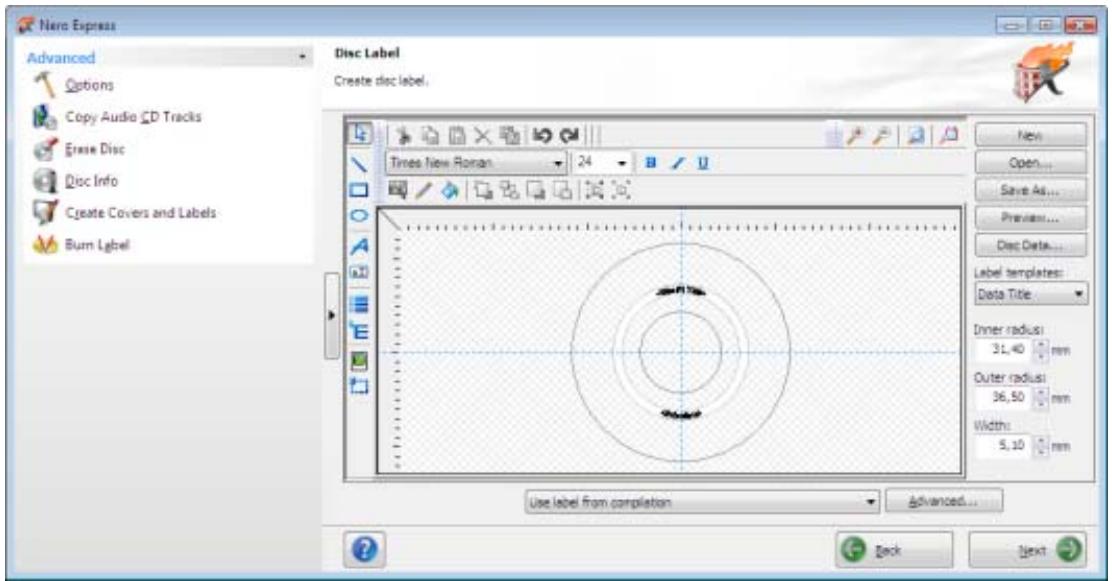

9.1 Printing LightScribe labels (without compilation) 39

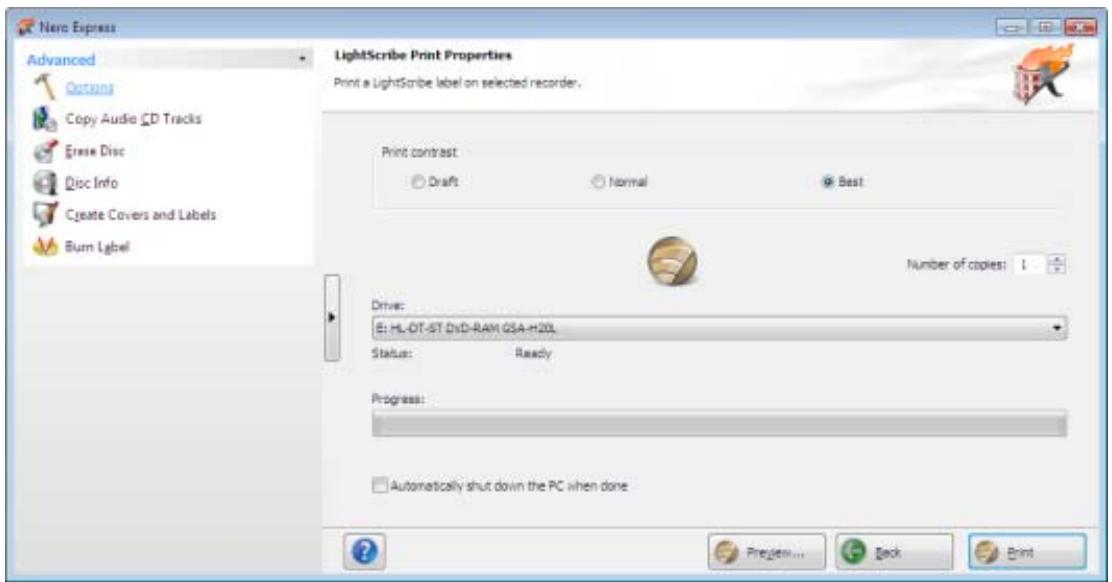

9.2 LightScribe Print Properties window 41

9.3 Printing LightScribe labels (within the project) 42

10 Labelflash 44

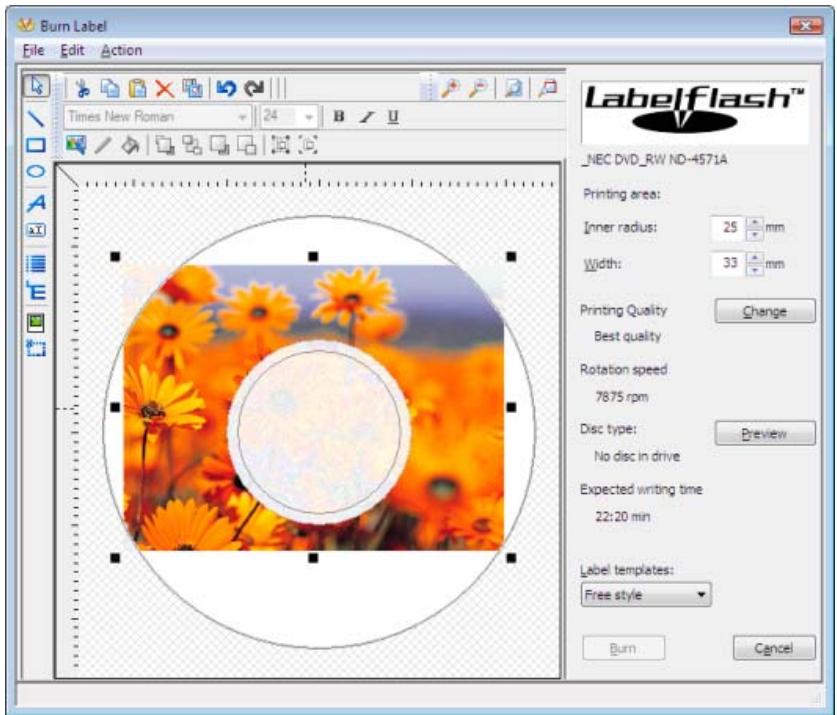

10.1 Burn Label screen 44

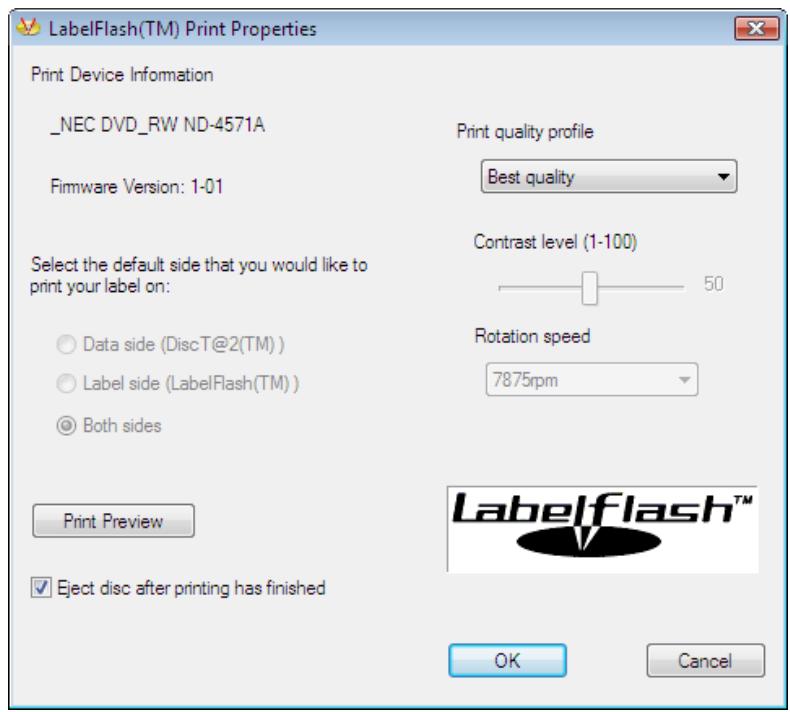

10.2 Printing Labelflash labels and DiskT@2 45

11 Burn Compilation 48

11.1 Choice of recorder 48
11.2 Start the burn process - Burning discs with the drive 49

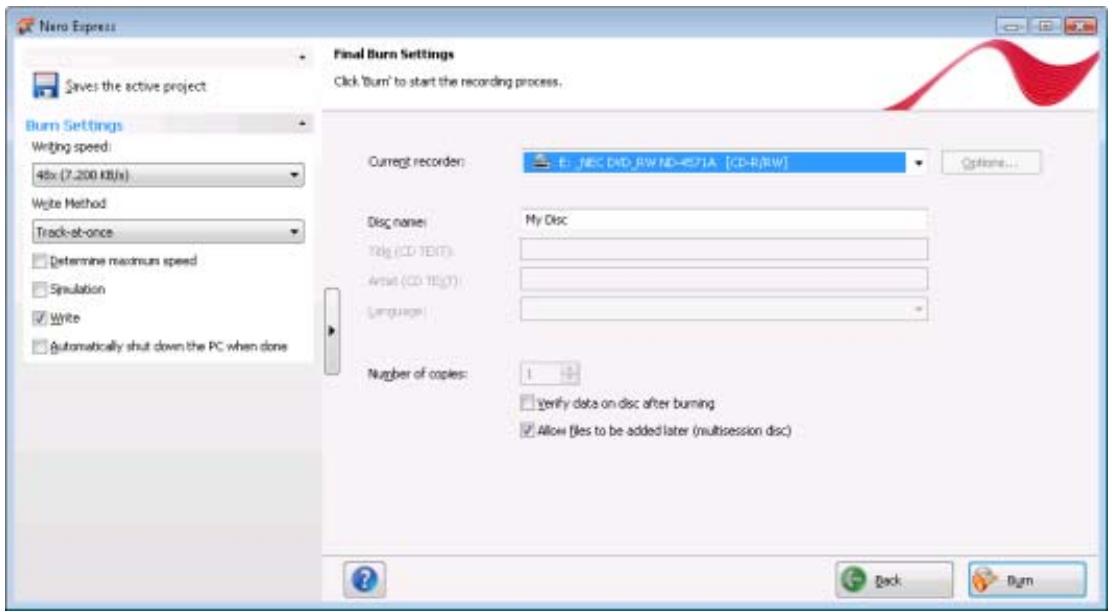

11.3 Final Burn Settings screen 50
11.3.1 Extended area (Burn Settings) 51

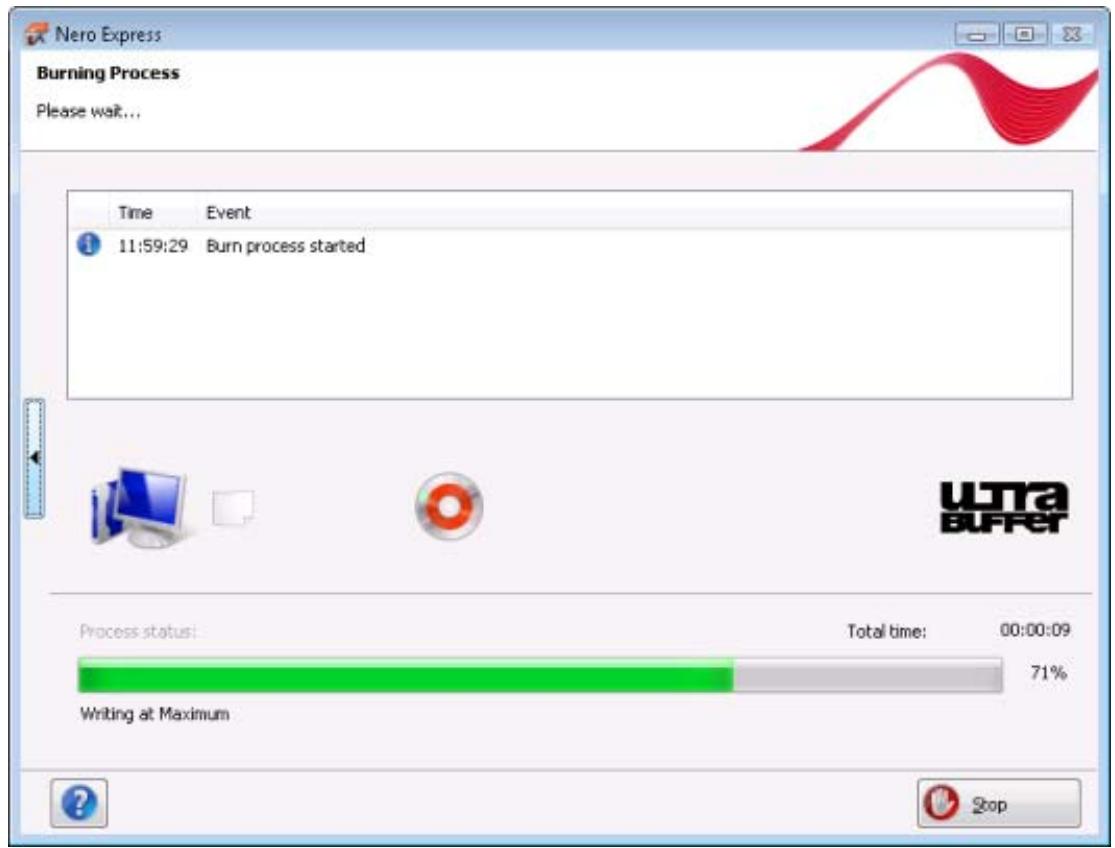

11.4 Burning with Nero Image Recorder - Creating an image file 52
12 Copying CDs/DVDs 54
12.1 Copying methods 54
12.1.1 On-the-fly 54
12.1.2 Copy image 54

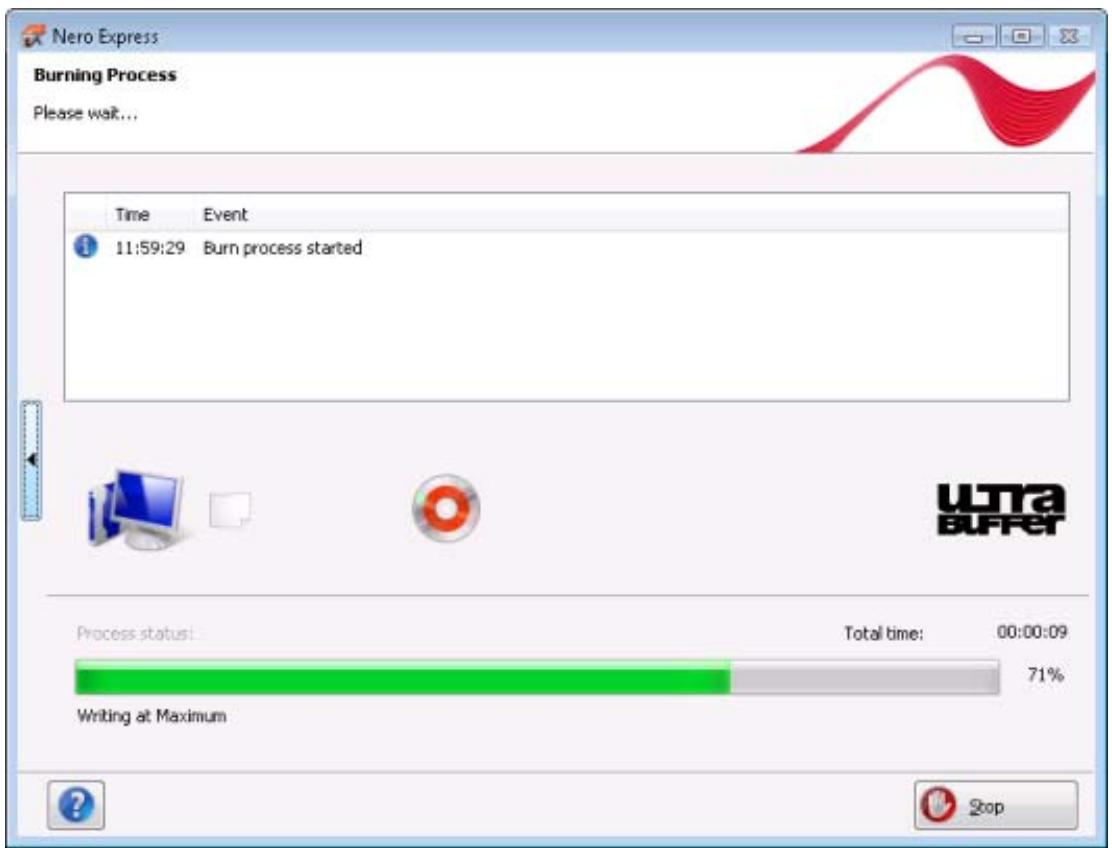

12.2 Copying CDs/DVDs 55

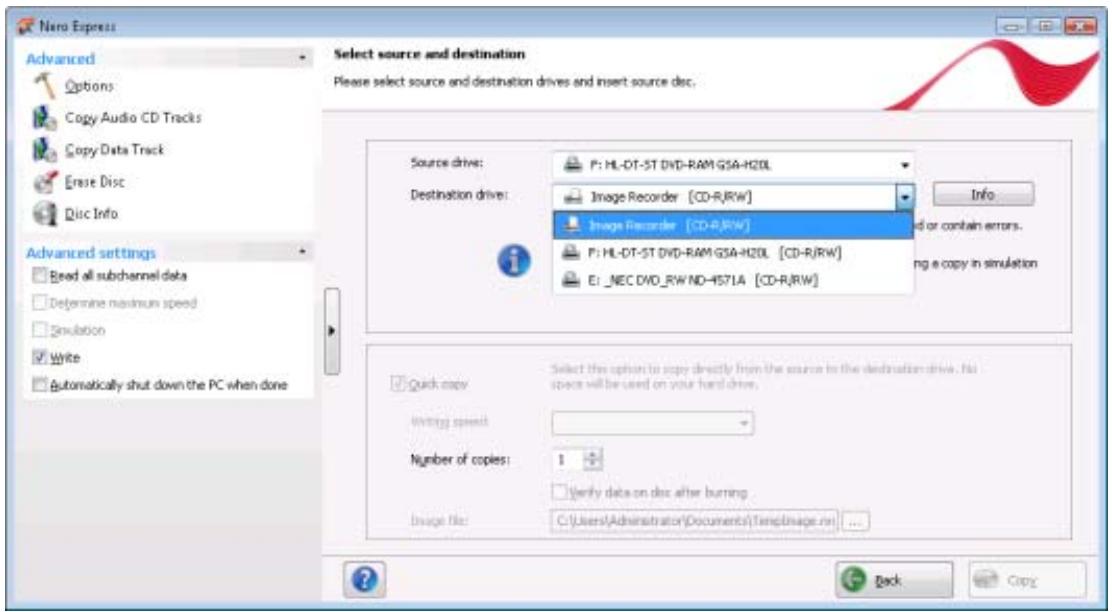

12.3 Copy settings 57

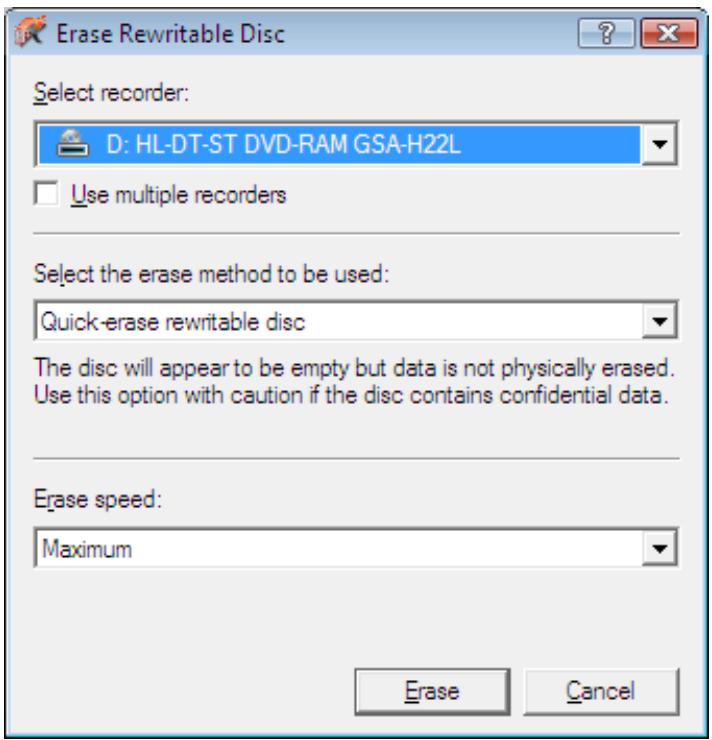

13 Erase Rewritable Disc window 59
14 Final screen 61

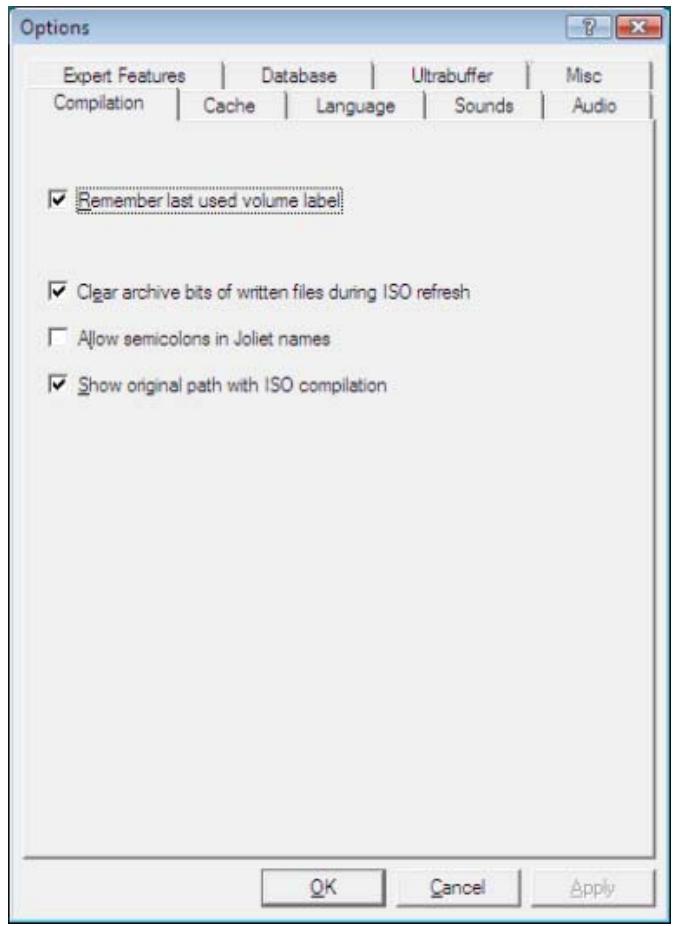

15 Configuration options 62
15.1 Settings for the compilation 63
15.2 Cache settings 63
15.3 Expert Features 64
15.4 Ultrabuffer settings 64
15.5 LightScribe settings 65
16 Technical Information 66
16.1 System requirements 66
16.2 Formats supported 66
16.2.1 Disk types 66
16.2.2 Disc formats 66
16.2.3 Audio formats and codecss 67
16.2.4 Metadata 67
16.2.5 Video formats and codec 68
16.2.6 Image formats 68
16.2.7 Formats for Playlists 68
16.3 Versions of Nero Express 68
17 Glossary 70
18 Index 74
19 Contact 76

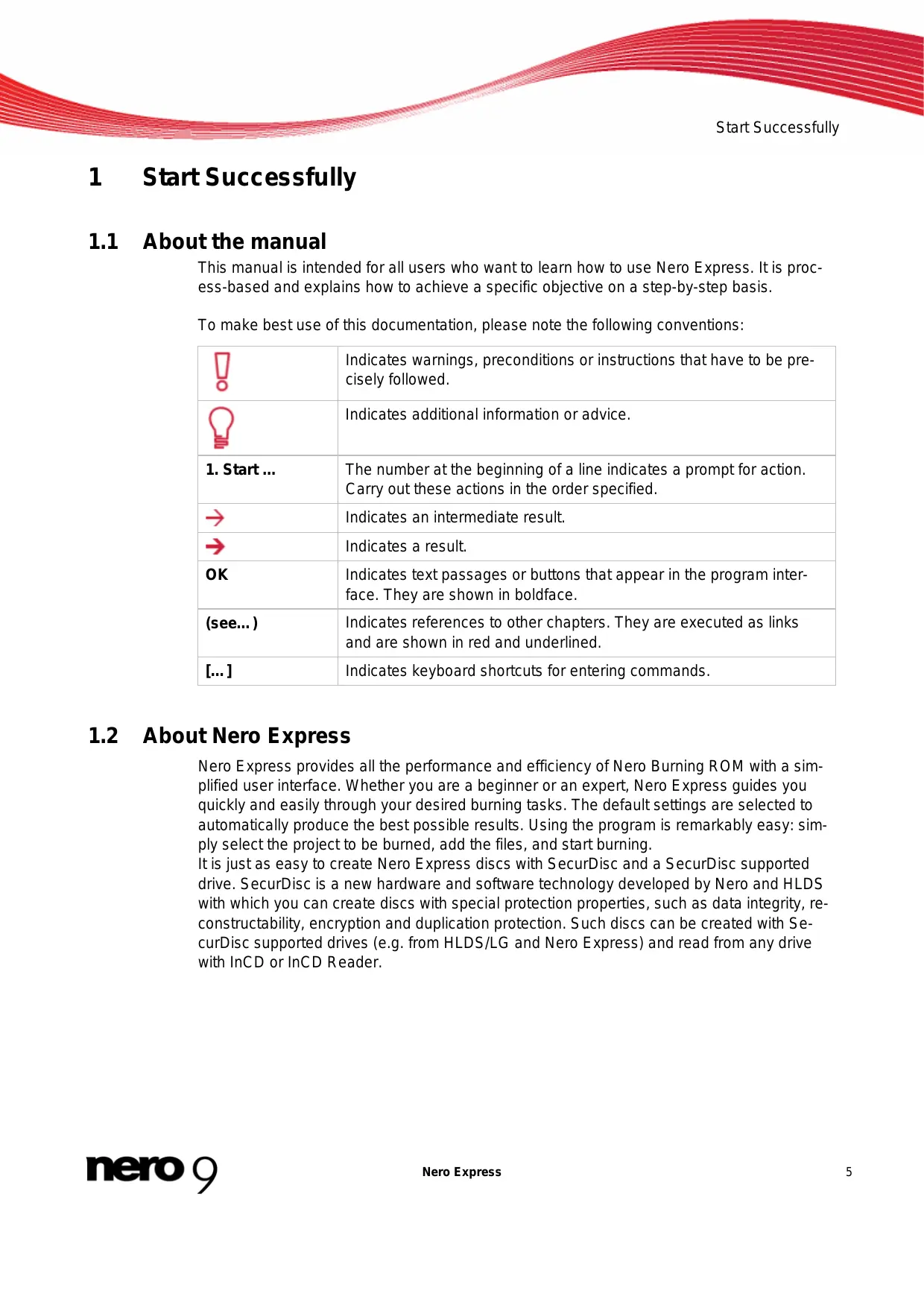

1 Start Successfully

1.1 About the manual

This manual is intended for all users who want to learn how to use Nero Express. It is process-based and explains how to achieve a specific objective on a step-by-step basis.

To make best use of this documentation, please note the following conventions:

○	Indicates warnings, preconditions or instructions that have to be precisely followed.
○	Indicates additional information or advice.
1. Start ...	The number at the beginning of a line indicates a prompt for action. Carry out these actions in the order specified.
→	Indicates an intermediate result.
→	Indicates a result.
OK	Indicates text passages or buttons that appear in the program interface. They are shown in boldface.
(see...)	Indicates references to other chapters. They are executed as links and are shown in red and underlined.
[...]	Indicates keyboard shortcuts for entering commands.

1.2 About Nero Express

Nero Express provides all the performance and efficiency of Nero Burning ROM with a simplified user interface. Whether you are a beginner or an expert, Nero Express guides you quickly and easily through your desired burning tasks. The default settings are selected to automatically produce the best possible results. Using the program is remarkably easy: simply select the project to be burned, add the files, and start burning.

It is just as easy to create Nero Express discs with SecurDisc and a SecurDisc supported drive. SecurDisc is a new hardware and software technology developed by Nero and HLDS with which you can create discs with special protection properties, such as data integrity, re- constructability, encryption and duplication protection. Such discs can be created with SecurDisc supported drives (e.g. from HLDS/LG and Nero Express) and read from any drive with InCD or InCD Reader.

1.3 Working with Nero Express

Basically, the user interface of Nero Express consists of the selection of a compilation method in the start screen. You then complete the task by navigating through the different steps where a separate window is displayed for each individual step. This generally requires four steps:

Choose compilation type

Select what you would like to do by moving the cursor over the menu item and clicking one of the tasks displayed. This manual contains a chapter for each task that describes all of the steps required for its completion.

Completing a task

Depending on the task, you will have to go through various steps until you reach the end. Each individual step consists of a new screen. For each screen, the manual contains a chapter in which all areas are described in detail.

Burning a Compilation

Burning marks the end. To do this, set the burn parameters and click the Burn button. Depending on the type of the task you are working on and the recorder connected to the system, a number of different entries are available for selection.

Options after burning

After burning is complete, you can decide what to do next: select the option to continue working with Nero Express or exit the program.

2 Launching the program

To start Nero Express via Nero StartSmart, proceed as follows:

1. Click the StartSmart icon.

The Nero StartSmart window opens.

Click the

button.

The list of Nero applications appears.

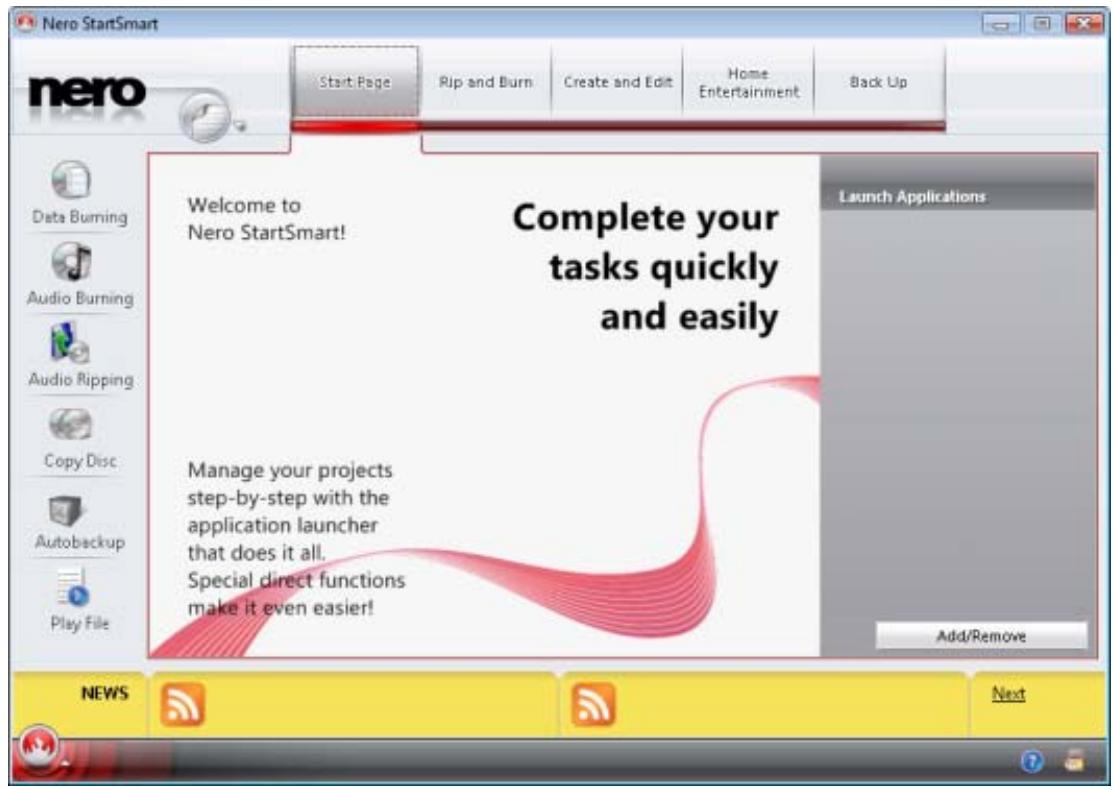

Nero StartSmart window

1. Select the Nero Express entry in the selection list.
2. The Nero Express window opens.

You have launched Nero Express via Nero StartSmart.

3 Start screen

The main screen in Nero Express is the starting point for all actions. Click here on the relevant menu icons to go to the desired screen where you can compile and work on your project. The selection is categorized into two areas: several formats or options are available for the Data, Music, Videos/Pictures, Image, Project, Copy and Print LightScribe Label compilation methods.

Click the button in the left margin of the window to display an extended area with additional options and features.

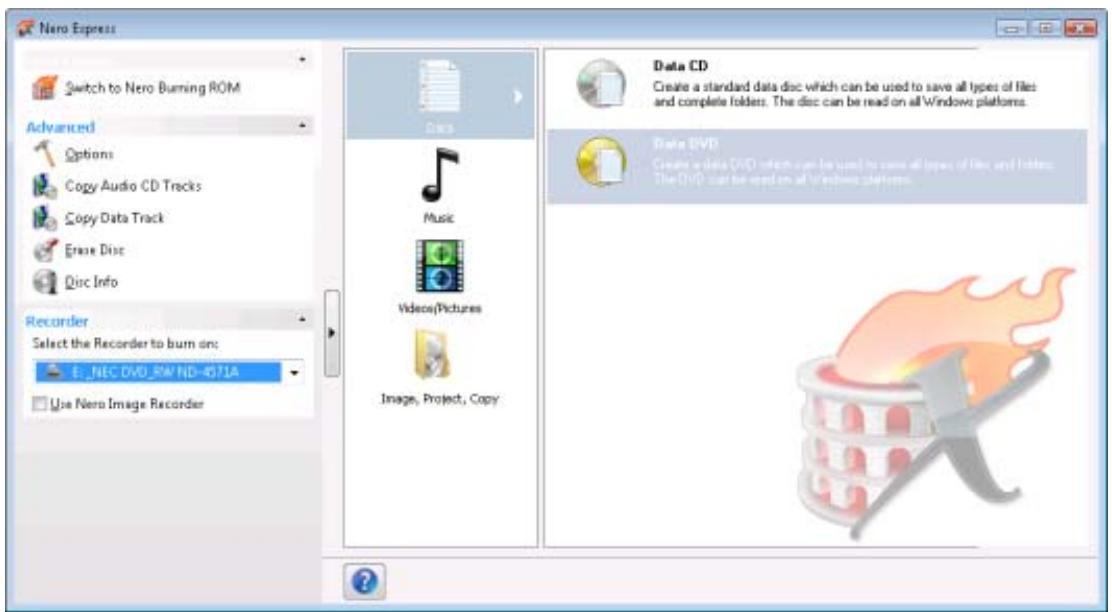

Nero Express Start Screen

The following compilation methods are available:

Data	Allows you to compile and burn all types of files and folders:
Music	Allows you to compile and burn audio and audio book files in the for-mats you want:
Videos/Pictures	Allows you to compile and burn video and/or picture files as VCD/SVCD or DVD-Video:
Image, Project, Copy	Allows you to copy a source disc and to load an image file or a saved project:
Print LightScri-be Label	Displays the Disc Label screen. This is where you can create or load a label in order to print on the la-bel side of special CDs/DVDs in the recorder. A LightScribe recorder must be selected to enable the option.

The actual entries that are available, and the actual disc types (e.g. DVD) that can be written to depend on the recorder used.

You can find more information on Blu-ray support at www.nero.com/link.php?topic_id=416.

See also:

Loading a disc image or saved project 38
LightScribe 39
Labelflash 44
Enabling SecurDisc settings 15

3.1 Extended area (start screen)

You can access the additional options and features in the extended area of the start screen by clicking on the button in the left margin of the window. The extended area is available in all Nero Express screens.

The following menu icons are available:

Switch to Nero Burning ROM	Closes Nero Express and opens the start screen of Nero Burning ROM. This option is only available in the extended area of the start screen. If you decide to create a project with Nero Express, the option Saves the active project is displayed in all of the other windows at this point.
Saves the active project	Opens the Save As... window to save your compilation. The file links and settings to be burned are saved.
Options	Opens the Options window to customize Nero Express to suit your requirements.

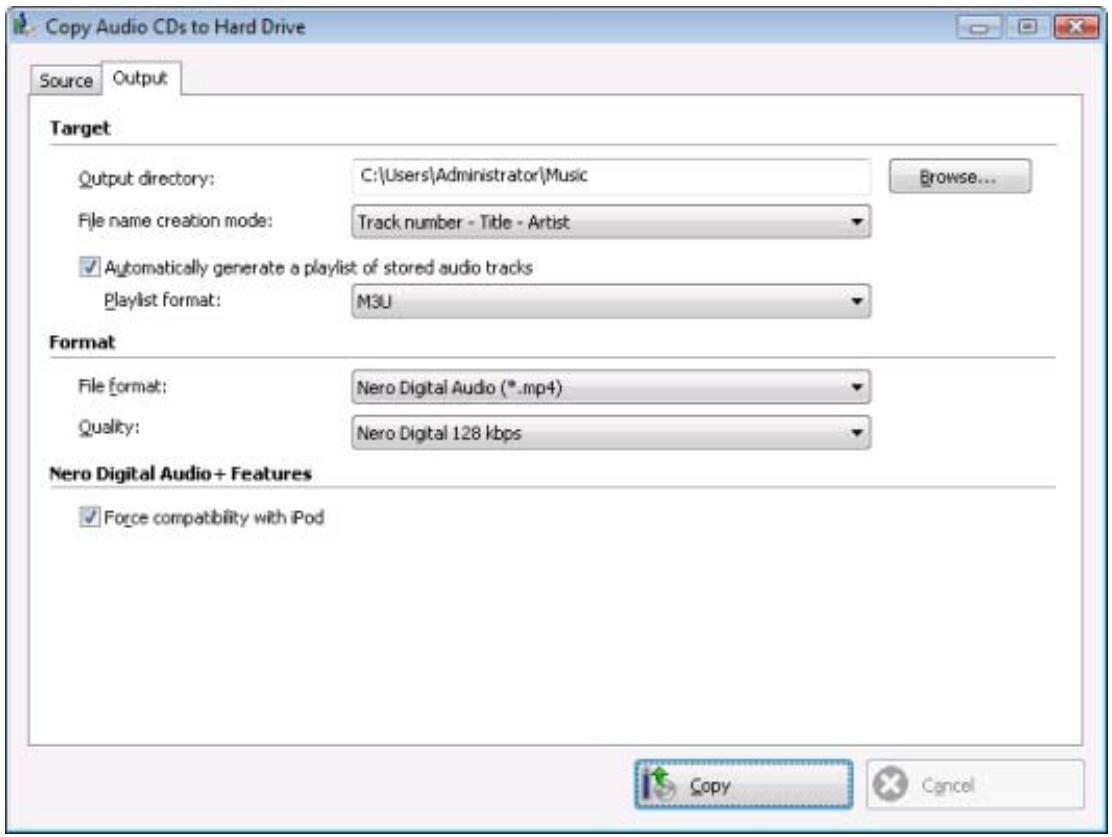

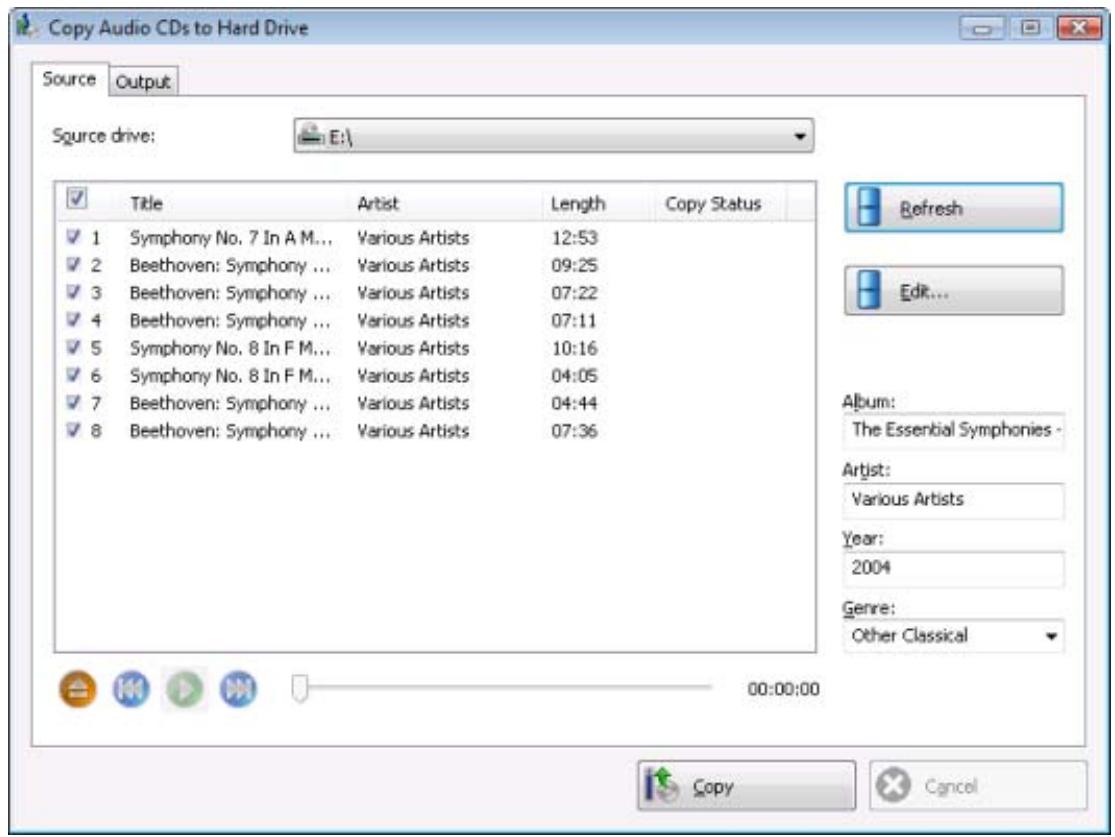

Copy Audio CD Tracks	Opens the Copy Audio CDs to Hard Drive to copy audio files from CD to the hard drive.

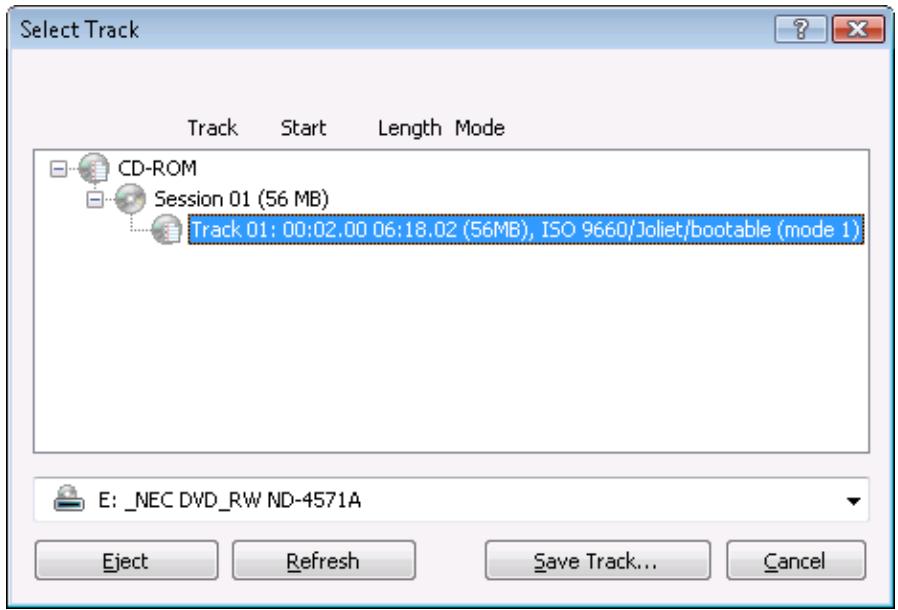

Copy Data Track	Opens the Select Track window in which you can save the track of a data disc as an image file.
Erasing a Disc	Opens the Erase Rewritable Disc window to erase data from a re-writable CD/DVD.
Disc Info	Opens the Disc Info window to display information about the inserted CD/DVD. The total capacity and available capacity are displayed, in addition to the tracks and sessions.
Create Covers and Labels	Opens Nero CoverDesigner. Nero CoverDesigner is used to create and print labels and booklets for burned CDs/DVDs.Pleasesee the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.
SecurDisc Settings	Defines the settings for burning a SecurDisc disc.
Burn Label	Opens the Burn Label window, in which you can create or load a label in order to print a label and/or print directly on the data side of special CDs/DVDs in the recorder.Available with a LabelflashTM recorder only. The recorder must be selected to enable the option.
Recorder	Defines the recorder that you want to use for burning and/or the Nero Image Recorder.

See also:

Configuration options 62
Copy Audio CDs to Hard Drive→ 30
Erase Rewritable Disc window 59

4 Compilation screen

You can access the Nero Express compilation screens by selecting the compilation method you want in the start screen. You can add data to your projects in the compilation screens and customize the directory structure on the CD/DVD to suit your requirements. The capacity bar near the bottom of the window indicates how much space is being used by the data on the CD/DVD. Essentially, all compilation screens have the same structure.

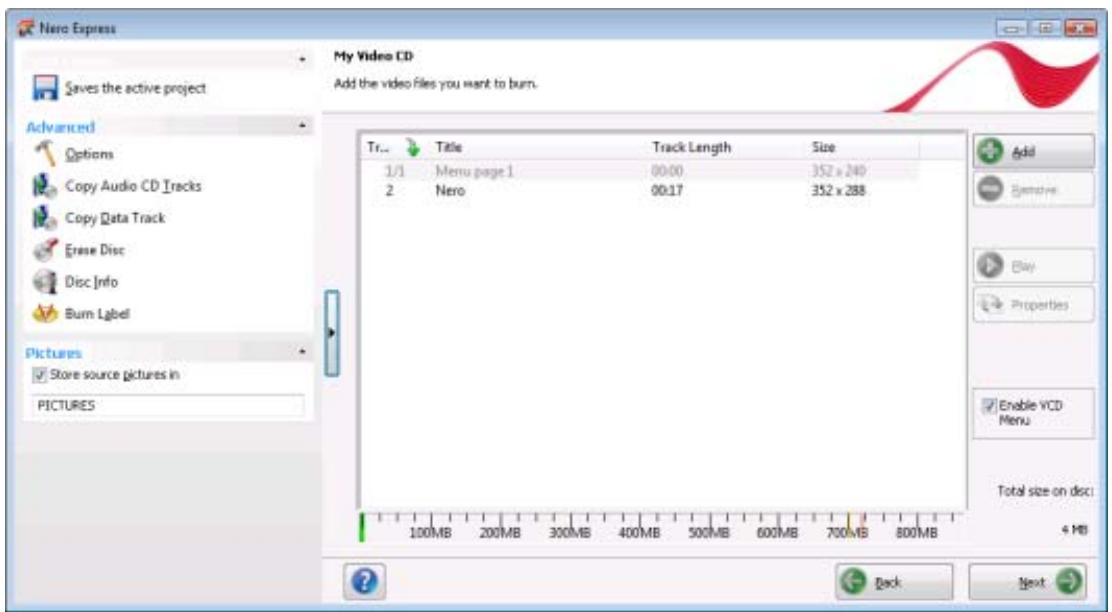

Compilation screen

The following setting options are available in the compilation screen:

Button Add	Opens the Add files and folders window.
Button Delete	Removes the selected file.
Button Playback	Plays a selected audio or video file.
Button Back	Returns to the start screen.
Button Next	Switches to the Final Burn Settings screen.

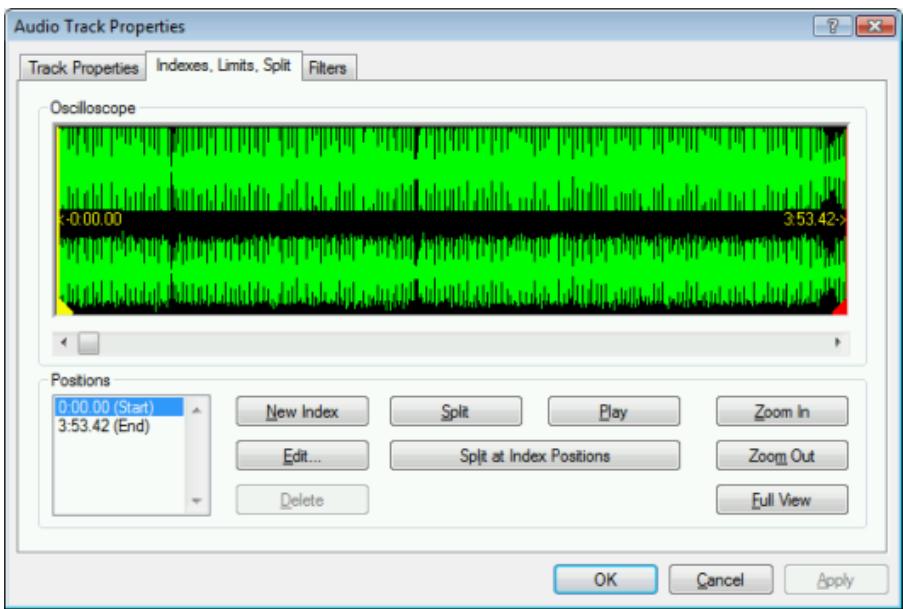

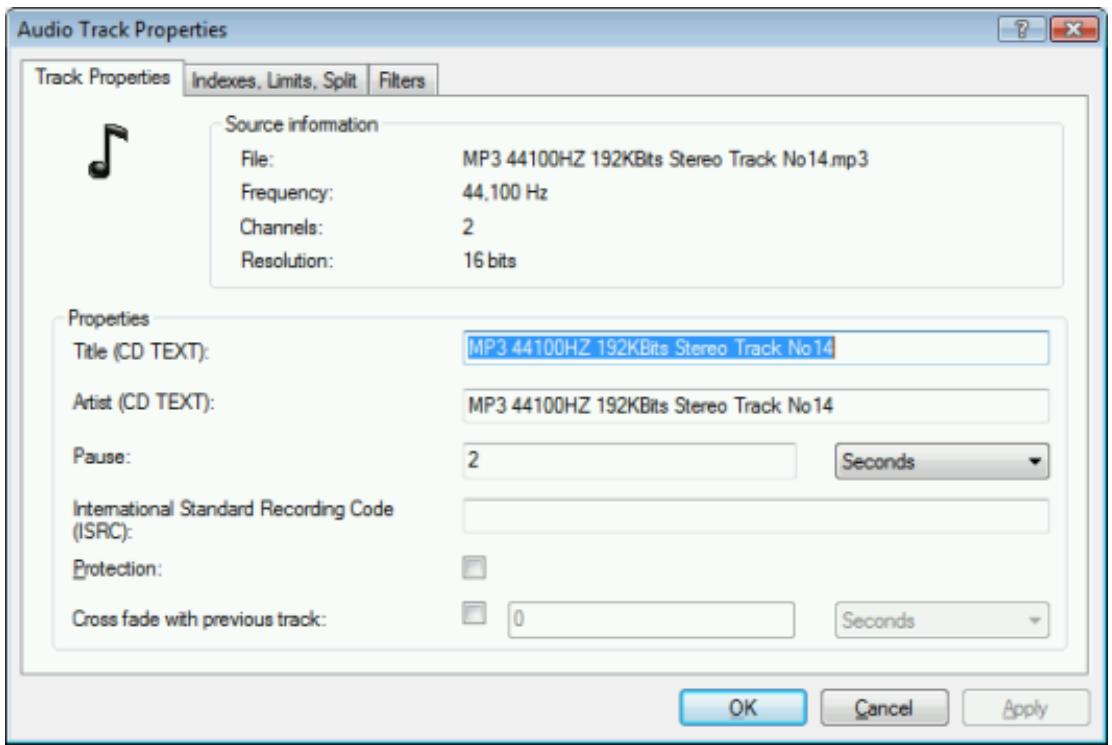

Button Properties	Opens the Audio Track Properties dialog box for Audio CDs and the MPEG Information dialog box for video CDs/Super-Video-CDs. Available for audio, video, and Super Video CDs only.
Check box Enable VCD Menu	Enables a menu for the CD. You can customize the look of the menu to suit your requirements. Available for video and Super Video CDs only.

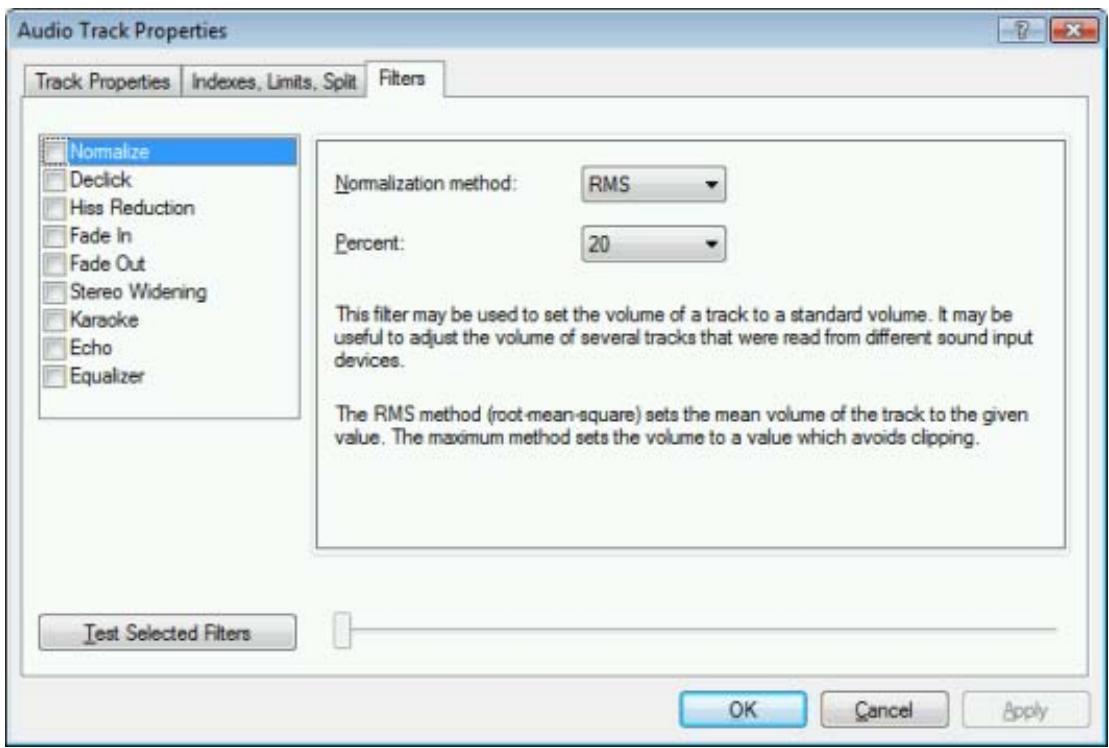

Check box Normalize all audio files	Enables a filter that brings the volume of the audio files to be buried into line with one another. This is recommended particularly if the files originate from different sources. Available for Audio CDs only.
Check box No pause between tracks	Establishes that the audio files merge into one another without a pause. If the box is unchecked, a pause of two seconds is inserted between the files. Available for Audio CDs only.
Selection list DVD9(8152MB) / DVD5(4483MB)	If the DVD recorder is capable of burning DVDs with 2 layers (DVD DL), and if you want to burn files larger than 4483 MB, you can select the DVD9 (8152 MB) option from the drop-down menu. Available for DVD-Videos only.

You can find more information on Blu-ray support at

www.nero.com/link.php?topic_id=416.

See also:

Settings for the compilation 63

5 Data Disc

5.1 Compiling data CDs/DVDs

Using Nero Express you can compile and burn all types of files and folders. If a DVD recorder is installed on your computer, you can burn both data CDs, and data DVDs. If you have a CD recorder, you can only burn data CDs and the option for burning a DVD is already grayed out in the start screen. The procedure for both compilation methods is identical.

SecurDisc recorder

If a SecurDisc recorder is installed on your computer, you can select it to display the relevant entry in order to burn a SecurDisc CD or DVD. The procedures for both adding data and burning a SecurDisc data CD/DVD are the same as the compilation method for a standard data CD/DVD..

The Image Recorder is also suitable for creating an image of a disc type not supported by the connected recorder. You can therefore create a DVD image, for instance, without having installed a DVD recorder. You can write the image to a disc at any time.

You can find more information on Blu-ray support at www.nero.com/link.php?topic_id=416.

To create a data CD/DVD, proceed as follows:

1. Click the Data menu icon in the Nero Express start screen.

The Data CD and Data DVD options are displayed.

1. Click the option you want.

The Disc Content compilation screen for data CDs/DVDs is displayed.

If you selected one of the SecurDisc Data CD or SecurDisc Data DVD options in the start screen, an additional dialog box opens.

Additional options are displayed in the extended area of the compilation window under SecurDisc Settings.

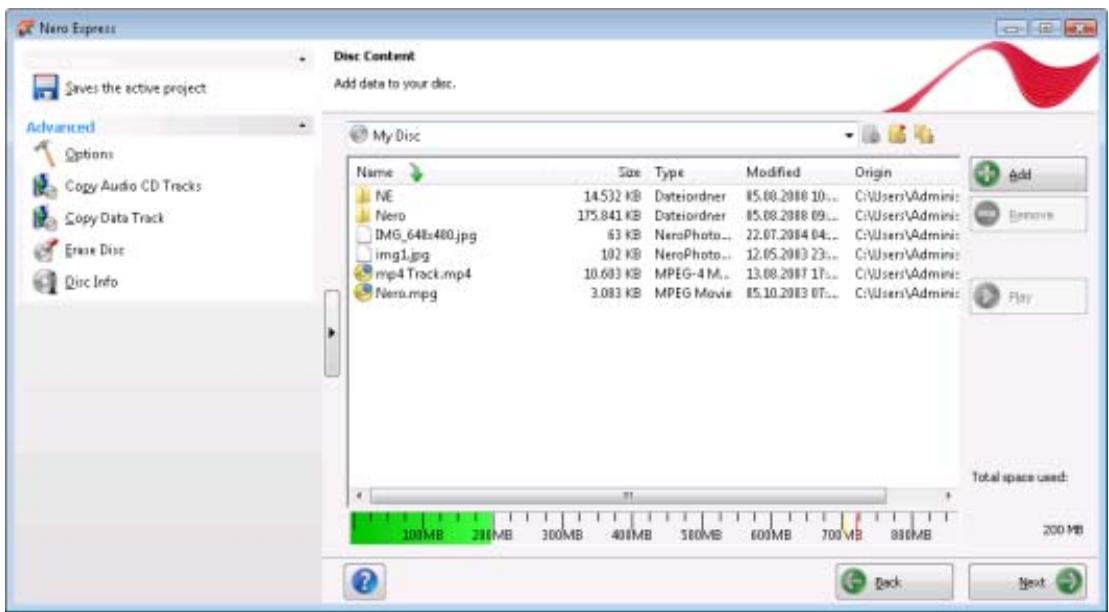

Disc Content compilation screen

1. Click the Add button.

The Add files and folders window opens.

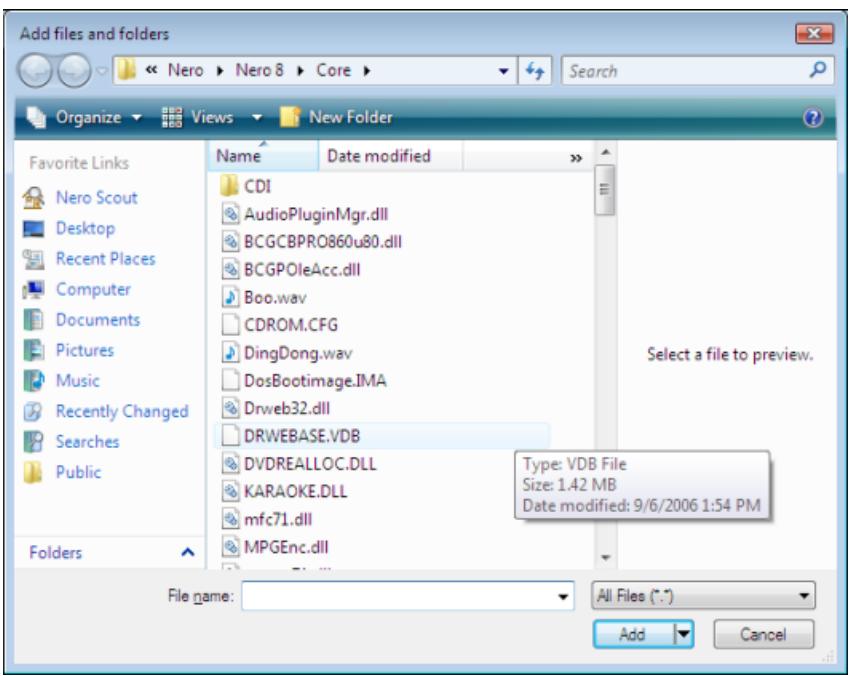

Add files and folders window

1. Select the files that you want to add to the compilation and click the Add button.

2. Repeat the previous step for all files that you want to add.

3. Click the Close button.

The files are added to the compilation and displayed in the compilation screen.

1. Hide specific files.
2. If you want to create a SecurDisc data CD/DVD, select the desired check boxes in the SecurDisc Settings area.
3. Click the Next button.

If you have checked boxes in the SecurDisc Settings area, the corresponding dialog boxes will be opened and you will be able to make more settings.
You have successfully compiled a data CD/DVD and can now burn this compilation.

See also:

Compilation screen 11
Enabling SecurDisc settings 15

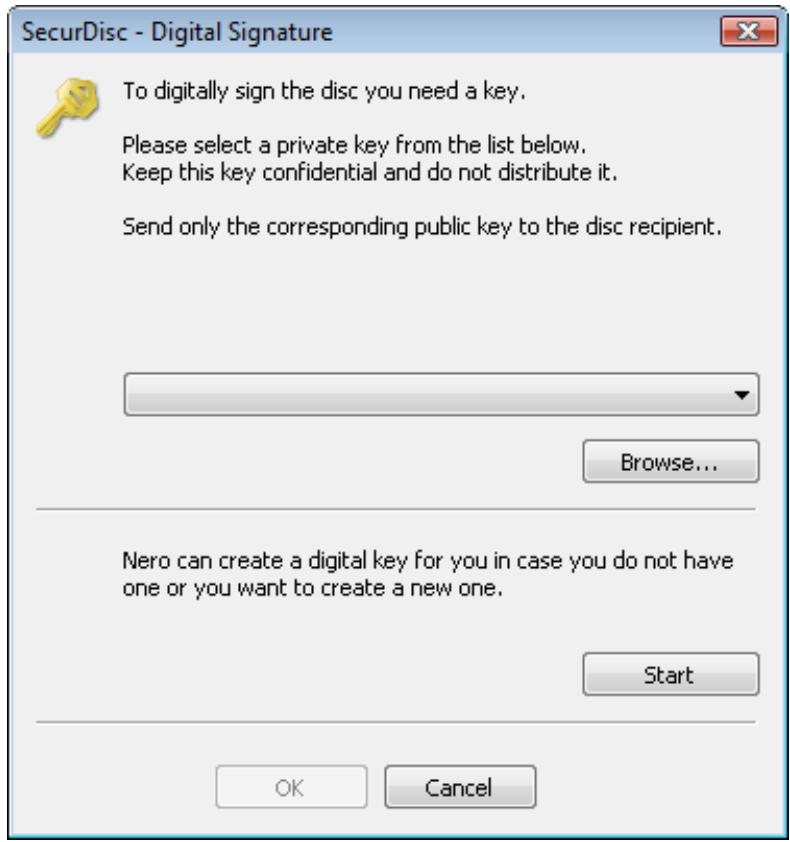

5.2 Enabling SecurDisc settings

To be able to view copy-protected files, you will need a special application called SecurDisc Viewer, which can be downloaded free of charge at www.securdisc.net.

The Copyright feature is only available for SecurDisc Data DVD.

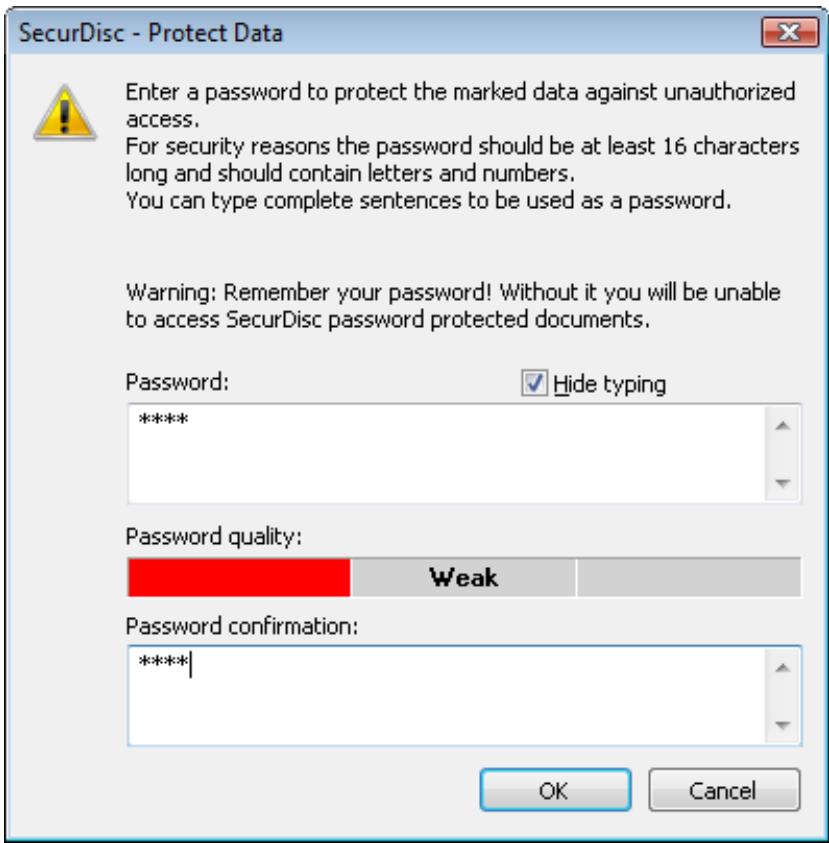

To protect the data on your SecurDisc CD/DVD from unauthorized access with a password, to protect PDF files with duplication protection, to remove duplication protection by entering a password, or to sign the disc with a digital signature, proceed as follows:

1. Select the Password protection check box in the extended area of the compilation screen.

A lock symbol shows that all data is protected.

1. To disable or selectively enable the protection feature for individual files:

2. Highlight the required file to display the Unprotect/ Protect button.

3. Click the Unprotect/Protect button to enable or disable protection.

The protection feature is enabled or disabled for the selected file.

1. Select the Digital signature check box in the extended area of the compilation screen.

The SecurDisc - Digital Signature dialog box opens.

SecurDisc - Digital Signature window

1. If you have already created a digital key:

2. Click the Browse button.

The SecurDisc - Select Private Keys dialog box opens.

1. Select the key and click the OK button.

2. To create a digital key:

3. Click the Start button.
   The SecurDisc - Create Digital Key dialog box opens.

4. Read the instructions and click the Next button.
   The SecurDisc Key Creation Process dialog box opens.
5. Move your mouse at random until the creation process is complete.
   You can monitor the status of the creation process using the progress bar. The Next button is enabled as soon as the process is complete.
6. Click the Next button.
   The SecurDisc - Key Setting Ended dialog box opens.

7. Enter a file name for the key you have created and click the Finish button.
   The SecurDisc - Digital Signature dialog box opens and the selected key is displayed in the drop-down menu.

8. Select the Copy protection check box in the extended area of the compilation screen.

All PDF files are copy-protected. The check box Use password to disable copy protection appears.

1. To permit duplication of the copy-protected data after entering a password:

2. Select the Use password to disable copy protection check box.

The SecurDisc - Protect Data dialog box opens.

1. Enter the desired password in the Password input area and then click the OK button.

2. Click the OK button.

The corresponding dialog box will open to inform you that the disc is being digitally signed with the selected key.

You can pass on the relevant public key to recipients to enable them to verify the signature.

1. Click the OK button.

2. Click the Next button.

The SecurDisc - Protect Data dialog box opens.

SecurDisc - Protect Data window

1. Enter the desired password in the Password input area and then click the OK button.

When appropriate, a wizard offers suggestions in an additional Tips dialog box when entering and selecting the password. The wizard estimates the security level, i.e. the quality of the password, during entry.

You have now protected the data on your SecurDisc CD/DVD against unauthorized access by assigning a password, protected PDF documents with duplication protection, and/or digitally signed the disc. Now you can burn the CD/DVD.

5.3 Saving Data Tracks

With Nero Express you can save a data disc as an image file. The image file can later be burned to a recordable disc. The result is a copy of the original data disc.

To save the data disc as an image file, proceed as follows:

1. Insert the data disc in a drive.
2. Click the Save Data Tracks button in the extended area of the start screen.

The Select Track window opens. The tracklist shows you the sessions and data tracks that are found on the disc. Due to the technical reasons, only the first data track of the first session can be saved.

Select Track

1. Select the first data track.
2. Click the Save Track button.

The Save As window opens.

1. Select a file name and a storage location.
2. In the Save As drop-down menu, select the desired output format (ISO or NRG) for the image file.
3. Click the Start button.

The Progress window is opened and displays the progress made while saving. When the save process is complete, the window closes automatically.
You have successfully created an image file starting from a data disc. Now you can burn the image file to a disc.

6 Music

6.1 Compiling Audio CDs

Using Nero Express you can create an Audio CD that contains music files. It can be played using all standard CD players. To compile an Audio CD, source files with different audio formats (e.g. MP4, MP3 or WMA) are automatically converted into Audio CD format before being burned.

Please not that some CD players cannot play CD-RWs. Use CD-R discs to burn Audio CDs.

To create an Audio CD, proceed as follows:

1. Click the Music menu icon in the Nero Express start screen.

The compilation methods for music are displayed.

1. Click Audio CD.

The My Audio CD compilation screen for Audio CDs appears.

My Audio CD compilation screen

1. Click the Add button.
   The Add files and folders window opens.
2. Select the audio files that you want to add to the compilation and click the Add button.
3. Repeat the previous step for all audio files that you want to add.

4. Click the Close button.
   The audio files are added to the compilation and displayed in the compilation screen.

5. Customize the properties of the audio files to suit your requirements.

6. Select the Normalize all audio files and No pause between tracks check boxes as required.
7. Click the Next button.

You have successfully compiled an Audio CD and can now burn this compilation.

See also:

Compilation screen 11
Copy Audio CDs to Hard Drive→ 30

6.1.1 Customizing properties of the audio file

You can display and/or make changes to the audio file properties on the Track Properties, Indexes, Limits, Splits and Filters tabs of the Audio Track Properties window. To open the window, select an audio file in the compilation screen My Audio CD for Audio CDs and click the Properties button.

6.1.1.1 Track properties

On the Track Properties tab you will find basic information on the selected file in the Source information area.

Track Properties Tab

The following input areas are available in the Properties area:

Input field Title (CD TEXT)	Defines a title which is saved as CD text. CD players that support CD Text show the title name entered here.
Input field Artist (CD TEXT)	Defines the artist which is saved as CD Text. CD players that support CD Text show the artist's name entered here.
Input field Pause	Defines the length of the pause in seconds or frames between the selected audio file and the next one.
Input field International Standard Recording Code (ISRC)	Identifies the CD title using a 12-character digital code. The ISRC is entered in the subcode and included silently. If you do not know the ISRC, you should leave this input field blank.
Check box Copy protection	Enables copy protection.
Check box Cross fade with previous track	Defines a crossfade between this and the previous audio file. You can specify the length of the crossfade in seconds or in sectors.

6.1.1.2 Indexes, Limits, Split

On the Indexes, Limits, Split tab you can set and delete indexes and split audio files to create two or more shorter ones. The tab consists of the Oscilloscope and Positions. areas.

Indexes, Limits, Split Tab

Audio files are displayed graphically in the Oscilloscope area. The following configuration options are available in the Positions area:

Selection lists Start/End	Shows the positions for the beginning and end of the audio file on the CD.
Button New Index	Sets a new index position at the selected position. For the CD play- er this is the position from which a new song starts, and the player can also jump to it directly. However, not all CD players support this feature.
Button Edit	Opens the Set Track End dialog box. You can enter the exact position of a split.
Button Delete	Deletes a selected index.
Button Split	Splits the audio file at the marked position.
Button Playback	Plays the audio file from the marked position. During playback, the Stop button is shown.
Button Stop	Stops playback of the audio file. If playback is stopped, the Play button appears again.
Button Split at Index Posi- tions	Splits the audio file at the set index positions.
Button Zoom In	Enlarges the graphical representation of the audio file.
Button Zoom Out	Reduces the graphical representation of the audio file.
Button Full View	Displays a graphical representation of the entire audio file.

6.1.1.3 Filter Settings

The Filters tab includes filters that improve or change the quality of the music. The so-called non-destructive procedure is used for processing, i.e. the actual recording is not changed, but flags are simply set that can be canceled at any time. No additional audio data is created. The audio files are not actually changed until they are written.

Audio Track Properties window, Filters tab

The following configuration options are available in the Audio Track Properties window:

Check box Normalize	Sets the volume of an audio file to a preset value. This filter can be useful to bring the volume of files originating from different sources into line with one another.
Check box Declick	Removes clicking and scratching noises, such as those on old LPs for example.
Check box Hiss Reduction	Reduces or removes the hiss on an audio file. All frequencies below a certain threshold (hiss level) are removed.
Check box Fade In	Fades in the volume of an audio file from zero to full volume. This filter can be useful for shortening files.
Check box Fade Out	Fades out the volume of an audio file from full volume to silence. This filter can be useful for shortening files.
Check box Stereo Widening	Increases/reduces the stereo effect of an audio file. This filter only works if the original file was recorded in stereo.
Check box Karaoke	Fades out the vocals on an audio file. This is done by fading out the parts of a song that are the same in both stereo channels.
Check box Echo	Adds an echo to the audio file.
Check box Equalizer	Opens an equalizer so you can change the volume, bass, and pitch in different frequency ranges.
Button Test Selected Filters	Plays the audio file and applies the activated filters. During play-back, the configuration options for the filters can be changed, allowing the effect to be controlled.
Selection list Normalization method	Sets the midpoint of the track to the specified value. Maximum sets the volume to the greatest value possible without clipping.
Selection list Percent	Sets a standard value for the volume of a track.

6.2 Compiling jukebox disc

Nero Express can be used to compile discs with audio formats you require (e.g. Nero Digital, MP3 or WMA). In contrast to Audio CDs that can only be burned on CDs, you can burn these compilations of different audio formats on other disc types – provided an corresponding recorder is installed on your computer. The procedure for compilation methods is identical. You can opt for a single format or a mix of audio formats of your choice.

Nero Express does not convert the audio files when creating a jukebox disc. In other words, MP3 files are burned as MP3 files for example. Most CD players cannot play such discs.

There is no difference between creating a jukebox disc and creating an Audio CD. Please be sure to select the corresponding entry in the start screen.

From a technical point of view, a compilation of special audio formats is a data CD/DVD. You can also select Nero ExpressData > Data CD/DVD in the start screen to create and burn your project.

See also:

Compilation screen 11
Compiling data CDs/DVDs 13

6.3 Compiling an audio book CD

Nero Express is used to compile audio book files and burn them as an audio book CD, i.e. in the form of an Audio CD. You can then play it on any standard CD player. Since audiobooks can play for several hours, Nero Express saves the audiobook to multiple audio CDs. During the burn process, you are prompted to insert new blank discs.

The procedure for compiling audio book CDs is basically the same as the procedure for creating an Audio CD.

See also:

Compilation screen 11

6.4 Automatic Music Recognition

With Gracenote MusicID Nero Express can identify music files. So called metadata such as artist, title, and genre are accessed from the Gracenote Media Database and displayed in Nero Express. The identified metadata is written to the music file and is then available.

Identification is possible for single audio files as well as complete original Audio CDs.

If the metadata of the Audio CD is not yet included in the database then you can enter it and make it available. The metadata is sent to Gracenote and added into the database.

With Gracenote you can have audio files identified out of any sort of compilation. This is particularly useful when audio files are not named or are only partially named. The metadata that is made available by Gracenote is used for the compilation and is written into the audio files. In this way your music collection is correctly tagged with all information.

During the following actions, original Audio CDs can be automatically identified in Nero Express with Gracenote MusicID.

• Copying Audio CD
  Saving Tracks from the Audio CD to Hard Drive

Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

6.4.1 Identifying Audio Files

You can have the added audio files in the music compilations identified with Gracenote and access metadata such as artist and title from the Gracenote Media Database.

To do this, proceed as follows:

1. Choose the type of compilation to burn a music CD.
   The compilation screen appears.
2. Add audio files from the hard drive to the music compilation.
3. Select one or more audio files in the compilation.
4. Right-click to open the context menu.
5. Choose the Get Metadata entry.

The audio files are analyzed and the required information is sent to Gracenote. The Edit Metadata window opens. The metadata received by Gracenote is displayed in the New Info area.

Edit Metadata window

1. If necessary, edit the metadata, e.g. track number, title, artist, album title, year, and genre.
2. Click the Apply button.

The Edit Metadata window closes.
The metadata is written into the audio file and accordingly shown in Nero Express.

6.5 Copy Audio CDs to Hard Drive

Using Nero Express you can save audio files from an Audio CD on the hard drive. In the process, the files are encoded, i.e. converted into a format that the computer can read. The audio file is usually compressed.

The Audio CD can be automatically identified with Gracenote MusicID. So called metadata such as title, genre, and track title are accessed by the Gracenote Media Database and associated to the tracks. That way you have audio files that are accurately and fully named after the encoding process.

Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

Audio files from copy-protected Audio CDs cannot be saved.

To save audio files, proceed as follows:

1. Click the Copy Audio CD Tracks button in the extended area of the screen.

The Copy Audio CDs to Hard Drive window opens.

Copy Audio CDs to Hard Drive

1. Insert your Audio CD into a drive.

The disc is analyzed and the required information is sent to Gracenote. If an exact matching entry is found in the Gracenote Media Database then that metadata will be used and displayed.
If several entries are found, the Matches window opens and the possible metadata records are displayed.

1. Select the metadata record that matches your Audio CD.
2. Click the Send New Data button if none of the metadata records match your Audio CD.
3. The Edit Metadata window opens.

Edit Metadata

The Edit Metadata window also opens if no matching entry is found in the database but you want to enter the metadata and make it available.

1. If necessary, edit the metadata (e.g. title, artist, album title, year, genre).
2. Click the Advanced Options button if you want to add additional information.

The Gracenote MusicID Information window, which originates from Gracenote, opens. After entering the additional information, you have to close this window so that the Edit Metadata window displays again.

1. Click the Submit Data button.

Changed or new Audio CD metadata is sent to Gracenote and added to the Gracenote Media Database.
The Edit Metadata window is closed and the information is passed on to the Copy Audio CDs to Hard Drive window.

1. Select the tracks that you want to save on the hard drive.

2. Click the Output tab.
   The Output tab is opened.

3. In the File Format drop-down menu, select the target file's audio format.

4. Choose a method for creating the file name in the Mode for Creating File Names dropdown menu.

5. Define other settings according to your preferences.
6. Click the Copy button.

Conversion starts. A folder with the name of the album is created inside the desired folder. The audio files are saved in this folder and named according to the method you chose. Metadata that is identified with Gracenote is written to the audio file.

The Progress window indicates the saving progress. When the save process is complete, this window closes automatically.

1. Click the Close button.

The Copy Audio CDs to Hard Drive window is closed. You have saved your audio files.

6.5.1 Copy Audio CDs to Hard Drive

Define the settings for audio files to be saved on the hard drive in the Copy Audio CDs to Hard Drive. Open the window in the extended area of the start screen by clicking Save Tracks.

Copy Audio CDs to Hard Drive - Source

The following setting options are available:

Tab Source	Specifies settings for the source of the audio data.
Tab Output	Sets output files configuration options.
Button Copy	Starts the copy or save process.

See also:

Compiling Audio CDs→ 20

6.5.1.1 Source tab

The Source tab displays the audio files on the Audio CD. The functions of the control buttons correspond to the familiar control buttons on CD players.

The following setting options are available:

Drop-down menu Source drive	Selects the drive where the Audio CD is inserted.
Title Selection List	Displays the tracks on the Audio CD. You can select individual tracks to copy by selecting the respective check box.
ButtonRefresh	Sends a new query to the Gracenote Media Database and completes the Audio CD's metadata including artist, title name, and genre if a matching entry exists in the database.
ButtonEdit Metadata	Opens the Edit Metadata window. Here, you can edit the Audio CD metadata sent by Gracenote. You can enter the metadata if no entry for your Audio CD exists in the Gracenote Media Database. This metadata is sent to Gracenote, and added to the Gracenote Media Database.
Input fields Album/Artist/Year	Displays or specifies metadata for the album, artist and year.
Selection list Genre	Displays or specifies the genre.

6.5.1.2 Output tab

You can define the properties of the audio files to be created on the Output tab.

Copy Audio CDs to Hard Drive - Output

The following setting options are available:

Input window Output directory	Selects the storage location for the output file.
Button Browse	Opens a browser window where you can select a storage location.
Drop-down menu Mode for creating file name	Selects the method to be used for creating the name of the output file.
Check box Automatically ge- nerate a playlist of stored audio tracks	Creates a playlist of the saved audio files.
Drop-down menu Playlist format	Selects a format for the playlist.
Drop-down menu File format	Selects the output audio format for the selected audio file. The se- lected file format is available as the first entry the next time it is cal- led up.
Button Settings	Opens a window where you can define options such as bit rate and frequency for the output audio file.
Check box Force compatibil- ity with iPod	Makes Nero Digital Audio+ available for an iPod. Is only available if you selected the Nero Digital Audio + output format.

7 Video and Slide Show

7.1 Compiling Video CDs/Super Video CDs

Using Nero Express you can compile Video CDs (MPEG-1 format) and/or Super Video CDs (MPEG-2 format) from your video and/or picture files, which can be played on almost all VCD or SVCD and DVD players as videos or slide shows. Source files are automatically converted to the correct format during the burn process. The procedure for both compilation methods is identical.

When creating a slide show in Nero Express, options such as Accentuate with background music are not available. Nero Vision offers additional features.

Please see the separate Nero Vision user manual for full instructions on how to produce professional looking slide shows.

When creating a slide show as a VCD/SVCD, the picture files involved are stored in a DAT file. This kind of file can no longer be modified or viewed using an image processing program. If you would like to save the original formats on your CD as well, select the Store source pictures in check box.

To create a (Super) Video CD, proceed as follows:

1. In the Nero Express start screen, click the menu icon Videos/Pictures.
   The Video CD, Super Video CD and DVD-Video Files options appear.
2. Click the option you require, Video CD or Super Video CD.
   → The My (Super) Video CD compilation screen opens.

My (Super) Video CD compilation screen

1. Click the Add button.

The Add files and folders window opens.

1. Select the video and/or picture files that you want to add to the compilation.
2. Click the Add button.
3. Repeat the two previous steps for all video and/or picture files that you want to add to the compilation.
4. Click the Close button.

The video and/or picture files are added to the compilation and displayed on the compilation screen.

1. Customize the properties of the video and/or picture files to suit your requirements.

2. When needed, select the Enable (S)VCD Menu check box.

3. Click the Next button.

If you have selected the (S)VCD Menu check box, the My (Super) Video CD Menu screen appears.

My Video CD Menu compilation screen

1. Customize the look of the menu to suit your requirements.

2. Click the Next button.

You have successfully compiled a (Super) Video CD and can now burn this compilation.

See also:

Compilation screen 11

7.1.1 Customizing the menu

In the My (Super) Video Menu screen you can customize the look of the menu to suit your requirements. Just as with DVD-Video menus, you can select titles and/or chapters from the movie to show in the VCD/SVCD menu.

The following setting options are available:

ButtonLayout	Opens the Layout Settings dialog box.You can set the layout of the menu here.
ButtonBackground	Opens the Background Settings dialog box.You can load and customize the background image here.
ButtonText	Opens the Text Settings dialog box.You can enter the text content for headers and footers and select the font here.
ButtonShow full screen menu	Shows a preview of the full screen menu.
Check boxSet as Default	Saves the current menu settings as default values.

7.2 Compiling DVD-Videos

Using Nero Express you can burn DVDs made up of DVD-Video files from your hard drive. You can show your burned DVDs on almost all DVD players. You can use Nero Express to burn a DVD if the DVD video title, i.e. a complete DVD folder structure, is already available.

Please note that it is not possible to create a DVD-Video from video files in Nero Express. In Nero Vision, you can convert video files to DVD-Videos. More information is available in the separate Nero Vision manual.

To compile a DVD-Video, proceed as follows:

1. In the Nero Express start screen, click the menu icon Videos/Pictures.

The Video CD, Super Video CD and DVD-Video Files options appear.

DVD-Video files compilation screen

1. Click DVD-Video.

The DVD-Video files compilation screen opens.

1. Click the Add button.

The Add files and folders window opens.

1. Select the DVD-Video files that you would like to add to the compilation and click the Add button.

2. Repeat the two previous steps for all DVD-Video files that you want to add to the compilation.

3. Click the Close button.

The DVD-Video files are added to the compilation and are displayed in the compilation screen.

If the DVD-Video files selected are larger than 4483 MB and if a DVD recorder which can burn DVDs with 2 layers (DVD DL) is installed, you can select the DVD9 (8152MB) option in the drop-down menu.

1. Click the Next button.

You have successfully compiled a DVD-Video and can now burn this compilation.

See also:

Compilation screen 11

8 Loading a disc image or saved project

Nero Express is used to burn a CD/DVD from a disc image or compilation that you have previously saved on the hard drive.

To load an image file or a saved compilation for the burn process, proceed as follows:

1. Click the Image, Project, Copy menu icon in the Nero Express start screen.
   The Copy Entire CD, Copy Entire DVD, and Disc Image or Saved Project options appear.
2. Click the Disc Image or Saved Project option.
   The Open dialog window opens.
3. Select the image file (.nrg) or saved compilation you want and click the Open button.
   The selected file loads and the Final Burn Settings screen appears.
   You have successfully loaded the image file or compilation and can now burn it.

9 LightScribe

Using Nero Express and a LightScribe recorder you can create or load labels that you can burn onto the label side of CDs/DVDs in the LightScribe recorder. The function is available as a separate Print LightScribe Label option in the start screen or can be integrated as an intermediate step into the creation and burn process of a project.

This function is only available in recorders that support LightScribe technology.

See also:

LightScribe settings 65

9.1 Printing LightScribe labels (without compilation)

To create and print a LightScribe label for your CD/DVD, proceed as follows:

1. In the Recorder section of the extended area in the start screen, select the LightScribe recorder you want to use.
2. Insert a blank LightScribe disc into the LightScribe recorder with the label side facing down.

The Print LightScribe Label menu icon in the Nero Express start screen appears.

LightScribe Label start screen

1. Click the Print LightScribe Label menu icon.
   The Print LightScribe Label option appears.
2. Click the Print LightScribe Label option.
   The Disc Label screen opens.

Disc Label screen

1. Create a label according to your requirements.

The interface in the Disc Label screen works on the same principle as Nero CoverDesigner. Basically, it is irrelevant whether you print the label on paper or directly onto an appropriate disc.

Please see the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.

1. Click the Next button.

The LightScribe Print Properties screen opens.

1. Add to the required values in the input fields and enable the option button for the desired print quality.

2. Click the Print button.

The printing process begins. You can follow the process status in the status bar. As soon as printing is finished, the Nero - LightScribe dialog appears and displays a message about the result of the printing process.

1. Click the OK button.

2. Click the Next button in the LightScribe Print Properties screen.

You have successfully created and printed a LightScribe label according to your requirements and can now continue by selecting another option from the final screen or by exiting Nero Express.

See also:

LightScribe Print Properties window 41
Final screen 61

9.2 LightScribe Print Properties window

You can customize the print properties of your LightScribe label to suit your requirements in the LightScribe Print Properties window.

LightScribe Print Properties window

The following options are available:

Area Print contrast	Adjusts the desired print quality. This option button is set to Normal by default.
Input field Number of copies	Defines the number of copies you require.
Drop-down menu Drive	Defines the desired recorder. Available only if multiple LightScribe recorders are avail-able.
Check box Automatically shut down the PC when done	Shuts down the computer after the label has been printed (if possible).
Button Print	Starts printing the label.
Button Preview	Opens the LightScribe Print Preview dialog box. A print preview of the label is displayed here.

9.3 Printing LightScribe labels (within the project)

To create and print a corresponding LightScribe label within your project, proceed as follows:

1. In the Recorder section of the extended area in the start screen, select the LightScribe recorder you want to use.
2. Compile a project of your choice.

The Disc Label screen opens.

1. Create a label according to your requirements.

The interface in the Disc Label screen works on the same principle as Nero CoverDesigner. Basically, it is irrelevant whether you print the label on paper or directly onto an appropriate disc.

Please see the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.

1. Click the Next button.
   The Final Burn Settings screen opens.
2. Insert a suitable blank disc in the selected drive.
3. Select the recorder you want from the Current Recorder drop-down menu.
4. Add to the desired values in the input fields as necessary and select the required check boxes.
5. Add to the desired settings in the extended area.
6. Click the Burn button.

The Burn Process screen appears and the burn process starts. You can follow the process status in the status bar. As soon as the burn process is finished, the CD/DVD is ejected and a dialog box appears.
10. Turn the blank LightScribe disc around, i.e. insert it in the LightScribe recorder with the label side facing down.
The LightScribe Print Properties window opens and the print process starts. You can follow the process status in the status ba. As soon as the printing is finished, the Nero - LightScribe dialog appears and displays a message about the result of the printing process.

1. Click the OK button.
2. If you would like to save a log of the burn process, click the Save button.

The log is saved.

1. To print the log, click the Print button.
   The log is printed.

14. Click the Next button.

You have successfully created and printed a LightScribe label as an integral part of your CD/DVD project and can now continue by selecting another option from the final screen or by exiting Nero Express.

See also:

LightScribe Print Properties window 41
Final screen 61

10 Labelflash

If you have a Labelflash recorder, you can print a label on the label and/or data side of the Labelflash DVD. A Labelflash DVD has a special layer between the top and bottom layers; this layer can be heated by the laser in the recorder so that images and text can be printed on the DVD.

The interface in the Burn Label screen works on the same principle as Nero CoverDesigner. Basically, it is irrelevant whether you print the label on paper or directly onto an appropriate disc.

Please see the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.

This feature is only available in recorders that support Labelflash technology.

10.1 Burn Label screen

In the Burn Label window you can create or load a label and write it on a Labelflash DVD. Information on the selected printing quality and rotation speed is displayed on the right-hand side of the screen. Under Disc type you can see whether the blank disc has been inserted with the label or data side. Either the Labelflash or the DiscT@2 logo is displayed in the Burn Label window depending on which side is inserted.

Burn Label Window

The following configuration options are available in the Burn Label window :

Input field Inner Radius	Defines the distance between the label and the inner edge.
Input field Width	Defines the width of the print area.
Button Edit	Opens the Labelflash Print Properties window. This is where you can change the printing quality and the contrast level and display the changes made directly in the print preview.
Button Preview	Opens the Print Preview window that shows how the label should appear on the Labelflash disc.
Selection list Label templates	Contains a selection of different templates for designing the label. You can continue to edit and customize a selected template.
Button Writing	Starts the burn process.
Button Cancel	Cancels the procedure and closes the window.

If you are creating a DiscT@2, displays only the available print area for creating the label by default, i.e. the area on the data side of your DVD that is not already taken up by data. You cannot increase the radius of the print area.

10.2 Printing Labelflash labels and DiskT@2

Basically, it is irrelevant whether you print on the label or the data side when creating labels. The label is actually printed outside the normal burn process.

You can print on the label side of the DVD at any time.

We recommend that you print on the data side first when you have burned the compilation. It is not possible to burn data on a printed data side. When you insert a DVD on which data has already been burned, Nero Express automatically identifies the space that is still available on the data side and on which you can print.

To print a Labelflash label on the label side or a DiskT@2 on the data side of your DVD, proceed as follows:

1. If you want to print a Labelflash label on the label side, insert a blank Labelflash disc into the recorder with the label side facing down.

The Burn Label window opens with the Labelflash logo.

1. If you want to print a DiskT@2 on the data side, insert a blank Labelflash disc with the data side facing down in the recorder.

The Burn Label window opens with the DiskT@2 logo.

1. Create a label according to your requirements or open a label that you have already created with Nero CoverDesigner.

The interface in the Burn Label window and creation of a label work on the same principle as Nero CoverDesigner. Please see the separate Nero CoverDesigner manual for full instructions on how to create professional looking covers and labels.

1. If you want to change the area in which the label is printed, change the print area accordingly using the input fields Inner Radius and Width.

2. If you want to view or change the print properties:

3. Click the Change button.

The Labelflash Print Properties window opens.

1. If you want to change the printing quality, select a quality level from the Print quality profile drop-down menu.
2. If you select the User defined entry from the Print quality profile drop-down menu, you can change the contrast level and the rotation speed.
3. Click the OK button.

Labelflash Print Properties

1. The Labelflash Print Properties window closes and the changes are accepted.

2. Click the Burn button.

3. The labeling procedure starts and the Labelflash - printing or DiscT@2 - printing window opens. The window shows the estimated printing time and the print progress. When printing is complete, a dialog box opens informing about the successful print process.

4. Click the OK button.

5. The dialog box is closed and the disc ejected.

You have successfully printed a label.

11 Burn Compilation

11.1 Choice of recorder

If multiple recorders are installed, you can select the recorder that you want to use for burning from the Recorder drop-down menu. Immediately before burning a project, you can change the recorder you selected again in the Final Burn Settings window.

Labelflash™ recorder

If a Labelflash™ recorder is installed on your computer, you can select it to create and print Labelflash™ DVD labels in Nero Express. The function is available as a separate Burn Label menu icon in the extended area of the start window.

LightScribe recorder

If a LightScribe recorder is installed on your computer, you can select it to create and print LightScribe CD/DVD labels in Nero Express. The feature is available as a separate Print LightScribe Label option in the start screen or can be integrated as an intermediate step into the creation and burn process of a project.

SecurDisc recorder

If a SecurDisc recorder is installed on your computer, you can select it to create and burn SecurDisc data CDs and/or DVDs in Nero Express. Corresponding options, e.g. SecurDisc Data CD, are available in the start window.

In addition to the installed recorders, Nero Image Recorder is also available in Nero Express. Nero Image Recorder can be used to create and save an image file to burn later. In order to use Nero Image Recorder, you can select the Use Nero Image Recorder check box in the extended area of the start screen.

Please note that Nero Image Recorder can only be activated in the extended area of the start screen.

The Image Recorder is also suitable for creating an image of a disc type not supported by the connected recorder. You can therefore create a DVD image, for instance, without having installed a DVD recorder. You can write the image to a disc at any time.

You can find more information on Blu-ray support at www.nero.com/link.php?topic_id=416.

11.2 Start the burn process - Burning discs with the drive

To select one of the available recorders, to define the burn settings for your project according to your requirements, and to start the burn process, proceed as follows:

1. Compile a project of your choice.
   The Final Burn Settings screen opens.
2. Insert a suitable blank disc in the selected drive.
3. Select the recorder you want from the Current Recorder drop-down menu.
4. Add to the desired values in the input fields as necessary and select the required check boxes.
5. Add to the desired settings in the extended area.
6. Click the Burn button.

The Burn Process screen appears and the burn process starts. You can follow the process status in the status bar. As soon as the burn process has finished, the Nero Express dialog box appears and displays a message about the result of the burn process.

1. Click the OK button.
2. If you would like to print or save a log of the burn process, click either the Print or Save button.
3. Click the Next button.

You have successfully burned a project and can now continue by selecting another option from the final screen or by exiting Nero Express.

11.3 Final Burn Settings screen

In the Final Burn Settings screen, you can define the burn settings to suit your requirements, use Nero Image Recorder to save a project to the hard drive as an image file or start the burn process.

Final Burn Settings screen

The following configuration options are available in the Final Burn Settings screen:

Button Options	Opens the Recorder Information dialog box. You will find additional information here on the selected recorder and the media types that can be burned using it. Additional options can be enabled/disabled. In some recorders, you can change the Book Type settings. Available for data DVDs and DVD-Videos only. Not available when saving with Nero Image Recorder.
Input field Disc name	Defines the name of the CD/DVD. Not available for Audio or audio book CDs.
Input field Title (CD TEXT)	Defines the title of the Audio CD if CD Text is supported. Available for Audio and audio book CDs only.
Input field Artist (CD TEXT)	Defines the artist on the Audio CD. Available for Audio and audio book CDs only.
Input field Number of copies	Defines the number of copies you require. Not available for audio book CDs or when saving with Nero Image Recorder.
Check box Verify data on disc after burning	Compares the burned data to the original data. With compilations of multisession CDs/DVDs only the data that was added during the last burn process is compared. Not available when saving with Nero Image Recorder.
Check box Allow files to be added later (multisession disc)	Enables the option to write additional files to the CD/DVD. The CD/DVD is not finalized. Multisession CDs/DVDs do not have to be written in a single burn process. You can burn projects repeatedly to a CD/DVD until it is completely burned. Not available for Audio and audio book CDs or when saving with Nero Image Recorder.

11.3.1 Extended area (Burn Settings)

You can access additional burn settings in the extended area of the Final Burn Settings screen by clicking the button in the left margin of the window.

An extended area with additional options and features is available in all Nero Express screens.

The following setting options are available:

Button Saves the active project	Opens the Save As dialog box. You can save your compilation here.
Selection list Write speed	Defines the speed at which the disc is burned. Only the burn speeds that are supported by the selected recorder are displayed. Not available when saving with Nero Image Recorder.
Selection list Write method	Defines the Disc-at-once or Track-at-once write method. Using the disc-at-once method the entire CD/DVD can be burned without the write laser having to stop. With the track-at-once method the laser switches off after each track. Available for CD compilations only. By default DVDs are burned using the disc-at-once method.
Check box Determine maximum speed	Checks how fast the compiled data can be accessed and reduces the selected writing speed if necessary. This prevents a buffer overrun. Recorders with a feature to prevent buffer underruns do not require a speed test. Not available when saving with Nero Image Recorder.
Check box Simulation	Performs all steps in the burn process without using the laser beam. We recommend running a simulation if you are de-compressing data before burning, e.g. when burning an Audio CD from MP3 files. You can assume that if simulation is successful, the burn process will also be successful. Not available when saving with Nero Image Recorder.
Check box Write	Starts the actual physical burn process (e.g. after a simula- tion). This box is checked by default.
Check box Remove silence at end of *.cda tracks	Removes silence from the end of an audio file. This check box is selected by default. Audio data is stored in blocks even if you do not always finish at the end of a block limit. The last block is filled with silence when needed. Available for Audio CDs only.
Check box Create for US TV stan- dard	Generates a CD compatible with most US DVD players. Available for Video CDs and Super Video CDs only.
Check box Video Files	If the check box is selected, Nero Express looks for FourCC codes in AVI files during the burn process and replaces them. The original files are not modified. The compatibility of MPEG-4 video files ("DIVX") with MPEG-4 compliant DVD players can be increased. Only available if your project includes videos in AVI format.

11.4 Burning with Nero Image Recorder - Creating an image file

To set the burn settings according to your requirements and to save your project as an image file to the hard drive using Nero Image Recorder, proceed as follows:

Nero Image Recorder must be activated before it appears in the drop-down menu.

1. Compile a project of your choice.
   The Final Burn Settings screen opens.
2. Select the Image Recorder option from the Current Recorder drop-down menu.
3. Add to the required values in the input fields.
4. Add to the required settings in the extended area as necessary.

5. Click the Burn button.
   The Burning Process screen appears and the Save Image File dialog box opens.

6. Enter a name for your image file in the File Name input field.

7. Select the desired storage location in the navigation tree and click the Save button.

The burn or save process starts. You can follow the process status in the status bar. As soon as the burn or save process is finished, the Nero Express dialog box opens and displays a message about the result of the burn process.

Burn progress window

1. Click the OK button.

2. If you would like to print or save a log of the burn process, click either the Print or Save button.

3. Click the Next button.

You have successfully saved a project with Nero Image Recorder and can now continue by selecting another option from the final screen or by exiting Nero Express.

12 Copying CDs/DVDs

12.1 Copying methods

Nero Express can be used for copying discs. There are two methods for this:

On-the-fly
Copy Over Image

Each method has advantages and disadvantages which will depend on your requirements.

12.1.1 On-the-fly

When using the on-the-fly method, insert the original disc into a drive and a recordable disc into the drive. The original disc in the drive is copied immediately without any time delay to the blank disc in the recorder. The on-the-fly method allows you to copy discs very quickly, and does not require any additional space on the disc.

In order to be able to use the on-the-fly method, you will need at least two drives: one for reading the disc and a disc burner for writing. The following requirements apply to the read drive and disc burner:

The disc burner must feature buffer underrun protection, or the drive must be capable of delivering the data sufficiently quickly. The read speed should be at least twice as fast as the write speed.
The read drive must be capable of delivering information on the number and type of sessions, otherwise Nero Express may not be able to produce an exact copy.

If you want to copy Audio CDs, we recommend the copy image method because the quality of the read audio files can suffer depending on the drive.

12.1.2 Copy image

With the copy over image method, an image of the original disc is saved to a file first. The image file is then burned to a blank disc. Copying using copy over image takes longer, but it often produces better results.

You must have sufficient storage space to use the copy over image method.

The copy over image method is particularly suitable in the following situations:

Only one drive is available.
You would like to make several copies of the same disc.
- You think it likely that read errors may have occurred on the source CD (for example because it is scratched).
- You attach importance to the best possible reproduction (particularly in relation to index positions and the quality of Audio CDs).

12.2 Copying CDs/DVDs

To copy a disc, proceed as follows:

If you are not in possession of the copyright for the relevant CD/DVD and do not have authorization from the owner of the copyright, unauthorized copying of CDs violates national and international legislation.

Copy-protected Audio CDs cannot be copied using Nero Express.

Some CDs/DVDs are copy-protected and cannot be copied. If you are not sure whether your CD/DVD can be copied, activate simulation before commencing the actual physical burn process.

1. Click the Image, Project, Copy menu icon in the Nero Express start screen.
   The corresponding copy options appear.
2. Click the option you require, Copy Entire CD or Copy Entire DVD.
   The Select source and destination screen appears.
3. Make the desired settings in this screen and, if required, in the extended area of the window.

4. If you want to use the Copy Image method, e.g. because you have only one drive:

5. Disable the On-the-fly check box.

6. Insert the disc that you want to copy into the recorder.

7. Click the Copy button.

If you are copying via the drive, the copy process starts. If you are using Nero Image Recorder, the Save Image File dialog box opens:
6. Enter a name for your image file in the File Name input field.
7. Select the relevant storage location in the Save to navigation tree and click the Save button.
The copy and/or save process starts. You can follow the process status in the status bar. If you are using a single drive for copying, you will be prompted to remove the source CD/DVD and to insert a suitable blank disc after the image file has been written. The burn process then starts automatically.

Copy Process screen

1. Click the Next button.

You have successfully copied a CD/DVD and can now continue by selecting another option from the final screen or by closing Nero Express.

See also:

Final screen 61

12.3 Copy settings

Copy CD/DVD screen

The following configuration options are available in the the Select source and destination screen:

Selection list Source drive	Defines the drive from which the source information is read. Insert the CD or DVD that you want to copy into the drive.
Selection list Destination drive	Creates the destination drive. Insert a blank disc into this drive.
Button Info	Opens the Recorder Information dialog box. This contains information on the selected destination drive.
Check box On-The-Fly	Enables direct copying from the source to the destination drive. Data is not buffered on the hard drive during this process. The option On-the-fly is only available if there are at least two drives connected (does not apply for Nero Image Recorder). If this check box is not selected, an image file will be created first, which is then burned.
Selection list Write speed	Defines the speed at which the CD is burned. Only the burn speeds that are supported by the selected recorder are displayed. Not available for Nero Image Recorder.
Input field Number of copies	Defines the number of copies you require.
Check box Verify data on disc after burning	Verifies whether the burned data is identical to the original data. Not available for Nero Image Recorder.
Button Image file	Defines the folder where the image file is stored. You can change the name of the image file and target folder. Not available for Nero Image Recorder.

The following configuration options are available in the extended area:

Check box Read all subchannel data	Reads all subchannel data during copying. Subchannel data is used to save additional information, e.g. CD Text.
Check box Determine maximum speed	Not available for Nero Image Recorder.
Check box Simulation	Performs all steps in the burn process without using the laser beam. You can assume that if simulation is successful, the burn process will also be successful. Not available for Nero Image Recorder.
Check box Writing	Starts the actual physical burn process (e.g. after a simula-tion). This box is checked by default.

13 Erase Rewritable Disc window

Nero Express can be used to erase rewritable discs, i.e. discs with the RW specification, as long as your recorder supports this feature. Two erase methods are available for this purpose:

Quick erasing does not remove the data physically from the disc, but instead only makes it inaccessible by erasing the references to existing content. The data can be restored!

Full erasing removes the data from the disc by overwriting it with zeroes. The contents cannot be restored with conventional methods. Repeated full erasing increases the probability that third parties will not be able to reconstruct the contents.

Erase Rewritable Disc window

The following configuration options are available in the Erase Rewritable Disc window :

Selection list Select recorder	Defines the desired recorder.
Check box Use multiple record- ers	Simultaneously erases CDs/DVDs in multiple recorders.
Selection list Select the erase method to be used	Defines the erase method. Two options are available: The Quick-erase rewritable disc method does not physically erase the disc fully, but only the references to the contents. The disc will appear to be empty even though the data is still physically available. Erasing a disc using this method takes between one and two minutes. The Full-erase rewritable disc method physically erases all data from the disc. The contents cannot be restored with conventional methods. Repeated full erasing increases the probability that third parties will not be able to reconstruct the contents. Erasing the disc using this method takes longer than the other method, depending on the type of disc involved.
Selection list Erase speed	Defines the erase speed.
Button Erase	Starts the erase process.
Button Cancel	Cancels the action and closes the window.

14 Final screen

Once you have successfully concluded the burn or save process with Nero Express, the final screen is displayed with the options Burn same project again, New project, Cover Designer, and Save Project. You can select one of these options to continue working with

Nero Express or you can click the × button to exit the program.

The following setting options are available:

Entry Burn the same project again	Returns to the Final Burn Settings screen. You can burn the same project again with the same or different settings.
Entry New project	Opens the Nero Express start screen. You can create a new project here.
Entry Nero CoverDesigner	Opens Nero CoverDesigner. Please see the separate Nero CoverDesigner user manual for full instructions on how to make professional looking covers and labels.
Entry Save project	Opens the Save As dialog box. You can save the current project if you want to access it again later.

See also:

Loading a disc image or saved project 38

15 Configuration options

You can define options for working with Nero Express in the Options window.

Options Window

The following tabs are available:

Compilation	Contains options for the compilation and the selection screen.
Cache	Contains options for the cache.
Font	Contains selection options for the font.
Sounds	Contains selection options for sounds in connection with burn tasks.
Audio	Displays the directory for the audio plug-ins.
Expert Features	Contains options for configuring overburning and burning.We recommend that you retain the default settings.
Database	Shows the path to the local Audio CD database and offers the option to use the Internet database.
Ultrabuffer	Defines the size of the RAM buffer.
Misc.	Contains options for configuring compilations, burning, the data-base, the user interface as well as advanced settings.
LightScribe	Contains options for configuring LightScribe recorders such as the print contrast (quality), default drive, and default template. This tab is only available if a LightScribe recorder has been installed.

15.1 Settings for the compilation

The following configuration options are available on the Compilation tab:

Check box Remember last used volume label	Makes available the title for the next disc.
Check box Clear archive bits of written files during ISO refresh	Deletes the archive bits of saved files.
Check box Allow semicolons in Joliet names	Allows the use of semicolons in addition to standard uppercase and lowercase letters and Unicode characters (and German umlauts) in file names in the Joliet file system.
Check box Show original path with ISO compilation	Lists the full path of the added files in the compilation screen in the Source column.

15.2 Cache settings

The following configuration options are available on the Cache tab:

Input field Path for cache	Displays the path of the Cache memory. You can enter the path manually or select the path in the browser window.
Button Browse	Opens a browser window. You can select a folder in which data is buffered before and during the burn process.
Input field Minimum hard disc space that should not be used by Nero	Defines a storage volume that is not used by Nero Express.
Check box Drag and drop from CD-ROM drive	Saved files that have been copied from a CD-ROM drive in the clipboard.

15.3 Expert Features

The following configuration options are available on the Expert Settings tab:

Check box Enable Disc-at-once CD over-burning	Enables additional options and defines settings for the entire burn process.
Option button Relative maximum/minimum overburning size	Defines how much a disc can be overburned.
Check box Enable DVD overburning	Enables the option that DVDs can be overburned.
Check box Enable generation of short lead-out	Enables the option to write additional data to your CD. This feature is only available if the Enable Disc-at-once CD overburning option is enabled.
Check box Do not eject disc after burning	Enables the option that your disc remains in the recorder and is not ejected when the burn process is finished.
Check box Enable all supported recorder formats for image recorder	Enables the option that all supported recorder formats for the Image Recorder are available.

15.4 Ultrabuffer settings

The following configuration options are available on the Ultrabuffer tab:

Selection list Method	Defines the memory capacity that Nero Express uses as a RAM buffer. The ultrabuffer is a second memory that enhances the physical buffer in the recorder.
Input field Data buffer size	Defines the memory capacity that can be manually entered. The input field is only enabled when Manual Configu-ration is selected in the selection list.

15.5 LightScribe settings

The following configuration options are available on the LightScribe tab:

Area Print contrast	Adjusts the desired print quality.
Selection list Default LightScribe drive:	Selects the drive with the LightScribe recorder.
Selection list Genre	Specifies the genre.
Selection list Current template	Defines a template for labels.
Selection list Default print resolution (DPI):	Adjusts the desired print resolution.
Check box Printing LightScribe labels	Enables the option to automatically burn a LightScribe label. This tab is only available if a LightScribe recorder has been installed.

16 Technical Information

16.1 System requirements

Nero Express is installed along with the Nero Suite. Its system requirements are the same. You can find more detailed information on the system requirements under www.nero.com.

In addition, the following requirements apply:

Using LightScribe Direct Disc Labeling

Your computer requires the latest LightScribe system software when using a CD or DVD recorder with LightScribe support.

If you have downloaded and installed an updated Nero version from the Nero website, install the LightScribe system software separately. You can find the latest version at www.nero.com/link.php?topic_id=114&gen_id=8.

• Optional: LightScribe capable burner (LightScribe host software must be installed) and LightScribe capable disc
• Optional: Labelflash capable recorder and Labelflash disc
• Optional: Blu-ray capable recorder and Blu-ray disc
• Optional: SecurDisc capable drive

16.2 Formats supported

16.2.1 Disk types

CD
DVD

You can find more information on Blu-ray support at www.nero.com/link.php?topic_id=416.

The actual entries that are available, and the actual disc types (e.g. DVD) that can be written to depend on the recorder used.

16.2.2 Disc formats

Audio CD
Mixed mode CDs
CD EXTRA
Video CD (VCD)
Super Video CD (SVCD)

miniDVD
Audiobook CD
DVD-Video

16.2.3 Audio formats and codecs

Advanced Audio Coding (AAC, M4A, MP4)
Audible Audiobook (AA)
Audio Interchange File Format (AIFF, AIF)
- Compact Disc Digital Audio (CDA)
Musical Instrumental Digital Interface (MIDI, MID)
MP3 / mp3PRO
- Moving Picture Experts Group-1 Audio Layer 3 (MP3)
- Moving Picture Experts Group-1 Audio Layer 2 (MP2)
Moving Picture Experts Group-4 (MP4)
Nero Digital (MP4)
OGG Vorbis (OGG, OGM)
Recource Interchange File Format WAVE (WAV, WAVE)
Windows Media Audio (WMA)

16.2.4 Metadata

Advanced Streaming Format (ASF)
Audio Video Interleave (AVI)
- Moving Picture Experts Group-1 Audio Layer 3 (MP3)
Nero Digital (MP4)
OGG Vorbis (OGG, OGM)
Recource Interchange File Format WAVE (WAV, WAVE)
Windows Media Audio (WMA)
Windows Media Video (WMV)
ID3 Tags (v1.1/v2)
Joint Photographic Expert Group (JPEG, JPG, JPE)
Portable Network Graphics (PNG)
- Bitmap (BMP)
- Graphics Interchange Format (GIF)
Tagged Image File Format (TIFF, TIF)
- Moving Picture Experts Group-1 Audio Layer 3 (MP3)

16.2.5 Video formats and codecs

Advanced Streaming Format (ASF)
Audio Video Interleave (AVI)
Digital Video (DV)
- Moving Picture Experts Group-2 (MPG, MPEG, DAT, M2T)
Moving Picture Experts Group-4 (MP4)
Nero Digital (MP4)
QuickTime Movie (MOV)
Video Object (VOB)
Packet Video Audio (PVA)
Television Input/Video Output (TIVO)

16.2.6 Image formats

• Bitmap (BMP)
  Device Independent Bitmaps (DIB)
• Graphics Interchange Format (GIF)
  Icon Image File (ICO)
  JPEG File Interchange Format (JFIF)
  Joint Photographic Expert Group (JPEG, JPG, JPE)
  Picture Exchange (PCX)
  Portable Network Graphics (PNG)
  Portable Pixel Map (PPM)
  Targa Image File (TGA)
  Tagged Image File Format (TIFF, TIF)
  Windows Media File (WMF)
  X-Quiktime (QTI,QTF, QTIF) - read only

16.2.7 Formats for Playlists

• Moving Picture Experts Group Audio Layer 3 Uniform Resource Locator/MP3 URL (M3U)

16.3 Versions of Nero Express

Nero Express is available in three different versions: Nero Express, Nero Express Essentials and Nero Express Essentials SE. Nero Express and Nero Express Essentials offer the full range of features. Only Nero Express Essentials SE does not offer the following features:

Unrestricted encoding in Nero Digital Audio format
Creating and burning Super Video CDs

Linking to Nero CoverDesigner
Saving audio files
Erasing rewritable CDs/DVDs
Retrieving disc information
- Creating labels with LightScribe (not included in standard functionality)
- Creating labels with Labelflash (not included in standard functionality)
- Burning SecurDisc data CDs/DVDs with SecurDisc (not included in standard functionality)
Music title recognition with Gracenote (not included in standard functionality)

17 Glossary

Archive Bit

Archive bits are used to identify files that have been edited. A file is only resaved during the next backup process if it was edited (and an archive bit is thus reset).

Audio CD

An Audio CD can contain up to 74 minutes of audio sequences and individual tracks in hi-fi quality. The storage capacity is 747 MB at a sample depth of 16 bit and a scan rate of 44.1 kHz.

Block

A block refers to the smallest information unit on a CD-ROM or hard drive that is addressable in one access and that is indicated in bits or bytes. Several blocks are combined into a sector.

Blu-ray

Blu-ray technology refers to burning on special data carriers. In comparison to DVD's, which use a red laser in order to read and write data, Blu-ray discs are written with a blue laser. The shorter wavelength (405 nm) of this blue laser makes it possible to position the laser with greater accuracy. Data can be written in a more compact manner and takes up less space on the disc. A Blu-ray disc can store up to 25 GB on a single layer disc and up to 50 GB on a dual layer disc.

Book Type

The book type defines the specification (e.g. DVD-, DVD+, DVD-ROM) of a DVD. In order to ensure correct playback, the DVD specifications are defined in books so that all media can be read correctly. The specifications are defined in the so-called Rainbow Books, which are distinguished by means of their color (e.g. Yellow Book).

Buffer

A buffer refers to temporary memory that records and delivers data that cannot be processed immediately as required. The buffer also allows for continuous data flow.

Buffer Underrun

A buffer underrun is an interruption in the data flow in the internal memory (e.g. of the recorder). A buffer underrun results from an interruption in the data flow to the internal buffer. The buffer continues to deliver data until it is finally empty. When recording, data is fed continuously to the recorder's buffer in order to keep a steady flow of data. If the steady flow of data is interrupted, the media becomes unusable. Most modern recorders have a protective mechanism against buffer underruns.

Cache

Cache is a faster buffer that is used in various areas of a computer to access larger data volumes faster. Cache ensures a continuous flow of data.

CD-R

Compact Disc-Recordable is a technology for write-once media. The Orange Book standard defines the storage of audio data and other computer-readable data.

Disc-At-Once

Disc-At-Once refers to a method in which the laser in your recorder burns straight through in one session without turning off and on between each track. This method is best when recording Audio CDs you would like to play on your home or car stereo.

Frame

With an Audio CD, 75 sectors provide one second of played music. One sector consists of up to 98 frames; one frame contains 24 data bytes and 9 control bytes. Similarly, "frame" describes a full screen in television and video technology. Two successive half images result in a full screen within a second due to interlacing.


An image refers to a single file on the hard drive that contains the image for a complete disc. A disk image can be used to create exact copies on media at a later point in time if problems occur during the write process or if no recorder is connected to your PC. The image requires as much free space on the hard drive as the contents of the original disc.

Joliet

Joliet refers to an extension of the ISO-9660 standard for file names. Joliet was designed by Microsoft in order to represent more characters. The file name can be up to 64 characters long and contain the letters A-Z, a-z, umlauts and the .

Label

A label refers to a label on a disc. Some drives, e.g. drives that use LightScribe or Labelflash™ technology, can transfer labels directly to special media.

Labelflash

Labelflash is a technology with which pictures and texts can be burned on the label side of a disc with a laser.

Labelflash

Labelflash is a technology with which pictures and texts can be burned on the label side of a disc with a laser.

LightScribe

LightScribe is a technology with which pictures or texts can be burned on the label side of discs with a laser.

MP3

The MPEG-1 Audio Layer 3 audio format is used to reduce the size of audio files to a fraction of their original size (factor 1:10) with little loss of quality. You can estimate about 1 MB per minute as opposed to 10 MB for the original files. This value and the quality can vary de

pending on the complexity of the audio signal. The bit rate used can be used as a measure of quality. The higher the bit rate, the better the quality, but also the more memory required.

MPEG-1

The Moving Picture Experts Group defined this industry standard for video and audio codecs. MPEG-1 is part of the MPEG compression family and has the highest compression rate. MPEG-1 is the format for video CDs.

MPEG-2

The Moving Picture Experts Group defined this industry standard for video and audio codecs. There is little difference between MPEG-1 and MPEG-2: MPEG-2 is a broadcast standard and better for televisions that are interlaced. MPEG-2 is used as a video format for DVDs.

MPEG-4

The Moving Picture Experts Group defined this industry standard for video and audio codecs. MPEG-4 is the latest MPEG standard for video and audio. MPEG-4 combines several functions from MPEG-1, MPEG-2 and other standards. Nero Digital™ Video and Nero Digital™ Audio are based on this standard.

Multisession

A multisession refers to completing a disc in multiple cycles. After a first session has been written to the disc, information can then be added in another record because the disc has not been finalized.

On-the-fly

On-the-fly refers to a method for copying to a disc. The data is transferred directly from the original storage location to the disc to be burned. To do this, Nero uses a compilation, a small file that simply refers to the transferred data.

SecurDisc

SecurDisc refers to a security technology that protects data carriers from unauthorized access.

SVCD

A Super Video CD, abbreviated SVCD, is a CD format for movie files that uses the MPEG-2 video code to save. As a result, this disc format saves video files in a quality similar to an S-VHS video and can save up to 30 or 40 minutes of video with stereo sound on a 650 or 700 MB CD. SVCDs can be played back on an increasing number of DVD players and on the PC, if your PC has the appropriate software and a drive that can read CD-R/RW discs.

Track-At-Once

Track-At-Once refers to a write method in which each track is written to the disc individually. The writing process is interrupted briefly after each track, i.e. the laser starts again for each track. With this write method, it is only possible to continue writing to a DVD sometimes and at a later stage. There is a pause of at least 27ms between tracks, which can be disruptive for Audio CDs.

Video CD

The Video Compact Disc saves movies and audio/video data in MPEG-1 format. In doing so, the video quality from a VCD is similar to a VHS video. VCDs can store up to 74 minutes of video material including stereo sound on a 650 MB disc. Most optical PC drives and the majority of DVD players can play VCDs.

18 Index

A

Audio

Creating an Audio CD. 20

Audio CD

convert 30

Copy 54

Identify 26

Obtain Metadata 26

Save to Computer 30

Audio file

Fill titles. 31

Identify 26

Normalize 24

Obtain Metadata 26

Save to hard drive 31

Audio Files

Save 27

C

Conventions, manual 5

Copy 55

Copy image 54

Cross fade with previous track. 22

D

Data

Create CD/DVD 13

Data disc

Copy 18

Data Track

Save 18

Declick 24

E

Exit Nero Express. 61

F

File

Add 20,35

G

Gracenote 26, 27

1

ID3. 31

Image file

create from data disc 19

Image File 38

Image Recorder 13,48

Internet database 31

iPod 33

ISR 22

L

Labelflash 44

LightScribe 39

Printing Labels 39

M

Manual, conventions 5

Music

Audio formats. 25

Filter 23

Indexes 22

Track properties 21

N

Nero CoverDesigner 40, 42, 44

Nero Image Recorder

burn. 50, 52

Image File 52

Load image file 38

0

On-the-fly 54

On-the-fly copying 54

Options

Configure 62

Set 62

P

Playlist

Create 33

Program

Launching the Program. 7

Startup 7

R

Recorder

Activating Nero Image Recorder 48

burn. 49

Nero Image Recorder 48
Select. 48

Rewritable disc

Delete 59
Erase method 60
Erasing a Disc 59

S

Save 61
Save disc image 38

SecurDisc. 5

Slide Show

Menu. 36

Startup

Program. 7

System requirements 66

T

Tracks

Save 30

V

Video

Create a VCD/SVCD. 34
DVD-Video file 36
MPEG1 34
MPEG2 34
Video 34

W

Writing

Burn Settings 50
Image File 50
Nero Image Recorder 50, 52
Options. 51
Recorder 49
Writing 50

19 Contact

Nero Express is a Nero AG product.

Nero AG

Glendale, CA 91203-2335

USA

Internet: www.nero.com

Help: http://support.nero.com

Fax: [phone]

E-mail: [e-mail]

Nero KK

Rover Center-kita 8F-B, 1-2-2

Nakagawa-chouo Tsuzuki-ku

Yokohama, Kanagawa

Japan 224-0003

Internet: www.nero.com

Help: http://support.nero.com

Copyright © 2008 Nero AG and its licensors. All rights reserved.
