USER MANUAL SV-238MK VINCENT

Instructions for use

english

we thank you for the confidence you prove in purchasing our product. It will match your high demands towards sound and manufacturing quality. Though it is understandable that you want to plug and play this product instantaneously, we encourage you to read this manual carefully before installation.

It will help you in handling and operating this machine in your system and obtaining the best possible performance, even if it was installed by your dealer.

Please follow the security precautions, though some of those things may seem obvious.

In the appendix to this manual you will find a glossary explaining some established technical terms.

If there are open questions your audio specialist dealer will help you. He also represents your contact person in case of needed warranty service or repairs after the warranty period and is interested to hear from your experiences with Vincent products.

We wish you plenty of joy with your / our product,

your Vincent-Team

Cher client,

Safety guidelines 24
Other instructions 25
Included in delivery 26
Description of the appliance 26
Remote control 29
Installation 31
Operating the appliance 38
Tips 40
Search for errors 41
Technical Specifications 42
Glossary 43

english

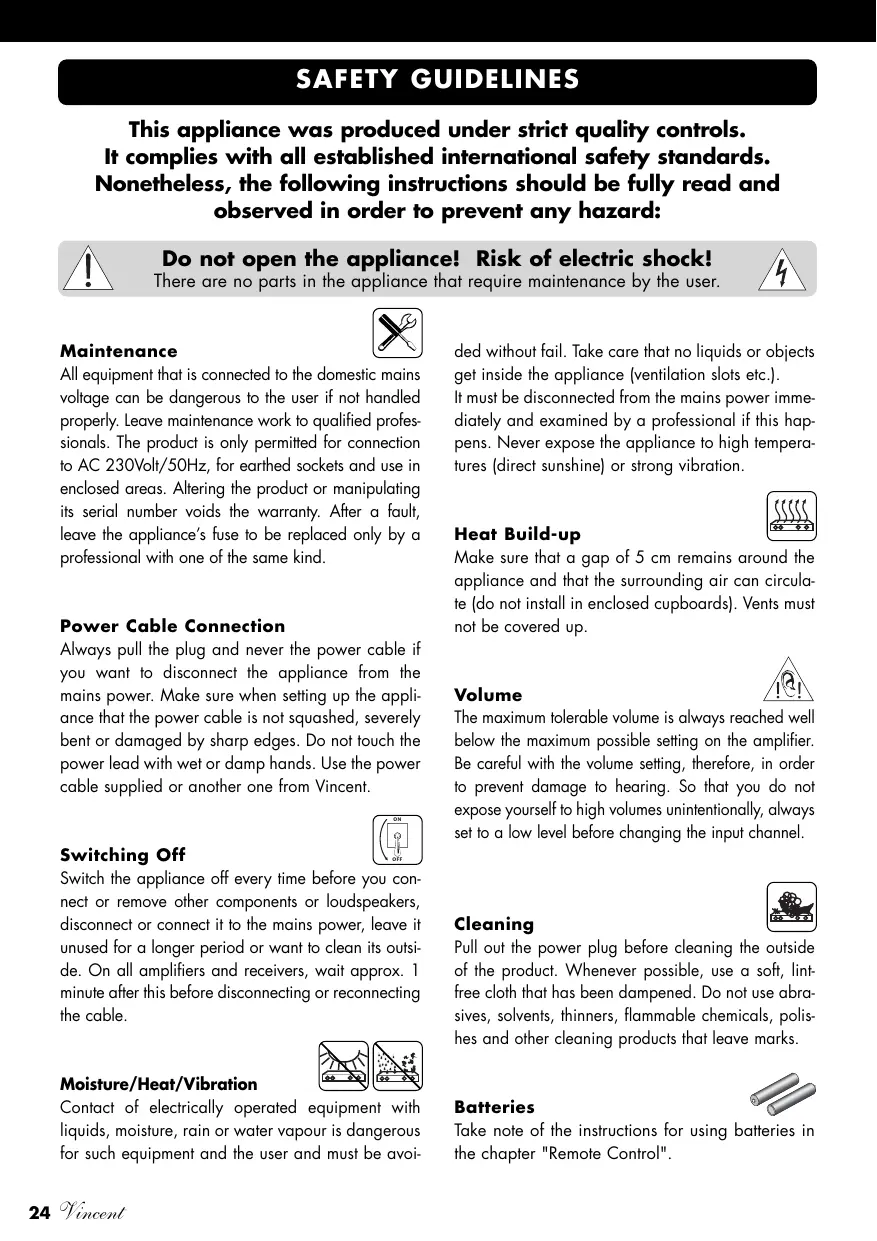

This appliance was produced under strict quality controls. It complies with all established international safety standards. Nonetheless, the following instructions should be fully read and observed in order to prevent any hazard:

Do not open the appliance! Risk of electric shock! There are no parts in the appliance that require maintenance by the user.

Maintenance

All equipment that is connected to the domestic mains voltage can be dangerous to the user if not handled properly. Leave maintenance work to qualified professionals. The product is only permitted for connection to AC 230Volt/50Hz, for earthed sockets and use in enclosed areas. Altering the product or manipulating its serial number voids the warranty. After a fault, leave the appliance's fuse to be replaced only by a professional with one of the same kind.

Power Cable Connection

Always pull the plug and never the power cable if you want to disconnect the appliance from the mains power. Make sure when setting up the appliance that the power cable is not squashed, severely bent or damaged by sharp edges. Do not touch the power lead with wet or damp hands. Use the power cable supplied or another one from Vincent.

Switching Off

Switch the appliance off every time before you connect or remove other components or loudspeakers, disconnect or connect it to the mains power, leave it unused for a longer period or want to clean its outside. On all amplifiers and receivers, wait approx. 1 minute after this before disconnecting or reconnecting the cable.

Moisture/Heat/Vibration

Contact of electrically operated equipment with liquids, moisture, rain or water vapour is dangerous for such equipment and the user and must be avoi

ded without fail. Take care that no liquids or objects get inside the appliance (ventilation slots etc.). It must be disconnected from the mains power immediately and examined by a professional if this happens. Never expose the appliance to high temperatures (direct sunshine) or strong vibration.

Heat Build-up

Make sure that a gap of 5cm remains around the appliance and that the surrounding air can circulate (do not install in enclosed cupboards). Vents must not be covered up.

Volume

The maximum tolerable volume is always reached well below the maximum possible setting on the amplifier. Be careful with the volume setting, therefore, in order to prevent damage to hearing. So that you do not expose yourself to high volumes unintentionally, always set to a low level before changing the input channel.

Cleaning

Pull out the power plug before cleaning the outside of the product. Whenever possible, use a soft, lint-free cloth that has been dampened. Do not use abrasives, solvents, thinners, flammable chemicals, polishes and other cleaning products that leave marks.

Batteries

Take note of the instructions for using batteries in the chapter "Remote Control".

OTHER INSTRUCTIONS

Setting up the appliance

How the system is set up has an effect on the sound quality. Therefore only place it on a suitable, stable surface. To make the most of your system's sound quality, we recommend placing the equipment on Vincent racks and not putting them on top of each other.

Old electronic equipment

This appliance is subject to the conditions set out in the European Directive 2002/96/EC. This is identified by the symbol of a crossed out waste bin on the appliance.

What this means for you as a consumer:

All old electrical and electronic equipment that is no longer used must be disposed of separately from domestic waste using places provided by the authorities. By doing so you can prevent damage to the environment and help to encourage manufacturers to produce more durable or reusable products. For further information about disposing your old appliance, please consult your local authority, waste disposal agency or the shop where you bought the product.

CE sign

This appliance complies with the current EU directives about attaining the CE mark and thus meets the requirements for electrical and electronic equipment (EMC regulations, regulations and regulations for low voltage equipment).

Declarations

This document was written by Andreas Boer. It is a product of Sintron Vertriebs GmbH, 76473 Iffezheim and may not be copied or distributed partly or in full without express, written consent.

Vincent is a registered trademark of Sintron Vertriebs GmbH, 76473 Iffezheim.

Vincent works continually to improve and develop its products. Therefore, the appearance and technical design of the appliance are subject to changes, as long as they are in the interest of progress.

The content of these instructions is for information purposes only. It can be changed at any time without prior notice and does not constitute any obligation on the part of the trademark's owner. The latter assumes no responsibility or liability for errors or inaccuracies, which may be included in these operating instructions.

Storage of the packaging

We strongly recommend that you keep the original packaging in case you need to transport the equipment again at a later date. Transport damages are mainly caused by improper packaging of the HiFi-devices. Because the original packaging fits the equipment accurately it will reduce the risk of damage if transport is necessary.

Explanation of the symbols

The lightening bolt tells you that dangerous voltages are present in the appliance, which can cause an electric shock.

This symbol brings your attention to particularly important information regarding operation and maintenance.

This symbol identifies useful information and advice about how to handle the appliance.

INCLUDED IN DELIVERY

Please check the contents of the packaging, which in addition to the appliance should contain the following accessories:

1 power cable
1 remote control VRC-2
- 2 batteries AAA (LR3)
- this manual

DESCRIPTION OF THE APPLIANCE

Despite the fact that development is constantly moving in the direction of digital audio format and towards audio video systems with an increasing number of channels, high quality stereo systems still enjoy a large degree of popularity. Some users are put off by the installation of complex multi-channel systems and enjoy viewing DVD films in stereo. Other music enthusiasts do not want to switch to a surround sound system because that will never reach the sound quality of an equally prized High-End stereo system.

Vincent SV-238 has been the successful top model among our stereo amplifiers. For this amplifier, developers concentrated on the basics of pure stereo sound and an elevated manufacturing quality. The transistor amplification technique used bases on Class A circuitry as well as Class AB operation. That way the advantages of the sound optimized but power bounded Class A operation mode and the more powerful Class AB mode were combined. The same is true with the successor SV-238MK: the amplifier switches between both modes automatically depending on the current

electrical power level. The user has no influence on that. The new MK model of this amplifier has been improved in the preamplifier section that is built in discrete circuitry now.

Your integrated amplifier SV-238MK possesses unusual large power reserves. Amplifier features that do not influence the sound in a positive way like Tone control, Loudness and Recording Output have been avoided. One of the inputs has XLR connectors so that you can use the best Vincent musical sources. A special feature is the possibility to connect additional main amplifier channels both via RCA and XLR. The remote control set and the contrasting VF front display make the use of this amplifier comfortable. As usual the ratio of prize/performance is one of the lowest on the world market.

This integrated amplifier is an ideal partner for DVD players, CD players, tuners, headphone amplifiers and speakers from Vincent. In combination with the HiFi furniture and speaker cables from the range, one can build a perfectly harmonious system.

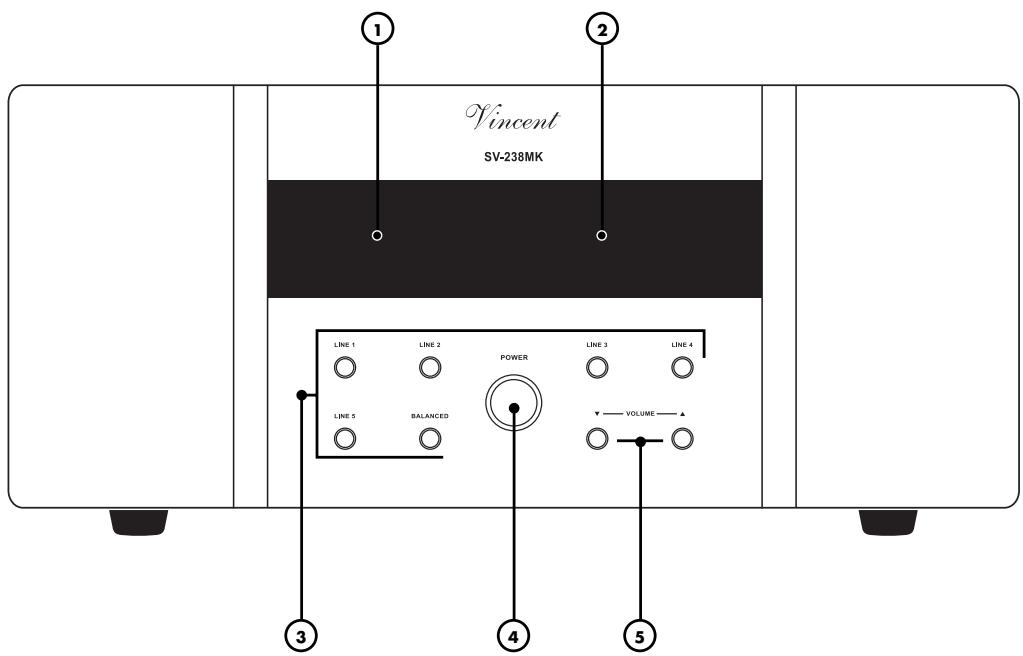

FRONT VIEW

1. Infrared receiver for the remote control

2. Display

In normal use the display shows the name of the selected input and the volume setting. As long as adjustments are being made (e.g. to MUTE, BALANCE, GAIN), the relevant values are presented.

3. "LINE1"..."LINE5" and "BALANCED": Input selection

With a touch on one of these buttons you choose for playback one of the audio sources attached to the corresponding connectors at the amplifier's backside (8)(10).

4. POWER

This is the main power switch for turning on and off the device.

5. VOLUME / : Volume keys

These are the keys for the adjustment of the main volume level of the system. They consequently control the volume of the loudspeakers and the signal of the preamplifier outputs "PRE OUTPUT" (9).

REAR VIEW

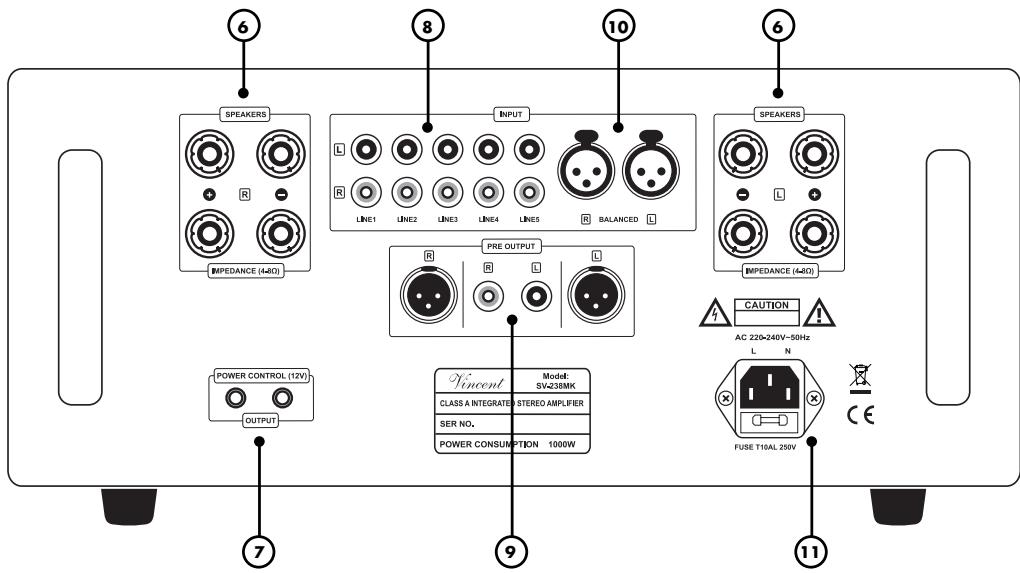

6. SPEAKERS: Loudspeaker terminals

At these output sockets with threaded terminals one or two pair(s) of loudspeakers can be connected. Speaker cable with 4mm banana plugs can be used. Please take note of the information given in the section "Installation", if two pairs of loudspeakers will be connected to the amplifier.

7. POWER CONTROL (12V) OUTPUT

These jack connectors (3,5 mm) send the signals for the standby control (12V Trigger).

8. INPUT ("LINE1"..."LINE5"):

Terminal for stereo audio signals of the RCA source equipment

Here you find five stereo RCA input sockets for source equipment with analogue stereo (line level) audio output.

9. PRE OUTPUT: Preamplifier Outputs

This output can supply up to four additional main amplifier channels or an active subwoofer with the preamplified audio signal of the selected source.

10. INPUT "BALANCED": XLR-Input

These are the input sockets for one stereo audio source equipped with XLR output sockets.

11. AC power connector and fuse holder

To establish the power supply, connect the plugs of the power cable to the device and to a 230V AC wall outlet. The small plastic housing beneath the plug opening holds the fuse. Refer to the security precautions.

REMOTE CONTROL

Point the front of the remote control directly at the front of the appliance, making sure there are no objects between the remote control and the appliance.

The distance between the remote control and the appliance should not be more than 7m as the reliability of the remote control is affected beyond this range.

Make sure that you do not point the remote control at an angle to the appliance, as beyond an angle of ± 30^ to the centre axis the appliance may not respond as well to the remote control.

Change both batteries if the distance at which the remote control can be used effectively decreases.

BATTERIES

Using batteries

Handling batteries incorrectly can cause battery acid to escape or an explosion in extreme cases. The batteries must be correctly inserted taking note of the polarity, which is marked in the inside of the battery compartment.

In order to make full use of the batteries' life, do not mix new and used batteries. Make sure that you insert batteries of the same type.

Some batteries are rechargeable, others are not however. Take note of the precautions and instructions that are included on all batteries.

Remove the batteries if the remote control is not going to be used for a long time.

Under no circumstances must batteries be short-circuited, taken apart or heated up.

For environmental reasons, used batteries should be disposed of in accordance with local environmental regulations and not put with domestic waste.

Only use AAA (LR3) size batteries.

Changing/Inserting batteries:

a) Open and remove the battery compartment lid of the remote control by tugging sharply on the fishplate on the edge of the remote control. The battery compartment lid is held in place magnetically, there is no need to loosen the screws!

b) If necessary, remove used batteries and insert new ones correctly as shown by the diagram in the battery compartment.

c) Put the compartment cover back on and close the battery compartment.

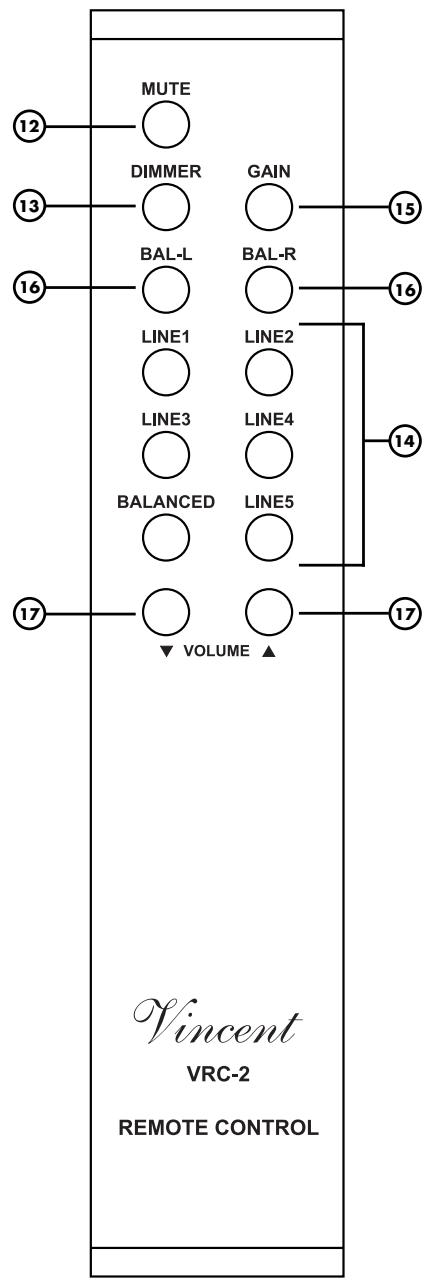

BUTTONS OF THE REMOTE CONTROL

12. MUTE

Pressing this button once mutes the sound of the loudspeakers (6) and the preamplifier outputs "PRE OUTPUT" (9). Pressing it again returns to the original volume.

13. DIMMER:

Brightness setting for the display

The brightness of the front panel display (2) can be reduced in two steps using this button. If you press it repeatedly, the third actuation switches off the display.

14. Input Selector Buttons

These buttons are used to select one of the stereo audio devices connected to the amplifier's source inputs for playback.

15. GAIN

With the activation of this function, the output signal for the power amplifiers (9) and speakers (6) is reduced by 8 dB and thus the volume of the attached speakers. It should only be activated if even at low volume settings the volume is already very high.

16. BAL L and BAL R: Balance Control

Both keys can be used for changing the volume difference between right and left speaker if that is desired.

17. VOLUME / : Volume keys

These buttons change the amplifier's volume setting for loudspeakers 6) and the preamplifier outputs "PRE OUTPUT" (9).

INSTALLATION

Set up the cable links in a sequence as follows. Connect the power cable between device and power supply only after all other connections have been made.

DURING INSTALLATION PLEASE OBSERVE THE FOLLOWING ADVICE:

Protective caps

Prior to the first installation the protective plastic caps must be removed from all the connections used at the rear of the unit.

RCA connections

Mechanically identical RCA plugs are available for input and output connections. Make sure that you do not get these connections confused during installation!

Make sure that you do not mix up the analogue inputs for right and left. The RCA plugs for these are mostly colour coded as follows: red for the right channel, black or white for the left channel.

Contacting the middle pin of the RCA plugs with the outer ring of the RCA chassis jack may lead to damages to the main amplifier if it is switched on! To avoid this hazard, connect or disconnect only in switched-off state and more than one minute after deactivating!

Speaker cable connections

The use of ready-made loudspeaker cables is recommended instead of connecting the cable's central wire (strand) directly to the terminals. Banana plugs or cable lugs ensure high security from short-circuits and damage to loudspeakers or amplifier.

Make sure that bare loudspeaker wires never come into contact with each other or with the metal on the back of the housing.

Make sure that the positive and negative loudspeaker wires are connected correctly. You will notice a reduced sound quality if the connections are the wrong way round.

Only use loudspeakers with a nominal impedance of at least 8 (if two pairs of loudspeakers are connected) and a nominal impedance of at least 4 (if one pair of loudspeakers is connected).

Cable connections

Make sure that all plugs fit tightly. Inadequate connections can cause noise interference, failures and malfunctions.

To make the most of the components' sound potential, only high quality loudspeakers and connecting cables, for example Vincent cables, should be used. Your local stockist will be glad to advise you about this.

XLR connections

Please note that European and US-American XLR signal assignments for the connector pins are different. This Vincent preamplifier uses the European system following the standard AES14-1992. The cable structure is the same in any case. As long as both the preamplifier and the power amplifier satisfy the same standard, the signal connection is correct. This is always the case if both units were made by Vincent. If two units from different standards are connected, this inverts the signal. In this case the signal assignment on one side of the connection has to be changed. Your audio specialist dealer will support you with this.

CONNECTION OF THE SOURCE EQUIPMENT WITH RCA LINE LEVEL OUTPUTS

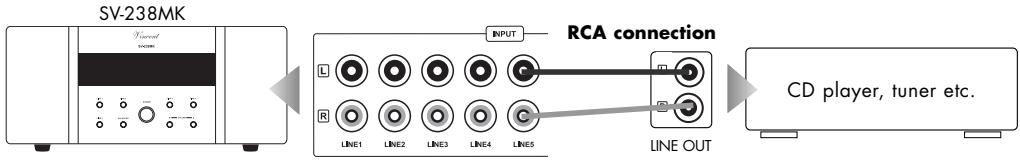

Connect the outputs of the source devices to the inputs "LINE1"..."LINE5" (8) of the amplifier. The output sockets on the source equipment are usually indicated by "LINE OUT", "AUDIO OUT" or "FRONT OUT". You will find information about ways to connect source equipment in their operating manuals.

To use a record player you need a so-called equaliser preamplifier (also called a phono preamplifier), which is installed in the signal path between the record player and one of the high-level inputs. Some models of record player already include this preamplifier and can be connected directly. You will find further information in this appliance's operating manual.

The stereo sound of appliances that use output connectors other than RCA (DIN plugs, jack plugs) can often also be used with the aid of adaptors.

Up to five line level stereo sources can be connected to these RCA inputs. The audio inputs "LINE1"..."LINE5" (8) represent electrically equivalent standard line level inputs with RCA connection. They have an identical function and differ only in name.

CONNECTION OF ONE AUDIO SOURCE WITH XLR OUTPUT

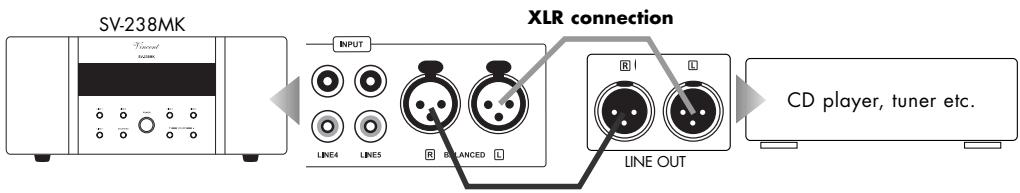

The input "BALANCED" (10) can only be connected to a device equipped with symmetrical output. At the source device you can recognize it by the three-pin XLR-type of the output jack. Leave the XLR input of your preamplifier open if none of your audio sources uses this. Sometimes both types of output connectors are provided.

CONNECTION OF TWO ADDITIONAL MAIN AMPLIFIER CHANNELS VIA RCA OR XLR

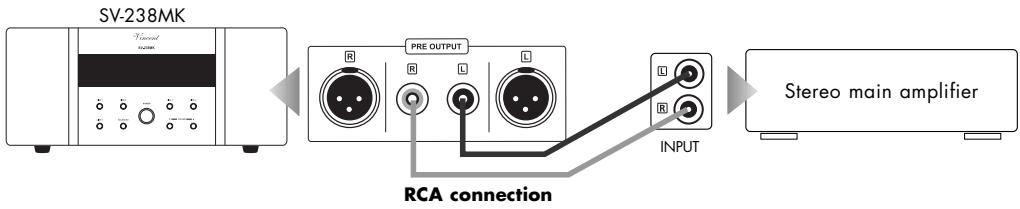

You only need the sockets "PRE OUTPUT" (9) if you want to use one or more separate main amplifier(s) to supply additional loudspeakers. This makes sense if you intend to use two more loudspeakers for stereo music playback, for example in a separate zone (another room of your home). These loudspeakers are then connected to the speaker outputs of the additional amplifier(s). The amplifier output connections "PRE OUTPUT" (9) must be connected with the input connectors of the main amplifier, in most cases labelled "INPUT", "POWER AMP IN" or "MAIN INPUT". Two main amplifier channels can be connected via RCA cables.

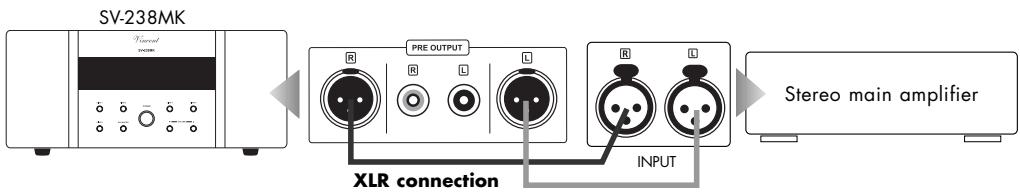

Two more main amplifier channels can be connected via XLR cables.

Both outputs reproduce the same stereo music signal of the currently selected source. Instead of the stereo main amplifier used here two mono main amplifiers can be utilized.

CONNECTIONS FOR THE STANDBY CONTROL (POWER CONTROL)

Many AV-Systems consist of a multitude of individual components. To avoid the necessity of switching them on and off before and after every use, many manufacturers have equipped their devices with what is known as "POWER CONTROL" circuit or "TRIGGER". This kind of remote-controlled standby circuit is used primarily for preamplifier and power amplifiers. Particularly for preamplifiers and main amplifiers this kind of remote standby control is utilized, as power amplifiers are often placed far from other devices near the speakers. To employ these functions, direct or indirect cable connections must be made between the preamplifier (or integrated amplifier) and all the devices which support this function. The "POWER CONTROL" function operates in such a way that each switching on or off of one device in the system (usually the preamplifier) automatically brings about the switching on or off of all the connected devices which support this function. Please keep in mind that all devices which respond to the power control are not disconnected from the mains network when switched off. They are set to a standby state instead. For connecting cables, two-core cables with 3.5mm jack plugs (mono) are used. For each connection between two devices one of those cables is needed.

If you don't wish to use this function or if the other components do not support it, all you have to do is leave out these cable connections.

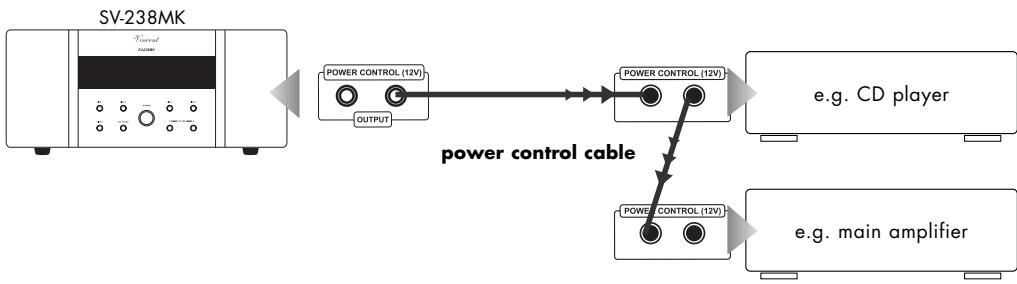

The SV-238MK is equipped with two output connectors for the power control. Here, the switching signal generated by the amplifier is available for other components of the system. Two HiFi components that are able to react to the power control signal can be connected directly to the amplifier's power control outputs (7). If more than two devices, which can be controlled, are to be connected, then it is necessary to make the power control connection between the amplifier and these further devices through the outputs of the two devices which are connected directly. For that reason, every HiFi component that accepts power control signals is also equipped with a power control output. Thus, in theory it is possible to provide an infinite number of HiFi components with the power control signal. This approach, to loop a signal through a chain of components, is commonly referred to as "daisy chaining".

Many devices which can be controlled by a switching signal (not preamplifiers or integrated amplifiers), have two terminals which do not differentiate between input and output. In this case either of the two can be selected.

"POWER CONTROL" sockets of preamplifiers or integrated amplifiers must not be interconnected! All receiving devices must not be connected to more than one preamplifier or integrated amplifier (directly or indirectly)!

CONNECTION OF THE LOUDSPEAKERS

Either a single pair of loudspeakers or two speaker pairs can be connected to the amplifier SV-238MK. For each loudspeaker you will find two connector screws (positive + und negative -) at the amplifier's backside. One side of the speaker cable must be attached here. Each pair of screws has a label "R" or "L" nearby to clarify to which stereo channel it belongs. At the loudspeaker connection terminal there are similar connector screws or connectors. There, the polarity of each screw (+ or -) can be identified as well and the other side of the speaker cable associated with this speaker must be attached. Make sure only connector screws of the same polarity will be connected by each speaker cable wire: a knob marked "+" in the amplifier's terminal must be connected with a speaker's connector screw marked "+" as well.

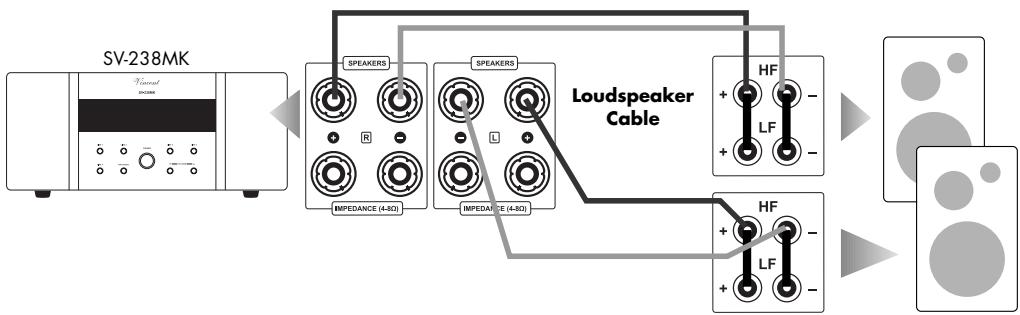

Our sketch shows all connections necessary for one pair of speakers. If a second pair of loudspeakers is intended to be used, the connector screws of the lower row must be connected in a similar fashion to the additional speakers' input connectors. However, this is only permitted if both loudspeakers have a nominal impedance of at least 8

Right and Left loudspeaker

If every speaker is connected in a conventional way (a two core speaker cable for each loudspeaker) and you own loudspeakers that are equipped with Bi-Wiring terminals (four connector screws) you have to make sure that the metal brackets (contact pieces consisting of small metal plates or short pieces of cable which are supplied with the speakers) are applied to the terminal and that each one connects the two knobs of the same polarity (e.g. both connectors marked "+"). The connector screw labelled "+" and "R" at the amplifier's backside must be connected to one of the bridged, labelled "+" connectors of the loudspeaker assigned to the right stereo channel. Accordingly, the connector screw labelled "-" and "R" at the amplifier's backside must be connected to one of the bridged, labelled "-" connectors of the loudspeaker assigned to the right stereo channel. Connect the left side loudspeaker in the corresponding way.

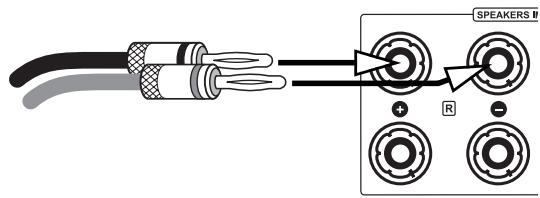

CONNECTION OF THE LOUDSPEAKERS

If a loudspeaker is to be connected with "bi-wiring", both pairs of loudspeaker clamps may be used at the same time. In contrast to connection of the loudspeakers with one loudspeaker cable each, with bi-wiring a suitable loudspeaker is connected via two separate two-wire loudspeaker cables or one four-wire loudspeaker cable to the pair of output clamps on the main amplifier. This doubles the cabling required but for many combinations of loudspeakers and amplifiers this improves the sound quality.

Right loudspeaker backside
Left loudspeaker backside

Before changing the system to bi-wiring, the metal bridges fitted to the loudspeaker's double connector in normal operation must be removed. Only loudspeakers with these bi-wiring terminals are suitable. Filtering of the entire frequency range occurs in the now separated loudspeaker crossover networks. One cable is to be connected to the loudspeaker's sockets provided for the higher frequencies (treble) and the other with the ones for the lower frequencies (bass) for each loudspeaker. Make sure that the polarity is correct. Your specialist dealer will provide you with advice and assistance.

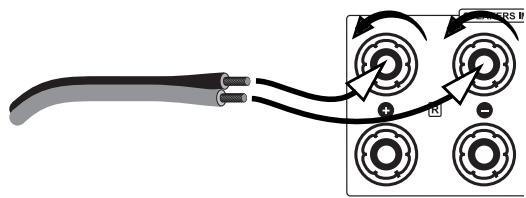

If you are using ready made loudspeaker cables with 4mm banana plugs, all you need to do is connect the two plugs on each loudspeaker cable end to the two associated speaker connectors. Turn the connector screws clockwise to fasten them.

If no connector is to be used, remove approximately 1 cm length of insulation from each end of the speaker wire. Twist the braid in order to avoid short circuits. Turn the fastener on the loudspeaker terminal counter clockwise to loosen it and introduce the bare wire end into the exposed connector hole. Then turn the fastener clockwise so that the wire is firmly clamped. Make sure the connection is pretty tight.

CONNECTION OF THE LOUDSPEAKERS

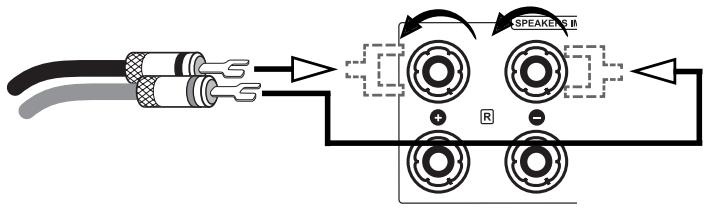

If you want to use speaker cables equipped with spade lug connectors, every connector screw must be opened by turning counter clockwise. After that, the lug must be moved under the screw head. Then, turn the screw clockwise to fasten the lug to the connector. To avoid damages to the amplifier, make sure the connection is tight and no bare metal from the cable lug connector makes contact with the rear panel or with another terminal.

If you intend to connect two pairs of speakers, all loudspeakers must have a nominal impedance of at least 8 . If only one pair of speakers is connected, all types of loudspeakers with a minimal nominal impedance of 4 can be used.

Consider correct polarity, the positive contact is mostly marked red or with "+" . The side of the speaker cable that has to be connected with the positive socket has a marking.

Check if the electricity supply of your home is appropriate to the device. The required voltage and frequency can be read on the back of the device beside the socket for the mains. Keep in mind that this amplifier may demand a short term value of the electrical power of up to 1000 W. That is why you should use only appropriate extension cables and distribution boxes if that is not avoidable. Check if your home power supply, the fuses and the amplifier power cable are qualified to be used with 16 A of electrical current. If the electricity supply is appropriate, push the inlet connector of the supplied mains cable firmly into socket for the mains on the back of the device (11). Connect the other end of the mains cable to a mains socket.

OPERATING THE APPLIANCE

Operation	Button(s)	Description
Switch on and off	POWER (4)	The preamplifier is switched on and off using this button at the front panel. It has no standby option. When switched off the device is internally separated from the AC power.WELCOMEAs a precaution, after switching on, the volume setting should be reduced.
Select an input	InputSelectionKeys (3)(14)	A short touch on the button for the desired input channel("LINE1"..."LINE5" or "BALANCED") changes to the playback of the audio source connected there. The front panel as well as the remote control carry those buttons. The name of the currently selected input channel appears in the display.LINE2 -50dBBefore switching over the input channel, the volume (5)(17) should be turned down as a precaution!
Change the volume	VOLUME▲/▼ (5)(17)	Hold down the button "VOLUME▲" to turn the volume up. Use "VOLUME▼" to turn it down. This can be done on the remote control as well as at the amplifier front panel. The display (2) shows the momentarily selected Volume value. The minimum volume value is -99dB, the maximum volume appears at latest with 00dB, for most speakers much below this value.VOLUME-99dB ← ... > VOLUME 00dBThe Volume setting controls the loudspeakers and the signals of the preamplifier outputs (9).
Mute the speakers and the preamplifier output	MUTE (12)	The MUTE function can only be operated with the remote control. It switches off the loudspeakers (6) and the preamplifier outputs "PRE OUTPUT" (9). Pressing this key again restores the Volume to its original setting. As long as the amplifier is muted, the display reads "MUTING".MUTING
Reduce the amplifier's gain (attenuation 8dB)	GAIN (15)	Operating this key activates or deactivates an attenuation of 8dB, which is applied to both the volume level of the speakers and also to the signal outputs of the preamplifier "PRE OUTPUT" (9). The GAIN operation is useful, if the combination of amplifier and speaker is so sensitive that the usable region of the volume control of the SV-238MK lies at the lowest values. In this situation the volume steps are too coarse.In this case, after first reducing the volume for the sake of caution, press the "GAIN" button. If the GAIN setting was "00dB" (normal) before, the display now reads " -08dB" in the front panel display. The perceived loudness of the loudspeakers and the output level at the preamplifier outputs "PRE OUTPUT" (9) now have been reduced.GAIN -08dB ← > GAIN -00dBOne more keystress to "GAIN" restores the original gain setting (00dB). The GAIN function can only be used via remote control and is not intended to be toggled in everyday use.

OPERATING THE APPLIANCE

Operation	Button(s)	Description
Change the channel balance	BAL-L / BAL-R (16)	One channel of the system (right or left) and thus one of the loudspeakers can be adjusted to be louder than the other one. That may be wanted if your favourite listening position in the room is closer to one speaker than to the other one resulting in a difference in perceived volume. This balance adjust-ment can only be made using the corresponding remote controller buttons. Press, if necessary repeatedly, the button “BAL L” to boost the left channel volume compared to the right channel volume. “BAL R” can be used to boost the right channel volume. While doing this, the display reads the current BALANCE value and the side (R: right or L: left) to which the BALAN-CE has been moved. In the middle position of the setting where both spe-ker channels have equal amplification a double marking appears in the display. L-I—R <...> L—II—R <...> L—I-R
Change the brightness of the front panel display	DIMMER (13)	This function can only be operated using the associated remote control but- ton. When repeatedly pressed, the display (2) brightness is reduced in two steps (1x, 2x), switched off (3x) and restored to the original, maximum brightness (4x).

TIPS

Burn in/ Warm up

Your audio components need a certain time period until they reach maximum performance. The duration of this "warm up" time is very different for the various elements of your audio system. Higher and homogeneous sound quality is achieved while keeping the device switched on.

Your audio specialist dealer has enough experience to give you more information.

Net frequency noise

Some audio source devices may in combination with the amplifier cause a humming noise at power line frequency audible from your speakers. Usually, its volume varies with the volume setting of the amplifier. This is no sign of a defect or fault of your audio products but has to be eliminated. Generally, every wall-powered device connected to the ground wire of the power plug can cause this problem when connected to the amplifier.

Experience shows that this problem is mainly caused by antenna-connected components (as TV-sets or Tuners), personal computers, electrostatic loud

speakers, subwoofoers, record players or headphone amplifiers that are connected to the audio inputs of the amplifier. Another possible reason for humming noise is electromagnetic interference of other components' power supplies with pick-up systems of record players (change the place of the record player for a test).

In most electric devices the ground potentials of all signals are connected to each other at one central point, where they have one common connection. If the device uses the protective conductor of the wall outlet, the corresponding wire of the line cord is connected intractably to the metal housing of the device. In most cases this is the point where the central grounding point is attached to. By doing this the housing is able to shield all signals from external radiated noise. Some main amplifiers are equipped with a "Ground Lift"-switch. If it is activated, ground potential of the chassis and the protective ground wire are being separated from the central signal ground point. The protective ground wire keeps its function. Sometimes this helps prevent noise caused by errors in grounding.

If the problem occurs and cannot be solved by yourself your audio specialist dealer will help you.

SEARCH FOR ERRORS

Symptom	Possible Cause	Countermeasure
Unit does not work after pressing the power button	Mains cable is not connected to a suitable mains wall outlet.Mains cable has not been firmly inserted into wall power socket and the device's socket. Otherwise it may be defective.Unit fuse or unit is defective.	Connect to a functioning socket using a suitable mains voltage Check the power cable. If necessary, exchange it with a suitable mains cable and push its plug firmly into wall socket and the device's power connector.Contact your dealer.
No sound on both channels although the unit is ready for use (front panel display (2) is functional)	The currently selected audio source (3)(14) is giving no signal.One of the audio settings of a connected DVD player (analogue/digital) has not been correctly selected.The output of the source device is not connec-ted or is wrongly connected e.g. not connec-ted to the selected input channel terminal of the amplifier.Wrong input channel has been selected at the amplifier.Volume is set too low.The amplifier is muted (MUTE-Function).The speaker cables are not properly connec-ted to the amplifier's terminal. Otherwise they may be defective.	Switch on the source unit and begin play-back.Correct the settings in the player's setup.Correct the connection.Set the amplifier to the input that your desired source is connected to (3)(14). Carefully increase the volume (5)(17).Deactivate the MUTE function (12) after, as a precaution, reducing the volume levelCHECK and tighten the speaker cables at the amplifier (6) and at the speakers.
No audio playback on one channel	The source equipment is giving signal on only one channel.One of the signal cables between audio source and amplifier inputs has not yet been plugged in or is defective.Channel balance has been set to the extreme right or left.One of the speaker cables is not correctly connected or is defective.	Check the audio source. You can try to use it at a different amplifier for a test.Check the cable connections, tighten them if necessary.Set the channel balance (16) to a reasonable valueCHECK and refasten the speaker cables at the speaker terminal of the amplifier and at the speaker's connectors.

SEARCH FOR ERRORS

Symptom	Possible Cause	Countermeasure
Poor sound quality	The cable connections are not tight, the connectors are dirty or a cable is defective.A record player has been connected to a line level input without using a phono preamplifier.	Check the cables and cable connections.Interconnect a phono preamplifier.
The remote control cannot perform any functions	No batteries inserted in the remote control, batteries are not inserted correctly or are depleted.The line-of-sight between the remote control and the unit is obstructed, the range was exceeded or the hand unit was operated from a position too far to one side.The unit is not switched on.	Check and replace the batteries if necessary.Try to point the remote control at the front of the unit only when the sight-line is clear, within a 7-metre distance and, if possible, facing the unit.Switch on the unit.
Humming low frequency noise is audible, even as no audio source is playing back	See section "Net frequency noise" in the chapter "Tips".

TECHNICAL SPECIFICATIONS

Frequency response:

Nominal Output Power Class A at 8

Nominal Output Power Class AB at 8

Nominal Output Power Class AB at 4

Nominal Output Power Class AB at 2

Input sensitivity:

Total Harmonic Distortion:

Signal to Noise Ratio:

Input Impedance:

AC power connection type:

Inputs:

Outputs:

Dimensions (W× H× D)

Weight:

Colour:

20 Hz - 20 kHz ±0.5 dB

2×60W (RMS)

2 × 200 ~W

2 × 400 ~W

2 × 700 ~W

250 mV

< 0.1% (1 kHz, 1 W)

95dB

47 kΩ

230 V / 50 Hz

5x RCA stereo, 1x XLR stereo

4x2 speaker connectors accepting 4 speakers,

1x PRE stereo RCA, 1x PRE stereo XLR

2x Power Control (3.5 mm Jack)

430× 180× 530mm

32 kg

silver / black

GLOSSARY

Audio Sources/Source devices

These are the components of your HiFi system and all other appliances, whose sound you want to hear over the system and are thus connected to the preamplifier, amplifier or receiver. This includes CD players, DVD players, tuners (radians), cassette players, DAT recorders, personal computers, record players, portable audio devices and many more.

Input sensitivity

Term for the smallest average (RMS) input voltage which causes the maximum output power at the maximum volume setting on the amplifier. Examples: 100mV to 500mV (Millivolts) on line level inputs, 2mV to 5mV on the phono MM input or 0.1mV to 0.5mV on the phono MC input.

dB Level

This is a way of describing any physical quantity; it is a common measurement for signal voltages and the volume. It is given in decibels (dB). Alternating signal voltages below 1V (RMS) are described as "line level" voltages, which are suitable as music signals for amplifier inputs. Inputs on amplifiers (mostly represented by RCA sockets) which are designed for signals on the CD player, tape recorder, DVD player etc. are also referred to as "line level inputs" or "high-level inputs". Those signal inputs must not be confused with inputs that accept preamplified signals.

RCA

RCA is the American name for coaxial RCA connectors and sockets, originally the abbreviation for "Radio Corporation of America", the name of a United States company. Both the plug and cable consist of a rod-shaped inner lead and a cylindrical-shaped outer lead. This enables a mono audio signal or a video signal to be transmitted. Compared to the XLR plug connector, this type of connection is also called "unbalanced signal connection".

XLR

Also: "Symmetrical Connection" or "balanced". A plug-and-socket connection for audio devices. It is round (with approx. 1.5cm in diameter) and has 3 contacts/pins. XLR is an alternative connection to RCA used to transmit NF-Signals in professional audio equipment. The advantage is one additional transmission path for the same but phase inverted signal. If the receiving device can process this, all inducted noise received in the cable screen can be eliminated. The signal voltage level used for this type of transfer is higher, so it is a more robust less sensitive signal path.

Dynamic

The volume difference between the quietest and the loudest sounds possible in audio signals, without distortion or transition to noise.

CONSIGNES DE SECURITE

5x RCA stereo, 1x XLR stereo

Please keep the receipt, store it together with this manual. The receipt is your proof for the beginning of the warranty period. Note the serial number in the following box, you can read it from the rear side of the device.

www.sintron-audio.de
