USER MANUAL SV-234 VINCENT

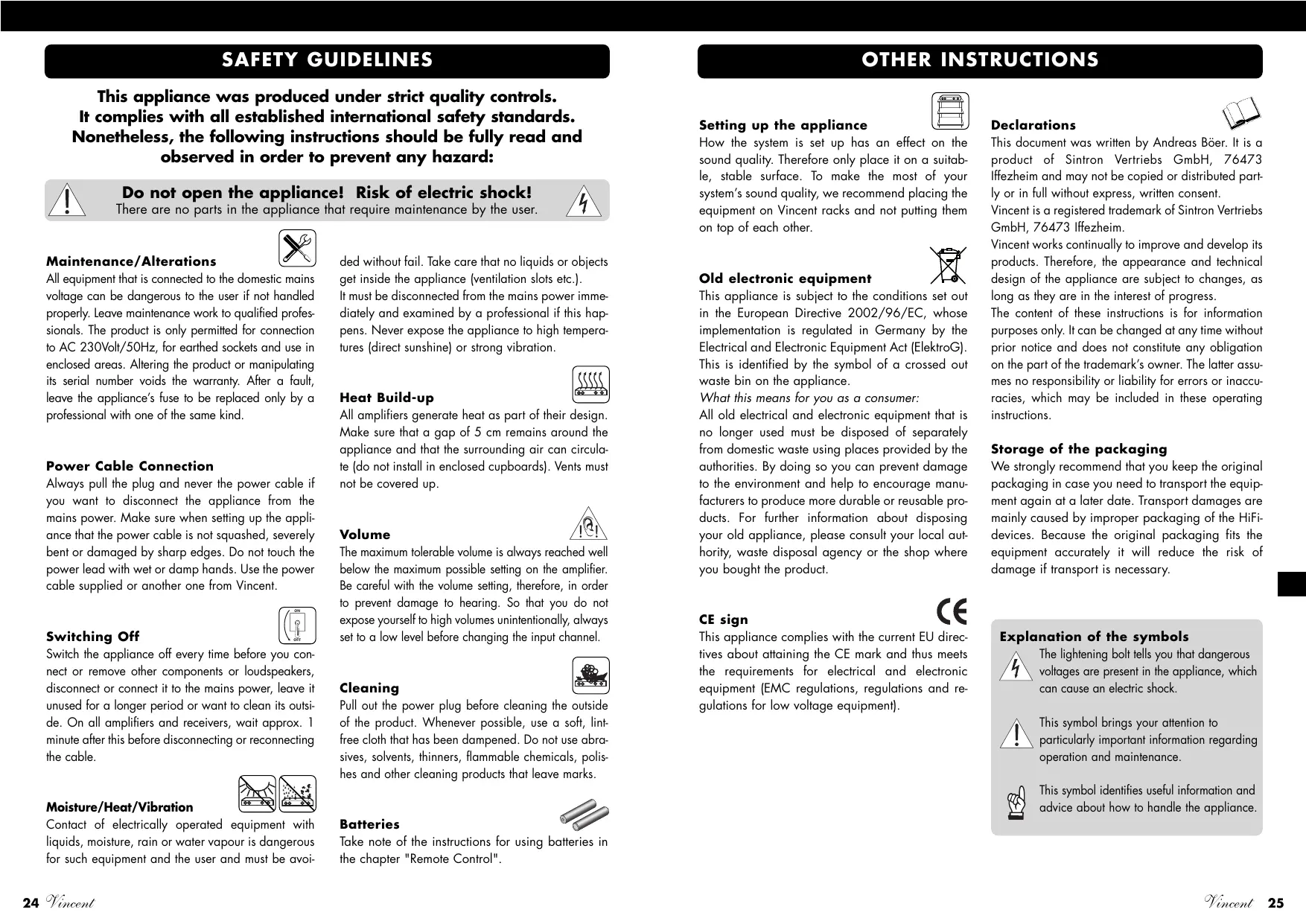

SAFETY GUIDELINES This appliance was produced under strict quality controls. It complies with all established international safety standards. Nonetheless, the following instructions should be fully read and observed in order to prevent any hazard: Do not open the appliance! Risk of electric shock! 7/3 \ There are no parts in the appliance that require maintenance bythe user. / Maintenance/Alterations All equipment that is connected to the domestic mains voltage can be dangerous to the user if not handled properly. Leave maintenance work to qualified profes- sionals. The product is only permitted for connection to AC 230Voli/50Hz, for earthed sockets and use in enclosed areas. Altering the product or manipulating its serial number voids the warranty. Afer a fault, leave the appliance‘s fuse to be replaced only by a professional with one of the same kind. Power Cable Connection Always pull the plug and never the power cable if you want to disconnect the appliance from the mains power. Make sure when setting up the appli- ance that the power cable is not squashed, severely bent or damaged by sharp edges. Do not touch the power lead with wet or damp hands. Use the power cable supplied or another one from Vincent. Switching Off Switch the appliance off every time before you con- nect or remove ofher components or loudspeakers, disconnect or connect it to the mains power, leave it unused for a longer period or want to clean its outsi- de. On all amplfiers and receivers, wait approx. minute after this before disconnecting or reconnecting the cable. Moisture/Heat/Vibration Contact of electrically operated equipment with liquids, moisture, rain or water vapour is dangerous for such equipment and the user and must be avoi- 24 Vévcent ded without fail. Take care that no liquids or objects get inside the appliance [ventilation slots etc.] lt must be disconnected from the mains power imme- diately and examined by a professional if this hap- pens. Never expose the appliance to high tempera- tures (direct sunshine] or strong vibration. Heat Build-up All amplifiers generate heat as part of their design. Make sure that a gap of 5 cm remains around the appliance and that the surrounding air can circula- te (do not install in enclosed cupboards). Vents must not be covered up. Volume The maximum tolerable volume is always reached well below the maximum possible seing on the amplifier. Be careful with the volume setting, therefore, in order to prevent damage to hearing. So that you do not expose yourself to high volumes unintentionally, always set to a low level before changing the input channel Cleaning Pull out the power plug before cleaning the outside of the product. Whenever possible, use a soft, lint- free cloth that has been dampened. Do not use abra- sives, solvents, thinners, flammable chemicals, polis hes and other cleaning products that leave marks. Batteries 22 Take note of the instructions for using batteries in the chapter "Remote Control". Setting up the appliance How the system is set up has an effect on the sound quality. Therefore only place it on a suitab- le, stable surface. To make the most of your system's sound quality, we recommend placing the equipment on Vincent racks and not putting them on top of each other. Old electronic equipment K This appliance is subject to the conditions set out in the European Directive 2002/96/EC, whose implementation is regulated in Germany by the Electrical and Electronic Equipment Act (ElektroG]. This is identified by the symbol of a crossed out waste bin on the appliance. What this means for you as a consumer: All old electrical and electronic equipment that is no longer used must be disposed of separately from domestic waste using places provided by the authorities. By doing so you can prevent damage to the environment and help to encourage manu- facturers to produce more durable or reusable pro- ducts. For further information about disposing your old appliance, please consult your local aut- hority, waste disposal agency or the shop where you boughit the product. CE sign ce This appliance complies with the current EU direc- tives about attaining the CE mark and thus meets the requirements for electrical and electronic equipment [EMC regulations, regulations and re- gulations for low voltage equipment). (Le) Declarations Se This document was written by Andreas Bôer. lt is a product of Sintron Vertriebs GmbH, 76473 lRezheim and may not be copied or distributed part- ly or in full without express, written consent. Vincent is a registered trademark of Sintron Vertriebs GmbH, 76473 lfezheim. Vincent works continually to improve and develop its products. Therefore, the appearance and technical design of the appliance are subject to changes, as long as they are in the interest of progress. The content of these instructions is for information purposes only. lt can be changed at any time without prior notice and does not constitute any obligation on the part of the trademark's owner. The latter assu- mes no responsibility or liability for errors or inaccu- racies, which may be included in these operating instructions. Storage of the packaging We strongly recommend that you keep the original packaging in case you need to transport the equip- ment again at a later date. Transport damages are mainly caused by improper packaging of the HiFi- devices. Because the original packaging fits the equipment accurately it will reduce the risk of damage if transport is necessary. E Explanation of the symbols The lightening bolt tells you that dangerous \ voltages are present in the appliance, which can cause an electric shock. This symbol brings your attention to particularly important information regarding operation and maintenance. a This symbol identifies useful information and advice about how to handle the appliance. Vincent 25

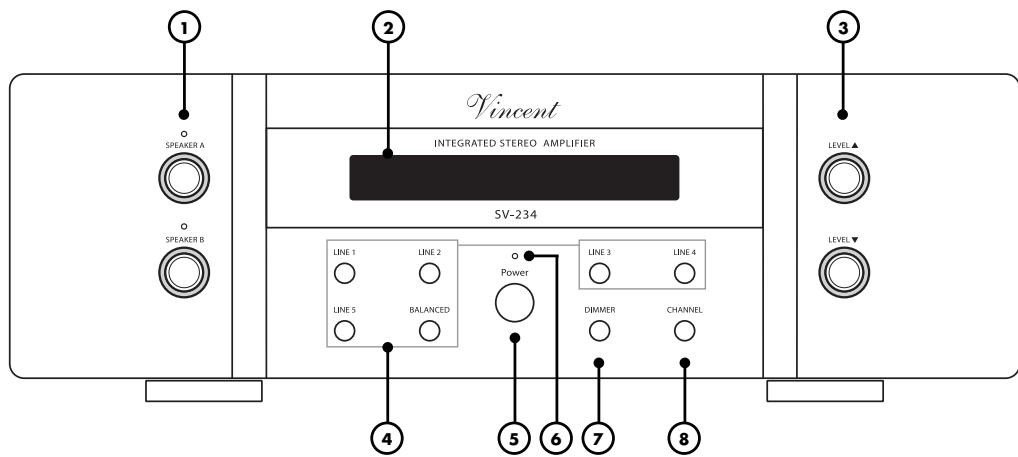

Please check the contents of the packaging, which in addition to the appliance should contain the following accessories: + 1 remote control VRC-1 + 2 AAA (LR3) batteries + 1 power cable Véncent + this manual DESCRIPTION OF THE APPLIANCE O t 9 I © © ET | Despite the fact that development is constanily The SV-234 is the most versatile integrated stereo moving in the direction of digital audio format amplifier from the Vincent range. lt can serve both and towards audio video systems wilh an increa- as an amplifier for high quality stereo sources and sing number of channels, high quality stereo then, at the push of a button, it becomes a stereo 1. SPEAKER A/B 5. POWER systems still enjoy a large degree of popularity. output stage [for example for the front speakers of If suitable speakers are used, a second pair of This is the main power switch for turning on Some users are put off by the installation of expen- a home cinema system). A special feature of this speakers can be operated at the same time. and off the device. Please take note of the sive multi-channel systems and enjoy viewing DVD equipment is the possibility to attach a stereo sour- This button allows each of the speaker pairs information about it in the sections films in stereo. Other music enthusiasts do not ce with balanced audio connectors [XLR] (designated A and B] to be individually "Installation" and "Operating the device" want to switch to a surround sound system becau- Natural, it all comes with the highest quality switched on and off. The LED located above se that will never reach the sound quality of an workmanship and an outstanding price perfor- each of the buttons shows which ofthe speaker 6. LED signaling display shut-off equally prized High-Ænd stereo system. Those who mance ratio pairs is active. This LED remains illuminated when the display wish to combine both worlds - surround sound and is switched off by the “DIMMER” [7] function premium stereo +, can often not avoid having two This integrated amplifier is an ideal partner for 2. Display That helps to not misinterpret a shut-off display separate amplifiers and/or receivers, because DVD players, CD players, tuners, headphone In normal use the display shows the name of as consequence of a shut-off device many multi-channel systems focus on functionality amplifiers and speakers from Vincent. lt can also the selected input, the volume and the opera- rather fhan on uncompromised sound quality for form part of a Vincent multi-channel system based ting mode (Audio Mute]. When adjusments 7. DIMMER: Brighness setting forthe [I all audio channels. IFthat is to be avoided andthe on a decoder preamplifier or on an AV amplifier. are being made {e.g. to BALANCE, GAIN), display speakers of an existing stereo system are also In this role it supports the “Power Control” functi- the relevant values are displayed. The brighiness of the front panel display can required to serve as front speakers for a surround on. Together with the HiFi furniture and speaker be reduced in two steps using this button. sound system (so that a separate pair of front cables from the range, one can build a perfectly 3. LEVELA/V: Volume keys If you press it repeatedly, the third actuation speakers does not need to be acquired), then both harmonious system. These are the keys for the adjustment of the switches off the display. With a fourth stroke, systems must be coupled together. For most setups main volume level of the system. They conse- the maximum display brighiness will be that is not possible. Only if a stereo amplifier is quently control the volume of the loudspeakers restored again used, which has he function for one of its inputs and the signal of the stereo preamplifier out: to act only as a power amplifier, and hence pro- put "PRE OUTPUT". Only for the playback of 8. CHANNEL: Channel Balance vides no audio gain to this input, can the stereo the audio source at the input "LINES5" the These are the buttons that enable you to set system be employed as a user friendly part of a volume setting has no effect. a volume difference between the left and the surround sound system right stereo channel ("BALANCE").

4. LINE“ … ,LINE5“ and "BALANCED":

26 Yévcent Input selection With a touch on one of these buttons you choose for playback the audio source attached to the corresponding connec- tors at the amplifier's backside. Vincent 27

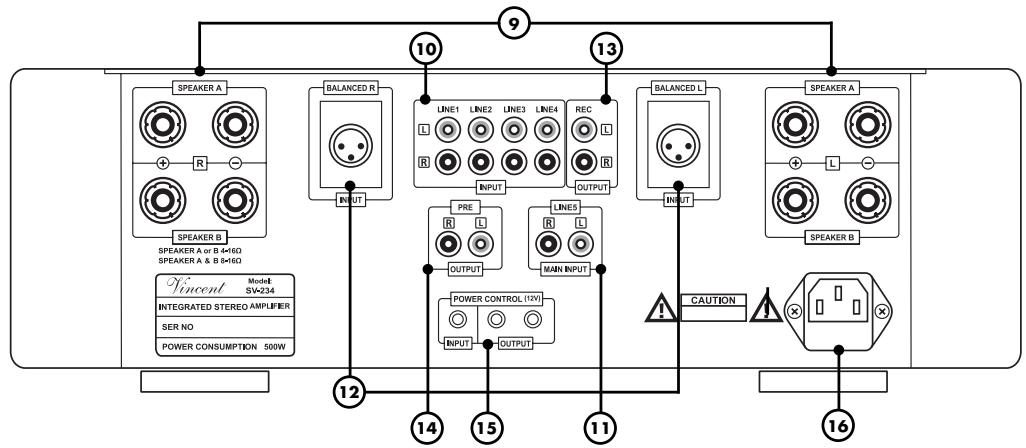

At these output sockets with threaded terminals one or two pair(s) of stereo loudspeakers can be connected. Speaker cable with 4 mm banana plugs can be used. Please take note of the infor- mation given in the section "Installation", if two pairs of loudspeakers will be connected to the amplifier.

10. INPUT ("LINE LINE4"): Terminal

for stereo audio signals of the source equipment Here you find four stereo RCA input sockets for source equipment with analo- gue stereo [line level) audio output.

11. MAIN INPUT ("LINE5"): Main Amplifier

Input This is for the connection of a stereo preamplifier or source equipment with a pream- plifier output. Note that no high level output should be connected from a stereo source to “UNE5". This input must also not be connected to the neighbouring preamplifier output, “PRE OUTPUT” (14).

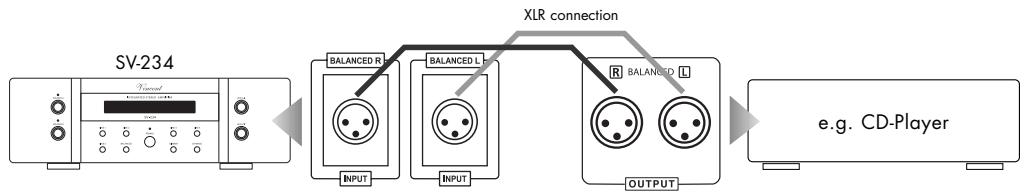

12. INPUT "BALANCED": XLR-Input

These are the input sockets for one stereo audio source equipped with XLR output sockets.

13. REC OUTPUT: Output connectors

assigned to a recording device If desired, you can connect a recording device 28 Vévcent

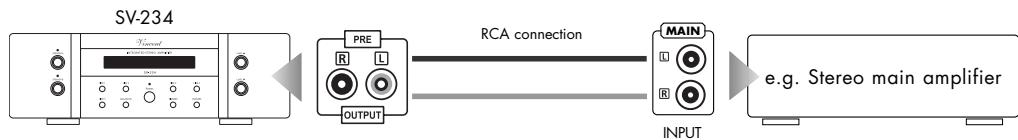

like a CD recorder or a tape recorder to this output. The stereo signal of this output is identi- cal to the output signal of the selected audio source at one of the inputs "LINE1"..."LINEA". The signals of the inputs "BALANCED" and "NES" are not available for recording at this output! PRE OUTPUT: Preamplifier Output IFone of the inputs "LINE1"..."LINEA" (10) or the input "BALANCED" (12) is selected, the "PRE" output can supply two additional main amplifier channels with the preamplified stereo audio signal of the selected source. The output must not be connected to the neighboring power ampli- fier input "LINES MAIN INPUT" or to the high level input of another HiFi component. POWER CONTROL (12V) These jack connectors (3,5 mm) send and receive the signals for the standby control {(12V Trigger) AC power connector and fuse holder To establish the power supply, connect the plugs of the power cable to the device and to a 230V AC wall outlet. The small plastic housing beneath the plug opening holds the fuse. Refer to the security précautions. REMOTE CONTROL Point the front of the remote control directly at the front of the appliance, making sure there are no objects between the remote control and the appliance. The distance between the remote control and the appliance should not be more than 7 m, as the reliability of the remote control is affected beyond this range. Make sure that you do not point the remote control at an angle to the appliance, as beyond an angle of +30° to the centre axis the appliance may not respond as well to the remote control. Change both batteries if the distance at which the remote control can be used effectively decreases. BATTERIES Using batteries Handling batteries incorrecily can cause battery acid to escape or an explosion in extreme cases. The batteries must be correctly inserted taking note of the polarity, which is marked in the inside of the battery compartment. In order to make full use of the batteries’ life, do not mix new and used batteries. Make sure that you insert batteries of the same type Some batteries are rechargeable, others are not however. Take note of the precautions and instruc- tions that are included on all batteries. Remove the batteries if the remote control is not going to be used for a long time. Under no circumstances must batteries be short-cir- cuited, taken apart or heated up. For environmental reasons, used batteries should be disposed of in accordance with local environ- mental regulations and not put with domestic waste Only use AAA (LR3) size batteries. Changing/Inserting batteries a) Open and remove the battery compartment lid of the remote control by tugging sharply on the fishpla- te on the edge of the remote control. The battery compartment lid is held in place magneticall, there is no need to loosen the screwsl bj IFnecessary, remove used batteries and insert [IR new ones correcily as shown by the diagram in the battery compartment. €] Put the compariment cover back on and close the battery compartiment. Vincent 29

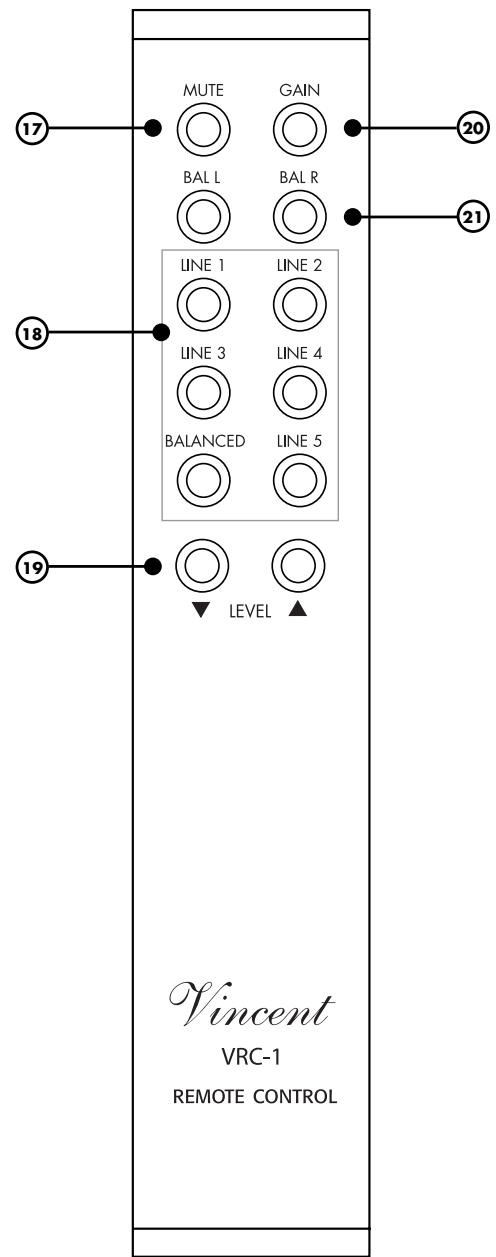

Pressing this button once mutes the sound of the loudspeakers (9), the preamplifier output "PRE OUT- PUT" [14] and the recording output "REC OUTPUT" (13). Pressing it again returns to the original volu- me. The Mute function is not available if the input "LINES MAIN INPUT" (11) has been selected for playback.

18. Input Selector Buttons

These buttons are used to select one of the stereo audio devices connected to the amplifier's source inputs for playback.

19. LEVEL À and LEVEL V: Volume keys

These buttons change the amplifier's volume setting for loudspeakers and the preamplifier output PRE OUTPUT" [14]. This volume setting can not be made if the input "LINES MAIN INPUT" [11] has been selected for playback

20. GAIN: Push button for -8dB attenuation

of Loudspeaker signals With the activation of this function, the output signal for the power amplifier (14) and speakers (9) is redu- ced by 8 dB and thus the volume of the attached speakers. lt should only be activated if even at low volume setings the volume is already very high

Both keys can be used for changing the volume dif. ference between right and left speaker if that is desi- red. That is not possible for the source device con- nected to "LINES MAIN INPUT" 30 Vévcent

Set up the cable links in a sequence as follows. Connect the power cable between device and power sup- ply only after all ofher connections have been made. Two loudspeakers, one ore more source devices and the mains cable have to be connected as a minimum. The cables for power control, to recording equipment or to another stereo amplifier must only be connected if they are to be used Do not connect PRE OUT and MAIN IN No preamplifierto-amplifier bridge circuit is requi- red. The input "LINES MAIN IN" must not be con- nected with the neighboring preamplifier output "PRE OUTPUT"I The preamplifier part of this ampli- fier is connected internally with the power amplifier part. lt is not possible to split preamplifier section and main amplifier section to add an effects loop [for example an equalizer] Protective caps Prior to the first installation the pro- tective plastic caps must be removed from all the connections used at the rear of the unit. -6@.

RCA connections Mechanically identical RCA plugs are available for input and output connections. Make sure that you do not get these connections confused during installation! Make sure that you do not mix up the analogue inputs for right and left. The RCA plugs for these are mosily colour coded as follows: red for the right channel, black or white for the left channel Contacting the middle pin of the RCA plugs with the outer ring of the RCA chassis jack may lead to damages to the main amplifier if it is switched on! To avoid this hazard, connect or disconnect only in switchedroff state and more than one minute after deactivatingl

DURING INSTALLATION PLEASE OBSERVE

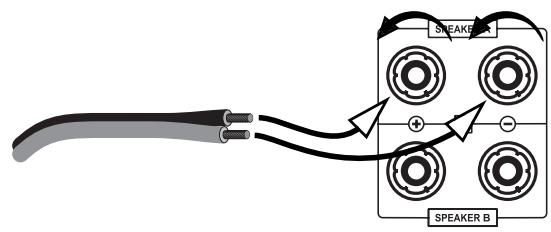

THE FOLLOWING ADVICE: Speaker cable connections The use of ready-made loudspeaker cables is re- commended instead of connecting the cable's cen- tral wire {strand) directly to the terminals. Banana plugs or cable lugs ensure high security from short- circuits and damage to loudspeakers or amplifier. Ensure that bare loudspeaker wires are never able to come into contact with each other or with the metal on the back of the housing. Ensure that bare loudspeaker wires are never able to come into con- tact with each other or with the metal on the back of ihe housing. Make sure that the positive and negative loudspea- ker wires are connected correcily. You will notice a reduced sound quality if the connections are the wrong way round. Only use loudspeakers with a nominal impedance of at least 4Q Cable connections Make sure that all plugs fit tighily. Inadequate con- nections can cause noise interference, failures and malfunctions. TC Te me - falsely- right To make the most of the components’ sound poten- fial, only high quality loudspeakers and connecting cables, for example Vincent cables, should be used. Your local stockist will be glad to advise you about this. Vincent 8

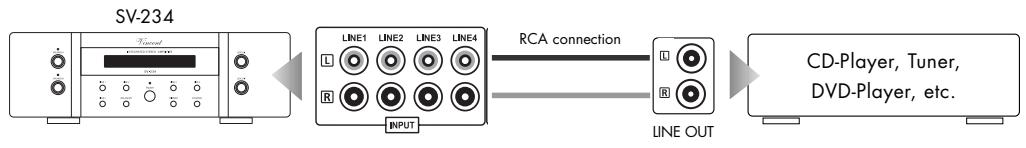

CONNECTION OF THE SOURCE EQUIPMENT WITH

RCA HIGH LEVEL OUTPUTS

Connect the outputs of these source devices with the inputs "LINE1"."LINEA" (10) of the amplifier. The output sockets on the source equipment are usually indicated by "Line Out", "Audio Out" or "Front Out". You will find information about ways to connect source equipment in their operating manuals. To use a record player you need a so-called equaliser preamplifier (also called a phono pream- fs) plifier], which is installed in the signal path between the record player and one of the high-level inputs. Some models of record player already include this preamplifier and can be connected directly. You will find further information in this appliance’s operating manual. The stereo sound of appliances that use output connectors ofher than RCA [DIN plugs, jack plugs] can often also be used with the aïd of adaptors. Up to four high level stereo sources can be connected to these RCA inputs. The audio inputs "LINE1"..."LNEA" (10) represent electrically equivalent standard high level inputs with RCA connection They have an identical function and differ only in name. UE ue ue mu] RCA connection CD-Player, Tuner, DVD-Player, etc oo: LINE OUT CONNECTION OF ONE AUDIO SOURCE WITH XLR OUTPUT The "balanced" input can only be connected to a device equipped with symmetrical output. At the sour- ce device you can recognize it by the three-pin XLRtype of the output jack. Leave the XLR input of your pre-amplifier open if none of your audio sources uses this. Sometimes both types of output connectors are provided XLR connection SV234 e.g. CD-Player 32 Vévcent CONNECTION OF A STEREO PREAMPLIFIER OR THE

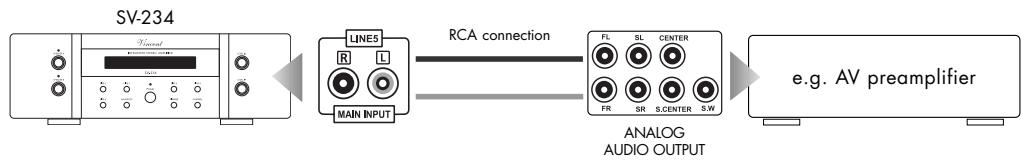

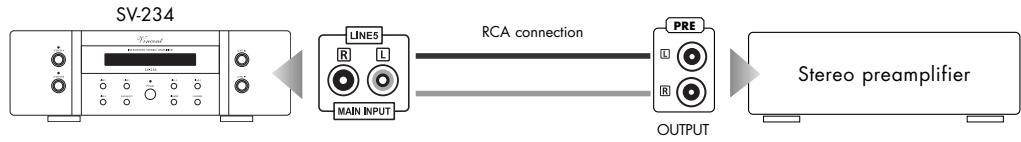

FRONT CHANNELS OF A MULTI-CHANNEL SYSTEM

This stereo amplifier is equipped with a main amplifier input (LINE5"), also known as "unity gain input" Input signals to this bypass the internal preamplifier stage and are treated as preamplifier output signals. That is why this amplifier can accept the output signals of a preamplifier or the front channel preamplifier outputs of a home cinema system (AV receiver or AV preamplifier). Volume control as well as Balance and Muting can not be achieved at the SV-234 when using the input "LINE5". These functions must be opera- ted at the device connected to this input. RCA connecion (us) © sure proampiier HO) OUTPUT SV234 RCA connection Ê = TIRE" ANALOG AUDIO OUTRUT Ithe input "LINE5" has been selected, the amplifier SV:234 acts like a stereo power amplifier. l£ you want the amplifier SV-234 to automatically switch on/off every time the HiFi component connected to "LINE5" is switched on/off, the power control cable connections subsequently described must be applied. Please leave the input connector "LINE5" unused if you do not wish to use the amplifier SV-234 just as a power amplifier.

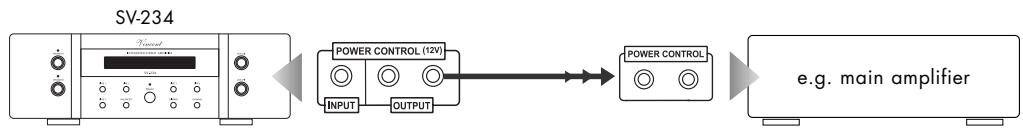

CONNECTIONS FOR THE STANDBY CONTROL

(POWER CONTROL) Many AV.Systems consist of a multitude of individual components. To avoid the necessity of switching them on and off before and after every use, many manufacturers have equipped their devices with what is known as "POWER CONTROL" circuit or "TRIGGER". This kind of remote-controlled standby circuit is used primarily for preamplifier and power amplifiers. To employ these functions, direct or indirect cable connections must be made between the preamplifier (or integrated amplifier) and all the devices which support this function. The “POWER CONTROL" function operates in such a way that each switching on or off of one device in the system (usually the preamplifier) automatically brings about the switching on or off of all the connected devices which support this function. Please keep in mind that all devices which respond to the power control are not disconnected from the mains network when switched off. They are set to a standby state instead. For connecting cables, two-core cables with 3.5 mm jack plugs (mono) are used. For each connection between two devices one of those cables is needed Vincent 33

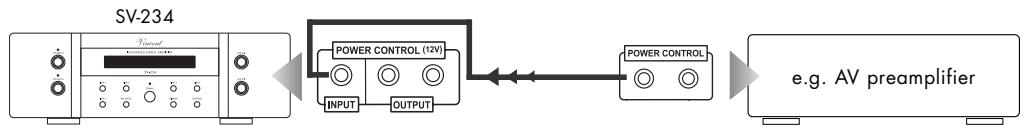

IF you don't wish to use this function or if the other components do not support it, all you have to do is leave out these cable connections. The SV-234 is equipped with one input connector and two output connectors for the power control. As a result, this amplifier can supply and transmit the switching signal for other components in the system as well as accept it from other components. Bofh cases are described in the following. (1) The complete system is to be switched on/off at the SV-234 POWER button In this situation the input in the terminal "POWER CONTROL" (15) must not be occupied and must be left open. Two HiFi components that are able to react to the power control signal can be connected directly to the amplifier's power control outputs. If more than two devices, which can be controlled, are to be con- nected, then it is necessary, to make the power control connection between the preamplifier and these furt- her devices through the outputs of the two devices which are connected directly. For that reason, every HiFi component that accepts power control signals is also equipped with a power control output. Thus, in theory it is possible to provide an infinite number of HiFi components with the power control signal. This approach, to loop a signal through a chain of components, is commonly referred to as "daisy chaining". SV-234 je | ES CICR (o ©] «6 moin ompitier 550 ) (2) The SV-234 is intended to react to the trigger signal If, for example, two output channels of a preamplifier are connected to the main input "LINE5", if this HiFi component can supply a power control signal and if you want the amplifier SV-234 to switch on/off synchronously with the component attached to "LINE5", one power control output of this component must be connected to the input in the SV-234 terminal "POWER CONTROL" [15]. The connector at the sourcing HiFi component may as well be labelled with "TRIGGER OUTPUT". Both power control outputs of the SV.234 can additionally be used to forward the received switching signal to other components of your system. to o| | e.g. AV preamplifier 34 Vévcent Many devices which can be controlled by a switching signal (not preamplifiers or integrated /_2 \ amplifiers}, have two terminals which do not differentiate between input and output. In this case either of the two can be selected. "POWER CONTROL" sockeis of preamplifiers or integrated amplifiers must not be interconnec- tedl AIl receiving devices must not be connected to more than one preamplifier or integrated amplifier (directly or indirecily)!

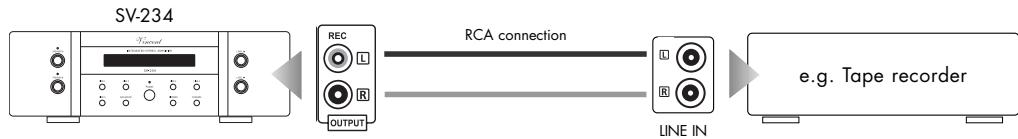

CONNECTION OF A RECORDING DEVICE

If you want, you can use the RCA sockets "REC OUTPUT" [13) on the back of the appliance to connect an analogue stereo recording device {e.g. CD recorder, cassette recorder etc.) or another appliance that is intended for receiving the unchanged, fixed stereo output level [line level) from the signal source selec- ted on the amplifier at any given time. The output level is independent from the volume setting but reacts to the "MUTE" command. N came SV234 RCA connection UNE IN Connect this signal output to the signal input ("LINE IN", "TAPE IN" oder "REC IN] on the recording appli- ance using RCA cables. Please note that some recording equipment can have a slighily detrimental effect on the audio signal quality. Some recording devices have rather low input impedance, which can slight- ly alter the input signal voltage. For maximal music enjoyment we recommend that you connect to the “REC” terminal only for as long as the recording is actually being made CONNECTION OF TWO ADDITIONAL MAIN AMPLIFIER CHANNELS You only need the "PRE OUTPUT" sockets [14) if you want to use a separate stereo amplifier or 1wo mono amplifiers to supply two additional loudspeakers. This makes sense if you intend to use 1wo more loud- speakers for stereo music playback, for example in a separate zone [another room of your home]. These loudspeakers are then connected to the speaker outputs of the additional amplifier(s]. The amplifier out- put connections "PRE OUTPUT" (14) must be connected with the input connectors of the main amplifier, in most cases labelled "INPUT", "POWER AMP IN" or "MAIN INPUT". RCA connection (man © D «3. surco main anptier

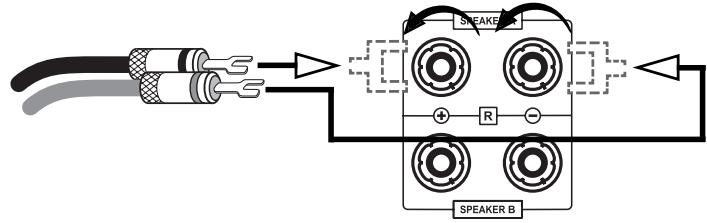

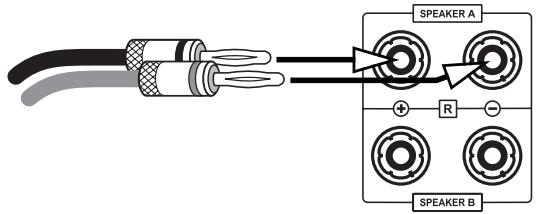

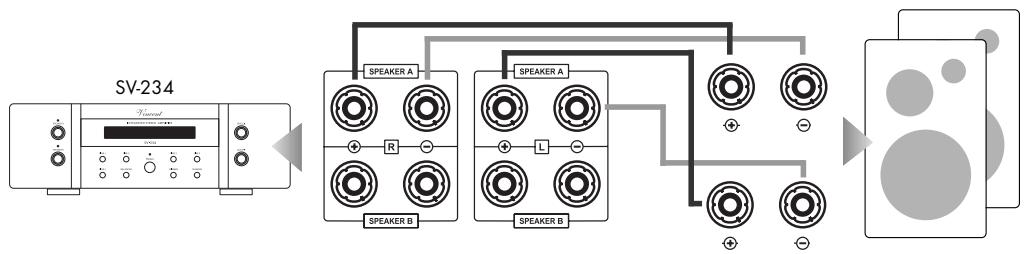

Either a single speaker pair [A] or two speaker pairs (A+B) can be connected to the SV:234 amplifier Both outputs are identically provided with the stereo signal of the currently selected input source. For each loudspeaker you will find iwo connector screws [positive + und negative -) at the amplifier's backside One side of the speaker cable must be attached here. Each pair of screws has a label "R or "L' nearby to clarify to which stereo channel it belongs. At the loudspeaker connection terminal there are similar con- nector screws or connectors. There, the polarity of each screw {+ or -| can be identified as well and the other side of the speaker cable associated with this speaker must be attached. Make sure only connector screws of the same polarity will be connected by each speaker cable wire: a knob marked "+" in the amplifier's terminal must be connected with a speaker's connector screw marked "+" as well. Our sketch shows all connections necessary for one pair of speakers. If a second pair of loudspeakers is intended to be used, the connector screws of the lower row [Speakers B} must be connected in a similar fashion to the additional speakers’ input connectors. If every speaker is connected in a conventional way [a fwo core speaker cable for each loudspeaker) and you own loudspeakers that are equipped with Bi Wiring terminals [four connector screws] you have to make sure that the metal brackets [contact pieces consisting of small metal plates or short pieces of cable which are supplied with the speakers) are applied to the terminal and that each one connects the two knobs of the same polarity (e.g. both connectors marked "+"]. The connector screw labelled "+" and "R!' at the ampli- fier's backside must be connected to one of the bridged, labelled "+" connectors of the loudspeaker assi- gned to the right stereo channel. Accordingly, the connector screw labelled "-" and "R" at the amplifier's backside must be connected to one of the bridged, labelled "-" connectors of the loudspeaker assigned to the right stereo channel. Connect the left side loudspeaker in the corresponding way. If you are using ready made loudspeaker cables with 4 mm banana plugs, all you need to do is connect the two plugs on each loudspeaker cable end to the two associated speaker connectors. Turn the connec- tor screws clockwise to fasten them. 36 Vévcent IF you want to use speaker cables equipped with spade lug connectors, every connector screw must be opened by turning counterclockwise. After that, the lug must be moved under the screw head. Then, turn the screw clockwise to fasten the lug to the connector. To avoid damages to the amplifier, make sure the connection is fight and no bare metal from the cable lug connector makes contact with the rear panel or with another terminal a dm = If no connector is to be used, remove approximately 1 cm length of insulation from each end of the spea- ker wire. Twist the brad in order to avoid short circuits. Turn the fastener on the loudspeaker terminal coun- terclockwise to loosen it and introduce the bare wire end into the exposed connector hole. Then turn the fastener clockwise so that the wire is firmly clamped. Make sure the connection is pretty tight. IF you intend to connect two pairs of speakers, all loudspeakers must have a nominal impedance of at least 80. If only one pair of speakers is used [A or B], all types of loudspeakers with a mini- mal nominal impedance of 4Q can be uiilised. Consider correct polarity, the positive contact is mosily marked red or with "+". The side of the speaker cable that has to be connected with the positive socket has a marking.

CONNECTION OF THE POWER CABLE

Check whether the wall socket provides the appropriate mains power, which is the case if it is supplied with 230 V AC 50 Hz. Push the plug on the power cable supplied firmly into the power socket [16] on the back of ihe appliance. Plug the other end of the power cable into a mains socket Vincent 37

the preamplifier output restores the volume to its original setting. As long as the amplifier is muted, the display shows "MUTING"

Operation Button(s) | Description Operation Button(s) | Description The amplifier is switched on and off using this button at the front panel. Operaïing this key activates or deactivates an attenuation of 8dB, When swiched of ne device i not intemally separated from ihe AC which is applied to bah he volume level ofthe speakers and ao to power and reacts to a signal at the input "POWER CONTROL INPUT" the signal output of the preamplifier “PRE OUTPUT” (14] (SL Thot why 1 nat possible to switch of 1he amplifier as long as The GAIN-operaon is useful iffhe combination of amplifier and speaker Switch on and off rowerts) |Siav ï nr is so sensitive that the usable region ofthe volume control of the SV:234 iteh on and ol < 12V trigger signal is present at Hhis inpu les at the lowest values. In this situation the volume steps are to0 coarse. WELCOME In this case, after first reducing the volume for the sake of caution, press the “GAIN” button. the GAIN seing was "00dB" (normal) before, As a precaufon, afier switching on, the volume setting should the display now shows "-08dB" in the front panel display. The perceived be reduced. Reduce the amplifiers | GAIN {20} | loudness is now reduced and the output level at the preamplifier output gain (attenuation 8dB) "PRE OUTPUT" (14) is smaller. To play back stero music via loudspeakers at least one pair of them GAIN-08dB +. GAIN-00dB indhidualy ocvaie or must be ahached 0 he amplier a praclcel choice would be One more koypress to "GAIN" restores he original gain setng (00) descivate speaker | SPEAKER | connectors "A']. The output you use must be activated using the The GAIN function can only be used via remote confrol and is not eut A and B AB [1] corresponding button "SPEAKER" [LED illuminated]. Only if a second intended to be toggled in everyday use pair of speakers is used, is necessary lo aclivate the second speaker output "B" A short touch on the button for the desired input channel ('LINET"."LUINES" or "BALANCED") changes to the playback of the audio source connected there. The front panel as well as the remote This function can only be operated using the associated front panel Input Selector | control carry those buttons. The name of the currenily selected input button. When repeatedl} pressed, the display brighiness is reduced in Select an input butons channel appears in the display. Change the brighiness | DIMMER (7) | io steps (1x, 2x), switched off [3x] and restored to the original, fo y2) ofthe front panel display maximum brighiness (4x) LINE2 — LINE2-45dB Before switching over the input channel, the volume should be turned down as a précaution! One channel of the system (right or left) and thus one of the loudspeakers can be adiusted to be more loud than the ofher one. That may be wanted if your favorite listening position in the room is Hold down the button "LEVELA® to tu he volume up. Use "LEVELV" to loser to one speaker than to the other one resuling in a difference in turn it down. This can be done on the remote control as well as ai the perceived volume. This balance adiusiment can be made using the corresponding remote controller buttons as well as using the amplifier front panel. The display (2] shows the momentarily selected font panel butione uvaapy [roue . The ririmn vole value 9948, me maimum vohma ar Change the volume | {3](191 appears at latest with OOdB, for most speakers much below this value. 1 You are free to change the seing in 10 steps to each side (right or lef) LINE2-99dB +.» LINE? 00dB The maximum difference appears at the setting displaying "+10dB". The BALANCE seing does not affect he recording output [13] and is The volume value can not be changed ifthe input "LINES MAIN IN" Change the chanel | cHANNEL | n° ecive es long as the input "LINES MAIN INPUT" (T1 is selected has been selected. In his case the display shows "MAX". The volume ange the channel Using the remote control: Press, if necessary repeatedy, the button setting dors never influence lhe signal at the output "REC OUTPUT" (13) balance (8) "BAL L'to boost the left channel volume compared to the right channel volume. "BAL R" can be used to boost he right channel volume. LEVELA/V 1019) At the front panel: Press the button "CHANNEL" and don't wait too long; The MUTE function can only be operated with the remote control use "LEVELA* or "LEVELV" to change the BALANCE seing. While doing I switches off the loudspeakers, Ihe preamplifer output "PRE OUTPUT" 1e 1e display shows he current BALANCE value and he side Mute the speakers and | Mure (17) | (14) endihe recording ouput REC OUTPUT [13]. Pressing it again {R: right or L:lefi] to which the BALANCE has been move: BALL+10dB +.» BALOOdB <..-> BALR+10dB 38 Vévcent Vincent 39

Burn in/ Warm up Your audio components need a certain time period until they reach maximum performance. The duration of this "warm up" time is very diffe- rent for the various elements of your audio system. Higher and homogeneous sound quality is achie- ved while keeping the device switched on. Your audio specialist dealer has enough experi- ence to give you more information. Net frequency noise Some audio source devices may in combination with the amplifier cause a humming noise at power line frequency audible from your speakers. Usually, its volume varies with the volume setting of the amplifier. This is no sign of a defect or fault of your audio products but has to be eliminated. Generally, every wallpowered device connected to the ground wire of the power plug can cause this problem when connected to the amplifier. Experience shows that this problem is mainly cau- sed by antenna-connected components {as TV.sets or Tuners), personal computers, electrostatic loud- 40 Yércent speakers, subwoofers, record players or headpho- ne amplifiers that are connected to the audio inputs of the amplifier. Another possible reason for humming noise is electromagnetic interference of other components’ power supplies with pick-up- systems of record players (change the place ofthe record player for a tesi]. In most electric devices the ground potentials of all signals are connected to each other at one central point, where they have one common connection IF the device uses the protective conductor of the wall outlet, the corresponding wire of the line cord is connected intractably to the metal housing of the device. This is the mosily the point where the central grounding point is attached to. By doing this the housing is able to shield all signals from external radiated noise. Some main amplifiers are equipped with a "Ground Li"-switch. If it is acti- vated, ground potential of the chassis and the pro- tective ground wire are being separated from the central signal ground point. The protective ground wire keeps its function. Sometimes this helps pre- vent noise caused by errors in grounding. IF the problem occurs and cannot be solved by yourself your audio specialist dealer will help you

Symptom Possible Cause Countermeasure Unit does not work after pressing the power button Mains cable is not connected to a suitable mains wall outlet. Mains cable has not been firmly inserted into wall power socket and the device's socket Oiherwise it may be defective. Unit fuse or unit is defective. Connect lo a funclioning socket using a suitable mains voltage. Check the power cable. If necessary, exchange it wilh a suitable mains cable and push its plug firmly into wall socket and the devices power connector. Contact your dealer. No sound on both channels although the unit is ready for use (front panel display is functional) The currenily selected audio source {OJ(T1(T2) is giving no signal. The output of he source device is not connec: ted or is wrongly connected e.g. not connected to the selected input channel terminal of the amplifier. Wong input channel has been selected at the amplifier. Volume (LEVEL) is set too low. The amplifier is muted (MUTE-Function] The output of he speaker pair you want to use has not been acfivated. The speaker coble is not properly connected to the amplifier terminal. Otherwise it may be defective Switch on the source unit and begin playback Correct the connection Set he amplifier to the input Hhat your desired source is connected lo [10]{11){12} Carefully increase the volume (3){19) Deactivate the MUTE function [17] after, as a precaution, reducing the volume level. After, as a precaution, reducing the volume level, press the "SPEAKER A/B" button (1) associated to the speaker output used, so that the LED next to the key is illuminated Check and lighien the speaker cables at he amplifier and he speakers No audio playback on one channel The source equipment is giving signal on only one channel One of the signal cables between audio source and amplifier inputs has not yet been plugged in or is defective. Channel balance has been set to Ihe extreme right or left One of he speaker cables is not correcily connected or is defective. Check ihe audio source. You can Wry lo use it at a different amplifier for a test Check the cable connections, fighien them if necessary. Set the channel balance to a reasonable value. Check and refasten Ihe speaker cables at he speaker terminal of the amplifier and at he speakers connectors. The cables coming from boih the speckers of a speaker pair must not be connected to different lerminal sets [e.g. one À and one B} on the back of he amplifier Vincent 4

Symptom Possible Cause Countermeasure Front panel display does not work It has been switched off before using "DIMMER" (7) Press the button "DIMMER" [7] one more time. Poor sound quality The cable connections are not fight, he connectors are diriy or a cable is defective. A record player has been connected lo a high level input without using a phono preamplifier An audio source with standard line level output is connected lo the amplifier direct input "UNES" (11) Check the cables and cable connections. Interconnect a phono preamplifier Use line level audio sources only ai the inputs "LINET"..."LINE4". The remote control cannot perform any functions No batteries inserled in Ihe remote control, batteries are not inserted correelly or are depleted The line-ofsight belween the remote control and 1he unit is obsucted, lhe range was exceeded or ihe hand unit was operated from @ position 100 far lo one side. The unit is not switched on. Check and replace ihe batteries if necessary. Try to point the remote control at he front of the unit only when Ihe sighline is clear, vélhin a 7-meire distance and, if possible, facing the unit. Switch on the unit. Humming low frequency noise is audible, even as no audio source is playing back See section "Net frequency noise" in the chapter "Tips" TECHNICAL SPECIFICATIO Frequency response: Nominal Output Power at 8Q: Nominal Output Power at 4Q: Input sensitivity: Total Harmonic Distortion: Signal to Noise Ratio: Input Impedance: AC power connection type Inputs: Outpuits: Dimensions: Weight: Colour: 42 Vincent 20 Hz - 20 kHz +0,5 dB 200 W 289 W 400 mV <0.1% >90 dB 47 kQ 220-240V/50Hz 4x RCA stereo, 1x RCA Main Input stereo, 1x XLR stereo, 1x Power Control (3,5 mm jack) Speaker connectors accepting 4 speakers, 1x PRE stereo RCA, 1x REC stereo RCA, 2x Power Control (3,5 mm jack) 430 x 142 x 450 mm 20 kg silver / black GLOSSARY Audio Sources/Source devices These are the components of your HiFi system and all other appliances, whose sound you want to hear over the system and are thus connected to the pre- amplifier, amplifier or receiver. This includes CD players, DVD players, tuners (radios), cassette play- ers, DAT recorders, personal computers, record players, portable audio devices and many more Input sensiti Term for the smallest average (RMS) input voltage which causes the maximum output power at the maximum volume setting on the amplifier. Examples: 100 mV to 500 mV {Millvolts} on high level inputs, 2 mV to 5 mV on the phono MM input or 0.1 mV to 0.5 mV on the phono MC input. ity dB-Level This is a way of describing any physical quantity; it is a common measurement for signal voltages and the volume. lt is given in decibels (dB). Alternating signal voltages below 1V (RMS) are described as "line level" voltages, which are suitable as music signals for amplifier inputs. Inputs on amplifiers {mosily represented by RCA sockets), which are designed for signals on the CD player, tape recor- der, DVD player etc. are also referred to as “line level inputs" or "highevel inputs". Those signal inputs must not be confused with inputs that accept preamplified signals. RCA RCA is the American name for coaxial RCA connec- tors and sockets, originally the abbreviation for "Radio Corporation of America", the name of a United States company. Both the plug and cable consist of a rodshaped inner lead and a cylindri- cal-shaped outer lead. This enables a mono audio signal or a video signal to be transmitted. Compared to the XLR plug connector, this type of connection is also called "unbalanced signal con- nection" XLR Also: "Symmetrical Connection" or "balanced' A plug-and-socket connection for audio devices. lt is round {with approx. 1.5 cm in diameter) and has 3 contacts/pins. XLR is an alternative connecti- on to RCA used to transmit NF-Signals in professio- nal audio equipment. The advantage is one additio- nal transmission path for the same but phase inver- ted signal. IF the receiving device can process this, all inducted noise received in the cable screen can be eliminated. The signal voltage level used for this type of transfer is higher, so it is a more robust less sensitive signal path. Vincent 43
