This device is designed for the playback of audio signals. Any other use is expressly prohibited. Protect the device from moisture (water drops or splashes).

kHz kHz MHz When deciding where to place the device, please note that furniture surfaces are covered by various types of varnish and plastic, most of which contain chemical additives. These additives can corrode the device supports, leaving residues on the furniture surfaces which can be difficult or impossible to remove. Do not use any cleaning agent, as this may damage the casing. Clean the device with a clean, moist leather cloth. Never open the device casing. Warranty claims are excluded for damage resulting from improper handling. The type plate is located on the bottom of the device. Attention Continuous use of earphones at high volume can damage the user’s hearing. Environmental note As little material as possible was used in the packaging of your device. It can be divided into two separate materials: cardboard (box) and polyethylene (bag). Please observe the local regulations for disposing of the packing material.

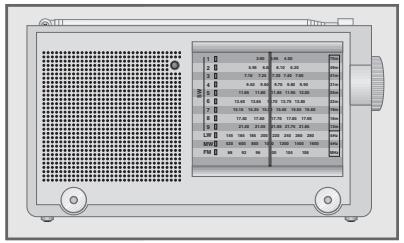

SW 1 ... 9 LW MW FM Tuning scale for SW, LW, MW and FM wavebands 31m

LED. Lights up when a stereo station is received and when earphones are connected 41m

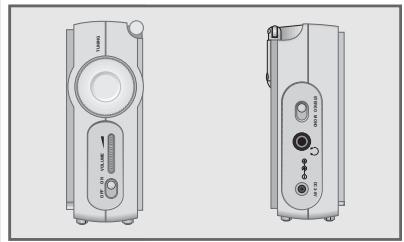

Right side of device Switches the device on and off ON/OFF VOLUME

Adjusts the volume Control dial for tuning to radio stations TUNING TUNING Left side of device

Socket for earphones (3.5 mm stereo jack) ENGLISH OFF Switches between stereo and mono reception in earphone mode DC 3-6V

Connection socket for mains adapter (not supplied), input voltage 3-6 V (200 mA) Top of device

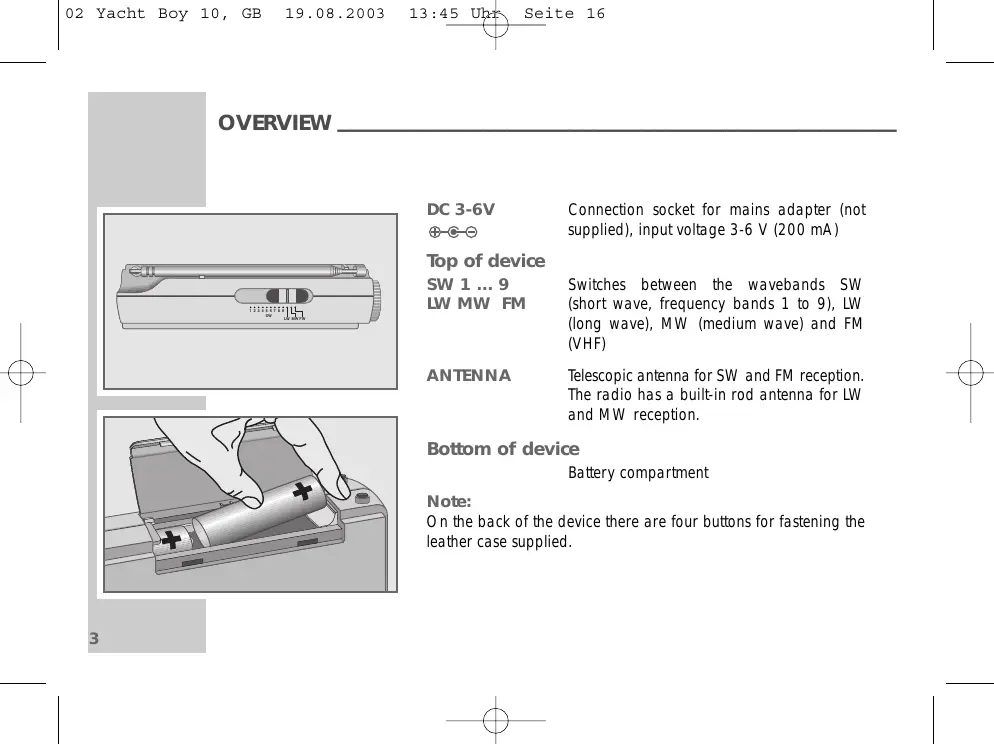

SW 1 ... 9 LW MW FM Switches between the wavebands SW (short wave, frequency bands 1 to 9), LW (long wave), MW (medium wave) and FM (VHF) ANTENNA Telescopic antenna for SW and FM reception. The radio has a built-in rod antenna for LW and MW reception. LW MW FW Bottom of device Battery compartment Note: On the back of the device there are four buttons for fastening the leather case supplied.

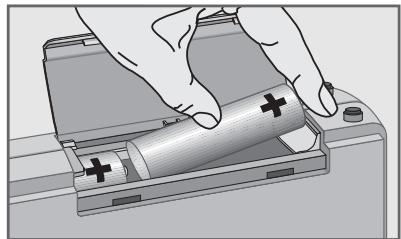

13:45 Uhr Seite 17 POWER SUPPLY _______________________________________ Battery operation 1 Open the battery compartment by pressing the marking and opening the lid. 2 Take out the used batteries by pulling the first one out with your index finger. Then take out the second battery. 3 When inserting the new batteries (2 x 1.5 V, type Mignon LR6/AM6/AA), observe the correct polarity (see the illustration). Notes: Take out the batteries when you know that the device will not be used for a long period of time. The manufacturer accepts no liability for damage resulting from used batteries. ENGLISH Environmental note: Batteries, including those which contain no heavy metal, may not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.

13:45 Uhr Seite 18 POWER SUPPLY ________________________________________________________ Mains operation (with 3-6 V/200 mA mains adapter – available in any shop) Check if the mains voltage on the mains adapter type plate corresponds to your local mains supply. The only way to disconnect the device from the mains supply is to unplug the adapter. STEREO DC IN 3-6V MONO DC 3-6V

1 Plug the mains adapter cable into the »DC 3-6V device. 2 Insert the mains adapter plug in the socket. – The batteries in the compartment are switched off.

socket on the left of the 02 Yacht Boy 10, GB

13:45 Uhr Seite 19 OPERATION ___________________________________________ Switching on and off 1 Press »ON/OFF« to switch on the device. – The device switches on in the wave band last selected. 2 Press »ON/OFF« to switch off the device. Radio operation 1 Press »SW 1 ... 9 LW MW FM« (on the top of the device) to select the wave band. 2 Tune in a radio station using »TUNING« (on the right side of the device). Notes: For FM reception pull out the telescopic antenna and tilt it until you receive the best signal. For short wave reception (SW), the antenna should be upright. For medium wave reception (MW), align the antenna by turning the device. 3 Adjust the volume using »VOLUME }« (on the right side of the device). 1 Insert the earphone plug (ø 3.5 mm, stereo) into the »0« jack on the left of the device. – This automatically switches off the loudspeakers. ENGLISH Listening with earphones

13:45 Uhr Seite 20 OPERATION ____________________________________________________________ Stereo/mono reception (with earphones only) However, if the signal from the FM stereo station is weak, you can improve the sound quality by switching to mono reception. 1 Press »STEREO MONO« (on the left of the device) to switch to mono. – The stereo LED goes out. 2 Press »STEREO MONO« (on the left of the device) to switch to stereo. – The stereo LED lights up when a stereo channel is received. Short wave reception Your radio can receive signals in a number of frequency bands. It does not take long to get used to tuning to FM and MW stations, since these stations are always at the same places on the tuning scale because they broadcast at fixed wavelengths and frequencies. Unfortunately, this is not always the case with short wave stations. Due to atmospheric conditions, short wave stations must frequently broadcast on different wavelengths. Most short wave bands are available all over the world and can be used by international broadcasters. At present these are the only wavelengths which provide listeners with direct reception over long distances. For this reason, short wave frequencies are not only used by radio stations, but also by other users such as amateur radio enthusiasts, shipping, aircraft and radio navigation systems.

13:45 Uhr Seite 21 OPERATION ____________________________________________________________ ENGLISH If you want to listen to a particular SW station, you need to know the precise frequency and wavelength. Many short wave stations will send you broadcasting schedules which give you the information you need. You can also download the information from the Internet.

SW 1 ... 9 (short wave)

Antennas Telescopic antenna FM (VHF) and SW (short wave) Ferrite rod antenna LW (long wave) and MW (medium wave) Sockets

13:45 Uhr Seite 23 INFORMATION___________________________________________ This device is noise-suppressed according to the applicable EU directives. This product fulfils the European directives 89/336/EEC, 73/23/EEC and 93/68/EEC. This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore the international safety regulation IEC 60065. ENGLISH Technical and design modifications reserved.
