PLACING THE SYSTEM

Super Woofer

• You may place the super woofer anywhere in a living room or in an office.
• Select a partially enclosed place, such as a corner or under/beside a desk to ensure impressing bass sound reproduction.

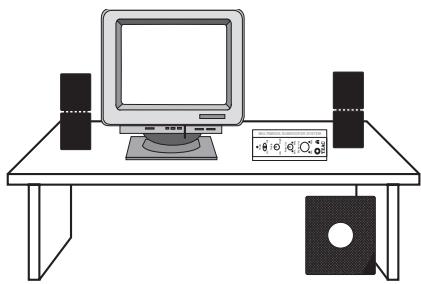

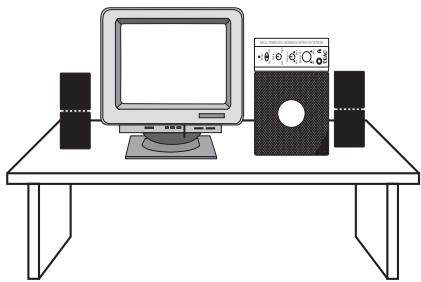

Installation 1

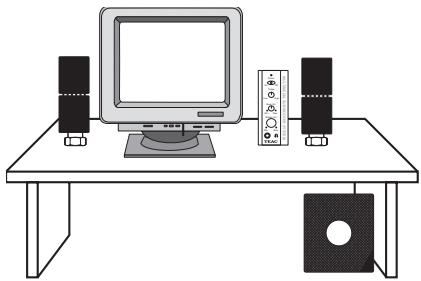

Installation 2

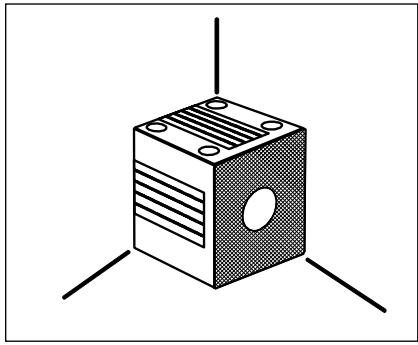

Installation 3

INSTRUCTIONS FOR USE

Introduction

This system is a multicomponent speaker system which consists of a super woofer with an integrated amplifier and a set of satellite speakers. The PowerMax-500/B is designed to reproduce high

quality sound with highly realistic bass reproduction. It may not only connected to a sound card but to a notebook, a TV set, a CD player, a walkman, a LDP etc.

Precautions

• Check the operating voltage of your local power supply before operating the system.
• Do not open the case because this may result in an electrical shock.
• Always pull directly the plug and never the power cord when if you remove the power plug from the wall outlet.
• Do not attempt to clear the unit with alcohol, benzene or thinner because this may damage the finish of the case.

• Do not let fall solid objects into the unit. Avoid to spill liquids into the unit.

• Place the unit on a hard flat surface.

• Do not place the unit in locations near heat sources, with high levels of moisture or mechanical shock.
• Do not place objects near the unit which are sensitive against magnetic fields.
• If the colour of your TV set or your computer monitor gets poor the unit has to be placed with a bigger distance between the devices.

SYSTEM & ACCESSORIES

Please check if any of the parts which are shown in the following are included in the original shipping package.

1. Manual

1. Speaker cord

1. Stereo-to-stereo cord

1. Rubber foots (16 EA)

1. Control Amplifier

1. Super Woofer

1. Satellite Speaker

HOW TO MOUNT THE RUBBER FOOTS

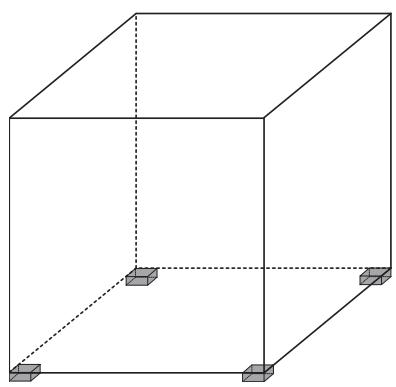

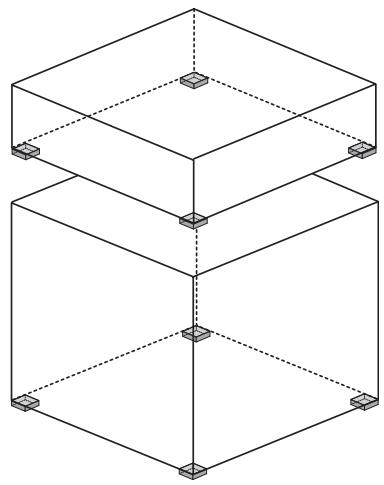

Please mount the rubber foots at the components of the system (control amplifier and super woofer) according to the kind of placement chosen by you and according to the presentation in the following picture.

LOCATION OF PARTS AND THE CONTROLS OF THE AMPLIFIER

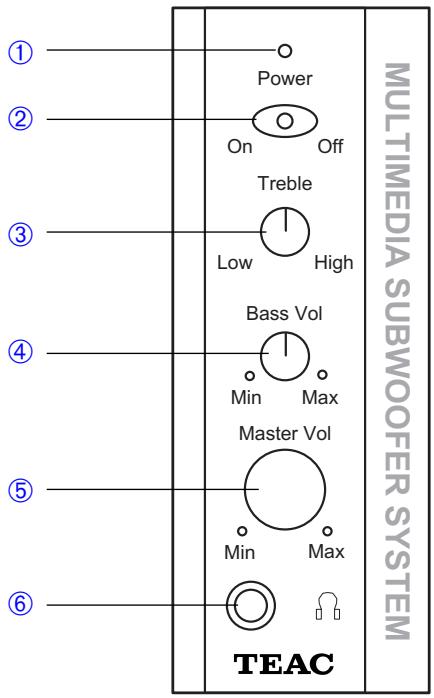

Front Side

1. Power indicator

After pushing the power button this lamp will be lit.

2. Power On/Off

3. Treble

This control is used to adjust the tone of the satellite speakers.

4. Bass

This control is used to adjust the sound of the super woofer.

5. Master Volume

This control allows to adjust theloudness of the super woofer andthe satellite speakers together .

6. Headphone Jack

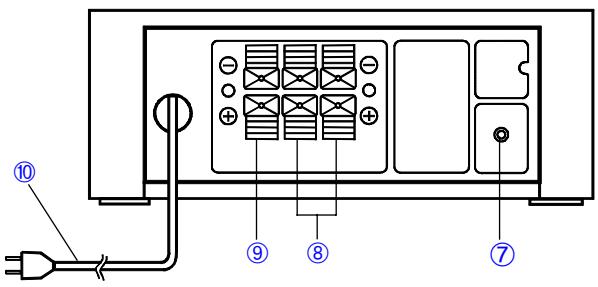

Rear Side

1. Stereo input (3.5mm stereo jack)
2. Satellite Speaker Terminal Be sure to connect the satellite speaker to both channels (left/right) if they are used.
3. SuperWoofer Speaker Terminal

This terminal is used to connect the super woofer if the super woofer speaker is used.

1. AC Power Cord

Plug the power cord into a standard AC wall outlet.

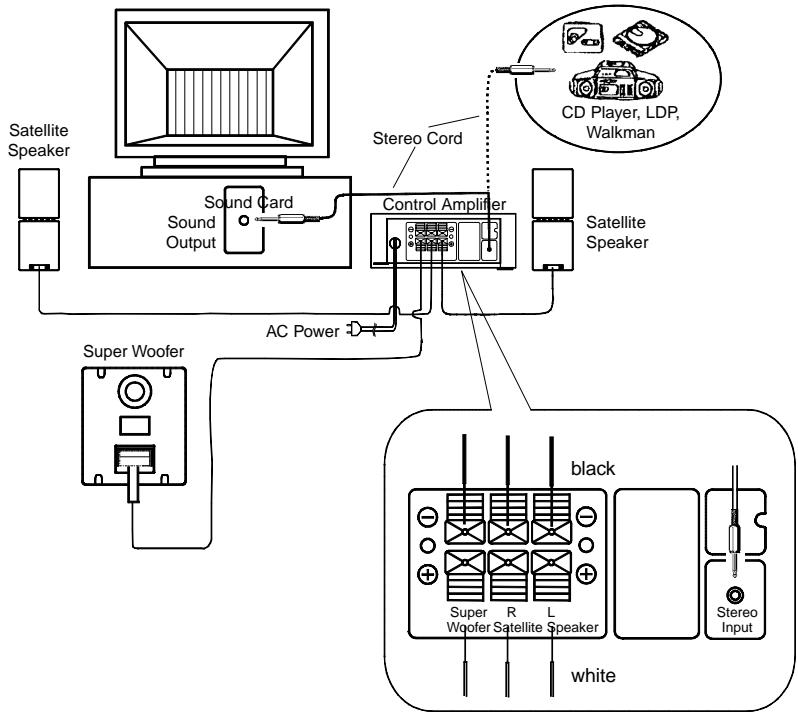

SYSTEM CONNECTION

1. Please connect the input to the sound card of your computer, your CD player, LDP, walkman etc.

2. Connect the super woofer to the terminal "Super Woofer" of the control amplifier.

3. Connect the left satellite speaker to the terminal "Satellite Speaker L" and the right satellite speaker to the terminal "Satellite Speaker R" of the control amplifier.

TECHNICAL SPECIFICATION

Type	3-Way-Subwoofer-System Satellite speakers: 2-Way-Subwoofer
Chassis	Satellites: 5.1cm woofer; 1.8cm tweeter Subwoofer: 10.5cm woofer magnetic shielded type
PMPO	Satellites: 2 x 75 watts Subwoofer: 350 watts
RMS	Satellites: 2 x 5.0 watts Subwoofer: 12.5 watts
Distortion	< 10%
Frequency response	Satellites: 150Hz - 18kHz Subwoofer: 40Hz - 150Hz
Amplifier	External unit (included in standard package)
Volume adjustable	Yes
Tone control	Treble/Bass
Power indicator	Yes
Headphone jack	Yes
Input	Stereo Jack
Accessory	Stereo-to-Stereo cord, rubber foots
Operation voltage	230VAC
Dimensions in cm (WxHxD)	Satellites (2x): 6.5 x 16.2 x 8.7 Subwoofer: 16.2 x 18.5 x 22.5 Amplifier: 6.1 x 16.2 x 22.5
Weight	Satellites (2x): 0.32kg Subwoofer: 1.42kg Amplifier: 1.60kg
