1100 XP SOHO - Inverter INFOSEC - Free user manual and instructions

Product Type	Line Interactive UPS
Brand	INFOSEC
Model	1100 XP SOHO
Power	1000 VA / 500 W (power factor 0.5)
Dimensions (L x D x H)	100 x 330 x 140 mm
Weight	6.5 kg
Input Voltage	110-120 V or 220-240 V (auto-detection 50/60 Hz)
Output Voltage	110-120 V or 220-240 V ±10% (battery mode)
Waveform	Pseudo sine wave
Typical Backup Time	25 minutes (depending on load)
Recharge Time	8 hours to 90% after full discharge
Battery	12V / 9 Ah, 1 piece, replaceable by qualified technician
Output Outlets	3 UPS outlets IEC + 2 protected RJ11 outlets (phone/fax/modem)
Protection	AVR (automatic voltage regulation), surge protection, overload and overvoltage protection, cold start, automatic restart
Noise Level	< 40 dB at 1 m
Operating Temperature	0°C to 40°C
Humidity	0% to 90% non-condensing
Maintenance	Clean with a slightly damp cloth after unplugging. Recharge the battery every 3 months if not in use.
Safety	Do not disassemble, do not connect a laser printer, do not expose to moisture or liquids. Dangerous voltages inside.
Spare parts / repairability	User-replaceable fuse. Battery replaceable only by qualified technician.
Standards	CE, ISO 9001

Frequently Asked Questions - 1100 XP SOHO INFOSEC

What does the flashing green light mean?

The flashing green light indicates that the UPS is running in battery mode (no mains power or voltage out of range). An audible alarm also sounds every 10 seconds.

How to start the UPS without mains power?

Use the cold start function: press the on/off button even without mains power. The battery must be sufficiently charged.

Can I plug a laser printer into the UPS?

No, laser printers consume too much power and can damage the UPS. Use a surge-protected non-UPS outlet if available.

How to replace the UPS fuse?

Unplug the UPS, open the fuse compartment (see manual), remove the blown fuse and replace it with a fuse of the same type. A spare fuse is provided.

What to do if the audible alarm sounds every half second?

This indicates an overload. Check that the total connected load does not exceed the UPS capacity. Disconnect non-essential equipment.

How long does it take to recharge the battery?

About 8 hours to reach 90% charge after a full discharge. Plug the UPS into mains power.

How to protect the telephone line?

Connect the incoming line to the RJ11 'IN' port and your modem/fax to the 'OUT' port using the provided cable. Do not use during thunderstorms.

The UPS does not turn on, what to check?

Check that the switch is pressed, the power cord is plugged into an active mains outlet, the fuse has not blown, and the battery is connected and charged.

What is the battery lifespan?

The battery typically lasts 3 to 5 years depending on usage and temperature. Frequent deep discharges reduce this lifespan.

Can I use the UPS with an input voltage of 110 V in France (230 V)?

The UPS automatically accepts the ranges 110-120 V or 220-240 V. Check the rating plate to ensure the mains voltage is compatible.

USER MANUAL 1100 XP SOHO INFOSEC

To ensure this product is correctly installed and used in the right way, we highly advise you to read this user guide very carefully.

1. INTRODUCTION

This UPS range is specially designed for multimedia Personal Computers. Its light weight and compact design suit limited working environments. The XP range of UPS is equipped with boost and buck AVR to stabilize input voltage. It also has a built-in DC start function. This function enables the UPS to be started up without an AC power supply. The main features of XP UPS are listed below.

2. MAIN CHARACTERISTICS

• Microprocessor control guarantees high reliability
• Equipped with boost and buck AVR
• Green Power Function for energy saving
  DC Start Function
• Auto restart during AC recovery
• Compact size, lightweight
• Provides modem / phone line surge protection

3. SAFETY INSTRUCTIONS - Security

The UPS unit uses potentially hazardous voltages. Do not take this equipment apart. It does not contain accessible components that can be repaired by users.
All repairs should be performed by qualified technicians only.
The UPS has its own internal power supply (battery). There is a risk that output sockets may still be live after the UPS has been disconnected from the mains power supply.
The UPS has been designed for power computers. It should not be used with power electronic equipment with inductive loads such as motors or fluorescent lights.
Do not connect any non-computer units to the UPS, such as medical equipment for artificial life handling, microwave, vacuum cleaner, etc.
Laser printers should not be connected to the UPS as they consume too much power.
Make sure that the power supply required does not exceed the capacity of the UPS. We recommend using an optimum power load equivalent to half or one third of the nominal power for longer backup time and battery life.
Do not leave any container with liquid on the UPS or close to it.
Unplug the UPS before proceeding to cleaning it. Do not directly apply any liquid detergent or sprays.
The UPS should not be used in a damp place, nor exposed to direct sunlight or heat-emitting sources. Do not cover the ventilation slots.
In case of emergency, switch the UPS to the "OFF" position and then unplug the power cord from the power socket to disable the UPS completely.
Should the UPS fail to operate correctly, please refer to section 10: Trouble Shooting.

4. STORAGE INSTRUCTIONS

The UPS should be stored with its battery fully recharged. Storage temperatures above 20^ should be avoided as this will significantly shorten battery life. The UPS should be recharged once every 3 months. This is done by leaving it connected to the mains power supply for 24 hours. Batteries kept in storage should be recharged every 3 months, failure to do so could result in battery damage.

5. AFTER SALES SERVICE

IMPORTANT!

When calling the After-Sales Department, please have the following information ready, it will be required regardless of the problem: UPS model, serial number and date of purchase.

Accurate description of the problem providing the following details: type of equipment powered by the UPS, indicator led status, alarm status, installation and environmental conditions.

You will find the technical information you require on your guarantee or on the identification plate on the back of the unit. If convenient you may enter the details in the following box.

Model	Serial number	Date of purchase
... XP SoHo

! Please keep the original packaging. It will be required in the event the USP is returned to the After-Sales Department.

IMPORTANT :

UPS are part of electronic and electric equipments category. At the end of their lives, they have to be collected separately.

6.DESCRIPTION

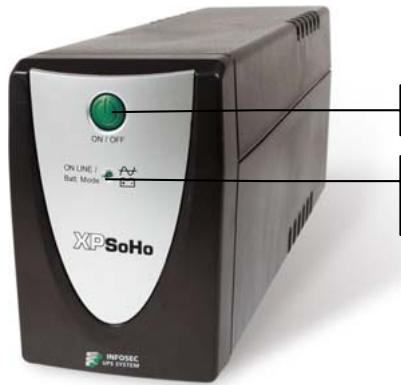

FRONT PANEL

On/Off switch

Lighting green led : AC mode

Flashing green led : Battery mode

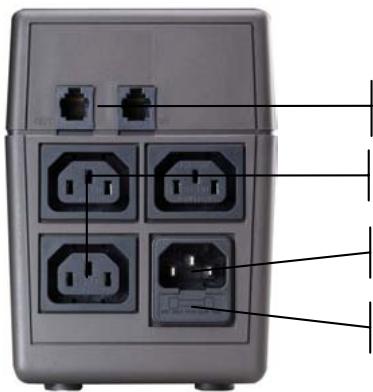

BACK PANEL

RJ11 Telephone/Fax/Internet protected outlets

3 UPS protected outlets

Input outlet

Fuse

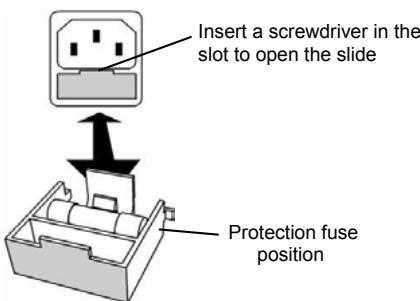

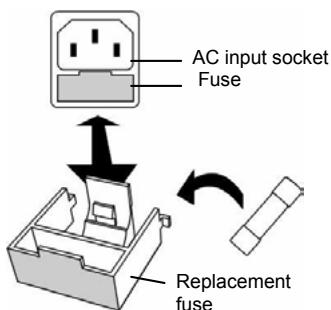

FUSE REPLACEMENT

1. Checking

When you receive your equipment, open the packaging and check that your UPS has not been damaged. The packaging includes:

a UPS unit, 2 IEC output cables and a user guide. In the event of damage, please submit a standard claim to the after-sales service department.

2. Charging the batteries

This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged-in, with no load, for at least 8 hours.

3. Where to set up

The UPS has been designed to operate in a protected environment, at temperatures between 0^ and 40^ and at a humidity level ranging between 0% and 90% (no condensation).

Do not obstruct the ventilation slots. Install the unit in an environment which is free from dust, chemical vapours and conductors.

Moreover, in order to avoid any interference, keep the UPS at least 20cm away from the CPU (central processing unit).

4. Connection

Check on the identification plate at the back of the UPS that the power supply is compatible with network voltage and that the device is powerful enough to protect the given power load. Plug the UPS into a 2-pole, earthed outlet (use the original power cable of your computer or it is recommended to use a power cable 2P + E/CEE22/10A ). Then, use the 2 IEC cables to connect one computer-related device to each of the power outlets supplied on the back of the UPS. You can also connect a device that does not require backup time, such as a printer, to the surge protected and filtered outlet.

5. On/Off

To turn the UPS unit on, lightly press the power switch. To turn it off, press the power switch again.

6. DC Start

XP units are equipped with an integrated DC start function. To start the UPS in the absence of a power supply and with a full battery, press the button.

7. Power Saving Function

XP range is equipped with a Power Saving Function. If no load connects to the UPS, it will automatically shut down after 5 minutes to save energy during a power failure. The Power switch must be kept in the 'ON' position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure.

8. PROTECTION TELEPHONE/FAX/MODEM LINE

If you wish to protect a fax or a modem, connect the telephone cable from the wall outlet to the "IN" jack. Connect the telephone cable (provided) from the "OUT" jack to the fax or modem.

Caution: The telephone line lightning arrester could be rendered inoperable if improperly installed. This surge protection device is for indoor use only. Never install telephone wiring during a lightning storm.

Note: This connection is optional. It is not necessary to use this UPS.

9. BATTERY

The battery is the only UPS component which is not in permanent use. It has a useful life of approximately 3 to 5 years. However, frequent major discharges or exposure to temperatures over 20^ will shorten its life span. We therefore recommend that users recharge the battery once every 3 months when the unit is not in use in order to compensate for natural discharging. UPS backup time will depend on the powered load, as well as the age and condition of the batteries.

WARNING!

Batteries should always be replaced by qualified technicians. Batteries have a very high short circuit current: connection errors could cause electric arcs resulting in serious burns.

10. TROUBLE SHOOTING

Should the UPS fail to function correctly we recommend you perform the following tests before calling the Hot Line.

Check list:

Is the main switch in the "ON" position?
Is the UPS plugged into the mains power supply?
- Does the power supply fall within specified unit values?
- Has the fuse gone in the mains plug?
Is the UPS overloaded?
Is the battery flat or defective?

SYMPTOM	POSSIBLE CAUSE	SOLUTIONS
No LED display on the front panel.	1. Battery missing.	1. Charge battery up to 8 hours.
	2. Faulty battery.	2. Replace with the same type of battery.
	3. Power switch was not pressed for at least 5 seconds.	3. Press and Hold power switch for at least 5 seconds.
Alarm buzzer beeps every 1/2 second when AC supply is normal.	1. UPS overload.	1. Verify that the load matches the UPS capability stipulated in the specifications.
In the event of power failure, reduced backup time.	1. UPS overload or the connected equipment is defective.	1. Remove some non-critical load.
	2. Flat battery.	2. Recharge the battery by plugging the UPS in for 24 hours.
	3. Battery defect due to high temperature operation environment, or improper operation to battery.	3. Replace with the same type of battery.
Mains normal but LED is flashing and beeping.	1. Blown fuse.	1. Replace the same type of fuse.
	2. Power cord is loose.	2. Reconnect the power cord properly.
	3. No mains power supply or UPS is not on.	3. Check the power supply

11. TECHNICAL SPECIFICATIONS

		650 XP SoHo	1100 XP SoHo
TECHNOLOGY	Technology	Line Interactive with Auto Voltage Regulation
	Output form	Modified sine wave
	Protection	Discharge / Overcharge and overload protection + fax modem line
	Power	650 VA	1000 VA
	Power factor	0,55	0,5
PHYSICAL	Dimensions W x D x H	100 X 330 X 140 (mm)
	Weight kg	6	6,5
	Output connectors	3 UPS protected outlets2 surge protected RJ11
INPUT	Voltage	[110-120 V] or [220 - 230 - 240 V]
	Voltage range	[81 - 145 V] [162 - 290 V]
	Frequency	50 - 60 Hz auto detection
OUTPUT	Voltage	[110-120 V] or [220 - 230 - 240 V]
	Regulation	+10 % (battery mode)
	Frequency	50 or 60 Hz
BATTERY	Type	12V/7AH x 1pc	12V/9AH x 1pc
	Backup time(depending on the load)	20 mins	25 mins
	Recharge time	8 hours to 90 % after complete discharge
FILTER	Spike protection	125 Joules
ENVIRONMENT	Noise level	< 40 dB at 1 meter
	Operating environment	0°C - 40°C, 0 to 90 % humidity rate(non condensing)
INDICATOR	AC Mode	Green led lighting
	Backup Mode	Green led flashing
AUDIBLE ARLARM	AC Mode	Sounding every 10 seconds
	Battery replacement	Sounding every 2 seconds
	Low battery	Sounding every second until automatic stop
	Overload or defect	Every 1/2 second
	Fault	Continuously sounding
STANDARDS	Security / Standard	CE - ISO 9001
