WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the MultiSync LCD2090UXiTM (L205GR)/MultiSync LCD2190UXiTM (L215GV) color monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI-A cable, DVI-D to DVI-D cable, or D-SUB to D-SUB cable. Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Your new NEC MultiSync® LCD monitor box* should contain the following:

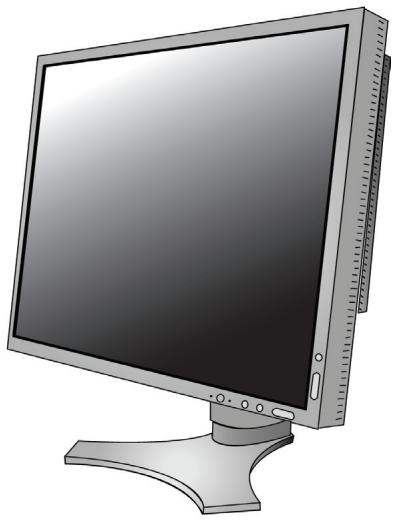

• MultiSync LCD2090UXi™ or LCD2190UXi™ monitor LCD with tilt/swivel/pivot/adjustable stand
  Power Cord
  Video Signal Cable (15-pin mini D-SUB male to DVI-A)
  Video Signal Cable (DVI-D to DVI-D cable)
  Video Signal Cable(mini D-SUB 15 pin to mini D-SUB 15 pin)
• User's Manual
• Cable cover
• Screws (4) (for mounting the monitor to a flexible arm - see page 8)

DVI-D to DVI-D cable

Power Cord
Mini D-SUB cable

Cable Cover
Screws (4)

• Remember to save your original box and packing material to transport or ship the monitor.

To attach the MultiSync® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

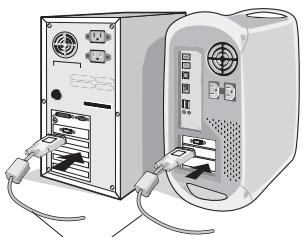

2. For use with the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.

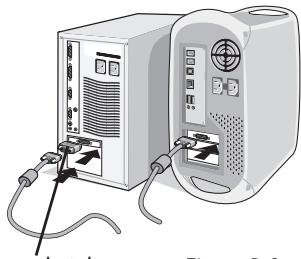

For a PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

Figure A.1

Figure A.2

Macintosh Adapter (not included)
Figure B.1

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

NOTE: To obtain the MultiSync Macintosh cable adapter call NEC Display Solutions of America, Inc. [phone].

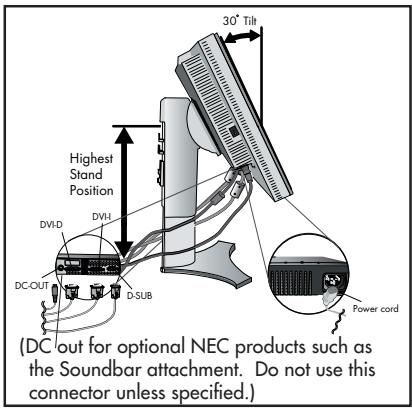

1. Place hands on each side of the monitor. Tilt the LCD panel backwards to a 30-degree angle and lift up to the highest position. Connect all cables to appropriate connectors (Figure 4).

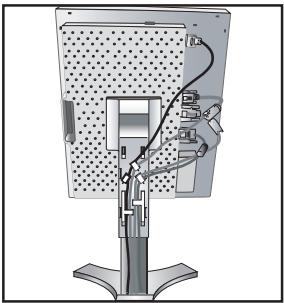

2. To keep the cables neatly organized, place them into the cable management system that is built into the stand.

Place the D-Sub cable and the power cable into the specific hooks as indicated. (Figure 5).

Place the DVI cable and the 15-pin mini D-Sub to DVI-A cable into the hooks as indicated (Figure 6).

When using the monitor in Portrait mode, place the DVI cable and the 15-pin mini D-Sub to DVI-A cable into the hooks as indicated (Figure 7).

1. Cables should rest flat against the stand.

Figure 4

Figure 5

Figure 6

Make sure to leave enough slack in the cables so that the Tilt and the Raise and Lower functions of the monitor are not impeded.

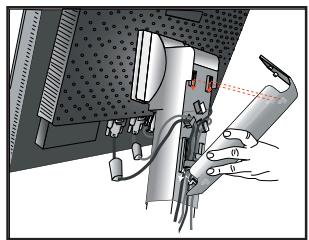

1. Hold all of the cables firmly and place the cable cover onto the stand (Figure 8).
2. Slide the Cable Cover back into its correct position (Figure 9). Connect the power cord to power outlet.

NOTE: Please refer to the Recommended Use section of this manual for proper selection of power cord.

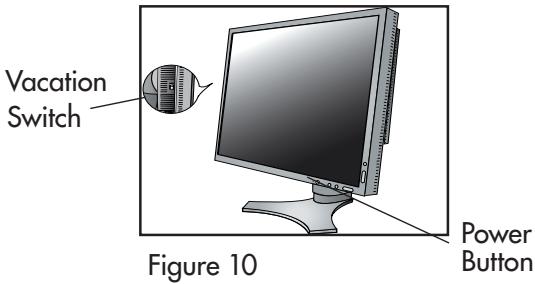

1. The vacation switch on the left side of the monitor must be in the ON position for the monitor to function (Figure 10).

Turn on the monitor using the front power button, then turn on the computer.

NOTE: The Vacation Switch is a true on/off switch. If this switch is in the OFF position, the monitor cannot be turned on using the front button.

DO NOT turn the vacation switch ON/OFF repeatedly.

1. For Analog input only: Upon initial setup, the No-Touch Auto Adjust feature automatically adjusts the monitor to the optimal settings that are needed for most signal timings.

For further adjustments, refer to the Controls section of this User's Manual for a full description of the OSM controls.

For download information on the Windows® 95/98/Me/2000/XP INF file for your monitor, visit www.necdisplay.com/support.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

Figure 7

Figure 8

Figure 9

NOTE: The Vacation Switch is a true on/off switch. If this switch is in the OFF position, the monitor cannot be turned on using the front button.

Raising and Lowering Monitor Screen

The monitor screen may be raised or lowered while in either Portrait or Landscape mode. To raise or lower the screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid accidentally damaging the screen and to avoid pinching fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).

Note: To toggle the orientation of the OSM menu between Landscape and Portrait modes, refer to the "Controls" section of this user's manual.

Figure R.1

Tilt

Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

Figure TS.1

Swivel

Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).

Figure TS.2

NOTE: Handle with care when tilting and swiveling the monitor screen.

Remove Stand for Mounting

The stand can be removed in order to mount the monitor using an alternate, VESA approved, mounting method.

1. Disconnect all cables.
2. Place hands on each side and raise the monitor up to the highest position (see Raising and Lowering Monitor Screen page 5).

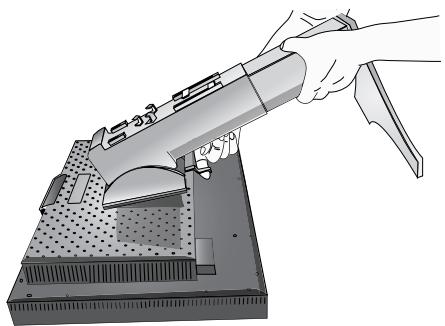

3. Place monitor face down on a nonabrasive surface (Figure S.1).

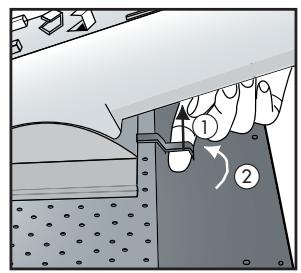

4. Place one hand around the base and one hand on the Quick Release Lever. Move the Quick Release Lever in the direction indicated by the arrows (Figure S.2).
5. Lift up the bottom of the stand to unhook it from the monitor (Figure S.3). The monitor can now be mounted using and alternate method.

Reverse the process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. (100mm pitch)

NOTE: Handle with care when removing monitor stand.

(Figure S.1)

(Figure S.2)

1. Pull lever towards stand.
2. Slide lever to the right.

(Figure S.3)

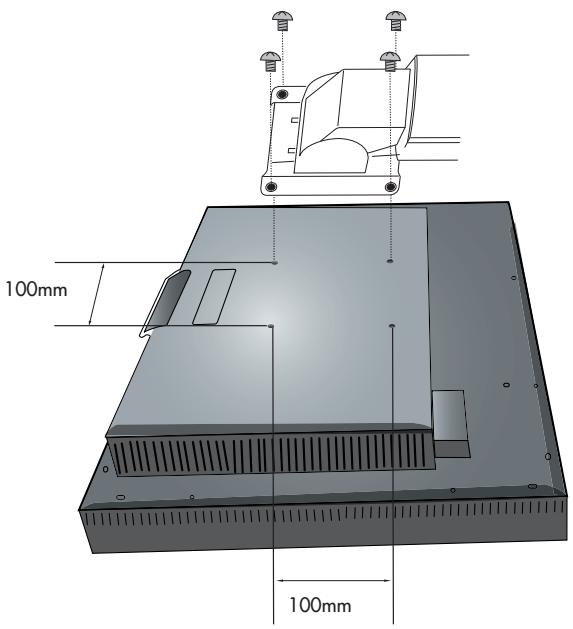

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm.

To mount the monitor to a flexible arm:

1. Remove the stand (see Remove Monitor Stand for Mounting page 7).
2. Use the 4 screws that are included to attach the arm to the monitor (Figure F.1).

(Figure F.1)

CAUTION: Use ONLY the 4 screws that are included when mounting to avoid damaging the monitor and the stand or arm. For safety requirements, the monitor must be mounted to an arm which guarantees the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

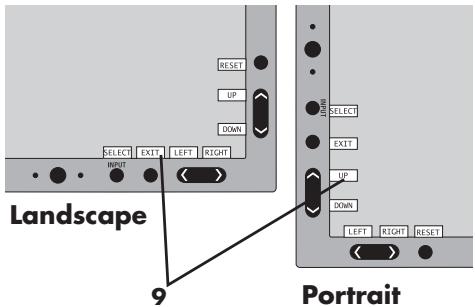

OSM® (On-Screen Manager) control buttons, located on the front of the monitor, function as follows:

To access OSM menu, press any of the following control buttons: EXIT, LEFT, RIGHT, UP, or DOWN.

To change the input source signal when the OSM is closed, press the SELECT button.

1 AMBIBRIGHT SENSOR	Detects the level of ambient lighting allowing the monitor to make adjustments to various settings resulting in a more comfortable viewing experience. Do not cover this sensor.
2 POWER	Turns the monitor on and off.
3 LED	Indicates that the power is on. Can be changed between blue and green in the Advanced OSM Control menu.
4 INPUT/SELECT	Enters the OSM Control menu. Enters OSM sub menus. Changes the input source when not in the OSM Control menu.
5 EXIT	Exits the OSM sub menu. Exits OSM Control menu.
6 LEFT/RIGHT	Navigates to the left or right through the OSM Control menu.
7 UP/DOWN	Navigates up or down through the OSM Control menu.
8 RESET/ROTATE OSM	Reset the OSM back to factory settings. Pressing when the OSM is not showing rotates the OSM Control menu between portrait and landscape mode.* See page 24 Tag9 OSM ROTATION.
9 KEY GUIDE	The Key Guide appears on screen when the OSM control menu is accessed. The Key Guide will rotate when the OSM control menu is rotated.

*The "LEFT/RIGHT" and "UP/DOWN" buttons functionality is interchangeable depending on the orientation (landscape/portrait) of the OSM.

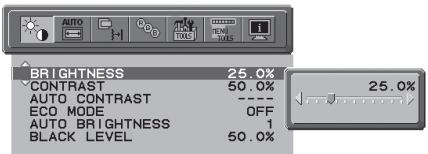

Brightness/Contrast Controls

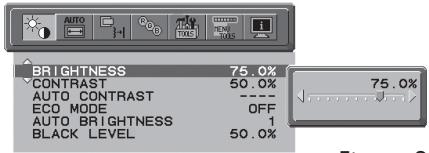

BRIGHTNESS: Adjusts the overall image and background screen brightness.

CONTRAST: Adjusts the image brightness in relation to the background.

AUTO CONTRAST (Analog input only): Adjusts the image displayed for non-standard video inputs.

ECO MODE: Decreases the amount of power consumed by reducing the brightness level.

1: Decreases the brightness by 25% .
2: Decreases the brightness by 50% .

CUSTOM: Decreases the brightness level as determined by the user. Refer to the Advanced OSM menu for custom setting instructions.

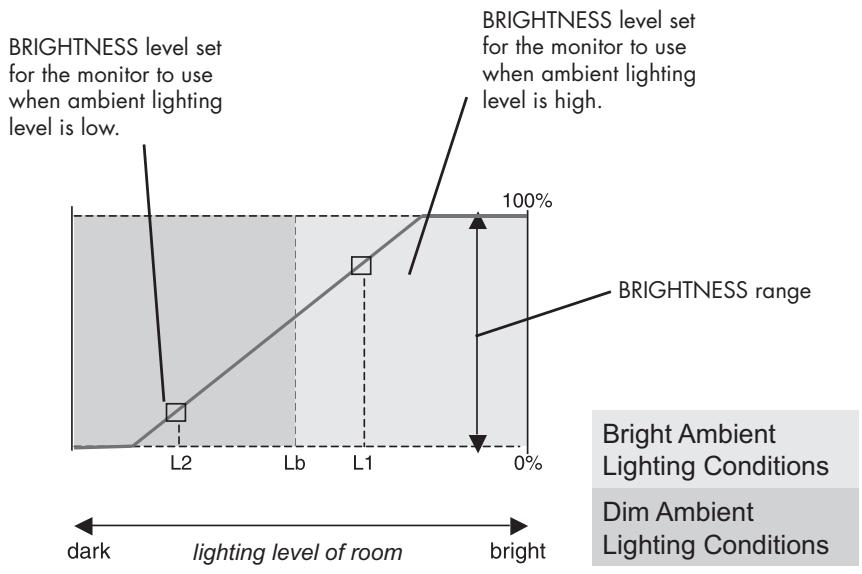

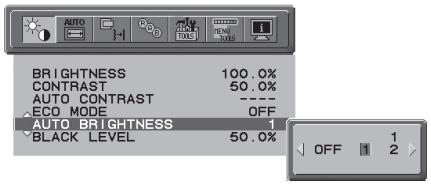

AUTO BRIGHTNESS: There are three settings for Auto Brightness.

OFF: Auto Brightness does not function.

1: Adjusts the brightness automatically by detecting the brightness level of your environment and adjusting the monitor accordingly with the best BRIGHTNESS setting (see page 36 for AmbiBright™ explanation), making the viewing experience more comfortable.
2: Adjusts the BRIGHTNESS level of the monitor to the best setting based on the amount of white being displayed on the monitor. This function does not utilize the AmbiBright sensor.

NOTE: Do not cover the AmbiBright sensor.

BLACK LEVEL: Adjusts the black level.

Auto Adjust (Analog input only)

AUTO ADJUST: Automatically adjusts the Image Position, H. Size, and Fine settings.

Image Controls

LEFT / RIGHT: Controls Horizontal Image Position within the LCD's display area.

DOWN / UP: Controls Vertical Image Position within the LCD's display area.

H.SIZE (V.SIZE) (Analog input only): Increases or decreases the horizontal (or vertical) size.

If the "Auto Adjust function" does not provide a satisfactory picture, further tuning can be performed manually using the "H. Size (or V. Size)" function (dot clock).

To manually adjust the monitor, a Moiré test pattern should be used.

This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen.

If the H. Size (or V. Size) is set incorrectly, the screen would show vertical banding, like the drawing on the left. The image should be clear.

FINE (Analog input only): If the "Auto Adjust" and the "H.Size" functions do not provide a satisfactory picture, further tuning can be performed using the "Fine" function. Adjusting this setting improves focus, clarity and image stability.

For Fine adjustment, a Moiré test pattern should be used. If the Fine setting is incorrect, the screen would show horizontal banding like the drawing on the left. The image should be clear.

AUTO FINE (Analog input only): Automatically adjusts the FINE settings.

When the AUTO FINE control is ON adjustment occurs approximately every 33 minutes or when a change in signal timing is detected.

EXPANSION: Selects the zoom mode.

FULL: The image is expanded to 1600 × 1200 , regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM: Refer to the ADVANCED OSM Controls section of this user's manual for detailed instructions.

AccuColor® Control Systems

ACCUCOLOR® CONTROL SYSTEM: Seven preset color settings.

For preset settings: 1, 2, 3, and 5, the following levels can be adjusted:

TEMPERATURE: Adjust the white temperature by increasing or decreasing this setting. A lower color temperature will make the screen reddish and a higher color temperature will make the screen bluish.

WHITE (White Balance): If TEMPERATURE needs further adjustment, the individual R/ G/ B/ levels of the white point can be adjusted. To adjust the R/G/B levels, CUSTOM must be showing as the TEMPERATURE selection.

HUE: Adjusts the hue of each color ^+1 . The change in color will appear on screen and the menu color bars will show the amount of adjustment.

SATURATION: Adjusts the color depth of each color ^1 . Press the "RIGHT" button and the color vividness increases.

OFFSET: Adjusts the color brightness of each color ^1 . Press "RIGHT" button and the color Brightness increases.

*1: RED, YELLOW, GREEN, CYAN, BLUE, MAGENTA

The sRGB and NATIVE, color presets are standard and cannot be changed.

The PROGRAMMABLE setting can only be adjusted using color calibration software such as NEC's GammaComp or Spectraview II.

Tools

SHARPNESS: This function is digitally capable of keeping a crisp image within any resolution at any time. This setting can be set independently for different signal timings (resolution settings).

DVI SELECTION: This function selects the DVI input mode. If the DVI selection changes, you must restart the computer.

AUTO: When using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.
When using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

NOTE: When using a MAC with digital output: before turning on the MAC, the DVI Input mode on the monitor must be set to DIGITAL in the DVI SELECTION menu. To set the DVI SELECTION to "DIGITAL" press the SELECT button then CONTROL button when the DVI signal cable is connected to the DVI-I connector of the monitor. Otherwise the MAC may not turn on.

NOTE: Depending on the type of PC/Video card or the type of video signal cable used, the DVI SELECTION function may not operate.

VIDEO DETECT: Selects the method of video detection when more than one video input source is connected to the monitor.

FIRST: If "FIRST" is selected as the VIDEO DETECT option, the monitor displays the signal from the first input port. If there is no signal present at the first input port, then the monitor will search for a signal from the next input port.

If a new input signal is connected to another of the monitor's input ports while the monitor is in FIRST mode, the monitor DOES NOT automatically SWITCH to the new source.

LAST: If "LAST" is selected as the VIDEO DETECT option, then each time a new input source is detected, the monitor will automatically display the new signal.

NONE: The monitor will only search other input ports while the power is on.

OFF TIMER: Monitor will automatically power down after a user-determined length of time passes. Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSM button to delay the turn off time.

IPM: The Intelligent Power Manager allows the monitor to enter into a power saving mode after a period of inactivity. The IPM has three settings.

OFF: Monitor does not go into power save mode when the input signal is lost.

STANDARD: Monitor enters power save mode automatically when the input signal is lost.

OPTION: Monitor enters power save mode automatically when the amount of surrounding light goes below the level that is determined by the user. The level can be determined in Tag 7 of the Advanced OSM Control menu.

When in power save mode, the LED on the front of the monitor blinks amber. While in power save mode, push any of the front buttons, except for POWER and SELECT to return to normal operation. When the amount of surrounding light returns to normal levels, the monitor will automatically return to normal mode.

COLORCOMP: This function electronically compensates for the slight variations in the white uniformity level, as well as for deviations in color that may occur throughout the display area of the screen. These variations are characteristic of LCD panel technology. This function improves the color and evens out the luminance uniformity of the display.

NOTE: Using the COLORCOMP feature reduces the overall peak luminance of the display. If greater luminance is desired over the uniform performance of the display, then COLORCOMP should be turned off.

MENUE TOWULS

MENUTools

LANGUAGE: OSM control menus are available in eight languages.

You can choose the location where the OSM appears on your screen. The LEFT/RIGHT submenu moves the OSM horizontally.

OSM DOWN/UP: You can choose the location where the OSM appears on your screen. This DOWN/UP submenu moves the OSM vertically.

OSM TURN OFF: The OSM control menu will stay on as long as it is use.
You can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. Time can be set between 10-120 seconds, in 5 second increments.

OSM LOCK OUT: This control completely locks out access to some of or to all of the OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out.

There are four ways to use OSM LOCK OUT function:

1. OSM LOCK OUT with BRIGHTNESS and CONTRAST control: This mode locks all OSM functions except for BRIGHTNESS and CONTRAST.

To activate, press the SELECT and "Up" buttons simultaneously, while in the OSM menu.

To deactivate, press the SELECT and "Up" buttons simultaneously, while in the OSM menu

1. OSM LOCK OUT with no control: This mode prevents access to all OSM functions.

To activate, press the SELECT and "Right" buttons simultaneously.

To deactivate, press the SELECT and "Right" buttons simultaneously, while in the OSM menu.

1. OSM LOCK OUT with BRIGHTNESS (only) control: This mode locks all OSM functions except for BRIGHTNESS.

To activate, press the SELECT, "Left" and "Down" buttons simultaneously, while in the OSM menu.

To deactivate, press SELECT, then "Left" and "Down" buttons simultaneously while in the OSM menu.

1. CUSTOM: refer to the Advanced OSM Menu.

OSM TRANSPARENCY: Adjusts the transparency of the OSM Menu.

OSM COLOR: "Tag window frame color", "Item select color" and "Adjust window frame color" can be changed to Red, Green, Blue, or Gray.

RESOLUTION NOTIFIER: The Resolution Notifier warns the user if the input signal to the monitor is set at something other than the optimized resolution of 1600 × 1200 . If the monitor detects a signal that is not at the optimized resolution then, after 30 seconds, a warning message will appear on the screen. When the Resolution Notifier is ON, the warning will appear every 30 seconds. The Resolution Notifier can be turned OFF in the OSM. The factory default for the Resolution Notifier is ON.

HOT KEY: When this function is activated, the brightness and contrast of the monitor can be adjusted without entering the OSM menu. The "Left" or "Right" buttons adjust the brightness level. The "Down" or "Up" buttons adjust the contrast level.

FACTORY PRESET: Selecting the factory preset allows the user to reset most of the OSM control settings back to the factory settings.

Individual settings can be reset by highlighting the control that needs to be reset, and pressing the RESET button.

Information

Provides information about the current resolution being displayed by the monitor. Also provides technical information including which preset timing is being used as well as the horizontal and vertical frequencies.

OSM WARNING: OSM Warning menus alert the user when there are problems with the input signal. These warnings will disappear when the Exit button is pressed.

NO SIGNAL: This warning appears when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This warning appears when the monitor detects a resolution other than the optimized resolution. For the example, if the optimized resolution for the monitor is 1600 × 1200 and a signal using a resolution of 1280 × 1024 is detected, the "Resolution Notifier" warning will appear.

OUT OF RANGE: This warns if the input signal is out of the optimized resolution and refresh rate range that is used by monitor.

Note: It is possible to change the DVI SELECTION or to change the IPM settings while the "NO SIGNAL" or "OUT OF RANGE" messages are displayed.

Advanced OSM Controls

In addition to the standard On Screen Menu (OSM), the Advanced OSM Control menu allows the user to have much more control over regular OSM functions as well as access to functions not available in the standard OSM.

To use the advanced menu

• Turn off your monitor using the front "POWER" button.
• Turn on your monitor by pushing the "POWER" and "SELECT" button simultaneously for at least one second. Then press one of the following front OSM buttons: EXIT, LEFT, RIGHT, UP, or DOWN.
• You will see the Advanced OSM Control menu. This menu is larger than the standard OSM and has numbered tags instead of icons.
• To exit the Advanced OSM, turn off and restart your monitor in the normal way.

To adjust the setting, use the buttons on the front panel to highlight the desired tag and press "SELECT". Use the buttons to make the adjustment. Once the setting is at the desired level press "SELECT" and then "EXIT" to go back to the previous menu.

Tag 1	Brightness	Adjusts the overall image and background screen brightness.
	Contrast	Adjusts the image brightness and contrast in relation to the background.
	Auto Contrast (Analog input only)	Adjusts the image displayed for non-standard video inputs.
	Auto Black Level (Analog input only)	Adjusts the black level for non-standard video inputs.
	ECO Mode	Decreases the amount of power consumed by reducing the brightness level. 1: Decreases the brightness by 25%. 2: Decreases the brightness by 50%. CUSTOM: Decreases the brightness level as determined by the user.
	ECO Mode Custom	Allows the user to set a preferred brightness level when ECO Mode is in use.
	Auto Brightness	AUTO BRIGHTNESS has three settings. OFF: Auto Brightness does not function. 1: Adjusts the brightness automatically by detecting the brightness level of your environment and adjusting the monitor accordingly with the best BRIGHTNESS setting (see page 36 for AmbiBright™ explanation), making the viewing experience more comfortable. 2: Adjusts the BRIGHTNESS level of the monitor to the best setting based on the amount of white being displayed on the monitor. This function does not utilize the Ambibright sensor. NOTE: Do not cover AmbiBright sensor.
	Black Level	Adjusts the black level.

Tag 2	R-H. POSITION (Analog input only)	Adjusts the position of the RED component of the image. Press "Left" or "Right" to adjust.
	G-H. POSITION (Analog input only)	Adjusts the position of the GREEN component of the image. Press "Left" or "Right" to adjust.
	B-H. POSITION (Analog input only)	Adjusts the position of the BLUE component of the image. Press "Left" or "Right" to adjust.
	R-FINE (Analog input only)	Adjusts the "FINE" setting of the RED component of the image. Press "Left" or "Right" to adjust.
	G-FINE (Analog input only)	Adjusts the "FINE" setting of the GREEN component of the image. Press "Left" or "Right" to adjust.
	B-FINE (Analog input only)	Adjusts the "FINE" setting of the BLUE component of the image. Press "Left" or "Right" to adjust.
	R-SHARPNESS (Analog input only)	Adjusts the "SHARPNESS" setting of the RED component of the image. Press "Left" or "Right" to adjust.
	G-SHARPNESS (Analog input only)	Adjusts the "SHARPNESS" setting of the GREEN component of the image. Press "Left" or "Right" to adjust.
	B-SHARPNESS (Analog input only)	Adjusts the "SHARPNESS" setting of the BLUE component of the image. Press "Left" or "Right" to adjust.
	DVI LONG CABLE (Digital input only)	Compensates for image degradation caused by using a long DVI cable. There are 4 possible settings, with "0" being the lowest level of compensation and "3" being the highest level. The default setting is "1".
Tag 3	AUTO ADJUST (Analog input only)	Automatically adjusts the Image Position, H. Size, and Fine settings.
	SIGNAL ADJUST (Analog input only)	Determines what settings are adjusted when Auto Adjust is performed. The choices are "SIMPLE" and "FULL". Press "Left" or "Right" to select.
			H-size, Fine, H/V Position	Contrast
		SIMPLE	○	X
		FULL	○	○
		O: Automatic Adjustment X: No Automatic Adjustment NOTE: Automatic Adjustment does not work at resolutions less than 800 x 600 resolution.

Tag 3	AUTO ADJUST LEVEL (Analog input only)	Determines which items are to be adjusted when the AUTO ADJUST function is activated. The choices are “SIMPLE” “FULL”, and “DETAIL”. Press “Left” or “Right” to select.
			Size, Fine, Position	Contrast	Black Level, Long Cable capability**	Time
		SIMPLE	○	X	X	1 Sec.
		FULL	○	○	X	1.5 Sec.
		DETAIL*	○	○	○	5 Sec.
		○: Automatic Adjustment X: No Automatic Adjustment *“DETAIL” activates automatic long cable (skew, peaking) adjustment. ** Black level, RGB sharpness, RGB delay and RGB position can be adjusted using the Long Cable Software. To download the software, please visit www.necdisplay.com.
	A-NTAA SW (Analog input only)	The Advanced No Touch Auto Adjust function is able to recog- nize new signals even when neither the resolution nor the refresh rate has changed. If several PCs are connected to the monitor, and each transmit very similar (or even the same) signals in terms of resolution and refresh rates, the monitor recognizes that there is a new signal and automatically optimizes the picture without the need for any action on the part of the user. OFF: A-NTAA is disabled. ON: If a change in signal is detected A-NTAA will adjust the monitor to the optimal settings for the new signal. If no change in the signal is detected then A-NTAA does not activate. The screen will be blank while the monitor optimizes the signal. OPTION: Functions the same as ON, except that the screen does not go blank when the monitor makes adjustments for changes in signal, allowing the monitor to display the new signal faster. When using an external switching device to connect 2 or more PCs to the monitor, using either the ON or OPTION setting is suitable.

Tag 4	H. POSITION	Sets Horizontal Image Position within the display area of the LCD. Press "Left" or "Right" to adjust.
	V. POSITION	Sets Vertical Image Position within the display area of the LCD. Press "Left" or "Right" to adjust.
	H. SIZE(Analog input only)	Increases or decreases the horizontal (or vertical) size.If the "Auto Adjust function" does not give a satisfactory picture, further tuning can be performed manually using the "H. Size (or V. Size)" function (dot clock).To manually adjust the monitor, a Moiré test pattern should be used.This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen.(see page 11).
	FINE(Analog input only)	If the "Auto Adjust" and the "H.Size" functions do not give a satisfactory picture, further tuning can be performed using the "Fine" function. Increasing or decreasing this setting improves focus, clarity and image stability.(see page 11)
	AUTO FINE(Analog input only)	This function automatically and periodically adjusts the "FINE" setting for when there is a change in the input signal.Adjustment occurs approximately every 33 minutes or when a change in signal timing is detected.
	H. RESOLUTION	Adjusts the Horizontal resolution.Press "Left" or "Right" to adjust.
	V. RESOLUTION	Adjusts the Vertical resolution.Press "Left" or "Right" to adjust.
	EXPANSION	Selects the zoom mode.FULL: The image expands to 1600 x 1200, regardless of the resolution.ASPECT: The image expands without changing the aspect ratio.OFF: The image is not expanded.CUSTOM: When CUSTOM is selected as the Expansion mode, it becomes possible to adjust the H. ZOOM., V. ZOOM, and ZOOM POS.
	H.ZOOMAvailable in CustomExpansion mode only	The image is expanded from 1 to 3 times in the horizontal(H. EXPANSION) direction by 0.01 increments.
	V.ZOOMAvailable in CustomExpansion mode only	The image is expanded from 1 to 3 times in the vertical(V. EXPANSION) direction by 0.01 increments.
	ZOOM POS.Available in CustomExpansion mode only	Sets the point from which the screen will be expanded when either H.ZOOM or V.ZOOM is selected as the expansion method. Options are CENTER and LEFT TOP.CENTER: H.ZOOM expands the image from the center out-ward to the sides of the screen. V.ZOOM expands the image from the center towards the top and bottom of the screen.LEFTTOP: LEFTTOP indicates the set point for image expansion(LEFT in H.ZOOM, TOP in V. ZOOM). If the resolution does not fill out the screen, when expanding, the image will not expand past the TOP or the LEFT of the screen. Theimage can be expanded past the right and bottom edges of the screen.

Advanced OSM Controls - continued

Tag 5	GAMMA SELECTION	Allows you to manually select the grayscale tone curve. There are five possible selections:NO CORRECTION: No Correction possible.2.2: The exponential gamma curve value is fixed at 2.2 OPTIONS: There are two optional selections.1: This setting is recommended for Video input sources. Dark areas will look brighter and high bright areas will look darker.2: Curve based on the DICOM GSDF, for use with grayscale images.PROGRAMMABLE: A programmable gamma curve can be loaded using NEC software such as GammaComp, Gamma- CompMD and SpectraView II.CUSTOM: The following settings can be adjusted when CUSTOM is selected as the GAMMA SELECTION setting.Custom Value: Selectable Gamma ranging from 0.5 to 4.0 in 0.1 increments. Not adjustable in sRGB color preset.OFFSET: Digitally adjusts the black level after the signal is converted from analog to digital.
Tag 6	COLOR CONTROL	ACCUCOLOR® CONTROL SYSTEM: Seven preset color settings. For preset settings: 1, 2, 3, and 5, the following levels can be adjusted:TEMPERATURE: Adjust the white temperature by increasing or decreasing this setting. A lower color temperature will make the screen reddish and a higher color temperature will make the screen bluish.WHITE (White Balance): If TEMPERATURE needs further adjust- ment, the individual R/ G/ B/ levels of the white point can be adjusted. To adjust the R/G/B levels, CUSTOM must be showing as the TEMPERATURE selection.HUE: Adjusts the hue of each color*1. The change in color will appear on screen and the menu color bars will show the amount of adjustment.SATURATION: Adjusts the color depth of each color*1. Press the "RIGHT" button and the color vividness increases.OFFSET: Adjusts the color brightness of each color*1. Press "RIGHT" button and the color Brightness increases.*1: RED, YELLOW, GREEN, CYAN, BLUE, MAGENTAThe sRGB and NATIVE color presets are standard and cannot be changed.The PROGRAMMABLE setting can only be adjusted using color calibration software such as NEC's GammaComp or Spectraview II.
Tag 7	SHARPNESS	This function is digitally capable of keeping an image crisp at any resolution at any time. This setting can be set independently for different signal timings (resolution settings).
	DVI SELECTION	This function selects the DVI input mode. If the DVI selection changes, you must restart your computer.AUTO: When using the DVI-D to DVI-D cable, the DVI SELECTION is DIGITAL.When using the D-SUB to DVI-A cable, the DVI SELECTION is ANALOG.DIGITAL: DVI digital input is available.ANALOG: DVI analog input is available.
	VIDEO DETECT	Selects the method of video detection when more than one video input is connected.FIRST: If “FIRST” is selected as the VIDEO DETECT option, the monitor displays the signal from the first input port. If there is no signal present at the first input port, then the monitor will search for a signal from the next input port.If a new input signal is connected to another of the monitor's input ports while the monitor is in FIRST mode, the monitor will not switch automatically to the new source.LAST: If “LAST” is selected as the VIDEO DETECT option, then each time a new input source is detected, the monitor automatically displays the new signal.NONE: The monitor will only search other input ports while the power is on.
	OFF TIMER	Monitor will automatically power off after a user-determined length of time passes. Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSM button to delay the turn off time.
	IPM(Intelligent Power Manager)	The Intelligent Power Manager allows the monitor to enter into a power saving mode after a period of inactivity. The IPM has three settings.OFF: Monitor does not go into power save mode when the input signal is lost.STANDARD: Monitor enters power save mode automatically when the input signal is lost.OPTION: Monitor enters power save mode automatically when the amount of surrounding light goes below the level that is determined by the user.
	IPM SETTING	Adjusts the luminance value for IPM.
	OVER DRIVE	Turns the OVER DRIVE function ON or OFF. Over Drive may reduce blurring that occurs in some moving images. When Over Drive is on, response time is improved.When the IMAGE ROTATION function is used, the OVER DRIVE function will be turned off automatically.
Tag 7 continued	SIDE BORDER COLOR	Adjusts the side black bars color between black and white. For wide aspect monitors.
	LED BRIGHTNESS	Controls the brightness of the LED on the front of the monitor.
	LED COLOR	The LED on the front can be blue or green.
	COLORCOMP	This function electronically compensates for the slight variations in the white uniformity level as well as for deviations slight differences in color that may occur throughout the display area of the screen. These variations are characteristic of LCD panel technology. This function improves the color and evens out the luminance uniformity of the display. NOTE: Using the COLORCOMP feature does reduce the overall peak luminance of the display. If greater luminance is desired over the uniform performance of the display, then COLORCOMP should be turned off.
	COLORCOMP LEVEL	Select the level for ColorComp adjustments.
Tag 8	LANGUAGE	OSM control menus are available in eight languages. Press "Left" or "Right" to select.
	OSM H POSITION	You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Position allows you to manually adjust the location of the OSM control menu left, or right.
	OSM V POSITION	You can choose where you would like the OSM control image to appear on your screen. Selecting OSM Position allows you to manually adjust the location of the OSM control menu up, or down.
	OSM TURN OFF	The OSM control menu will stay on as long as it is in use. You can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10-120 seconds by 5 seconds increments. Press "Left" or "Right" to select.
	OSM LOCK OUT	This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. There are four ways to use OSM LOCK OUT function: 1: OSM LOCK OUT with BRIGHTNESS and CONTRAST control: This mode locks all OSM functions except for BRIGHTNESS and CONTRAST. To activate, press the SELECT and "Up" buttons simultaneously, while in the OSM menu. To deactivate, press the SELECT and "Up" buttons simultaneously, while in the OSM menu.
Tag 8 continued	OSM LOCKOUT continued	2: OSM LOCK OUT with no control: This mode prevents access to all OSM functions. To activate, press the SELECT and "Right" buttons simultaneously. To deactivate, press the SELECT and "Right" buttons simultaneously, while in the OSM menu.3: OSM LOCK OUT with BRIGHTNESS (only) control: This mode locks all OSM functions except for BRIGHTNESS. To activate, press the SELECT, "Left" and "Down" buttons simultaneously, while in the OSM menu. To deactivate, press SELECT, "Left" and "Down" buttons simultaneously, while in the OSM menu.4: CUSTOM: Press RESET and EXIT to enter the CUSTOM Menu. Select ENABLE or DISABLE for: POWER KEY, INPUT SEL, HOT KEY (BRIGHTNESS/CONTRAST) ECO MODE, WARNING (RESOLUTION NOTIFIER/OSM LOCK OUT). To Deactivate the OSM Lock Out function, press RESET and EXIT to bring up the LOCK OUT warning. Press SELECT, SELECT, <, >, <, >, EXIT.
	OSM TRANSPARENCY	Adjusts the transparency of the OSM MENU.
	OSM COLOR	"Tag window frame color", "Item select color"& "Adjust Window frame color" can be changed.
	SIGNAL INFORMATION	Signal information can be displayed in the corner of the screen. Signal information is either "ON/OFF".
	RESOLUTION NOTIFIER	The Resolution Notifier warns the user if the input to the monitor is set to something other than the optimized resolution of 1600 x 1200. If the monitor detects a signal that is not at the optimized resolution, after 30 seconds a warning message will appear on the screen. The Resolution Notifier is set to ON by default.
	HOT KEY	When this function is activated, the brightness and contrast of the monitor can be adjusted by using the front buttons without entering the OSM menu. The "Left" or "Right" buttons adjust the brightness level. The "Down" or "Up" buttons adjust the contrast level.
	FACTORY PRESET	Selecting the factory preset allows the user to reset most of the OSM control settings back to the factory settings. Individual settings can be reset by highlighting the control needing to be reset, and pressing the RESET button.
Tag 9	GRAYSCALE MODE	This mode changes the display's screen image from color to grayscale. There are 3 settings for monochrome mode. OFF: The display's screen image is normal. MODE1: The monitor uses only the Green component of the RGB color input signal to display grayscale. MODE2: The monitor converts the RGB color input signal to YUV to display the image as grayscale.
Tag 9 continued	OSM ROTATION	AUTO: The OSM rotates automatically when the monitor is rotated. OSM ROTATION is set to AUTO by default. MANUAL: To rotate the OSM, press the ROTATE OSM button when the OSM is not showing.
	IMAGE ROTATION	AUTO: The display image automatically rotates according to the orientation of the OSM. If “AUTO” is selected in the “OSM ROTATION” menu, the display image rotates according to the orientation of the monitor. OFF: The display image is not rotated. IMAGE ROTATION is set to OFF by default. ON: The display image always rotated.
	SCREEN Saver	Use the SCREEN Saver to reduce the risk of image persistence. MOTION (Default OFF): Screen image is reduced to 95% size and moves periodically in 4 directions in order to reduce the risk of image retention. Screen image can be set to move periodically in intervals from 10 to 900 seconds in 10 second increments. GAMMA (Default OFF): When OFF, the GAMMA selection that is used by the display is the same as what is selected in Tag5 (page 20). When ON is selected, the GAMMA curve is narrow, reducing the contrast and cutting down the risk of image retention. NOTE: SCREEN Saver does not function when the TILE MATRIX function is enabled. When the SCREEN Saver is on and the monitor is set to the recommended resolution, the screen image will be reduced to 95% and appear slightly less sharp than normal.
	INPUT SETTING	VIDEO BAND WIDTH (Analog input only): Adjusts the bandwidth of the video signal. Can be used to eliminate undesired video noise from a poor signal. Press “Left” or “Right” to select. SYNC THRESHOLD (Analog input only): Adjusts the slice level of a synchronization signal. Press “SELECT” to move the adjustment menu. Adjusts the sensitivity of the separate or composite input signals. Try this option if the FINE adjustment does not successfully eliminate the noise. SOG THRESHOLD (Analog input only): Adjusts the sensitivity of the Sync On Green input signals. Adjusts the slice level when separating a synchronization from Sync On Green signal input. Press “Left” or “Right” to select. EDGE LOCK: Operating your monitor at a non-standard timing may cause images to appear darker than normal or to have color distortion. Use of the Edge Lock control will adjust images to their normal state.
Tag A	TILE MATRIX	The “TILE MATRIX” feature allows one image to be displayed over multiple screens. This feature can be used with up to 25 monitors. (5 horizontal x 5 vertical) Using the Tile Matrix function requires the PC output signal to be sent through a distribution amplifier to each of the individual monitors. ENABLE: Select “ON”, to expand the signal to the selected TILE MATRIX settings. H MONITOR: Selects the number of horizontal displays. V MONITOR: Selects the number of vertical displays. MONITOR NO.: Selects a position to expand the screen.
Tag A continued	TILE MATRIX continued	TILECOMP: Works in tandem with “ TILE MATRIX” to com- pensate for the bezel width of the tiled monitors in order to accurately display the image. TileComp using 4 monitors (black area shows monitor frames).
		tilecomp OFF TileComp ON The EXPANSION mode will be set to “FULL” when the “ TILE MATRIX” is activated.
Tag B	DATE & TIME	Sets the current date and time for the internal clock. Date and Time has to be set in order for the “SCHEDULE” feature to work properly. DAYLIGHT SAVING: For those timezones where Daylight Saving Time (Summertime) is observed.
Tag C	SCHEDULE	Programs the monitor's working schedule. Sets the hour and day of the week when the monitor powers on or off. Also sets the input port. Select “EXIT” to set schedule. Using the “SCHEDULE” function allows you to set up to seven different scheduled time intervals when the LCD Monitor will be activated. You can select the time the monitor turns on and turns off, the day of week the monitor is activated, and which input source the monitor will use for each scheduled activation period. A check mark in the box next to the number of the schedule indicates that the selected schedule is in effect. To select which schedule to set, use the up/down arrows to move the cursor vertically to select a schedule (1 to 7) to be set. Use the “down” or “up” buttons to move the red bar horizontally within the particular schedule. The “SELECT” button is used to make a selection. If you create a schedule but do not want to use a power on time, select “-” in the “ON” time slot. If you do not want to use a power off time select “-” in the OFF time slot. If there is no input selected (“----” showing in the input spot) the input from the previous schedule will be used. Selecting EVERY DAY within a schedule takes priority over other sched- ules that are set up to operate weekly. Schedules are numbered 1-7. If two schedules are programmed for the same time, then the highest numbered schedule has pri- ority. For example schedule #7 will take priority over schedule #5. When schedules are overlapping, a scheduled Power ON time has priority over a scheduled Power OFF time. When the “OFF TIMER” (see page 21) is set, the “SCHEDULE” function is disabled.

Advanced OSM Controls -continued

Tag C continued	SCHEDULE continued	Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSM button to delay the turn off time.
Tag D	ECO MODE INFORMATION	Displays the estimated power saving information in watt-hours.
Tag E	INFORMATION	Provides information about the current display resolution as well as technical data, including the preset timing currently being used. Horizontal and vertical frequencies is also displayed.

Using the Auto Brightness function

The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions.

The Auto Brightness function is set to OFF by default.

SETUP

Use the following procedure to determine the Brightness Range that the monitor will use when the Auto Brightness function is activated.

1. Set the BRIGHT level. This is the brightness level that the monitor will go up to when the ambient light level is highest. Make sure the room is at its brightest when setting this level.

Select "1" in the AUTO BRIGHTNESS menu (Figure 1).

Then use the front buttons to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level (Figure 2).

1. Set the DARK level. This is the level of brightness that the monitor will go down to when the ambient light level is low. Make sure the room is at its darkest when setting this level.

Then use the front buttons to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level (Figure 3).

Figure 1

Figure 2

Figure 3

Using the Auto Brightness function -cont.

When the "Auto Brightness" function is enabled, the Brightness level of the screen changes automatically according to the lighting conditions of the room (Figure 4).

Figure 4

Screen Brightness value using the Auto Brightness function

Lb : Border between bright and dim lighting conditions; set at factory
L1: BRIGHTNESS level set for the monitor to use when ambient lighting level is high (L1>lb)
L2: BRIGHTNESS level set for the monitor to use when ambient lighting level is low (L2<lb)

L1 and L2 are the brightness levels set by the user to compensate for changes in ambient lighting.

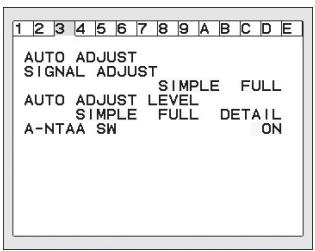

Using the CableComp™ function

CableComp Adjustment

CableComp allows the monitor to correct slight variations in the image that may occur when using a long signal cable.

To perform the long cable compensation adjustment, use the following steps: Set the Auto Adjust Level to "DETAIL" in the Advanced OSM Control menu (see page 18).

	"Size" "Fine" "Position"	"Contrast"	Black Level, Long cable capability *1	Time
SIMPLE	○	×	×	1 seconds
FULL	○	○	×	1.5 seconds
DETAIL	○	○	○	5 seconds

O: Automatic adjustment is performed.

X: Automatic adjustment is not performed.

*1: Black level, RGB sharpness, RGB delay and RGB position can be adjusted using the Long Cable Software. To download the software, please visit www.necdisplay.com.

To enter the Advanced OSM

• Turn off your monitor.
• Turn on your monitor by pressing the "POWER" and "SELECT" buttons simultaneously.
• Press one of the following OSM buttons to enter the Advanced OSM Control menu: EXIT, LEFT, RIGHT, UP, or DOWN.

To exit the Advanced OSM Control Menu

• Turn off and restart your monitor.

Perform "AUTO ADJUST" by using the OSM function.

• Press select to adjust.
• For additional information on user controls and software utilities, visit our website at www.necdisplay.com.

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in very hot, humid, dusty, or oily areas.
• Do not cover vents on monitor.
• If monitor or glass is broken, handle with care. Do not come in contact with the liquid crystal.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
  If liquid has been spilled, or objects have fallen into the monitor.
  If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.

CAUTION

• If the monitor does not operate normally by following operating instructions.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

Image Persistence

Image persistence is when a residual or "ghost" image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

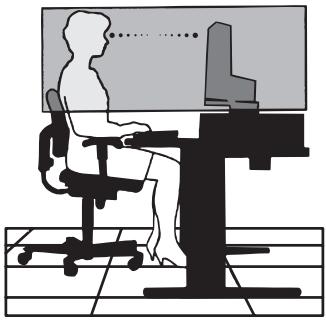

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90^ angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an antiglare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor's brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).
• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Use non-interlaced signals with a vertical refresh rate more than 60Hz .
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations - ANSI-HFS Standard No. 100-1988 - The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, wipe gently with a soft cloth.
• Do not rub the LCD panel with hard or coarse material.
• Do not apply pressure to the LCD surface.
• Do not use OA cleaner as it will cause deterioration or discolor the LCD surface.

Cleaning the Cabinet

• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
  -ampen a cloth with a neutral detergent and water, wipe the cabinet and then dry with a soft cloth.

NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene, thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not place rubber or vinyl against the cabinet for long periods. These types of fluids and fabrics can cause the paint to deteriorate, crack, or peel.

Specifications

Monitor Specifications		MultiSync® LCD2090UXi	Notes
LCD Module	Diagonal:	20.1 inch	Active matrix; thin film transistor (TFT)
	Viewable Image Size:	20.1 inch	liquid crystal display (LCD); 0.255 mm dot
	Native Resolution (Pixel Count):	1600x1200	pitch; 280cd/m² white luminance; XtraView+TM technology;700:1 contrast ratio, typical
Input Signal	Video:	ANALOG 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Sync on Green (Video 0.7Vp-p and Sync Negative 0.3V p-p)
Display Colors		16,777,216	Dependant on display card used.
Synchronization Range	Horizontal:	31.5 kHz to 91.1 kHz; 99.4 kHz*2	Automatically
	Vertical:	50.0 Hz to 85.0 Hz	Automatically
Viewing Angle	Left/Right:	±89° (CR>10)
	Up/Down:	±89° (CR>10)
Image Formation Time		16ms (Typ.) 8ms (Gray to Gray Typ)
Resolutions Supported		720 x 400*1 at 70 Hz to 85 Hz	Some systems may not support all modes listed.
		640 x 480*1 at 60 Hz to 85 Hz
		800 x 600*1 at 56 Hz to 85 Hz
		832 x 624*1 at 75 Hz
		1024 x 768*1 at 60 Hz to 85 Hz
		1152 x 864*1 at 70 Hz to 85 Hz
		1152 x 870*1 at 75 Hz
		1280 x 960*1 at 60 Hz
		1280 x 1024*1 at 60 Hz to 85 Hz	NEC DISPLAY SOLUTIONS cites recommended resolution for optimal display performance.
		1200 x 1600*1 at 60 Hz
		1600 x 1200 at 60 Hz
Active Display Area	Landscape : Horiz.:	408 mm/16.1 inches
	Vert.:	306 mm/12.0 inches
	Portrait : Horiz.:	306 mm/12.0 inches
	Vert.:	408 mm/16.1 inches
Power Supply		100 - 240 V - 50/60 Hz
Current Rating		0.68 - 0.29A (with option)
Dimensions	Landscape:	439.2 mm (W) x 415.5 - 565.5 mm (H) x 247.3 mm (D)
		17.3 inches (W) x 16.4 - 22.3 inches (H) x 9.7 inches (D)
	Portrait:	340 mm (W) x 465.1 - 615.1 mm (H) x 247.3 mm (D)
	Height Adjustment:	13.4 inches (W) x 18.3 - 24.2 inches (H) x 9.7 inches (D)
Weight		9.7 kg
		21.4 lbs
Environmental Considerations
Operating Temperature:		5°C to 35°C/41°F to 95°F
Humidity:		30% to 80%
Altitude:		0 to 10,000 Feet
Storage Temperature:		-10°C to 60°C/14°F to 140°F
Humidity:		10% to 85%
Altitude:		0 to 40,000 Feet

1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.
2 1200 × 1600 resolution only.
NOTE: Technical specifications are subject to change without notice.

Specifications - continued

Monitor Specifications		MultiSync® LCD2190UXi	Notes
LCD Module	Diagonal:	21.3 inch	Active matrix; thin film transistor (TFT)
	Viewable Image Size:	21.3 inch	liquid crystal display (LCD); 0.270 mm dot
	Native Resolution (Pixel Count):	1600x1200	pitch; 250cd/m² white luminance; XtraView+TM technology; 500:1 contrast ratio, typical
Input Signal	Video:	ANALOG 0.7 Vp-p/75 Ohms	Digital Input: DVI
	Sync:	Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Sync on Green (Video 0.7Vp-p and Sync Negative 0.3V p-p)
Display Colors		16,777,216	Dependant on display card used.
Synchronization Range	Horizontal:	31.5 kHz to 91.1 kHz; 99.4 kHz*2	Automatically
	Vertical:	50.0 Hz to 85.0 Hz	Automatically
Viewing Angle	Left/Right:	± 89° (CR>10)
	Up/Down:	± 89° (CR>10)
Image Formation Time		20ms (Typ.) 10ms (Gray to Gray Typ)
Resolutions Supported		720 x 400*1 at 70 Hz to 85 Hz	Some systems may not support all modes listed.
		640 x 480*1 at 60 Hz to 85 Hz
		800 x 600*1 at 56 Hz to 85 Hz
		832 x 624*1 at 75 Hz
		1024 x 768*1 at 60 Hz to 85 Hz
		1152 x 864*1 at 70 Hz to 85 Hz
		1152 x 870*1 at 75 Hz
		1280 x 960*1 at 60 Hz
		1280 x 1024*1 at 60 Hz to 85 Hz	NEC DISPLAY SOLUTIONS cites recommended resolution for optimal display performance.
		1200 x 1600*1 at 60 Hz
		1600 x 1200 at 60 Hz
Active Display Area	Landscape : Horiz. :	432 mm/17.0 inches
	Vert. :	324 mm/12.8 inches
	Portrait : Horiz. :	324 mm/12.8 inches
	Vert. :	432 mm/17.0 inches
Power Supply		100 - 240 V ~ 50/60 Hz
Current Rating		0.68 - 0.29A (with option)
Dimensions	Landscape:	464.8 mm(W) x424.8-574.8mm(H) x247.3 mm(D)
		18.3 inches(W) x16.7-22.6 inches(H) x9.7 inches(D)
	Portrait:	358.6 mm(W) x477.9-627.9 mm(H) x247.3 mm(D)
	Height Adjustment:	14.1 inches(W) x18.8-24.7 inches(H) x9.7 inches(D)
		150 mm / 5.9 inches (Landscape)
Weight		10.9 kg
		24.0 lbs
Environmental Considerations
Operating Temperature:		5°C to 35°C/41°F to 95°F
Humidity:		30% to 80%
Altitude:		0 to 10,000 Feet
Storage Temperature:		-10°C to 60°C/14°F to 140°F
Humidity:		10% to 85%
Altitude:		0 to 40,000 Feet

1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.
2 1200 x 1600 resolution only.
NOTE: Technical specifications are subject to change without notice.

Ambix3™ Technology: Triple input technology allowing up to 3 input sources to be connected to a single monitor. The DVI-I connector supports both analog and digital input signals. Legacy analog input is supported using a traditional 15-pin VGA connector. Ambix3 provides traditional MultiSync® technology compatibility for analog as well as DVI-based digital compatibility for digital inputs. DVI-based digital interfaces include DVI-D, DFP and P&D.

DVI-1: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The "I" stands for integration for both digital and analog, The digital portion is DVI-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal compatible with DVI. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other DVI-based digital connectors such as DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like USB, analog video and IEEE-1394-995). The VESA committee has recognized that DFP is a subset of P&D. As a DVI-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other DVI-based digital connector such as DVI and DFP.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or Portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor's small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor® Control System: Allows the user to adjust the colors on the screen and customize the color accuracy of the monitor to a variety of color standards.

OSM® (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhanced human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows® 95/98/2000/Me/XP operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM® (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to lower the power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card's scanning frequency, thus displaying the resolution required.

FullScan® Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

XtraView+™ Wide Viewing Angle Technology: Allows the display image to be seen at wide viewing angles. Close to 180 degrees off center axis, for both up-down and left-right viewing angles. XtraView+ is active in either portrait or landscape orientations. Please see the Specifications page for exact viewing angle of each monitor.

VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

Ultra-thin-frame design: Allows you to view more of your ideas and less of the monitor bezel, while freeing up more horizontal and vertical desktop space for multiple-monitor applications.

NaViSet™ software: Offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM display settings via mouse and keyboard.

CableComp™: Automatic long cable compensation prevents image quality degradation caused by long cable lengths.

Advanced No Touch Auto Adjust™: Provides optimal image settings upon initial power-on and closed signal changes.

Rapid Response™: Delivers virtually uninterrupted, undistorted viewing of full-motion video applications.

sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.

ColorComp: This feature compensates for slight variations in the white uniformity level that may occur on the screen and improves the color and evens out the luminance uniformity of the display.

Over Drive: Improves gray to gray response time.

Adjustable stand with pivot capability: Adds flexibility to your viewing preferences.

Quick Release stand: Allows fast removal of the stand.

AmbiBright™ technology: Automatically adjusts the backlight level depending on the level of ambient lighting.

No picture

• The signal cable should be completely connected to the display card/computer.
• The display card should be completely seated in its slot.
• Check the Vacation Switch should be in the ON position.
• Front Power Switch and computer power switch should be in the ON position.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Consult display card or system manual to change graphics mode.)
• Check the monitor and your display card with respect to compatibility and recommended settings.
• Check the signal cable connector for bent or pushed-in pins.
• Check the signal input, "DVI-D", "DVI-I", or "D-Sub".
• Ensure the DVI input mode is set to DIGITAL when the MAC digital output is connected to the DVI-I connector.
• If the front LED is blinking amber, check the status of the IPM mode (see page 13).

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.
• Check the Vacation Switch on the left side of the monitor.

Image Persistence

• Image persistence is when a residual or "ghost" image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors' image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Message "OUT OF RANGE" is displayed (screen is either blank or shows rough images only)

• Image is displayed only roughly (pixels are missing) and OSM warning "OUT OF RANGE" is displayed: Either signal clock or resolution is too high. Choose one of the supported modes.
• OSM warning "OUT OF RANGE" is displayed on a blank screen: Signal frequency is out of range. Choose one of the supported modes.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.
• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the fine total. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.
• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no green, blue, or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Picture is not as bright

• Make sure the ECO MODE, AUTO BRIGHTNESS, and COLORCOMP functions are turned off.
• If the brightness fluctuates, make sure that the AUTO BRIGHTNESS function is turned off.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the Coarse total.
• Check to make sure that a supported mode has been selected on the display card or system being used. (Consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.
• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

Self Diagnosis

• The LCD display is equipped with the ability to self-diagnose abnormalities. When the LCD detects a problem, the LED on the front flashes in a pattern of long and short blinks, depending on the type of problem detected.

If the LED detects a problem, please refer service to qualified personnel.

NEC Monitor Customer Service & Support

Customer Service and Technical Support: [phone]

Fax: [phone]

Parts and Accessories/Macintosh

Cable Adapter: [phone]

Warranty Information: www.necdisplay.com

Online Technical Support www.necdisplay.com

Sales and Product Information

Sales Information Line: [phone]

Canadian Customers: [phone], Ext#: 4037

Government Sales: [phone]

Government Sales email: [e-mail]

Electronic Channels

World Wide Web: www.necdisplay.com

Product Registration: www.necdisplay.com

European Operations: www.nec-display-solutions.com

Drivers and Downloads www.necdisplay.com

Limited Warranty

NEC Display Solutions of America, Inc. (hereinafter "NEC DISPLAY SOLUTIONS") warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS' sole option) any part of the enclosed unit which proves defective for a period of four (4) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLUTIONS to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC DISPLAY SOLUTIONS to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User's Manual. Any such conditions will void this warranty.

NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTY ARE IN LIEU OF ALL OTHER WARRANTYES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTYES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NEC DISPLAY SOLUTIONS Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NEC DISPLAY SOLUTIONS.

For the name of your nearest authorized NEC Display Solutions of America, Inc. service facility, contact NEC Display Solutions of America, Inc. at 1-800-632-4662.

TCO Development

Congratulations! The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, color rendition, and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and the environment
• Electrical safety

Emissions

Electromagnetic fields
- Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Manufacturer's Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company's top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades Union). For more information, and for help in recycling your old NEC monitors, please visit our website at:

USA: http://www.necdisplay.com

Europe: http://www.nec-display-solutions.com

Japan: http://www.nec-display.com

Country-specific recycling programs can also be found at:

Sweden - http://www.el-retur.se

Germany - http://www.recyclingpartner.de/

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode	Power consumption		LED color
Normal Operation	Approx.	50W	Green or Blue
Energy Saving Mode	Less than	1W	Amber
Off Mode	Less than	1W	Unlit

Declaration of the Manufacturer

We hereby certify that the color monitors

MultiSync LCD2090UXi (L205GR)

MultiSync LCD2190UXi (L215GV)

are in compliance with

Council Directive 73/23/EEC:

• EN 60950-1

Council Directive 89/336/EEC:

• EN 55022

• EN 61000-3-2

• EN 61000-3-3

• EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Disposing of your old NEC Products

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC. The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

AVERTISSEMENT

AFIN D'EVITER TOUT RISQUE D'INCENDIE ET D'ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA PLUIE OU à L'HUMIDITE. NE PAS UTILISER LA FICHE POLARISEE DE CET APPAREIL AVEC UNE PRISE DE RALLONGE ÉLECTRIQUE OU TOUTE AUTRE PRISE DANS LAQUÉLLÉ DES BROCHES NE PEUVENT PAS TOUTES ÉTRE INSÉRÉES. LE BOITIER DE L'APPAREL CONTIENT DES COMPOSANTS À HAUTE TENSION ET NE DOIT EN AUCUN CAS ÉTRE OUVERT. TOUT TRAVAIL D'ENTRETIEN DOES ÉTRE CONFIE À UN TECHNIÇIEN QUALIFIÉ.

ATTENTION

MISE EN GARDE: POUR RÉDUIRE LE RISQUE DE CHOC ÉLECTRIQUE, ASSUREZ-VOUS QUE LE CORDON D'ALIMENTATION EST DEBRANCHÉ DE LA PRISE MURALE. POUR SUPPRIMER COMPLETÉMENT L'ALIMENTATION DE L'APPAREIL, VEUILLEZ DEBRANCHER LE CORDON D'ALIMENTATION DE LA PRISE CA. NE PAS RETIRER LE COUVERCIE (NI LE PANNEAU ARRÊRÉ). AUCUN ÉLEMENT UTILISABLE PAR L'UTILISATEUR À L'INTÉRIEUR. TOUT TRAVAIL D'ENTRETNIEN DOIT ÉTRE CONFIE A UN TECHNIÇIEN QUALIFIÉ.

AccuColor® Control Systems

SISTEMA DE CONTROL DEL COLOR ACCUCOLOR®: Siete ajustes de color predeterminados.

www.tcodevelopment.com

Modo	Consumo de energia		Color del LED
Normal Operation	Approx.	50W	Verde o Azul
Energy Saving Mode	Less than	1W	Amber
Off Mode	Less than	1W	Apagado

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokio 108-0023, Japan

NEC Display Solutions of America, Inc.

Adresse :

500 Park Blvd, Suite 1100

No detel:

Itasca, Illinois 60143

[phone]

Type de produit :

The information disclosed in this document, including all designs and related materials, is the valuable property of NEC Display Solutions of America, Inc. and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use and sales rights thereto, except to the extent said rights are expressly granted to others.

The NEC Display Solutions of America, Inc. product(s) discussed in this document are warranted in accordance with the terms of the Limited Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC Display Solutions of America, Inc.

To allow for design and specification improvements, the information in this document is subject to change at any time without notice. Reproduction of this document or portions thereof without prior approval of NEC Display Solutions of America, Inc. is prohibited.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

NEC Display Solutions of America, Inc.

Address:

500 Park Blvd, Suite 1100

Tel. No.:

Itasca, Illinois 60143

[phone]

Type of Product:

Display Monitor

Equipment Classification:

Class B Peripheral

Model:

MultiSync LCD2090UXi (L205GR)/MultiSync LCD2190UXi (L215GV)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark. All other brands and product names are trademarks or registered trademarks of their respective owners.

As an ENERGY STAR® Partner, NEC Display Solutions of America, Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.
