USER MANUAL HL80215 HOMELITE

Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.

Thank you for your purchase.

SAVE THIS MANUAL FOR FUTURE REFERENCE

See this fold-out section for all of the figures referenced in the operator's manual.

Consulte l'encart à volets afin d'examiner toutes les figures mentionnées dans le manuel d'utilisation. Consulte estaSECTION desplegable para ver todas las figuras a las que se hace referencia en el manual del operador.

Fig. 1

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

***

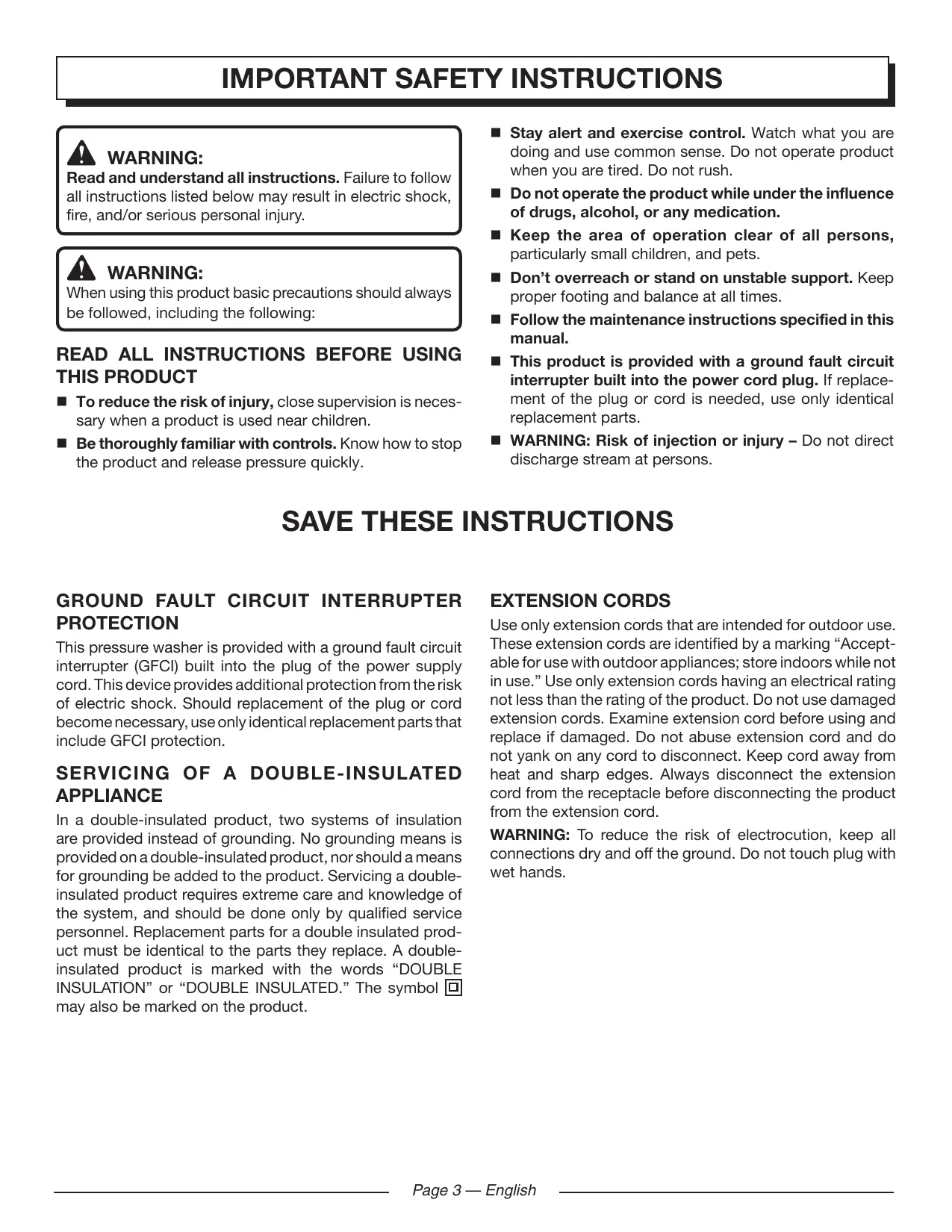

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

WARNING:

When using this product basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

To reduce the risk of injury, close supervision is necessary when a product is used near children.
■ Be thoroughly familiar with controls. Know how to stop the product and release pressure quickly.

• Stay alert and exercise control. Watch what you are doing and use common sense. Do not operate product when you are tired. Do not rush.
• Do not operate the product while under the influence of drugs, alcohol, or any medication.
• Keep the area of operation clear of all persons, particularly small children, and pets.
• Don't overreach or stand on unstable support. Keep proper footing and balance at all times.
• Follow the maintenance instructions specified in this manual.
  This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.
  ■ WARNING: Risk of injection or injury - Do not direct discharge stream at persons.

SAVE THESE INSTRUCTIONS

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION

This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

SERVICING OF A DOUBLE-INSULATED APPLIANCE

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double insulated product must be identical to the parts they replace. A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED." The symbol l may also be marked on the product.

EXTENSION CORDS

Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking "Acceptable for use with outdoor appliances; store indoors while not in use." Use only extension cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

WARNING: To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands.

SPECIFIC SAFETY RULES

• Know your product. Read the operator's manual carefully. Learn the machine's applications and limitations as well as the specific potential hazards related to this product.
  To reduce the risk of injury, keep children and visitors away. All visitors should wear safety glasses and be kept a safe distance from work area.
• Use right product. Don't force product or attachment to do a job it was not designed for. Don't use it for a purpose not intended.
• Dress properly. Do not wear loose clothing, gloves, neckties, or jewelry. They can get caught and draw you into moving parts. Rubber gloves and nonskid footwear are recommended when working outdoors. Also wear protective hair covering to contain long hair.
• Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
  Exercise caution to avoid slipping or falling.
  Always wear eye protection with side shields marked to comply with ANSI Z87.1. Following this rule will reduce the risk of serious personal injury.
  Use only recommended accessories. The use of improper accessories may cause risk of injury.
• Check damaged parts. Before further use of the product, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury.
• Never leave product running unattended. Turn power off. Don't leave product until it comes to a complete stop.
• Keep the motor free of grass, leaves, or grease to reduce the chance of a fire hazard.
  ■ Follow manufacturer's recommendations for safe loading, unloading, transport, and storage of machine.
• Keep product dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to clean product.

• Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine.

• Do not use product if switch does not turn it off. Have defective switches replaced by an authorized service center.

• Avoid dangerous environment. Don't expose to rain. Keep work area well lit.
• Do not abuse the cord. Never use the cord to carry the product or to disconnect the plug from an outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
• Ground Fault Circuit Interruption (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the product. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
• To reduce the risk of electric shock, this product has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.
  Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 25 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
  WARNING: Use outdoor extension cords marked SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or SJTOWA. These cords are rated for outdoor use and reduce the risk of electric shock.
  ■ Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil or grease.
• Never direct a water stream toward people or pets, or any electrical device.
  Before starting any cleaning operation, close doors and windows. Clear the area to be cleaned of debris, toys, outdoor furniture, or other objects that could create a hazard.

SPECIFIC SAFETY RULES

• Do not use acids, alkalines, solvents, flammable material, bleaches, or industrial grade solutions in this product. These products can cause physical injuries to the operator and irreversible damage to the machine.
  ■ WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, electrical devices, or the machine itself.
• Keep the motor away from flammables and other hazardous materials.
• Check bolts and nuts for looseness before each use. A loose bolt or nut may cause serious motor problems.
  Before storing, allow the motor to cool.
• When servicing use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

ONLY use cold water.
Make sure minimum clearance of 3 feet is maintained from combustible materials.
- Connect pressure washer only to an individual branch circuit.
- Hold the handle and wand securely with both hands. Expect the trigger handle to move when the trigger is pulled due to reaction forces. Failure to do so could cause loss of control and injury to yourself and others.
- Save these instructions. Refer to them frequently and use them to instruct other users. If you loan someone this product, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL	SIGNAL	MEANING
	DANGER:	Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
	CAUTION:	(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert	Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	Wet Conditions Alert	Do not expose to rain or use in damp locations.
	Risk of Injection	To reduce the risk of injection or injury, never direct a water stream towards people or pets or place any body part in the stream. Leaking hoses and fittings are also capable of causing injection injury. Do not hold hoses or fittings.
	Kickback	To reduce the risk of injury from kickback, hold the spray wand securely with both hands when the machine is on.
	Electric Shock	Failure to use in dry conditions and to observe safe practices can result in electric shock.
	Chemical Burns	To reduce the risk of injury or damage, DO NOT USE ACIDS, ALKALINES, BLEACHES, SOLVENTS, FLAMMABLE MATERIAL, OR INDUSTRIAL GRADE SOLUTIONS in this product.

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
V	Volts	Voltage
A	Amperes	Current
Hz	Hertz	Frequency (cycles per second)
W	Watt	Power
~	Alternating Current	Type of current
n0	No Load Speed	Rotational speed, at no load
□	Class II Construction	Double-insulated construction
.../min	Per Minute	Revolutions, strokes, surface speed, orbits etc., per minute

DOUBLE INSULATION

Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double insulated products do not need to be grounded.

WARNING:

The double insulated system is intended to protect the user from shock resulting from a break in the product's internal insulation. Observe all normal safety precautions to avoid electrical shock.

NOTE: Servicing of a product with double insulation requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service, we suggest you return the product to your nearest authorized service center for repair. Always use original factory replacement parts when servicing.

ELECTRICAL CONNECTION

This product has a precision-built electric motor. It should be connected to a power supply that is 120 volts, 60Hz , AC only (normal household current). Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the product does not operate when plugged into an outlet, double-check the power supply.

EXTENSION CORDS

See Figure 1.

When using a power tool at a considerable distance from a power source, be sure to use an extension cord that has the capacity to handle the current the product will draw. An undersized cord will cause a drop in line voltage, resulting in overheating and loss of power. Use the chart to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter's Laboratories (UL) should be used.

When working outdoors with a product, use an extension cord that is designed for outside use. This type of cord is designated with "WA" or "W" on the cord's jacket.

Before using any extension cord, inspect it for loose or exposed wires and cut or worn insulation.

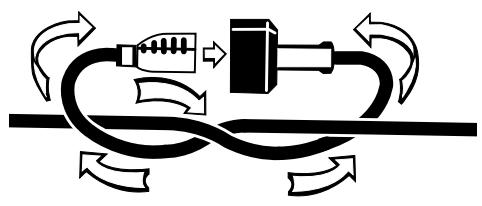

It is possible to tie the extension cord and power cord in a knot to prevent them from becoming disconnected during use. Make the knot as shown in figure 1, then connect the plug end of the power cord into the receptacle end of the extension cord. This method can also be used to tie two extension cords together.

**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length		Wire Size (A.W.G.)
25'	16	16	16	16	14	14
50'	16	16	16	14	14	12
100'	16	16	14	12	10	-

**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge

WARNING:

Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury.

WARNING:

Check extension cords before each use. If damaged replace immediately. Never use the product with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.

GROUND FAULT CIRCUIT INTERRUPTER

See Figure 2.

This unit is equipped with a Ground Fault Circuit Interruptions (GFCI), which guards against the hazards of ground fault currents. An example of ground fault current is the current that would flow through a person who is using an appliance with faulty insulation and, at the same time, is in contact with an electrical ground such as a plumbing fixture, wet floor, or earth.

GFCI plugs do not protect against short circuits, overloads, or shocks.

NOTE: To ensure readiness for use, press the reset button each time you connect the pressure washer to the power supply.

The GFCI plug can be tested with the TEST and RESET buttons.

To test:

• Depress the TEST button. This should cause the RESET button to pop out.
  To restore power, depress the RESET button.

Perform this test monthly to ensure proper operation of the GFCI.

FEATURES

PRODUCT SPECIFICATIONS

Motor 120 V, 13 Amps, 60 Hz

Maximum Pounds Per Square Inch Pressure* 1,500 psi

Maximum Gallons Per Minute* 1.3 gpm

Maximum Inlet Water Temperature 104F

*Max. rating determined by PWMA Standard 101, when tested with red nozzle

KNOW YOUR PRESSURE WASHER

See Figure 3.

The safe use of this product requires an understanding of the information on the tool and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

CLEANING DECK

The cleaning deck can be used to clean large flat areas using less time and energy than when using the spray wand.

DETERGENT TANK

Remove the cap from the detergent tank to add detergent to the pressure washer.

GFCI PLUG

The pressure washer is equipped with a GFCI plug to guard against the hazards of ground fault currents. This plug does not protect against short circuits, overloads, or shocks.

HIGH PRESSURE HOSE STORAGE

Once the high pressure hose is rolled, hang it on the back of the machine using the hook-and-loop strap to secure in place.

ON/OFF SWITCH

This switch turns the pressure washer on and off.

TRIGGER HANDLE

The trigger handle has a gripping surface that provides added control of the spray wand and helps reduce fatigue.

TRIGGER WITH LOCK-OUT

Pulling the trigger releases a stream of water for high pressure cleaning. The lock-out provides protection against unauthorized use.

ASSEMBLY

UNPACKING

This product requires assembly.

• Carefully cut the box down the sides then remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.

WARNING:

Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

Inspect the product carefully to make sure no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call 1-800-242-4672 for assistance.

PACKING LIST

Pressure Washer

Trigger Handle

25 ft. High Pressure Hose

Self-Coiling Garden Hose

Spray Wand

Nozzle (25^ , Soap, Turbo)

Operator's Manual

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

CONNECTING THE WATER SUPPLY TO THE PRESSURE WASHER

See Figure 4.

CAUTION:

Always observe all local regulations when connecting hoses to the water main. Some areas have restrictions against connecting directly to public drinking water supply to prevent the feedback of chemicals into the drinking water supply. Direct connection through a receiver tank or backflow preventer is usually permitted.

The water supply must come from a water main. NEVER use hot water or water from pools, lakes, etc. For ease of use, a self-coiling hose is provided.

NOTE: When using the self-coiling hose, be sure that the hose does not become crimped during use as this may cause damage to the pump.

Before connecting the garden hose to the pressure washer:

• Run water through the hose for 30 seconds to clean any debris from the hose.
  Inspect the screen in the water intake.
  If the screen is damaged, do not use the machine until the screen has been replaced.
  If the screen is dirty, clean it before connecting the garden hose to the machine.

To connect the garden hose to the machine:

• Attach the self-coiling hose to the pump inlet coupler.
  Straighten the garden hose.

NOTE: There must be a minimum of 10 feet of unrestricted hose between the pressure washer intake and the hose faucet or shut off valve (such as a “Y” shut off connector).

• With the hose faucet turned completely off, attach the end of the garden hose to the self-coiling hose. Tighten by hand.

CONNECTING THE HIGH PRESSURE HOSE TO THE PUMP

See Figure 5.

• Insert the nipple on the end of the high pressure hose collar into the pump outlet.
• Slide the collar over the outlet turning the collar clockwise to tighten securely.
  Pull on the hose to be certain it is properly secured.

ASSEMBLING THE SPRAY WAND

See Figure 6.

• Insert the end of the spray wand into the trigger handle outlet coupler.
• Turn the connector clockwise until it stops. This secures the wand in place.

USING THE SPRAY WAND AS A HANDLE

See Figure 7.

When not in use, the spray wand can be stored in the cleaning deck. In this position, the wand is then used as a handle to push/move the pressure washer from place to place.

Attaching the spray wand to the cleaning deck:

• Assemble the trigger handle and spray wand as described previously in this manual.
• Insert spray wand quick connect coupler into the cleaning deck inlet plug. Tilt upward until coupler clips into position.

WARNING:

To reduce the risk of injection or injury, only use the cleaning deck on flat, horizontal surfaces. Never lift the cleaning deck from the cleaning surface while operating the pressure washer.

CONNECTING HIGH PRESSURE HOSE TO TRIGGER HANDLE

See Figure 8.

• Insert the nipple on the end of the high pressure hose collar into the handle inlet coupler.
• Slide the collar over the coupler turning the collar clockwise to tighten securely.
  Pull on the hose to be certain it is properly secured.

WARNING:

Do not allow familiarity with the product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Never direct a water stream toward people or pets, or any electrical device. Failure to heed this warning could result in serious injury.

APPLICATIONS

You may use this product for the purposes listed below:

Using cleaning deck: removing dirt and mold from decks and cement patios
Using spray wand: cleaning cars, boats, motorcycles, outdoor furniture, grills, and house siding

ADDING DETERGENT TO THE PRESSURE WASHER

See Figure 9.

Use only detergents designed for pressure washers; household detergents, acids, alkalines, bleaches, solvents, flammable material, or industrial grade solutions can damage the pump. Many detergents may require mixing prior to use. Prepare cleaning solution as instructed on the solution bottle.

• Disconnect pressure washer from power supply.
  Place pressure washer upright on a flat surface.
  Remove cap from detergent tank.
  Pour detergent into tank until it reaches the maximum fill level located on the unit.

NOTE: Use a funnel, if needed, to prevent accidental spilling of the detergent outside the tank. If any detergent is spilled during the filling process, make sure the unit is cleaned and dried before proceeding.

Reinstall cap.

STARTING AND STOPPING THE PRESSURE WASHER

See Figures 10 - 11.

CAUTION:

Do not run the pump without the water supply connected and turned on.

Connect the garden hose.
- Turn the garden hose on then squeeze the high pressure trigger to relieve air pressure. Once a steady stream of water appears, release the trigger.
After ensuring the On/Off switch is in the OFF (O) position, connect the pressure washer to the power supply. NOTE: For ease of use during operation, you may thread the electrical cord through the coils of the garden hose before connecting to power supply.
Press the reset button on the pressure washer's plug to make sure the unit is ready for operation.
Press ON (I) on the switch to start the motor.
To stop the motor, release the trigger and press OFF (O) on the switch.

WARNING:

Hold the handle and wand securely with both hands. Expect the trigger handle to move when the trigger is pulled due to reaction forces. Failure to do so could cause loss of control and injury to yourself and others.

USING THE SPRAY WAND TRIGGER

See Figure 12.

For greater control and safety, keep both hands on the trigger handle at all times.

Pull back and hold the trigger to operate the pressure washer.
- Release the trigger to stop the flow of water through the nozzle.

To engage the lock-out:

Push up on the lock-out until it clicks into the slot.

To disengage the lock-out:

Push the lock-out down and into its original position.

For the most effective cleaning, the spray nozzle should be between 8 in. and 24 in. from the surface to be cleaned. If the spray is too close it can damage the cleaning surface.

OPERATION

USING THE NOZZLES

See Figure 13.

Before starting any cleaning job, determine the best nozzle for the job. Apply detergent using the soap (black) nozzle. The 25^ nozzle is for general purpose or large surfaces and the turbo nozzle gives up to 50% more cleaning power.

CAUTION:

NEVER change nozzles without locking the lock-out on the trigger handle.

Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
■ Engage the lock-out on the trigger handle by pushing up on the lock-out until it clicks into the slot.
- Push the nozzle into the quick-connect collar until it clicks in place and is secured properly.

To disconnect a nozzle from the trigger handle once the cleaning job is complete:

Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
■ Engage the lock-out on the trigger handle by pushing up on the lock-out until it clicks into the slot.
- Remove the nozzle by placing hand over nozzle then pulling back the quick-connect collar. Place nozzle in the nozzle storage area on the top of the machine.

Use only detergents designed for pressure washers. Many detergents may require mixing prior to use. Prepare cleaning solution as instructed on the solution bottle.

To clean:

Pour detergent in the detergent tank.
Install the soap nozzle on the spray wand.
- Start the pressure washer and spray the detergent on a dry surface using long, even, overlapping strokes. To prevent streaking, do not allow detergent to dry on the surface.

To rinse:

Using the 25^ nozzle, spray away from the rinsing surface for approximately 10 seconds to allow any remaining detergent to be flushed from the line.
Start at the top of the area to be rinsed and work down, overlapping the strokes.

USING THE CLEANING DECK

See Figure 14.

• Attach the spray wand to the cleaning deck. See Using the Spray Wand as a Handle in the Assembly section of this manual.
  Start the pressure washer.
  Step on the Lock/Unlock pedal on the back of the cleaning deck to release the spray wand from its upright position.
  ■ Walk slowly behind the cleaning deck, cleaning as you go.

NOTE: If striping or swirling occurs, slow your pace. If problem continues, see Troubleshooting later in this manual.

CAUTION:

Striking any raised obstacle which using with the cleaning deck will damage the unit. If contact does occur and causes vibration when operating the pressure washer, stop and replace the spray bar. Continuing to operate the unit without replacing the spray bar could result in serious injury or damage to the unit.

NOTE: See figure 15 for the location of the spray bar.

MOVING THE PRESSURE WASHER

To move the pressure washer:

• Turn the pressure washer off. Point nozzle in a safe direction and pull trigger to release water pressure.
  Store the spray wand in the cleaning deck.
  Tilt the machine toward you until it balances on the wheels then roll the machine to the desired position.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

WARNING:

Always wear eye protection marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.

WARNING:

Before inspecting, cleaning or servicing the machine, shut off engine, wait for all moving parts to stop, and disconnect spark plug wire and move it away from spark plug. Failure to follow these instructions can result in serious personal injury or property damage.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING:

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.

Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service center.

NOZZLE MAINTENANCE

Excessive pump pressure (a pulsing sensation felt while squeezing the trigger) may be the result of a clogged or dirty nozzle.

Unplug the pressure washer.
Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
Remove the nozzle from the spray wand.

NOTE: Never point the spray wand at your face.

Using a straightened paper clip or nozzle cleaning tool (not provided), free any foreign materials clogging or restricting the nozzle.
Using a garden hose, flush debris out of nozzle by back flushing (running the water through the nozzle backwards or from the outside to the inside).

Reconnect the nozzle to the spray wand.
Turn on the water supply.

CLEANING THE DECK NOZZLES

See Figure 15.

There are two deck nozzles located under the cleaning deck. If these nozzle become clogged, it may be necessary to clean them.

To clean nozzles:

Unplug the pressure washer.
- Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
Tilt the cleaning deck backwards to expose the spray bar.
- With a wrench, remove the holders from each end of the spray bar then lift the nozzle from the holder.
Using a straightened paper clip or nozzle cleaning tool (not provided), free any foreign materials clogging or restricting the nozzle.
Using a garden hose, flush debris out of nozzle by back flushing (running the water through the nozzle backwards or from the outside to the inside).
- Slide the nozzle back into the holder.
Place the holder and the spray bar and retighten.

CHANGING THE HIGH PRESSURE FILTER

See Figure 16.

Once you have cleaned the deck nozzles, if the water still doesn't flow freely from the spray bar, it may be necessary to replace the high pressure filter.

To replace the filter:

Unplug the pressure washer.
- Place a flathead screwdriver in the cleaning deck inlet plug. The slot in the top of the filter will cause it to turn so it can be lifted out of the machine.
Once the filter is removed from the inlet plug, replace it with a new filter (not included).
Using a flat head screwdriver, turn the filter until it can no longer be seen over the top of the inlet plug.

STORING THE PRESSURE WASHER

Allow 30 minutes of "cool down" time before storing the machine. Store in a dry, covered area where the weather can't damage it.

It is important to store this product in a frost-free area. Always empty water from all hoses, the pump, and the detergent container before storing.

NOTE: Use of a pump saver will give you better performance and increase the life of the machine.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
Pressure washer does not start when trigger is depressed	Power cord not connected to power source	Connect the power cord to a live 120V AC, 60 Hz AC receptacle.
	Switch is off	Turn switch on.
	GFCI is tripped	Press reset button on the GFCI plug.
	House/shop circuit breaker is tripped	Reset house/shop breaker. Make sure pressure washer is connected to an individual branch circuit only. If using an extension cord, make sure it is heavy enough to carry the current of the pressure washer.
Pump doesn’t produce pressure	Inadequate water supply	Provide adequate water flow.
	Spray wand leaks	Check connections and / or replace wand.
	Nozzle is clogged	Clean nozzle.
	Pump is faulty	Contact authorized service center.
	Air in line	Squeeze trigger on spray wand to remove air from line.
	Water inlet filter is clogged or dirty	Remove the water inlet filter, rinse with warm water, then replace in unit.
Machine doesn’t reach high pressure	Diameter of garden hose is too small	Replace with 3/4 in. garden hose.
	Water supply is restricted	Check garden hose for kinks, leaks, and blockages.
	Not enough inlet water	Open water source full force.
No detergent	Detergent tank is empty	Add additional detergent to tank.
	Water supply is inadequate or clogged	Check garden hose for kinks, leaks and blockages.
	Wrong nozzle is attached.	Attach soap nozzle.
Wand leaks	O-ring needs replacing	Replace o-ring. If this does not correct the problem, contact your authorized service center to purchase a new wand.

LIMITED WARRANTY STATEMENT

Homelite Consumer Products, Inc.warrants to the original retail purchaser that this Homelite® brand pressure washer is free from defect in material and workmanship and agrees to repair or replace, at Techtronic Industries North America, Inc.'s discretion, any defective product free of charge within this time period from the date of purchase:

Two years if the product is used for personal, family or household use.

This warranty extends to the original retail purchaser only and commences on the date of the original retail purchase.

Any part of this product found in the reasonable judgment of Homelite Consumer Products, Inc. to be defective in material or workmanship will be repaired or replaced, without charge for parts and labor, by an Authorized Service Center for Homelite® brand pressure washers (Authorized Homelite® Service Center).

The product, including any defective part, must be returned to an Authorized Homelite® Service Center within the warranty period. The expense of delivering the product to the service center for warranty work and the expense of returning it back to the owner after repair or replacement will be paid for by the owner. Techtronic Industries North America, Inc.'s responsibility in respect to claims is limited to making the required repairs or replacements and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Homelite® brand pressure washer. Proof of purchase will be required by the dealer to substantiate any warranty claim. All warranty work must be performed by an authorized Homelite Consumer Products, Inc.service center.

This warranty does not cover any product that has been subject to misuse, neglect, negligence, or accident, or that is used for rental or commercial purposes, or that has been operated in any way contrary to the operating instructions as specified in the Homelite Consumer Products, Inc. operator's manual. This warranty does not apply to any damage to the product that is the result of improper maintenance or to any product that has been altered or modified so as to adversely affect the products operation, performance or durability or that has been altered or modified so as to change its intended use. The warranty does not extend to repairs made necessary by normal wear or by the use of parts or accessories which are either incompatible with the Homelite® brand pressure washer or adversely affect its operation, performance or durability.

In addition, this warranty does not cover:

A. Wear items – Hoses, connector fittings, spray nozzles, wheels, spray wand

Homelite Consumer Products, Inc.reserves the right to change or improve the design of any Homelite® brand pressure washer without assuming any obligation to modify any product previously manufactured.

ALL IMPLIED WARRANTY ARE LIMITED IN DURATION TO THE STATED WARRANTY PERIOD. ACCORDINGLY, ANY SUCH IMPLIED WARRANTY INCLUDING MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, ARE DISCLAIMED IN THEIR ENTIRETY AFTER THE EXPIRATION OF THE APPROPRIATE ONE YEAR, WARRANTY PERIOD. TECHTRONIC INDUSTRIES NORTH AMERICA, INC.'S OBLIGATION UNDER THIS WARRANTY IS STRICTLY AND EXCLUSIVELY LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS AND HOMELITE CONSUMER PRODUCTS, INC DOES NOT ASSUME OR AUTHORIZE ANYONE TO ASSUME FOR THEM ANY OTHER OBLIGATION. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. HOMELITE CONSUMER PRODUCTS, INC. ASSUMES NO RESPONSIBILITY FOR INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES INCLUDING, BUT NO LIMITED TO EXPENSE OF RETURNING THE PRODUCT TO AN AUTHORIZED HOMELITE® SERVICE CENTER AND EXPENSE OF DELIVERING IT BACK TO THE OWNER, MECHANIC'S TRAVEL TIME, TELEPHONE OR TELEGRAM CHARGES, RENTAL OF A LIKE PRODUCT DURING THE TIME WARRANTY SERVICE IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE TO PERSONAL PROPERTY, LOSS OF REVENUE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, OR INCONVENIENCE, SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This warranty applies to all Homelite® brand pressure washer manufactured by Homelite Consumer Products, Inc. and sold in the United States and Canada.

To locate your nearest Authorized Homelite® Service Center, dial 1-800-242-4672.

INSTRUCTIONS IMPORTANTES CONCERNANT LA SECURITE

AVERTISSEMENT :

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.CALIFORNIA PROPOSITION 65

AVENTISSEMENT :

For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-242-4672 or visit us online at www.homelite.com.

REPAIR PARTS

The model number of this product is found on a plate or label attached to the housing. Please record the serial number in the space provided below.

MODEL NO.

SERIAL NO.

DéPANNAGE
