Product Type	Portable Generator
Brand	Homelite
Model	UTI2100R
Peak Power	2100 Watts
Running Power	1800 Watts
Engine Displacement	79 cc (approx.)
Fuel Type	Gasoline
Fuel Tank Capacity	1.3 gallons (approx.)
Runtime at 50% Load	Up to 10 hours
Start Type	Recoil Start
Outlets	2x 120V AC outlets (NEMA 5-20R), 1x 12V DC outlet
Noise Level	65 dB (approx.)
Dimensions (L x W x H)	20 x 15 x 17 inches (approx.)
Weight	48 lbs (approx.)
Fuel Gauge	Yes
Low Oil Shutdown	Yes
Circuit Breaker	Yes
Wheel Kit	Optional
Spark Plug Type	F7RTC (approx.)
Oil Capacity	0.6 quarts (approx.)
Air Filter Type	Foam
Fuel Cap	Vented
Warranty	2 years (limited)

Frequently Asked Questions - UTI2100R HOMELITE

What is the peak power output of the Homelite UTI2100R generator?

The peak power output is 2100 Watts. This allows it to start small appliances with higher surge demands.

How do I break in a new generator?

After the first 5 hours of operation, change the oil and avoid heavy loads. Consult the manual for detailed break-in procedures.

Can I connect the generator directly to my house panel?

No, unless you have a transfer switch installed by a licensed electrician. Direct connection can cause backfeeding and risk to utility workers.

What type of oil should I use?

Use SAE 10W-30 for most temperatures. For cold weather, SAE 5W-30 is recommended. Check oil level before each use.

How often should I change the oil?

Change oil every 50 hours of operation or annually, whichever comes first. More often in dusty conditions.

What fuel should I use?

Use fresh, unleaded gasoline with an octane rating of 87 or higher. Do not use E85 or gasoline with more than 10% ethanol.

How do I store the generator?

Drain fuel or add stabilizer, change oil, clean air filter, and store in a dry, ventilated area. Run the carburetor dry if storing long-term.

Why is my generator not producing power?

Check the circuit breaker, ensure the generator is running at proper speed, and verify the outlets are clean. If still no power, the AVR or brushes may need service.

Can I run sensitive electronics like a computer?

Yes, but use a surge protector or power conditioner. The generator supplies modified sine wave, which may not be ideal for all electronics.

What is the noise level of this generator?

The noise level is approximately 65 dB at 7 meters, similar to a normal conversation.

USER MANUAL UTI2100R HOMELITE

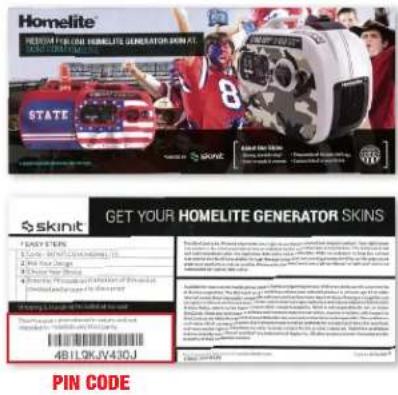

skinit® 1700 REMAINING WATTS 2100 POUR POWER Homelite® YOUR TEAM. YOUR POWER.™ STATE UNIVERSITY

1 Purchasea Homelite ® Skinit® 2100-Watt Gasoline Powered Quiet Tailgate Inverter Generator from HomeDepot.com in Red or Silver.
2 Locate your FREE Skinit ® voucher in your generator's box.
3 Visit Skinit.com/Homelite to redeem your FREE skin.
4 Select your device and then choose from a variety of designs including your favorite professional football and college teams*, military emblems and flags. Can't find what you're looking for? Upload your own photo for a completely personalized skin.
5 Before checking out, enter the PIN code located on the bottom of your voucher. This code will cover the cost of all professional football, college, military, flag and personalized skins.

*Includes most NCAA schools

Homelite PRESIDENT FOR YOUR HOMELITE GENERATOR SKIN AT STATE SKINIT GET YOUR HOMELITE GENERATOR SKINS PIN CODE

How to Apply Your Skinit®

Step 1: Read all instructions included with your Homelite Inverter Generator and Skinit® before beginning.

Step 2: Completely empty your Homelite Inverter Generator of gas and oil. You should not attempt to apply the skin unless the unit is completely empty.

Step 3: Clean the surface of the generator where the skin will be applied and let dry. Wipe down the surface of the generator where the skin will be applied with a damp cloth. Next, clean the surface with a cloth slightly damp with rubbing alcohol. Be careful not to touch any of the electronic components of the unit.

Step 4: Apply the Skin. After the generator surface is completely dry, you can apply the skin. The unit can be standing up or lying down.

Tips:

• Start on the non-control panel side of the generator with the small square piece and the small circular piece.
  • Take your time when applying large pieces.
• If the skin does not line up correctly, carefully peel it back and try again.
• When applying the skin to curved surfaces, you can gently stretch them to fit the generator.
• As you apply, firmly press the skin from the middle to the edges, pushing any air bubbles out from under the skin using your hands or a credit card.
