USER MANUAL TV022 SWEEX

Power Card Connection 7 Antennas Connection 7 SCART Connection 8 YPbPr Connection 8 S-Video Connection e VGA Connection 9 HDMI Connection 10 Remote control instructions in TV mode n Remote control instructions in TELETEXT mode 12 Remote control instructions in DVD mode 13 Remote control setup mn

“Thank you for buying this TV ! Please read this manual Ihoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV is damaged, do no install your dealer. Check that you have all ihe accessories according to the model. it and contact

2. SAFETY PRECAUTIONS

Putthe TV on a stable surface. À Do not place any material on the TV. Do not use the with fixures other than those provided or suggested by Ihe manufacturer. Do not block or cover the ventilation openings on the TV. If you have a wall mount, check Ihat is steady. Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall

Keep the TV dry and away from humidity. Keep the TV away from heat sources. as Cas Unplug the before cleaning i. Do not use solvent or liquid TV to clean the TV. Only clean the TV with a soft and dry cloth In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short circuits fire or other incidents. Unplug the TV during lightening storms or when unused for long periods of time.

LCD TV SET Remote Control

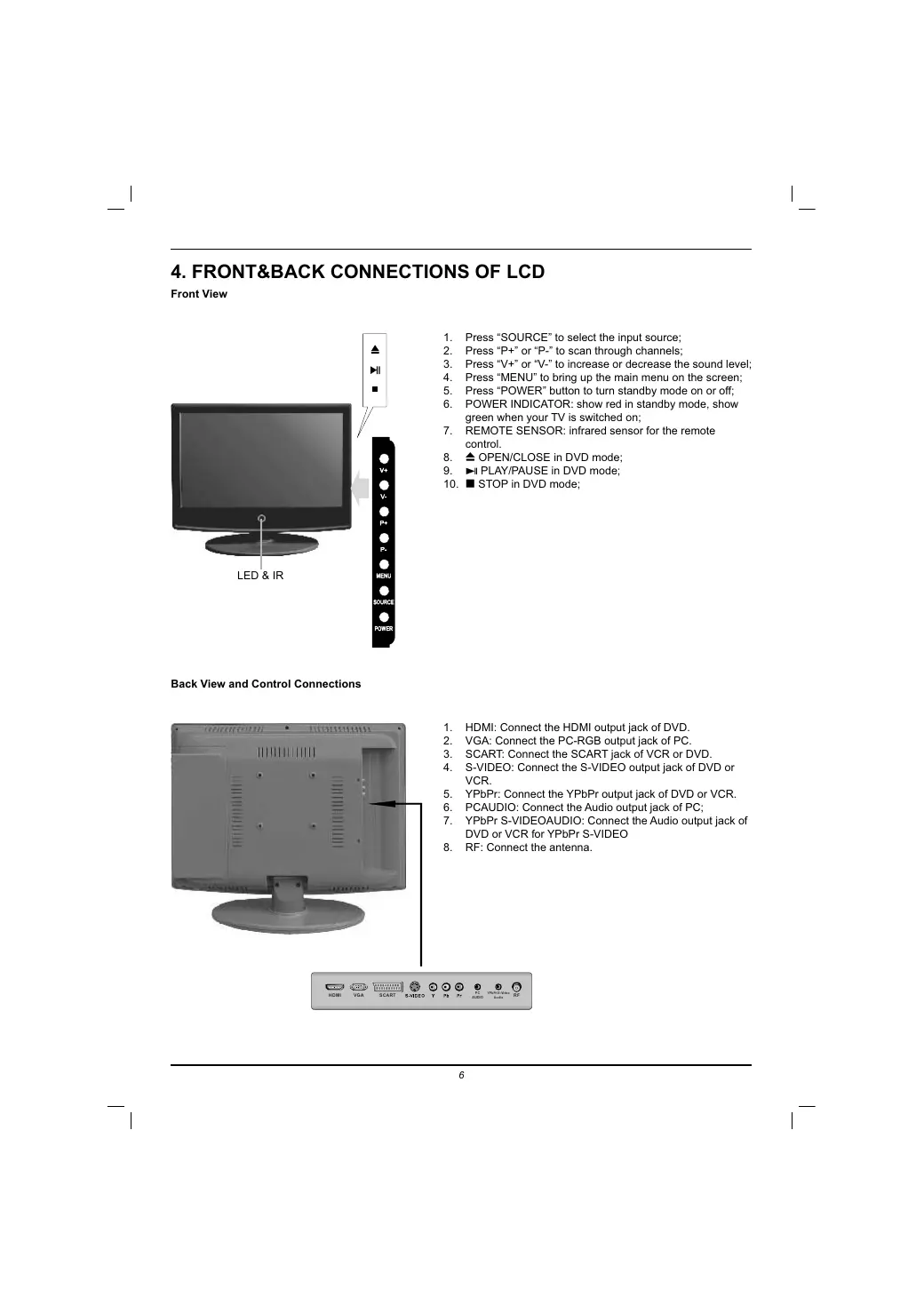

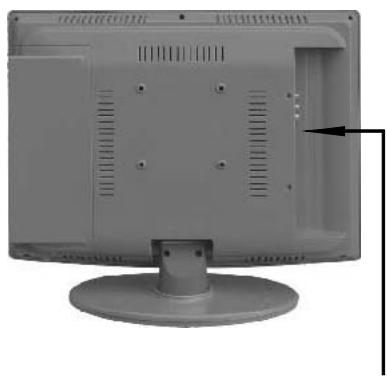

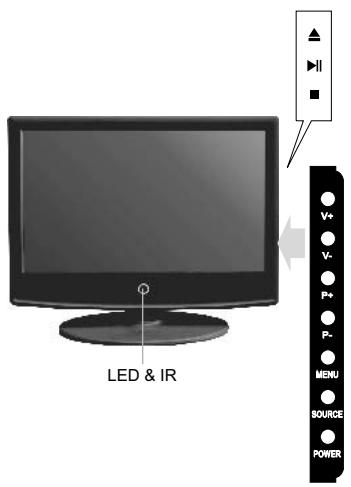

LED &IR Back View and Control Connections Press “SOURCE” to select the input source; Press “P+" or “P-" lo scan through channels: Press “V+" or “V." lo increase or decrease the sound level; Press “MENU Lo bring up the main menu on {he screen: Press POWER" button Lo turn standby mode on or off, POWER INDICATOR: show red in standby mode, show green when your TV is switched on: REMOTE SENSOR: infrared sensor for the remote control. # OPENICLOSE in DVD mode; »1 PLAY/PAUSE in DVD mode; M STOP in DVD mode; HDMI: Connect ie HDMI output jack of DVD. VGA: Connect the PC-RGB output jack of PC. SCART: Connect the SCART jack of VCR or DVD. S-VIDEO: Connect the S-VIDEO output jack of DVD or VCR. YPbPr: Connect the YPbPr output jack of DVD or VCR. PCAUDIO: Connect the Audio output jack of PC; YPbPr S-VIDEOAUDIO: Connect the Audio output jack of DVD or VCR for YPbPr S-VIDEO RF: Connect the antenna.

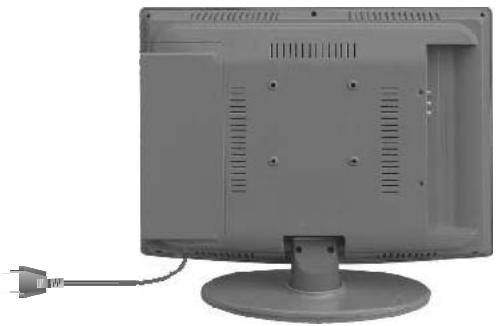

1. Connect ihe power cord correclly as shown.

2. Press the POWER switch of your LCD V to switch on the LCD TV. The power indicator on the front panel lights up

ourooR | ANTENNA AMPLIFIER INDOOR ANTENNA AMPLIFIER | 75 Hu ANTENNA PLUG POWER PLUG (OF ANTENNA ANPLIFIER ‘To ensure good picture and sound, TV antenna system needs Lo be installed. The antenna system as Shown above can be sourced from TV equipment shops, which wil provide service for correct installation and connection. Afler installation, insert the 75-ohmantenna plug into the antenna jack as shown above.

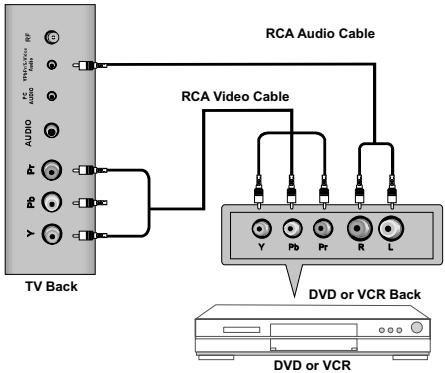

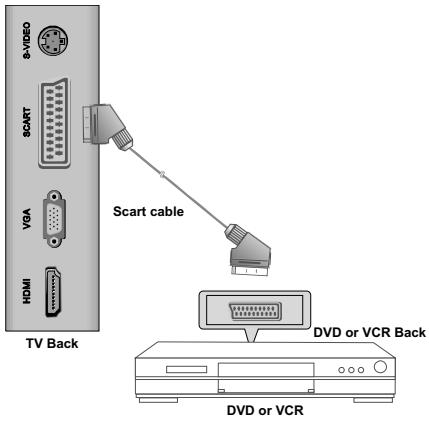

C SCART Connection } Connect the SCART connector on the extemal video device to {he SCART connector on he sel using a SCART cable. Scar cable C YPbPr Connection Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is improved: compared to connecting a regular VCR Lo the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable. RCA Audio Cable RCA Video Cable

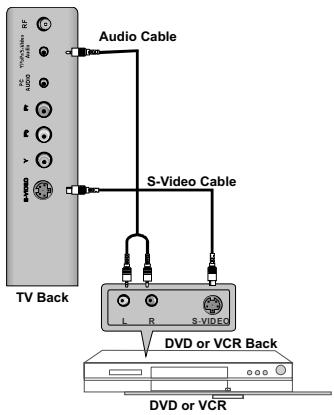

C S-Video Connection } Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on he set. The picture quality is improved compared to connecting a regular VCR to the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable. Select S-VIDEO input source with using the SOURCE button on the remote control. Audio Cable SiVideo Cabie : DVD or VCR Back C VGA Connec! >) Connect the RGB output of the PC to the VGA jack on the set. Connect ie AUDIO output of the PC lo the PC AUDIO jack on the set, Select the VGA input source wilh using SOURCE button on the remote control. TV Esck

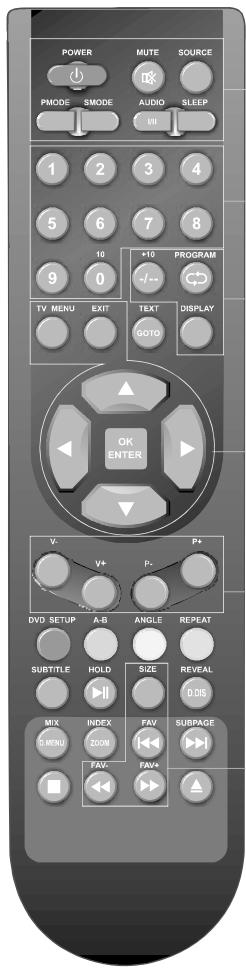

(( Remote control instructions in TV mode ) POWER Tum the LCD TV ON or OFF. MUTE Press lo mute the sound. Press again or press V+ to un-mute the TV. SOURCE Press lo cycle Ihrough {he input source in following: TV—SCART-> S-VIDEO YPbPr-» VGA DVD <-HDmi<—l PMODE Press repeatediy lo cycle through {he available video picture modes. SMODE Press lo cycle through {he diferent sound setings AUDIO(UI) Press Lo search he NICAM modes. SLEEP Lets you select amount of time before your TV tum itsel off automaticaly. NUMBER BUTTONS Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds.

Press this button lo enter a program number for multiple program channel such as 2-1,ele.

Press lo increase / decrease the sound level. P4P- Press lo scan through channels. SIZE Change the picture format. FAV#/FAVIFA- Press to increase decrease your favourite program in TV mode.

C Remote control instructions in TELETEXT mode D) NUMBER BUTTONS Press 0-9 to select a leletext page. TEXT Press lo switch between TV and Teletext mode. P4P- Page up and Page down. COLOR BUTTONS Select 4 Preferred TELETEXT page. SUBTITLE To display subtil. HOLD Freeze lhe current page. SIZE Change the picture size. REVEAL Reveal or hide the hidden words. Mix TV and TXT pictures are mixed together in transparent background. INDEX Request index page when index link is valid. SUBPAGE TELETEXT Subpage.

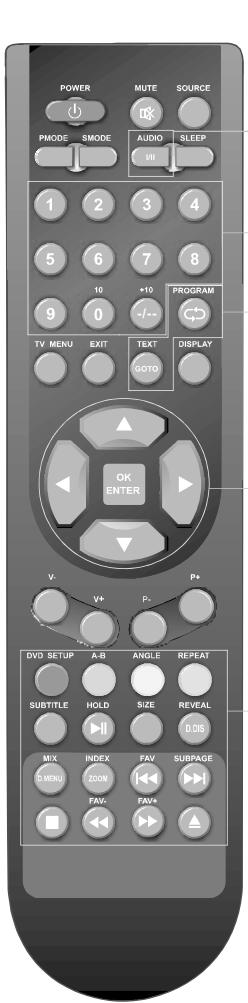

(( Remote control instructions in DVD mode

AUDIO(UI) AUDIO selection buttons in DVD mode. NUMBER BUTTONS Numerical buttons for various data. PROGRAM Program a disc playing in a desired sequence. GOTO Iis possible Lo get access to any point on the directly using the “GOTO" menu. Press GOTO to access the "GOTO" menu. THUMBSTICK (A/ VI» OK ENTER ) Allows you to navigate the on-screen menus and adjust the system settings to your preference. DVD SETUP Used for selecting programs. It may also be used lo execute ‘commands.

‘This button enables you lo repeat a selected section from the disc. ANGLE Selects various camera angles for certain scenes or passages on the DVD during playback. REPEAT Press REPEAT lo cycle through the repeat play options. SUBTITLE Select a different subite language(the DVD disc must have the subitle you selected.

PLAY/PAUSE in DVD mode. D.DIS Press to display the DVD information of DVD mode. SIZE Change the picture format. D.MENU DVD dise menu Access to menu. Z00M In play state, press ZOOM, the player will zoom in the picture one time. PLAT Jump Lo previous and next track.

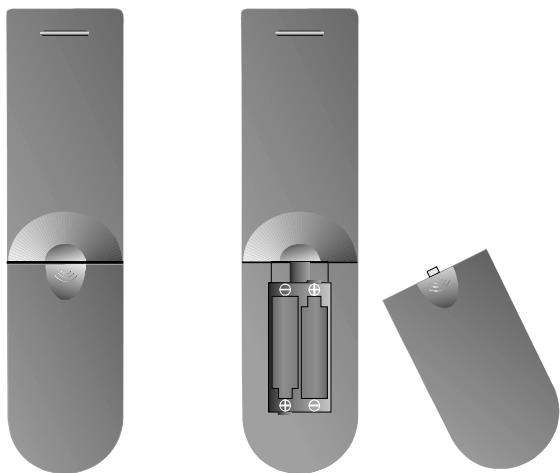

2. AAA size batteries, When inserting the batteries, make sure correct polarilies as per *+" and *-" marks on the

batteries and within the battery compartment,

3. Replace the baltery cover.

‘To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correclly as marked on the remote control.

2... Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc) Remove batteries when the remole is not used for a long time.

orthe TV operation: In this manual the OSD ( On Screen Display) may be diferent from your TV, because this is just an example ]

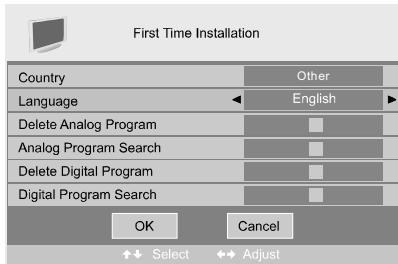

M 1rinis is tne fist ime you open the TV and there is no programs in the TV memory, the First Time Installation menu ll appear in {ne picture. Country Press VIA bution and inen use 4» Lo select the country. Lang Press VIA bution and inen use 4» to select the OSD language. Delete Analog Program Press VIA bution and ihen use 4» to select whether o delete all the analog programs. Analog Program Search Press VIA bution and inen use 4} to select whether Lo start searching analog programs. Delete Digital Program Press VIA bution and inen use 4» to select water Lo delete all the digital programs. Digital Program Search Press VIA bution and inen use 4» to select whether Lo start searching digital programs After setting the items, select OK to finish the first time instalation, or select Cancel to exit this menu. I you cancelled the frs time instalation, it wil remind you whether to set the first time installation next time. First Time Installation First time instalation & not fnishec. Are you sure to ext?

2. The colour system of current program, could be selected in Manual Tuning menu{an option of SETUP menu).

3. The name of current program.

4. The label of current program, you can label in Manual Tuning menu{an option of SETUP menu).

5. The sound system of current program, could be selected in Manual Tuning menu (an oplon of SETUP menu)

6. The NICAM mode of current program.

M 1rine icon of NIGAM mode is red, it means the current program supplies muït NICAM signals, and you can select it by. pressing NICAM button ‘The NIGAM modes and relative icons: Mono Stereo D Duelt Duel

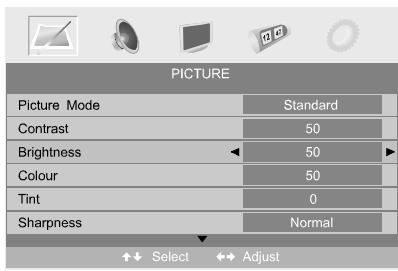

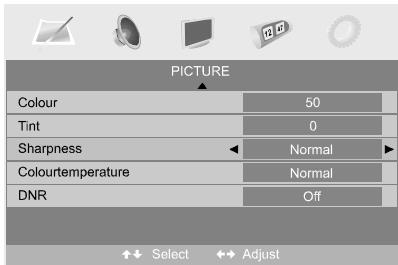

e 2. Press V/A buiton to select the option that you want o adjust in the PICTURE menu. Press {> button to adjust. (When you are satified with your adjustment, press the TV MENU button to retum o the previous menu or press the EXIT button to ext the main menu Picture Mode Select Picture Mode in PICTURE menu. (Available picture mode: Standard, Personal, Movie, Spor, Mid, Game. I you change the value of Contrast, Brighiness, Colour, Tnt, Sharpness or Colour temperature on the picture menu, the picture mode will be changed to “Personal automatically. You may select the picture mode directly by pressing PMODE buiton. TP. fou can press PMODE button on the remote control to select the Picture Mode direct. Contrast Press VIA bution and then use 4/> to adjust he contrast of the picture. AAfer adjust the value you want, press TV MENU button Lo retum to the preview MENU. Brightne Press V/À buton and inen use 4 10 adjust ie bigness fie picture. Colour Press VIA bution and inen use 4» to adjust the colour saturation. NOTE: This option is Invalid in PC mode, and it will be shown in gray. int Press V/A bution and then use 4» to adjust the tone of colour en your system is in NTSC: Sharpness Press 419 Lo aot in sarpness mode four TV. (Aalsbie Sharpnose Mode Nom Sharp Shampest, Boat SO) 4 À Le Colour temperature Select an opümum colour temperature mode to sui your eyes for viewing among Normal, Warm and Cold. NOTE: This option is available only in PC mode. DNR (Digital Noise Reduction) Ithe broadcast signal received is weak, you can select ihe DNR pton Lo reduce the video noise level between Of, Low, Mid and High.

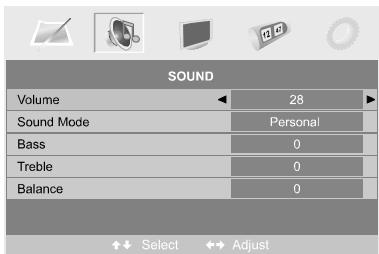

C AUDIO menu options >) Press MENU button on the front panel or TV MENU on the remate control to display the main menu. Press the 41 bution Lo select in SOUND he main menu. Press the V/A button to select the option that you want to adjust in the SOUND menu. Press the 41 bution to adjust. (When you are satified vith your adjustment, press the TV MENU button Lo retur o the previous menu or press the EXIT button to ext the main menu Volum Press VIA bution and inen use 4» o adjust {he sound level AAfler adjust the value you want, press TV MENU button Lo retum to the preview MENU. Sound Mode Select Sound Made in SOUND menu. (Avaïlabe sound mode: Peraanal, Voice, Music, Theatre ) 1 you change he value of Bass and Treble on the Sound menu, {he sound mode will be changed to “Persona” automatcal ‘You may selectihe sound mode direct by pressing SMODE button TP. fou can press SMODE button on the remote control to select the Sound Mode direct. Bass Press VIA bution and inen use 4» Lo increase or decrease the level of the lower-pitched sounds. ‘Treble Press VIA bution and then use 4 to increase or decrease {he level of he higher-pitched sounds. Balance Press V/A bution and then use 4} to acjust the audio output betveen 4/> speakers. ( Setup menu options >) “ À [D w

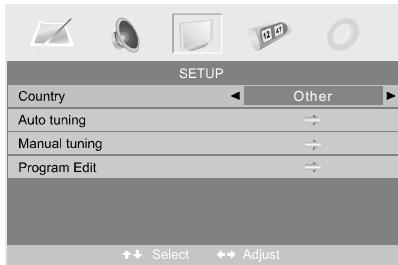

Press 1he 41» bution to select SETUP in the main menu. Press the V/A button to select your option hat you want to adjustin the SETUP menu. Press the 4/2 button to adjust. When you are satisled with your adjustment, press the TV MENU button to return to the previous menu or press the EXIT button to ext the main menu. Country ‘This option allows you to select he country. Auto tuning ‘This option allows you to tune the channels that can be received automaticaly. efore you perform Auto Tuning, you must choose Ihe country where you are by selecting COUNTRY cpion. Press ENTER Key sat Au Tuning Sea D À ATV You can press TV MENU buton Lo Stop auto tuning and close the OSD menu. Manual Tuning ‘This option allows you to perform Manual Tuning. Note: Before you perform Manual Tuning, you must chocse the country where you are by selecting Country option in the FUNCTION menu.

1. Press 4» 10 select Manual tuning in SETUP menu

2. Press V/A to perform your selection, the menu of Manual tuning wil display on the screen.

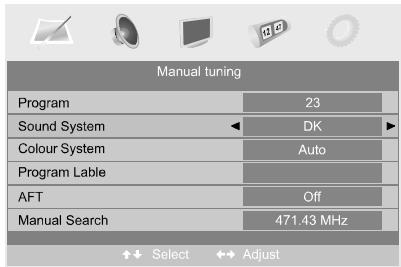

“amp Program Lable Program .The current program number. Press 4/> to select he upper or lower program Sound System Press 4» to select a corresponding sound system, such 25 DK, LI, BG, L

Colour System Press 4} to select a corresponding colour system, such 25 Auto, PAL, SECAM. ProgramLabel ‘This option allows you to label a channel, you can also relabel ne programs have been labeled 1... Select a channel you want t labeled.

2. Press /A select Program Label in SETUP menu.

3. Press W/A to perform your selection, The menu of program label wil display as belou:

6. Press ENTER, TV MENU or EXIT buion Lo confimm and return to previous menu.

AFT (Auto Fine Tune) Due to weak signals or a wrong antenna configuration, some of {he channels maÿ not be tuned to the best reception condition. AFT function allows you to fine tune channel selected(the frequency of channel is around the value in Manual Search option: Manual Search Mana Search RER E ‘This option has two functions

1. Set the frequency of channel for AFT option.

2. Press à bution for 3+ seconds and it wi start auto tuning from this frequency.

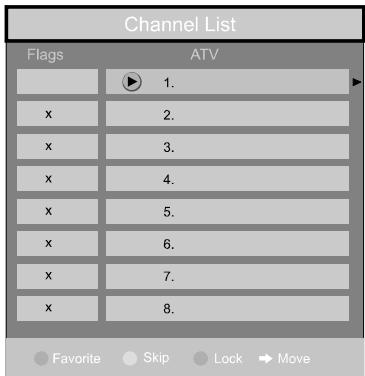

Program Edit ‘This function allons you to sort the TV programs according to your preferences, as following; Press Y/A to select Program Edit in SETUP menu Press 4/> to enter into 1he sub menu, a channel list wil display. Press V/A to select the channel in the ist which you would Ike lo sort. Press > lo perform your selection. Press V/A to select the location you would Ike to place the channel. Press 4 10 perform you selection. Press TV MENU to return to the previous menu or press EXIT to exit.

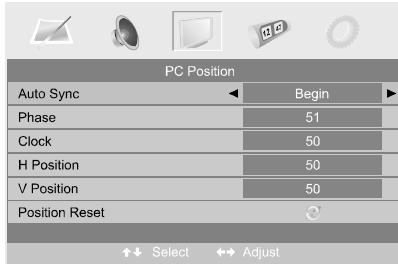

SETUP menu of VGA input (for seting the PC picture position): “x A | w SETUP menu of HDMI input (for seting the HDMI picture position) SETUP menu of YPbPr input (for seting the YPbPr picture position): “ à N #

(C Timermenucptons ___} Press MENU button on the front panel or TV MENU on the remate control to display the main menu. Press ne 4 button to select TIMER in the main menu Press the /A button to select your opion what you want to adjustin ine TIMER menu Press ne 4 button to adjust. When you are satisfed with your adjustment, press {he TV MENU <BL MM Puton to reium line previous menu or press the EXIT button to ex the main menu TIMER Sleep Timer Select the sleep time to put automaticaly the TV in standby mode. Timer can be selected as Omin, 15min, 30min, 45min, 60min, Tin, S0min, 106min, 120min. Also you can select tne sleep time by pressing SLEEP button repoated. OSD Time You can select he time when the OSD display on the screen such as: Sec, 108ec,158ec, 20Sec, 25Sec, 30Sec.

2. Pressthe V/A button to select your option what you want to adjust in the FUNCTION menu

3. Press the 4/> button to ajust

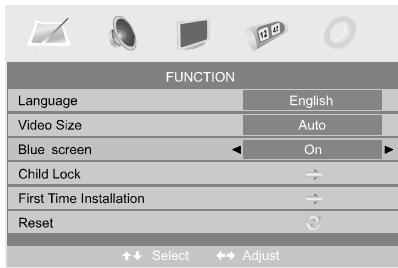

4. When you are satisfied with your adjustment, press the TV MENU button to return to the previous menu or press the EXIT button to ext the main menu. Languac Press 41» lo select the OSD language. Video Size ‘This option allows you to select the screen display mode which best corresponds Lo your viewing requirements. Note: The available aspect mode may be different in different Input signal.

Blue screen ‘This option allows you to select the blue background on or off. If on, ne screen background wil turn blue at very weak or no signal condition. Child Lock Press ENTER or » bufion Lo set ne child lock. PIN Code: Delete 0-9 Input ENTER Enter You nged te enter the PIN code ifthe Child lock is set "on’, and {he defaut PIN code is empty, you can press ENTER button direct} 0 enter. PNco: SN TI. 1e superusers (administrators) password 8329. “ar Child Lock Press ENTER or » bufion to set ne child lock. Key Lock Press ENTER or » butlon to set he key lock. Change PIN Code Press à butlon to enter Change PIN Code menu. As ps Old PIN Code Press 0-9 buttons to enter the correct old PIN code, you can nat change the PIN code i you entered a wrong PIN code. New PIN Code Press 0-9 butlons to enter the new PIN code you want Change PIN Code Press 0-9 buttons to enter the PIN code you entered in the New PIN Code menu again to confirm the new PIN code. First Time Installation Press > button to open the first time installation menu, and the operation of this menu is in page 3. Reset Press ENTER or à bution to reset the TV to the factory defaut.

Basic operation Turn ON and OFF the function DVD = Tum on the LCD TV and then press SOURCE button to select DVD mode.

=" Insert DVD dises, i PBC is "ON" status, press 4 button wil enter the disc menu. Press »4 button {o star in sequence. For others, while Stopped, press the 1 button Lo star in sequence...… Program playback = Using Program playback, you can select max. 16 chapters from the disc to playback in programmed order. = OSD for program playback as below. MP3IJPEG Playback After loading and scaning the MP3 / JPEGCDEDVD, it il initally display he MP3 contents automatically and star to play the first île (highlighted fie). Screen as folow: Press 1he 4 or > button select the icons Lo s ct our fl type. Music, Picture and Video. PICTURES Press the 4» button in the opposite direction to select tne le type, then press ENTER on the remote control. Now you can choose from the list of les to play. = Using the navigation buttons enables you to check you favorite folder and playback the first île or move ta the your favorite folders. NOTE: = Press 4 > buttons to move the highlighted fes to folders, documents or mode selection. = Press numeric buttons Lo select the contents directiy. For number over 10, press +10 button ft. (e.g. File number 15, press +10 then 5.) = When playing MP les, there is no picture display, only audio output = Playing JPEG discs: Press Ihe PROGRAM button lo select slide effects. There are 12 slide modes, press the PROGRAM button to toggle between different modes in sequence. (Start fram top, Start from boltam, Star from lef, Stat from right, Start rom upper left come, Start from upper right comen, Merge from let / right, Horizontal blades, Vertical blades, Merge form 4 comers, Random, Playback Side effect OFF). + When playing or pauseing images, you may use navigation buttons Lo fip / rotate the picture. A button to fip horizontal. Y button to flip vertical 4 button to rotal lef 90. > button to rotale right 90°. = When playing or pausing images, you may use the D MENU button to enter preview mode to display 12 pictures. Press «41 button to select next / previous page or press numeric buttons 1o view he corresponding pictures. = The maximum JPEG image size that can be displayed is 1280 x 1024.

Function Settings (( DVD Function General setup ) TV SYSTEM SCREENSAVER TV TYPE PASSWORD RATING POWER RESUME DEFAULT = Press DVD SETUP the buton to activate the DVD player OSD menu; Press AJ buttons to move and highlght between diflerent sub-menus. Press 4/> ENTER button to enter the highlighted sub-menu. + Press DVD SETUP button to exit the OSD menu. NÆ4 TV SYSTEM Press > button to enter the TV SYSTEM, and then press A/Y to select one from belour. TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING POWER RESUME DEFAULT AUTO (Defaut setting) ‘This format can be used if your DVD is capable of bath PAL and NTSC formats. PAL “This is the format used in UK for example. NTSC ‘This format is used by some olher countries, eg. USA

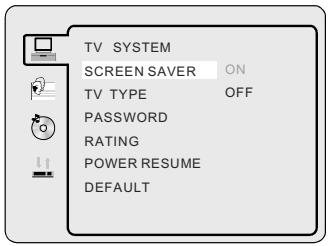

SCREEN SAVER Hthe screen saver option is on, when your DVD player is in Stop, Open, or No Disc state, or there is a frame frozen for more than 60sec, the screen saver wi be displayed. This feature can protect the screen from damage. ON: Choose this setting to actvate the screen saver. OFF: Choose this seting to cancel the screen saver TV SYSTEM SCREENSAVER

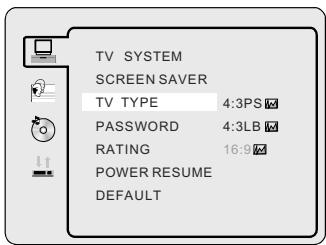

TV TYPE DVD's are produced in a variety of screen aspect ratios, This menu enables you to select one of he three aspect race: + 43PS (Normal) + 43LB (Normal) TV SYSTEM + 189 (Wide) SCREEN SAVER = Select the most appropriate aspect ratio for the JPG being viewed

PASSWORD 4318 RATING = POWER RESUME DEFAULT NOTE: - Playback screen size may vary according to the disc contents. = For media with 43 contents, using any mode would only display a 4:3 screen = Screen ratio selection should be according to the connected TV / Display aspect ratio. PASSWORD + The default setting is locked. No Rating selection or change password could be done. To edit the Rating seing, please enter default password “0000” using the numeric buttons, then press ENTER button lo conf. ‘To change password, input any 4 digit number when the lock is unlocked, Once 1he 4 digit number is entered, that wil be your new password. TV SYSTEM SCREENSAVER TV TYPE PASSWORD RATING POWER RESUME DEFAULT.

RATING You can select he rating setting according to your preference. Rating restriction is divided into eight iferent category from KID. SAFE 0 ADULT. NOTE: Oniy ecitable when password is unlocked

DEFAULT 7 NC417 POWER RESUME ON: Choose this setting to activat the power resume. OFF: Choose this setting to cancel the power resume.

1 screen sAvER 7 [rvrvee & | rassworo ? [rare

DEFAULT OFF DEFAULT SETTING = Press ENTER bution to restore factory default.

TV SYSTEM = | sereensaver | re © | passworo Li | ranne POWER RESUME DEFAULT

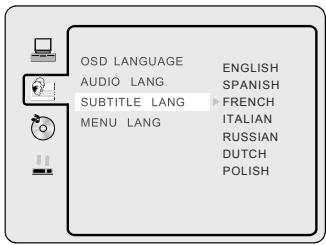

Press DVD SETUP button to enter the DVD OSD menu. AUDIO LANGUAGE SUBTITLE LANGUAGE 50 LANGUAGE MENU LANG POLISH Use navigation buttons to select the SUBTITLE selection Press À & V butions {0 toggle between different languages. Press ENTER button Lo confim, + OSD Language Use navigation buttons to select the OSD LANGUAGE setup icon, press ENTER button to confirm. There are 7 languages for your selection, press. A & Y buttons to toggle belween diferent languages .Press ENTER button 10 conf. Use navigation buttons to select the AUDIO LANG setup icon, press ENTER button to confim. There are 7 languages for your selection. Press À & V butions to toggle between diflerent languages. Press ENTER button to confirm. LANG setup icon, press ENTER button to confim. Ther are 7 languages for your

ourcH PoLISH AUDIO setup ‘The audio setup options are ilustrated below: KEY = Use the Up and Doum arrow button to move the scral and adjust the KEY.

DUAL MONO Suitch the compress mode to “Audio output" to adjust he compress ratio for different effects. When selected FULL, the peak signal value is smallest When selected OFF, the peak signal value is largest. You can select four diferent audio output, STEREO, MONO L, MONO R, MIX MONO. The audio out description of these Selectons is shown in the table below. ge [ur oo

Please check if you can salve the troubleshocting by yours. No signal Please check that al cables are correctly plugged in. No color shades Adust he contrast the color and the brighiness. Stain show on the Maybe resul from a lighting signal from car, motar, neon light and other electrical devices or appliances. Double or mutiple display image Maybe the result of an electrical wave disturb from other TV, Computer and Game machine or Rad. Snow on the screen ‘The cables of the antenna are not correct plugged in. The remote control does not work Please check the batteries order and alignment. Check that he IR of the remote control is not hidden by something “Zip made noise on TV cover Even ifthe display image is correct, the noise may come fram an unstead fixation of the panel. No sound Make sure that you have not press the MUTE button of the panel or of the remote control. No DVD Make sure if {he TV Set have ben suitched to DVD mode. DVD player not working proper Ensure disc is correct inserted into the player. Ensure the disc does not damaged and with correct format. Please wait patienty as some dises need longer time to play.
