USER MANUAL DC300KL DEWALT

● 30 TAGE GELD ZURÜCK GARANTIE ●

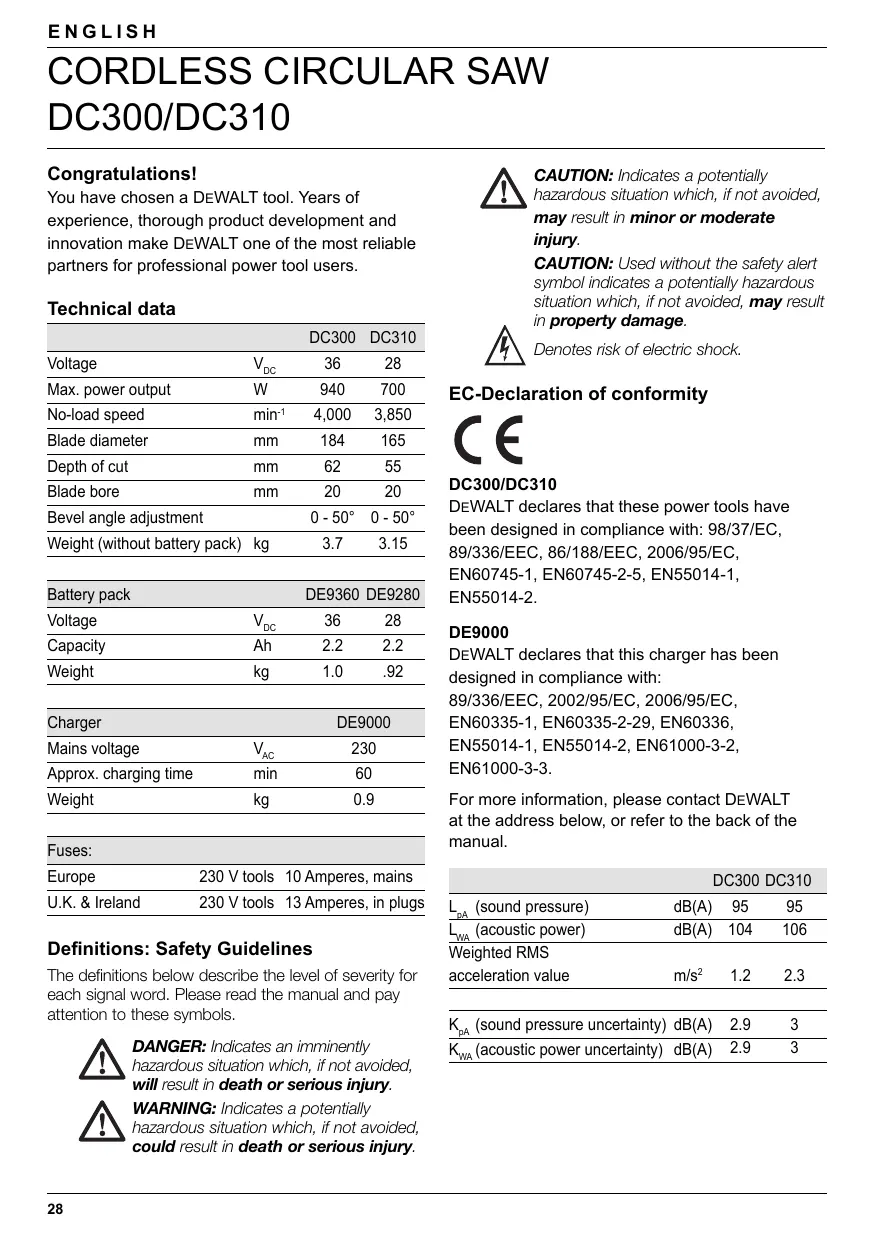

CORDLESS CIRCULAR SAW

DC300/DC310 Congratulations! You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users. Technical data DC300 DC310 Voltage VDC

Bevel angle adjustment

0 - 50° 0 - 50°

Weight (without battery pack) kg Battery pack

DE9360 DE9280 Voltage VDC

Mains voltage VAC Approx. charging time min

Fuses: Europe 230 V tools 13 Amperes, in plugs Definitions: Safety Guidelines The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently

hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially

hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. Denotes risk of electric shock. EC-Declaration of conformity DC300/DC310 DEWALT declares that these power tools have been designed in compliance with: 98/37/EC, 89/336/EEC, 86/188/EEC, 2006/95/EC, EN60745-1, EN60745-2-5, EN55014-1, EN55014-2. DE9000 DEWALT declares that this charger has been designed in compliance with: 89/336/EEC, 2002/95/EC, 2006/95/EC, EN60335-1, EN60335-2-29, EN60336, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3. For more information, please contact DEWALT at the address below, or refer to the back of the manual. DC300 DC310 LpA (sound pressure) LWA (acoustic power) Weighted RMS acceleration value dB(A) 95 dB(A) 104

KpA (sound pressure uncertainty) dB(A) KWA (acoustic power uncertainty) dB(A) ENGLISH Director Engineering and Product Development Horst Grossmann DEWALT, Richard-Klinger-Straße 11 D-65510, Idstein, Germany 4/2007 Safety instructions General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. 1 Work area safety a Keep work area clean and well lit. Cluttered or dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical safety a Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

ENGLISH g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5 Battery tool use and care a Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents. b Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. c Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. d When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. e Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 6 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Safety instructions for all saws

DANGER:

a Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. b Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. ENGLISH c Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece. d Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. e Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator. f When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. g Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control. h Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation. Further safety instructions for all saws Causes and operator prevention of kickback: - kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator; - when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator; - if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. b When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. c When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. d Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. e Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. f Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. g Use extra caution when making a "plunge cut" into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

ENGLISH Safety instructions for saws with a pendulum blade guard a Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. b Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris. c Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically. d Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Additional safety instructions for circular saws ● Wear ear protectors. Exposure to noise can cause hearing loss. ● Preferably wear a dust mask. ● Do not use blades of larger or smaller diameter than recommended. For the proper blade rating refer to the technical data. Use only the blades specified in this manual, complying with EN 847-1. ● Never use abrasive cut-off wheels.

Additional safety instructions for battery packs and chargers ● Make sure that the battery pack is dry and clean before inserting it into the charger. ● Never carry the charger by its cord. Never pull the cord to disconnect from the socket. Keep the cord away from heat, oil and sharp edges. ● Have any damaged or defective cords replaced by an authorised DEWALT repair agent. Never attempt any repairs yourself. ● Do not expose the charger to damp or wet conditions. ● Do not attempt to charge wet battery packs. ● Never attempt to open a battery pack for any reason. ● Charge only battery packs with the ratings as specified in this manual. Do not attempt to charge non-rechargeable batteries. ● Always follow the instructions in the back of this manual for battery pack disposal. ● When not in use, chargers and battery packs must be stored in a dry place and locked up securely, out of reach of children. Transporting DEWALT Li-Ion battery packs comply with the necessary testing requirements under the UN Manual of Tests and Criteria (ST/SG/AC.10/11/ Rev.3 Part III, Subsection 38.3) as referenced in the UN Recommendations on the Transport of Dangerous Goods. – The battery packs have effective protection against internal overpressure and short-ciruiting. – Appropriate measures have been provided for prevention of forced rupture and dangerous reverse current. – The equivalent lithium content is below the relevant limit value. DEWALT Li-Ion battery packs are exempted from national and international regulations applicable to dangerous goods. However, these regulations become relevant when transporting several battery packs together. ● Make sure that battery packs are packed according to the dangerous goods regulations as mentioned above to prevent short-circuiting. ENGLISH Labels on charger and battery pack In addition to the pictographs used in this manual, the labels on the charger and the battery pack show the following pictographs: Read instruction manual before use See technical data for charging time Do not expose to water 1 Allen key 1 Battery pack (DC300K/DC310K) 2 Battery packs (DC300KL/DC310KL) 1 Charger 1 Kitbox (K-models only) 1 Instruction manual 1 Exploded drawing Note: Battery packs and chargers are not included with N-models. ● Check for damage to the tool, parts or accessories which may have occurred during transport. ● Take the time to thoroughly read and understand this manual prior to operation. Do not probe with conductive objects Description (fig. A)

WARNING: Never modify the power tool

or any part of it. Damage or personal injury could result. Do not charge damaged battery packs Do not use damaged chargers Charge only between 4 °C and 40 °C Have defective cords replaced immediately Charger problem Battery problem Discard the battery pack with due care for the environment Do not incinerate the battery pack Charge only with dedicated DEWALT chargers Package contents The package contains: 1 Cordless circular saw 1 Saw blade (DT1211) INTENDED USE The DC300/310 heavy-duty circular saws are designed for professional sawing applications at various work sites (i.e., construction sites). DO NOT use under wet conditions or in presence of flammable liquids or gases. These heavy-duty circular saws are professional power tools. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

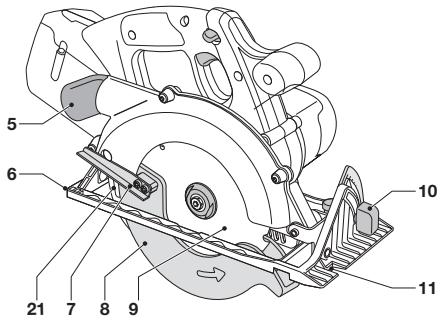

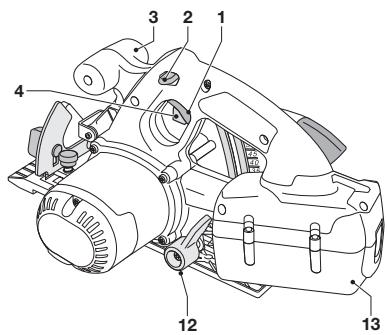

On/off switch Lock-off button Front handle Spindle lock Dust spout Saw shoe Lower guard retracting lever Lower guard Saw blade Bevel adjustment lever Kerf indicator Depth adjustment lever Battery pack Charger Your DE9000 charger accepts DEWALT Li-Ion battery packs of 36 V (DE9360) and 28 V (DE9280) at 2.2 Ah.

Battery pack Release button Charger Charging indicators (red)

WARNING: Never use a light socket.

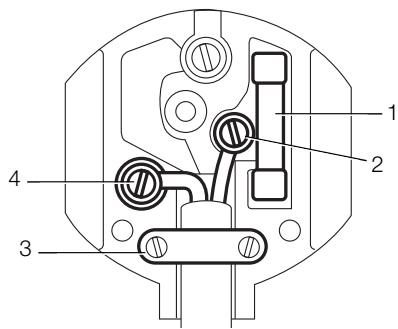

Never connect the live (L) or neutral (N) wires to the earth pin marked E or . Using an extension cable Electrical safety The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains. Your DEWALT charger is double insulated in accordance with EN 60335. Mains plug replacement (U.K. & Ireland only) ● Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician. ● Disconnect the plug from the supply. ● Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet. ● Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1). ● The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4). ● Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see technical data). The minimum conductor size is 1 mm2; the maximum length is 30 m. Assembly and adjustment

WARNING: Prior to assembly and

adjustment, always remove the battery pack.

WARNING: Always switch off the tool

before inserting or removing the battery pack.

WARNING: Use only DEWALT battery

packs and chargers. Fitting and removing the battery pack (fig. A) ● To fit the battery pack (13), line it up with the receptacle on the tool. Slide the battery pack into the receptacle and push until the battery snaps into place. ● To remove the battery pack, push the release button (14) while at the same time pulling the battery pack out of the receptacle. Charging the battery pack (fig. A, B) Always check the mains prior to charging the battery pack. If the mains is functioning but the battery pack does not charge, take your charger to an authorized DEWALT repair agent. Whilst charging, the charger and the battery pack may become warm to touch. This is a normal condition and does not indicate a problem. CAUTION: Do not charge the battery pack at ambient temperatures < 4 °C or > 40 °C. Recommended charging temperature: approx. 24 °C. ● To charge the battery pack (13), insert it into the charger (15) as shown and plug in the charger.

ENGLISH Be sure that the battery pack is fully seated in the charger. The red charging indicators (16) will blink according to the state of charge of the battery pack. ● When finished charging, the indicators are all on. The charger automatically switches to equalise mode. ● The battery pack can be removed at any time or left in the connected charger indefinitely. ● The red charging indicators flash rapidly to indicate a charging problem. Reinsert the battery pack or try a new one. If the new pack also refuses to charge, have your charger tested by an authorized DEWALT repair agent. ● The red charging indicators flash rapidly with one short blink followed by a long blink to indicate a problem with the charger. Return the charger to an authorized DEWALT repair agent. ● When plugged into power sources such as generators or sources that convert DC to AC, the red charging indicators (16) may flash together with two fast blinks followed by a pause. This indicates a temporary problem of the power source. The charger will automatically switch back to normal operation. Charging process (fig. B) Refer the table below for the state of charge of the battery pack. State of charge 1 light blinkling < 33% 1 light blinkling, 1 light on 33-66% 1 light blinkling, 2 lights on 66-99% 3 lights on 100% Automatic refresh ● The automatic refresh mode will equalize or balance the individual cells in the battery pack at its peak capacity. Battery packs should be refreshed weekly or whenever the pack no longer delivers the same amount of work. ● To refresh your battery pack, place the battery in the charger as usual. Leave the battery pack for at least 8 hours in the charger. Hot/Cold Pack Delay When the charger detects a battery that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery life. Deep discharge protection The battery pack is protected against deep discharging when it is used in the tool. Depth of cut adjustment (fig. A, C) ● Loosen the depth adjustment lever (12). ● Move the shoe (6) to obtain the correct depth of cut. ● Tighten the depth adjustment lever (12).

WARNING: For optimal results, allow

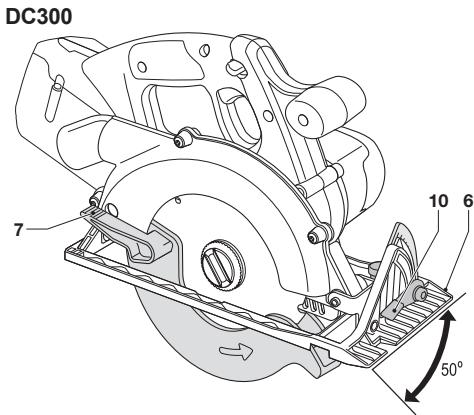

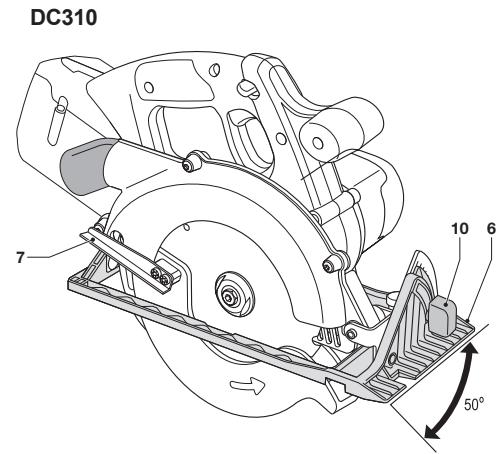

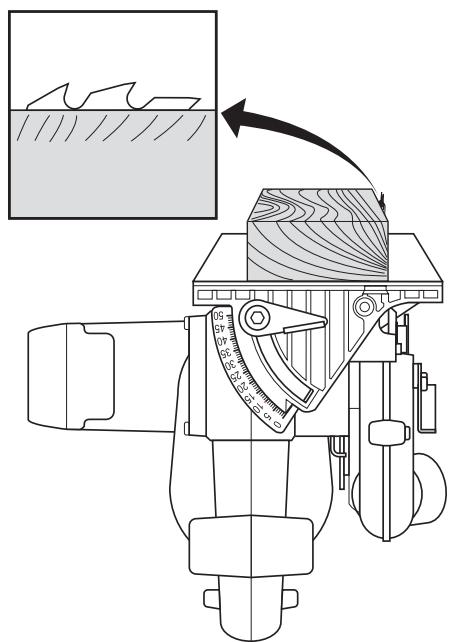

the saw blade to protrude from the workpiece by about 3 mm (see inset in figure C). Bevel adjustment (fig. D) The bevel angle can be adjusted between 0° and 50°. ● Loosen the bevel adjustment lever or knob (10). ● Set the bevel angle by tilting the saw shoe (6) until the mark indicates the desired angle on the scale. ● Tighten the bevel adjustment lever or knob (10). Shoe adjustment for 90° cuts (fig. D) ● Adjust the saw to 0° bevel. ● Retract the blade guard using the lever (7) and place the saw on the blade side. ● Loosen the bevel adjustment lever or knob (10). ● Place a square against the blade and shoe to adjust the 90° setting. Replacing the saw blade (fig. E) DC300 ● Press the blade lock button (4) while turning the spindle until the blade stops rotating. ● Extend the lever on the blade clamping screw (17). Holding the lever, loosen the blade clamping screw by turning counterclockwise.

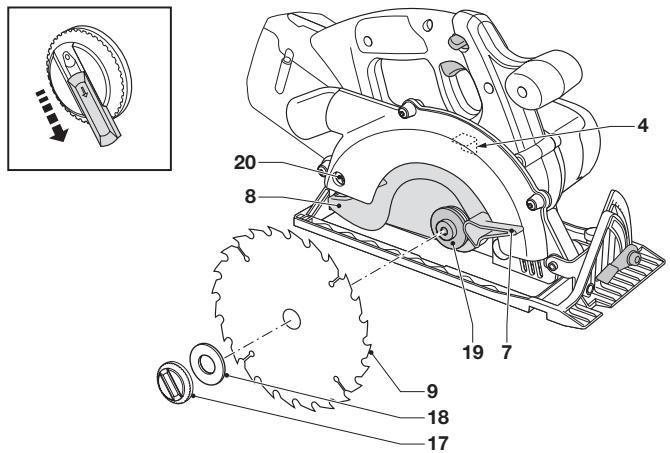

ENGLISH ● Retract the lower blade guard (8) using the lever (7) and replace the blade (9). Reinstall the washers (18, 19) in the correct position. ● Check the direction of rotation of the blade. ● Thread on the blade clamping screw (17) by hand to hold the washer in position. Turn clockwise. ● Engage the blade lock button (4). ● Extend the lever on the blade clamping screw (17). Holding the lever, tighten the blade clamping screw by turning clockwise. DC310

• Engage the blade lock button (4) and unscrew the blade clamping screw (17) by turning counterclockwise using the Allen key supplied with the tool.
• Retract the lower blade guard (8) using the lever (7) and replace the blade (9). Reinstall the washers (18, 19) in the correct position.
• Check the direction of rotation of the blade.
• Thread on the blade clamping screw (17) by hand to hold the washer in position. Turn clockwise.
• Press the blade lock button (4) while turning the spindle until the blade stops rotating.

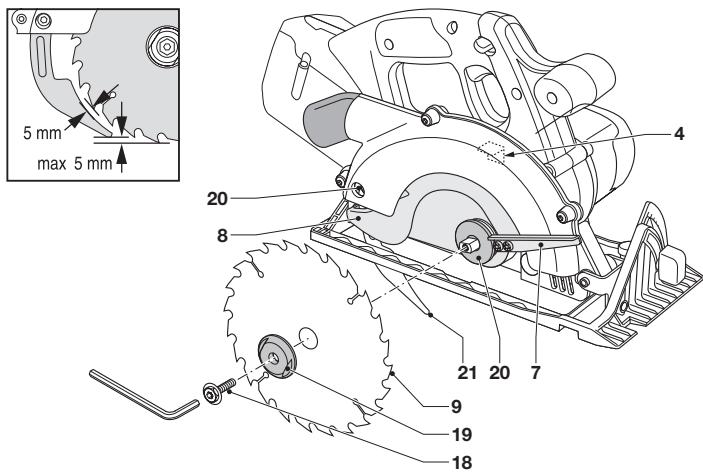

• Tighten the blade clamping screw (17) firmly using the Allen key. Adjusting the riving knife (fig. E, DC310) For the correct adjustment of the riving knife (21), refer to the inset in figure E, DC310. Adjust the clearance of the riving knife after changing the saw blade or whenever necessary.
• Loosen the screw (20) and pull out the riving knife to its maximum length.
• Adjust the clearance and tighten the screw. Prior to operation: ● Make sure your battery pack is (fully) charged. ● Make sure the battery pack is properly seated. ● Make sure the guards have been mounted correctly. The saw blade guard must be in closed position. ● Make sure the saw blade rotates in the direction of the arrow on the blade. Switching on and off (fig. A) For safety reasons the on/off switch (1) of your tool is equipped with a lock-off button (2). ● Press the lock-off button to unlock the tool. ● To run the tool, press the on/off switch (1). As soon as the on/off switch is released the lock-off switch is automatically activated to prevent unintended starting of the machine.

WARNING: Do not switch the tool on

or off when the saw blade touches the workpiece or other materials. Holding and guiding the tool (fig. A) ● Hold the tool by the main grip and the front handle (3) to guide the saw properly. ● For optimum results, clamp the workpiece bottom up. ● Use the kerf indicator (11) to follow the line drawn on the workpiece. The kerf indicator lines up with the left side of the saw blade when set to 50° bevel. The kerf indicator lines up with the right side of the saw blade when set to 0° bevel. Bevel cuts ● Set the required angle. The bevel detent will automatically locate at 22.5° and 45°. If any intermediate angle is required hold and lock the shoe in place. Instructions for use

WARNING:

● Always observe the safety instructions and applicable regulations. ● Ensure the material to be sawn is firmly secured in place. ● Apply only a gentle pressure to the tool and do not exert side pressure on the saw blade. ● Avoid overloading.

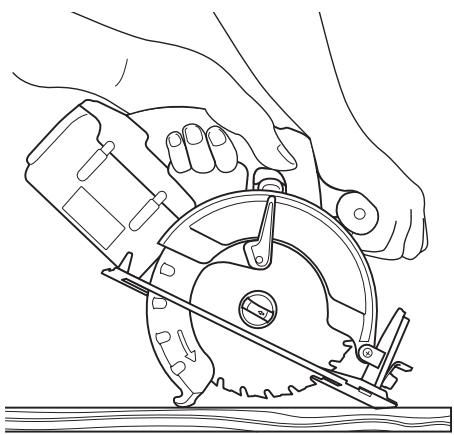

Pocket cuts (fig. F) ● Measure and mark the required pocket cut. ● Retract the lower blade guard. ● Rest the front of the saw shoe on the workpiece and make sure that the blade is positioned over the cutting line. ● Release the lower blade guard and rest it on the workpiece, taking care that the blade is not contacting the workpiece. ENGLISH ● Switch on the tool and feed the blade into the material at full speed, holding the tool firmly against the workpiece. Dust extraction (fig. A) Your tool is fitted with a dust extraction outlet (5). ● Always use a vacuum extractor designed in compliance with the applicable Directives regarding dust emission when sawing wood. Vacuum hoses of most common vacuum cleaners will fit directly into the dust extraction spout.

WARNING: Do not use a vacuum

extractor without proper spark protection when sawing metal. Consult your dealer for further information on the appropriate accessories. Maintenance Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. Lubrication Your power tool requires no additional lubrication. Cleaning

WARNING:

● Unplug the charger before cleaning the housing with a soft cloth. ● Remove the battery pack before cleaning your power tool. ● Keep the ventilation slots clear and regularly clean the housing with a soft cloth. Optional accessories

WARNING: Since accessories, other

than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product. Consult your dealer for further information on the appropriate accessories. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT

ENGLISH repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com Battery pack The long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment: ● Run the battery pack down completely, then remove it from the tool. ● Li-Ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly. If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

● ONE YEAR FREE SERVICE CONTRACT ●

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

● ONE YEAR FULL WARRANTY ●

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that: ● The product has not been misused. ● Repairs have not been attempted by unauthorized persons. ● Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights. For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at www.2helpU.com.

E S PA Ñ O L Director Engineering and Product Development Horst Großmann GARANTIE

● 30 JOURS D'ENGAGEMENT SATISFACTION ●

● 30 DAGEN "NIET GOED, GELD TERUG"

GARANTIE ● DEWALT Richard-Klinger-Straße 65510 Idstein DEWALT Calpe House Rock Hill Black Rock, Co. Dublin DEWALT 210 Bath Road Slough, Berks SL1 3YD
