USER MANUAL AX850 CORSAIR

PROFESSIONAL SERIES™ GOLD

AX750

AX850

AX1200

ATX POWER SUPPLY

Manual

CORSAIR®

corsair.com

Table of Contents

English
Français Page 11
Deutsch Page 18
Italiano Page 25
Espanol
Pycckn Page 39
简体中文 Page 46
日本語 Page 52

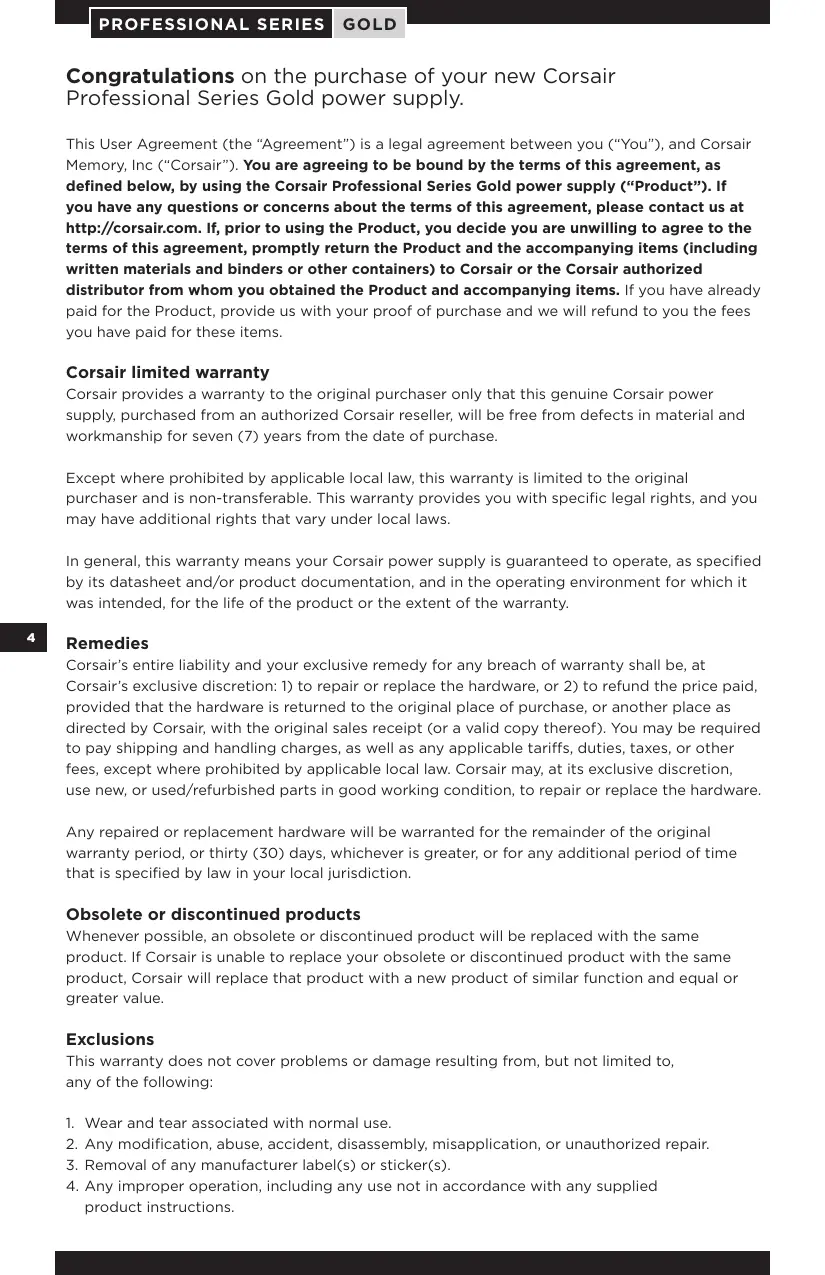

Congratulations on the purchase of your new Corsair Professional Series Gold power supply.

This User Agreement (the "Agreement") is a legal agreement between you ("You"), and Corsair Memory, Inc ("Corsair"). You are agreeing to be bound by the terms of this agreement, as defined below, by using the Corsair Professional Series Gold power supply ("Product"). If you have any questions or concerns about the terms of this agreement, please contact us at http://corsair.com. If, prior to using the Product, you decide you are unwilling to agree to the terms of this agreement, promptly return the Product and the accompanying items (including written materials and binders or other containers) to Corsair or the Corsair authorized distributor from whom you obtained the Product and accompanying items. If you have already paid for the Product, provide us with your proof of purchase and we will refund to you the fees you have paid for these items.

Corsair limited warranty

Corsair provides a warranty to the original purchaser only that this genuine Corsair power supply, purchased from an authorized Corsair reseller, will be free from defects in material and workmanship for seven (7) years from the date of purchase.

Except where prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal rights, and you may have additional rights that vary under local laws.

In general, this warranty means your Corsair power supply is guaranteed to operate, as specified by its datasheet and/or product documentation, and in the operating environment for which it was intended, for the life of the product or the extent of the warranty.

Remedies

Corsair's entire liability and your exclusive remedy for any breach of warranty shall be, at Corsair's exclusive discretion: 1) to repair or replace the hardware, or 2) to refund the price paid, provided that the hardware is returned to the original place of purchase, or another place as directed by Corsair, with the original sales receipt (or a valid copy thereof). You may be required to pay shipping and handling charges, as well as any applicable tariffs, duties, taxes, or other fees, except where prohibited by applicable local law. Corsair may, at its exclusive discretion, use new, or used/refurbished parts in good working condition, to repair or replace the hardware.

Any repaired or replacement hardware will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is greater, or for any additional period of time that is specified by law in your local jurisdiction.

Obsolete or discontinued products

Whenever possible, an obsolete or discontinued product will be replaced with the same product. If Corsair is unable to replace your obsolete or discontinued product with the same product, Corsair will replace that product with a new product of similar function and equal or greater value.

Exclusions

This warranty does not cover problems or damage resulting from, but not limited to, any of the following:

1. Wear and tear associated with normal use.
2. Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair.
3. Removal of any manufacturer label(s) or sticker(s).

4. Any improper operation, including any use not in accordance with any supplied product instructions.

5. Connection to any improper voltage supply.

6. Use of consumables, such as replacement batteries, not supplied by Corsair, except where such restriction is prohibited by applicable local law.
7. Any other cause which does not relate to a product defect in materials or workmanship.

Also excluded from this warranty are counterfeit products; that is, products that Corsair, at its sole discretion, determines were not manufactured by Corsair or any of its authorized manufacturing partners.

Limitation of liability

Corsair shall not be liable for any special, incidental, indirect, or consequential damages whatsoever, including but not limited to loss of profits, revenue, or data (whether direct or indirect) or commercial loss for breach of any express or implied warranty on your product even if corsair has been advised previously of the possibility of such damages. Some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so this limitation or exclusion may not apply in your jurisdiction.

Duration of implied warranties

Except as prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose on this hardware product is limited in duration to the duration of the applicable limited warranty period for your product. Some local laws do not allow limitations on how long an implied warranty may last, so this limitation may not apply in your jurisdiction.

National statutory rights

Consumers may have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.

No other warranties

No Corsair employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.

How to make a warranty claim

Before submitting a warranty claim, we suggest you contact our technical support group or visit corsair.com and review the support section for technical assistance. A simple fix for your problem may be found there.

Generally, valid warranty claims should be processed through your original point of purchase during the first thirty (30) days after purchase. This period may vary depending on where you purchased your product; please verify the return policy with the retailer where you purchased your product. Any warranty claims that cannot be processed through your original point of purchase should be addressed directly to Corsair. Our customer service contact information can be found on the web at corsair.com/contact or in the documentation included with your product.

Introduction: Ideal for high-performance PCs

Unprecedented power protection

The Corsair Professional Series Gold power supply pushes the state of the art for reliable delivery of clean power under imperfect conditions. If you require mission-critical stability or you simply want one of the best power supplies available, the Professional Series Gold is for you.

A true modular cabling system

All cables detach from the power supply. During installation, this gives you the flexibility of using only the cables you need for a clean system build with optimal airflow. And, when it's time to replace or upgrade your power supply, it can be removed from your system without interfering with your cabling - the cables stay in place and connect to your new fully-modular Corsair power supply.

Incredible efficiency

With 90% efficiency at 50% load, the Corsair Professional Series Gold power supply runs quieter, generates minimal excess heat, and saves you money every month. It's earned the 80 Plus® Gold seal of approval, your guarantee that you're making the right choice for smart, efficient power delivery.

Corsair advantages

Your Corsair Professional Series Gold power supply is packed with the latest technology and features:

• It supports the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
• An ultra-quiet double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
• Up to 90% energy efficiency at real world load conditions means less heat generation and lower energy bills.
• 0.99 Active Power Factor Correction provides clean and reliable power.
• Universal AC input from 90-264V. No more hassle of flipping that tiny red switch to select the voltage input!
• A dedicated single +12V rail offers maximum compatibility with the latest components.
• Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
• High-quality Japanese capacitors provide uncompromised performance and reliability.
• The completely modular cable system allows you to use only the cables you need. Power supply upgrade and replacement is easy, as the cables only need to be disconnected at the power supply.
• Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis.
• A Seven year warranty and lifetime access to Corsair's legendary technical support and customer service.

Power supply specifications

• Dimensions:
• AX750/850: 5.9" (W) x 3.4" (H) X 6.3" (L); 150mm(W) x 86mm(H) x 160mm(L)
• AX1200: 5.9"(W) x 3.4"(H) x 7.3"(L); 150mm(W) x 86mm(H) x 200mm(L)
  MTBF: 100,000 Hours

MODEL	CMPSU-750AX		CMPSU-850AX		CMPSU-1200AX
	AC INPUT RATING
AC INPUT	90-264V
INPUT CURRENT	9-4.5A		10-5A		15A
FREQUENCY	50/60Hz
	DC OUTPUT RATING
	MAX. LOAD	MAX. OUTPUT	MAX. LOAD	MAX. OUTPUT	MAX. LOAD	MAX. OUTPUT
+3.3V	25A	125W	25A	125W	30A	180W
+5V	25A		25A		30A
+12V	62A	744W	70A	840W	100.4A	1204.8W
-12V	0.5A	6W	0.5A	6W	0.8A	9.6W
+5VSB	3A	15W	3A	15W	3.5A	17.5W
TOTAL POWER	750W		850W		1204.8W

Package contents

• Corsair Professional Series Gold power supply unit
• Modular cable set
• User Manual
• AC power cord
• Cable ties
• Mounting screws
• Corsair case badge
• Carrying bag

Corsair cable configuration

CMPSU-750AX
QTY	LENGTH	CONNECTOR/CABLE
1	600mm	1	ATX CABLE (24-PIN)
2	600mm	1	EPS12V CPU CABLE (8-PIN)
2	600mm	2	PCI-E CABLE
2	850mm	4	SATA CABLE
2	600mm	2
2	850mm	4	PERIPHERAL CABLE
2	101mm	1	FLOPPY ADAPTER
CMPSU-850AX
QTY	LENGTH	CONNECTOR/CABLE
1	600mm	1	ATX CABLE (24-PIN)
2	600mm	1	EPS12V CPU CABLE (8-PIN)
2	600mm	2	PCI-E CABLE
2	850mm	4	SATA CABLE
2	600mm	2
2	850mm	4	PERIPHERAL CABLE
2	101mm	1	FLOPPY ADAPTER

CMPSU-1200AX
QTY	LENGTH	CONNECTOR/CABLE
1	610mm	1	ATX CABLE (24-PIN)
2	610mm	1	EPS12V CPU CABLE (8-PIN)
6	610mm	1	PCI-E CABLE
3	850mm	4	SATA CABLE
2	600mm	2
3	850mm	4	PERIPHERAL CABLE
2	100mm	1	FLOPPY ADAPTER

NOTES:

• Floppy connectors are attached to the end of the peripheral cable.
• The ATX power connector has a detachable four-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
• The EPS12V power connector has a detachable four-pin mechanism in order to support either an eight-pin socket or a four-pin "P4/12V" socket on the motherboard.

Installation

Before proceeding with installation, please read this manual in its entirety.

Step A: Removing your existing power supply.

If you are building a new system, skip to Step B.

1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing power supply.
4. Proceed to Step B.

Step B: Installing the Corsair Professional Series Gold power supply.

1. Make sure the power supply's AC power cable is not connected.

2. Follow the directions in your chassis manual and install the power supply with the screws provided.

3. Connect the main 24-pin power cable to the power supply, and then to the motherboard. The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.

a. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
b. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.

1. Connect the eight-pin +12V (EPS12V) cable to the power supply, and then to the motherboard.

a. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
b. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.

WARNING: The detachable four-pin from the 24-pin main connector is not a "P4" or "+"12V" connector. Serious damage can be caused if you use it in place of a "P4" or "+"12V" connector.

1. Connect the peripheral cables, PCI-Express cables, and SATA cables.

a. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
b. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
c. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required
d. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
e. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future component additions.

1. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

Congratulations! You have completed installation of your new Corsair Professional Series Gold power supply and your system is ready to go!

Important safety information

Caution electric shock hazard!

1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
2. High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.

3. This product is designed for indoor use only.

4. Do not use the power supply near water, or in high temperature or high humidity environments.

5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not insert any objects into the open ventilation or fan grill area of the power supply.
7. Do not modify the cables and/or connectors included with this power supply.
8. If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
9. The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
10. Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

Safety and Agency Approvals

FCC	FCC Rules Part 15, Class B
ICES	ICES-003
CE	EN 55022:2006 + A1:2007, Class BEN61000-3-2:2006 Class DEN61000-3-3: 1995 + A1:2001 + A2:2005EN55024:1998 + A1:2001 + A2:2003IEC61000-4-2:1995 + A1:1998 + A2:2000IEC61000-4-3:2006IEC61000-4-4:2004IEC61000-4-5:2005IEC61000-4-6:2003 + A1:2004 + A2:2006IEC61000-4-8:1993 + A1:2000IEC61000-4-11:2004
UL / CUL	UL 60950-1
CSA	C22.2 NO. 60950-1
C-TICK	AS/NZS CISPR 22:2006, CLASS B
TUV	EN 60950-1
cTUVus	UL 60950-1:2007 & CAN / CSA C22.2 No. 60950-1:2007
CB	IEC 60950-1
CCC	GB4943GB9254GB17625.1
BSMI	CNS14336CNS13438
GOST	R IEC 60950-1-2005R 51318.22-99R 51318.24-99R 51317.3.2-2006R 51317.3.3-99
ROHS	2002/95/EC, Restriction of Hazardous Substances Directive
WEEE	2002/96/EC, Waste Electrical and Electronic Equipment Directive
ROHS (China)	China Order No.39, Administration on the Control of Pollution Caused By Electronic Information Products

CpeDCTBaIOpnIuYeCKo3aunTbI

O6uyn o6bem OTBETCTBENHOCTH KOMnAHn Corsair n Baue nckIouHTeHOb cpeCDTBOpNDUeCKo 3aunTbB Cnyae hapyuene rapaHTm coCTabJr, no ycmTopeHHo KOMnAHn Corsair, cneDyUooee: 1) peMOHT nINZAMeha annapatHoro o6ceNeueHn IN2) BO3BpAT BblnaeHHo CEhbl, npn ycOBn BO3Bpata aannapathoro o6ecneueHn B opnHaJIbHOe MeTO NOKyKN, INn DpyroE MeTO, yka3aHHoe KOMnAHn e Corsair, cOpnHaJIbHbIM TOBAPbHM Yekom (INn erO deNCTBtNEbHO H KOIne).OT Bac moKet notpe6oBaTcB ONlATA CTOnMocTn DOctABKn I Opa60TK, a TAKKe IIObIX pImMeHNbIX TaPioFOB, IOsINH, HAIOrOB INn dpyrNX BblnAT, 3a INckLIOUeHem CnyaeB, KOrDa 3TO 3aNPeSeHO MeCThbIM 3aKOHODaTeBCTBM. KomnAHn Corsair MOKet nCBOemy INckLIOUHTeHbOMy UCMTopeHHIO INCNoJIb3OBAbT HOBBe INI INCNoJIb3OBAHHbIE BOCCTaHOBHeHHbIe DeTaLI B XopoWem pa6Oeuem CoSTOAHN INI PemOHTA INI ZAMehbI aNNAPAthORO o6ceNeueHn.

Ha otpemontnupobahhoe nI I 3aemeHne aannapathoe oecneuehme npedocablaertcra rapaTna Ha octabwnic cspok opunhaNbHoro rapaTmHoro nepnoa IIN Ha cpoK 30 (tpnduaTB) dNe, B 3aBncumoctn OT toro, YTO 6onbse, IIN HA IIO6oI DOnOpHntelbHbI nepnoD Bpemehn, OnpedeJeHHbI 3aKOHOdaTeJIbCTBOM BaSeMecTHOJ opucdukcuu.

YctapeBwne nnn ChraTbIe c npOn3BOdCTBa npOdyKTbI

Ecni 3TO BO3MOXHO, yCTapeBWHne INI CNHtBle C pON3BOODCTBA npOdyKTb6yUT 3aMeHeBb npOdyKTAMn TOJKe MoDen. Ecni KOMNaHna Corsair He MoKet 3aMeHNT Bau yCTapeBWHn INI CNHtBc NpOIm3BOoCTBa npOdyKT dpyTm npOdyKTOM ToJ Ke MoDen, OHa 3aMeHNT 3OT npOdyKT HOBbIM npOdyKTOM CO CXoHNbIMn fYHKNUHOJIbHbIMN BO3MOXHOCTMn IN paBHOn INI 60JIe BEBCOKO CTOMMOCTbHO.

MckloueHn

Hactoa rapaantna He paonpocpaenrca Ha npo6nembl nioBpeKdHn, Bo3nkaoume, B aCtHOCTN, PO cIeDyOuIM pniuHnAM:

1. n3HOC BCNeIcTBHe HOpMaJIbHOJ 3KcNlpyTaUIN;
2. lió6oe i3meHene, HapuSeHne iCnOlb3OBAHnA, abaIpy, pa36Opka, HenpaBnIbHoe noKJIoueHne nI IN peMOHT HeypOJIHOMOeHHbIMN IINCAmN;
   3.ydaJIeHHe MapKINPOBKNn HaKNeEeN 3rTOBNTeJIa;
3. liobie cnyaHnepaBnHbON 3KcPnyatauIN, BKJIouaH NcPOnb3ObaHne C HapyuHeHem PnpIoJKeHHbIX K npoodykTu INCTpykU;
4. NOkJIoueHne K nCToUHnky TOKa C HeCOOTBeTCTBlyIOuIM HaIpyKeHneM;
5. Исторовные расхоньх матерпалов, наимсяр смених батугек, He постов вших сокларни Сор air, за Исторовные сухаев, Когда takoe оразанчених заширушно мостсим заюдатьстом;
6. liobé iye puyne cnyan, KOtOpbIe He CBy3aHbI c HaNiUHm DeΦeKToB B MaTePnA1ax IIN npOu3BOvDCTBe npOykTa.

Kpome TOrO, daHna rapaHTnI He paacnpocTpaHraeTc H a KOHTpaKaTHbIe npOyKtbl, To eCt b Ha npOyKtbl, KOTOpble KOMPnHn Corsair n cBOeMy c06CTBENHomY ycmTopeHnIO onpeJeNt KaK He n3rotobHeHbIe Corsair nIIN IIObIM N3 ee abTOpI3OBaHbIX napThePOB No pON3BOIDCTBY.

OrpaHnueHneOTBeTCTBeHHOCTn

KomnaHnIa corsair He hecet OTBcETBHeHocTH3a CneuaJIbHbIe, CnyauHbIe, KocBeHHbIe IIN NOcIeMyUOuHne y6bITKN IIO6oROPOda, B TOM UcNcBE BKIOUcA Yrpaty npri6bIIn, DoXOa IIN daHNbIX (6ydb To npIpyMIO IIN KOCBeHHyo) IIN KOMMepeCKeNcye 6bITKn, Bb3BaHbIe HApuyHenm IIO60 ABHOI IIN NOpaZymEBAEmoI rapaHTMN Ha BaW npOdyKT, DaJce ecnn KOMnAHnIa corsair 6b1Na 3apAhe npedynpeJdeHa O BO3MOxHocTn TAKNX y6bITKOB. HeKOTOpbIMn MeCTbIMn 3aKOHOaTeJIbCTBaAMN He dOnpYCAeTc NCKLIQUChEne IIN ORpaHNUeHne CNEuaJIbHBx, KOCBeHHbIX, CNYauHbIX IIN NOcIeDyIOUxN Xy6bITKOB, IO3TOMy DaHHOe ORpaHNUeHne IIN NCKLIQUChEme MoJcET 6bITb HENPIMMeHIMO B BaWeJ IOpcDNIKUIN.

Cpok deiCTBn npda3yMeBaembix rapaHTn

3a NCKIQUeHMe CnUyaeB, KOrda 3To 3anpeueHo npIMeHbIM 3aKoHOdaTeNbCTBOM, IIO6bie nOpa3ymeBaemble rapaHTn mI yCNoBMy TObAPHO cOcTOnHnM IIN pNroDHOCTN DJI KOKKeTHORIO nCnOLb3OBaHHa DAHHoro aannapATHO rpojkyta oRaHUnyBAOTc B TeChHe cPoKa DeiCTBnnpimEnMoor OraHUnyHnO rapaHTn Ha BaW npOdyKT. HeKOTOpbIMm MeCTbIMn 3aKoHOdaTeNbCTBaMn He dONyckaetc OraPauHcHne IpDoJXknteHbOCTn cPoKa DeiCTBnM NOpa3ymeBaEMo rapaHTn, P03TOMy daHHOe orpauHcHne MoKET 6bITb HepimEnMo B VaSeI UPOscNtU.

Ppaba no haunohalbHomy 3aKoHOaTeNbCTBy

Iotpe6nteMn MOrT ImTe bOpndueckne npaba nO npimHeHmOMy HaunohalbHOMy 3aKoHOaTeNbCTBy, perynpuyouem npodaxy npotpe6nteBcknx TobapOB. Hactoiaa OraPauHcHna rapaHTna He 3atparnBaet takne npaba.

OTka3 OT dpyrx rapaHTn

Hn odin n3 cotpydnKOB, dnilpeob nn npdynx areHTOB kompanHH Corsair He nMeet noHOMOuy BHOCTb n3MeHEny, paanpeHn nn doabLeHn B hactoayu rapaHTIO.

Otnpabka tpe6oBaHn no rapaHTm

Ipeod OTnpabKoT Tpe6oAHmNo rapaHTnMb peKomeHdyem Bam CB73a7b8c Nahee Cnyk60 TeHNueckO NoDapKKn NnN oCetntb Be6-caT corSair.com N n3yUnt b MaTePnaBb I NO texHnueckO noDepkKe. Bo3moXHO, 3TO NMOJKT Bam HauTN npocToe peSeHne BO3NKWe np6NeMbl.

Kak npabnlo, tpe6oBaan no rapaHTnn DoJNKnbl 6bIb 6pa60TaHb MeCTOM opnHaNbHoN npOdaKn npOdykTa B TeueHne nepBbX 30 (TpndaTn) dNeC mOmeNTa npNo6peTeHn. PnpOJNOKeTIbHOCTb 3TOr npEIOda MoKet n3MeHbTCB a 3aBVCIMOCtN OT MeCTa npNo6peTeHn npOdykTa. YHaJIte y npOdaBa c npABAu BAoBpTa npOdykTa. Bce Tpe6oBaan no rapaHTn, KOToPbIE He MOrYt 6bIb 6pa60TaHb B MeCTe opnHaNbHoN npOdaKn, DoJNKnbl 6bIb NpeEaHb HENocpeDcTBHeN KCMNaHN Corsair. KOnTAkTHyU INHΦopMaUIN HaWe CnyKbI pNDepKKn moKHO Na HTn Ha Be6-caTe corsair.com/contact IIN B DOkymeTAuIN K BaWemy npOdykTy.

BVeDeneHne

BecpeeDeHTna 3aunTaPiTuHnA

Cepn Corsair Professional Series Gold noDHMMaet NCKycCTBO noDaun HaedxHOro uNCTORO nITAHn npn HneJealbHbIX yCNOBnX HA HOByU BvICOTy. EcIn Bam Heo6xoIMa 6eCKOMnpOMCCha CTa6nJIbHocTb, ININ Bbl IPOCTO XOTnte IMeTb ODNH IN3 LyuXnx CyueCTBYUOxN 6JOKOB nITAHn, Corsair cepn Professional Series Gold - 3TO 6JOK nITAHnI dI BAC.

Hactoza Cnctema Moylbhix Ka6ene

B cepnn Corsair Professional Series Gold BCE ka6eIIMoYr 6bITb OTcoeINHeHbOT 6noka pNTaHn.
PpN yCTaHOBKe 6noka pNTaHnI 3TO DaET Bam HeO6XoDmyU r6KoCTb NcPONb3OBaHn TOJIbKO
Tpe6yEmbIX Ka6eIeN c6OpKn IDeaJIbHOc NcTeMb C ONTMaJIbHBiM BO3dYxOTOKOM. TaKZe, B
Clyuae 3aMeHb 6noka pNTaHnI, OH MoKet 6bITb N3BLeueH n3 CnCTeMb 6e3 Ka6eJIe, KOTOpblE
OCTaHTcRa Ha MeCe I MoYr 6bITb POnKJIIOUeHb K BaIeMу HObOMU POnHOCTbU MOJyJIbHOMy 6nOKy
pNTaHn Corsair.

HebepoTHa3ΦΦeKTHBHOCTb

Обсенььа ṅфέктNBHOCTB 90% пri 50% harpyke, Бл_OKи Ппанья Corsair cepи Professional Series Gold pa60aIOT TnIe, поиЗБоЯТ Meньш TeNIIЯ и ᝀКOHOMЯТ BaИи DeHbгOn OT мecya K Mecaу. 3асLyжehная сертФИКИАЯ «80 Plus Gold» - ἐTO BaИа rapaHTЯ правильноCTN Bbl6opa cepbe3HOrO, ṅфέктNBHOrO 6LOKa Ппанья

PpenmyeCTBa 6loKOB nHTaHn Corsair

Блok петань Corsair серни Professional Series Gold co3dah Na ochobe HOBeyuix TexthoJorm no6bndaet camblm COBepeHHbIMx xapaKTeprnCTnKaMn.

• Побдержka Новшeroстандэр ATX12V 2.31 n EPS12V 2.92 n obpaTHЯ COBmecTIMOCt b cnCTemamn ATX12V 2.2 n ATX12V 2.01.
• Практучески бсшунь Вьентларетор сдбоевним пошникови рergyларовашием ЧИССА о6./МИN.ВЗавсимости OT TemпepаТурь,обссесунвалци OTлчны obdУВ пи ИСКЛЮЧТELьно НИЗКOM урове Шума.
• ΘΦΦeKTHBHOCTbdo 90% (πρι TUNNHyHn Harpy3Ke) O3NaHaet MeHbWee TeTnIOBbIeJIeHne IMeHbWee 3HeprONOTpe6JIeHne.
• AkTNbHaj KoppeKunia fakTopa MoUcHcTn (APFC) c KOaOfphiuIeHTOM 0,99, o6ecneuBaIOuaJ cTa6NlBHyU n HaeXHyU pOaUy NiTaHnA.
• YHnBepcaJbHa noiDpejKka BxoJHO rHaprJxHn: 90~264 B. BoJbIe HnKaKnx KpaChbIX nepeKlNoaTeNei!
• Bыдениная сенияшина петаю +12 В дя мakсимально совмости с hoвейшимКOMПОHEHTAMN.
• MaKcImaIbHЯ cStaBnIbHocTb 3HePrcOHa6ZeHЯ KpITnUeCKn BaJhbIX CnCTeMHbIX KOMNoHErTOB, 3aIHTa OT pReBbIWeHЯ HAprrKeHЯ IIN MOnuHOCTN, NOHJKeHЯ HaIprJKeHЯ N KOPOTKOFO 3aMbIkaHЯ.
• BbICOKKaueCTBeHHble IIOHCKne KOHdeHcTOpbl, OeCneuHbaIoUe 6eCKOMnpOMnCCHyO NaExJHOCTb II PON3BOOnTeJIbHOCTb.
• ПОЛНOCью моДульная кабелная сИстema пОЗВОЯгп ИСПОЛьЗOBАТ ТОЛьКоTe KабELN, KOТОры hyЖны Bam. OсуцеCTBЯгТМоDEрнИЗAZAUи 3aMeHy 6LoKa ПИТАнЯ пЮSe, NOCKOLьКу кабELN hUжно OTOcoEДИНЯТВ TОЛьКо OT 6LoKa ПИТАня.
  Hn3KoPpOfHbIyIaHnnIIOCKnx Ka6eJe yMeNbShaET Bo3DyuHoe cOppoTnBHeHne, YTO n03BOJAEyUChuTb BO3DyXoo6MeH BHTPN KOpnyCa BaWero KOMNbIoTepa.
  Cemnlethra rapaTHna n DocTyn K ycnyram OTnUHc 3apeKomeHdoBaBwe Ce6a Cnyk6bI texnuecko npndepxkn n noclenpOdaJHoro o6cnyKuBaHn KOMnAHn Corsair.

Texnueckne xapaKtepcntk6noka nTaHna

Pa3Mepbl:
- AX750/850: 150 MM x 86 MM x 160 MM (LJxBxΓ)
- AX1200: 150 MM x 86 MM x 200 MM (LJxBxΓ)
CpeHneBpem6e3OTka3HOpa60Tb1:100000yacOB

MOДЕЛь	CMPSU-750AX		CMPSU-850AX		CMPSU-1200AX
	BXODHÔN TOK (ПЕРМ.)
BXODHÔN HAПРЯЖЕНИ (ПЕРМ.)	90-264 B (пeрм.)
BXOD. TOK	9-4.5A		10-5A		15A
ЧАСТОТА	50-60 Г
	VALORES DE SALIDA DE CORRIENTE CONTINUÀ
	MAKC. HÁRPУЗКА	MAKC. MOДЦHOCTь	MAKC. HÁRPУЗКА	MAKC. MOДЦHOCTь	MAKC. HÁRPУЗКА	MAKC. MOДЦHOCTь
+3.3 B	25A	125Вт	25A	125Вт	30A	180Вт
+5 B	25A		25A		30A
+12 B	62A	744Вт	70A	840Вт	100.4A	1204.8Вт
-12 B	0.5A	6Вт	0.5A	6Вт	0.8A	9.6Вт
+5 B (разсевнaya шина)	3A	15Вт	3A	15Вт	3.5A	17.5Вт
ПОЛHÀ MOДЦHOCTь	750Вт		850Вт		1204.8Вт

KomiJIeKtaIaIa

• Бл_OK птунистор 冠сair српи Professional Series Gold
• Ha6op moynbHbIX ka6eNei
  PykoBOCTBO NOBaTeJRA
  Ka6eIb nItaHnI nepeMeHHoro Toka
  CTaJkN DnIgKa6eNei
  MoHTnPOBOUHbIe 6oNTbl
• HakleuKa Corsair Ha cnCTeMHbI 6nOK
  Cymka

KoHnrgypaZna Ka6eNei Corsair

War B. UctahOBka 6Ioka nHTaHnA cepu Corsair Professional Series Gold

1. Y6eDntecb, cTo Ka6eIb nepemEnHOro ToKa 6LoKa PInTaHnHe NpOKnIOueH.

2. Cnéduу yka3aHnIy pykoBOdCTBa no kCπIyatauCi nCTeMHOrO 6Ioka, yCTaHOBtE 6Iok PntaHnI y 3akpeINTE npInIOxEHHbIMn BnHTAmN,

3. ПдклочиTe 24-КоТakThын Ka6eь nIITaHЯ K 6IOKу nITaHЯ, a 3aTeM K MaTePHNcKoi PIIate. OchOBHоJ 24-KoTHakThbI Ka6eь nITaHЯ OCHaUeH cBeMHbIM 4-KOHTaKThbIM MEXaHn3MOM, 6naTodapryЧЕМу oБecneuBaETcR cOBMeCTmOcTb KaK C 24-KOHTaKThbIMn, TAKИС 20-KOHTaKThbIMn pa3bemamn Ha MaTePHNcKIN PIIatax.

a. EcIN Ha MaTePNHCKo PIIate IMeETcra 24-KoHTaKTbIpa3bEm, K He MoJHO HApRMyIO NOKJIHOuNTb 24-KoHTaKTbI OCHOBHO Ka6eJIb NITaHnO rT 6NoKa NITaHnI.
b. EcIn MaTePnHcKa I NaTa O ChaSeHa 20-KoHTaKTHbIM pa3bEmOM, CneJyET OTcoeINHtB 4-KoHTaKTHbI Ka6JIb OT 24-KoHTaKTHOrO pa3bema n 3aTeM NOkKnOuHTb 20-KoHTaKTHbI Ka6JIb K MaTePnHcKoI PnATE, He NpOKNIOUaY 4-KoHTaKTHOrO pa3bema.

FCC FCC Rules Part 15, Class B

ICES ICES-003

CE EN 55022:2006 + A1:2007, Class B

EN61000-3-2:2006 Class D

EN61000-3-3:1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

CSA C22.2 NO.60950-1

C-TICK AS/NZS CISPR 22:2006,CLASS B

TUV EN 60950-1

cTUVus UL 60950-1:2007 & CAN / CSA C22.2 No. 60950-1:2007

CB IEC 60950-1

CCC GB4943

GB9254

GB17625.1

BSMI CNS14336

CNS13438

GOST R IEC 60950-1-2005

R51318.22-99

R 51318.24-99

R51317.3.2-2006

R51317.3.3-99

ROHS 2002/95/EC、特定有害物质除去の指令

46221 Landing Parkway, Fremont, CA 94538, U.S.A.

Tel: [phone] | Fax: [phone]

Technical Support/Technischer Support/Support Technique/Assistenza Tecnica/Soporte Tecnico

U.S.A. and Canada

Tel: [phone]

Tel: [phone] Fax: [phone]

Forum: forum.corsair.com

Email: [e-mail]
