USER MANUAL UF CME

Model: UF 50/60/70/80 Read “Precautions” on page 5 before use Please read this manual carefully before use. Please keep this manual for reference. Thank you for choosing CME UF v2 — Intelligent Keyborad Controller Please keep all the important information here Attach your invoice or receipt here ～～～～～～～～～～～～～～～～～～～～～～～ for reference Purchase date Dealer’s name and addr. Dealer’s tel.

Serial(on the back of the keyboard) z Improper connection may cause damage to the device. Copyright z Copyright of the manual belongs to Central Music Co. Anyone must get a written permission from Central Music Co. before copying any part of the manual to any kind of media. © Central Music Co. 2007 Package list Please check all the items in your VX keyboard package:

USB MIDI Master keyboard 1 pcs USB cable 1 pcs User’s manual 1 pcs WIDI-XU wireless MIDI transmitter/receiver 1ps

Special Message Section NOTICE: This product utilizes batteries or an external power supply (adapter). Do NOT connect this product to any power supply or adapter other than one described in the manual, on the product, or specifically recommended by CME. Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

WARNING: Do not place this product in a

position where anyone could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! If you must use an extension cord, make sure that the cord has the ability to handle maximum current needed by this product. Please consult a local electrician when possible. ENVIRONMENTAL ISSUES: CME strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following: This product should be used only with the components supplied or recommended by CME. When used with any components, please observe all safety markings and instructions that accompany the accessory product. Battery Notice: SPECIFICATIONS SUBJECT TO CHANGE: This product MAY contain small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement. The information contained in this manual is believed to be correct at the time of printing. However, CME reserves the right to change or modify any of the specifications without notice or obligation to update existing units. This product, either alone or in combination with an amplifier and headphones or speaker(s), may be capable of producing sound levels that could cause permanent hearing loss. Do NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. This product may also use “household” type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged. When installing batteries, do not mix batteries with new, or with batteries of different type. Batteries MUST be installed correctly. Mismatches of incorrect installation may result in overheating and battery case rupture. IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

Some CME products may have stands and/or accessory mounting fixtures that are either supplied with the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that stands are stable and any optional fixtures (where applicable) are well secured BEFORE using. Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information. Stands supplied by CME are designed for the respect products only. No other uses are recommended. Disposal Notice: Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact CME directly.

FCC INFORMATION (U.S.A)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by CME may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product

use only high quality shielded cables. Cable(s) supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the limits for a Class B

Digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problems by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter(s). In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you cannot locate the appropriate retailer, please contact CME. The above statements apply ONLY to those products distributed in the USA.

PRECAUTIONS IMPORTANT Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, damages, fire or other hazards. These precautions include, but are not limited to, the follows:

1. Read and understand all the instructions.

2. Always follow the instructions on the instrument.

3. Before cleaning the instrument, always remove the electric plug from the outlet as

well as the USB cable. When cleaning, use a soft and dry cloth. Do not use gasoline, alcohol, acetone, turps or any other organic solutions; do not use liquid cleaner, spray cleaner or too wet cloth.

4. Do not use the instrument near water or moisture, such as bathtub, washbasin,

washing poor in the kitchen or similar places.

5. Do not place the instrument in an unstable position where it might accidentally fall

6. Do not jam sinks or holes of the instrument; those sinks of holes are used for air

circulation to prevent the instrument from overheating. Do not place the instrument near heat sink or any places with poor air circulation.

7. Do not place anything on the power cord. Make sure the power cord is set on a safe

place, so nobody will step on it and no body will trip over it.

8. Do not overload the outlet and the AC cable to avoid fire or electrical shock.

9. Do not insert anything in the instrument, which may cause fire or electrical shock. Do

not splash any kind of liquid to the instrument.

10. Do not disassemble the instrument in case of accidental electrical shock.

11. Always take the instrument to a qualified service center in need of repair. You will

cause yourself in danger if you open or remove the cover, and improper assembly may cause electrical shock in the future use.

12. Unplug all the connectors and take the instrument to a qualified service center if

anything in the below listed happens: A. The power cord or connector get hurt or worn out. B. Any liquid get in the instrument. C. The instrument gets rain or water splash. D. The instrument does not work properly after following all the instructions regarding to the trouble shootings. E. The instrument falls down or gets broken. F. The instrument functions poorly.

13. Do not use the instrument when thundering; otherwise the thundering may cause

long-distance electrical shock.

14. Do not use the instrument when there is a gas leak nearby.

15. Switch off the product when inside or near aircraft. The use of RF product in aircraft is

illegal. It may be dangerous to the operation of the aircraft

16. Do not use the product on the ground without the permission of the ground crew in

17. Observe ‘Turn off the RF communication device such as Mobile Phone’ signs, such

as those near stores of fuel, chemicals or explosives

18. The operation of some medical electronic devices, such as hearing aids and

pacemakers, may be affected if the product is used next to them. Observe any warning signs and manufacturer's recommendations.

19. Please do not use the product near any precision instrument, which may cause noise

or abnormal operation to the instrument.

20. Switch off the product at a refueling point, such as a petrol station, even if you are not

refueling your own car.

21. Do not store or carry flammable or explosive materials in the same compartment

where a radio transmitter, such as the product, is placed.

22. Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection

systems are not normally affected by radio transmissions. The manufacturer of such equipment can advise if it is adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio transmissions, consult your dealer and do not switch on the product until it has been checked by qualified approved installers. Efficient Use For optimum performance with minimum power consumption, note the following: ‹ The product has an internal antenna. Do not cover part of the internal antenna of the product with your hands. This affects communication quality, may cause the product to operate at a higher power level than needed and may shorten communication and standby times. Radio Frequency Energy ‹ The product is a low-power radio transmitter and receiver. When it is turned on, it intermittently receives and transmits radio frequency (RF) energy (radio waves). The system that handles the communication controls the power level at which the product transmits. Exposure to Radio Frequency Energy ‹ The product is designed not to exceed the limits for exposure to RF energy set by national authorities and international health agencies. * These limits are part of comprehensive guidelines and establish permitted levels of radio wave exposure for the general population. The guidelines were developed by independent scientific organizations such as ICNIRP (International Commission on Non-Ionizing Radiation Protection) through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health, and to account for any variations in measurements.*Examples of radio frequency exposure guidelines and standards that the product is designed to conform to: „ ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and electromagnetic fields (up to 300 G Hz)-International Commission on Non-Ionizing Radiation Protection (ICNIRP)”. Health Physics, vol. 74. pp, 494-522, April 1998. „ 99/519/EC Council Recommendation on the limitation of exposure to the general public to electromagnetic fields 0 Hz-300 GHz, Official Journal of the European Communities, July 12,1999. „ ANSI/IEEE C95.1-1992. “Safety levels with respect to human exposure to radio frequency electromagnetic fields, 3kHz to 300 GHz”. The Institute of Electrical and Electronics Engineers Inc., New York, 1991. „ FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications Commission (FCC), August 1996. „ Radio communications (Electromagnetic Radiation Human Exposure) Standard 2003, MediaAuthority. Keep this manual in safe place CAUTION: Setting up Do not connect the instrument when thundering. Do not set up the cord or outlet to a moist place, except for that the outlet is specially designed for moist places. When the power cord is connected to the AC outlet, do not touch the naked part of the cord or the connector. Always follow the instructions carefully when setting up the product. Avoid using any extending USB cable with poor quality or too long extending USB cable. Do not use USB HUB to connect the product.

Make sure the computer USB port has adequate power supply, otherwise the product does not work properly.

Do not expose the instrument to rain or moisture, to avoid fire or electrical shock. Other precautions:

Keep the instrument away from electrical interface sources, such as fluorescent light and electrical motors. Keep the instrument away from dust, heat and vibration. Do not expose the instrument to sunlight. Do not place heavy objects on the instrument; do not place containers with liquid on the instrument. Do not touch the connectors with wet hands Central Music Co. is not responsible for any damage or data loss caused by improper operation to the instrument. All the pictures and the LED display in the manual are used for demonstration; they may be different from the real product. Trade marks CME, UF, WIDI are CME trade marks. Other brands and names belong to the respective owners. Features UF 50/60/70/80 “UF v2” series

Professional semi-weighted keyboard with aftertoun for UF 50/60/70

Professional weighted Hammer Effect Keyboard with aftertoun for UF 80

Multi-function expansion slot for firewire expansion, sound modue expandsion,etc.

U-CTRL function by CME, so you can press one key for the software remote control

Firmware upgradable via USB

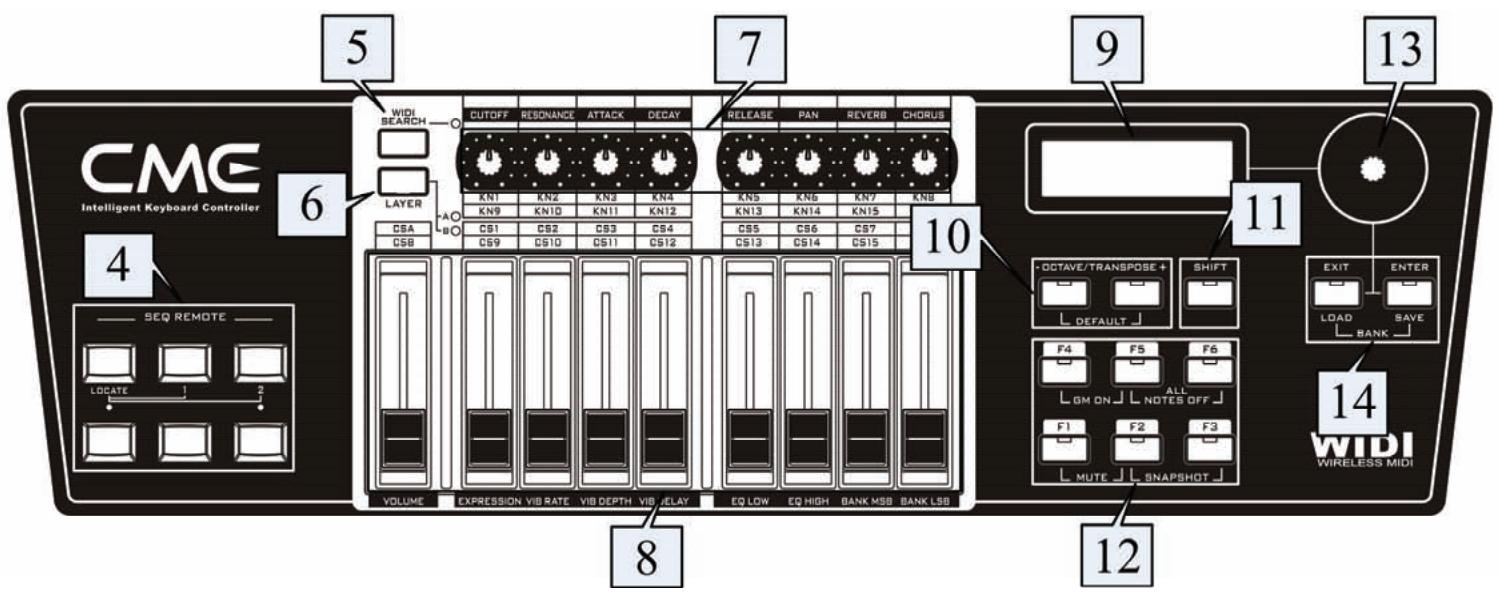

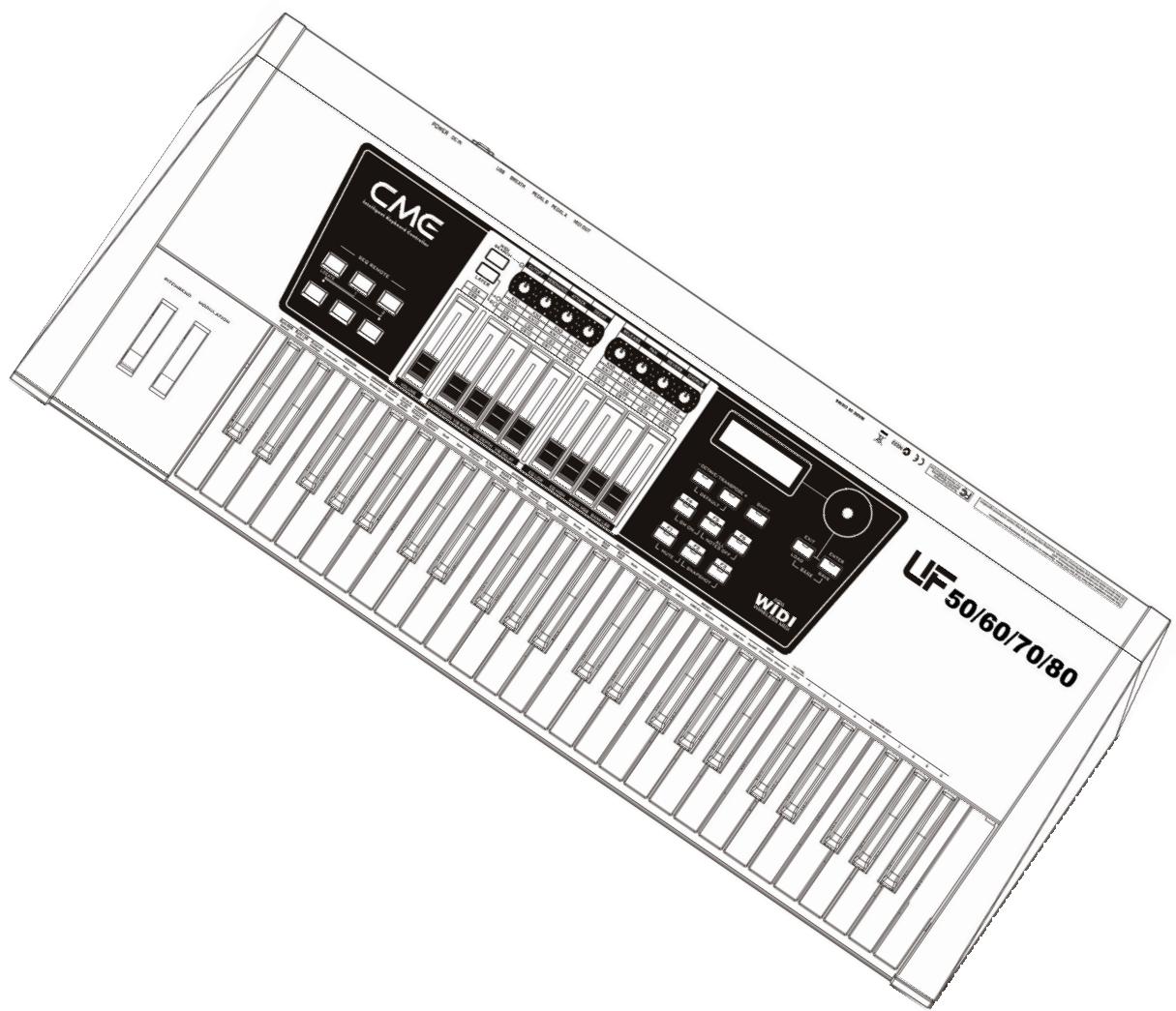

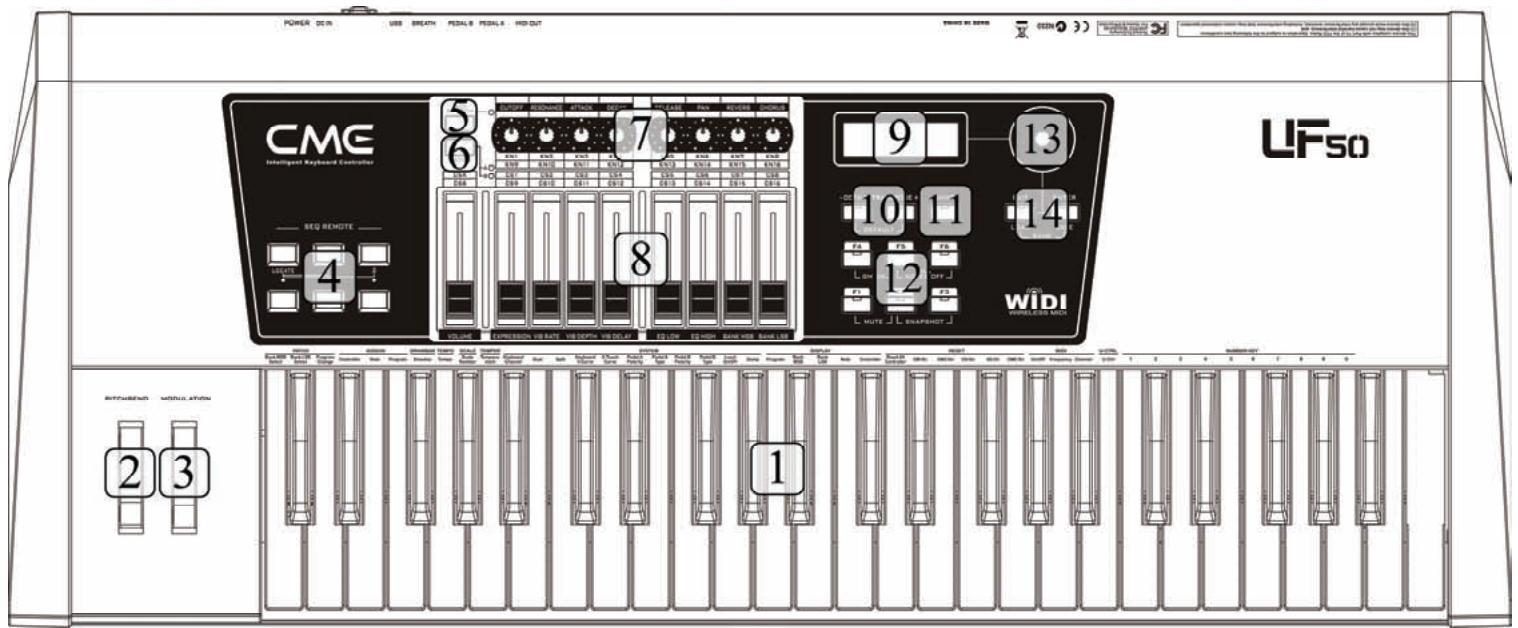

The keyaboard There are four models for the UF v2 series, including UF 50(49 keys), UF 60(61 keys), UF 70(76 keys) and UF 80(88 keys). All the keyboards in the UF v2 series are equipped with velocity response and aftertouch. Velocity response means when you play the keyboard, it will respond to the initial force used to strike the keys. Aftertouch means after you press and hold a key, it will continue to respond to additional pressure applied to the keys.

The pitchbend wheel: It can change the pitch up and down, and when released it will automatically return to the center position. The modulation wheel: It will make the sound vibrant, and when released it will be at the current position. SEQ TRANSPORT: They are used for sequence control or remote control. WIDI search： Use this button to search for another WIDI (wireless MIDI) device. The layer switch button： This button will switch the function layers for faders and knobs, so you can control many things convenienly. The knobs(KN 1-8)： They are used to send continuous control chahge data. The faders(CS 1-9)： They are used to send continuous control chahge data. The DISPLAY： You will see all the information here. The OCTAVE/ TRANSPOSE buttons： They are used to change the keyboard pitches. The SHIFT button： It is used with other control parts for more functions. The function shortcut buttons (F1-F6): They are used for fast function select or to send user-defined parameters. The DATA dial: Use it to change the value quickly. The EXIT/ENTER buttons: Use them to confirm or cancel data changes, and use them for bank operation.

The expansion board slot: it is used for an expansion board, such as an firewire expansion board or an sound module expansion board, etc. The mainboard terminals: All the connector ports and switches are located here.

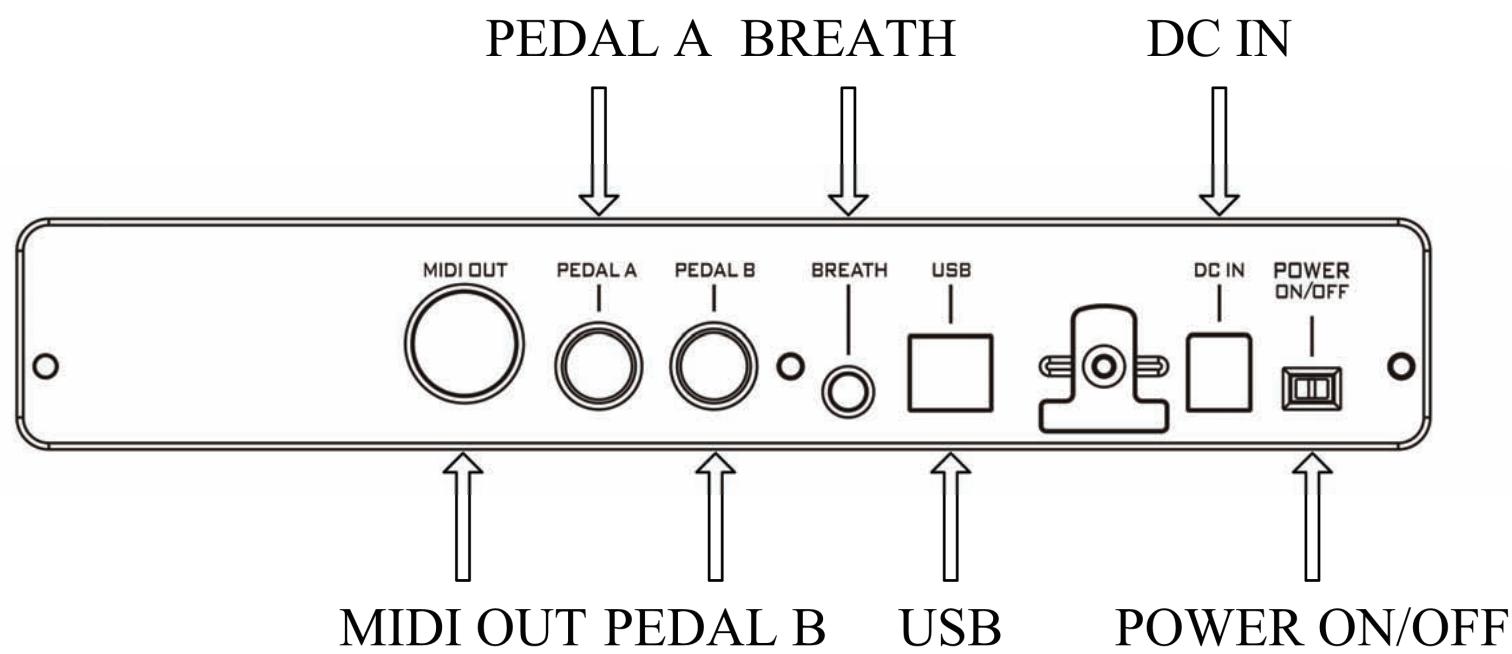

BREATH (Breath control or BC) jack: 1/8" TRS x1, compatible with YAMAHA BC3.

USB port: to make computer connection for MIDI data transfer and get the USB bus power

POWER ON/OFF switch: Use it to turn the instrument on/off.

1. Make sure the power switch is set to OFF.

2. Connect the AC adaptor to the POWER IN port in the rear panel.

3. Make sure the AC requirement of the AC adaptor is compliant with the local AC

supply, then connect the AC adaptor to the power supply outlet. Make sure the AC requirement of the AC adaptor is compliant with the local AC supply, otherwise it will cause severe damage to the AC adaptor or the instrument, and it may cause electrical shock! Only the AC adaptor designed for this product should be used. If you cannot find the right adaptor or the adaptor does not work, please contact local CME dealers. The usage of an improper adaptor may cause fire or electrical shock! The AC adaptor varies from country to country. If you take the product from one country to another, please make sure your AC adaptor compliant with the local power supply. If you are not sure about the technical information for the power supply or the adaptor, you can consult a qualified local electrical engineer.

When you have this product connected to a system, please set all the volume to minimum then follow the proper order to turn all the devices on: master MIDI device (which sends out MIDI data), slave MIDI device (which receives MIDI data), audio devices (mixer, amplifier, speakers). When you follow this order, all the signals (MIDI and audio) will go properly from the beginning to the end. If you will turn off the system, please follow the reverse order (turn off audio devices first, then MIDI deivces).

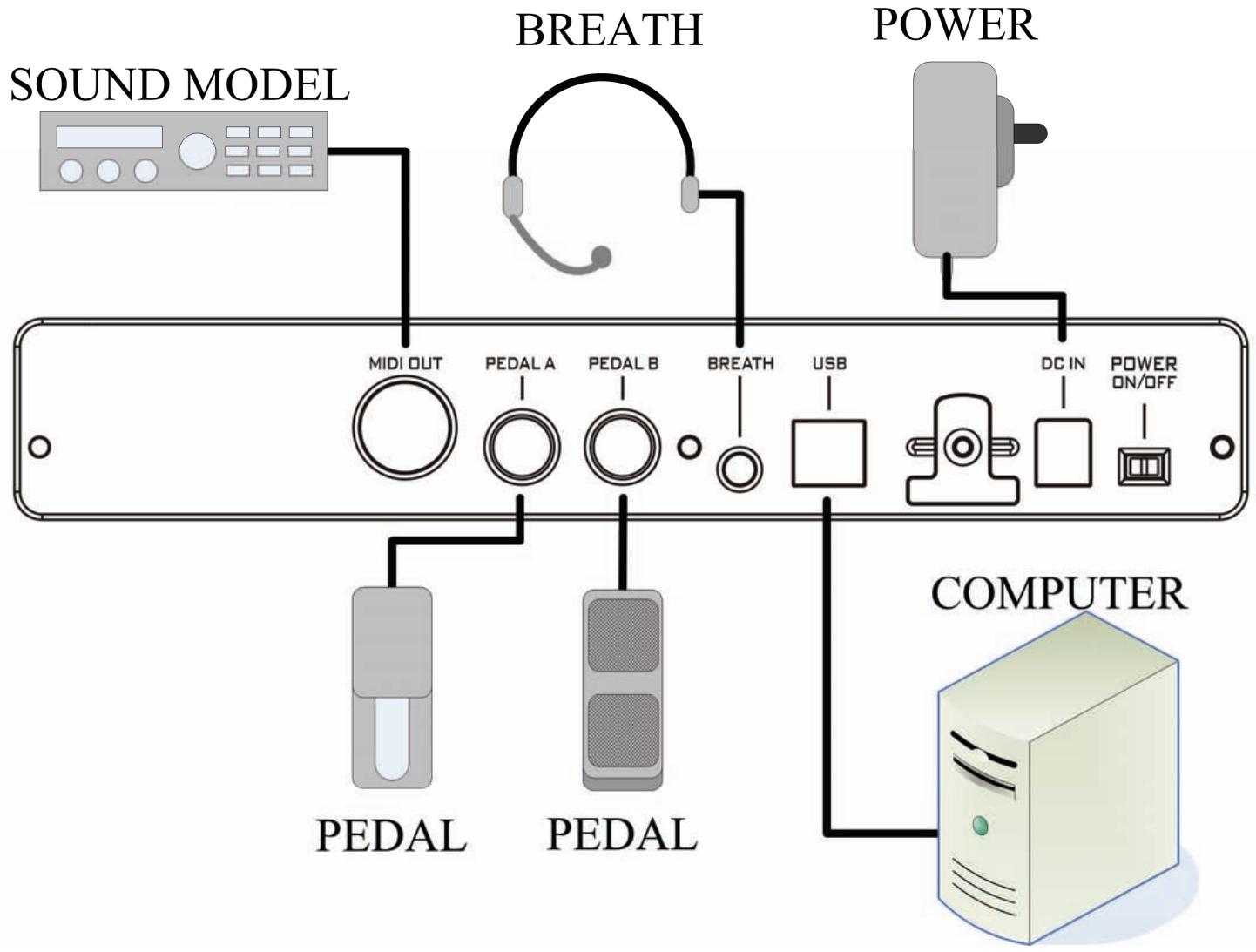

3 Connections Before you make these connections, please turn off all devices to avoid possible damage. Please refer to the fig. below to make connections:

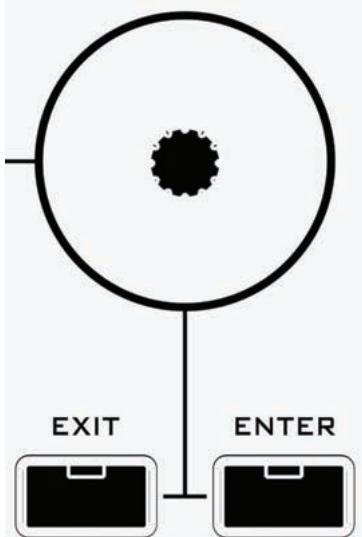

By default the data dial is used to change the voice#. When you reached the desired voice#, press【ENTER】 to send the MIDI data. You can also press 【EXIT】 to cancel the voice# change. In the keyboard function mode, you can also use【Data dial】and【EXIT/ENTER】 to change the parameters. The【LAYER】button：

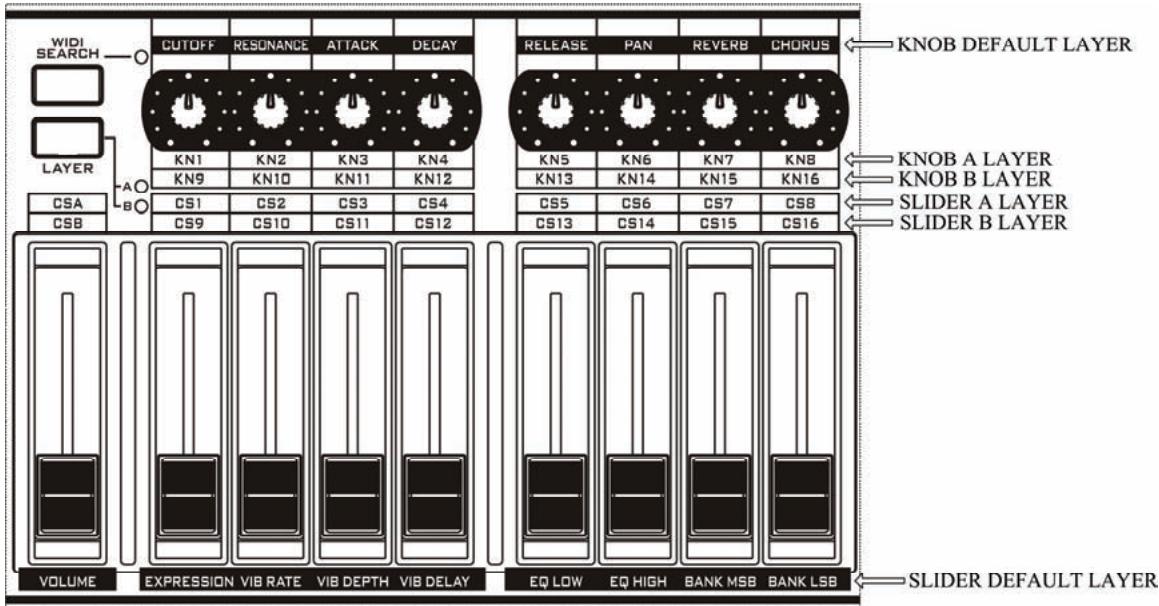

Use this button to swich to the function layers for knobs, faders and buttons. There are three layers for knobs, faders and buttons, and you can see the current layer from the right layer indicators: both indicator A and B off – the default layer; only indicator A on – layer A; only indicator B on – layer B.

5.1 Normally turning on

Set the power switch on the rear panel to ON to turn on this product.

5.2 Driver installation

After you connect this product to your computer via USB and turn the product on, the computer will find it device and install the driver automatically. You can plug and play this product on WINDOWS XP or Mac OSX. When the driver installation is finished, this product will be recognized as the ”USB Audio Device”. The MIDI driver offers 2 USB INs and 2 USB OUTs. Sometimes you may need to restart your computer during the driver installation. Please follow the on-screen instructions.

5.3 Turning on with initilizaing

If you press and hold both 【OCTAVE-】and【OCTAVE+】 buttons while turning on this product, it will enter the initialization process and return to the normal mode after the initializing is finished. The initializing operation will clear all the user settings, please be careful !

6.1 Quickly selecting a voice

Rotate the data dial to find the voice# them press the【ENTER】button the send the MIDI data, or press the【EXIT】button to cancel the operation. This operation will send the program change message to select the voice. Voice# range in some sound module is 0-127 instead of 1-128 in this product.

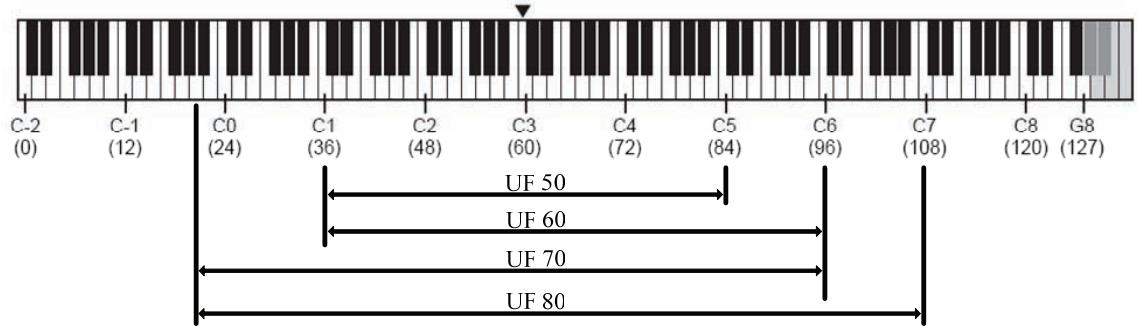

6.2 Transpose and octave

Octave shift „ You can shift the keyboard pitch in octaves by using the Octave function. „ When the octave is shifted, the related button indicator will be on. „ The octave shift range is -03～00～03. Press the two octave buttons at the same time will set the octave shift to 00, and the indicator will be off. Transpose „ You can shift the keyboard pitch in semi-notes by using the Transpose function. „ When the transpose value is changed, the related button indicator will flash slowly. „ The transpose range is -12～00～12 semi-notes. Press the two transpose tuoons at the same time will set the transpose to 00, and the indicator will be off. „ When both octave and transpose values are changed, the related buttons will flash quickly. The default keyboard ranges of UF 50/60/70/80 are listed below: ‹ The Pitch and key#(note#) list： OCTAVE#

When you adjust a knob or a fader, it will send specific MIDI data to change related parameter. When you adjust a knob or a fader, you will see related information on the DISPLAY. Please refer to the appendix <Intial status> for more information. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1).

Press the SEQ control buttons to send specific MIDI data. Please refer to the appendix <Intial status> for more information. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1).

Press the function shortcut button F1～F6 to send specific MIDI data. Please refer to the appendix <Intial status> for more information. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1-8.3).

6.6 Pitch wheel and modulation wheel

Use the pitch wheel to send the pitch bend data by default, and the pitch bend range is up one semi-note and down one semi-note. Use the modulation wheel to send the modulation data. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1).

For the two pedal jacks, each one can be used for continuouls pedal (e.g volume pedal) or switch pedal (e.g sustain pedal). By default, PEDAL A is for sustain pedal and send CC#64 message, the data value is either 0 or 127(switch data); PEDAL B is for volume pedal and send CC#11 message, the data range is 0-127(continulus data).

Use the breath control jack for a breath controller such as YAMAHA BC3 and send out the MIDI data. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1). By turning the gain and fine tune knobs in the breath controller, get a good breath feeling and data range.

After pressing a key, you can continue applying force to send channel after touch data. You can adjust the data sending rate or turn off those MIDI data (9.2). Please refer to the appendix <After touch curve list>. You can customize the MIDI data to be sent using the 【ASSIGN】function (8.1).

6.10 Bank seleting and program change (PATCH)

6.11 Keyboard Channel

When the dual mode is enabled, all the notes played will be sent to two MIDI channels, so the sound will be doubled. In the dual mode, Transpose, Octave, and keyboard channel will only work for the second MIDI channel. However, the pitch wheel, modulation wheel, BC and pedals work for both the two MIDI channels. Operation：【SHIFT】ÖB1【Dual】Ö【ENTER】 Default value：Off Value range：Off、On The dual and split functions can not be used at the same time.

When the split mode is enabled, the keyboard is devided to two regons (the left reigon and the right reigon). The two regons have idependent settings such as MIDI channel, voice settings, transpose and octave. The original settings work for the left reigon. In the split mode, transpose and octave settings only work for the right reigon. However, the pitch wheel, modulation wheel, BC and pedals work for both the two reigons. Operation：【SHIFT】ÖC2【Split】Ö【Set value】Ö【ENTER】 Default value：Off、54 Value range：Off、36-84 The dual and split functions can not be used at the same time.

The default scale type is 12 equal tones. However, you can chage the scale type to meet your music style. Operation：【SHIFT】ÖG#1【Scale】Ö【Set value】Ö【ENTER】 Default value：000 Value range：000-041 Please refer to the appendix <scale list> for more information. The Scale and Temperament functions can not be used at the same time. If you set the scale other than the default one, the keyboard will be in the mono mode.

You can change the temperament other than the defult equal one. Operation：【SHIFT】ÖA1【Temperament】Ö【Set value】Ö【ENTER】 Default value：000 Value range：000-012 Please refer to the appendix <Temperament list> for more information. The Scale and Temperament functions can not be used at the same time. When the temperament function is enabled, the keyboard will be in the mono mode.

While playing a organ voice, you can use the DRAWBAR function to make the 9 faders work as the organ drawbars (data value will be sent reversely), so you can control the organ voice conveniently. Operation：【SHIFT】ÖF#1【Drawbar】Ö【Set value】Ö【ENTER】 Default value：Off Value range：Off、On

By using the TEMPO function, you can send the TEMPO change data to control the TEMPO of the external sequencer. Operation：【SHIFT】ÖG1【Tempo】Ö【Set value】Ö【ENTER】 Default value：Off Value range：Off, 30-250 If the external sequencer does not accept the Tempo change data, or it is not properly configured, the TEMPO function will not work.

Reset All Control CC#121 GM On D#3 F0 7E 7F 09 01 F7 GM2 On F0 7E 7F 09 03 F7 GS On F0 41 10 42 12 40 00 7F 00 41 F7 XG On F#3 F0 43 10 4C 00 00 7E 00 F7 CME On F0 00 20 63 00 00 00 00 7F F7 Please make sure your MIDI device support the related MIDI reset message before using this function.

You can use the ASSIGN function to re-define a control parts by data type and MIDI channel. Operation：【SHIFT】ÖD#1【Assign Controller】Ö【Locate a control part】Ö【Set value】Ö【ENTER】Ö【Assign Channel】 Ö【Set value】Ö【ENTER】 In the above assigning operation, to【Locate a control part, please move a control part. For example, you can move a fader or rotate a knob, etc. Controller value range：0-171 Channel value range：1-16 Please refer to the appendix <Assignable controller list> for more information. There are two values for the cc#144 RPN and cc#145 NRPN in <Assignable controller list>, which are MSB value and LSB value, so the keyboard will instruct you to set the two values. In <Assignable controller list>, the types from cc#149 to cc#171 are switch controllers, so they can only be assined to buttons. To assign the keyboard aftertouch to other controller, please use the below key function assigning. 【SHIFT】ÖA#4【Assign A.Touch】Ö【Set value】Ö【ENTER】

You can try different velocity curves to find your favorite one and get the best touch response for the voice being played. z Please refer to the appendix <Velocity curve list> for more information. z Operation：【SHIFT】ÖC#2【Keyboard V.Curve】Ö【Set value】Ö【ENTER】 z Default value：01 z Value range：00-09 Name Curve# Description Normal Straight line Soft 1 Down curve Soft 2 Down curve Hard 1 Up curve Hard 2 Up curve Expand Down then up Compress Up then down Fixup 1 Velocity value fixed at 64 Fixup 2 Velocity value fixed at 100 Fixup 3 Velocity value fixed at 127

Press and hold a key then change the pressure to send aftertouch data. You can try different aftertouch types to find your favorite one. z Please refer to the appendix <Aftertouch list> for more information. z Operation：【SHIFT】ÖD2【Keyboard V.Curve】Ö【Set value】Ö【ENTER】 z Default value：Off z Value range：Off, 01-07 Name A.Touch Curve# Description None Off Aftertouch disabled Normal Straignt line Soft 1 Down curve Soft 2 Down curve Hard 1 Up curve Hard 2 Up curve Expand Down then up Compress Up then down

9.3 Pedal A Polarity

Use this function to dump the instrument settings by system exclusive messages, so you can quickly save and restore the settings. Operation：【SHIFT】ÖG#2【Dump】Ö【ENTER】 MIDI message sent：F0 00 20 63………F7

You can choose the contents to display, so you will see the information you want.

This product has a built-in bi-directional wireless MIDI system (WIDI-EK), and this WIDI-EK work as a wireless MIDI interface to transmit or receive MIDI data with another WIDI-compatible device, such as CME WIDI X8, CME WIDI XU, or another UF v2 product, etc. The built-in WIDI-EK system will get MIDI data from the UF v2 product and convert the data to radio signal to transmit, and will receive the radio signal then convert it to MIDI data for the UF v2 product. Please refer to the appendix <MIDI Route>.

11.1 Searching for a MIDI device

When the UF v2 product is turned on, the WIDI-EK will automatically find another free WIDI device and establish the radio communication. To search another WIDI device again, please press the【WIDI SEARCH】button in the front panel. A “Free WIDI devce” is an available WIDI device that is not in use with another one.

11.3 Setting Frequency

11.4 Selecting a radio Channel

The WIDI-EK system supports 64 radio channels. You can use up to 32 pairs of WIDI devices at the same place, and each pair use a exclusive channel. You can select the radio channel to make your UF v2 product work at the same radio channel with another WIDI device. Operation：【SHIFT】ÖA#3【WIDI Channel】Ö【Set value】Ö【ENTER】 Default value：1 Value range：1-64(F0 00 20 63 00 07 01 02 10 nn F7)nn=00H-40H Please make sure the same pair of WIDI devices use the same radio channel, and different parts use different channels for proper communication.

Up to 32 pairs of WIDI devices can be use at the same place. When many pairs of the WIDI devices are used at the same place, please keep the channel settings within 1-32 for best communication quality. Please try your best to avoid obstacles or interference. In case of the following events, the WIDI-EK will automatically send “All Notes Off” and “All Sound Off” to stop the sound module: poor signal with data loss; the transmitter is switched off; radio channel is changed.

12 U-CTRL mode Notes for the U-CTRL mode： z You can control popular computer software in the U-CTRL mode. In this mode, knobs, faders and buttons will send out preset control data. z Operation： „ 【SHIFT】ÖB3【U-CTRL】, then the indicators around the data knobs will be in the U shape to show the U-CTRL mode. Repeat the operation again to quit from the U-CTRL mode. „ Launch your computer software, and follow the software’s manual to load the MackieControl template. „ Set the remote control port in the template as “USB AUDIO DEVICE（2）” (Device name for the instrument) Please refer to the list below regarding the MackieControl function map: UF v2 part Fader 1-9 Knob 1-8 Data dial Button F1-F6 Shift+Button F1-F6 Load Save Shift+Dec Shift+Inc Rtz Rew Stop Play Rec MCU part Fader 1-9 Knob 1-8 Data dial

Mute 1-6 Left Right Add Next Rtz Rew Stop Play Rec

13 Registration BANK access

You can save all the instrument settings to the registration BANK. There are about 10 registration BANKs in the instrument. If you need save more registrations, you can use the data dump function to save the registration data to your computer (9.8).

Saving the settings to a registration BANK： „ Press the 【LOAD】button and the【SAVE】button at the same time, and the BANK# will flash. „ Use the data dial to locate the needed BANK#, then press the【SAVE】button to save. Loading the settings from a registration BANK: „ Press the 【LOAD】button and the【SAVE】button at the same time, and the BANK# will flash. „ Use the data dial to locate the needed BANK#, then press the【LOAD】button to load.

The loaded data will override the current settings without notification. If the current settings are not saved, after the loading operation the original settings will lost. 14 Firmware UPDATE About the UPDATE function: z With the UF Brain program, you can update the program and data of the instrument via USB connection. To get the newest UF Brain program, please visit www.cme-pro.com 15 EXPANSION

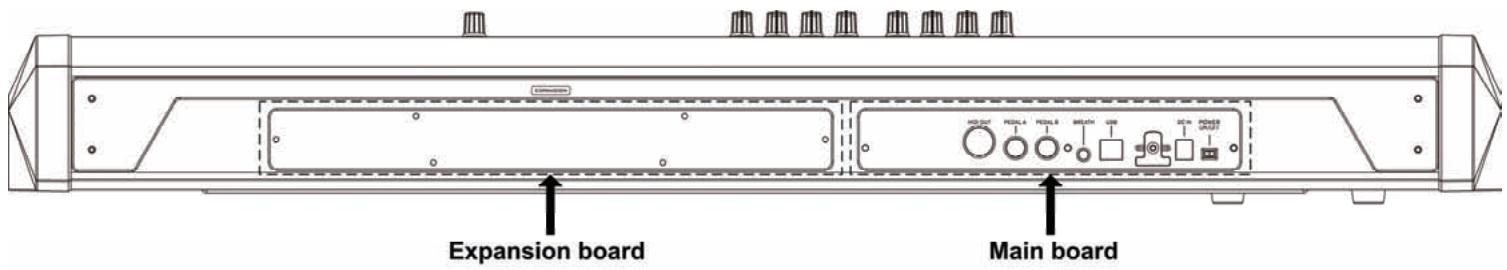

You can use the expansion slot to connect an expansion board, such as a firewire expansion board, a sound module expansion board, etc. Please read the expansion board user’s manual carefully and follow the instructions to install and use the expansion board. Please visit www.cme-pro.com for more information.

• Those controllers cannot be assigned to buttons, Seq or sustain pedal. ** Those controllers cannot be assigned to pitch wheel, modulation wheel, aftertouch, breath control, faders or knobs.

Note: △=Normal pitch, ▲=Changed pitch

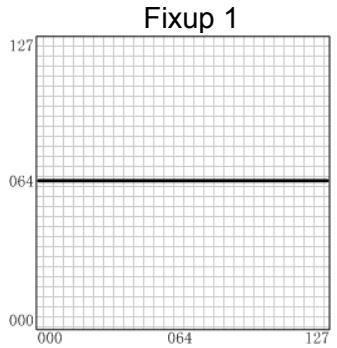

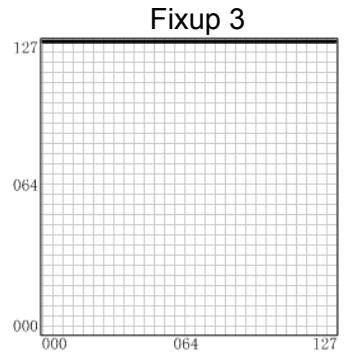

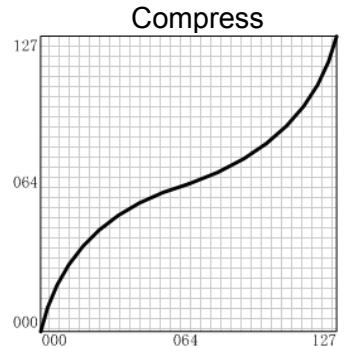

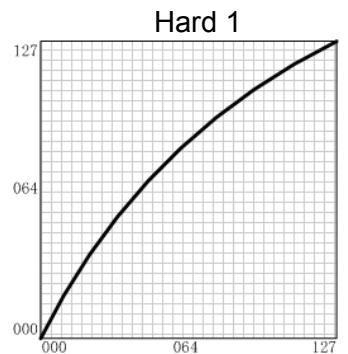

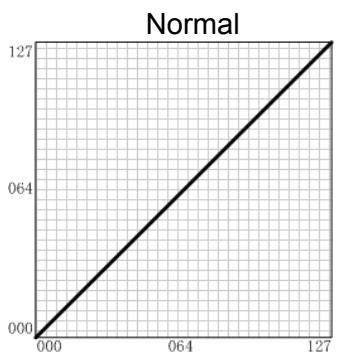

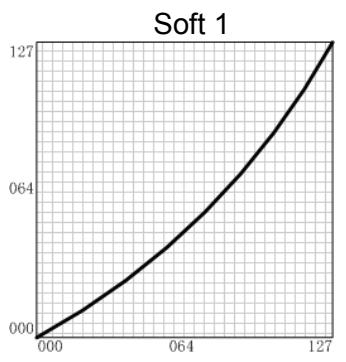

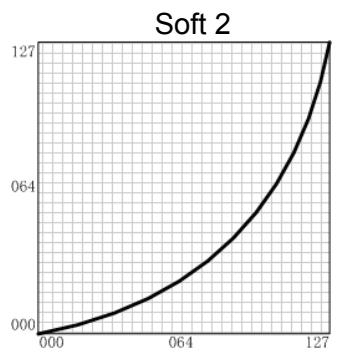

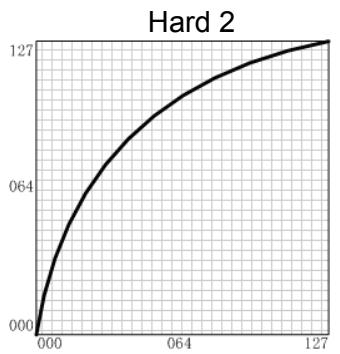

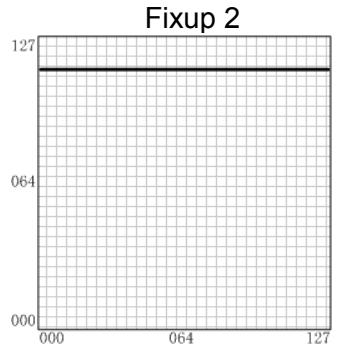

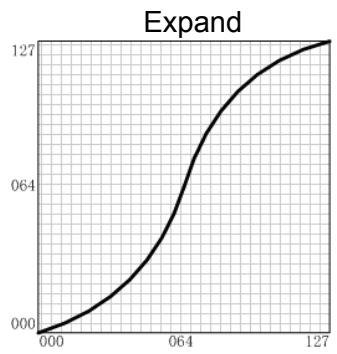

16.7 Velocity curve list

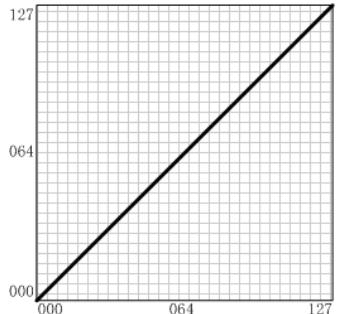

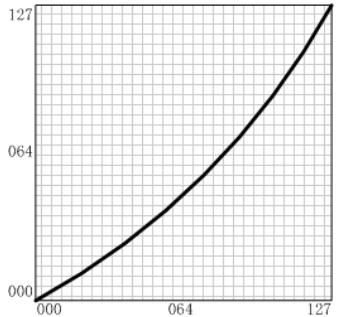

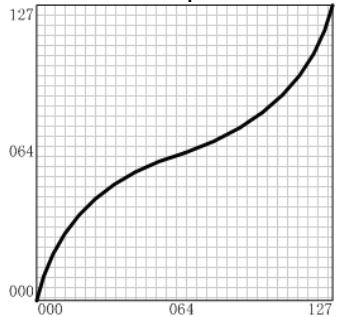

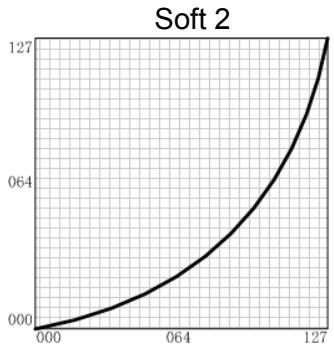

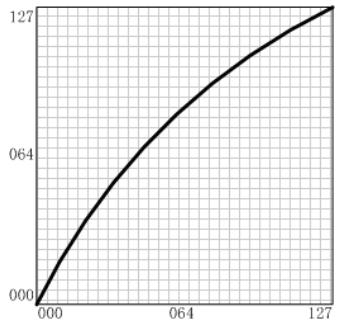

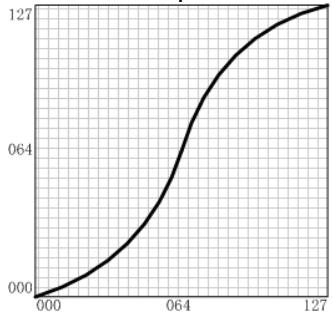

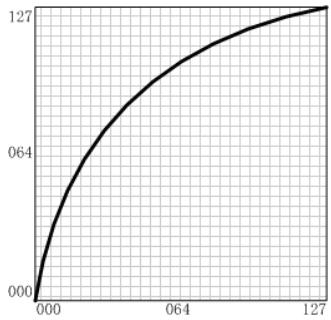

16.8 After touch curve list

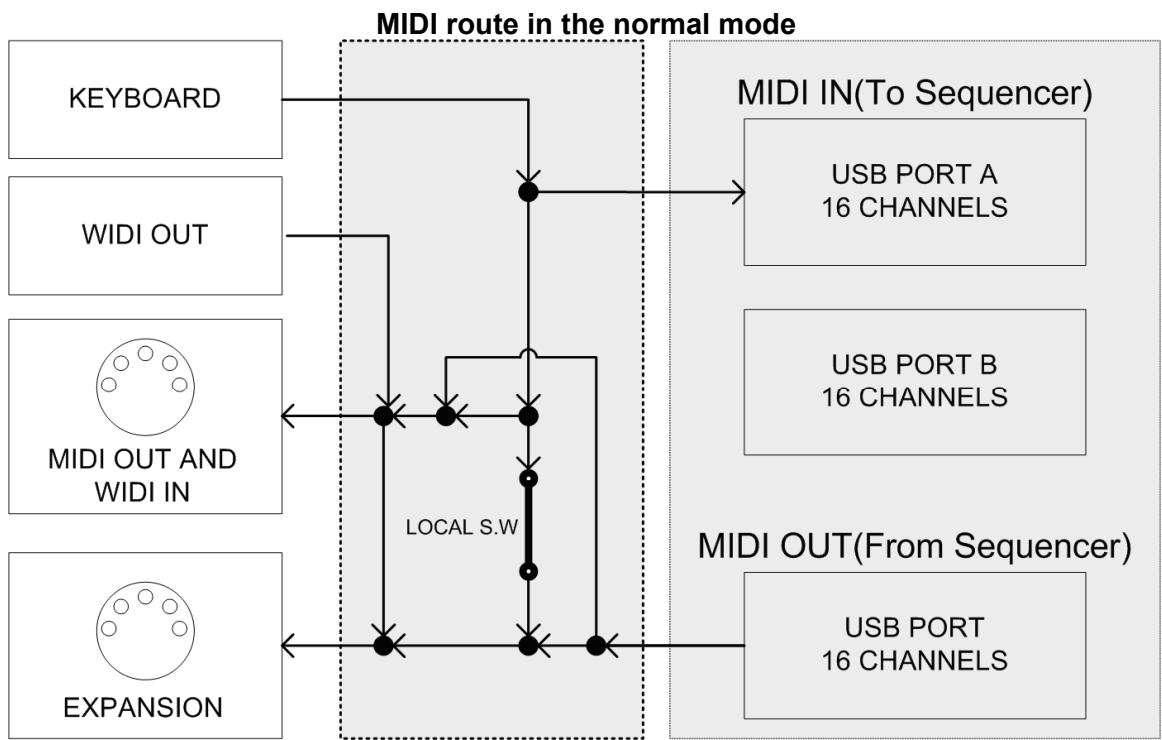

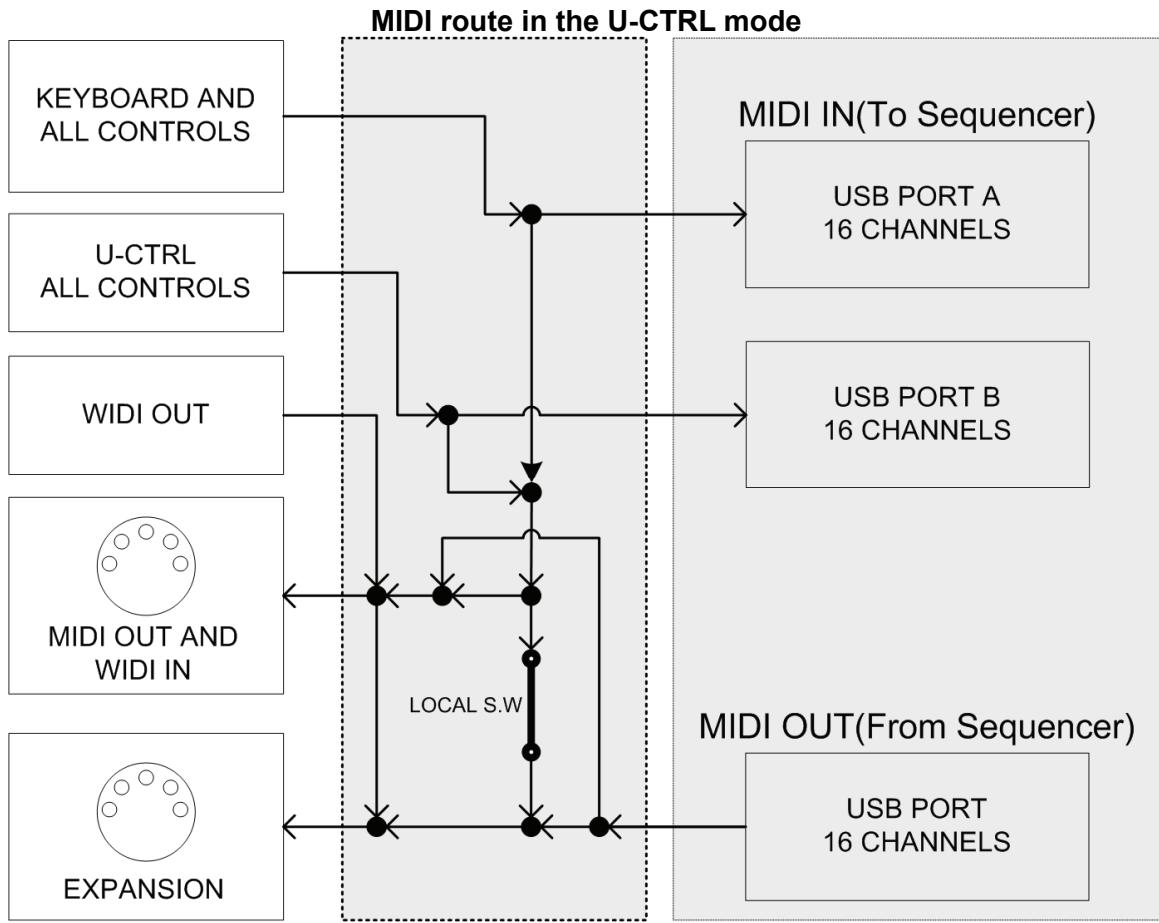

MIDI route in the normal mode MIDI route in the U-CTRL mode

17 Troubleshooting Trouble with possible reasons and solution

After turning on the power switch, the instrument is not powered on:

Make sure the USB connection is made the the computer is on.

Make sure the power connector is firmly connected to the power outlet.

Check the power connectors. No sound when playing the instrument

Check the volume settings of the tone generator and speaker system

Check the MIDI connection and the audio cable

Check Master and Channel Volume faders

Check the attack time of the filter

Make sure you have the right settings in you music software

Check the MIDI route settings

Check the Controller Pedal position Continuous long sound:

Check the release time of the filter

Use All notes off or Reset Improper voice

Improer MIDI routing, please check connections and settings.MIDI Wrong pitch

Check the transpose or octave settings.

MIDI pitch is tuned.

Check the scale or termperament settings. Tempo knob does not work Make sure your sequencer software supports this function with the right settings (Refer to the Sync section of your software manual)

Some functions do not work

Check the parts assigning.

It is possible that your tone generator or music software does not support those functions

You hear two sounds when playing one key： Disable the dual function.

Cannot select voice Read the data list of your tone generator for voice select detail, and properly set the tone BANK MSB and LSB

Functions — Basic functions: USB MIDI, Octave shift, Transpose, Pitch bend wheel, Modulation wheel, Pedals, Breath control, MIDI OUT, Faders, Knobs — MIDI Data: Sequence control, MIDI clock, bank select, Program change, GM System On, GS System on, XG System On, Control change, All Notes Off, etc. — Parameters: Transose, Octave, MIDI out channels, Velocity curve, Pitch bend, Breath control, Moulation, Brightness, Aftertouch, Aftertouch curve, etc.

Panel Controls and Indicators — Function shortcut buttons with light x 6 — Potentiometer knobs x 8, Faders x 9 — Data dial x 1, Switch button with light x 1, Exit/Enter button x2 — Seq transport buttons x 6, (two with light) — Octave/Transpose buttons with light x 2

The working band is 2.4GHz ISM.

Bi-directional MIDI data transfer.

64 radio channels for MIDI data transfer, with manual or automatic radio channel setting mode.

Manual switching for one-to-multi communication (auto finding and selecting).

Compatible with WIDI series product such as WIDI-XU

Low power consumption, high speed, powerful error correction with automatic notes-off and on-line detection.

Maximum wireless transfer distance is 80m(262 feet) without obstacle.

• Specifications and appearance are subject to change without notice.

CME is continually improving its products, and every attempt is made to ensure the information in the user’s manual is current and accurate. However, CME will not be responsible for possible discrepancies between the manual and the real product.
