Product Type	Built-in oven
Brand	TEKA
Models	HA-900 / HA-935
Cooking Functions	Conventional, Conventional with fan, Grill, Maxigrill, Maxigrill with fan, Turbo, Defrost, Bottom heat, Bottom heat with fan, Grill and bottom heat
Control Type	Mechanical timer + Electronic clock
Electronic Clock	Time setting, Alarm, Cooking duration, End of cooking, Duration+End programming
Interior Light	Lamp on during all cooking functions
Supplied Accessories	Grid, Roasting pan, Chrome support / telescopic guide
Door	With hinge, must remain closed during Grill functions
Power Supply	Electric (not specified)
Dimensions	Not specified in the manual
Weight	Not specified in the manual
Care and Cleaning	Not detailed in the manual
Safety	Automatic shutdown at end of programmed cooking
Repairability	Not specified

Frequently Asked Questions - HA-935 - INSTALLATION MANUAL TEKA

How to set the time on the electronic clock?

When connected, the display flashes 00:00. Use the + or - buttons to set the time, then press OK. Two beeps confirm the setting. To change the time, press the + or - buttons until the time flashes, then press OK and adjust.

How to use the mechanical timer?

Turn the timer knob clockwise to 120 minutes, then counterclockwise to select the desired time. When the time is up, an audible signal sounds and the oven turns off. Turn the controls to 0 to switch off.

How to program the cooking duration?

Press the + or - buttons until the 'duration' symbol lights up, then press OK. Select the duration with + or -, then select a function and temperature. The oven turns off automatically at the end.

How to use the Grill function?

Select the Grill or Maxigrill function using the function selector. The door must remain closed. Use the oven grid and place the drip tray underneath to catch juices. The grill browns the surface.

Can I cook on multiple levels at the same time?

Yes, with the Turbo function, heat is evenly distributed by the fan, allowing cooking on 2 heights simultaneously. Select the Turbo function and set the temperature.

How to defrost food?

Use the Turbo function by setting the temperature selector to the defrost position (specific symbol). The fan gently distributes heat to defrost without cooking.

What to do in case of a power cut?

The electronic clock programming is erased and the display flashes 00:00. You must reset the time and reprogram functions if necessary.

How to stop the beep?

Press any button to stop the acoustic signal. The oven will then restart; remember to turn the controls to 0 to turn it off completely.

What accessories are supplied with the oven?

The oven comes with a grid, a roasting pan, and a chrome support / telescopic guide. The drip tray is also mentioned to catch cooking juices.

How to clean the oven?

The manual does not provide specific cleaning details. It is recommended to consult the full user manual for cleaning instructions appropriate for your model.

USER MANUAL HA-935 - INSTALLATION MANUAL TEKA

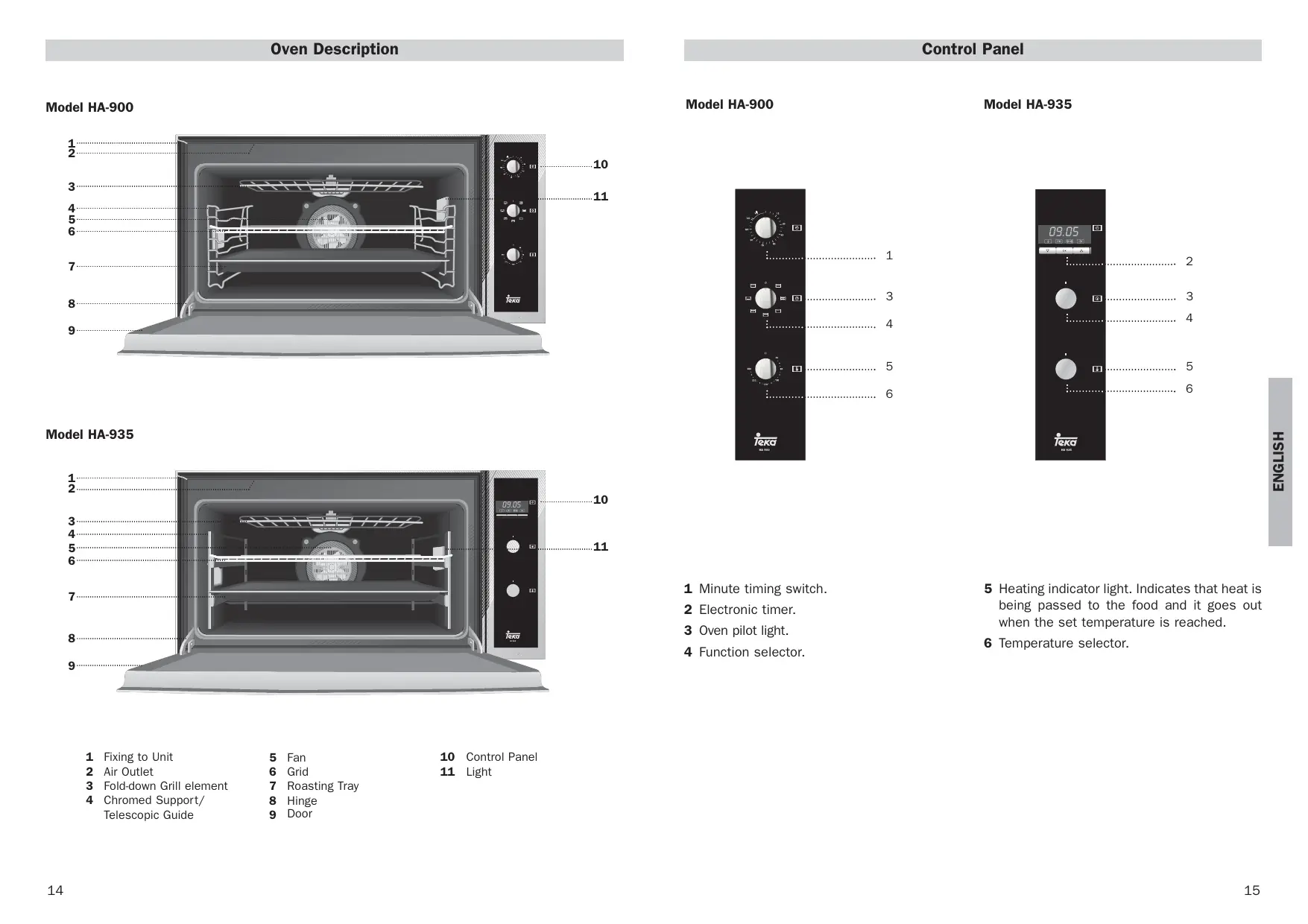

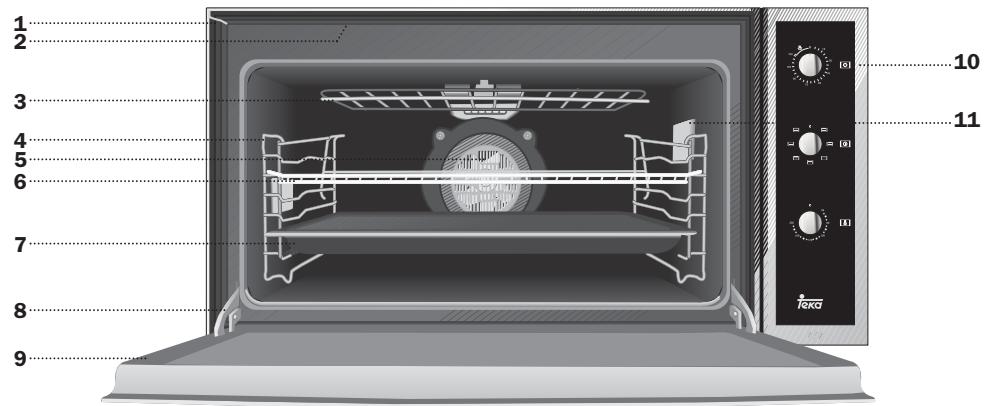

1 Fixing to Unit
2 Air Outlet
3 Fold-down Grill element
4 Chromed Support/ Telescopic Guide

5 Fan
6 Grid
7 Roasting Tray
8 Hinge
9 Door

10 Control Panel
11 Light

Model HA-900

Model HA-935

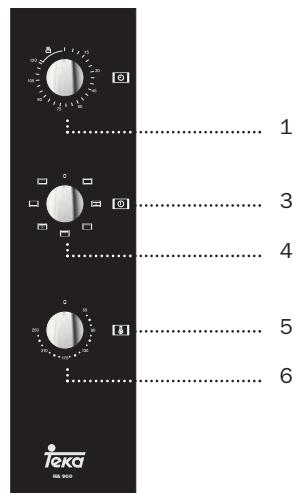

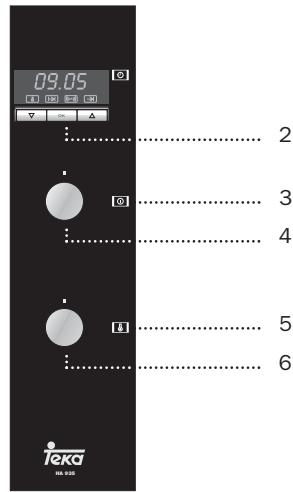

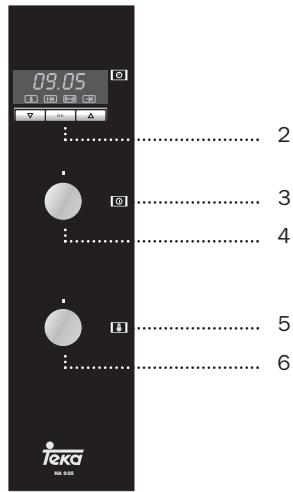

1 Minute timing switch.
2 Electronic timer.
3 Oven pilot light.
4 Function selector.

5 Heating indicator light. Indicates that heat is being passed to the food and it goes out when the set temperature is reached.
6 Temperature selector.

Model HA-900

□/□/□/□

Model HA-935

□/□/□/□

Switch off oven

Conventional

It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

Conventional with fan

Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

Grill

For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

MaxiGrill

Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

MaxiGrill with fan

Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry, game etc.

It is recommended to put the item on a rack with a tray beneath to collect the stock and juices.

Caution

While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed.

Turbo

The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time.

This cooking mode allows defrosting of food. To do this, set the temperature selector to position.

Lower element

Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

Lower element with fan

It distributes the heat from the lower part of the oven and is ideal for cakes with jam or fruit filling, which only require heating from beneath. Pre-heating is always necessary.

Grill and Lower element

Special for roasts. It can be used for any piece, whatever its size.

Note

The pilot light remains on in any cooking function.

Use of the Oven

Model HA-900

Manual use of the oven

1 Turn the timing switch to the left to the position.
2 Select a temperature and a cooking function.
3 Set the controls in position to switch off the oven.

Using the timer switch

Allows cooking during a pre-established time.
To do this,

1 Select the function and the cooking temperature.
2 Turn the timer control clockwise as far as the position "120 minutes" and then turn it backwards to the required cooking period.
3 When the time has finished, there will be an acoustic signal and the oven will stop heating.
4 Set the controls to the position to switch off the oven.

Model HA-935

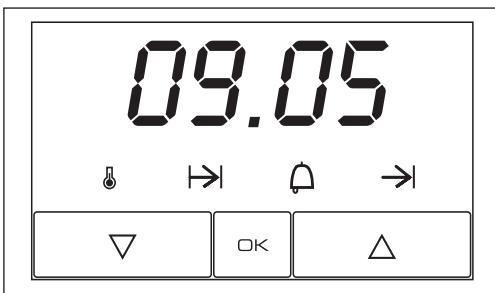

Setting the time on the Electronic Clock

When the oven is connected to the power supply, the indication 00:00 flash on the display. Press or to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press or until the current time flash on the screen. Press OK. Then press or to modify the time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

When you begin cooking, symbol lights up to indicate that the oven is heating the contents; the symbol goes out when the selected temperature is reached.

Set the controls to to turn the oven off.

Functions of the Electronic Clock

Alarm: Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time).

Programming the Alarm

1 Press until symbol lights up. Press OK.
2 Set the period of time after which you wish the alarm to sound by pressing or .

3 The clock beeps twice, the countdown to the alarm is displayed and symbol flashes.
If you wish to modify the time set, press OK and keep it pressing in until the current time appears. Press until symbol lights up permanently and press OK. Then use and to change the set time.
4 When the set period of time comes to an end, the alarm sounds and symbol starts to flash faster.
5 Press any button to turn the alarm off.

Setting the Cooking Time

1 Press or until symbol lights up. Press K .
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.

If you wish to modify the time set, press or until the current time appears and symbol starts to flash. Press OK. The time can then be adjusted by pressing or .

4 Select a cooking function and a temperature.
5 When the cooking time comes to an end, the alarm sounds, End is displayed on the screen and symbol starts to flash.
6 Press any button to stop the alarm. The oven turns itself back on again.
7 Set the controls to to turn the oven off.

Setting the End Cooking Time

1 Press or until symbol lights up. Press K .
2 Select the time you wish the cooking process to finish at by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.

If you wish to modify the time set, press or until the current time appears and symbol starts to flash. Press OK. The time can then be adjusted by pressing or .

4 Select a cooking function and a temperature.
5 When the cooking time comes to an end, the alarm sounds, End is displayed on the screen and symbol starts to flash.
6 Press any button to stop the alarm. The oven turns itself back on again.
7 Set the controls to to turn the oven off.

Setting the Cooking Time and the End Cooking Time

1 Press or until symbol lights up. Press OK.
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the countdown to the end of the cooking time is displayed and symbol lights up permanently.
4 Press or until symbol lights up. Press OK.
5 Select the time you wish the cooking process to finish at by pressing or .
6 The clock beeps twice, Auto is displayed on the screen and symbols and light up permanently. The clock is set and the oven remains off.

If you wish to modify the cooking time, press or until the current time appears and symbol starts to flash. If you wish to modify the end cooking time, press or until the current time appears and symbol starts to flash.

Press OK. The time selected can then be adjusted by pressing or .

7 Select a cooking function and a temperature.
8 When the time to start cooking is reached, the oven starts up and the remaining time is displayed on the screen.
9 When the time to end cooking is reached, the oven turns itself off, the alarm sounds, End is displayed on the screen and symbols and start to flash.
10 Press any button to stop the alarm. The oven turns itself back on again.
11 Set the controls to [] to turn the oven off.

Important

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.
