Product Type	Kitchen Hood
Brand	Teka
Model	C 762
Width	90 cm
Depth	50 cm
Height (Min-Max)	60-110 cm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	250 W
Maximum Extraction Rate	650 m³/h
Noise Level (Max)	65 dB(A)
Number of Speeds	3 + Boost
Lighting	2 x 3 W LED
Filter Type	Aluminum Grease Filter
Control Type	Electronic Buttons
Installation Type	Wall-Mounted
Mode	Ducted / Recirculating
Energy Class	A+
Grease Filter Cleaning	Monthly in Dishwasher
Carbon Filter Replacement	Every 6 Months
Safety Features	Auto Shut-Off Timer, Motor Overheat Protection
Color	Stainless Steel
Included Accessories	Recirculation Kit, Installation Bracket

Frequently Asked Questions - C 762 TEKA

How do I install the Teka C 762 kitchen hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above the cooking surface for electric hobs and 75 cm for gas hobs. Use the provided bracket and follow the installation manual. For ducted mode, connect to an external vent; for recirculating mode, install the carbon filters.

How often should I clean the grease filters?

The aluminum grease filters should be cleaned every month or when the filter saturation indicator (if available) lights up. They can be washed in the dishwasher with a mild detergent. Allow them to dry completely before reinstalling.

How do I replace the carbon filter?

Carbon filters are used in recirculating mode. They cannot be washed and should be replaced every 6 months or more often if the hood is used heavily. To replace, remove the grease filter, slide out the old carbon filter, and insert the new one. Ensure it locks into place.

Why is my Teka C 762 hood making noise?

Noise can come from loose parts, dirty filters, or improper installation. Check that the hood is securely mounted. Clean the grease filters, as a clogged filter can cause increased noise. If the noise persists, contact customer support.

Can I use the hood without ducting?

Yes, the Teka C 762 can be used in recirculating mode. You will need to install carbon filters (available separately) to purify the air before releasing it back into the kitchen. The hood comes with a recirculation kit.

How do I control the hood speeds?

The hood has 3 speeds plus a boost function. Press the speed button to cycle through settings (low, medium, high). The boost function runs at maximum power for a limited time to quickly remove strong odors. Use the timer button to set an automatic shut-off.

What type of light bulb does the hood use?

The Teka C 762 uses LED lights (2 x 3 W). These are energy-efficient and long-lasting. To replace, gently pry the light cover and pull out the old LED module. Insert the new one, ensuring it clicks into place. Use only genuine Teka replacement parts.

How do I reset the filter alarm?

After cleaning or replacing filters, the filter alarm indicator (if present) needs to be reset. With the hood off, press and hold the speed button for 3-5 seconds until the indicator turns off or flashes. Refer to the user manual for exact instructions.

What are the dimensions of the Teka C 762?

The hood is 90 cm wide, 50 cm deep, and has a height range of 60-110 cm (including chimney). The telescopic chimney can be adjusted to fit different ceiling heights. Weight is approximately 15 kg.

Is the Teka C 762 suitable for island installation?

This model is designed for wall-mounted installation. For island installation, you would need a specific island hood kit or a different model. Check your ceiling structure and consult a professional.

USER MANUAL C 762 TEKA

Kitchen Hoods CLASSIC

C-601 / C-602 / C-761 / C-762 / C-901 / C-902 / TUB-60 / TUB-62

Dear customer,

We congratulate you on your choice. We are sure that this modern, functional and practical article, constructed from highest quality materials, will fully meet your requirements.

Please read all the sections of this INSTRUCTION MANUAL before using the extractor for the first time to be able to obtain its full performance and to avoid any breakdowns that could arise from its misuse, also allowing small problems to be overcome.

Keep this manual. It will always provide useful information on the extractor and will help other people to use it.

Safety Instructions

* Before using the extractor for the first time, you must observe the installation and connection instructions.
* Never pull the cable to unplug the extractor. Always pull the plug.
* Do not switch on the extractor if the electricity cable is worn or has cuts or if there are signs of deterioration around the control panel.
* If the extractor stops working or functions abnormally, unplug it from the mains and advise the technical service.
* Do not leave gas burning without a pan above it under the hood.
* Do not allow grease to accumulate in any part of the extractor, especially in the filter as this COULD PRODUCE A FIRE RISK.
* Do not flambé food under the hood.

* Before installing the extractor consult local rules and regulations in force with respect to current standards on air and fumes.
* Before connecting the extractor to the mains, check that both the voltage and the frequency conform to that shown on the characteristics label of the extractor located inside it.
* Switching on and off must be by means of an omnipolar switch with minimum separation between contacts of 3 mm incorporated into the fixed installation.
* The electrical connection must be made by means of a flexible cable. It is not allowed to connect it by means of a rigid conduit.
* The expelled air must not reach a duct that is used to expel food processor fumes using energy other than electricity.
* The room must be provided with appropriate ventilation if the extractor is going to be used at the same time as other food processing equipment not using electrical power.
* We recommend the use of gloves and caution when cleaning the inside of the extractor.
* Your extractor is designed for domestic use and only for expelling and purifying gases arising from food preparation. Its use for any other purpose must be at your own responsibility and may be dangerous.
* You should contact the nearest Qualified Technical Assistance Service for any repairs always using original spare parts. Repairs and modifications carried out by others could damage the apparatus or cause it to malfunction, and risking your safety. The manufacturer cannot be held liable for inappropriate use of the apparatus.

Index

Description of the appliance Page 16

Instructions for use 16

Cleaning and maintenance 17

Technical Information 17

Installation 18

If something does not work 18

Description of the appliance

A Light switch
B Sliding three-speed motor switch
C Motor "on" pilot light
D Adjustable hood that allows larger fume capture area
E Filter body and supports
F Filter support closures
G Illumination by means of bulbs
H-I Non-return flaps which are placed in the outlet, locating their ends in the openings provided.

Instructions for use

By means of the controls located on the front of the hood, the desired speed can be selected as well as the choice of lighting.

CLASSIC

Speed
1
0 on
1 First speed
2 Second speed
3 Third speed (Max)

Light

0 Off
1 On

TUB

Speed

0 Off

1 First speed
2 Second speed
3 Third speed (Max)

Light

0 Off
1 On

Two achieve better extraction, we recommend switching on the extractor a few minutes before starting to cook (3 - 5 minutes) so that the air flow is continuous and stable when extracting the fumes.

Likewise, keep the extractor switched on for a few minutes when cooking is complete to allow all fumes and odours to be expelled.

Cleaning and maintenance

Before carrying out any cleaning or maintenance activities, ensure that the extractor is disconnected from the mains.

To carry out cleaning and maintenance, follow the safety instructions indicated on Page 15.

Filter cleaning

To withdraw the filters from their locations release the anchoring points. Clean the filter, either by putting it in the dishwasher (see notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays (protecting the non metallic parts). Once clean, leave it to dry,

Notes: cleaning in the dishwasher with aggressive detergents may blacken the surface of metallic parts, without this affecting its gas retaining properties.

N.B. The filter must be cleaned at least once a month depending on how often the extractor is used. It must be remembered that grease is deposited in the extractor when cooking, whether it is switched on or not.

Cleaning of the extractor body

The use of warm (40°C approx.) soapy water is recommended. A cloth moistened in this water is used for cleaning the extractor, paying special attention to the grids. Afterwards, dry using a lint-free cloth.

Note: Never use metallic scouring pads or abrasive products that could damage the surface.

Do not use scrapers with metallic surfaces such as knives, scissors etc.

Activated charcoal filter

To install the charcoal filter, disassemble the lid, locate the filter in the position provided and reassemble the lid.

The carbon filter lasts from three to six months depending on the particular conditions of use.

The activated carbon filter can neither be washed nor regenerated. Once it is exhausted, it must be changed.

To replace exhausted filters with new ones, withdraw the old one in the reverse order to that of installation.

Changing Bulbs

Remove the filter support to access the bulbs. Take care to disconnect the hood from the mains beforehand and that the bulbs to be replaced are not hot.

The maximum bulb power is 40 W.

Technical information

Dimensions Width = 600 (760) (900) mm

Depth = 500 mm

Height = 150 mm

Electrical characteristics

REFER TO RATING PLATE

Installation

To fix the extractor to the kitchen unit the pattern on page 20 is used.

The lower part of the extractor must be located at a minimum height of 60 cm above the hob for electric cookers and 65 cm for gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed.

The extractor must be connected to a wall socket with an effective earth.

When the extractor is working at the same time as other non-electrical cooking equipment, the outlet air pressure must not exceed 4 Pa (4 x 10 ⁶ bar).

To achieve optimum performance the length of the outlet hose should not exceed 4 meters, or include more than two 90° angles (elbows).

Although venting to the outside is recommended, activated carbon filters may be used, which allow the gas to be returned to the kitchen through the outlet pipe.

To evacuate via the upper part, an external evacuation conduit is needed and the evacuation lever to be located in the "E" position. The small (anti-return) outlet

hose is located, ensuring that the remaining outlets are duly plugged. To allow recirculation through the active carbon the evacuation lever is located in the "I" position, ensuring that the upper opening is plugged. Then the activated carbon filter is located in the inlet mouth.

If something does not work

Before seeking technical assistance carry out the following checks first:

Defect Possible cause Solution
The extractor does not work	The cable is not connected	Connect the mains cable
	No current is reaching the plug	Revise/repair the electricity circuit
The extractor does not blow enough or vibrates	Filter saturated with grease	Clean or substitute filter
	Outlet obstructed	Eliminate obstructions
	Inadequate air conduit	Contact the installer and follow instructions of this manual
The lamps do not light	Lamp broken	Exchange the bulb
	Lamp loose Tighten bulb

Special U.K. Requirements

Height above gas hob: 75 mm minimum NEVER PLACE THE COOKER HOOD OVER AN EYE-LEVEL GRILL.

This appliance must be connected by a competent person, using fixed wiring via a DOUBLE POLE SWITCHED FUSED SPUR OUTLET.

Electrical connection

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. Should the colour of the wires in the mains lead for the appliance not correspond with the coloured markings identifying the terminal in your spur box proceed as follows:

• The wire which is coloured blur must be connected to the marked N (Neutral) or coloured Black.
• The wire which is coloured brown must be connected to the marked L (Live) or couloured Red.
• Where avialable (see installation), the wire which is coloured yellow/green must be connected to the market 🔔 coloured Yellow/Green.

If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety (Installation & Use) Regulations 1984 and the relevant Building Regulations. Detailed recommendations are contained in the following British Standard Codes of Practice BS6172, BS5440 and BS6891 Current Edition.

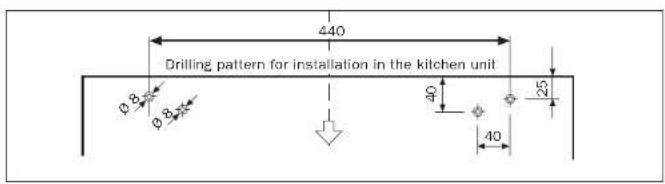

Stencil for mounting beneath the unit

Stencil for wall fitting
