Product type	Commercial dry canister vacuum
Brand	Truvox
Model	Valet Single Motor Upright
Intended use	Hotels, schools, hospitals, factories, shops, offices, rental companies
Power supply	220-240 V ~ 50-60 Hz
Motor power	1200 W
Construction class	I
Protection class	IP20
Tank capacity	3.6 L
Filtration	3 stages, including a HEPA filter
Airflow	52.5 l/s
Vacuum	16.2 kPa
Productivity	208 m²/h
Noise level	69 dB(A) at 1.5 m
Sound power level	88 dB(A)
Cable length	15 m
Dimensions (L x W x H)	37 x 35 x 118 cm
Weight	9.6 kg
Warranty	1 year
Maintenance and cleaning	Wipe the exterior with a damp cloth; regularly check and clean the filters and the dust bag.
Safety	Unplug before maintenance; do not vacuum liquids, flammable or toxic dust; do not use without filters.
Spare parts and repairability	Only use original parts recommended by the manufacturer; have repairs carried out by an approved repairer.
General information	Complies with European directives (2006/42/EC, 2004/108/EC, 2009/125/EC); do not dispose of with household waste (WEEE).

Frequently Asked Questions - VSMU Truvox

Can I use this vacuum cleaner to vacuum up liquids?

No, this appliance is designed to vacuum only dry, non-flammable dust and debris. Vacuuming up liquids is strictly prohibited.

What is the noise level of the Truvox Valet vacuum cleaner?

The noise level is 69 dB(A) at 1.5 metres, making it suitable for use in commercial environments.

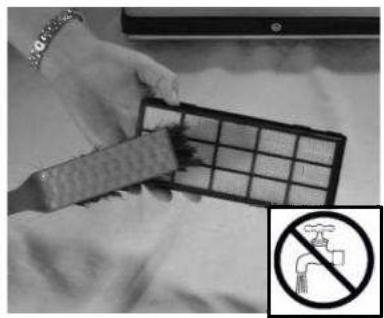

How do I maintain the HEPA filter on my vacuum cleaner?

The HEPA filter should be checked and cleaned regularly to maintain optimal performance. If the filter is damaged, replace it with an original part recommended by the manufacturer.

Can I use accessories that are not supplied or recommended?

No, it is essential to use only recommended accessories for this machine to ensure safety and performance.

What should I do if suction power decreases?

Check if the dust bag is full, if the filters are dirty, or if an obstruction is blocking the airflow. Clean or replace the affected parts.

What are the essential safety precautions?

Always unplug the appliance before any intervention. Never touch the plug with wet hands, do not vacuum flammable or toxic materials, and keep hair, loose clothing, and body parts away from the openings.

How should I store the vacuum cleaner when not in use?

Store the appliance in a dry, sheltered place, away from the elements. Wind the cable properly and do not store it in a high place.

Is this vacuum cleaner suitable for domestic use?

It is designed for intensive commercial use, particularly in hotels, schools, hospitals, factories, shops, and offices.

What is the dust tank capacity?

The tank capacity is 3.6 litres, allowing extended use without frequent emptying.

What should I do if the power cable is damaged?

Do not use the appliance. The cable must be replaced with an original part or entrusted to an approved repairer to avoid any danger.

USER MANUAL VSMU Truvox

ORIGINAL INSTRUCTIONS

Valet Single Motor Upright - VSMU

Handels Staubsauger

Commercial Vacuum Cleaner

Truvox International

Introduction

This manual is furnished with each new model. It provides necessary operation and maintenance instructions and parts list. This machine will provide excellent service. However, the best results will be obtained at minimum costs if:

• The machine is operated with reasonable care.
• The machine is maintained regularly - per the machine maintenance instructions provided.
• The machine is maintained with manufacturer supplied or equivalent parts.

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE

Product information

This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories shops, offices and rental businesses. It is designed exclusively to pick up dry dirt, debris and dust in an indoor environment and is not constructed for any other use. The pickup of any type of fluid or hazardous materials is prohibited. Only use accessories intended for machine.

Technical Specifications

Model		Valet Single Motor Upright
Voltage AC (~)/ Frequency	V/ Hz	220-240/50-60
Construction class		I
Protection class	IP	20
Vacuum motor power	W	1200
Vacuum	mmwg/kPa	1651/16.2
Productivity rate	m2/h	208
Airflow rate	l/s	52.5
Filtration	3-stage (including HEPA filter)
Capacity	I	3.6
Sound pressure level	dB(A)	69 @ 1.5m
Sound power level	dB9A)	88
Dimensions (L x W x H)	cm	37 X 35 X 118
Weight	kg	9.6
Cable length	m	15
Warranty	1 year

Protect the Environment

Please dispose of packaging materials, old machine components in an environmentally safe way according to local waste disposal regulations. Always remember to recycle.

EC DECLARATION OF CONFORMITY

Machine Type: Commercial vacuum cleaner

Model: VSMU.

This machine is in conformity with the following EU directives:

- Machinery Directive:

2006/42/EC

• The EMC Directive:

2004/108/EC

- Eco Labelling Directive

2009/125/EC

2013/666/EU

Applied harmonised standards:

EN60335-1, EN60335-2-69, EN55014-1, EN55014-2, EN610003-2,

EN610003-3, EN62233

Truvox International Limited

Unit C (East), Hamilton Business Park,

Manaton Way, Botley Road,

Hedge End, Southampton

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 08/07/2014

This symbol warns the operator of hazards and unsafe practices which could result in severe personal injury or death.

IMPORTANT SAFETY INSTRUCTIONS

WARNING - To reduce the risk of fire, explosion, electric shock, or injury:

1. Do not use unless trained and authorized.
2. Do not use machine with flammable liquids.
3. Do not use machine in the presence of flammable or combustible liquids/fumes/dusts.
4. Do not pick up any type of fluid, hazardous dust or toxic materials.
5. Do not use outdoors or on wet surfaces.
6. Unplug the vacuum cleaner immediately from mains supply if it is not working properly, if it has been dropped or damaged, if it came in contact with flammable liquids, combustible liquids/fumes/dusts, if you pick up any type of fluid, hazardous dust or toxic materials. Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
7. Do not leave machine unattended when plugged in.
8. Do not handle plug or machine with wet hands.
9. Unplug from outlet before assembly, adjustment, changing accessories, user maintenance, cleaning and when not in use. Do not use with damaged cord or plug. If the supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

1. Do not pick up anything that is burning or smoking.

2. Use only as described in this manual.

3. Do not close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

4. Do not unplug by pulling on cord.

5. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

6. Do not put any object into openings. Do not use with any opening blocked.

7. Do not allow to be used as a toy.

8. Use extra care when cleaning on stairs.

9. Do not use without dust bag and/or filters in place.

10. Do not modify machine from its original design.

11. Turn off all controls before unplugging.

12. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.

13. Do not allow the rotating brushes to come into contact with the supply cord.

14. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

15. Store the vacuum cleaner indoors at a dry location. Do not store it in an elevated location, for example a rack.

16. Wipe outer surface with a damp cloth only.

SAVE THESE INSTRUCTIONS

Transporting the machine

Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed. Carefully wrap the power cord and store in dry indoor location. Do not expose the machine to rain or moisture. Lift the machine by the carrying handle to transport.

UK Model only The cord is equipped with a 13 amp fuse. If replacing fuse, use a 13 amp fuse confirming to BS1362. Do not use the machine if fuse cover is missing.

After sales service

Truvox machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing. To maintain operational safety and reliability the following service interval has been defined: Every year or after 250 hours. Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary. Use only original Truvox spare parts. Use of other spare parts will invalidate all warranty and liability claims. Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Truvox products should only be performed by trained staff. Improper repairs can cause considerable danger to the user.

Guarantee

Your product is guaranteed for one year from the date of original purchase, or hire purchase, against defects in materials or workmanship during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace free of charge to the purchaser, any part found to be defective, subject to the following conditions:

CONDITIONS

1. Claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of sale, or the machine Serial No.
2. For claims under this guarantee contact the supplier from whom you purchased the product who will arrange the appropriate action. Do not initially return the product as this could result in transit damage.
3. Neither Truvox nor its distributor shall be liable for any incidental or consequential loss.
4. This guarantee is governed by the laws of England.

5. This guarantee does not cover any of the following:

6. Periodic maintenance, and repair or replacement of parts due to normal wear and tear.

7. Damage caused by accident, misuse or neglect, or the fitting of other than genuine Truvox parts.
8. Defects in other than genuine Truvox parts, or repairs, modifications or adjustments performed by other than a Truvox service engineer or authorised service agent.
9. Costs and risks of transport relating directly or indirectly to the guarantee of this product.
10. Consumable items such as, brushes, drive discs, filters and vacuum skirts.

- This guarantee does not affect your statutory rights, or your rights against the supplier arising from their sales or purchase contract. Truvox International Limited policy is one of continual product development and we reserve the right to alter specifications without prior notice.

Recommended Spares & Accessories

Part No.	Item
U2-U11-077	Pack of 10 Paper Dust Bags
AEA1933582	Round Brush
AEA1013582	Crevice tool
AEAA034858	Quick-Draw Wand Assembly
AEA1374582	HEPA Filter and Frame
U2-U11-293	Secondary Filter Set (Pack of 5)

Fault diagnosis

The following simple checks may be performed by the operator:

Trouble	Reason	Remedy
Machine not working	Lack of voltage/electrical supply	Check fuse *, supply cord, plug and socket outlet
Loss of suction	Bag fullBlocked hose or wandMotor not working	Replace bagRemove obstructionContact supplier
Motor is not running	Broken switchDefective power cordDefective motor	Contact supplier

* If the fuse blows several times, the machine should be checked by an authorised Service Agent
