X-LED/X5-LED - Flashlight SEAC - Free user manual and instructions

Product type	LED flashlight for underwater diving
Brand	SEAC
Model	X-LED
Use	Underwater diving and outdoor activities
Light source	High-brightness LED
Power supply	Removable batteries (not included)
Dimensions (approx.)	150 mm (length) x 40 mm (diameter)
Weight (approx.)	200 g (batteries included)
Waterproofing	Designed for immersion
Operating temperature	Max 50 °C (avoid prolonged exposure)
Transport	Remove batteries for air transport
Maintenance	Check battery condition before use; avoid excessive moisture
Cleaning	Wipe with a soft cloth after use
Safety	Do not look directly at the beam; avoid any impact
Spare parts	Available on request from authorized dealers
Repairability	Entrust any repair to a SEACSUB approved laboratory
Warranty	Tested and reliable SEACSUB product
Provided document	Instruction manual to read before use

Frequently Asked Questions - X-LED/X5-LED SEAC

What precautions should be taken before using the X-LED lamp?

Before each use, read the instruction manual in full, check the condition of the batteries and make sure the lamp complies with safety standards. Do not use damaged or leaking batteries.

Can the X-LED lamp be used out of the water?

Yes, but it is not recommended to leave it on for too long out of the water, as the LED may overheat. Also, avoid any direct exposure to your eyes.

Is the X-LED lamp really waterproof?

Yes, it is a lamp designed for underwater diving. It is waterproof and resistant to immersion, but it is important to follow the maintenance instructions.

Which batteries should be used for the X-LED lamp?

Use removable batteries in good condition, without deformation or leakage. It is recommended to remove them before air transport.

How to maintain the X-LED lamp?

After each use, wipe it with a soft cloth, check the condition of the batteries and store it in a temperate place, away from moisture and heat.

What to do if the lamp has a problem?

Any repair or maintenance must be carried out by SEACSUB approved laboratories to guarantee safety. Contact your authorized dealer.

Can you look directly at the lamp's light?

No, never point the light at eyes, whether on the surface or underwater. This can cause eye damage.

Is the lamp suitable for scuba diving?

Absolutely, it was developed by SEACSUB for underwater use. It provides reliable lighting and is designed to withstand diving conditions.

Do I need to remove the batteries to travel by plane?

Yes, transport regulations require that the lamp be without batteries for air travel.

What are the maximum operating temperatures?

Avoid exposing the lamp to temperatures above 50 °C, such as direct sunlight or hot environments.

USER MANUAL X-LED/X5-LED SEAC

seac\~

Illuminatori a led • Led torches • Lampes a Led • Linternas Led • Led-Brenners

X-LED/X5-LED

Istruzioni Instructions Instructions Intrucciones Anweisungen

INTRODUZIONE

Fig. 8 - Corretto inserimento del cestello porta batterie

Congratulations for having chosen the quality and reliability of a SEACSUB product. The equipment you have purchased was made with selected and tested materials. Development and constant research allow us to evolve continually. Innovative manufacturing processes, constant controls and testing, as well as testing under real conditions guarantee the reliability that all SEACSUB products are known for.

WARNING

Read this entire manual before using this equipment! This manual must be retained for as long as you own the product!

GENERAL INFORMATION.

• Before using the Led torch you must be familiar with all the safety regulations. Follow the indications in the instruction manual carefully and obey pertinent national and local laws; those concerning the minimum age limit for using this product, proper conduct during its use and transport, the areas where it is allowed, and warning devices, etc. The inappropriate use of underwater equipment may be dangerous and cause damage to objects or personal injury.
• During the assembly and finishing of the Led torch, all possible provisions were made to supply a highly reliable, long-lasting product. Such provisions may become ineffective if the user does not use the Led torch correctly and does not maintain it adequately.
• SEACSUB S.p.A. denies any responsibility for any problem resulting from a lack of observation of the recommendations made in this manual.
• For any other eventuality, please contact your authorized SEACSUB dealer or SEACSUB directly. In order to guarantee maximum safety, every repair or maintenance intervention must be carried out only by authorized SEACSUB workshops.

WARNING

Follow the rules below to avoid problems and prevent risk of damage to objects and personal injury.

On the surface

• Before using the torch, read this entire manual very carefully.
• Current regulations require that batteries must be removed from the torch before being brought on board aircraft.
• We strongly recommend checking the state of the batteries before use.
• Do not insert batteries that present deformations to the casing or loss of liquid.
• Avoid keeping the torch turned on out of the water for extensive periods of time.
• Do not aim the light directly into your eyes or other people's eyes, either on the surface or underwater.
• Keep the torch in a temperate environment, avoiding storage in excessively damp or hot environments.
• Avoid leaving the torch in direct sunlight or in environments with temperatures above 50° C.
• In case of extensive storage and disuse, it is advisable to remove the batteries.
• Do not unscrew the head of the torch if it is still wet.
• Check that the switch is in the blocked position to avoid inadvertent switching on during transport.
• Extensive use out of the water and subsequent dives may cause damage to the device.
• The autonomy declared in the technical specification depends on the quality and state of the batteries used. Please check that the Alkaline batteries (inserted in the correct position) are suitable and of reasonable quality.

Underwater use

• Never, for any reason, point the light into someone's eyes during underwater dives.
• Do not unscrew the head of the torch while diving.
• In case of accidental loss, remember that the torch has negative buoyancy and therefore, if dropped, will fall downwards.
• While diving, check that there is not a constant stream of air bubbles escaping from the torch. If there are such bubbles, turn the torch off and when safely possible, return to the surface.
• Consult a diving instructor to familiarize yourself with international light signals for communications.
• Do not use the torch as a means of sound signaling. Repeated blows may permanently damage internal components.
• Check that the torch is firmly attached to the diver with the fastener provided.
• The fastener provided is fixed to a loop connected to the rear of the torch. Always check the connection and the state of the fastener in order to avoid loss of equipment.

INTRODUCTION

AND TECHNICAL SPECIFICATIONS.

The X-LED/X5-LED torch is a result of research conducted in close collaboration with numerous professional diving operators. The innovative characteristics guarantee a reliability that remains unchanged over time. At the same time, the mechanical and functional aspects allow an extremely simple maintenance regime.

This new torch joins high, long-lasting performance, light quality, and reliability to meet the needs of divers and diving centers.

The strongpoint of the LED system lies in high-quality luminosity with an autonomy that, in most cases, is four times that of the average autonomy for torches with halogen bulbs. The efficiency and the excellent quality of LED guarantee a lifespan of 50,000 hours, eliminating the need for a periodic replacement of the torch itself.

The characteristic white light allows a realistic perception of colors while diving, adding further significant motivation to the dive itself.

The manageability and the practicality, due to the reduced size and anatomical form, allow the diver to keep the torch in various points of the jacket (including pockets), without being bulky, while the elastic band provided guarantees the perfect connection between the diver and the torch.

Another practical advantage can be found in the use of 1,5 V Alkaline batteries that are readily available. It is possible to replace the batteries anywhere without having to find non-standard formats or electrical power sources for recharging.

All the components are of high quality and specially designed for intense diving activity. This is the reason why we recommend the X-LED/X5-LED torch to diving centers where a single recharging with new batteries will allow multiple dives to be carried out.

The switch-on knob allows the use of the X-LED/X5-LED Torch even with thick gloves where a sure grip is required. The switch on the knob offers safe transport without the risk of inadvertently switching on the torch.

A thermal protection system does not allow the LED to be switched on if the torch has been exposed to temperatures above 50° C. As soon as the temperature is lowered, the system will begin working normally.

WARNING

The X5LED version has been set up with an intelligent worn battery warning system: only two of the five LEDs will stay on at maximum power to warn the user that the batteries are low. This means that even the longest dive can be completed safely, knowing that the batteries will require replacing.

TECHNICAL SPECIFICATION	X-LED	X5-LED
Definition	Torch with 12 V LED	Torch with 12 V LED
Torch Casing Material	Anodized, anti-corrosive, aluminum alloy	Anodized, anti-corrosive, aluminum alloy
Batteries	8 penlight batteries AA/LR6, Alkaline 1.5 V	8 penlight batteries AA/LR6, Alkaline 1.5 V
Light source	3 Luxeon LED: 3W, 3.8 V each, with optical diffusion lens	5 Luxeon LED: 3W, 3.8 V each, with optical diffusion lens
Angle of beam of light	12°	12°
Color temperature	5000° K	5000° K
Light efficiency	Efficiency comparable to a torch with a 35-40 watt halogen bulb	Efficiency comparable to a torch with a 40-50 watt halogen bulb
Autonomy	Up to 16 hours of autonomy divided as follows:3 h 100% - 3 h 75% - 3 h 50%with gradual reduction of power until switching off	More than 5 hours of independent use as follows:4 hours at 100% (the remainder with only 2 LEDs on to warn the user of the low charge remaining).
Maximum depth	200 m	200 m
Diameter	65 mm	79 mm
Length	220 mm	220 mm
Weight in air	850 gr (batteries included)	900 gr (batteries included)
Weight in water	370 gr (batteries included)	395 gr (batteries included)
Switching system	Rotation with relay-powered electromagnetic system	Rotation with relay-powered electromagnetic system
Transportation block	Closure system with blocking button	Closure system with blocking button
Front glass	* Tempered optical glass* Thickness 6 mm - ∅ 58 mm* Sealed with 3 Viton O-ring	* Tempered optical glass* Thickness 6 mm - ∅ 71 mm* Sealed with 3 Viton O-ring
O-Ring	5 O-ring in Viton, high-strength, long-lasting	5 O-ring in Viton, high-strength, long-lasting
Carrying straps	Included	Included
Carrying handles	Anodized, anti-corrosive, aluminum alloy (optional) Code 1581	Anodized, anti-corrosive, aluminum alloy (optional) Code 1581

* The duration of the batteries is indicative - it is advisable to use high-quality, alkaline batteries

USE WITH RECHARGEABLE BATTERIES

It is possible to use readily available, 1.2V rechargeable batteries with their own battery charger. In this case, follow the recharging instructions carefully. Using rechargeable batteries does not guarantee the autonomy and light power declared in the technical specification.

BATTERY REPLACEMENT

Battery replacement for the X-LED/X5-LED Torch requires a simple procedure of disassembly and reassembly.

Here are step-by-step instructions:

Holding the head of the torch in your left hand and the body in your right hand, unscrew the torch casing counter-clockwise (drawing 1 - 2).

Drawing 1 - Opening of the torch by unscrewing counter-clockwise

Drawing 2 - Unscrew

Once unscrewed, from the head (drawing 3), remove the battery casing ( drawing 4) and begin to remove the batteries to be replace ( drawing 5).

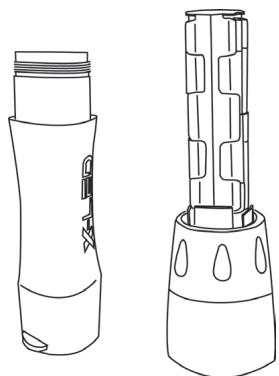

Drawing 3 - Diagram of open torch

Drawing 4 - Removal of the battery casing

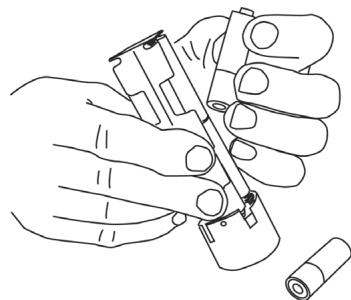

Drawing 5 - Replacement of dead batteries

Insert the new batteries following the indications for polarity on the casing (drawing 6).

Drawing 6 - Diagram of polarity markings on battery casing

Once the insertion is complete (drawing 7 ), insert the head of the battery casing into the space in the head of the torch. (drawings 8 - 9).

Drawing 7 - Correct insertion of new batteries

Drawing 8 - Correct insertion of the battery casing

Drawing 9 - Insertion of the battery casing in the reflector-glass group (torch head)

Replace the switch-on knob (drawing 10) and turn it to check correct functioning ( drawing 11).

Drawing 10 - Correct insertion of the switch-on knob

Drawing 11 - Checking the functioning of the switch-on knob

Drawing 12 - Insertion of the battery casing into the torch casing.

Then carefully reposition the torch casing to be screwed together (drawing 12). Carefully screw the casing into place clockwise until firmly locked ( drawing 13).

Drawing 13 - Closure of the torch by screwing clockwise

MAINTENANCE AND TRANSPORT

• At the end of every dive (sea, lake, pool), always rinse with fresh water and dry.
• It is advisable to have the product inspected annually by an authorized SEAC SUB center.
• In case of prolonged disuse, we advise replacing the old batteries. If the torch will most likely not be used for a period of more than 30 days, it is advisable to remove the batteries from the battery casing.
• Never insert batteries that present deformations to the casing or loss of liquid.
• If water should enter the torch, it is advisable to open it and rinse the inside immediately with fresh water; taking care to first remove the batteries from the battery casing. Dry immediately with a cloth or with a hairdryer on a warm setting, paying particular attention to parts with electrical contacts.

Remove eventual rust from metal parts and proceed with the insertion of new batteries to check proper functioning.

• If a large quantity of water entered the torch or if it remained inside for a long time, it is advisable to open the torch and immediately rinse the inside with fresh water. In this case we suggest you immediately consult a competent repair center or the nearest SEACSUB store.
• Always transport the torch inside a bag that protects it from eventual impact.
• During transport or disuse, the ring switch must be left in the blocking position. In order to block the switch knob, you must activate the blocking button on the knob itself (drawing 14).

Drawing 14 - Insertion of the switch-on locking button in the ON position.

CERTIFICATE OF WARRANTY

SEACSUB S.p.A. guarantees the correct functioning of the product to which this document is attached.

This guarantee has a duration of two (2) years in accordance with current European regulations.

The warranty herein can be enacted according to the conditions and limits expressly indicated below:

1. The warranty will have a duration of 2 (two) years, beginning from the moment the product is acquired from an authorized SEACSUB dealer and does not require any preventive formality or subsequent validation.
2. This warranty is valid only for the first purchaser of the product from an authorized SEACSUB dealer.

Being a strictly nominative warranty, it is not transferable to third parties unless previously and explicitly authorized by SEACSUB.

1. This warranty covers all and any functional defects caused by:

2. Intrinsic defects caused by the use of materials believed to be unsuitable.

3. Evident errors in the design, manufacturing, or assembling of the product or it components.

4. Incorrect or inadequate instructions and advice concerning its use.

5. This warranty will terminate automatically, and effective immediately, upon the repair, modification, transformation, adaptation, damaging or general tampering carried out on the finished product or any of its parts that has not been

previously authorized by SEACSUB or, in any case, carried out by unauthorized personnel.

SEACSUB S.p.A. denies any responsibility for any injury caused to the user by inappropriate use of this equipment.

SEACSUB S.p.A. also denies any responsibility for direct or indirect damages of any nature caused to persons or things due to an incorrect use of the Torch.

1. This warranty guarantees the right to intervention and repair at no cost and as soon as possible, or the total substitution of the product (as incontestably decided by SEACSUB), or its parts at no cost, when and where SEACSUB acknowledges functional defects strictly regarding those of point 3 above.
2. The guarantee does not include normal parts subject to consumption or wear, like: o-ring, batteries, front glass (scratches or impact damage).

3. This guarantee does not cover damages due to:

4. impact

5. use in chlorinated or polluted waters or ultrasound chamber washing

6. extended exposure to heat sources above 50°C

7. This warranty may also be validated by shipment of the product believed to be defective to SEACSUB. The intermediary authorized to carry out the shipment must be the SEACSUB dealer where the product was purchased. If this should be impossible, any other SEACSUB dealer, subject to authorization, may be authorized to ship the defective product. In order for the warranty to be valid, the product must be accompanied by a copy of the store receipt, invoice, or other similar proof of purchase documentation where the name of the authorized SEACSUB dealer and the date of purchase of the product are noted.

If SEACSUB receives a product that:

• is not accompanied by a proof of purchase document with the abovementioned characteristics
• has been subject to conditions that determine the extinction of the warranty according to point 4, 6 and 7 above
• Presents defects due to causes that are external or other than those explicitly indicated in point 3 above
• has been used inappropriately and/or for purposes other than what the product was intentionally designed absolutely no intervention shall be made on the product and the sender or the authorized dealer will be notified immediately.

If ever the sender intends to have the intervention carried out, he/she will transmit to SEACSUB, within the following fifteen days, a request stating so in which he/she shall explicitly agree to sustain all costs relative to the intervention itself, labour, necessary replacement parts, shipping costs.

Otherwise, SEACSUB will provide for the return of the product at the expense of the sender.

The spare parts list is available in the downloads section of www.seacsub.com

INTRODUCTION.

Dessin 3 - Illustration lampe ouverte

Dessin 4 - Extraction du compartiment piles

ILLUMINATORI A LED X-LED/X5-LED - LED TORCHES X-LED/X5-LED

1. Maniglia X-LED/X5-LED*
2. Corpo Torcia X-LED/X5-LED completo
3. Porta batterie X_LED completo
4. Ghiera accensione X-LED/X5-LED completo
5. Gruppo illuminante X-LED completo
6. Porta lampada da polso X-LED/X5-LED

Complete X-LED/X5-LED Handle*

Complete X-LED/X5-LED body

Complete X-LED/X5-LED battery casing

Complete X-LED/X5-LED switch-on knob

Complete X-LED illuminant system

X-LED/X5-LED torch strap

1581

S157516

S157513

S157514

S157515

S2051
