USER MANUAL ORIGAMI Tubes Radiatori

TUBES

TAB. 1

Origami 120 cm → H = 113 cm

Origami 160 cm → H = 153 cm

Manuale d'uso

cod. ORGMF#...
FREESTANDING

cod. ORGMT#...
TOTEM

cod. ORGMD#...

cod. ORGMS#...

Tubes radiatori srl

Via Boscalto, 32

31023 Resana (TV) Italy

Tel. [phone]

Fax [phone]

[e-mail]

www.tubesradiatori.com

P.I. IT01964080269

FSC

www.fsc.org

MIX

Paper from

responsible sources

FSC® C008309

Gentile Cliente,

Thank you for choosing the ORIGAMI Tubes radiator, developed in accordance with our quality charter, with which we trust you will be completely satisfied.

Introduction

To make best use of this appliance, we advise you to read the following instructions carefully and keep them with care. Some of the information provided may be useful should problems arise.

POSITIONING THE APPLIANCE

The ORIGAMI radiator must be positioned at a distance of at least 40 cm from any furniture, curtains, standard lamps, etc. to avoid their deterioration. The appliance must also NOT be placed immediately below a power socket. No problem for walls, stairs and other fixed structures of the home.

RADIATOR TECHNICAL SPECIFICATIONS AND CONNECTION

Technical specifications

Your ORIGAMI radiator has passed the acceptance test and all the specifications related to electrical resistance(s) can be found in the specific label located in the lower part of the appliance at the outlet of the power cord. It is therefore recommended to examine this before connecting to the power supply.

Connecting the radiator

Connection to the electricity mains must be carried out in compliance with the following:

• the voltage of the electricity mains must correspond to the voltage shown on the label located in the lower part of the appliance at the outlet of the power cord
• the power cord must not be damaged; if it is, it must only be replaced by the manufacturer or by its service centre, or by a technician with similar qualification in order to prevent any risk.

USE IN BATHROOMS

The appliance is in class II and is protected against water splashes; it can therefore be installed in bathrooms, provided that the installation complies with current legislation and rules of good practice in the country in which this takes place.

IMPORTANT WARNINGS

Foreword

The ORIGAMI radiator must be positioned at a distance of at least 40 cm from any furniture, curtains, standard lamps, etc. to avoid their deterioration. The appliance must also NOT be placed immediately below a power socket.

The appliance may be used by children, provided they are NOT under 8 years of age, and by persons with reduced physical, sensory or mental abilities or without experience or the necessary knowledge, provided that they are under supervision or have received instructions concerning the safe use of the appliance and an understanding of the inherent dangers.

Cleaning and maintenance to be carried out by the user must not be done by children without supervision. Children must be supervised to ensure that they do not play with the appliance. Children under 3 years of age must be kept at a distance if not continuously supervised.

Children between 3 and 8 years of age can switch the appliance on/off only if this is placed or installed in its normal operating position and if they are supervised or instructed regarding the safe use of the appliance and they understand the inherent dangers. Children between 3 and 8 years of age must NOT insert the plug, adjust or clean the appliance or perform user maintenance.

WARNING - Some parts of this product may become VERY HOT and cause burns.

Particular attention must be paid where children and/or vulnerable people are present.

WARNING- This heating appliance is NOT equipped with a room temperature control device. DO NOT use it in small rooms when these are occupied by people unable to leave the room alone, unless they are under constant supervision.

OPERATING INSTRUCTIONS

Putting into service

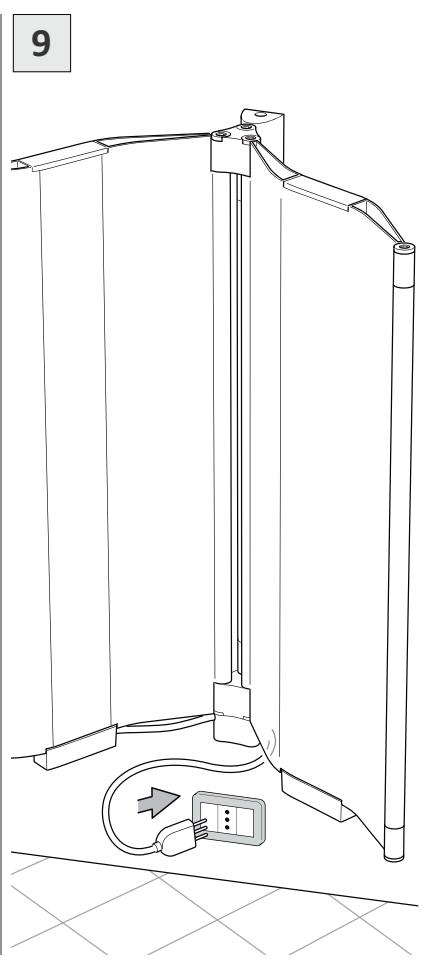

To use ORIGAMI, it is first necessary to connect the power cord to the electrical socket using the plug supplied.

On doing this, the device emits two beeps lasting 0.5 seconds and the LEDs at the base of the product will emit a WHITE LIGHT. ORIGAMI is therefore in “Stand-by” mode, i.e. it is powered and waiting for the user to choose between the following 4 heating modes.

The following TOUCH SCREEN commands are used to set the desired heating mode.

Icon

accensione stand-by

Icon

mode funzioni

To activate one of the two commands, simply touch the icon corresponding to the desired command with your finger. DO NOT PRESS. When one of the switch-on modes is activated, the device will emit a sound lasting approximately one second.

COMFORT mode

Comfort mode is activated using the following procedure:

• First touch on the 🎨 accensione stand-by icon; this puts the radiator into operation at MINIMUM power and the LED at the base of the product emits a BLUE LIGHT.
• Second touch on the mode funzioni icon; this puts the radiator into operation at MEDIUM power and the LED at the base of the product emits a YELLOW LIGHT.
• Third touch on the mode funzioni icon; this puts the radiator into operation at MAXIMUM power and the LED at the base of the product emits a RED LIGHT.

Continuing “TOUCHING” the mode funzioni icon, it automatically switches from one power to the other in the order MINIMUM/Blue- MEDIUM/Yellow- MAXIMUM/Red.

To put the appliance into "Stand-by ¹ ", simply touch the

accensione stand-by or mode funzioni icon and the LED will in this case emit a WHITE LIGHT.

To reactivate COMFORT mode, simply “touch” the ⏻ accensione stand-by icon again and the product will switch on again in the same position prior to being put into “Stand-by”.

¹ The product remains on but does not emit heat.

2 hr "BOOST" mode

“Boost” mode automatically switches on the product at MAXIMUM power for 2 hours after activation. After this period the device will return to “Stand-by ¹ ” mode.

"Boost" mode is activated using the following procedure:

- Keep “touching” the mode funzioni icon for between 3 and 6 seconds, until you hear a SINGLE “BEEP” from the device, confirming proper programming.

During operation in “Boost” mode, the status LED of the device will emit a flashing RED LIGHT.

To exit this mode and put the product into "Stand-by", simply touch the accensione stand-by or mode funzioni icon. In this case, the LED will emit a WHITE LIGHT.

"TIMER_12" switch-on mode

The “Timer_12” mode lets you immediately activate the “Boost” mode for two hours, after which the device will go into “Stand-by ¹ ” mode for the following 10 hours ² and then activate the “Boost” function again.

The "Timer_12" mode is activated using the following procedure:

- Touch the 🎨 accensione stand-by icon once only and then keep “touching” the ⚙ mode funzioni icon for more than 9 seconds, until you hear three consecutive “BEEPS” from the device.

The cyclical nature of the “Timer_12” mode remains active for every day until it is manually deactivated by the user by simply touching the 🎨 accensione stand-by or 🌐 mode funzioni icon.

In this configuration, the status LED will emit a flashing RED LIGHT when “Boost” is in operation and a PURPLE LIGHT during the “Stand-by” period.

² During the first cycle, the “Stand-by” mode has a duration of 9 hours.

"TIMER_24" switch-on mode

The “Timer_24” mode lets you immediately activate the “Boost” mode for two hours, after which the device will go into “Stand-by ¹ ” mode for the following 22 hours ³ and then activate the “Boost” function again.

The "Timer_24" mode is activated using the following procedure:

- Touch the accensione stand-by icon once only and then keep "touching" the icon for between 6 and 9 seconds, until y mode funzioni TWO consecutive "BEEPS" from the device.

The cyclical nature of the "Timer_24" mode remains active for every day until it is manually deactivated by the user by simply touching the accensione stand-by or mode funzioni icon.

In this configuration, the status LED will emit a flashing RED LIGHT when “Boost” is in operation and a PURPLE LIGHT during the “Stand-by” period.

³ During the first cycle, the “Stand-by” mode has a duration of 21 hours.

Practical example of setting "TIMER_24"

I go into the bathroom to take a shower at 8.00 in the morning and the bathroom is cold; I activate "TIMER_24", Origami starts heating at maximum power for the next two hours and then goes into "Stand-by", on the first day, for 21 hours (so until 7.00 am the next day), and then for 22 hours on all other days, until deactivation of the mode set. This means that the next day I can go to take a shower again at 8.00 am but finding the bathroom already warm since Origami, for all days subsequent to activation of the "Timer_24" mode, will switch on from 7.00 am to 9.00 am.

POSITIONING OF TOUCH CONTROLS AND LED LIGHTS

MAINTENANCE ADVICE

Before carrying out any maintenance, switch off the appliance. The choice of the best materials and the quality of the double surface treatment protect the Tubes radiator against corrosion and impact. Simple maintenance ensures long life of the appliance.

The following suggestions are recommended:

• Clean the outside walls of the radiator, preferably using a cloth impregnated with alcohol.
  • DO NOT use abrasive or corrosive products.

Checks to be carried out in case of failure or malfunctions

If the appliance does not work, you can perform the following checks, making sure that:

• The radiator is correctly connected to the mains.
• The mains is powered.

Technical Service

In case of persistent malfunctioning, repeated faults or the need for spare parts, please contact the reseller from which you purchased the product.

To facilitate a rapid solution of the problem, make sure you have taken note of the following information:

• data shown on the identification label placed on the appliance
• Tubes commercial representative indicated on the purchase invoice.

WARRANTY

The electrical product complies with Directive 2014/30/EU (EMC electromagnetic compatibility); Directive 2014/35/EU (Low voltage Directive-LVD); RoHs Directive 2014/65/EC; Directive 2014/53/EU RED (Radio Equipment Directive)

Cases of invalidity of the warranty:

The Tubes warranty cannot be applied in the following conditions of installation or use:

- Installation or maintenance that does not comply with the current legislation of the country, the rules of good practice and the operating instructions of the manufacturer.

Disposal

This appliance is not ordinary domestic waste. It must be disposed of at the appropriate recycling centres. In case of replacement, contact the retailer from which you purchased the product. This end-of-life management of a product helps us preserve our environment and limit the use of natural resources.

The manufacturer reserves the right to modify the product for technical or construction improvements without notice.

SPECIFIC INSTRUCTIONS FOR FRANCE

Wall-mounted room heating appliances must be permanently connected to a fixed mains electricity.

Versione a parete Doppio Modulo- Double Module wall-mounted version- Wandversion mit Doppelmodul- Version murale Double Module- Versión de pared Módulo Doble

TAB. 1

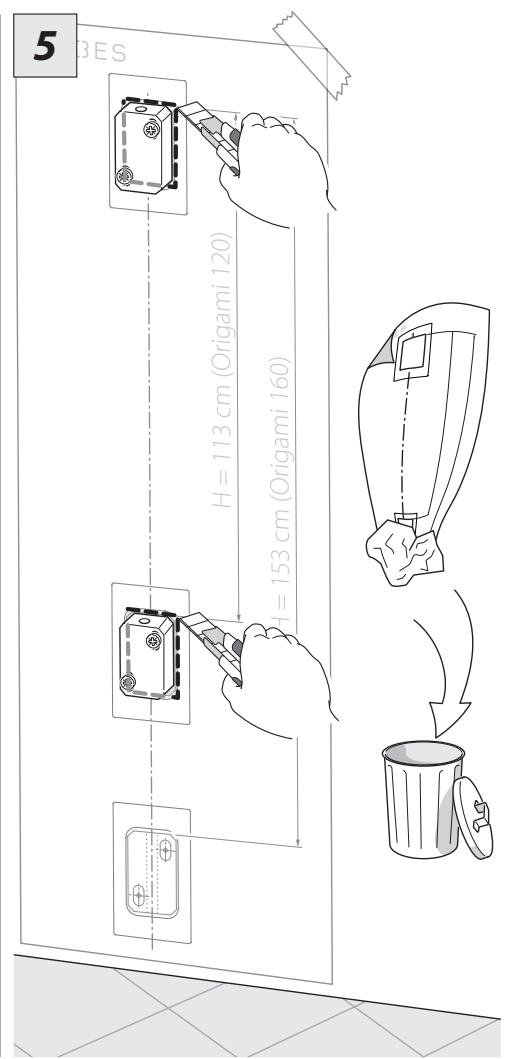

Origami 120 cm → H = 113 cm

Origami 160 cm → H = 153 cm
