USER MANUAL Step by Step Tubes Radiatori

A

B

A

1

2

3

B

8

9

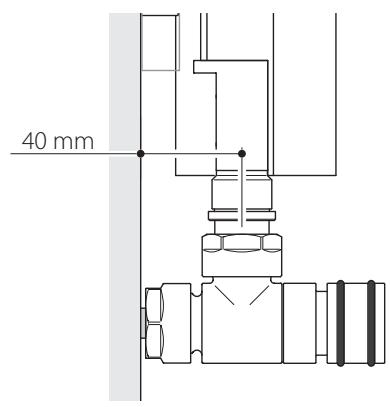

10

11

12

13

14

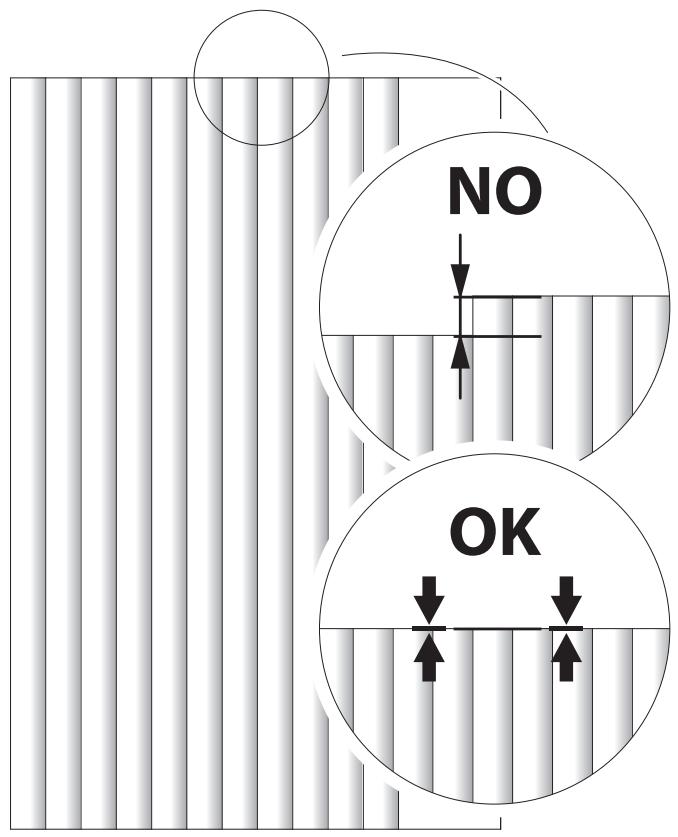

NO

OK

18

19

20

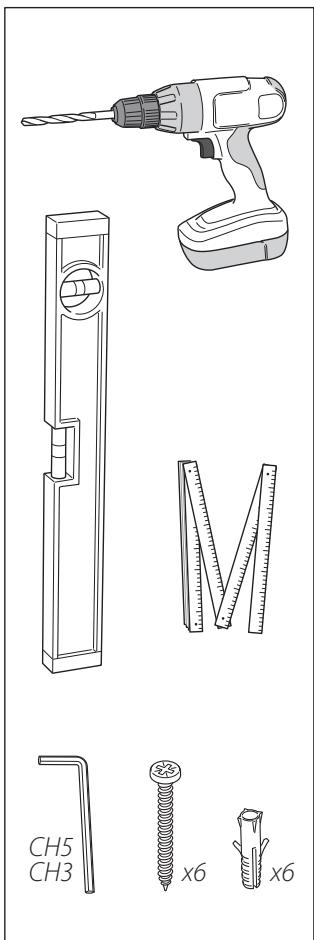

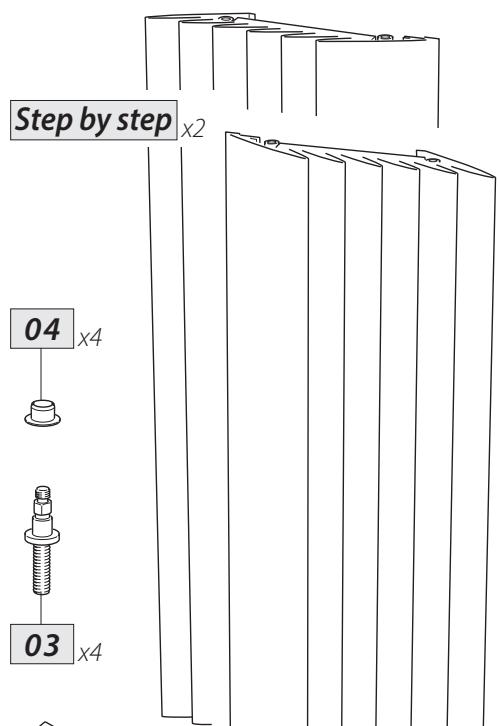

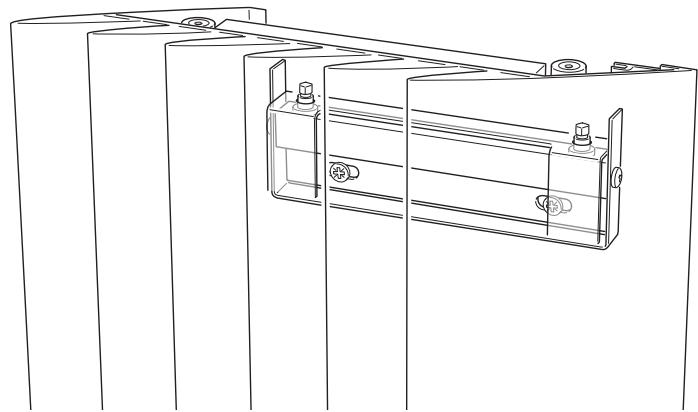

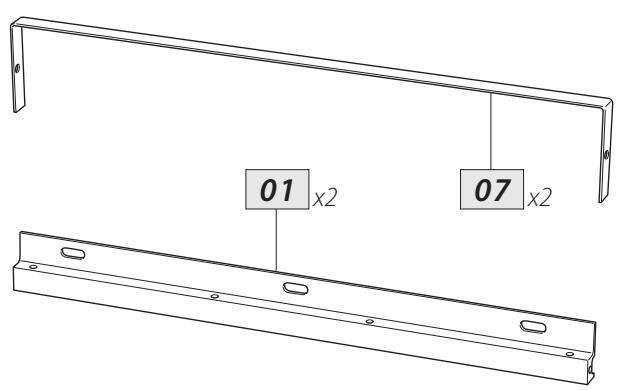

TUBES

1

12

13

14

15

16

NO

OK

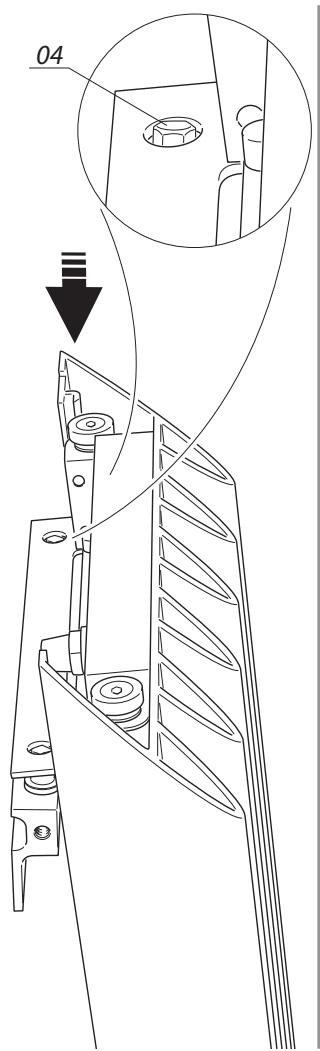

17

18

20

21

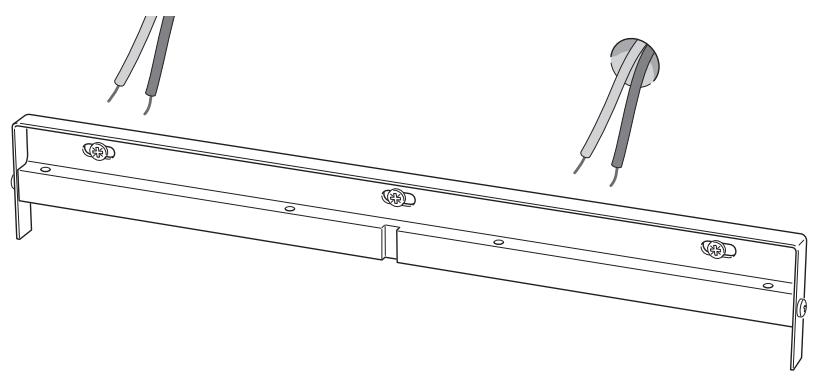

22

23

NO

OK

24

27

Step by step
H 120 cm
H 140 cm

Step by step
H 160 cm
H 180 cm
H 200 cm

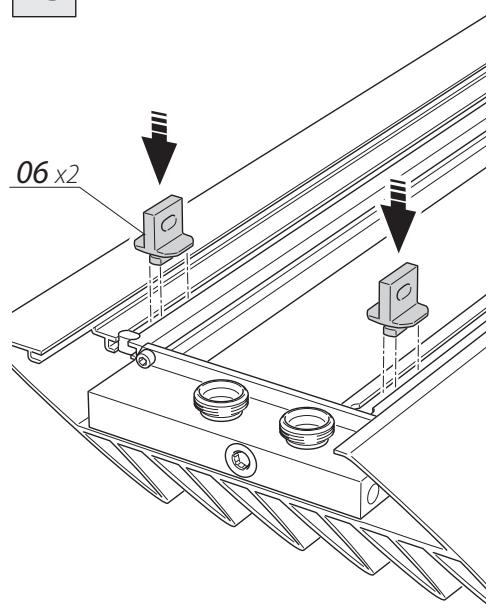

TUBES

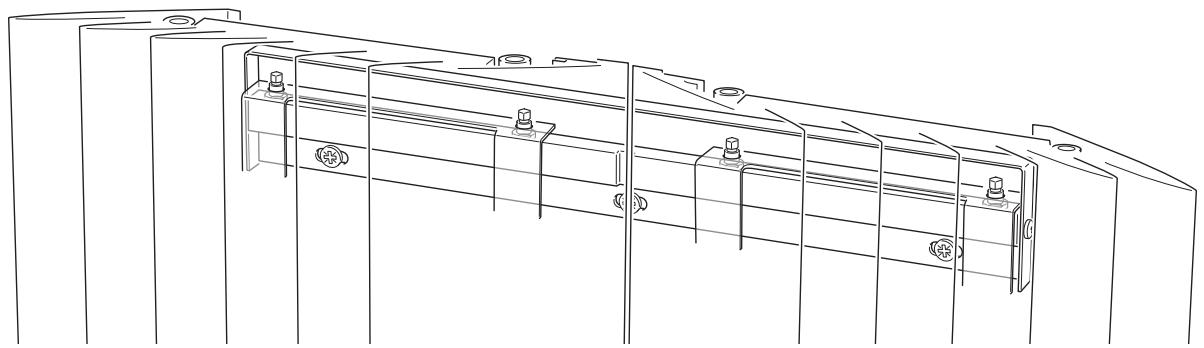

1

3

12

13

14

15

16

NO

OK

17

18

20

21

22

23

NO

OK

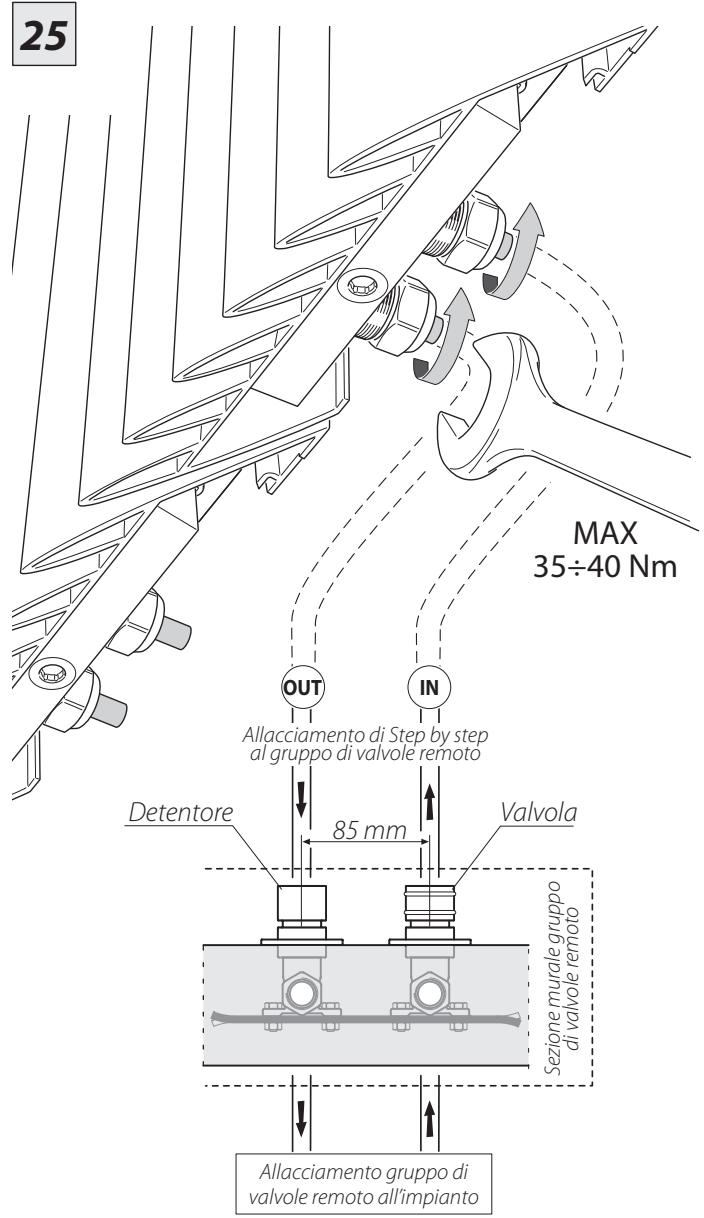

24

25

27

Step by step
H 120 cm
H 140 cm

Step by step
H 160 cm
H 180 cm
H 200 cm

TUBES

3

Step by step 120 cm → H = 100,0 cm
Step by step 140 cm → H = 120,0 cm
Step by step 160 cm → H = 140,0 cm
Step by step 180 cm → H = 160,0 cm
Step by step 200 cm → H = 180,0 cm

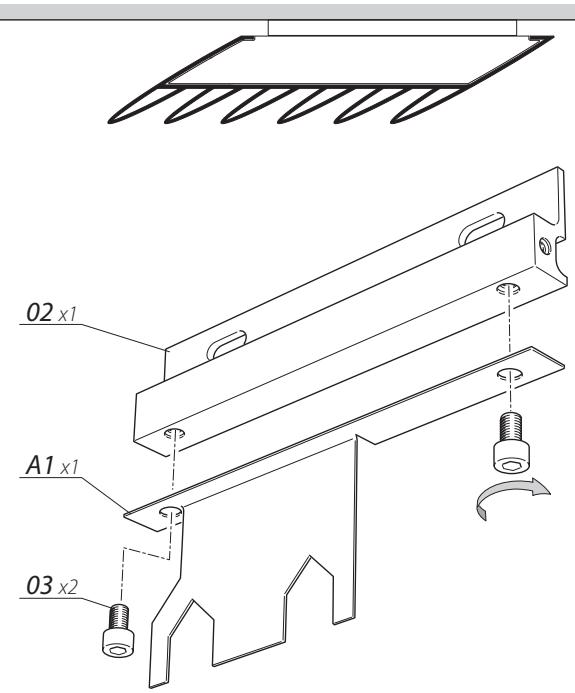

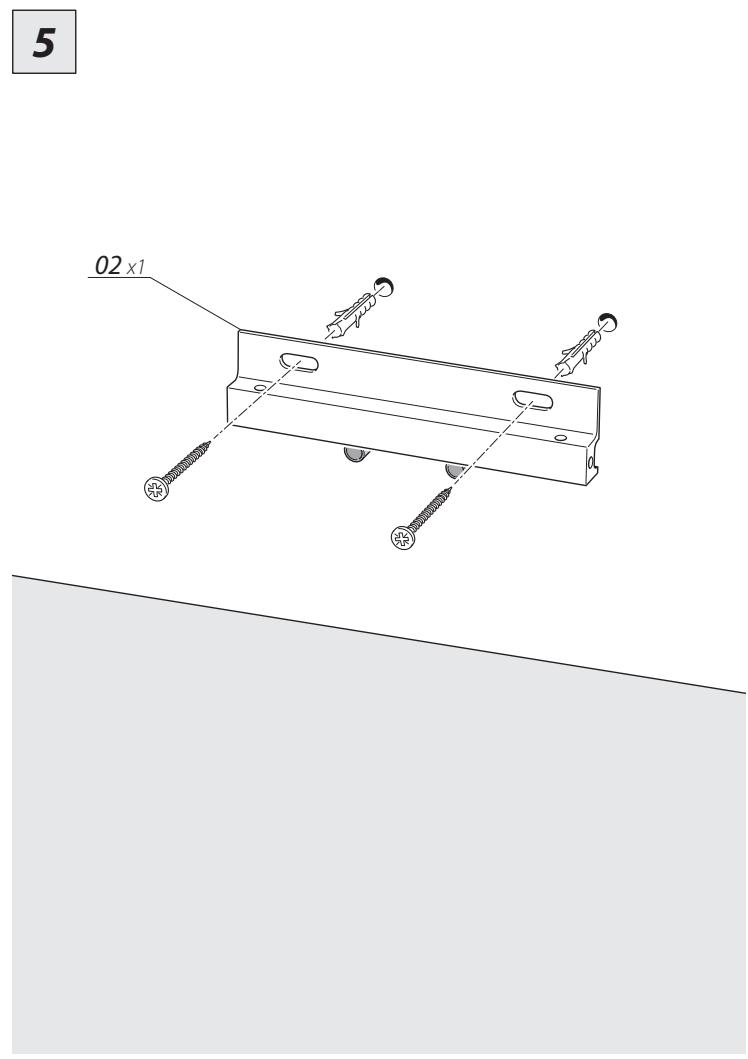

5

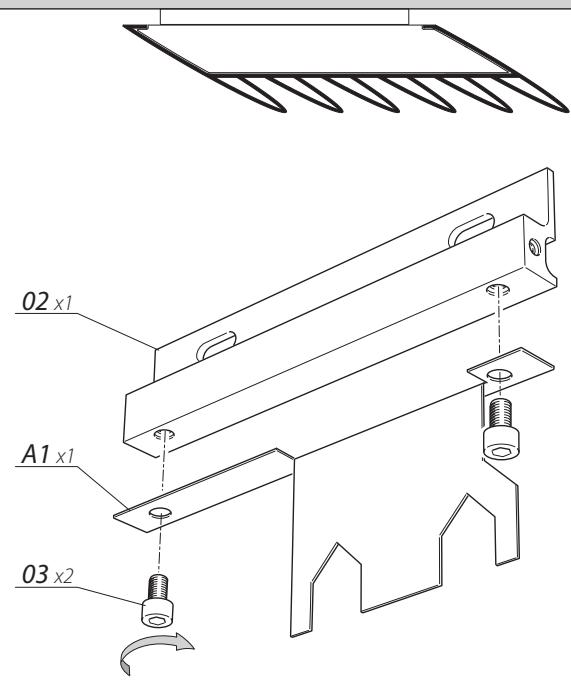

6

9

TUBES

1

10

11

18

19

20

21

22

23

Step by step
H 120 cm
H 140 cm

Step by step
H 160 cm
H 180 cm
H 200 cm

TUBES

1

10

11

18

19

20

21

23

Step by step
H 120 cm
H 140 cm

Step by step
H 160 cm
H 180 cm
H 200 cm

Manuale d'uso / User Guide

STEP BY STEP ELETTRICO

Step by Step Electric Radiator

IT EN

Tubes Radiatori srl

Via Boscalto 32

31023 Resana (TV) Italy

Tel. [phone]

Fax [phone]

[e-mail]

www.tubesradiatori.com

P.I. 01964080269

Data: 04/11/2014

Cara cliente, caro cliente

Thank you for choosing this radiator Tubes, established in line with our quality charter, and we hope you give her complete satisfaction.

ASSEMBLY INSTRUCTIONS

To best use this device, we recommend you read these instructions for use and keep them with care, some of the notes given might find helpful in case of problems.

When installing an electric radiator SQUARE must be taken into account the installation instructions that are given supplied with the product.

To operate the product to connect the resistor cable to the system as planned.

IMPORTANT:

1. The unit must never be installed with the wire of resistance at the top

2. It is recommended that the heating unit is installed in such a way that the switch or other control devices can not be touched by a person who is in the bath or in the shower.

3. Our equipment must be fitted with a means that ensures all-pole power disconnection.

Such means must be selected from the following:

- Equip the power supply cable with a plug complying with the rules of the installation country.

• Provided in the supply network in accordance with the rules of installation of an isolating switch with an opening distance of the contacts that allows complete disconnection in the conditions of overvoltage category III

ARRANGEMENT AND CONNECTING THE THE RADIATOR

Arrangement:

To best use the equipment and to provide optimum comfort, we recommend:

• if possible, to install it near the openings (doors, windows, etc.).
• position objects (furniture, armchairs) at least 50 cm from the front of the unit to allow air circulation.
• the radiator must not be located below a power socket
• The minimum distance to be compared to the walls is 15 cm

Connection:

The technical features of the radiator Tubes are indicated on the label marking placed in the lower part of the appliance, on the side of the control thermostat / resistance. It is advisable to make a note before asking the intervention of Customer Service.

The connection to the mains must be made respecting:

• voltage indicated on the label on the product
• conventional colors

If the power cord is damaged, it must be replaced by the manufacturer or its Technical Assistance Service or a similarly qualified person in order to avoid a hazard.

SPECIAL RULES FOR INSTALLATION IN THE BATHROOMS

The device is class II, it is protected against water splashes and can be installed in bathrooms, provided that the installation complies with current regulations and the rules of the art of the country in which it is conducted.

The device can be used by children aged less than 8 years old and persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided under the supervision or after their having received instructions to 'safe use of and understanding of the dangers inherent in it.

Cleaning and maintenance meant to be performed by the user must not be performed by unsupervised children.

Children should be supervised to ensure that they do not play with the appliance. Children under 3 years of age should be kept away unless constantly supervised. Children between the ages of 3 and 8 years old should only turn on / off the device as long as it was placed or installed in its normal operating position, and that they receive supervision or instruction concerning use of the appliance safely and it understand the hazard. Children between the ages of 3 and 8 years should not plug it in, adjust or clean the appliance nor run by the user maintenance.

CAUTION - Some parts of this product can become very hot and cause burns. Caution should be exercised when there are children and vulnerable people.

CAUTION: This heating device is not equipped with an environmental temperature control device. Do not use in small rooms when they are occupied by people unable to leave the room alone, unless they are not under constant surveillance

CARE INSTRUCTIONS

Before performing maintenance, turn the appliance off. The choice of the best materials and the quality of the double treatment of the surface protect the radiators Tubes from corrosion and impacts. To ensure the durability of the device thanks to a simple maintenance, it is recommended that these tips:

• To clean the outer parts of the radiator, do not use abrasive or corrosive products, preferably use a cloth soaked in alcohol.

Checks to be made in case of failure or anomaly

In case of failure of the device, you can make yourself the following checks, making sure that:

• The radiator is properly connection and supply.

Disposing

This device is not an ordinary household waste. At the time of disposal it must be deposited in special collection centers for recycling. This management of the end of a product's life allows us to preserve our environment and to limit the use of natural resources.

N.B. THE MANUFACTURER RESERVES THE RIGHT TO MODIFY THE PRODUCT WITHOUT NOTICE FOR TECHNICAL IMPROVEMENTS OR CONSTRUCTION

Customer service

In case of non-persistent operation, repeating faults (leaks electric disconnection, etc.) Or the need for replacement parts, contact the installer or dealer.

To enable the correct understanding and a quick solution to the problem, ensure that you have taken note:

• The items indicated on the product label markings.
• Business reference indicated on the purchase invoice dated.

WARRANTY

IThe electric radiator complies with Directive 2014/30 / EU (EMC Electromagnetic Compatibility); Directive 2014/35 / EU (LVD Low Voltage); RoHs Directive 20144/65 / EC; Directive 2014/53 / EU RED (Radio Equipment Directive).

Cases of cancellation of the guarantee:

The Tubes guarantee can not be applied in the following conditions of installation or use:

Implementation, installation or maintenance does not comply with the relevant regulations of the country, in the following text and use the manufacturer's instructions.

SPECIFIC INSTRUCTIONS FOR FRANCE

The fixed heating equipment for premises must be appliances intended to be permanently connected to a fixed network.

To ensure effective operation of the device, you should not completely cover it because due to the increase in temperature and the internal circuit interrupting device, the operation of the device can be stopped.
