USER MANUAL HYPERPEN 12000U AIPTEK

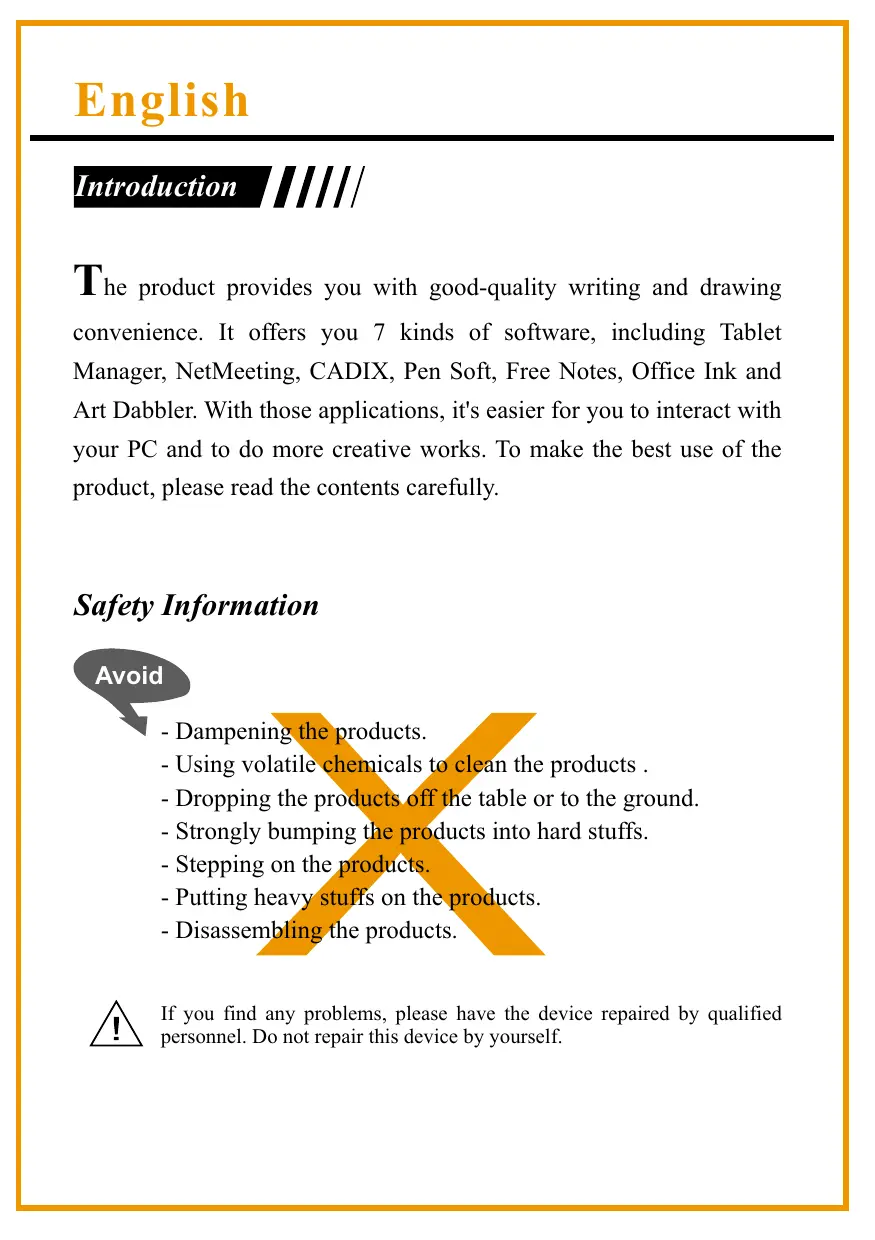

The product provides you with good-quality writing and drawing convenience. It offers you 7 kinds of software, including Tablet Manager, NetMeeting, CADIX, Pen Soft, Free Notes, Office Ink and Art Dabbler. With those applications, it's easier for you to interact with your PC and to do more creative works. To make the best use of the product, please read the contents carefully. Safety Information Avoid - Dampening the products. - Using volatile chemicals to clean the products . - Dropping the products off the table or to the ground. - Strongly bumping the products into hard stuffs. - Stepping on the products. - Putting heavy stuffs on the products. - Disassembling the products. If you find any problems, please have the device repaired by qualified personnel. Do not repair this device by yourself. English

Chapter 1: Installation

Hardware Step 1 Connect the Product with Your PC Plug the USB cable into the USB port of your PC. Step 2 Check the Power Check the small square on the tablet. If the small square shows blinking light, your product is successfully powered. Step 3 Insert the Battery Unwind your pen and insert one AAA battery into the compartment, positioning the + and ends as shown below. Then wind your pen.

• The battery life span is around one year Software Step 1 Placing the CD driver Place the installation CD in your CD drive. Step 2 Showing Tablet The screen shows the Tablet.

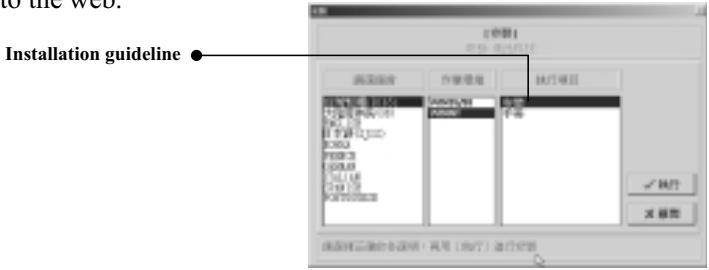

If the screen doesn't show the Tablet, click Start and choose Run. Type "d" or where your CD drive is located and click OK. English Step 3 Choosing the Application You Want There are7 applications on the Tablet. They are Tablet Driver, Cardix Signature, Net Meeting 3.01, Free Notes, Office Ink and Pen Soft. To use Art Dabbler, please insert the other Art Dabbler CD driver. To choose the application, click the icon beside each application. Please follow the directions on the screen to install. Note The guidelines of Cardix Signature, Net Meeting 3.01, Pen Soft, Free Notes, Office Ink and Art Dabbler are not included in this user guide. To see more information of the applications, go to the Tablet. As you click the AP icon, the next screen shows the installation guideline icon on the right. This would be ineffective if your PC is unable to connect to the web. Installation guideline Tablet Application Tablet Driver Cardix Signature Net Meeting 3.01 Pen Soft Use Adjusts functions of the tablet and the pen in the Tablet. Supports handwriting signature recognition when opening screen saver. Supports on-line handwriting talk. Supports handwriting recognition & annotation functions. Art Dabbler (in the other CD) Supports a variety of drawing functions. Free Notes Shows your real handwriting and drawing in Email. Office Ink Special handwriting inking in any software. English

Chapter 2: Getting Started

Step 1 Click on the tablet icon at the bottom right of the tool bar (The tablet icon appears when the cable is plugged in .) Step 2 You enter the Tablet screen. To select functions, click on buttons on the tool bar. Using the Pen Side buttons/ Click on Buttons to customize side buttons. Upper button Lower button Pen point Default settings The upper button = left double-click mouse button. The lower button = right mouse button. The pen point = left mouse button. Pressure/ Move the slide up and down to adjust the pen pressure. Mouse/ The pen is used as normal handwriting pen or mouse. To change mode, select "Pen" or "Mouse". Pen Please put your pen on the hollow of the tablet while idle. If you place the pen on the tablet, the mouse is seriously affected. Mouse English Using the Tablet Selecting the function keys Steps

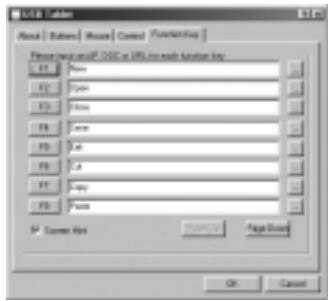

1. Click on the Function Key icon on

2. Key in the path name or URL.

3. Click "OK".

Adjusting the workspace The workspace of your tablet is in proportion to the size of the screen. To reduce the scope of the workspace, click "Control" and customize the size . English

Chapter 3: Q & A

Does Mac support the product? Only for OS 9.0 version.

Standard mouse can't move on the screen. Remove the wireless pen from the tablet. The tablet can't work with the Please go to upgrade new driver.

3. other PC peripherals.

4. What is proximity?

What can't be put on the tablet? It's the height between the wireless pen and the tablet. Within a certain height, the wireless pen is effective on the tablet. Heavy stuffs or stuffs with frequency. PC screen is interfered when

6. the tablet placed aside.

Move the tablet away from the PC screen.

7. The pen has leaking problem

Go to the Tablet icon and click "Button". Then select "Pen offset value" to test the pen. No connection to the

8. computer

Re-plug in the cable. Deutsch Einführung Supporta on-line Handwriting Talk. Pen Soft
