USER MANUAL PV 2.6 C PEAVEY

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock - DO NOT OPEN! CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this

appliance, read the operating guide for further warnings.

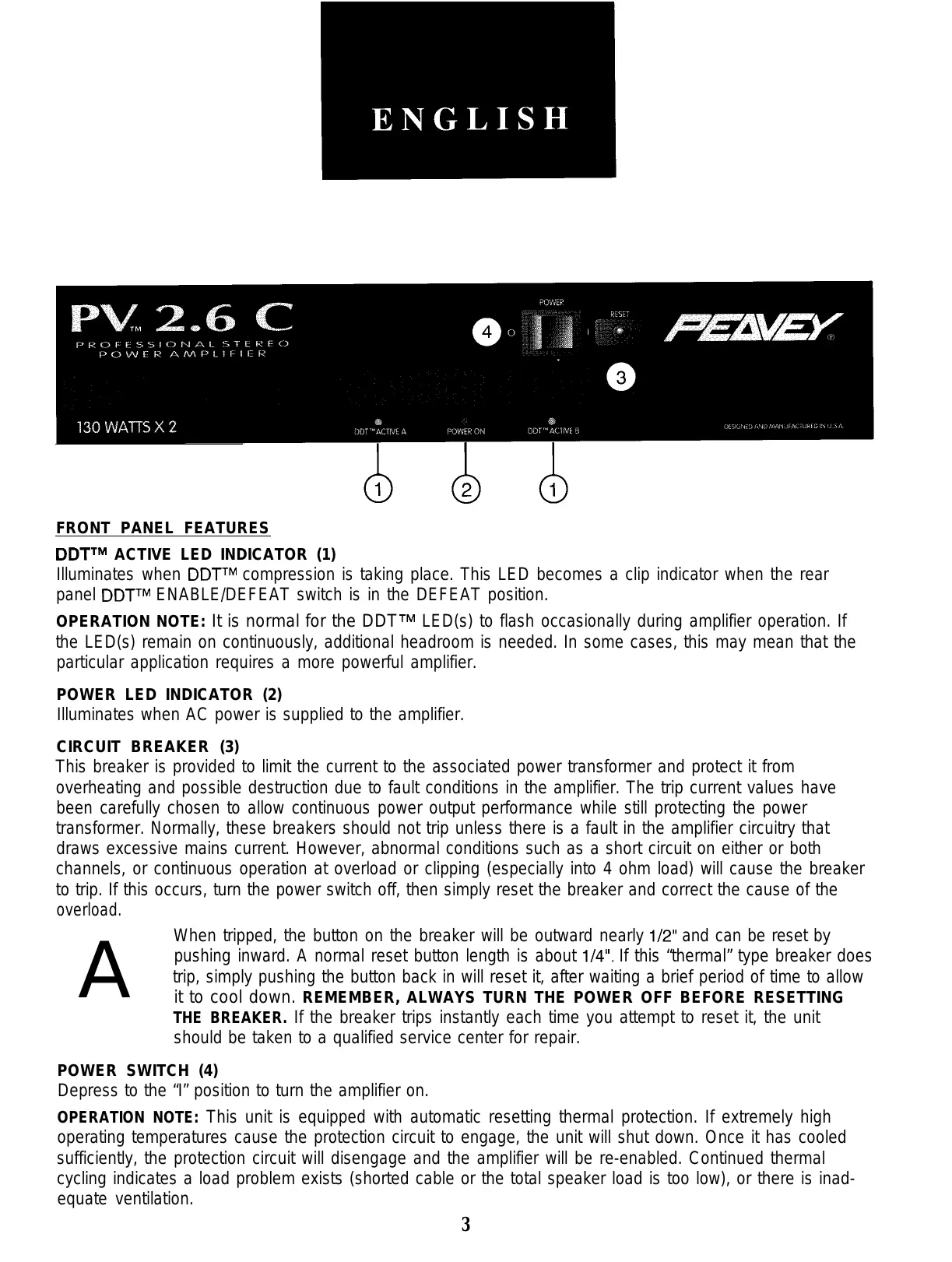

DDTTM ACTIVE LED INDICATOR (1) Illuminates when DDTTM compression is taking place. This LED becomes a clip indicator when the rear panel DDTTM ENABLE/DEFEAT switch is in the DEFEAT position. OPERATION NOTE: It is normal for the DDTTM LED(s) to flash occasionally during amplifier operation. If the LED(s) remain on continuously, additional headroom is needed. In some cases, this may mean that the particular application requires a more powerful amplifier. POWER LED INDICATOR (2) Illuminates when AC power is supplied to the amplifier. CIRCUIT BREAKER (3) This breaker is provided to limit the current to the associated power transformer and protect it from overheating and possible destruction due to fault conditions in the amplifier. The trip current values have been carefully chosen to allow continuous power output performance while still protecting the power transformer. Normally, these breakers should not trip unless there is a fault in the amplifier circuitry that draws excessive mains current. However, abnormal conditions such as a short circuit on either or both channels, or continuous operation at overload or clipping (especially into 4 ohm load) will cause the breaker to trip. If this occurs, turn the power switch off, then simply reset the breaker and correct the cause of the overload. When tripped, the button on the breaker will be outward nearly l/2” and can be reset by pushing inward. A normal reset button length is about l/4”. If this “thermal” type breaker does trip, simply pushing the button back in will reset it, after waiting a brief period of time to allow it to cool down. REMEMBER, ALWAYS TURN THE POWER OFF BEFORE RESETTING THE BREAKER. If the breaker trips instantly each time you attempt to reset it, the unit should be taken to a qualified service center for repair.

POWER SWITCH (4) Depress to the “I” position to turn the amplifier on. OPERATION NOTE: This unit is equipped with automatic resetting thermal protection. If extremely high operating temperatures cause the protection circuit to engage, the unit will shut down. Once it has cooled sufficiently, the protection circuit will disengage and the amplifier will be re-enabled. Continued thermal cycling indicates a load problem exists (shorted cable or the total speaker load is too low), or there is inadequate ventilation.

LINE CORD - 120 V products only (5)

For your safety, we have incorporated a three-wire line (mains) cable with proper grounding facilities. It is not advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock hazard exists when the unit is operated with properly grounded receptacles. SPEAKER OUTPUTS (6)

Provided for connection of external speaker(s). Minimum total impedance is 4 ohms. DDTTM COMPRESSION (7) Each of the two internal power amplifiers is equipped with Peavey’s patented DDTTM Compression. The DDT circuits will automatically engage to prevent clipping distortion within the power amplifiers. Compression is defeated when the pushbutton is “in”. DDTTM should be enabled at all times to protect speakers. INPUT SENSITIVITY (8) Maximum input gain (minimum sensitivity rating) is achieved at the full clockwise setting. A setting of less than full clockwise will yield lower system noise at the expense of headroom. Calibration indicates sensitivity in volts/dBV necessary to attain full available output. OPERATION NOTE: The input sensitivity rating of a power amplifier is the voltage level required to drive the amplifier to full output. CHANNEL INPUTS (9) Standard l/4” phone jacks with a special switching function to allow two modes of operation: a. For normal STEREO operation, each jack is used as the input to the respective channel (see fig. 1). b. For dual-channel MONO operation, the A input jack may be used by inserting the plug only to the first “click” or detent (see fig. 2). In this mode, the signal source is applied equally to both channels.

SPECIFICATIONS Frequency Response: Output Power: +0, -1 dB, 20 Hz to 30 kHz, 1 W RMS, 8 ohms 4 ohms, 1 kHz at 1% THD: 130 W RMS 8 ohms, 1 kHz at 1% THD: 100 W RMS 2 ohms not recommended Damping Factor: 8 ohms, 1 kHz: Greater than 200 Rated Output Power: Hum & Noise: 4 ohms, 20 Hz to 20 kHz, 0.1% THD: 100 W RMS 8 ohms, 20 Hz to 20 kHz, 0.1% THD: 90 W RMS (below rated output power) 8 ohms, 100 dB, unweighted Slew Rate: Power Consumption: Stereo mode, each channel: 20 volts/uSec (63 rated output power) Domestic: 600 watts, 60 Hz, 120 V AC Export: 600 watts, 50/60 Hz, 230 V AC Total Harmonic Distortion: 20 Hz to 20 kHz @ rated power, 8 ohms: Less than 0.1% Dimensions & Weight: Height: 3.5” W i d t h : 19” Depth: 9.6” Weight: 15.6 Ibs. Input Sensitivity & Impedance: (63 rated output power) 4 ohms: 1 .O V RMS, 0 dBV; 20 k ohms (26 dB)

Due to OUT efforts for constant improvements, features and specifications listed herein are subject to change without notice.

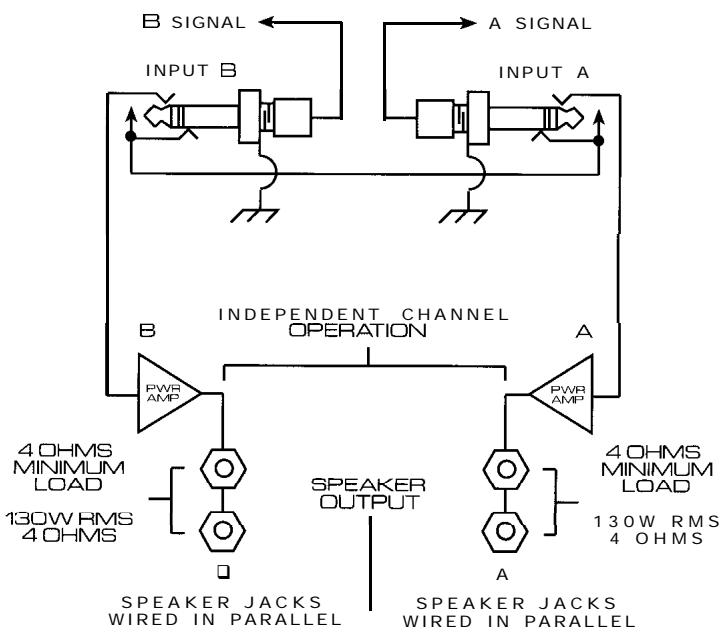

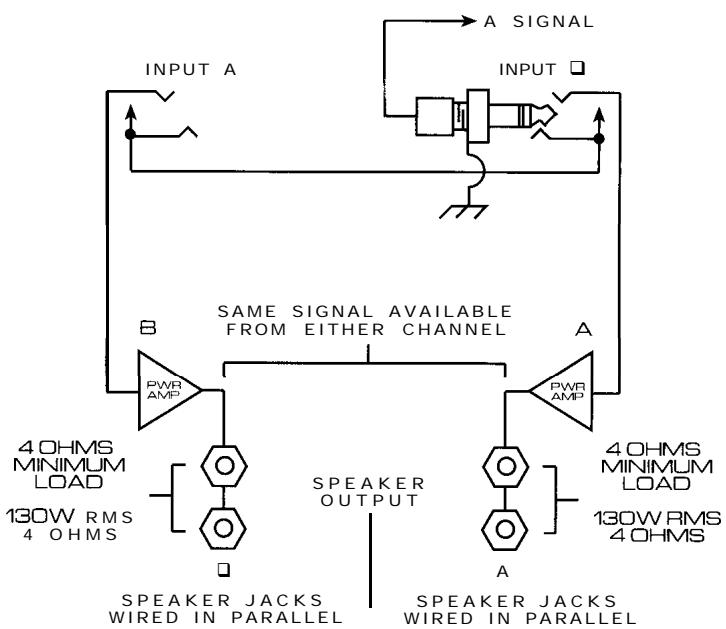

MONO OPERATION BOTH C H A N N E L S D R I V E N W I T H S I N G L E I N P U T PLUG INSERTED TO FIRST CLICK IN CHANNEL A INPUT ONLY

For further information on other Peavey products, ask your Authorized Peavey Dealer for the appropriate Peavey catalog/publication. Bass Guitars Guitars Bass Amplification Guitar Amplification Sound Reinforcement Enclosures Microphones Keyboards

Lighting Mixers, Powered/Non-Powered Accessories/Cables Effects Processors Axcess’” Wear The Peavey Beat’” Monitor@ Magazine Key Issues’” Low Down’” PM’” Magazine

THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND REGISTERED IN THE UNITED STATES OR CANADA. ALL EXPORTED PRODUCTS ARE SUBJECT TO WARRANTY AND SERVICES TO BE SPECIFIED AND PROVIDED BY THE AUTHORIZED DISTRIBUTOR FOR EACH COUNTRY. Ces clauses de garantie ne sont vaiables qu’aux Eta&-Unis et au Canada. Dans tour les autres pays, les clauses de garantie et de maintenance sont fixees par le distributeur national et assuree par lul seion la legislation envigueur. l l Diese Garantie ist nur in den USA and Kanada gultig. Alle ExportProdukte sind der Garantie und dem Service des lmporteurs des jewelligen Landes unterworfen. l l Esta garantia es valida solamente cuando el product0 es comprado en E.U. continentales o en Canada. Todos 10s productos que Sean comprados en el extranjero, estan sujetos a las garantias y servicio que cada distribuidor autorizado determine y ofrezca en 10s diferentes paises.

WARRANTY/REMEDY PEAVEY ELECTRONICS CORPORATION (“PEAVEY”) warrants this product, EXCEPT for covers, footswitches, patchcords, tubes and meters, to be free from defects in material and workmanship for a period of one (1) year from date of purchase, PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is subject to the conditions, exclusions, and limitations heremafter set forth: PEAVEY BO-DAY LIMITED WARRANTY ON TUBES AND METERS If this product contains tubes or meters, Peavey warrants the tubes or meters contatned in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth. CONDITIONS, EXCLUSIONS, AND LIMITATIONS OF LIMITED WARRANTIES These limited warranties shall be void and of no effect, if: a. The first purchase of the product is for the purpose of resale; or b. The original retail purchase IS not made from an AUTHORIZED PEAVEY DEALER; or c. The product has been damaged by accident or unreasonable use, neglect, improper service or mamtenance, or other causes not arising out of defects in material or workmanship; or d. The serial number affixed to the product is altered, defaced, or removed. In the event of a defect in material and/or workmanship covered by this limited warranty, Peavey will: a. In the case of tubes or meters, replace the defective component without charge. b. In other covered cases (i.e., cases involving anything other than covers, footswitches, patchcords, tubes or meters), repair the defect I” material or workmanship or replace the product, at Peavey’s option; and provided, however, that, in any case, all costs of shipplng, If necessary, are paid by you, the purchaser. THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED AND MAILED TO AND RECEIVED BY PEAVEY WITHIN FOURTEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE. In order to obtain service under these warranties, you must: a. Bring the defective item to any PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER and present therewith the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZED PEAVEY DEALER in connection with your purchase from him of this product. If the DEALER or SERVICE CENTER is unable to provide the necessary warranty service you will be directed to the nearest other PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER which can provide such service. b. Ship the defective item, prepaid, to:

PEAVEY ELECTRONICS CORPORATION

International Service Center 326 Hwy. 11 & 80 East Meridian, MS 39301 including therewith a complete, detailed description of the problem, together with a legible copy of the original PROOF OF PURCHASE and a complete return address. Upon Peavey’s receipt of these items: If the defect is remedial under these limited warranties and the other terms and conditions expressed herein have been complied with, Peavey will provide the necessary warranty service to repair or replace the product and will return it, FREIGHT COLLECT, to you, the purchaser. Peavey’s liability to the purchaser for damages from any cause whatsoever and regardless of the form of action, including negligence, is limited to the actual damages up to the greater of $500.00 or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause of action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability WIII not apply to claims for personal injury or damage to real property or tangible personal property allegedly caused by Peavey’s negligence. Peavey does not assume liability for personal injury or property damage arising out of or caused by a non-Peavey alteration or attachment, nor does Peavey assume any responsibility for damage to interconnected non-Peavey equipment that may result from the normal functioning and maintenance of the Peavey equipment. UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES, OR ANY CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF PEAVEY HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES

THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES. EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESSED, LIMITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IMPLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR OR NINETY-DAY PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE LIMITED WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. THESE LIMITED WARRANTIES ARE THE ONLY EXPRESSED WARRANTIES ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY, OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY. In the event of any modification or disclaimer of expressed or implied warranties, or any limitation of remedies, contatned herein conflicts with applicable law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law. Your remedies for breach of these warranties are limited to those remedies provided herein and Peavey Electronics Corporation gives this limited warranty only with respect to equipment purchased in the United States of America.

INSTRUCTIONS -WARRANTY REGISTRATION CARD

1. Mail the completed WARRANTY REGISTRATION CARD to:

PEAVEY ELECTRONICS CORPORATION

Meridian, MS 39302-2898 a. Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document. There will be no identification card issued by Peavey Electronics Corporation.

2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESSES:

a. Completion and mailing of WARRANTY REGISTRATION CARDS - Should notification become necessary for any condition that may require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified. b. Notice of address changes - If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notify Peavey of the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become necessary in connectlon with any condition that may require dissemination of information or correction.

WARNING: When using electric products, basic cautions should always be followed, including the following.

Read all safety and operating instructions before using this product.

All safety and operating instructions should be retained for future reference.

Obey all cautions in the operating instructions and on the back of the unit.

All operating instructions should be followed.

This product should not be used near water, i.e., a bathtub, sink, swimming pool, wet basement, etc.

This product should be located so that its position does not interfere with its proper ventilation. It should not be placed flat against a wall or placed in a built-in enclosure that will impede the flow of cooling air.

This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.

Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.

Never break off the ground pin on the power supply cord. For more information on grounding, write for our free booklet “Shock Hazard and Grounding.”

Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords. Periodically check cords for cuts or signs of stress, especially at the plug and the point where the cord exits the unit.

The power supply cord should be unplugged when the unit is to be unused for long periods of time.

If this product is to be mounted in an equipment rack, rear support should be provided.

Metal parts can be cleaned with a damp rag. The vinyl covering used on some units can be cleaned with a damp rag or an ammoniabased household cleaner if necessary. Disconnect unit from power supply before cleaning.

Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation holes or any other openings. This unit should be checked by a qualified service technician if: a. The power supply cord or plug has been damaged. b. Anything has fallen or been spilled into the unit. c. The unit does not operate correctly. d. The unit has been dropped or the enclosure damaged.

The user should not attempt to service this equipment. All service work should be done by a qualified service technician.

This product should be used only with a cart or stand that is recommended by Peavey Electronics.

Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures. Sound Level dBA, Slow Response

Duration Per Day In Hours

1 l/2 l/2 I /4 or less According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation. SAVE THESE INSTRUCTIONS!

@ EquiAUdipmentrJ WXED

Commercial 25E9 Features and specifications subject to change without notice. Peavey Electronics Corporation 711 A Street / Meridian, MS 39301 I U.S.A. I (601) 483-5365 / Fax 486-1278 Printed in U.S.A. 1 l/95 #80304240
