Congratulations on your purchase of the all new ExpressTM 112 TransTubeTM Series. This amp represents years of research on vacuum tube emulation, resulting in a totally new Express. The preamp has been redesigned, using patent-applied for technology that redefines tubelike distortion and harmonic generation in solid-state amps. The new T. Dynamics circuitry, also awaiting several patents, creates the long sought for tube power compression phenomenon. This, when combined with the preamp circuitry, yields the closest tube amp simulation to date. The compression effect is increased by turning the T. Dynamics control down, which lowers the power level the amp puts out. To further enhance the performance of the Express, an added external speaker jack is included. The speaker has been upgraded to a Sheffield, and an effects loop is included to allow for greater flexibility. -INPUTS I

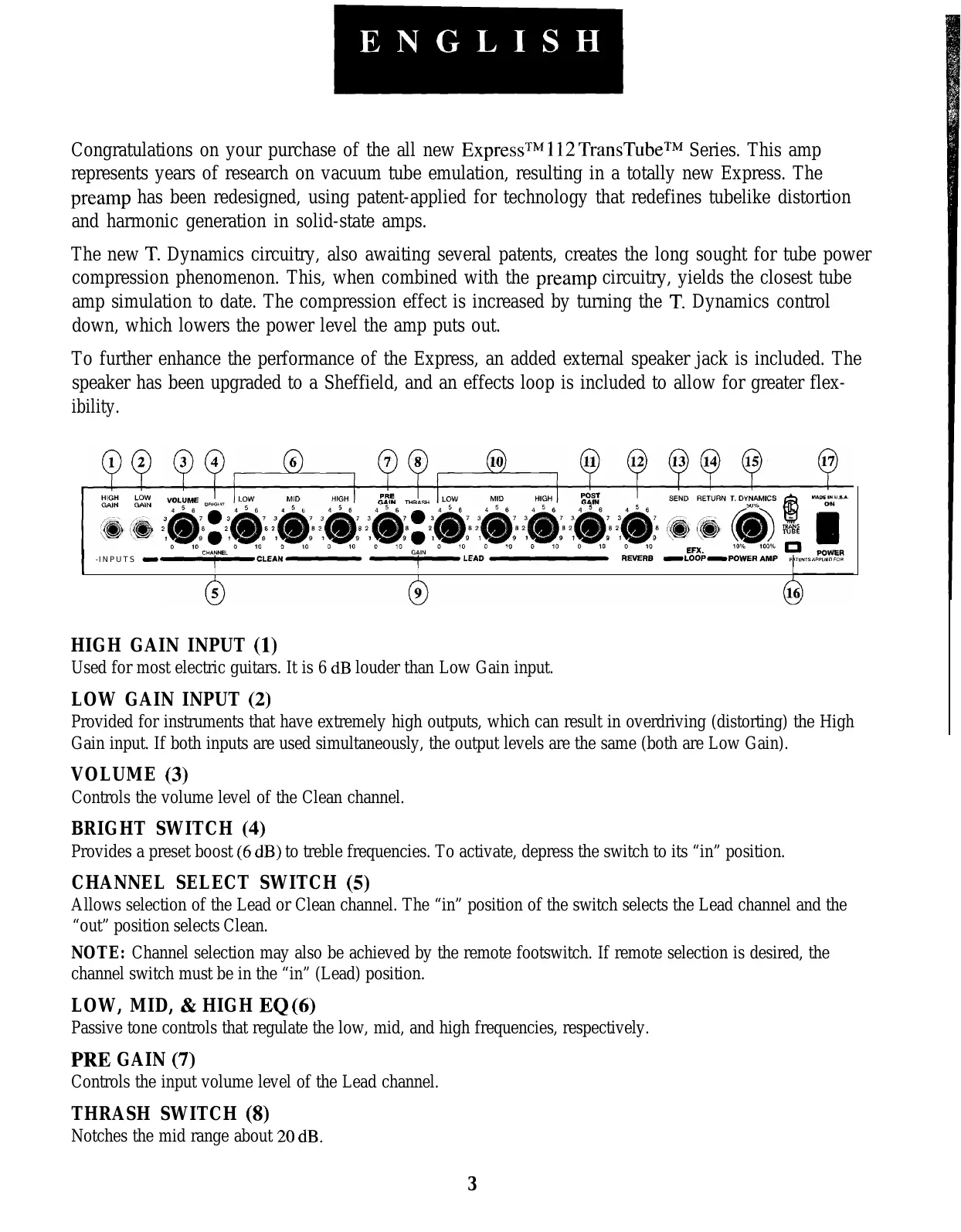

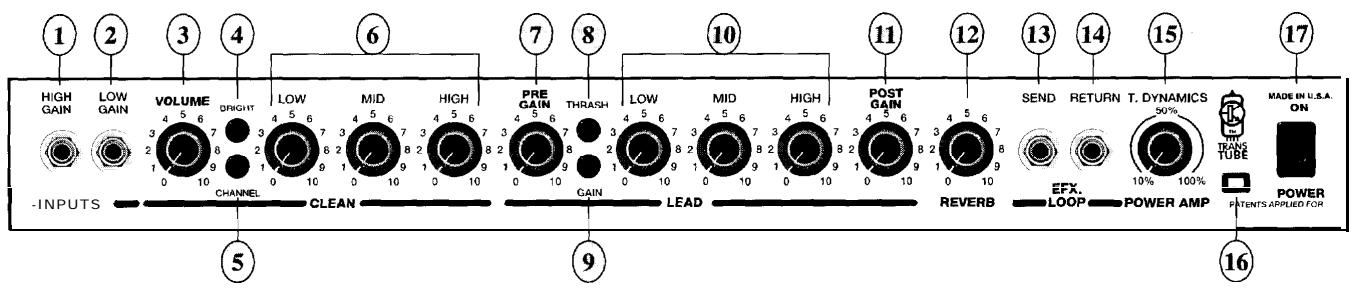

HIGH GAIN INPUT (1) Used for most electric guitars. It is 6 dB louder than Low Gain input. LOW GAIN INPUT (2) Provided for instruments that have extremely high outputs, which can result in overdriving (distorting) the High Gain input. If both inputs are used simultaneously, the output levels are the same (both are Low Gain). VOLUME (3) Controls the volume level of the Clean channel. BRIGHT SWITCH (4) Provides a preset boost (6 dB) to treble frequencies. To activate, depress the switch to its “in” position. CHANNEL SELECT SWITCH (5) Allows selection of the Lead or Clean channel. The “in” position of the switch selects the Lead channel and the “out” position selects Clean. NOTE: Channel selection may also be achieved by the remote footswitch. If remote selection is desired, the channel switch must be in the “in” (Lead) position. LOW, MID, & HIGH EQ (6) Passive tone controls that regulate the low, mid, and high frequencies, respectively. PRE GAIN (7) Controls the input volume level of the Lead channel. THRASH SWITCH (8) Notches the mid range about 20 dB.

GAIN SWITCH (9) Boosts the overall system gain. Depress to the “in” position to activate. LOW, MID, & HIGH EQ (10) Passive tone controls that regulate the low, mid, and high frequencies, respectively. POST GAIN (11) Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired sound has been achieved. REVERB LEVEL (12) Controls the overall reverb level. EFFECTS SEND (13) Output for supplying signals to external low-level effects or signal processing equipment. EFFECTS RETURN (14) Input for returning signals from external low-level effects or signal processing equipment. T. DYNAMICS CONTROL (15) Adjusts the power level of the amplifier from 10% to 100% power. When set to lower settings, the power compression simulation will be much more pronounced. POWER LED (16) Illuminates when AC power is being supplied to the amp. POWER SWITCH (17) Depress the switch to the “on” position. The red pilot light (LED) will illuminate indicating power is being supplied to the unit.

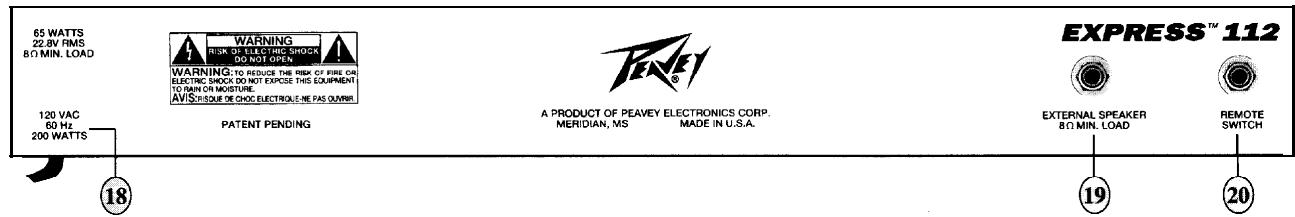

LINE CORD (120 V PRODUCTS ONLY) (18) m For your safety, we have incorporated a three-wire line (mains) cable with proper grounding facilities. It is not advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock hazard exists when the unit is operated with the proper grounded receptacles.

EXTERNAL SPEAKER JACK (19) Provided for connection of external speaker cabinet. Minimum total impedance is 8 ohms. Disconnects internal speaker when used. REMOTE SWITCH JACK (20) Provided for the connection of the optional remote footswitch. The footswitch is used to select the Lead or Normal channels and defeat reverb. When using remote footswitch, always insert the plug fully (second click) to insure proper operation. SPECIFICATIONS Rated Power & Load: Power specs measured with T. Dynamics @ 10 65 W RMS into 8 ohms 4 ohms not recommended Power @ Clipping: (Typically) (5% THD, 1 kHz, 120 V AC line) 65 W RMS into 8 ohms Frequency Response: +O, 3 dB, 60 Hz to 20 kHz, @ 50 W RMS into 8 ohms Hum & Noise: Low&High @ 10 Mid @ 0 Pre & Post Gain @ 10 Gain & Thrash, Off (Out) Normal Levels are with normal volume @ 5 Minimum Levels are with normal volume @ 10 Preamp High Gain Input: Impedance: High 2, 1 M ohm Nominal Input Level: -14 dBV, 200 mV RMS Minimum Input Level: -24 dBV, 60 mV RMS Maximum Input Level: 0 dBV, 1VRMS Preamp Low Gain Input: Greater than 78 dB below rated power Impedance: High Z,44 K ohms Nominal Input Level: -8 dBV, 400 mV RMS Minimum Input Level: -18 dBV, 120 mV RMS Maximum Input Level: 6 dBV, 2VRMS Power Consumption: 200 W @ 50/60 Hz, 120 V AC (Domestic) Effects Return: Impedance: High Z, 22 K ohms Designed Input Level: - 10 dBV,

(Switching jack provides Effects Send to Effects Return connection when not used) System Hum & Noise @ Nominal Input Level: (20 Hz to 20 kHz unweighted) 68 dB below rated power Equalization: Special low, mid, & high passive type EQ Push Bright: +6 dB @ 2 kHz Push Thrash: -20 dB notch @ 1 kHz in Lead channel Push Gain: Increases Lead gain External Footswitch Functions: Lead Channel Defeat (when selected with button) Reverb Defeat PREAMP SECTION The following specs are measured @ 1 kHz with the controls preset as follows: Push Bright, Off (Out) Channel Select Normal (Out) Effects Send: Load Impedance: 1 K ohm or greater Nominal Output Level: -10 dBV,

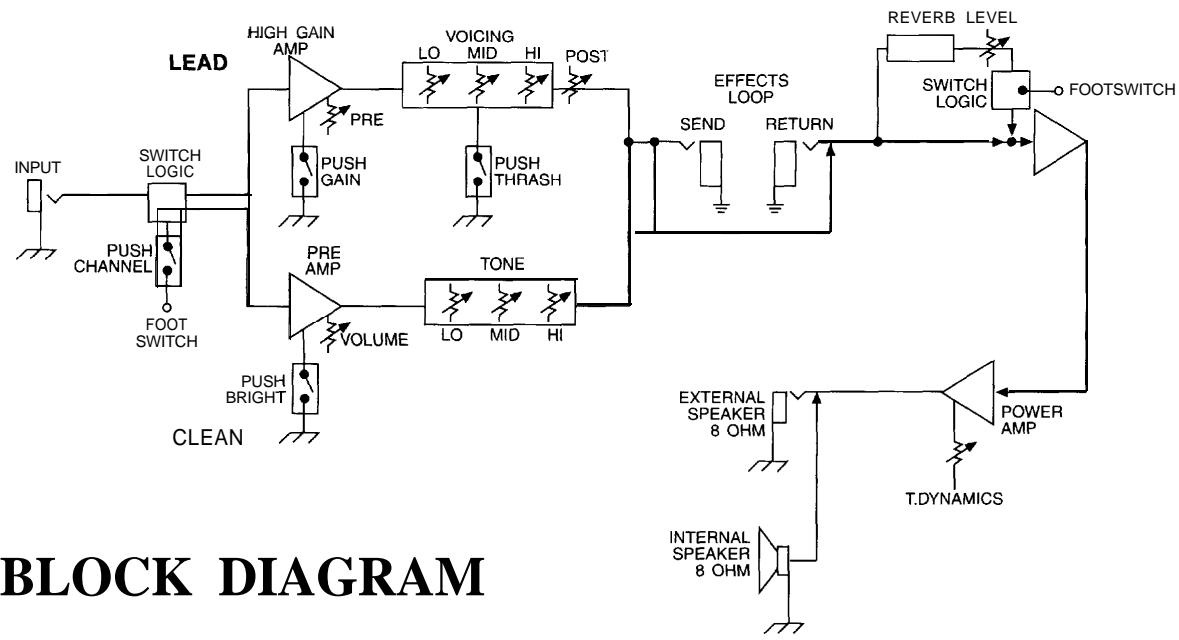

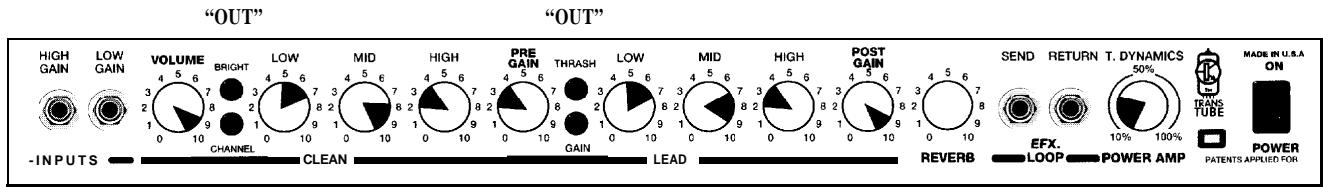

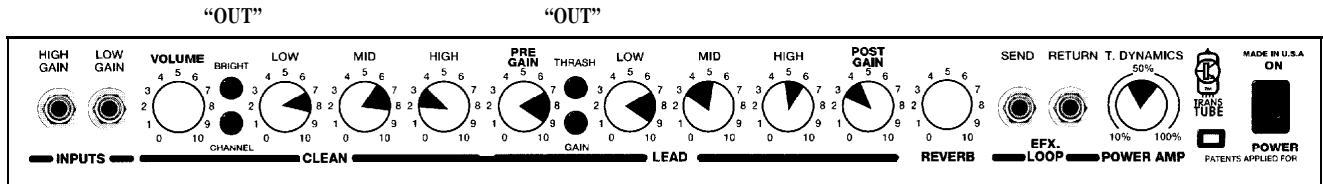

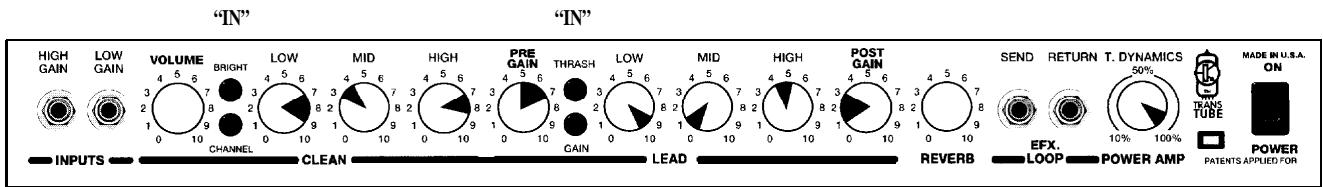

TONE SETTINGS “IN” “IN” “TN” ADJUST TO TASTE CLEAN “OUT” METAL “OUT” “OUT” ADJUST TO TASTE JAZZ “OUT” -INPUTS - MEDIUM DISTORTION “OUT” CLEAN LEAD “OUT” DIRTY BLUES CLEAN BLUES T E C H N O L O G Y
