Ecoustic™ 110·112

Acoustic Amplifiers

Thanks for purchasing the Ecoustic 110/112 amplifier from Peavey. Whether you play an acoustic guitar, oud, violin or zither, you've just found your amplifier. The Ecoustic 110 and 112 will accurately reproduce those delicate tones and individual nuances of your instrument with amazing results. Vocals sound great too! Those crazy Peavey engineers have crammed so much tone and so many features into these amps that there wasn't room for anything else.

The Ecoustic uses special buffers, EQ and feedback controls to capture the texture of acoustic sound. Built-in 24-bit effects and an amazing congregation of other features make the Ecoustic 110/112 one of the most versatile acoustic amplifiers on the market.

Did we mention power? The Ecoustic 112 comes equipped with a 12" Blue Marvel® coaxial speaker and a high-definition dome tweeter. Bi-amped, with a 100 watts dedicated to the lows and mids, and 25 watts for the highs, this amp will cut through in just about any volume situation. The 112's smaller sibling, the Ecoustic 110, is a very robust amp as well. Loaded with a 10" Blue Marvel coaxial speaker, a high-definition dome tweeter and the same great effects, this amp is a punchy, light-weight amp that has no rival. Just compare the Ecoustic series amps with any other acoustic amplifier and you'll feel even more reassured that you've made the right choice.

Please read this guide carefully to ensure your personal safety as well as the safety of your equipment.

Ecoustic 112 Features
• 12" Blue Marvel® Coaxial Speaker	• Semi-programmable with optional footswitch
• Bi-amped, 100 watts for lows and mids 25 watts for highs	• Freq Out™ Digital Anti-Feedback built-in
• 3 channels, 2 with independent effects	• XLR balanced line out
• Chorus · Phaser · Delay · Rotating Speaker Reverb · Delay; doubler on channel I	• 2 independent 5-band EQs
• Auxiliary input with Low and High controls	• Separate master volume and tweeter controls
	• Pre-amp out, power amp in 1/4" jacks

Ecoustic 110 Features
·10" Blue Marvel® Coaxial Speaker	·Semi-programmable with optional footswitch
·Bi-amped, 30 watts for lows and mids 10 watts for highs	·Freq Out™ Digital Anti-Feedback built-in
·2 channels with independent effects	·Pre-amp out, power amp in 1/4" jacks
·Chorus · Phaser · Delay · Rotating Speaker Reverb · Delay; doubler on channel I	·2 independent 4-band EQs
·CD/auxiliary input controls	·Phase switch on Channel I

ECOUSTIC 110 FRONT PANEL

Power Switch (1 & 20)

This switch applies power to the unit in the ON position. Pressing the lower portion of the switch turns the power off.

Master Volume (2)

This control sets the overall volume level. Go ahead, turn it up and see what a 100 watts of clean power will do for your acoustic instrument.

Tweeter Level (3)

This control sets the volume level for the tweeter. Dial in just the right amount of highs for your application.

Auxiliary Channel Low (4)

This is an active, shelving type EQ for increasing the low end on the auxiliary input channel.

Auxiliary Channel High (5)

An active, shelving type EQ for dialing in the highs on the auxiliary input channel.

Input (6)

This 1/4 mono jack is designed to accommodate most any signal input. Gain can be adjusted by the Auxiliary Input Level (7).

Auxiliary Input Level (7)

This control sets the overall level of the auxiliary channel.

Microphone Channel REV/DLY (8 & 21)

The Ecoustic 112 and the Ecoustic 110 include separate effects for the Mic channel and the Instrument channel. These controls set the amount and mix of delay/reverb and when depressed, turns on and off the chorus for the Mic channel. See the Tweak Section of this manual for more information and hidden features.

As the knob is turned clockwise, the surrounding LED ring will light, indicating the amount and/or mix of reverb and delay. When turned fully counter-clockwise, the reverb/delay effects are off.

When the knob is pushed in, the Chorus LED will light, indicating the chorus effects are engaged.

Instrument Channel REV/DLY (9 & 22)

This control sets the amount and mix of delay/reverb effects for the Instrument channel. As the control is turned clockwise, the surrounding LED ring will light, indicating the amount and/or mix of reverb and delay. When turned fully counter-clockwise, the reverb/delay effects are off.

EFX Adjust (10 & 23)

Repeatedly depressing this control cycles through the available effects: Doubler, Phaser, Chorus and Rotary Speaker. The LED adjacent to each effect name will light indicating which effect is active. Rotating this same control will change various parameters for each effect. The surrounding LED ring will also illuminate indicating relative value of the parameter being adjusted. The effects and their corresponding parameters are listed on the next page.

EFX ADJUST PARAMETERS

Doubler Wet/dry mix

Phaser Rate increase

Chorus Rate increase/deep decrease

Rotary Speaker Rate increase

To return to the factory effects settings, press and hold both the EFX ADJUST and REV/DLY controls while turning the amp on.

Select (Freq Out™ Anti-feedback) (11 & 24)

The built-in Freq Out anti-feedback system, armed with sophisticated algorithms, distinguishes between music and feedback, seeking and destroying the feedback, leaving your music alone. The Select switch is a 3-position control: Off, narrow and wide. If you experience feedback, press the Select switch once. If this eliminates the feedback, try pressing the Select switch (High Q setting) again which narrows the effected range of frequencies. If the feedback doesn't return, leave the switch in this position. If it does return, press Select twice more to return to the Low Q setting. The corresponding LED will light when activated.

Note: This setting is global. It will not change with a preset change.

Ecoustic 110: 4-band · Ecoustic 112: 5-band EQ (12, 16, 25 & 29)

The Instrument and Microphone channels on the Ecoustic 110 include a 4-band, active EQ. The Ecoustic 112 Instrument and Microphone channels include a 5-band, active EQ.

Level (13, 17, 26 & 30)

The Level control on both the Instrument and Microphone channels sets the volume level.

Low Z Input (14 & 28)

Use this input with low impedance microphones or high-level sources equipped with a male XLR connector.

High Z Input (15, 18, 27 & 31)

Use with high impedance microphones or high-level sources equipped with a 1/4 " phone plug.

Phase Reverse (19 & 32)

Reverses the phase of an instrument signal in order to reduce feedback or to correct out-of-phase conditions. This is especially useful when using both the Instrument and the Microphone input on a single instrument.

ECOUSTIC 110 BACK PANEL

Ground Polarity Switch (33)

This 3-position, rocker-type switch should normally be operated in its center or zero position. If the unit is producing an audible hum and/or noise, position the Ground Polarity switch to either the positive or negative position (+ or -).

Note: If the noise or hum problem continues, consult your Authorized Peavey dealer, the Peavey Factory or a qualified service technician.

IEC connector/detachable line cord (34 & 40)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton. The mains cord should be connected to the amplifier before connecting to a suitable AC outlet.

U.S. Domestic AC Mains Cord

The mains cord supplied with the unit is heavy-duty, 3-conductor type with a conventional 120 VAC plug with ground pin. Never break off the ground pin on any equipment. It is provided for your safety. If the outlet used does not have a ground pin, a suitable grounding adapter should be used and the third wire should be properly grounded.

Remote Switch Connector (35 & 41)

This 8-pin DIN connector is provided for connection of the Ecoustic PFC 3 footswitch (optional). The footswitch cable should be connected before the amp is powered up. See the Footswitch section of this manual for explanation of switch operation.

Note: Adding the optional footswitch allows the user to store 3 presets as well as remotely mute the amplifier.

Power Amp In (36 & 43)

This 1/4 " jack is used to connect a line-level signal source to the power amplifier.

Preamp Out (37 & 42)

This 1 / 4'' jacks allows patching to mixing consoles, tape recorders, etc. Use a shielded cable to patch from this jack to the input of the device receiving the signal. This patch does not affect the operation of the amplifier or the signal continuing to the power amp and speakers.

Note: A single button, shielded footswitch used in the preamp out jack can be used to mute the amplifier.

Line Out: Low Z (38)

An XLR jack is provided to route the balanced signal to mixing/recording consoles.

Pre/Post EQ Switch (39)

Selects either Instrument (Pre EQ) or both the Instrument and Microphone channel (Post EQ) signals and routes to the Line Out XLR jack (38).

Note: For proper ventilation, allow a minimum of 12" of clearance on all sides of the unit.

The optional Ecoustic PFC 3 footswitch offers tremendous, hands-free control over the effects built into the Ecoustic 112 & 110. A perfect addition for the those critical performances!

Mode Select (44) and Mode LED (45)

The PFC 3 footswitch (optional) operates in two modes: EFX Select mode and Preset Select mode. Pressing the Mode Switch (44) selects between the two modes. The active mode is indicated by the Mode LED (45). Illumination of the LED indicates EFX Select Mode; non-illumination indicates Preset Select Mode. Controls and indicators perform different functions relative to the active mode.

Preset Select Mode (44)

In this mode, all three switches control effects presets. Their corresponding LEDs indicate which preset is active. Once desired settings are achieved utilizing the effects controls on the front panel, double-click one of the Preset switches (46, 48 or 50) to store the settings. For a detailed explanation on creating and storing presets, refer to the Tweak Features section on the next page.

Note: When entering the EFX select mode, the current preset will remain active.

Preset 1 (46)

In this mode, Preset 1 (46) mutes and un-mutes the signal completely. The Mute LED (47) will illuminate when the signal is muted.

Preset 2 (48)

Preset 2 (48) toggles between two effects and their respective settings. This button may be used as an on/off switch if one of the settings has no effects active. To use the Modulation LED (49) as a status indicator, the OFF (or lower setting) should be made with the LED dark and the ON (higher setting) made with the LED illuminated.

Preset 3 (50)

Preset 3 (50) toggles between two reverb and delay settings. As with effects settings, this switch may be used as an on/off switch for reverb and delay. Both functions change simultaneously when this switch is depressed.

Ecoustic amplifiers offer hidden features to further adjust the parameters of the digital effects. In addition to the adjustments described in the EFX Adjust section of this manual, additional tweaks may be made to customize effects to user preferences. Tweaks are made by pressing and holding the EFX ADJUST (10 & 23) control while simultaneously rotating the REV/DLY (9 & 22)control.

Note: The EFX Adjust control must be pressed for at least one second to enter Tweak Mode. Reverb settings will not be affected while in Tweak Mode.

The surrounding LED ring will now reflect the value of the effect being tweaked. As in standard parameter changes, the effect being tweaked will be the active effect as indicated by the LED adjacent to the effect name.

Tweak Adjustment Parameters

Doubler	Delay Time
Phaser	Depth
Chorus	Wet/Dry Mix
Rotary Speaker	Wet/Dry Mix

Creating and Storing a Custom Preset

The following steps explain the creation and storage of two different effects/settings as well as two different settings for REV/DLY. The Doubler and Chorus effects were selected at random. These steps will accomplish custom presets using any of the available effects.

1. Assure the footswitch is in the EFX Select Mode by pressing the Mode Select switch (44) if necessary. The Mode LED (45) will illuminate.
2. Use Preset 1 (46) to select Mute or Un-mute. The Mute LED (47) will illuminate for Mute.
3. Select the position of Preset 2 (48). The Modulation LED (49) may be illuminated or dark at the discretion of the user.
4. Select Doubler and adjust the amount to preference using the EFX Adjust (10 & 23) control on the front panel of the Ecoustic (standard adjustment).
5. Press and hold the EFX Adjust (10 & 23) control while adjusting the Doubler delay time to preference with the RVB/DLY (9 & 22) control on the front panel (Tweak mode).
6. Press Preset 2 (48) to change to the other Modulation position. The Modulation LED (49) will illuminate or go dark depending on its status in step 5.
7. Select Chorus and adjust rate to preference using the EFX Adjust 10 & 23) control on the front panel (standard adjustment).
8. Press and hold the EFX Adjust (10 & 23) control while adjusting the Chorus wet/dry mix to preference with the RVB/DLY (9 & 22) control on the front panel (Tweak mode).
9. Select the position of Preset 3 (50). The REV/DLY LED (51) may be illuminated or dark at the discretion of the user.
10. Adjust Reverb/Delay to preference using the REV/DLY (9 & 22) control on the front panel.
11. Press Preset 3 (50) to change to the other REV/DLY position. The REV/DLY LED (51) will illuminate or go dark depending on status in step 10.
12. Adjust Reverb/Delay to preference using the REV/DLY (9 & 22) control.
13. Set the position of Preset 1 (46), Preset 2 (48) and Preset 3 (50) to the settings preferred as defaults. (Default setting is the one that is active when the preset is selected.)
14. Press the Mode Select (44) switch to return to the Preset Mode.
15. Double-click Preset 1, 2 or 3 to store settings in that location.

Freq OutTM Setup

The Freq Out is probably the most unique feature added to the Ecoustic amplifiers. The Freq Out automatically eliminates feedback by using a set of precise, digital filters and sophisticated algorithms. By taking just a minute to properly set up the Freq Out, you can optimize this great feature of your new Ecoustic amplifier.

1. Once you are set up and ready to play, set the level on the instrument channel and ensure the other channels are turned down. Then, turn the Ecoustic's gain and volume up to the desired level. Turn on the Freq Out by depressing the switch (11 or 24) once.
2. Play various notes/chords on your instrument. Let the notes/chords ring out long enough to feed back. You should notice the Freq Out kick in with a corresponding reduction in feedback. Note: If you initially experience a tremendous amount of feedback, first, try reversing the phase switch, changing your playing position in relationship to the amp or reducing the overall volume level. The Freq Out utilizes 8 filters, 4 of which lock down after locating and eliminating feedback. The remaining 4 filters roam continuously searching to reduce feedback problems as they occur. It is very important that the first 4 filters lock down on actual feedback problems. If you feel they have locked down because of the position of your instrument or microphone you may have to reset the Freq Out. To do this, simply power down the Ecoustic amplifier and wait 10 seconds before turning the amp back on. Then, repeat the procedure below.
3. Now, repeat the procedure with the microphone channel.

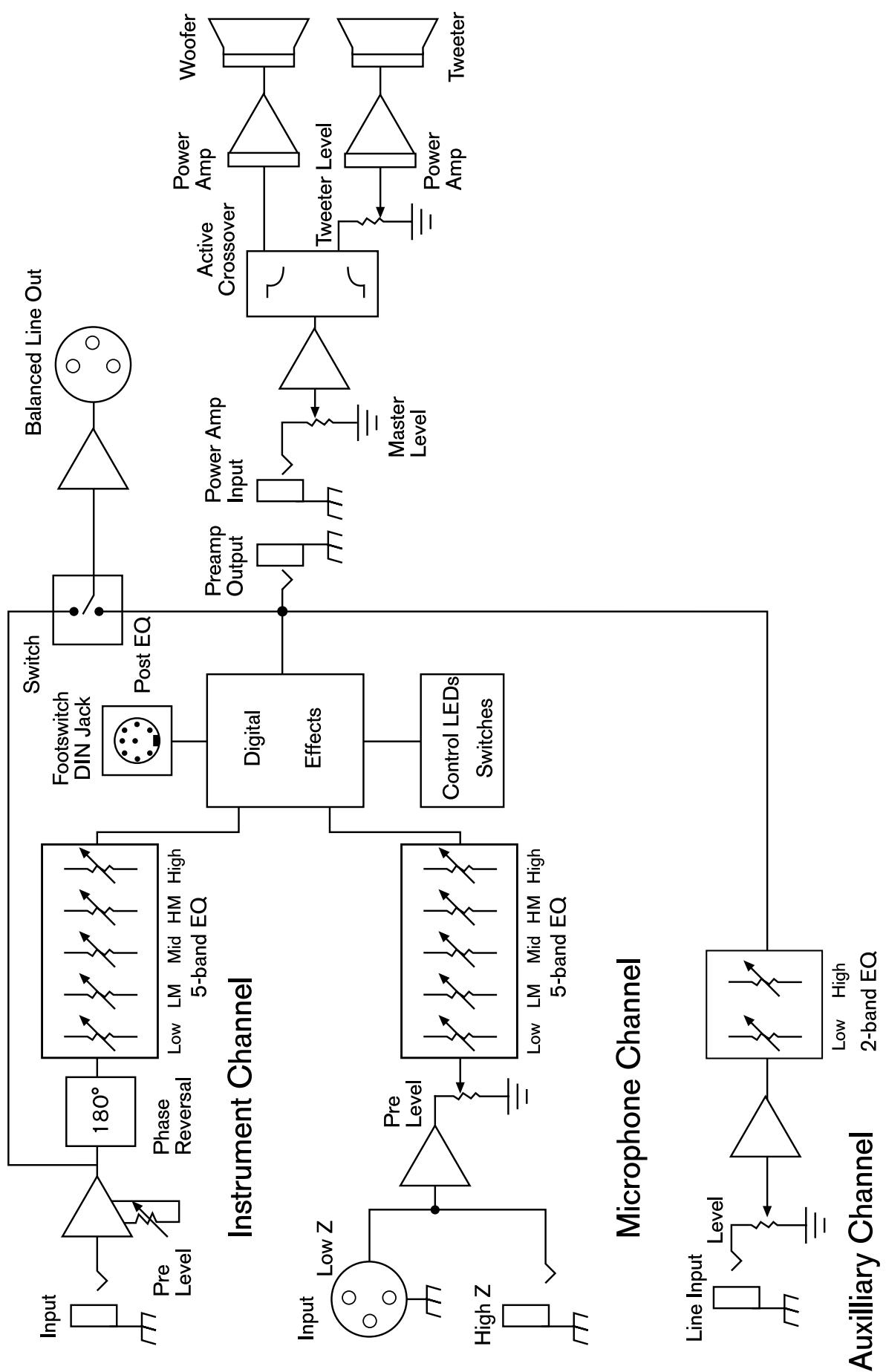

Ecoustic™ 112 Block Diagram

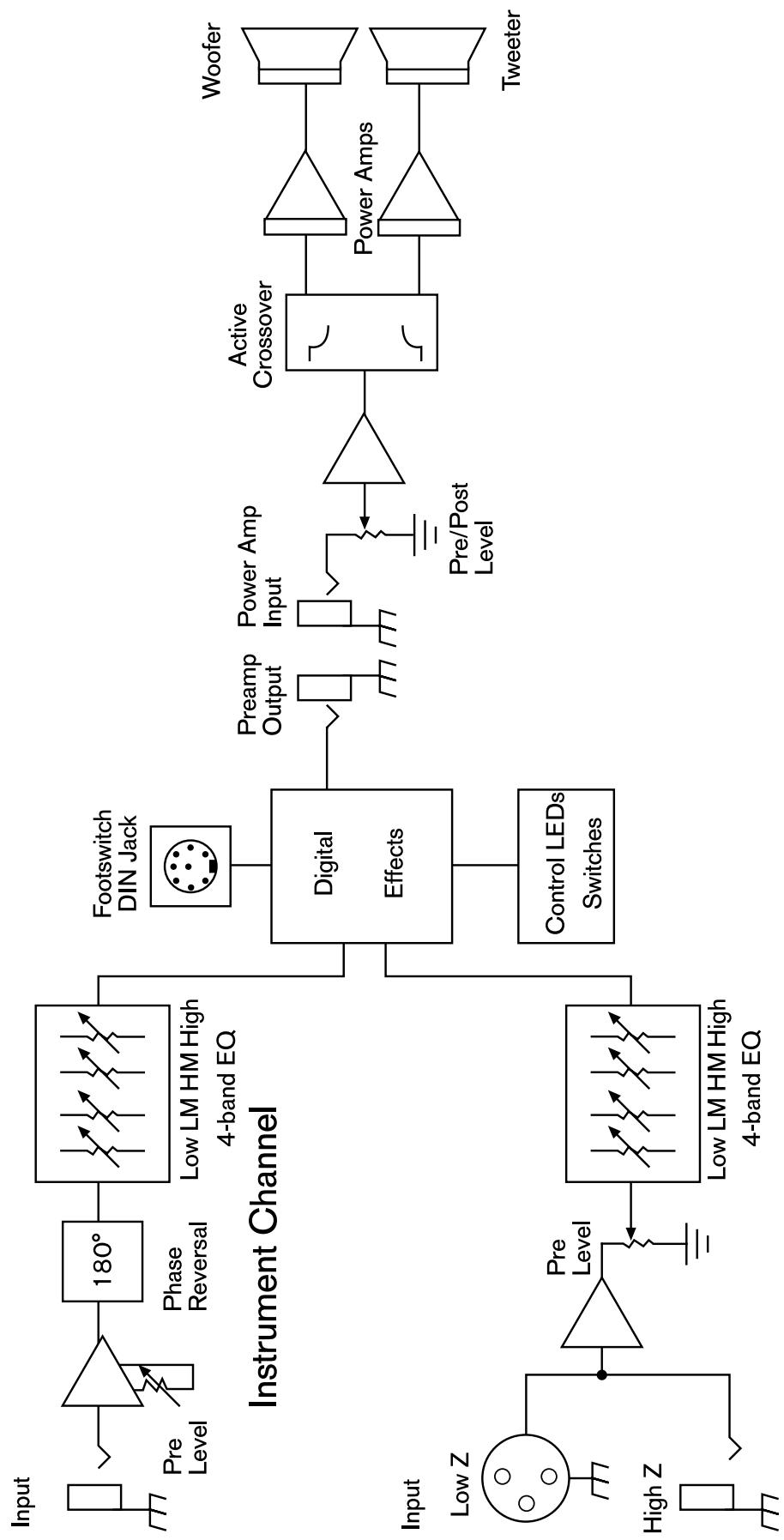

Ecoustic™ 110 Block Diagram

Microphone Channel

Ecoustic 112

SPECIFICATIONS

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

100 W RMS into 4 ohm woofer

25 W RMS into 4 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 102 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 100 W RMS and 20 W RMS

Woofer: 0.01% THD @ 200 Hz

Tweeter: 0.1% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.1%

Power Consumption:

Domestic: 300 W @ 60 Hz; 120 VAC

Export: 300 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: 0 dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Master Volume set @ 10

Tweeter set @ 5

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Master volume @ 5; Tweeter @ 5; 10 Hz to 22 kHz unweighted)

Greater than 75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 k ohm, 106 mV RMS

Nominal Input Level: -119.5 dBV, 15 mV RMS

Minimum Input Level: -36.5 dBV, 15 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -23.3 dBV, 68 mV RMS

Minimum Input Level: -30 dBV, 31 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Microphone Input:

(High Z; unbalanced)

Impedance: High Z; 100 k ohm

Nominal Input Level: -33 dBV, 22 mV RMS

Minimum Input Level: -39.5 dBV, 10.6 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Auxiliary Input:

Impedance: Greater than 22 k ohm

Nominal Input Level: -7 dBV, 442 mV RMS

Minimum Input Level: -24 dBV, 63 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 5-band EQ (Instrument &

Microphone Channels)

Active 2-band shelving type (Auxiliary

Channel only)

Preamp Output:

Load Impedance: 1 k or greater

Output Level: o dBV, 1 V RMS

Direct Output:

Electronically balanced

Nominal output level: -3 dBV, 0.7 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay Microphone Channel: chorus, reverb and delay

Speakers:

12" coaxial, 34 " soft-dome tweeter, 4 ohm impedance

Dimension:

20.25 width x 21.25 height x 14.25 depth (51.5 cm width x 54 cm height x 36.2 cm depth)

Weight:

58.1 lbs. (26.4 kg)

Ecoustic 110

SPECIFICATIONS

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

30 W RMS into 8 ohm woofer

10 W RMS into 8 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 100 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 25 W RMS and 8 W RMS

Woofer: 0.2% THD @ 200 Hz

Tweeter: 0.5% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.5%

Power Consumption:

Domestic: 75 W @ 60 Hz; 120 VAC

Export: 75 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: 0 dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Both volumes @ 5; 22 Hz to 22 kHz unweighted)

75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 M ohm

Nominal Input Level: -12.3 dBV, 244 mV

Minimum Input Level: -30.8 dBV, 29 mV

Maximum Input Level: o dBV, 1 V

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -24 dBV, 63 mV RMS

Minimum Input Level: -16 dBV, 36 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Auxiliary Input:

(High Z, unbalanced)

Impedance: High Z, 100 k ohms

Nominal Input Level: -15 dBV, 178 mV RMS

Minimum Input Level: -26.6 dBV, 46.8 mV

RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 4-band EQ

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay

Microphone Channel: chorus, reverb and delay

Speakers:

10" coaxial, 34 " soft-dome tweeter, 8 ohm impedance

Dimension:

17.00 width x 18.00 height x 12.50 depth

(43.2 cm width x 45.7 cm height x 31.8 cm depth)

Weight:

37.5 lbs. (17 kg)

Ecoustic™ 110·112

Doubler	Wet/dry mix
Phaser	Rate increase
Chorus	Rate increase/depth decrease
Rotary Speaker	Rate increase

Interruptor Pre/Post EQ (39)

Tweak Adjustment Parameters

Doubler	Delay Time
Phaser	Depth
Chorus	Wet/Dry Mix
Rotary Speaker	Wet/Dry Mix

Note: If you initially experience a tremendous amount of feedback, first, try reversing the phase switch, changing your playing position in relationship to the amp or reducing the overall volume level. The Freq Out utilizes 8 filters, 4 of which lock down after locating and eliminating feedback. The remaining 4 filters roam continuously searching to reduce feedback problems as they occur. It is very important that the first 4 filters lock down on actual feedback problems. If you feel they have locked down because of the position of your instrument or microphone you may have to reset the Freq Out. To do this, simply power down the Ecoustic amplifier and wait 10 seconds before turning the amp back on. Then, repeat the procedure below.

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

100 W RMS into 4 ohm woofer

25 W RMS into 4 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 102 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 100 W RMS and 20 W RMS

Woofer: 0.01% THD @ 200 Hz

Tweeter: 0.1% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.1%

Power Consumption:

Domestic: 300 W @ 60 Hz; 120 VAC

Export: 300 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: o dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Master Volume set @ 10

Tweeter set @ 5

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Master volume @ 5; Tweeter @ 5; 10 Hz to 22 kHz unweighted)

Greater than 75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 k ohm, 106 mV RMS

Nominal Input Level: -119.5 dBV, 15 mV RMS

Minimum Input Level: -36.5 dBV, 15 mV RMS

Maximum Input Level: o dBV, 1 V RMS

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -23.3 dBV, 68 mV RMS

Minimum Input Level: -30 dBV, 31 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Microphone Input:

(High Z; unbalanced)

Impedance: High Z; 100 k ohm

Nominal Input Level: -33 dBV, 22 mV RMS

Minimum Input Level: -39.5 dBV, 10.6 mV RMS

Maximum Input Level: o dBV, 1 V RMS

Auxiliary Input:

Impedance: Greater than 22 k ohm

Nominal Input Level: -7 dBV, 442 mV RMS

Minimum Input Level: -24 dBV, 63 mV RMS

Maximum Input Level: o dBV, 1 V RMS

Equalization:

Special active 5-band EQ (Instrument &

Microphone Channels)

Active 2-band shelving type (Auxiliary

Channel only)

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Direct Output:

Electronically balanced

Nominal output level: -3 dBV, 0.7 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay Microphone Channel: chorus, reverb and delay

Speakers:

12" coaxial, 3/4 " soft-dome tweeter, 4 ohm impedance

Dimension:

20.25 width x 21.25 height x 14.25 depth

(51.5 cm width x 54 cm height x 36.2 cm depth)

Weight:

58.1 lbs. (26.4 kg)

Ecoustic 110

SPECIFICATIONS

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

30 W RMS into 8 ohm woofer

10 W RMS into 8 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 100 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 25 W RMS and 8 W RMS

Woofer: 0.2% THD @ 200 Hz

Tweeter: 0.5% THD @ 10 kHz

System: 20 Hz to 20kHz ; typical less than 0.5%

Power Consumption:

Domestic: 75 W @ 60 Hz; 120 VAC

Export: 75 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: o dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Both volumes @ 5; 22 Hz to 22 kHz unweighted)

75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 M ohm

Nominal Input Level: -12.3 dBV, 244 mV

Minimum Input Level: -30.8 dBV, 29 mV

Maximum Input Level: 0 dBV, 1 V

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -24 dBV, 63 mV RMS

Minimum Input Level: -16 dBV, 36 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Auxiliary Input:

(High Z, unbalanced)

Impedance: High Z, 100 k ohms

Nominal Input Level: -15 dBV, 178 mV RMS

Minimum Input Level: -26.6 dBV, 46.8 mV RMS

Maximum Input Level: o dBV, 1 V RMS

Equalization:

Special active 4-band EQ

Preamp Output:

Load Impedance: 1 k or greater

Output Level: o dBV, 1 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay

Microphone Channel: chorus, reverb and delay

Speakers:

10" coaxial, 34 " soft-dome tweeter, 8 ohm impedance

Dimension:

17.00 width x 18.00 height x 12.50 depth

(43.2 cm width x 45.7 cm height x 31.8 cm depth)

Weight:

37.5 lbs. (17 kg)

DEUTSCH

Ecoustic™ 110·112

Akustikversteller

Auxiliary Channel Low (4)

Auxiliary Channel High (5)

Auxiliary Input Level (7)

Line Out: Low Z (38)

Tweak Adjustment Parameters

Doubler	Delay Time
Phaser	Depth
Chorus	Wet/Dry Mix

Rotary Speaker

Wet/Dry Mix

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

100 W RMS into 4 ohm woofer

25 W RMS into 4 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 102 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 100 W RMS and 20 W RMS

Woofer: 0.01% THD @ 200 Hz

Tweeter: 0.1% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.1%

Power Consumption:

Domestic: 300 W @ 60 Hz; 120 VAC

Export: 300 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: 0 dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Master Volume set @ 10

Tweeter set @ 5

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Master volume @ 5; Tweeter @ 5; 10 Hz to 22 kHz unweighted)

Greater than 75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 k ohm, 106 mV RMS

Nominal Input Level: -119.5 dBV, 15 mV RMS

Minimum Input Level: -36.5 dBV, 15 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -23.3 dBV, 68 mV RMS

Minimum Input Level: -30 dBV, 31 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Microphone Input:

(High Z; unbalanced)

Impedance: High Z; 100 k ohm

Nominal Input Level: -33 dBV, 22 mV RMS

Minimum Input Level: -39.5 dBV, 10.6 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Auxiliary Input:

Impedance: Greater than 22 k ohm

Nominal Input Level: -7 dBV, 442 mV RMS

Minimum Input Level: -24 dBV, 63 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 5-band EQ (Instrument & Microphone Channels)

Active 2-band shelving type (Auxiliary

Channel only)

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Direct Output:

Electronically balanced

Nominal output level: -3 dBV, 0.7 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay Microphone Channel: chorus, reverb and delay

Speakers:

12" coaxial, 34 " soft-dome tweeter, 4 ohm impedance

Dimension:

20.25 width x 21.25 height x 14.25 depth

(51.5 cm width x 54 cm height x 36.2 cm depth)

Weight:

58.1 lbs. (26.4 kg)

Ecoustic 110

SPECIFICATIONS

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

30 W RMS into 8 ohm woofer

10 W RMS into 8 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 100 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 25 W RMS and 8 W RMS

Woofer: 0.2% THD @ 200 Hz

Tweeter: 0.5% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.5%

Power Consumption:

Domestic: 75 W @ 60 Hz; 120 VAC

Export: 75 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: o dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Both volumes @ 5; 22 Hz to 22 kHz unweighted)

75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 M ohm

Nominal Input Level: -12.3 dBV, 244 mV

Minimum Input Level: -30.8 dBV, 29 mV

Maximum Input Level: 0 dBV, 1 V

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -24 dBV, 63 mV RMS

Minimum Input Level: -16 dBV, 36 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Auxiliary Input:

(High Z, unbalanced)

Impedance: High Z, 100 k ohms

Nominal Input Level: -15 dBV, 178 mV RMS

Minimum Input Level: -26.6 dBV, 46.8 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 4-band EQ

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay Microphone Channel: chorus, reverb and delay

Speakers:

10" coaxial, 34 " soft-dome tweeter, 8 ohm impedance

Dimension:

17.00 width x 18.00 height x 12.50 depth (43.2 cm width x 45.7 cm height x 31.8 cm depth)

Weight:

37.5 lbs. (17 kg)

FRANÇAIS

Ecoustic™ 110·112

Auxiliary Channel Low (4)

Auxiliary Channel High (5)

Auxiliary Input Level (7)

Microphone Channel REV/DLY (8 & 21)

Instrument Channel REV/DLY (9 & 22)

Level (13, 17, 26 & 30)

High Z Input (15, 18, 27 & 31)

Ground Polarity Switch (33)

IEC connector/detachable line cord (34 & 40)

U.S. Domestic AC Mains Cord

Line Out: Low Z (38)

Pre/Post EQ Switch (39)

Mode Select (44) and Mode LED (45)

Tweak Adjustment Parameters

Doubler	Delay Time
Phaser	Depth
Chorus	Wet/Dry Mix
Rotary Speaker	Wet/Dry Mix

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

100 W RMS into 4 ohm woofer

25 W RMS into 4 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 102 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 100 W RMS and 20 W RMS

Woofer: 0.01% THD @ 200 Hz

Tweeter: 0.1% THD @ 10 kHz

System: 20 Hz to 20 kHz; typical less than 0.1%

Power Consumption:

Domestic: 300 W @ 60 Hz; 120 VAC

Export: 300 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: 0 dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Master Volume set @ 10

Tweeter set @ 5

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Master volume @ 5; Tweeter @ 5; 10 Hz to 22 kHz unweighted)

Greater than 75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 k ohm, 106 mV RMS

Nominal Input Level: -119.5 dBV, 15 mV RMS

Minimum Input Level: -36.5 dBV, 15 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -23.3 dBV, 68 mV RMS

Minimum Input Level: -30 dBV, 31 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Microphone Input:

(High Z; unbalanced)

Impedance: High Z; 100 k ohm

Nominal Input Level: -33 dBV, 22 mV RMS

Minimum Input Level: -39.5 dBV, 10.6 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Auxiliary Input:

Impedance: Greater than 22 k ohm

Nominal Input Level: -7 dBV, 442 mV RMS

Minimum Input Level: -24 dBV, 63 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 5-band EQ (Instrument & Microphone Channels)

Active 2-band shelving type (Auxiliary

Channel only)

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Direct Output:

Electronically balanced

Nominal output level: -3 dBV, 0.7 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay Microphone Channel: chorus, reverb and delay

Speakers:

12" coaxial, 34 " soft-dome tweeter, 4 ohm impedance

Dimension:

20.25 width x 21.25 height x 14.25 depth

(51.5 cm width x 54 cm height x 36.2 cm depth)

Weight:

58.1 lbs. (26.4 kg)

Ecoustic 110

SPECIFICATIONS

Power Amplifier Section

Rated Power:

(Measured @ 1 kHz, 120 VAC)

30 W RMS into 8 ohm woofer

10 W RMS into 8 ohm tweeter

Hum & Noise:

(Master volume @ 10, tweeteter @ 5; 22 Hz to 22 kHz unweighted)

Greater than 100 dB woofer below rated power

Greater than 85 dB tweeter below rated power

Distortion:

(Measured: THD 10 Hz to 300 kHz; Power @ 25 W RMS and 8 W RMS

Woofer: 0.2% THD @ 200 Hz

Tweeter: 0.5% THD @ 10 kHz

System: 20 Hz to 20kHz ; typical less than 0.5%

Power Consumption:

Domestic: 75 W @ 60 Hz; 120 VAC

Export: 75 W @ 50/60 Hz; 230 VAC

Power Amp Input:

Impedance: High-Z; 50 k ohms

Input Level: 0 dBV; 1 V RMS

Pre Amp Section:

All EQ sliders set @ o

All Effects Off

Nominal volume levels set @ 5

Minimum volume levels set @ 10

System Hum & Noise:

(Both volumes @ 5; 22 Hz to 22 kHz unweighted)

75 dB below rated power

Instrument Input:

Impedance: High Z; 2.2 M ohm

Nominal Input Level: -12.3 dBV, 244 mV

Minimum Input Level: -30.8 dBV, 29 mV

Maximum Input Level: o dBV, 1 V

Microphone Input:

(Low Z; electronically balanced)

Impedance: Low Z; 10 k ohm

Nominal Input Level: -24 dBV, 63 mV RMS

Minimum Input Level: -16 dBV, 36 mV RMS

Maximum Input Level: -6 dBV, 500 mV RMS

Auxiliary Input:

(High Z, unbalanced)

Impedance: High Z, 100 k ohms

Nominal Input Level: -15 dBV, 178 mV RMS

Minimum Input Level: -26.6 dBV, 46.8 mV

RMS

Maximum Input Level: 0 dBV, 1 V RMS

Equalization:

Special active 4-band EQ

Preamp Output:

Load Impedance: 1 k or greater

Output Level: 0 dBV, 1 V RMS

Effects:

Instrument Channel: doubler, phaser, chorus, rotary speaker, reverb and delay

Microphone Channel: chorus, reverb and delay

Speakers:

10" coaxial, 34 " soft-dome tweeter, 8 ohm impedance

Dimension:

17.00 width x 18.00 height x 12.50 depth

(43.2 cm width x 45.7 cm height x 31.8 cm depth)

Weight:

37.5 lbs. (17 kg)

NOTES:

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years * (+ 3 years)
Drums	2 years * (+ 1 year)
Enclosures	3 years * (+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year * (+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(a) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEHTHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301

[phone] • FAX [phone] • www.peavey.com

80304944
