| Product type | Guitar combo amplifier |
| Brand | PEAVEY |
| Model | DELTA BLUES |
| Output power | 30 W RMS into 16 or 8 ohms |
| Built-in speaker | 38 cm (15 inches) robust |
| Preamp | Tube |
| Equalizer | Vintage three-band (treble, mid, bass) |
| Channels | Lead and Normal, footswitchable |
| Reverb | With level control |
| Tremolo | Speed and intensity controls, footswitch defeat |
| Effects loop | Send and return |
| Boost | Boost switch |
| Cabinet | Tweed covered, chrome chassis |
| Guitar input | 6.35 mm jack, for guitar pickups |
| External speaker output | Jack, minimum load impedance 16 ohms |
| Power supply | Mains AC (voltage not specified, typical 120-240 V) |
| Dimensions (approx.) | 50 x 50 x 30 cm (estimated) |
| Weight (approx.) | 22 kg (estimated) |
| Safety | Do not open, risk of electric shock; do not expose to rain or moisture |
| Maintenance | Refer to qualified personnel, no user-serviceable parts |
Frequently Asked Questions - DELTA BLUES PEAVEY
User questions about DELTA BLUES PEAVEY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Guitar amplifier in PDF format for free! Find your manual DELTA BLUES - PEAVEY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DELTA BLUES by PEAVEY.
USER MANUAL DELTA BLUES PEAVEY
Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: Risk of electrical shock – DO NOT OPEN!
CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance, read the operating guide for further warnings.
The 15" speaker, borrowed from its big brother, the 50-watt Blues Classic ^49 , is specially voiced for rich, full range tone. It has both more low end and more high end than the 12" speaker in the Classic@ 30. The extra high end also makes for an exceptional sounding acoustic guitar amp – with a bluesy edge.
An obvious choice for an external speaker would be the Classic ^® 115E which uses the same speaker in a larger cabinet. This combination creates a huge sound that is more than capable of keeping up with a rhythm section in a small club.
FEATURES
-All-tube preamp and power amp
-30 W RMS into 16 or 8 ohms
-Tweed-covered cabinet with chrome chassis
-Lead and Normal channels: footswitchable
—3-band vintage EQ
-External speaker capability
-Reverb with level control
-Effects loop
-Boost switch
-Tremolo
—15" heavy-duty speaker


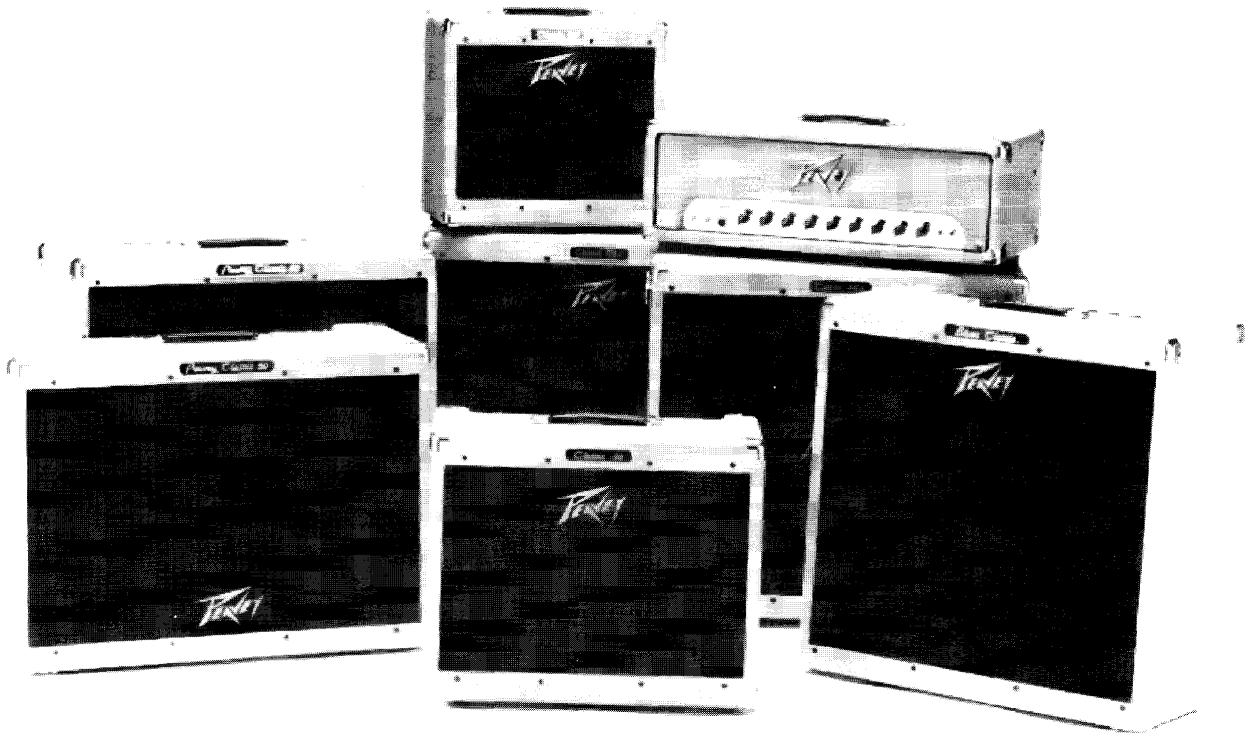

Black-and-white photo of multiple electronic devices with visible brand logos and printed text 'Ferry' on screens.Other products from the Peavey Classic@ Series. To hear more, visit your local Peavey dealer.


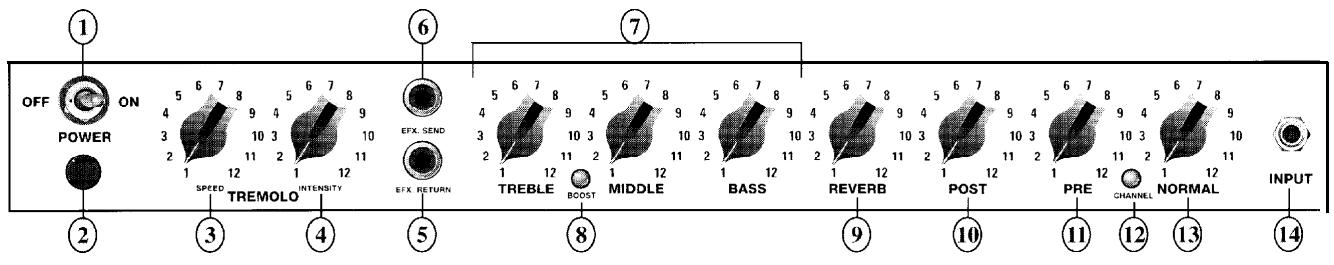

OFF ON POWER SPEED TREMOLO INTENSITY EFX SEND EFX RETURN TREBLE BOOST MIDDLE BASS REVERB POST PRE CHANNEL NORMAL INPUT ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 0POWER SWITCH (1)
Switch to “on” position to activate.
PILOT LIGHT LED (2)
Illuminates when AC power is being supplied to the unit.
TREMOLO SPEED (3)
The speed control determines the rate at which the signal is modulated. This control varies the speed of the Tremolo master oscillator and should provide any speed desired for modern music. Clockwise rotation of the speed control increases the speed of the modulation of the tremolo. The Tremolo feature is defeatable from a remote footswitch.
TREMOLO INTENSITY (4)
The intensity control is used to vary the amount of amplitude modulation of the clean signal. It can be adjusted from barely perceptible to dramatic modulation. Clockwise rotation of the intensity control increases the depth of the tremolo.
EFFECTS RETURN (5)
Input for returning signals from external effects or signal processing equipment.
EFFECTS SEND (6)
Output for supplying signal to external effects or signal processing equipment.
TREBLE, MIDDLE, AND BASS EQ (7)
Passive tone controls that regulate high, mid, and low frequencies, respectively.
BOOST SWITCH (8)
Boosts the overall system gain. Depress to the “in” position to activate.
REVERB (9)
Reverberation is an echo effect. Rotate clockwise to increase the effect.
POST GAIN (10)
Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired sound has been achieved.
PRE GAIN (11)
Controls the input volume level of the Lead channel.
CHANNEL SELECT SWITCH (12)
Allows selection of the Lead or Normal channel.
NOTE: Channel selection may also be achieved by the remote footswitch. If remote selection is desired, the channel switch must be in the “in” (Lead) position.
NORMAL GAIN (13)
Controls the volume level of the Normal channel.
INPUT (14)
The input jack will accept signals from all types of guitar pickups. Be sure to use a high-quality shielded cable to connect the guitar to the amplifier.


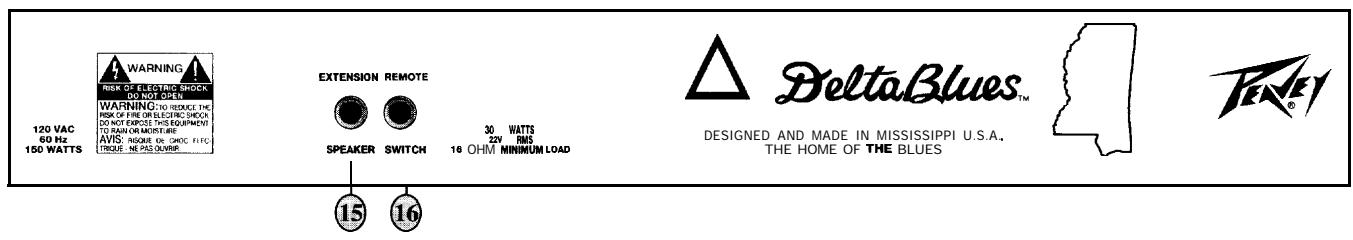

WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING TO REDECK THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSED THIS EQUIPMENT TO SIGN OR MOISTURE AVIS: FIGURE DR. CHOC FLET TRIKES: NE PASSWIRE 120 VAC 60 Hz 150 WATTS EXTENSION REMOTE SPEAKER SWITCH 30 WATTS 22V RMS 16 OHM MINIMUM LOAD DELTABlues™ DESIGNED AND MADE IN MISSISSIPPI U.S.A. THE HOME OF THE BLUES TENAYOEXTERNAL SPEAKER JACK (15)
A Provided for the connection of external speaker cabinet. Minimum total impedance is 16 ohms.
REMOTE SWITCH JACK (16)
Provided for the connection of the optional remote footswitch. The footswitch is used to select the Lead or Normal channels and defeat tremolo. When using the remote footswitch, always insert the plug fully (second click) to ensure proper operation.
SPECIFICATIONS
POWER AMPLIFIER SECTION
4 -6BQ5/EL84's with 12AX7 driver
Rated Power & Load:
30 W RMS into 16 or 8 ohms
Power @ Clipping: (Typically)
(5% THD, 1kHz, 120 V AC line) 30 W RMS into 16 or 8 ohms (Bias must be reduced to measure)
Frequency Response:
+0, -2 dB, 50 Hz to 15 kHz, @ 20 W RMS into 16 ohms
Hum & Noise:
Greater than 80 dB below rated power
Power Consumption:
150 watts, 50/60 Hz, 120 V AC (Domestic)
PREAMP SECTION
2 -12AX7's
The following specs are measured @ 1 kHz with the controls preset as follows:
Pre & Post (lead) @ 0
Reverb Level @ 0
Bass & Treble EQ @ 12
Middle EQ @ 0
Channel Select Out
Boost Switch Out
Nominal level is with Input Gain @ 6
Minimum level is with Input Gain @ 12
Preamp Normal Input:
Impedance: Very high Z, 470 K ohms
Lead Channel:
(Post Gain @ 12)
Nominal Input Level: -40 dBV, 10 mV RMS Minimum Input Level: -70 dBV, 0.3 mV RMS
Normal Channel:
Nominal Input Level: - 17 dBV, 140 mV RMS
Minimum Input Level: -28 dBV, 40 mV RMS
Maximum Input Level: 0 dBV, 1.0 V RMS
Equalization:
(Lead & Normal Channels)
Custom bass, middle & treble passive type EQ
Effects Send:
Load Impedance: 1 K ohm or greater Nominal Output Level: -6 dBV, 0.5 V RMS
Effects Return:
Impedance: High Z, 2 M ohms Designed Input Level: -6 dBV, 0.5 V RMS (Switching jack provides Effects Send to Effects Return connection when not used)
External Footswitch Function:
Normal/Lead Channel Select (when Lead activated) Tremolo Defeat

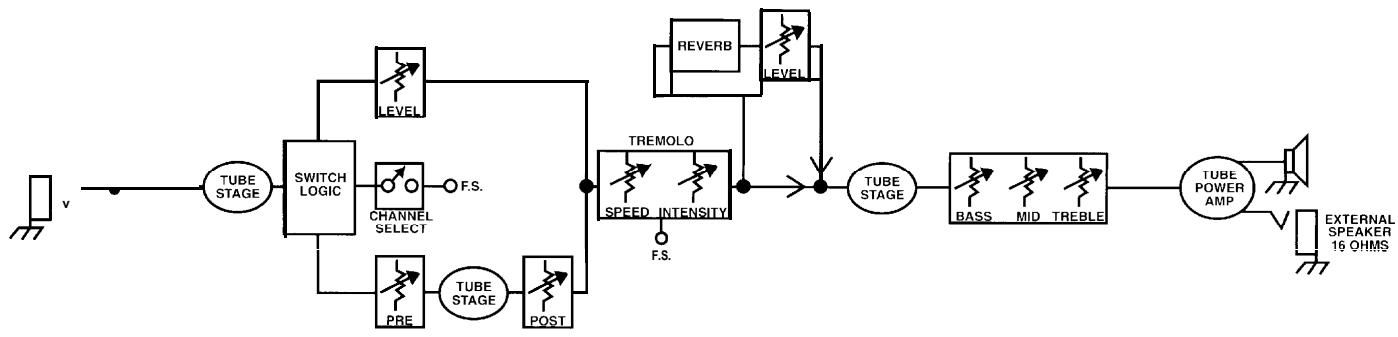

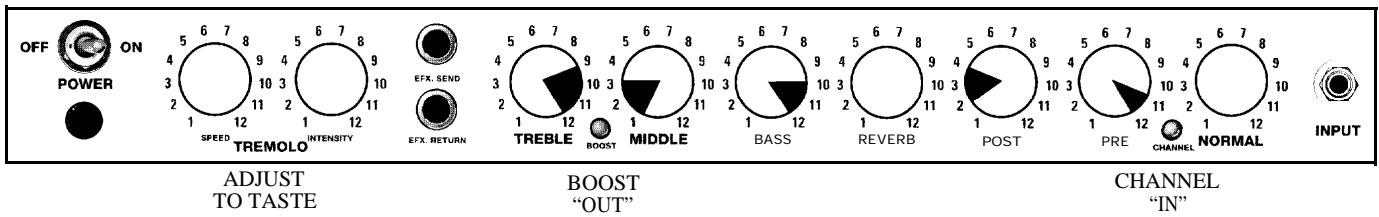

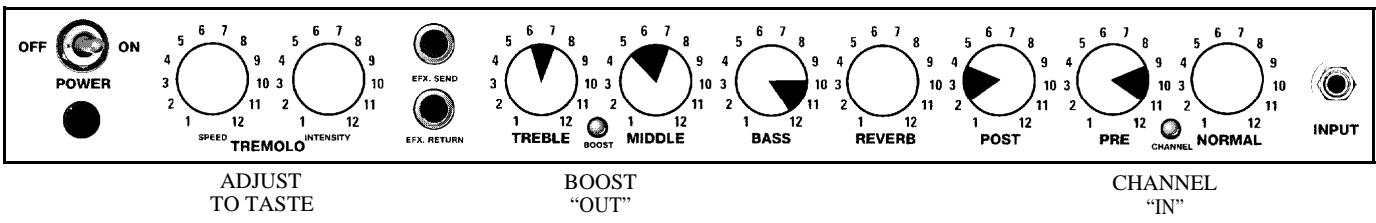

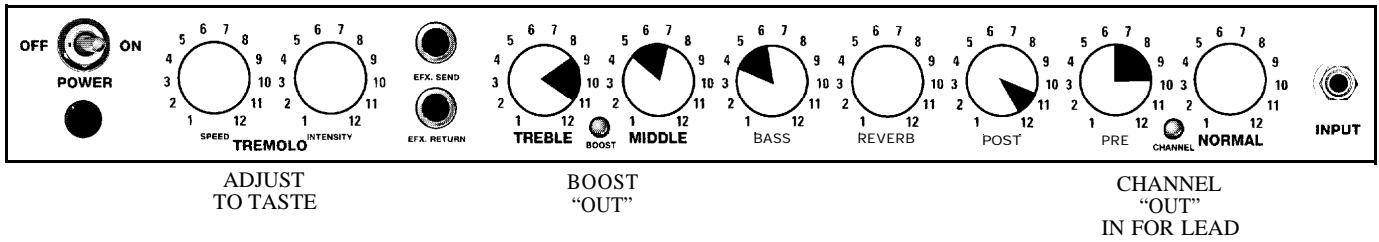

TONE SETTINGS
ROCK
REVERB (Reverberation) (9)
TREBLE, MIDDLE, AND BASS EQ (7)
PEAVEY ELECTRONICS CORPORATION (“PEAVEY”) warrants this product, EXCEPT for covers, footswitches, patchcords, tubes and meters, to be free from defects in material and workmanship for a period of one (1) year from date of purchase, PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is subject to the conditions, exclusions, and limitations hereinafter set forth:
PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS
If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth.
CONDITIONS, EXCLUSIONS, AND LIMITATIONS OF LIMITED WARRANTIES
These limited warranties shall be void and of no effect, if:
a. The first purchase of the product is for the purpose of resale; or
b. The original retail purchase is not made from an AUTHORIZED PEAVEY DEALER; or
c. The product has been damaged by accident or unreasonable use, neglect, improper service or maintenance, or other causes not arising out of defects in material or workmanship; or
d. The serial number affixed to the product is altered, defaced, or removed.
In the event of a defect in material and/or workmanship covered by this limited warranty, Peavey will:
a. In the case of tubes or meters, replace the defective component without charge.
b. In other covered cases (i.e., cases involving anything other than covers, footswitches, patchcords, tubes or meters), repair the defect in material or workmanship or replace the product, at Peavey's option; and provided, however, that, in any case, all costs of shipping, if necessary, are paid by you, the purchaser.
THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED AND MAILED TO AND RECEIVED BY PEAVEY WITHIN FOURTEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE.
In order to obtain service under these warranties, you must:
a. Bring the defective item to any PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER and present therewith the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZED PEAVEY DEALER in connection with your purchase from him of this product. If the DEALER or SERVICE CENTER is unable to provide the necessary warranty service you will be directed to the nearest other PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CFNTER which can provide such service.
OR
b. Ship the defective item, prepaid, to:
PEAVEY ELECTRONICS CORPORATION
International Service Center
326 Hwy. 11 & 80 East
MERIDIAN, MS 39301
including therewith a complete, detailed description of the problem, together with a legible copy of the original PROOF OF PURCHASE and a complete return address. Upon Peavey's receipt of these items:
If the defect is remedial under these limited warranties and the other terms and conditions expressed herein have been complied with, Peavey will provide the necessary warranty service to repair or replace the product and will return it, FREIGHT COLLECT, to you, the purchaser.
Peavey's liability to the purchaser for damages from any cause whatsoever and regardless of the form of action, including negligence, is limited to the actual damages up to the greater of \$500.00 or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause of action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability will not apply to claims for personal injury or damage to real property or tangible personal property allegedly caused by Peavey's negligence. Peavey does not assume liability for personal injury or property damage arising out of or caused by a non-Peavey alteration or attachment, nor does Peavey assume any responsibility for damage to interconnected non-Peavey equipment that may result from the normal functioning and maintenance of the Peavey equipment.
UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES, OR ANY CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESSED, LIMITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IMPLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR OR NINETY-DAY PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT.
SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU THESE LIMITED WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE
THESE LIMITED WARRANTIES ARE THE ONLY EXPRESSED WARRANTIES ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY, OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY
In the event of any modification or disclaimer of expressed or implied warranties, or any limitation of remedies, contained herein conflicts with applicable law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law.
Your remedies for breach of these warranties are limited to those remedies provided herein and Peavey Electronics Corporation gives this limited warranty only with respect to equipment purchased in the United States of America.
INSTRUCTIONS — WARRANTY REGISTRATION CARD
- Mail the completed WARRANTY REGISTRATION CARD to
PEAVEY ELECTRONICS CORPORATION
a. Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document There will be no identification card issued by Peavey Electronics Corporation.
- IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESSES:
a. Completion and mailing of WARRANTY REGISTRATION CARDS — Should notification become necessary for any condition that may require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified. b. Notice of address changes – If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notify Peavey of the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become necessary in connection with any condition that may require dissemination of information or correction.
- You may contact Peavey directly by telephoning (601) 483-5365.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electric products, basic cautions should always be followed, including the following.
- Read all safety and operating instructions before using this product.
- All safety and operating instructions should be retained for future reference.
- Obey all cautions in the operating instructions and on the back of the unit.
- All operating instructions should be followed.
- This product should not be used near water, i.e., a bathtub, sink, swimming pool, wet basement, etc.
- This product should be located so that its position does not interfere with its proper ventilation. It should not be placed flat against a wall or placed in a built-in enclosure that will impede the flow of cooling air.
- This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.
- Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
- Never break off the ground pin on the power supply cord. For more information on grounding, write for our free booklet “Shock Hazard and Grounding.”
- Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords. Periodically check cords for cuts or signs of stress, especially at the plug and the point where the cord exits the unit.
- The power supply cord should be unplugged when the unit is to be unused for long periods of time.
- If this product is to be mounted in an equipment rack, rear support should be provided.
- Metal parts can be cleaned with a damp rag. The viny1 covering used on some units can be cleaned with a damp rag or an ammonia-based household cleaner if necessary. Disconnect unit from power supply before cleaning.
-
Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation holes or any other openings.
-
This unit should be checked by a qualified service technician if:
a. The power supply cord or plug has been damaged.
b. Anything has fallen or been spilled into the unit.
c. The unit does not operate correctly.
d. The unit has been dropped or the enclosure damaged.
-
The user should not attempt to service this equipment. All service work should be done by a qualified service technician.
-
This product should be used only with a cart or stand that is recommended by Peavey Electronics.
-
Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures.
| Duration Per Day In Hours | Sound Level dBA, Slow Response |
| 8 | 90 |
| 6 | 92 |
| 4 | 95 |
| 3 | 97 |
| 2 | 100 |
| 1 1/2 | 102 |
| 1 | 105 |
| 1/2 | 110 |
| 1/4 or less | 115 |
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.
Ear plugs or protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.
SAVE THESE INSTRUCTIONS!
Features and specifications subject to change without notice.
