USER MANUAL BFS-840 FRANKLIN

YOUR USE OF THE BOOKMAN ELECTRONIC BOOK DEEMS THAT YOU ACCEPT THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE WITH THESE TERMS, YOU MAY RETURN THIS PACKAGE WITH PURCHASE RECEIPT TO THE DEALER FROM WHICH YOU PURCHASED THE BOOKMAN ELECTRONIC BOOK AND YOUR PURCHASE PRICE WILL BE REFUNDED. BOOKMAN ELECTRONIC BOOK means the software product, hardware, and documentation found in this package and FRANKLIN means Franklin Electronic Publishers, Inc.

LIMITED USE LICENSE

All rights in the BOOKMAN ELECTRONIC BOOK remain the property of FRANKLIN. Through your purchase, FRANKLIN grants you a personal and nonexclusive license to use the BOOKMAN ELECTRONIC BOOK on a single FRANKLIN BOOKMAN at a time. You may not make any copies of the BOOKMAN ELECTRONIC BOOK or of the preprogrammed data stored therein, whether in electronic or print format. Such copying would be in violation of applicable copyright laws. Further, you may not modify, adapt, disassemble, decompile, translate, create derivative works of, or in any way reverse engineer the BOOKMAN ELECTRONIC BOOK. You may not export or reexport, directly or indirectly, the BOOKMAN ELECTRONIC BOOK without compliance with appropriate governmental regulations. The BOOKMAN ELECTRONIC BOOK contains Franklin's confidential and proprietary information which you agree to take adequate steps to protect from unauthorized disclosure or use. This license is effective until terminated. This license terminates immediately without notice from FRANKLIN if you fail to comply with any provision of this license.

Contents

Welcome to the world of BOOKMAN! BOOKMAN is a powerful, portable electronic reference with a built-in book and a slot in the back for more books. With this French Professor, you can now translate and define more than 250,000 words, cor

rect misspellings of both French and English words, view noun, adjective, and verb inflections, and save words to a Personal word list for a more enjoyable way to learn. To learn how to use other books, read their User's Guides.

Installing Batteries & Book Cards 4
Selecting Books & Using the Color Keys 5
Changing the Language 6
Viewing a Demonstration 7
Translating English Words 7
Translating French Words 8
Highlighting a Word 9
Hearing an English Word 9
Learning Inflections 10
Finding a Letter 11
Finding a Prefix 11
Correcting Misspellings 12
Using your Personal List 12
Sending a Word 14
Changing Game Settings 14
Playing the Games 15

Function Keys

EFFAC Clears to the Ready screen.
Menu Shows Additional Functions menu.
CONJ (red) Show inflections of a word.
(LANG) (green) Switches between English and French entry languages.
JEUX (yellow) Shows the games list.
( blue) Says an English word.
CARTE Exits the selected book.
ON/OFF Turns BOOKMAN on or off.

> Understanding the Color Keys

The color keys (red, green, yellow, and blue) perform the functions listed above only for the BOOKMAN book described in this User's Guide.

Other books have their own color key functions, which are labelled on their book cards and listed in their User's Guides. For more information, read "Using the Color Keys."

Other Keys

ARR Backs up, erases letters, or stops a highlight.
MAJ Shifts keys to type punctuation.
ENTRER Enters a search, selects a menu item, or starts a highlight.
AIDE Shows help messages.
ESPACE Types a space or pages down in text.
? Types a ? to stand for an unknown letter in a word; shifted, types an * to stand for a series of unknown letters.

Direction Keys

Move in indicated direction.

Star Key Combinations*

+ Sends a word between books.
☆ + BAs Shows the next word or inflection group.
☆ + HT Shows the previous word or inflection group.
空 + Shows the personal word list.

*Hold while pressing the other key.

Installing Batteries

BOOKMAN model 840 uses four AAA batteries. Here is how to install or replace them.

Warning: When the batteries lose power or are removed from BOOKMAN, information that you entered in its built-in book, and in an installed book card, will be erased.

1. Turn BOOKMAN over.
2. Slide off its battery cover in the direction of the triangle.
3. Install the batteries with their positive sides facing you.
4. Replace the battery cover.

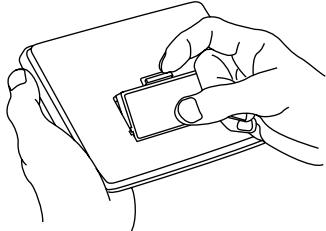

Installing Book Cards

1. Turn your BOOKMAN off.
2. Turn your BOOKMAN over.
3. Align the tabs on the book card with the notches in the slot.

1. Press the book card down until it snaps into place.

Resuming Where You Left Off

You can turn off BOOKMAN at any screen. When you turn BOOKMAN on again, the screen that you last viewed appears.

>Removing Book Cards

Warning: Never install or remove a book card while your BOOKMAN is on. Any information that was entered in the built-in book or book card will be erased.

Selecting Books

Once you have installed a book card in your BOOKMAN, you must select which book you want to use.

1. Turn BOOKMAN on.

2. Press (CARTE).

These are sample books.

3. Press or to highlight the book you want to use.

4. Press ENTER to select it.

> About Screen Illustrations

Some screen illustrations in this User's Guide may differ from what you see on the actual screen. This does not mean that your BOOK-MAN is malfunctioning.

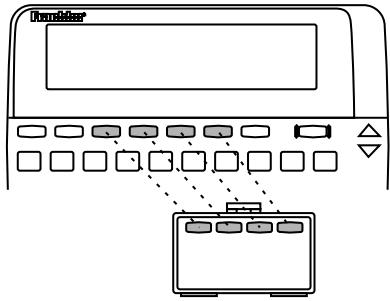

Using the Color Keys

On the top row of your BOOKMAN the red, green, yellow, and blue colour keys change functions according to the book card you select.

If you are using the built-in book, the colour keys function as labeled on the BOOKMAN keyboard. If you select a book card, the colour keys function as labeled on that book card.

Remember, when you select a book card, the colour keys function as labeled on that book card, not the keyboard.

Changing the Message Language

Changing the Message Language

Message Language

When you turn on this product for the first time, you must choose the message language. The message language is the language of prompts, help, and other messages. You can change the message language after your initial decision.

NOTE: The examples in the English half of this manual use English as the message language.

1. Press (MENU) if you are not at the Message Language screen.
2. Press A to select the Message Language screen.
3. Press B to select English as the message language; press A to select French.

if you speak English.

Entry Language

The entry language is the language in which you enter words at ready screens. This determines which dictionary you will use, French or English.

1. If not at the Ready screen, press EFFAC.
2. Press LANG to switch between dictionaries.

Ready for an English word

Ready for a French word

> Changing the Contrast

If you want to change the screen contrast, repeatedly press or at the blank ready screen.

Viewing a Demonstration

When no book cartridge is installed in your BOOKMAN, a demonstration automatically appears after you select this book. To stop the demo, press EFAC. To disable it, press MENU and then select Disable Demo. To re-enable it, select Enable Demo.

When a book cartridge is installed, select View Demo from the menu to view the demo.

>Help is Always at Hand

You can view a help message at virtually any screen by pressing AIDE. Press the direction keys to read it. To exit help, press ARR.

To read a tutorial of how to use the main functions and keys of this book, select Tutorial from the Additional Functions menu.

> Follow the Arrows

The flashing arrows on the right of the screen show which arrow keys you can press to move around menus or view more text.

Translating English Words

With the French Professor you are able to translate English words to French simply by typing English words.

1. Press EFAC.
2. Press LANG to change the entry language to English, if needed.
3. Type a word (e.g., cat). To erase a letter press ARR.
4. Press ENTIRE.

chat noun chat

1. Press when finished.

>Explanation of Genders

French nouns are different than English nouns in that they must either be masculine or feminine. The means that the word listed (e.g., chat) is masculine. Likewise an would show the word to be feminine.

> Understanding Definitions

When you find a definition, you may see that there are several different meanings for your word. Here is an example.

1. Type man.
2. Press (ENTER).

main noun
homme
[CHESS] piece

This screen shows that "homme" is the most common use of the word.

The capitalized words found in brackets indicate there's another category that this word could be used with. For example, if you are talking about a chess man, you would use the word "piece" instead of "homme".

Translating French Words

Your French Professor is fully bilingual. Try translating a French word.

1. Press LANG to change the Entry language from English to French, if needed.
2. Type a word (e.g., poisson).

If you need to type an accent: type the letter (e.g., e) and press repeatedly until the accent you want appears.

1. Press (ENTRER).

In addition to "poisson", the French Professor translates words with similar meanings such as "les Poissons", which means the astrological sign Pisces. To view more press .

poisson masculine noun: fish (inv) les Poisson:

1. Press when done.

Highlighting a Word

You can look up most words by highlighting them within dictionary definitions. You can then find their definitions, translations, and synonyms. NOTE: By searching for a highlighted word, the entry language changes to the language of the word for which you searched.

1. At any text, press ENTER to start the highlight.

mow: cheval m horseback noun:--

You can turn the highlight off by pressing ARR

1. Use the arrow keys to highlight a word.

horse noun:
dive
horseback noun: --

1. Do one of the following: To... Pres

define the word ENTRER view inflections CONJ hear an English word PARLE

Hearing an English Word

You can hear any English word pronounced at the Ready screen, in text, or in a list. NOTE: You can only hear words if you have a speaking BOOKMAN unit.

Hearing Words from the Ready Menu

1. Type a word at the Ready screen.

2. Press PARLE
   Hearing Words in Text

3. Go to a definition.

4. Press PARLE.

The headword is pronounced.

1. Press ENTER to start the highlight.
2. Use the arrow keys to highlight a word.
3. Press PARLE. The highlighted word is pronounced.

Hearing Words in a List

1. Go to your User's or Path list.
2. Press or to highlight a word on the list.
3. Press PARLE to hear the word.

Learning Inflections

Inflections show changes in a word's meaning or function. This dictionary includes extensive inflections of nouns, verbs, modifiers, and other words.

1. Press LANG to switch to the French ready screen.
2. Type a French word (e.g., écrire).
3. Press CONJ.

1. Highlight the desired word form, and press (ENTRER).

Jecris today) Jecirai (tomorrow) Jecivials earlier

1. Use the direction keys to read.
2. Press either CONJ or hold and press BAS repeatedly to view more inflections.

If the word is a noun, an adjective, or another modifier, then there won't be any other inflections.
6. Press (EFFAC) when done.

Learning Inflections

Getting Grammar Guidance

When viewing inflections, you can press AIDE to view detailed descriptions of how to use inflections, with usage examples.

Viewing English Inflections

If you are unfamiliar with inflections, it may be helpful to look at some inflected forms of English verbs. Switch the entry language back to English, type be, and press CONJ to see the different forms of the English verb "to be". This will give you a good idea of each inflection form.

>Verb Inflection Forms

Your French Professor has the following verb forms: present indicative, imperfect indicative, past definite, future, conditional, present subjunctive, imperfect subjunctive, perfect indicative, pluperfect indicative, preterite anterior, future perfect, conditional perfect, perfect subjunctive, pluperfect subjunctive, imperative, and the present participle.

Finding a Letter

If you are uncertain how to spell a word, type a question mark in place of each unknown letter. You can use more than one question mark per word; however, you will get a longer list of matches.

1. Type a word with ?'s (e.g., port?).

Ready for a French word port?

1. Press (ENTRER).

2012 PORT TO PORT'S

1. Highlight a match.
2. Press ENTER to see the word's translation.

> Deeper Correction

If you select Deeper correction from a correction list, you will get a longer list of more detailed corrections than the previous list.

Finding a Prefix

To find prefixes type an asterisk in a word. Asterisks stand for a series of letters.

1. Type a word ending with an * (e.g., armo*).

Ready for a French word arMo*

To type an asterisk, hold MAJ and press ?

1. Press ENTRER

armoires armoires

1. Highlight a match.
2. Press ENTIRER to see the word's translation.
3. Press when done.

Correcting Misspellings

If you misspell a word in either language, the French Professor shows you a list of suggestions from which to choose in the selected language.

1. Type a misspelled word (e.g., mein).

To erase a letter, press ARR.

1. Press (ENTER).

1. Use the arrow keys to highlight a correction.
2. Press ENTRER to select the word.
3. Press when done.

Using Your Personal List

Adding Words

You can save up to 80 words total, for both English and French, in your Personal word list for personal study or review. The Personal word list is saved between sessions unless the batteries run out of power or your BOOKMAN is reset.

1. Press (MENU).
2. Select D: Personal Word List.
3. Select N: Add new word, or press

1. Type a word in the current entry language.

1. Press ENTRIER to add the word.
2. Add another word if desired.
3. Press (EFAC) when done.

> Adding Entered Words

You can also add words to your Personal word list directly from the ready screen. Type the word you want to add to your word list. Press MENU and select Word List, to go to the Personal list menu. Press A to add the word. Then press EFFAC to return to the ready screen.

> Adding Highlighted Words

You can also add words to your personal word lists from definitions, and correction lists. First highlight a word. Then press (MEN) and select Word List. The word you highlighted will show up as it did when you added an entered word.

Personal Word List Shortcut

An easier way to access your Personal word list is to hold l and press L. This will take you directly to the Word list menu.

Viewing Your List

1. Press (MENU), and then press D.
2. Press LANG to change the entry language, if needed.
3. Press to view the list.
4. Highlight a word on the list.
5. Press ENTRE to view its definition(s) or CONJ to view its inflections.

Deleting a Word

1. Press (MENU), and then press D.
2. Press to view the list.
3. Highlight the word you want to delete.
4. Press R to remove that word.

Erasing Your List

1. Press (MENU), and then press D.
2. Press to view the list.
3. Press to erase the list.
4. Press for yes.

Sending a Word

This BOOKMAN dictionary can send words to and receive words from certain other BOOKMAN books.

To send a word, you must first install a cartridge in your BOOKMAN, and that cartridge must be able to send or receive words. To learn if a cartridge can send or receive words, read its User's Guide.

1. Highlight a word in this book.

chess noun:
echees (mpi)
CHEEESING NOUN:

To highlight a word in a list, press the arrow keys. To highlight a word in text, press ENTER and then use the arrow keys.

2.Hold 品 and press CARTE.
3. Highlight the other book.
4. Press ENTER

The word that you highlighted appears in the other book.

1. Press ENTER to look up the word.

Changing Game Settings

You can change the game settings at any time. Each setting applies to all of the games.

1. Press JEUX.
2. Press (ENTRER) or press A to adjust the settings.

Language: English
Word List: Main
Difficulty: Beginner

1. Use the arrow keys to highlight an option.
2. Press to change settings.

> Understanding Settings

Language: Select the language with which you wish to play the games.

Word list: Select which word list to use in the games (Main or Personal list).

Difficulty: Select the level of difficulty: Beginner, Intermediate, Advanced, TOEFL, and Expert. TOEFL means the difficulty equals that of the Test of English as a Foreign Language.

Inflected forms: Choose whether or not to use inflections among your game words.

Now that you have selected the settings for the games, let's play them.

1. Press JEUX.
2. Highlight a game using the arrow keys.

HDCUS: settings

B Hangman

C:Word Blaster

You can also select a game by typing the letter in front of its name.

1. Press ENI RER to select it.
2. Press ESPACE to play another round.

> Selecting Game Difficulty

When you select either Hangman or Word Auction™, you then must choose certain options for those games. In Hangman, you must use the direction keys to choose the number of guesses allowed. In Word Auction you must use the direction keys to determine how much your bankroll will be. These options make the games more or less difficult according to the setting. The default options are at an intermediate skill level.

Hangman

Hangman challenges you to guess a mystery word, indicated by ?s, one letter at a time. As you type letters, the correct letters appear in place of the question marks, your incorrect letters appear below, and guesses remaining appear to the right. You must guess the word before you run out of tries and your man hangs.

Word Blaster

In Word Blaster you try to guess the mystery word before all its letters appear. As soon as you know the word, press ENTER. Then type your guess and press ENTER. If you're wrong, Word Blaster asks you for another word. The speed at which the letters appear is set by the skill level.

Word Auction

In Word Auction, you try to bid for all the letters of a mystery word, before your cash runs out. The amount of each bid depends on the frequency of the letter. All bids will cost you whether correct or incorrect. If you guess the word, your remaining cash is added to the next round.

Word Train

All aboard the Word Train spelling game! You and the train take turns typing letters to form a word. Whoever types the last letter wins.

▶ Flashcards

Flashcards flashes words for you to define or study. To view the definition of the word, press ENTRER. Press ARR to return to Flashcards, and then press to try another word.

NOTE: These next two games test your knowledge of French words only.

Gender Tutor

Gender Tutor asks you to guess the gender of French nouns. Press M for masculine and F for feminine. Your score is shown in the top right corner of the screen.

Conjumania!

Conjumania! teaches verb conjugations. It shows you an infinitive French verb and asks you to enter a conjugation. Your conjugation must be spelled correctly, including accents. To try a new conjugation press ESPACE

>Help in Games

Press AIDE while you're in a game if you need help. It will explain the game you are playing. To exit AIDE, press ARR.

> Game Options

After you finish a round, you can do the following:

To...	Press...
Play another round	ESPACE
View the word's definition	ENTRER
Play a different game	ARR
Go to the ready screen	EFFAC

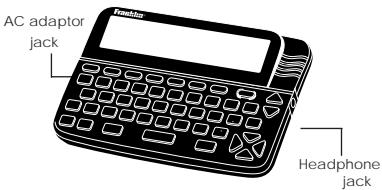

AC adaptor jack: Your BOOKMAN may be equipped with a standard 3.5 mm jack for use with a 9-volt, 200-300 milliamp AC/DC adaptor.

This symbol indicates that the inner core of the plug of an AC adaptor is negative and that the outer part of the plug is positive. If your AC/DC adaptor does not have this symbol, confirm its compatibility at its place of purchase.

Headphone jack: Your BOOKMAN may also have a 3.5 mm stereo headphone jack for use with a standard impedance 8 Ohm headset.

• Do not touch the metal contacts on the cartridges.

Caution: Touching these electrical contacts with statically charged objects, including your fingers, could erase information entered in a cartridge or built-in book.

• Do not put excessive pressure on the cartridges.

• Do not expose the cartridges to heat, cold, or liquids.

If the BOOKMAN keyboard fails to respond, or if its screen performs erratically, first press EFFAC and then press ON/OFF twice. If nothing happens, follow the steps below to reset it.

Warning: Pressing the reset button with more than very light pressure may permanently disable your BOOKMAN. In addition, resetting BOOKMAN erases settings and information entered into its built-in book, and in an installed cartridge.

1. Hold EFAC and press ON/OFF.

If nothing happens, try Step 2.

1. Use a paper clip to gently press BOOKMAN's reset button.

The reset button is recessed in a pinsized hole on the back of BOOKMAN. Look for it on the battery cover or near the cartridge slot.

Troubleshooting BOOKMAN

• Make sure your cartridge, if any, is installed correctly.
• Check that the cartridge's metal contacts are dirt-and dust-free.

FRANKLIN warrants to you that the BOOKMAN PRODUCT will be free from defects in materials and workmanship for one year from purchase. In the case of such a defect in your BOOKMAN PRODUCT, FRANKLIN will repair or replace it without charge on return, with purchase receipt, to the dealer from which you made your purchase or Franklin Electronic Publishers, Inc., One Franklin Plaza, Bulington, NJ 08016-4907, within one year of purchase. Alternatively, FRANKLIN may, at its option, refund your purchase price.

Data contained in the BOOKMAN PRODUCT may be provided under license to FRANKLIN. FRANKLIN makes no warranty with respect to the accuracy of data in the BOOKMAN PRODUCT. No warranty is made that the BOOKMAN PRODUCT will run uninterrupted or error free. You assume all risk of any damage or loss from your use of the BOOKMAN PRODUCT.

This warranty does not apply if, in the sole discretion of FRANKLIN, the BOOKMAN PRODUCT has been tampered with, damaged by accident, abused, misused, or misapplication, or as a result of service or modification by any party, including any dealer, other than FRANKLIN. This warranty applies only to products manufactured by or for FRANKLIN. Batteries, corrosion, or battery contacts and any damage caused by batteries are not covered by this warranty. NO FRANKLIN DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY ADDITIONAL WARRANTY IN THIS REGARD OR TO MAKE ANY MODIFICATION OR EXTENSION OF THIS EXPRESS WARRANTY. THE FOREIGNING WARRANTY IS EXCLUSIVE AND IS IN LIUE OF ALL OTHER EXPRESS OR IMPLIED WARRANTY, WRITTEN OR ORAL, INCLUDING, BUT NOT LIMITED TO, WARRANTYES OF MERCHANTIBILITY OR FITNESS FOR A PARTICULAR PURPOSE. YOUR SOLE AND EXCLUSIVE REMEDY SHALL BE FRANKLIN'S OBLIGATION TO REPLACE OR REFUND AS SET FORTH ABOVE IN THIS WARRANTY. Some States do not allow the exclusion of implied warranties, or limitations on how long a warranty lasts. This warranty gives you specific rights; you may also have additional rights which vary from State to State. This warranty shall not be applicable to the extent that enforcement of any provision may be prohibited by applicable law.

FRANKLIN SHALL IN NO EVENT BE LIABLE TO YOU OR TO ANY OTHER PERSON FOR ANY SPECIAL, INCIDENTAL, OR CONSEJCTUAL DAMAGES, OR ANY OTHER INDIRECT LOSS OR DAMAGE, ARISING OUT OF YOUR PURCHASE, THE MANUFACTURE OR SALE OF THE BOOKMAN PRODUCT, THIS LICENSE, OR ANY OBLIGATION RESULTING THEREFROM OR THE USE OR PERFORMANCE OF THE BOOKMAN PRODUCT UNDER ANY LEGAL THEORY, WHETHER BREACH OF CONTRACT, TORT, STRICT LIABILITY OR ANY OTHER CAUSE OF ACTION OR PROCEEDING, WHICH ARE NOT EXCEPTED FROM THE INTENTION OF PROFITS, DAMAGES TO PROPERTY, OR PERSONAL INJURY (BUT ONLY TO THE EXTENT PERMITTED BY LAW). FRANKLIN'S ENTIRE LIABILITY FOR ANY CLAIM OR LOSS, DAMAGE, OR EXPENSE FROM ANY SUCH CAUSE SHALL IN NO EVENT EXCEED THE PRICE PAID FOR THE BOOKMAN PRODUCT. THIS CLAUSE SHALL SURVIVE FAILURE OF AN EXCLUSIVE REMDEY. This license and warranty is governed by the laws of the United States and the State of New Jersey.

Model: BFS-840

• batteries: 4 AAA (not included)
  size: 14 × 10.2 × 2.5 cm
• weight: 7 oz. (without batteries)

© 1994-1998 Franklin Electronic Publishers, Inc., Burlington, NJ 08016-4907 USA. All rights reserved.
© 1989 William Collins Sons & Co., Ltd. All rights reserved.
© 1993 First Byte. All rights reserved.

FCC Notice: Complies with the limits for a Class B computing device pursuant to Subpart B of part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.

This unit may change operating modes due to Electro-static Discharge. Normal operation of this unit can be re-established by pressing ON/OFF, or by removing/replacing batteries.

U.S. Patents 4,406,626; 4,490,811; 4,830,618; 4,891,775; 4,982,181; 5,007,019; 5,113,340; 5,153,831; 5,203,705; 5,218,536; 5,229,936; 5,249,965; 5,295,070; 5,321,609; 5,333,313; 5,396,606 European Patent 0 136 379. Pat. Pend.

Franklin®

Electronic Publishers
