USER MANUAL BABYCENTER PLUS HAUCK

IMPORTANT - KEEP IT FOR LATER READING

1. Never leave your child unattended.
2. To avoid danger of suffocation, you have to remove the plastic cover before use. Please dispose the plastic cover and keep it away from little children.
3. Make sure before use, that all locks are closed.
4. The bed is ready for use when the fix mechanism of the folding system is locked.
5. Keep the bed away from: fans, heat sources, sharp objects or corners, water containers or window blind. So you can avoid injury.
6. Do not let anything in the bed with which the child can stand up.
7. Do not let anything in the bed, which can cause strangulation hazard.
8. Should you use an additional mattress, make sure, that the height (from mattress surface to the upper edge of the bed) is at least 500~mm .

This product corresponds to the norm DIN EN 716-1: 1995-12, 716-2: 1995-8

Please use only original hauck accessories and original hauck spare parts.

CARE AND MAINTENANCE:

From time to time, check your bed for worn parts, torn material or stitching. Replace or repair the parts as needed.

To clean your travel bed, wipe with damp cloth and use mild detergent.

Instructions of use

Erecting

1. Stand the bed, folded, upright on its legs (Fig. 1).
2. Grip the short side elements and pull upwards until they audibly lock in place (Fig. 2).
3. Repeat with the long side elements (Fig. 2).
4. Then push the bed base downwards until it audibly locks into place (Fig. 3).
5. The mattress can now be put in place.
6. You can lock or release the wheels by pressing the brakes (Fig. 4).
7. Open the zip on the head end to use the bed's additional side exit (Fig. 5).
8. In addition, you can even hang a baby nest for new-born babies by putting the plastic holding devices on the short or long sides of the upper struts (Fig. 6).

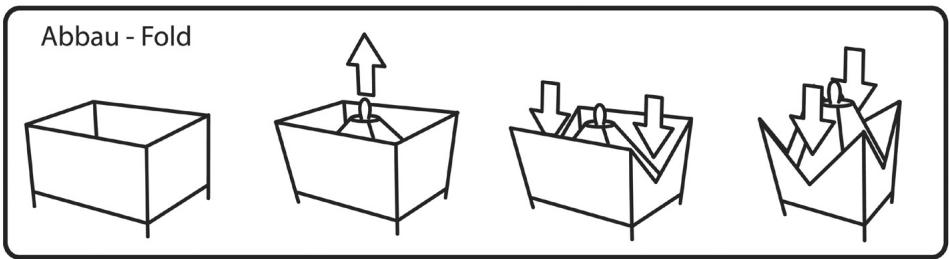

Aufbau - Unfold

1. Remove mattress.
2. Use the strap to pull the bottom of the bed to half height.
3. For unlocking the side parts, first feel where the two pressure points are under the joint in the middle of the short side components (with the label „press to unlock“) and press them in while slightly lifting the joint rod. It is important for the joint rods to be unlocked on both sides of the pressure point.
4. The pressure points on the long side elements are then unlocked in the same way.
5. Fold the bed together by pulling upwards the strap in the center of the bed base, bringing the four side elements close together.
6. Now wrap the mattress round the folded bed and close the hook and loop fasteners.
7. Finally, put the bed into its travel bag.

AVERTISSEMENTS

CONSERVER CE MODE D'EMPLOI POUR UN USAGE ULTERIEUR ET LE LIRE ATTENTIVEMENT

IMPORTANT- KEEP IT FOR LATER READING

CONSERVER CE MODE D'EMPLOI POUR UN

CONSERVER CE MODE D'EMPLOI POUR UN USA-

GE ULTERIEUR ET LE LIRE ATTENTIVEMENT

BELANGRIJK - BEWAAR ALS NASLAGWERK

CONSERVARE PER UNA CONSULTAZIONE SUCCESSIVA

CONSERVAR PARA APLICACION POSTERIOR

COXPAHITb DnI BUYUeIcNPOJb3OBAHNA
