SAFETY PRECAUTIONS / ENGLISH

General safety precautions:

• Keep these important instructions for future reference
• WARNING: Please read all safety precautions and operating instructions carefully. (b) Failure to follow the safety precautions and operating instructions may result in electric shock, fire and/or serious injuries.
  This product is expressly not recommended for use by persons (including children) with restricted physical, sensory or mental capabilities or without experience and relevant knowledge, unless they are supervised by a person responsible for their safety or have been trained

in how to use the product. Children should be supervised to ensure that they do not use the product as a toy or operate it on their own.

■ Not suitable for children under the age of 36 months. (a)
■ Only use and store this product out of reach of children and animals.
■ This product is not recommended for people with the following illnesses, but the list is not exhaustive:
- somatosensory disorders and/or neurological conditions that cause a somatosensory disorder of the extremities, including diabetes, diabetic neuropathy, peripheral neuropathies, traumatic brain injury, stroke, spinal cord injury, multiple sclerosis and other
■ circulatory disorders, including peripheral arterial occlusive disease, thrombosis, moderate to severe varicose veins, lymphoedema and leg swelling due to other causes
■ unhealed injury of the extremities resulting in open skin wounds, ulcers, bruises or inner injuries
■ burns of the extremities
■ active infections of the extremities
■ skin diseases resulting in sensitive, dry or cracked skin, such as eczema and other forms of dermatitis, all diseases connected with skin infections and/or inflammations, physical urticaria and other
- vasospastic phenomena including, but not limited to Raynaud's syndrome
- If you suffer from one of the above-mentioned diseases or another that was not mentioned and take medications either currently or regularly and/or are unable to sense heat or cold properly (e.g. people with special needs, etc.), consult your doctor prior to using the product!
- Check your feet regularly for redness of the skin. Excessive heat levels over prolonged periods of time can lead to burns.

• If the heated sock is used in firmly closed or specially fitted footwear with a very narrow shape, please make sure that the sock is not wrinkled in the area of the heating element. This could result in painful pressure points.
• Never use the heated sock in combination with other heated products (heated insole, heated boot, etc.); there is a risk of excessive heat.
  ■ The heat should be switched off when entering an environment with a considerably higher temperature.
  ■ Do not use the product for warming animals.
• Check the product regularly for signs of wear or damage. If you notice any of these signs, if the product was used improperly or if the product does not work, bring it back to the dealer before using it again.
  ■ The battery packs must only be used with compatible LENZ products!
  ■ Discharge the battery packs and recharge them half way at least every 6 months!
• Only use the Charge Box (10056) included in delivery for charging. It is designed for indoor use and must not be exposed to moisture.
• The battery packs must not be charged or stored outside the permitted ambient temperature of +10°C to +30°C.
• The battery packs must not be discharged outside the permitted ambient temperature of -20°C to +30°C .
  ■ Always store the battery packs with the contact protector attached.
• When the battery packs are not in use, keep them away from other metal objects such as paper clips, coins, keys, nails, screws and other small metal objects which could form a connection between the contacts. Short-circuiting the connections may cause burns or fire.
• Do not charge or store the battery packs near flammable substances!

■ Never try to open the battery packs! Improper handling of the lithium-ion batteries can lead to an explosion!
■ Damaged battery packs must no longer be used and must be disposed of immediately.
■ If the charging cables or any other parts of the product are damaged, discontinue the use of the product.
- Do not modify the product or divert it from its intended use.
■ If there is a defect, please dispose of the respective components properly at a collection site for electronic waste.
- Do not expose the battery packs to fire or excessive temperatures. Exposing the battery packs to fire or temperatures above 130°C may lead to an explosion.
■ Do not puncture with a needle or similar! (c)
■ The product is not intended for use in hospitals.
- The technology employed meets all relevant and legal requirements. The usability of Lenz products in the proximity of other sensitive electronic products (e.g. avalanche beacons, cardiac pacemakers, etc.) must be checked with their manufacturers.
- Avoid kinking the product by placing other objects on top of it during the storage.
■ The battery packs must not be used in or under water!
- If used improperly, liquid may leak out of the battery; avoid contact. In the event of accidental contact, rinse with water. In the event of contact with eyes, also seek medical assistance. Liquid leaking out of the battery may cause irritation or burns.
- Do not used batteries or products if they have been damaged or modified. Damaged or modified batteries can behave unpredictably, which may lead to fires breaking out or a risk of injury.
- Only use qualified repair personnel for main-tenance, and only use identical spare parts. This will ensure the product is safe to use.

- Do not attempt to modify or repair the product or the battery (if applicable) in ways other than those specified in the operating and care instructions.

(a)

(b)

(c)

CONSIGNES DE SÉCURITÉ / FRANÇAIS

(b)

(c)

BEZPEČNOSTNÍ POKYNY / ČESKY

(b)

(c)

SIKKERHEDSANVISNINGER / DANSK

(b)

(c)

(b)

(c)

OHUTUSJUHISED / EESTI

Üldised ohutusjuhised:

(b)

(c)

TURVALLISUUSOHJEITA / SUOMI

(b)

(c)

BIZTONSÁGI TUDNIVALÓK / MAGYAR

(b)

(c)

(b)

(c)

安全上の注意 / 日本語

安全に関する一般的注意事項:

(b)

(c)

SAUGOS NUORODOS / LIETUVIŲ K.

(b)

(c)

VEILIGHEIDSINSTRUCTIES / NEDERLANDS

(b)

(c)

SIKKERHETSANVISNINGER / NORSK

Generelle sikkerhetsanvisninger:

(b)

(c)

ZASADY BEZPIECZEŃSTWA / POLSKI

(b)

(c)

(b)

(c)

BEZPEČNOSTNÉ POKYNY / SLOVENČINA

(b)

(c)

VARNOSTNI NAPOTKI / SLOVENŠČINA

(b)

(c)

SÄKERHETSANVISNINGAR / SVENSKA

(b)

(c)

안전 지침/한국어

일반 안전 지침:

(b)

(c)

安全说明 / 中文

一般性安全说明：

(b)

(c)

EINLEITUNG 87

PACKUNGSINHALT 87

(d)

PRODUCT DESCRIPTION 97

TECHNICAL SPECIFICATIONS 98

FIRST USE AND CHARGING 98

CHARGING PROCEDURE 98

FAST-CHARGE MODE 99

SAFETY FUNCTIONS 100

HOW TO USE THE BATTERY PACKS 100

USE WITH LENZ HEAT PRODUCTS 100

IMPORTANT INSTRUCTIONS FOR USE 101

FUNCTIONAL DESCRIPTION 101

LITHIUM PACK RCB 1400 /

LITHIUM PACK RCB 2000 101

USE AND FUNCTION 101

APP CONTROL 102

PAIRING MODE 102

HEAT SETTING - HEATING PERIOD 103

SERVICE, STORAGE AND CARE 103

STORAGE MODE 103

STORAGE 104

CLEANING 104

DISPOSAL 105

lithium pack rcB 1400 lithium pack rcB 2000

INTRODUCTION

Congratulations on your purchase of the lithium pack rcB 1400 / lithium pack rcB 2000.

Please carefully read the operating instructions before using the product.

The operating instructions are also available in electronic form on the manufacturer's website at: www.lenzproducts.com

PACKAGE CONTENTS

2 lithium packs, rcB 1400 or lithium packs rcB 2000 (battery pack)

2 contact protectors

1 Charge Box (including USB cable)

PRODUCT DESCRIPTION

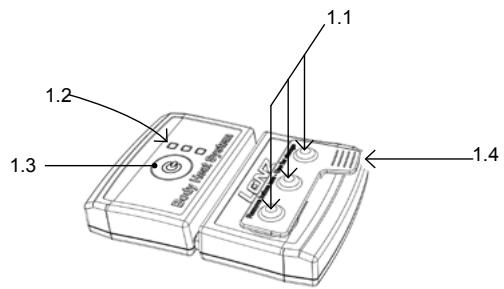

lithium pack rcB 1400 / lithium pack rcB 2000

■ Snap fasteners for connecting to the heatable textile (Fig. 1.1)
■ Heat setting display and charge indicator 1 / 2 / 3 (Fig. 1.2)
■ Control button (Fig. 1.3)
■ Contact protector (Fig. 1.4)

Charging accessories

■ USB cable (Fig. 2.1)
■ Charge Box (Fig. 2.2)

TECHNICAL SPECIFICATIONS
lithium pack rcB 1400(10020)		Output: 3.7 V / 2800 mAh
lithium pack rcB 2000(10095)		Output: 3.7 V / 4000 mAh
Charge Box(10056, incl. USB cable)	Input: 5 VDC / 2A	Output: 5 VDC / 2A

FIRST USE AND CHARGING

Important note:

The battery packs must be charged before using them for the first time.

Charging procedure

1. Connect the USB cable (Fig. 2.1) to the Charge Box (Fig. 2.2) and a USB power supply unit (5 V, 2 A, not included in delivery) and plug the USB power supply unit into a socket.
2. Place both battery packs into the Charge Box (Fig. 2.2). Please check the illustration on the Charge Box to ensure proper orientation. The battery packs can be charged in any operating mode.
3. The charging process starts automatically.
4. The charge indicator (Fig. 1.2) shows the progress of the charging process as it slowly rises.
5. The charging status can be monitored by looking at the LEDs on the battery pack, which will light up in ascending order as the charge increases. It can also be optionally monitored with the Lenz heat app* convenient control app.
6. Once the battery packs are fully charged, the charging process ends automatically and the charge indicator LEDs (Fig. 1.2) are switched off.
7. After the end of the charging process, please remove both battery packs from the Charge Box. (Fig. 2.2)

Fast-charge mode

1. If the control button (Fig. 1.3.) is pressed once briefly during the charging process, the battery packs switch to the fast-charge mode.
2. The charge indicator (Fig. 1.2) shows the increasing progress of the fast-charge mode.
3. Once the battery packs are fully charged, the charging process ends automatically and the charge indicator LEDs (Fig. 1.2) are switched off.
4. The charging status can be monitored by looking at the LEDs on the battery pack, which will light up in ascending order as the charge increases. It can also be optionally monitored with the Lenz heat app* convenient control app.
5. After the end of the charging process, please remove both battery packs from the Charge Box. (Fig. 2.2)

Important note:

- If an attempt is made to charge the battery packs outside of the specified ambient temperature range (see safety precautions), the charging process will be prevented automatically and this will be indicated by the lower LED on the battery packs blinking. Disconnect the battery packs from the Charge Box and restart the charging process at room temperature.

□□□ LED blinkiing – Temperature error

• Because naturally occurring minimal differences due to production can occur, the charge indicator in the Lenz heat app* only serves as a general indicator.
• Charge the product after every use. This helps extend the life of the battery packs and ensures that the product is ready for use at any time.
• The battery consists of lithium ion cells and can be charged in any state. For this reason, the battery does not need to be fully discharged before charging.

		Normal	Fast charge
Charging time	lithium pack rcB 1400 (10020)	8 – 9 h	5 – 6 h
	lithium pack rcB 2000 (10095)	12 – 13 h	7 – 8 h

SAFETY FUNCTIONS

• Short circuit protection: In the event of a short circuit at the contact or the heating element, the integrated electronics automatically turn the product off. After eliminating the short circuit, please briefly connect the battery packs to the Charge Box. Next, press the control button once and the product is ready again.
  ■ Protection against overcharging and exhaustive discharge: The product is protected against overcharging and exhaustive discharge with the integrated electronics system.

HOW TO USE THE BATTERY PACKS

Use with Lenz heat products

■ Remove the contact protector from the battery packs (Fig. 1.4).
■ Place the battery packs in the intended position (see figure A, B, C, D, E).
- Push the battery packs onto the snap fasteners until they audibly lock into place (Fig. F).
- The battery packs can be operated conveniently and manually, either through the visual control window or the textile (Fig. G), or optionally via the Lenz heat app on a smartphone.

IMPORTANT INSTRUCTIONS FOR USE

• When using the heated product, the optimal heating power is only produced when all heated products, textiles and socks you are wearing are dry.
• Do not operate the device at the highest heating power for longer than several minutes.
• Always set the product to a low or medium heat level to maintain a comfortably warm temperature (the heating should be nearly unnoticeable).

FUNCTIONAL DESCRIPTION

lithium pack rcB 1400 / lithium pack rcB 2000

Manual operation:

The battery packs have three heat settings. They are indicated by the heat setting display (Fig. 1.2) on the battery packs.

Remote control:

When using remote control via the APP, the heat output can be set to one of 9 levels via the corresponding controls in the APP.

USE AND FUNCTION

Turning on:

Turn on the product on the lowest heat setting by briefly pushing (approximately 0.5 seconds) the control button on the battery pack (Fig. 1.3).

Setting the heat level:

This can be done by repeatedly pressing the control button on the battery pack (Fig. 1.3), or using the corresponding control in the APP when using remote control.

The respective heat level is indicated by the illumination of the heat setting display (Fig. 1.2) on the battery pack, or in the APP when using remote control.

□□□ low heat level
■□□ moderate heat level
□□□ high heat level

Turning off:

Pressing the control button again turns the battery pack off.

□□□ OFF

Note:

The app must be closed to be able to switch off the battery pack. The battery pack can still be turned on for 24 hours via the APP, but after that, only by pressing the button. When a battery pack is connected with the App, it can no longer be controlled by pressing the button, but only via the App. When the battery pack is connected with the App, this is indicated by the heat setting display blinking.

APP CONTROL

The lithium packs rcB 1400 / lithium packs rcB 2000 can be controlled via the Lenz heat app* for smartphones. The battery packs must be in “Pairing Mode” to be able to couple them properly with the smartphone.

Pairing mode

Please switch the desired battery packs to "Pairing Mode". To do so, press the control button (Fig. 1.3.) for approx. 10 seconds until the heat setting displays (Fig. 1.2.) are blinking and then immediately release the control button. The LED in the middle is illuminated steadily.

□□□ LED, steady on – Pairing mode

Note: The Pairing Mode remains active for 2 minutes! If no pairing takes place during this time, this mode will end automatically!

**The optional Lenz heat app for convenient control is available for download via the Android Play Store and the Apple Store.

HEAT SETTING - HEATING PERIOD

For heating power and heating period data, please see the table on the product packaging. You can also access the data online at www.lenzproducts.com

The heating period per charge depends on the selected heat setting, the ambient temperature, the battery packs, and the charge state as well as the age of the battery packs

SERVICE, STORAGE AND CARE

Storage mode

The storage mode half charges the battery packs and then puts them to sleep, so your battery packs can be stored in perfect condition.

1. The battery packs must be discharged to start the storage mode. If needed, discharge the battery packs using your heating product.
2. Start the charging process as usual (see Charging process)
3. To start the storage mode, press and hold the control button (Fig. 1.3.) for 3 seconds. All three LEDs of the charge indicator will blink three times.
4. The first two LEDs of the charge indicator (Fig. 1.2) show the increasing progress of the charging process.
5. Once the battery packs are half charged, the charging process ends automatically and the charge indicator LEDs (Fig. 1.2) are switched off.
6. After the storage mode has finished, store the battery packs as described in "Storage".

Important note:

- If the battery packs are more than half charged, the storage mode will automatically be prevented, and this will be indicated by the middle LED on the battery packs blinking. Disconnect the battery packs from the Charge Box and connect them to your heating product to discharge them. Afterwards, restart the charging process and the storage mode.

LED blinking - Error

Storage

To ensure long battery life, we recommend storing the battery packs in a cool room (see safety instructions) in a half-charged state. The battery packs must be turned off (heat setting display (Fig. 1.2) dark) and disconnected from the heatable textile for storage. They can remain in the Charge Box for storage, but to do this, disconnect the USB power supply unit from the Charge Box.

For long-term storage, the battery packs must be discharged and recharged halfway at least every 6 months. This ensures that maximum performance is preserved for many years!

Caution: Always store the battery packs with the contact protector attached!

Cleaning

Clean the parts as needed with a soft, slightly damp cloth and a mild detergent.

Caution: Always disconnect the USB power supply unit from the socket before cleaning.

DISPOSAL

■ Once the product has served its purpose, please dispose of it and its packaging appropriately and in an environmentally friendly manner.
- Please do not dispose of the charger together with the house-hold waste. Instead, bring the parts to a collection site for electronic waste. (d)
■ Take the battery packs to the intended collection sites for used batteries. (d)
■ Packaging materials are raw materials and can be recycled. For this reason, please recycle the packaging.
■ Please contact your local authority for more information.

(d)

Information subject to change.

This is a translation of the original German version<<

INTRODUCTION 107

CONTENU DE L'EMBALLAGE 107

DESCRIPTION DU PRODUIT 107

(d)

(d)

This product complies with the relevant EU regulations and guidelines.

Directive 2014/35/EU

Directive 2015/863/EU

Directive (EU) 2023/1542

Directive 2014/53/EU

The full EU declaration of conformity can be downloaded from www.lenzproducts.com.

Regulatory Compliance – Canada

CAN ICES-003 (B) / NMB-003 (B)

FCC ID: 2BSB5-LZ1002010095

IC: 34630-L1002010095

Regulatory and Legal Information

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This product complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
