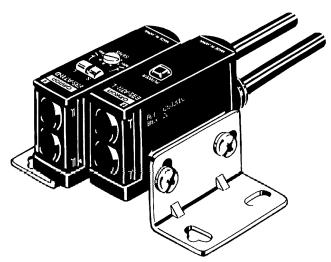

Built-in Amplifier Photoelectric Sensor

E3S-A

Ordering Information

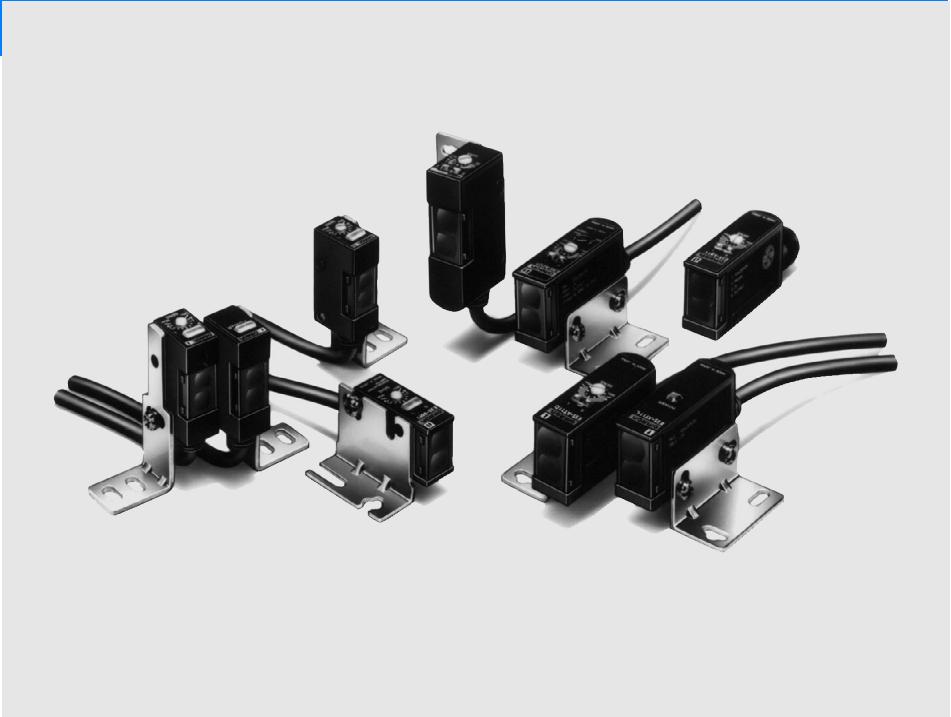

E3S-A General-purpose Sensors

Connections	Appearance	Sensing method	Sensing distance	Operating modes	Output / timer functions	Model
						NPN output	PNP output
Prewired	Horizontal	Through-beam	7 m	Light-ON Dark-ON (selectable)	---	E3S-AT11	E3S-AT31
					With timer and self-diagnostic functions	E3S-AT21	E3S-AT41
		Retroreflective	0.1 to 2 m (polarized)		---	E3S-AR11	E3S-AR31
					With timer and self-diagnostic functions	E3S-AR21	E3S-AR41
		Diffuse reflective	10 cm (light source: infra-red)		---	E3S-AD13	E3S-AD33
					With timer and self-diagnostic functions	E3S-AD23	E3S-AD43
			20 cm		---	E3S-AD11	E3S-AD31
					With timer and self-diagnostic functions	E3S-AD21	E3S-AD41
			70 cm (light source: infra-red)		---	E3S-AD12	E3S-AD32
					With timer and self-diagnostic functions	E3S-AD22	E3S-AD42

Accessories (Order Separately)

Connections	Appearance	Sensing method	Sensing distance	Operating modes	Output / timer functions	Model
						NPN output	PNP output
Prewired	Vertical	Through-beam	7 m	Light-ON Dark-ON (selectable)	---	E3S-AT61	E3S-AT81
					With timer and self-diagnostic functions	E3S-AT71	E3S-AT91
		Retroreflective	0.1 to 2 m (polarized)		---	E3S-AR61	E3S-AR81
					With timer and self-diagnostic functions	E3S-AR71	E3S-AR91
		Diffuse reflective	10 cm (light source: infra-red)		---	E3S-AD63	E3S-AD83
					With timer and self-diagnostic functions	E3S-AD73	E3S-AD93
			20 cm		---	E3S-AD61	E3S-AD81
					With timer and self-diagnostic functions	E3S-AD71	E3S-AD91
			70 cm (light source: infra-red)		---	E3S-AD62	E3S-AD82
					With timer and self-diagnostic functions	E3S-AD72	E3S-AD92
Connector	Horizontal	Through-beam	7 m		---	E3S-AT16	E3S-AT36
		Retroreflective	0.1 to 2 m (polarized)			E3S-AR16	E3S-AR36
		Diffuse reflective	10 cm (light source: infra-red)			E3S-AD18	E3S-AD38
			20 cm			E3S-AD16	E3S-AD36
			70 cm (light source: infra-red)			E3S-AD17	E3S-AD37
	Vertical	Through-beam	7 m		---	E3S-AT66	E3S-AT86
		Retroreflective	0.1 to 2 m (polarized)			E3S-AR66	E3S-AR86
		Diffuse reflective	10 cm (light source: infra-red)			E3S-AD68	E3S-AD88
			20 cm			E3S-AD66	E3S-AD86
			70 cm (light source: infra-red)			E3S-AD67	E3S-AD87

E3S-A General-purpose Sensor Accessories

Name	Model	Remarks

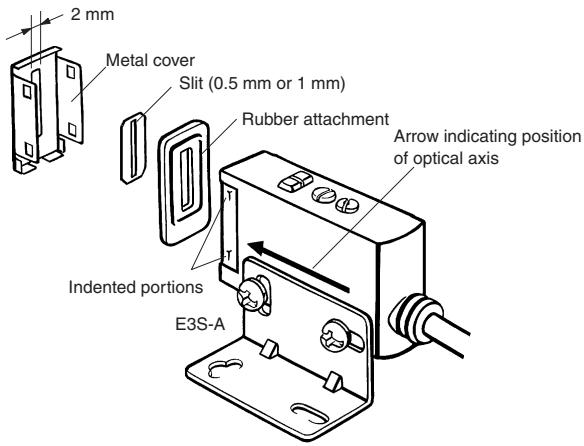

Slit for Through-beam Sensor	E39-S46	2 mm, 1 mm, and 0.5 mm slits are sold in pairs, one each for the receiver and emitter of a through-beam model

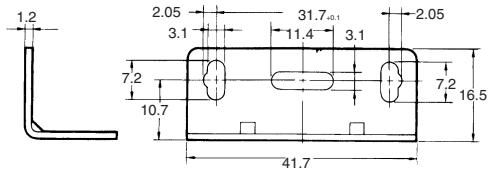

Mounting Bracket for Vertical Sensor	E39-L59	Purchase two brackets for each through-beam model
	E39-L81
Filter for Mutual Interference Prevention (for Through-beam Sensor)	E39-E6	4 filters are sold together for two through-beam models (2 filters each for the emitters and receivers)

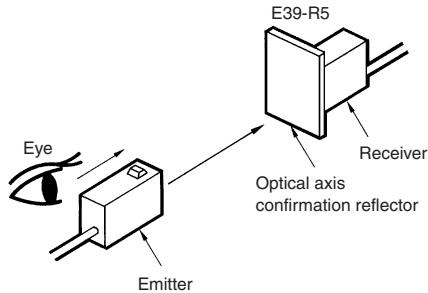

Reflector for Optical Axis Adjustment (for Through-beam Sensor)	E39-R5	One only

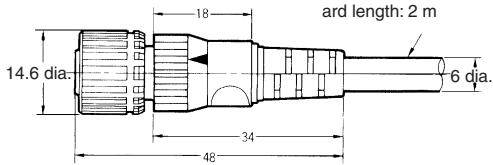

Plugs (for Sensors with Connector Terminals)

Cord	Appearance		Cord length	Model
Standard	Straight (3 conductor)		2 m	XS2F-D421-DC0-A
			5 m	XS2F-D421-GC0-A
	L-shape (3 conductor)		2 m	XS2F-D422-DC0-A
			5 m	XS2F-D422-GC0-A
Robot (vibration-proof)	Straight (4 conductor)		2 m	XS2F-D421-D80-R
			5 m	XS2F-D421-G80-R
	L-shape (43 conductor)		2 m	XS2F-D422-D80-R
			5 m	XS2F-D422-G80-R

Reflectors

Name	Model	Remarks
Mini-reflector	E39-R4	One
Small Reflector	E39-R3	One

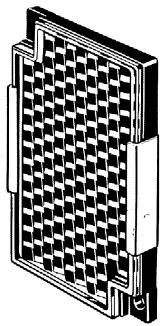

Reflector Tape	E39-RS1, RS2, RS3	One (sealed type)

Specifications

Without self-diagnostic functions

Sensing method		Through-beam, Retroflective (polarized)	Diffuse reflective: 10 cm	Diffuse reflective: 20 cm	Diffuse reflective: 70 cm
Model	NPN output	E3S-AT11, -AR11	E3S-AD13	E3S-AD11	E3S-AD12
		E3S-AT16, -AR16	E3S-AD63	E3S-AD16	E3S-AD17
		E3S-AT61, -AR61	E3S-AD18	E3S-AD61	E3S-AD62
		E3S-AT66, -AR66	E3S-AD68	E3S-AD66	E3S-AD67
	PNP output	E3S-AT31, -AR31	E3S-AD33	E3S-AD31	E3S-AD32
		E3S-AT36, -AR36	E3S-AD83	E3S-AD36	E3S-AD37
		E3S-AT81, -AR81	E3S-AD38	E3S-AD81	E3S-AD82
		E3S-AT86, -AR86	E3S-AD88	E3S-AD86	E3S-AD87
Wavelength of LED light source		700 nm (red)	880 nm (infrared)	700 nm (red)	880 nm (infrared)
Sensitivity adjustment		Two-turn (endless) sensitivity adjustor with indicator
Self-diagnostic functions		---
Timer		---
Turbo function		---
Method of connection		Prewired / connector
Weight		Prewired type: 60 g; connector type: 11 g
Operation mode		Dark-ON or Light-ON (switchable)
Output		Open collector current output (NPN or PNP)
Circuit protection		Load short-circuit protection, reverse connection protection, mutual interference prevention (except for through-beam models)
Indicators		Light indicator (red) and stability indicator (green); emission indicator (red) for the emitter of through-beam models
Materials		Case: Polybutylene terephthalate Lens: Denaturated polyallulate Mounting bracket: Stainless steel (SUS304)
Attachments		Mounting bracket, sensitivity adjustor knob, screws, sensitivity adjustor cover, close-mounting plate (only for Sensors with connector terminals) and reflector (E39-R1: only for retroreflective Sensors)

With self-diagnostic functions

Sensing method		Through-beam, Retroflective (polarized)	Diffuse reflective: 10 cm	Diffuse reflective: 20 cm	Diffuse reflective: 70 cm
Model	NPN output	E3S-AT21	E3S-AD23	E3S-AD21	E3S-AD22
		E3S-AR21	E3S-AD73	E3S-AD71	E3S-AD72
		E3S-AT71
		E3S-AR71
	PNP output	E3S-AT41	E3S-AD43	E3S-AD41	E3S-AD42
		E3S-AR41	E3S-AD93	E3S-AD91	E3S-AD92
		E3S-AT91
		E3S-AR91
Wavelength of LED light source		700 nm (red)	880 nm (infrared)	700 nm (red)	880 nm (infrared)
Sensitivity adjustment		Two-turn (endless) sensitivity adjustor with indicator
Self-diagnostic functions		Self-diagnostic output, External diagnostic input	Self-diagnostic output
Timer		0 to 100 ms OFF-delay variable adjustor
Turbo function		Yes (with turbo switch)			---
Method of connection		Prewired
Weight		60 g
Operation mode		Dark-ON or Light-ON (switchable)
Output		Open collector current output (NPN or PNP)
Circuit protection		Load short-circuit protection, reverse connection protection, mutual interference prevention (except for through-beam models) functions
Indicators		Light indicator (red) and stability indicator (green); emission indicator (red) for the emitter of the through-beam model
Materials		Case: Polybutylene terephthalate Lens: Denaturaled polyallalate Mounting bracket: Stainless steel (SUS304)
Attachments		Mounting bracket, sensitivity adjustor knob, screws, sensitivity adjustor cover, close-mounting plate (only for Sensors with connector terminals) and reflector (E39-R1: only for retroreflective Sensors)

Ratings / Characteristics

Item		Through-beam	Retroreflective	Diffuse reflective
		E3S-AT11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AR11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AD23, 43, 73, 93	E3S-AD13, 18, 33, 38, 63, 68, 83, 88	E3S-AD11, 16, 21, 31, 36, 41, 61, 66, 71, 81, 86, 91	E3S-AD12, 17, 22, 32, 37, 42, 62, 67, 72, 82, 87, 92
Power supply voltage		10 to 30 V DC, ripple: 10% max.
Current consumption		40 mA max. (emitter and receiver) plus approx. 15 mA with turbo function	30 mA max. plus approx. 15 mA with turbo function	35 mA max.		30 mA max. plus approx. 15 mA with turbo function	35 mA max.
Rated sensing distance	White mat paper	0 to 7 m	0.1 to 2 m	0.1 to 10 cm		0.1 to 20 cm	0 to 70 cm
	Black mat paper	0 to 7 m	0.1 to 2 m	0.3 to 2.5 cm		0.5 to 20 cm	0.15 to 33 cm
Standard sensing object (white mat paper)		7 mm min.	30 mm min.	10 x 10 cm			20 x 20 cm
Variation in sensing distance		---		30%/0% max.
Hysteresis		---		20% max.		10% max.	20% max.
Sensing distance with attachment		E39-E6: 2.4 m2-mm slit: 2.5 m1-mm slit: 1.1 m0.5-mm slit: 0.5 m	E39-R3:10 to 130 cmE39-R4: 7 to 60 cmE39-RSA:10 to 60 cmE39-RSB:10 to 30 cm	---
Min. sensing object		without slit: 2.0 mm2-mm slit: 0.8 mm1-mm slit: 0.4 mm0.5-mm slit: 0.2 mm	E39-R1 Reflector:10 mmE39-R3: 3 mmE39-R4: 1.0 mm	---
Difference in direction between optical axis and mounting direction		±2° max. (checked along extended line in the mounting direction)		±2° max.
Response time		0.5 ms max. for both operation and release
Control output		30 VDC, 100 mA max. (residual voltage: 1 V max.) Open collector (residual voltage: 0.4 V max. at 16 mA)
Self-diagnostic output		Only Sensors with self-diagnostic function: 50 mA max, 30 VDC (residual voltage: 1 V max.), open collector (residual voltage: 0.4 V max. 16 mA)
External diagnostiic input	Input Voltage	With emitter OFF:NPN: 0 V short-circuit or 1.5 V max. (push current: 1 mA max.)PNP: DC short-circuit or -1.5 V DC max.(pull current: 3 mA max.)With emitter ON: NPN/PNPOpen (max. input voltage: 30 V max. with 0.1 mA current leakage)		---
	Response time	0.5 ms max.
Ambient illumination		Incandescent lamp: Illumination on optical spot: 5,000 lx max.Sunlight: Illumination on optical spot: 10,000 lx max.
Ambient temperature		Operating: -25°C to 55°C (with no icing)Storage: -40°C to 70°C (with no icing)
Ambient humidity		Operating: 35% to 85%Storage: 35% to 95%
Insulation resistance		20 MW min. (at 500 V DC)
Dielectric strength		1,000 V AC, 50/60 Hz for 1 min
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude (30G) 2 hrs each in three directions
Shock resistance		Destruction: Approx. 50G 3 times each in three directions
Enclosure ratings		IEC: IP67; NEMA: 4X

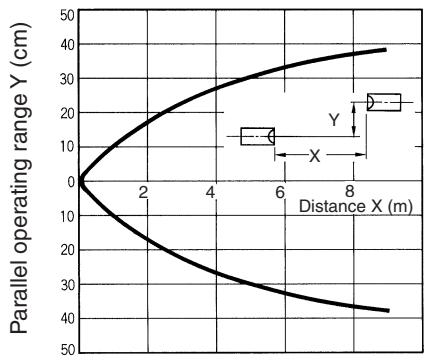

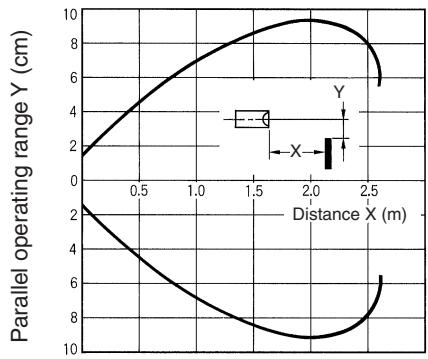

Parallel Operating Range (Typical)
E3S-AT□1

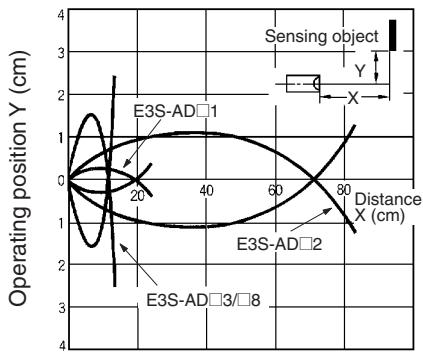

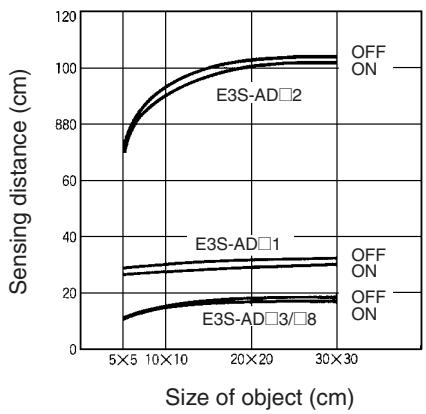

Sensing Distance vs. Object Size E3S-AD

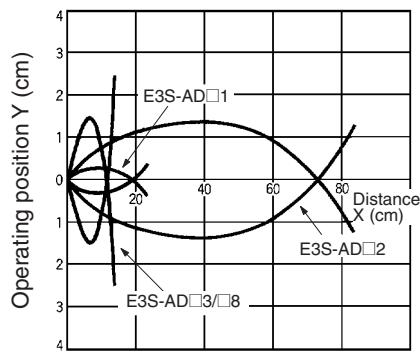

Operating Range (Typical)
E3S-AD□ (Left and Right)

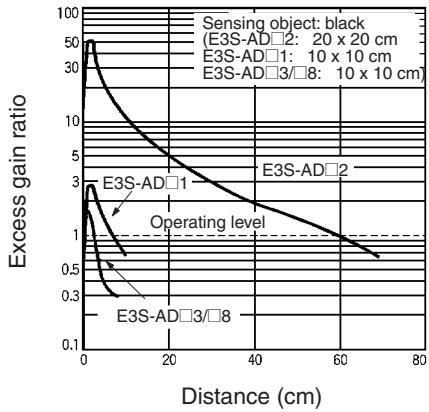

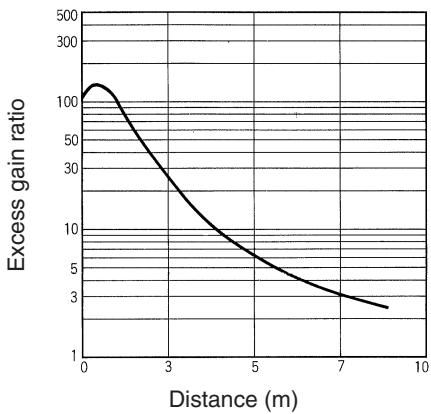

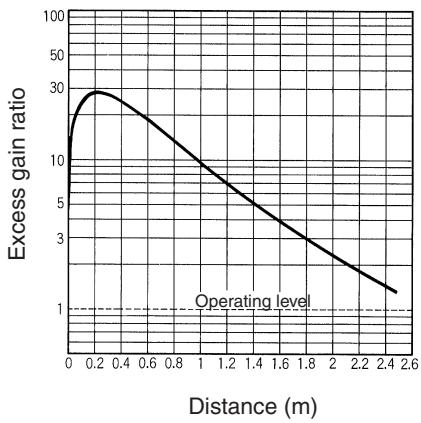

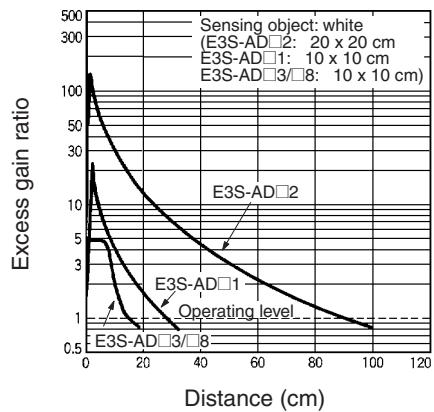

Excess Gain vs. Set Distance
E3S-AT□1 (Typical)

E3S-AD (Up and Down)
E3S-AD□1,-AD□2,-AD□3,-AD□8
(Detection of White Paper)

Reflector Parallel Movement E3S-AR□1 (Typical)

E3S-AR□1 (With Reflector E39-R1)

E3S-AD□1, -AD□2, -AD□3, -AD□8 (Detection of White Paper)

Output Circuits

Type	Model	Mode switch	Output transistor	Output circuit
NPN	E3S-AT11	Light ON	ON when light is received	Emitter E3S-AT11/AT16/AT61/AT66	Brown 10 to 30 VDC
	E3S-AT16
	E3S-AT61
	E3S-AT66
	E3S-AR11
	E3S-AR16
	E3S-AR61
	E3S-AR66
	E3S-AD13
	E3S-AD63
	E3S-AD18
	E3S-AD68
	E3S-AD11
	E3S-AD16
	E3S-AD61
	E3S-AD66
	E3S-AD12
	E3S-AD17
	E3S-AD62
	E3S-AD67
	Dark ON	ON when light is not received	Connector Type Emitter	Reflective/Receiver Pin No.2 is open.
				① ② ④ ⑤ 0 V	① ② ④ ⑤ Output(Relay) 0 V
E3S-AT21	Light ON	ON when light is received	Emitter E3S-AT21/AT71	10 to 30 VDC
				Green Pink External diagnostic input LED for emitter Indicator(red)	ON OFF
				Blue 0 V	ON OFF
	Dark ON	ON when light is not received	Light Stability (Red) Main circuit 100 mA max. Black Control output Self-diagnostic output Blue Z: Vz=39 V
E3S-AR21	Light ON	ON when light is received	Light Stability (Red) Main circuit 100 mA max. Black Control output Self-diagnostic output Blue Z: Vz=39 V
E3S-AR71	Dark ON	ON when light is not received
PNP	E3S-AT31	Light ON	ON when light is received	Emitter E3S-AT31/AT36/AT81/AT86	Brown 10 to 30 VDC
	E3S-AT36
	E3S-AT81
	E3S-AT86
	E3S-AR31
	E3S-AR36
	E3S-AR81
	E3S-AR86
	E3S-AD33
	E3S-AD83
	E3S-AD38
	E3S-AD88
	E3S-AD31
	E3S-AD36
	E3S-AD81
	E3S-AD86
	E3S-AD32
	E3S-AD37
	E3S-AD82
	E3S-AD87
	Dark ON	ON when light is not received	Connector Type Emitter	Reflective/Receiver Pin No. 2 is open.
	E3S-AT41	Light ON	ON when light is received	Emitter E3S-AT41/AT91	ON OFF
	E3S-AT91
	E3S-AD43
	E3S-AD93
	E3S-AD41
	E3S-AD91
	E3S-AD42
	E3S-AD92
	Dark ON	ON when light is not received	Light Stability (Red) (Green)	50 mA max.	Control output (Relay)
	E3S-AR41	Light ON	ON when light is received	Light Stability (Red) (Green)	4.4K Z0 50 mA max.
	E3S-AR91	Dark ON	ON when light is not received

Timing Charts

Type	Model	Mode switch	Output transistor	Timing chart
NPN	E3S-AT11	Light ON	ON when light is received.	Light received Light not received Light indicator (Red) ON OFF Output transistor ON OFF Load (relay) Operate Release	(Between brown and black)
	E3S-AT16
	E3S-AT61
	E3S-AT66
	E3S-AR11
	E3S-AR16
	E3S-AR61
	E3S-AR66
	E3S-AD13
	E3S-AD63
	E3S-AD18	Dark ON	ON when light is not received.	Light received Light not received Light indicator (Red) ON OFF Output transistor ON OFF Load (relay) Operate Release	(Between brown and black)
	E3S-AD68
	E3S-AD11
	E3S-AD16
	E3S-AD61
	E3S-AD66
	E3S-AD12
	E3S-AD17
	E3S-AD62
	E3S-AD67
	E3S-AT21	Light ON	ON when light is received.	Light received Light not received Light indicator (Red) ON OFF Output transistor ON OFF Load (relay) Operate Release	(T: Off-delay timer (0 to 100 ms) (Between brown and black)
	E3S-AT71
	E3S-AD23
	E3S-AD73
	E3S-AD21
	E3S-AD71
	E3S-AD22
	E3S-AD72
	E3S-AR21
	E3S-AR71
		Dark ON	ON when light is not received.	Light received Light not received Light indicator (Red) ON OFF Output transistor ON OFF Load (relay) Operate Release	(T: Off-delay timer (0 to 100 ms) (Between brown and black)
PNP	E3S-AT31	Light ON	ON when light is received.	Light received Light not received Light indicator ON (Red) OFF Output transistor ON OFF Load (relay) Operate Release	(Between blue and black)
	E3S-AT36
	E3S-AT81
	E3S-AT86
	E3S-AR31
	E3S-AR36
	E3S-AR81
	E3S-AR86
	E3S-AD33
	E3S-AD83
	E3S-AD38	Dark ON	ON when light is not received.	Light received Light not received Light indicator ON (Red) OFF Output transistor ON OFF Load (relay) Operate Release	(Between blue and black)
	E3S-AD88
	E3S-AD31
	E3S-AD36
	E3S-AD81
	E3S-AD86
	E3S-AD32
	E3S-AD37
	E3S-AD82
	E3S-AD87
	E3S-AT41	Light ON	ON when light is received.	Light received Light not received Light indicator ON (Red) OFF Output transistor ON OFF Load (relay) Operate Release	(T: Off-delay timer (0 to 100 ms) (Between blue and black)
	E3S-AT91
	E3S-AD43
	E3S-AD93
	E3S-AD41
	E3S-AD91
	E3S-AD42
	E3S-AD92
	E3S-AR41
	E3S-AR91
		Dark ON	ON when light is not received.	Light received Light not received Light indicator ON (Red) OFF Output transistor ON OFF Load (relay) Operate Release	(T: Off-delay timer (0 to 100 ms) (Between blue and black)

Self-diagnostic Function

With this function, the E3S-A checks changes in environmental conditions (especially a change in the ambient temperature) and self-diagnoses the resistance against the changes. The result is shown by the indicators or an output signal.

Amount of incident light	Green indicator	Indicator	Incident light indicator (red)	Self-diagnostic function	Self-diagnostic example
1.2 or more	Stable operating state with inci-dent light: Stable operation is expected in the rat- ed temperature range with the green indicator ON.	Green Red	With light inci- dent (red induca- tor: ON)	---	---
1.0 to 1.2	Conditional oper- ating state with incident light: Stable operation is expected if the temperature fluc-tuation is within ±10% of the pri- mary tempera- ture.	Green Red		The self-diag- nostic alarm output alerts the user to this state if it contin- ues for 0.3 s.	The optical axis misaligned by vibration. Light decreased by dust. Dust
0.8 to 1.0		Green Red	Without light inci- dent (red induca- tor: OFF)		With light leakage (through-beam and retroreflective Sensors) Sensing object Light reflected from the floor or the back- ground (diffuse reflective Sensors) Sensing object Noise
0.8 or less	Stable operating state with no inci- dent light: Stable operation is ex- pected in the rat- ed temperature range with the green indicator ON.	Green Red		---	---

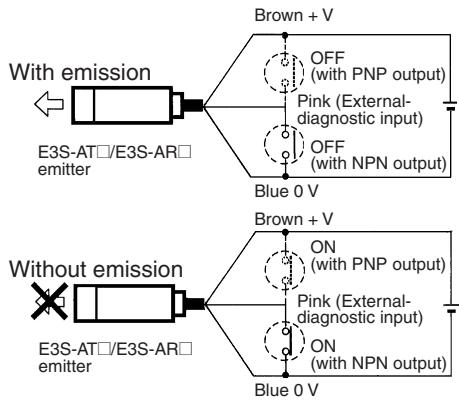

External Diagnostic Input Function

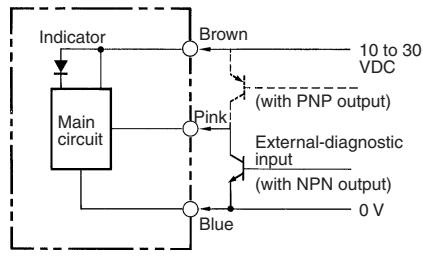

To switch the emission off, short-circuit the pink and the blue cords of the emitter of the E3S-AT or the E3S-AR with the NPN output feature. For the E3S-AT or the E3S-AR with the PNP output feature, short-circuit the pink and the brown cords. With this function, the operating status can be checked before operation.

E3S-AT/E3S-AR Emitter

External diagnostic input LED for emitter Indicator

The sensor is normal if the control output varies when the self-diagnostic external input is ON and OFF. The sensor is abnormal if the control output does not vary when the self-diagnostic external input is turned ON or OFF.

Note:Before using the self-diagnostic external input function, the incident light beam to the sensor must not be blocked by an object.

Timer and Turbo Switch (Sensors with Self-diagnostic Output Function)

The E3S-A Sensor equipped with the self-diagnostic feature incorporates an OFF-delay timer that can be adjusted within a range of 0 to 100 ms.

The emitter of the through-beam sensor with the self-diagnostic feature incorporates a turbo switch. When this switch is on, the intensity of the red LED light source can be increased to

make a brighter spot. The OFF-delay time adjustor of the retroreflective and the 20-cm diffuse reflective sensor is used as a turbo switch. When the adjustor is pressed, it functions as a turbo switch to automatically increase the power of the light source to create a brighter light spot. Do not press the adjustor when turning it

Sensitivity Adjustment (Reflective Sensors)

Item	Position A			Position B			Setting
Sensing condition	Photoelectric sensor Sensing object			Photoelectric sensor Sensing object			---
Sensitivity adjustor	A Min Max			B Min Max			A B Min MAX
Indicators	OFF STABILITY (green) ON LIGHT (red)			OFF STABILITY (green) ON LIGHT (red)			OFF STABILITY (green) ON LIGHT (red)
Procedure	Locate a sensing object at the sensing distance, set the sensitivity adjustor to the minimum scale position, and gradually increase sensitivity by turning the sensitivity adjustor clockwise until the incident light indicator (red LED) is ON. Position A is where the indicator has turned ON. Regard the maximum scale position as Position A if the indicator does not turned ON at full sensitivity.			Remove the sensing object and gradually decrease sensitivity by turning the sensitivity adjustor counterclockwise from the maximum scale position until the incident light indicator (red LED) is OFF. Position B is where the indicator has turned off. Regard the minimum scale position as Position B if the indicator does not turned ON at minimum sensitivity.			Set the sensitivity indicator to the position between Positions A and B (in some cases, Positions A and B are opposite of the above example). The photoelectric sensor will then work normally if the stability indicator (green) is lit with and without the sensing object. If it is not lit, stable operation cannot be expected, in which case a different detection method must be applied.

Unlike conventional photoelectric sensors, the variation in the sensitivity of E3S photoelectric sensors is minimal. This means the sensitivity can be adjusted on only a single photoelectric sensor, and then the adjustors on the other photoelectric sensors can be set to the same scale position. There is no need to adjust the sensitivity of each photoelectric sensor individually.

Turbo Function (Turbo Switch)

With the turbo function switched ON, the light spot is visible even at a distance of 20~cm , making it easy to check the sensing position and the angle of the optical axis.

1. After using the turbo function, readjust the OFF-delay time that had been set, since the OFF-delay time could have been changed when the turbo switch (which is on the OFF-delay time adjustor) was pressed.
2. Press the OFF-delay time adjustor to switch ON the turbo function with a maximum force of 1kg and within a maximum period of 3 mins. (The photoelectric sensor, however, will not malfunction even if the turbo function is switched on for more than 3 mins.)

With Turbo Switch ON

The turbo function is effective with the turbo switch pressed, and the function is reset automatically when released.

Normal Operating Condition

Operating Mode Selection

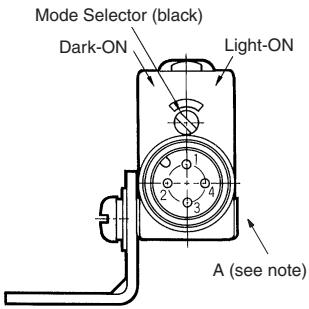

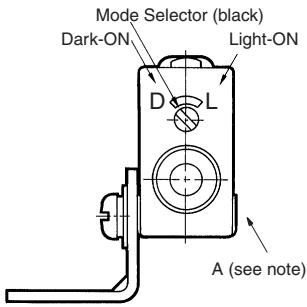

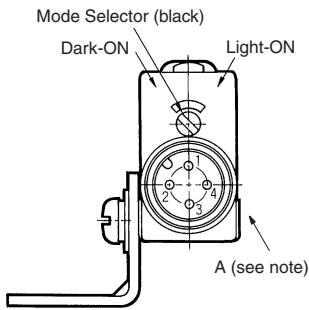

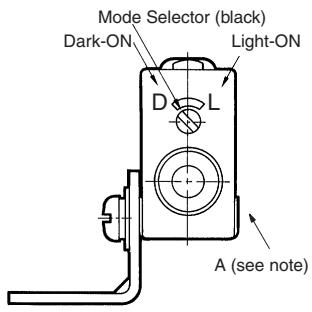

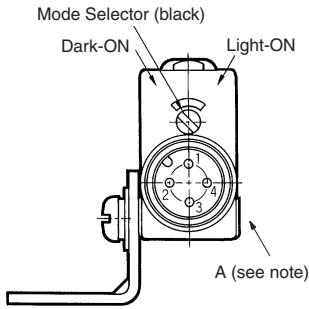

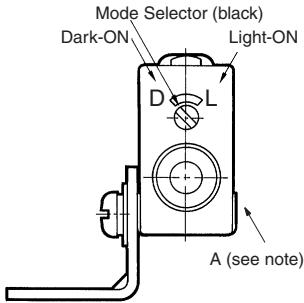

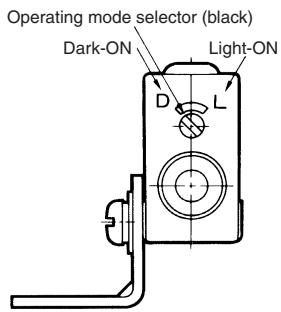

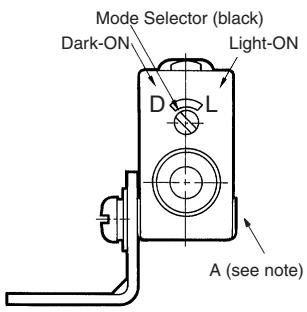

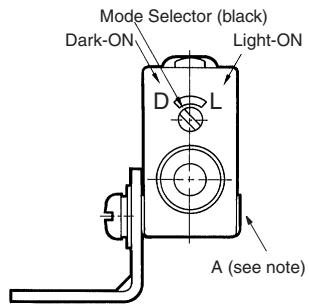

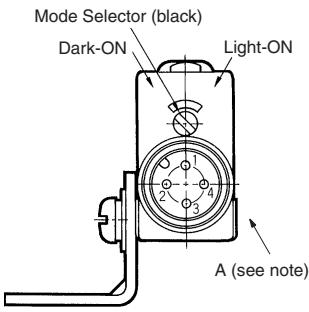

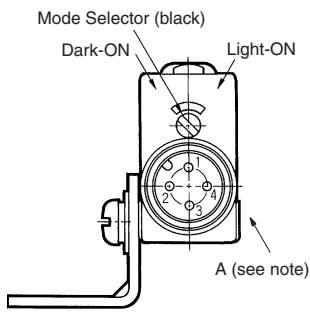

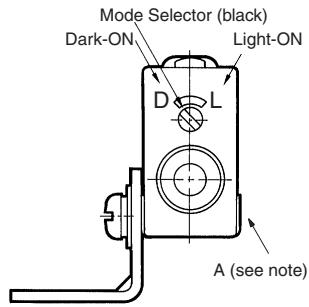

As shown in the following illustration, the E3S-A has an operating mode selector on the panel where the Receiver connector is located. With this operating mode selector, the E3S-A is in either dark-ON or light-ON mode.

Sensors

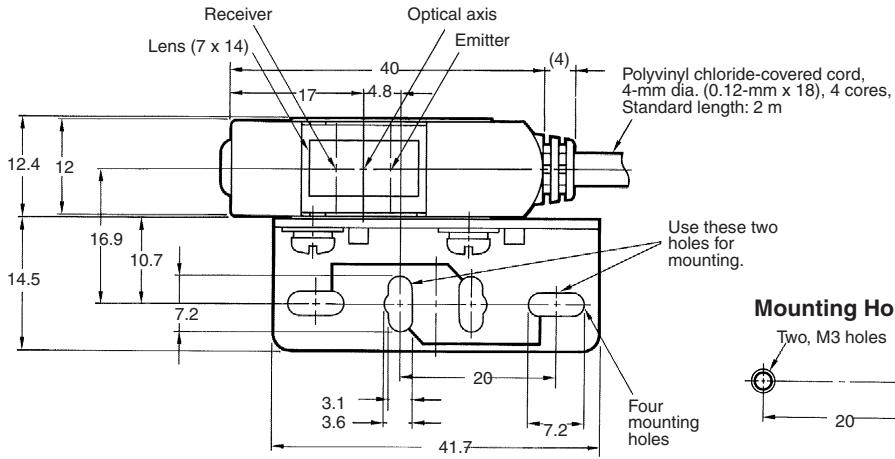

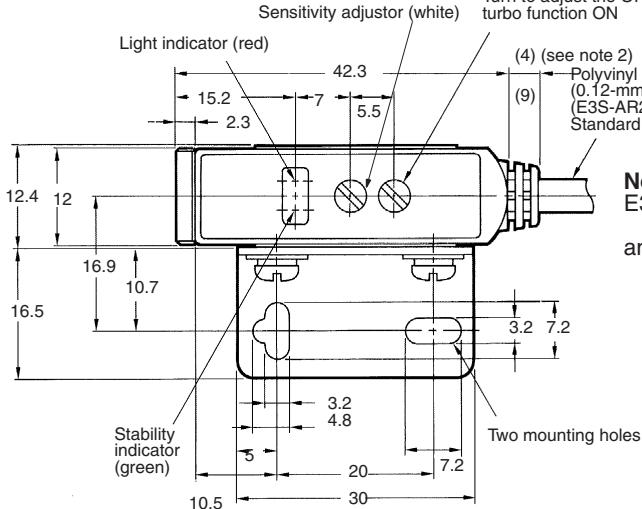

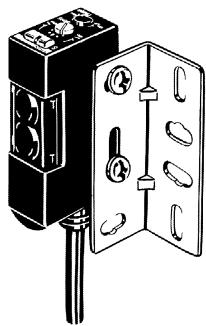

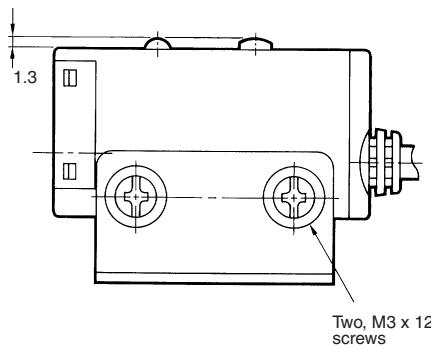

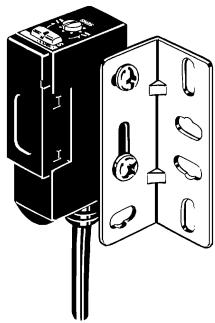

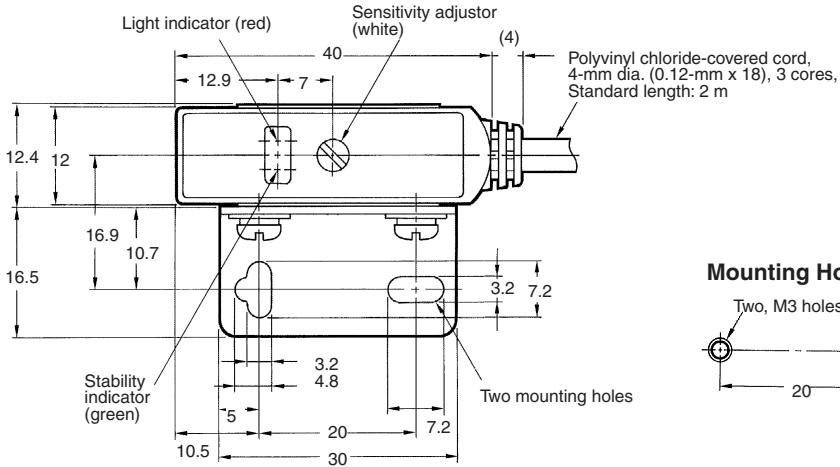

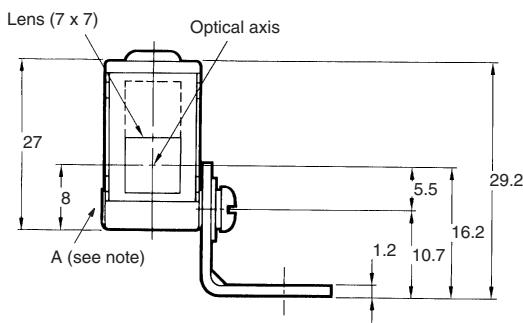

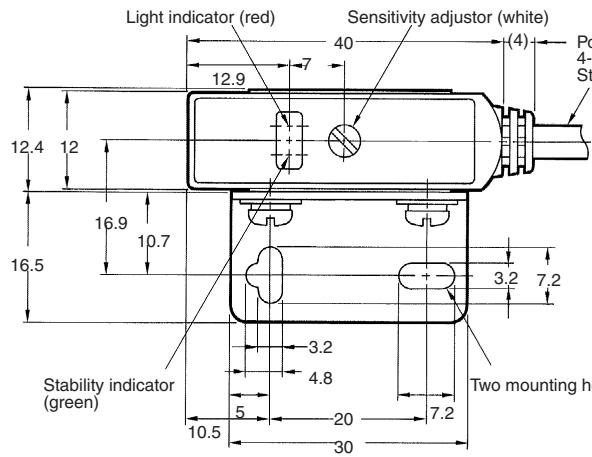

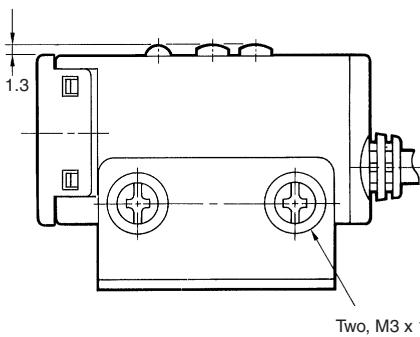

Prewired Type

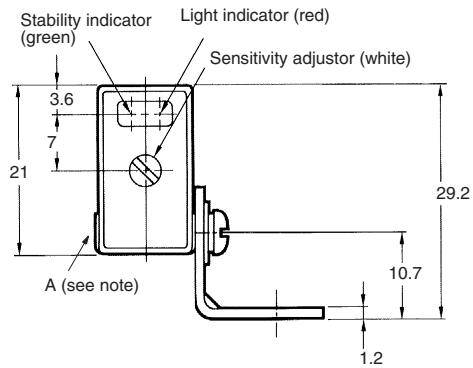

E3S-AT11, E3S-AT31 (Receiver)

Polyvinyl chloride-covered cord, 4-mm dia. (0.12-mm x 18), 4 cores, Standard length: 2 m

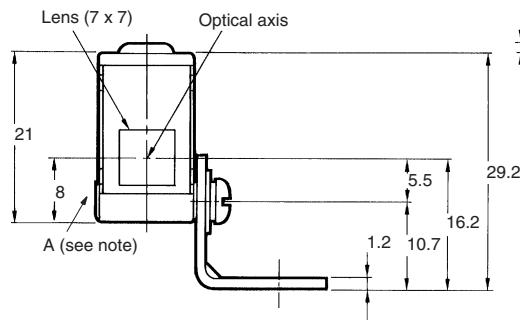

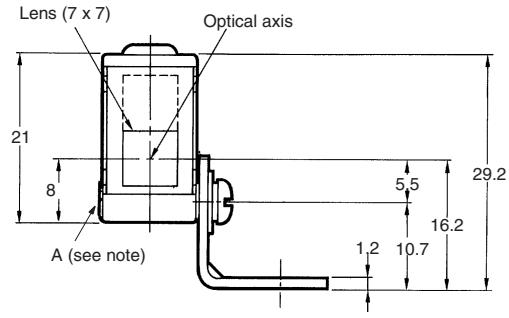

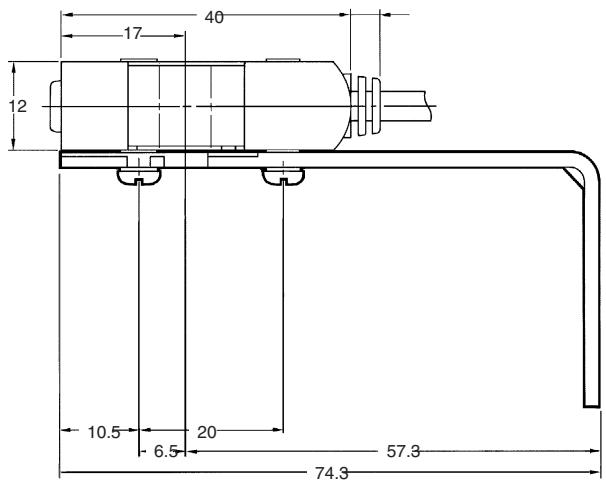

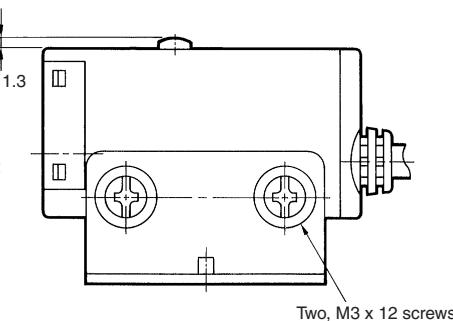

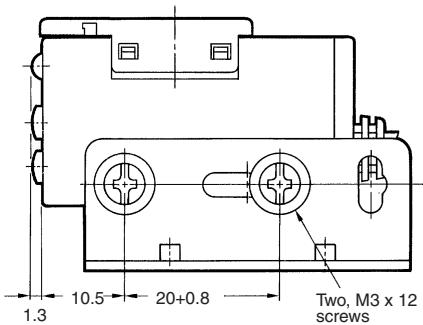

Mounting Holes

Note: The mounting bracket can be attached to side A.

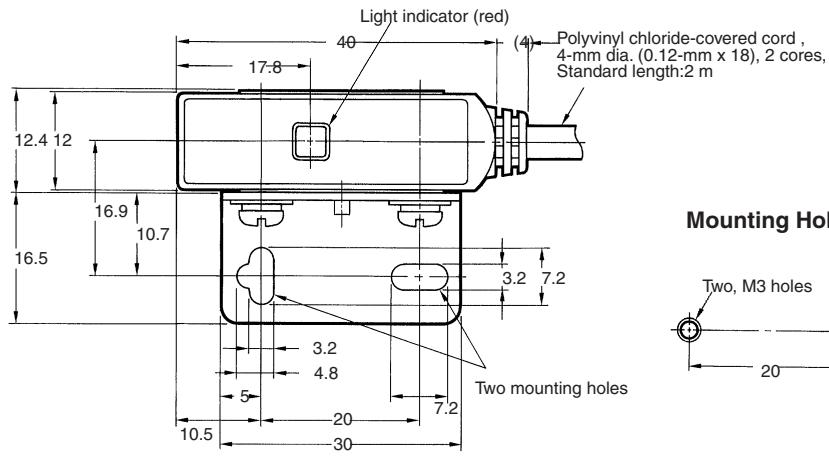

E3S-AT11, E3S-AT31 (Emitter)

Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.

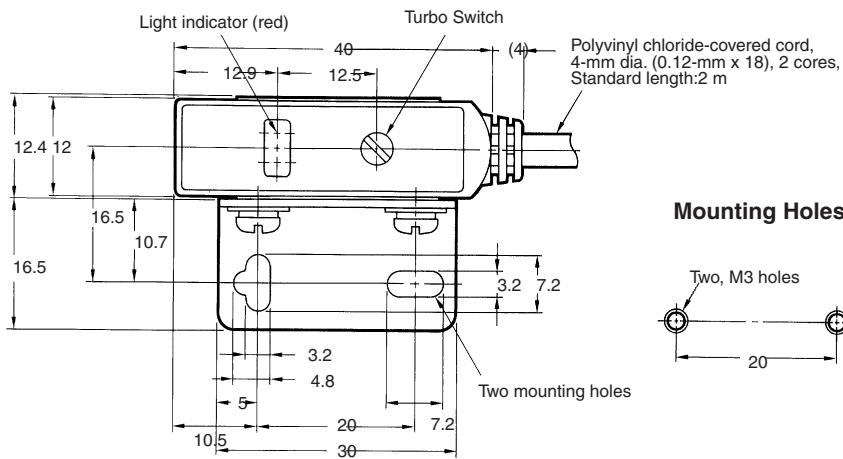

E3S-AT21, E3S-AT41 (Emitter)

Note: The mounting bracket can be attached to side A.

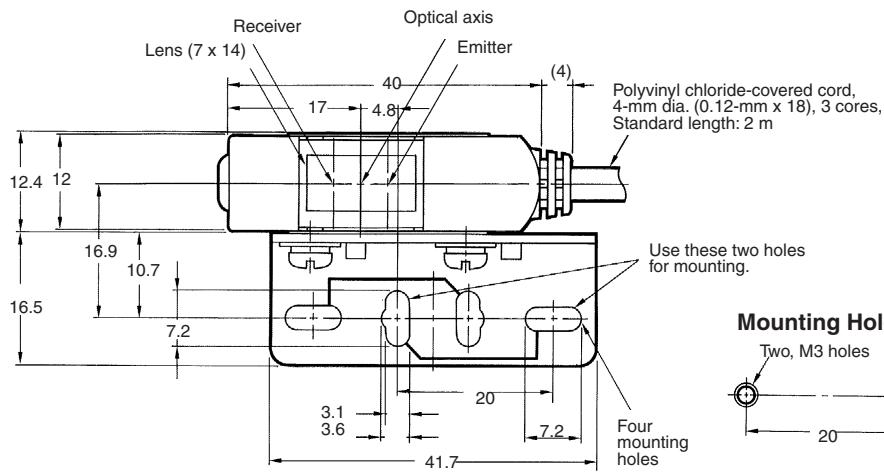

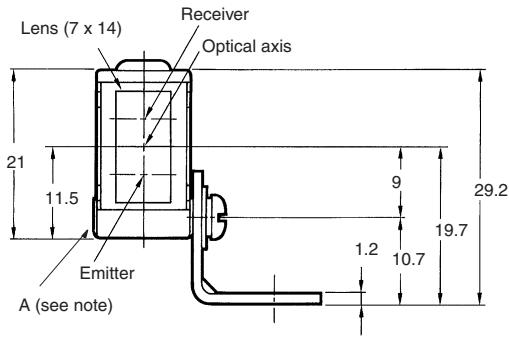

E3S-AR11, E3S-AR31

E3S-AR21, E3S-AR41

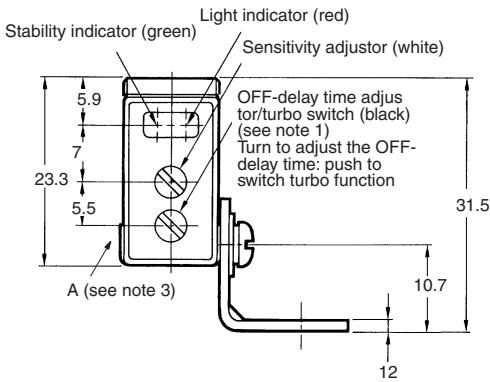

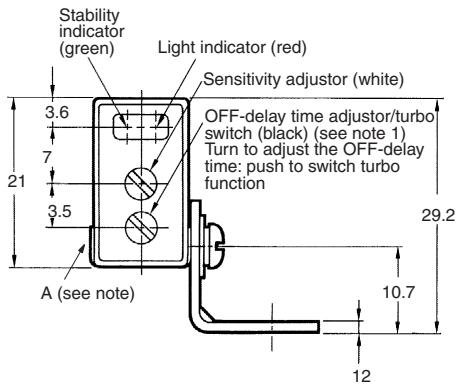

OEE-delay time adjustor/turbo switch (black) (see

Note 1

Turn to adjust the OFF-delay time: push to switch

turn to adjust theturbo function ON

Note: 1. For E3S-AR21 and

E3S-AR41 only.

1. 9 mm for E3S-AR21

and E3S-AR41

Mounting Holes

Note: The mounting bracket can be attached to side A.

E3S-AD11. E3S-AD31

E3S-AD13. E3S-AD31

E3S-AD12, E3S-AD32

Mounting Holes

Note: The mounting bracket can be attached to side A.

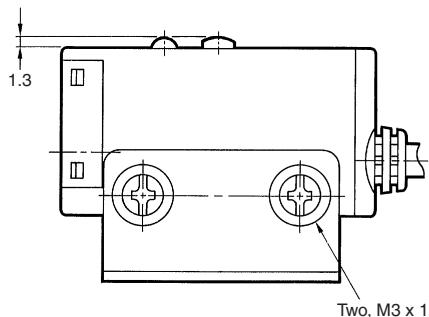

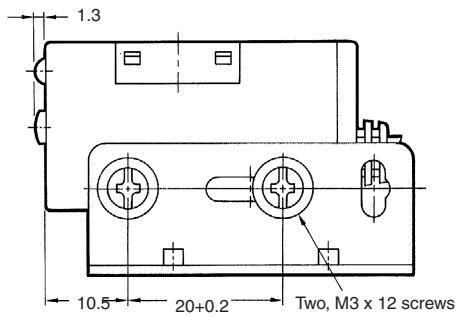

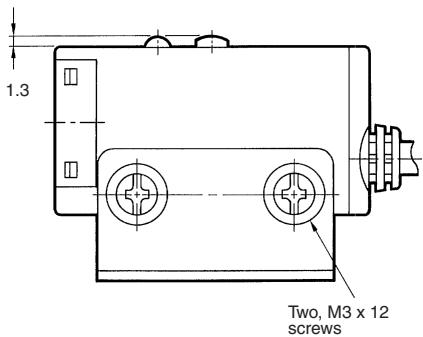

Two, M3 x 12 screws
Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.

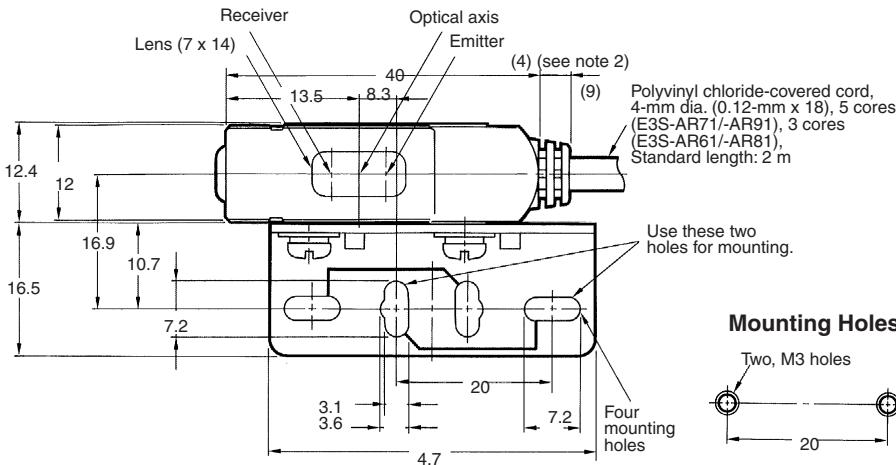

E3S-AR61, E3S-AR81
E3S-AR71, E3S-AR91

Note: 1. Turbo switch is only for E3S-AR71 and E3S-AR91.
2. 9.7 mm for E3S-AR71/-AR91.
3. The mounting bracket can be attached to side A.

E3S-AD61, E3S-AD81

E3S-AD63, E3S-AD83

E3S-AD62, E3S-AD82

E3S-AD71, E3S-AD91

E3S-AD73, E3S-AD93

E3S-AD72, E3S-AD92

Note: The mounting bracket can be attached to side A.

Note: 1. Turbo switch is only for E3S-AD71 and E3S-AD91.
2. The mounting bracket can be attached to side A.

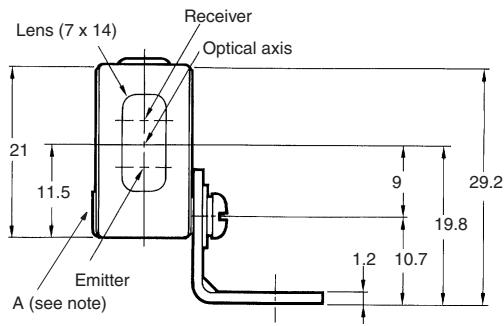

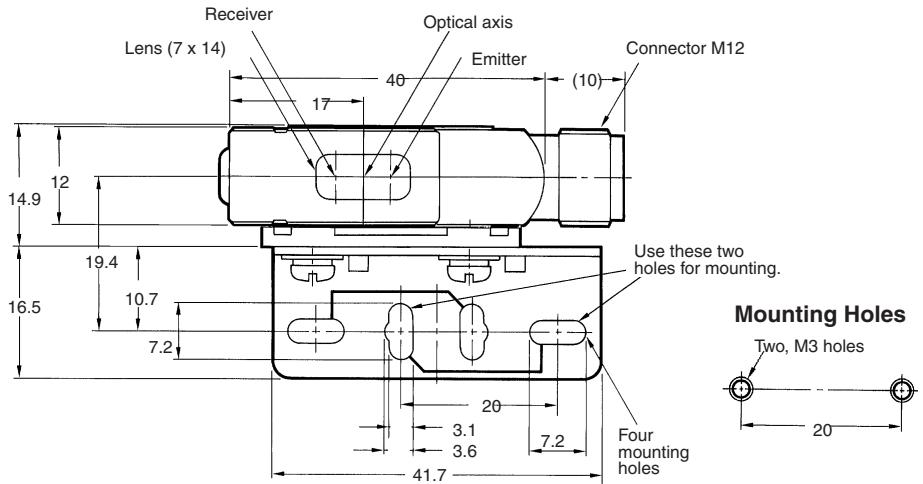

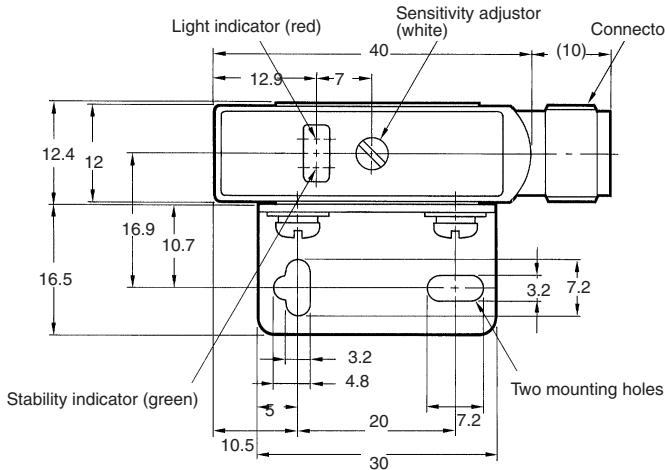

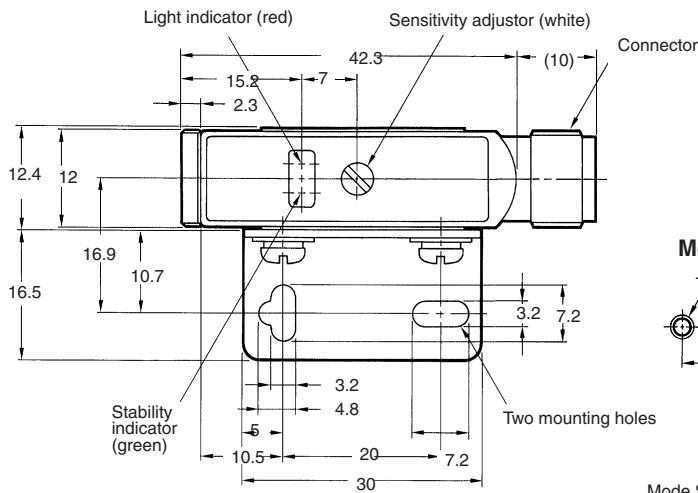

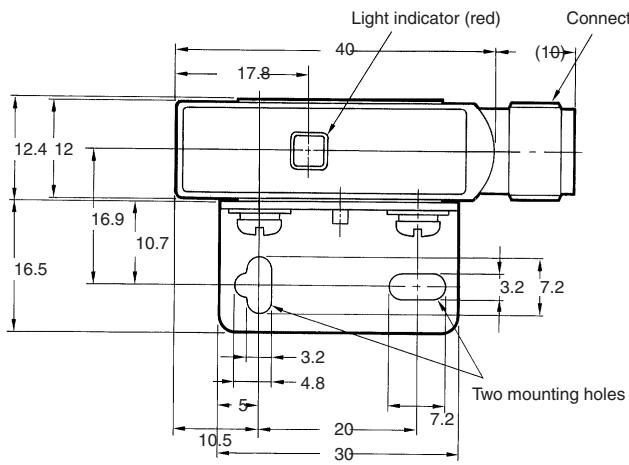

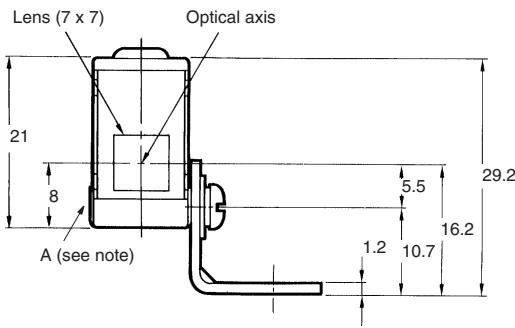

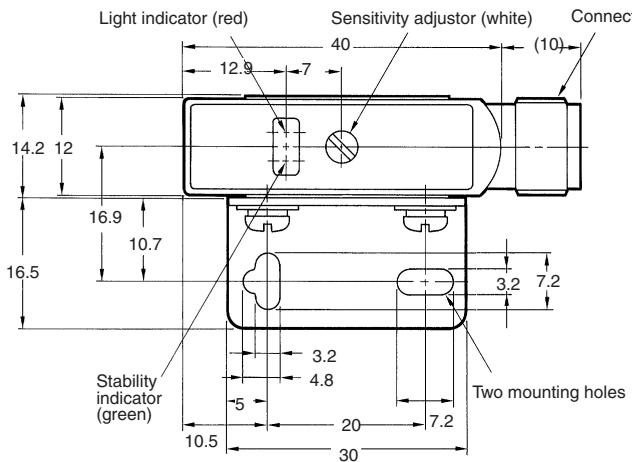

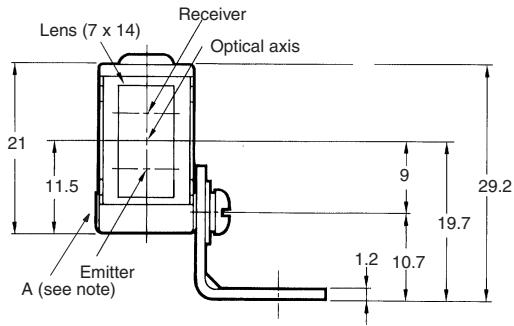

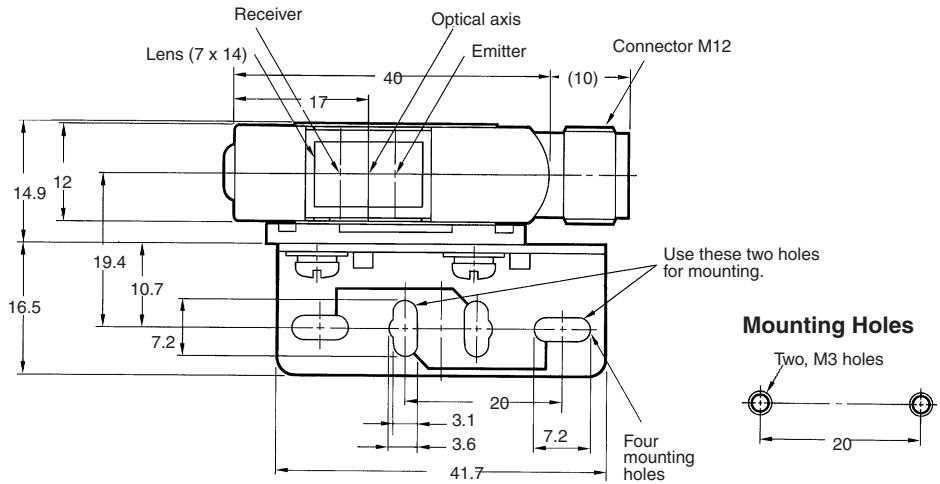

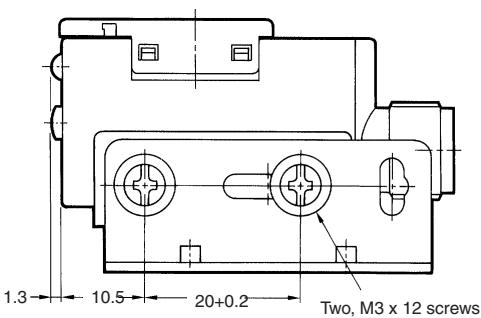

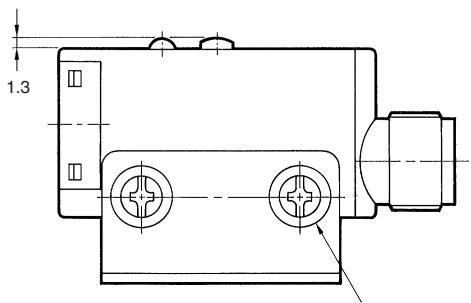

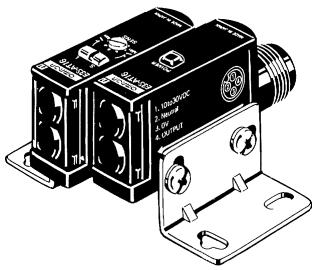

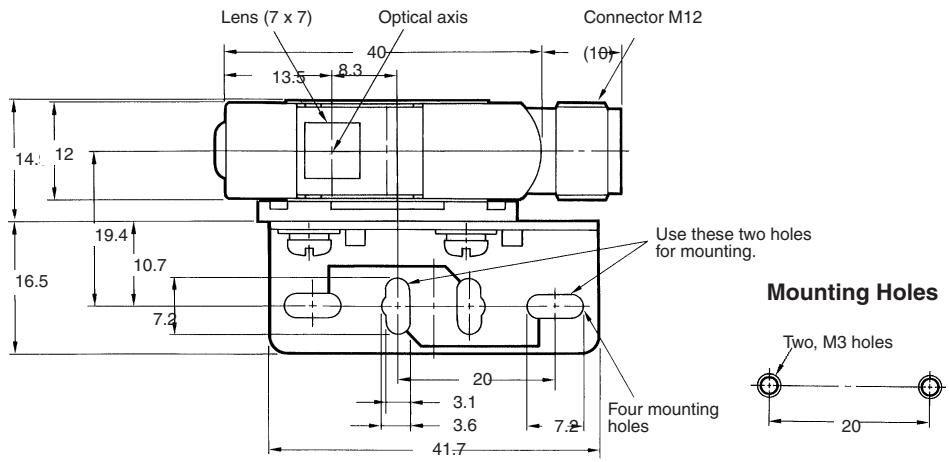

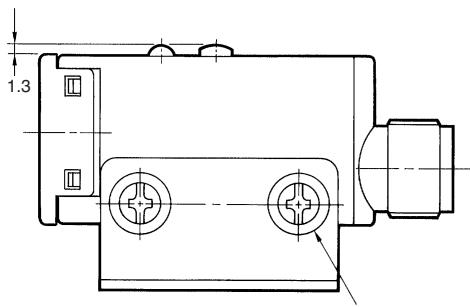

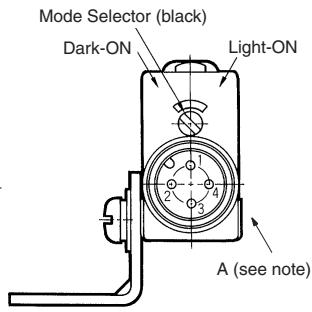

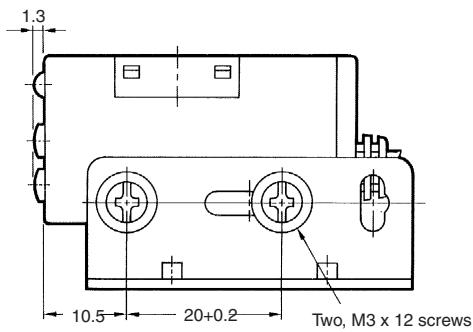

Connector Type

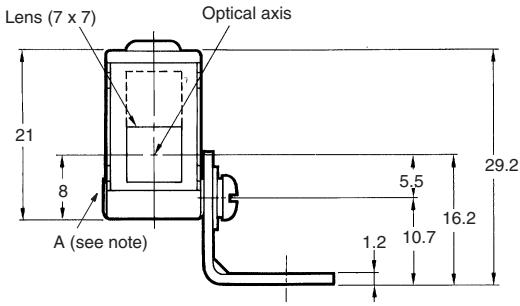

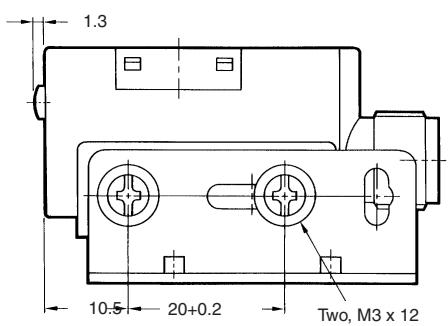

E3S-AT16, E3S-AT36 (Receiver)

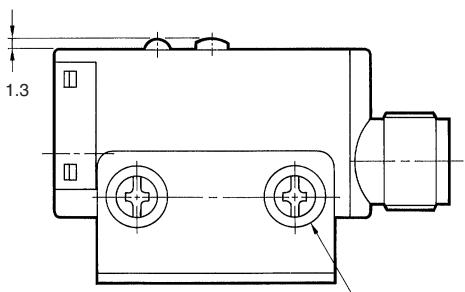

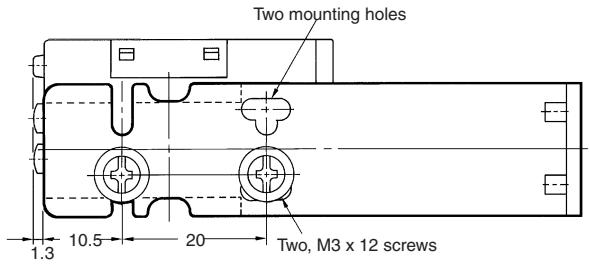

Mounting Holes

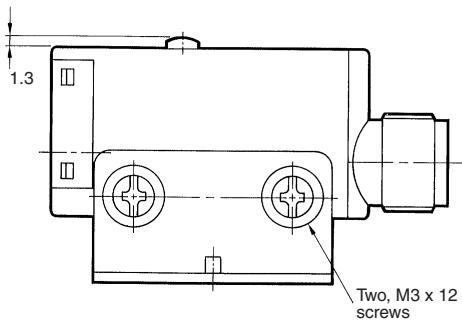

Two, M3 x 12 screws

Note: The mounting bracket can be attached to side A.
E3S-AT16, E3S-AT36 (Emitter)

Mounting Holes

Note: The mounting bracket can be attached to side A.

E3S-AR16,E3S-AR36

Mounting Holes

Two, M3 x 12 screws
Note: The mounting bracket can be attached to side A.

E3S-AD16. E3S-AD36

E3S-AD18, E3S-AD38

E3S-AD17, E3S-AD37

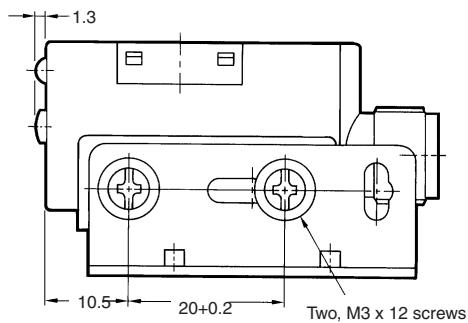

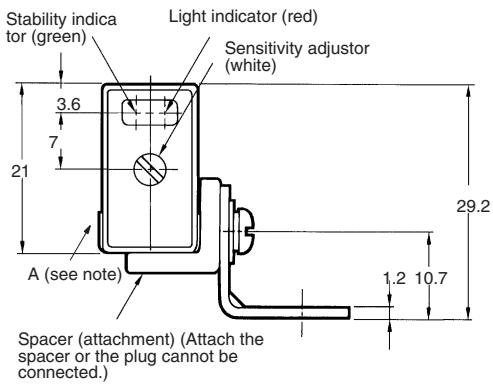

Mounting Holes

Two, M3 x 12 screws
Note: The mounting bracket can be attached to side A.

Note: The mounting bracket can be attached to side A.
E3S-AT66, E3S-AT86 (Emitter)

Note: The mounting bracket can be attached to side A.

E3S-AR66, E3S-AR86

Note: The mounting bracket can be attached to side A.

E3S-AD66,E3S-AD86

E3S-AD68, E3S-AD88

E3S-AD67, E3S-AD87

Note: The mounting bracket can be attached to side A.

Accessories

Plug (for E3S-A Connector type)

Straight Type XS2F-D421-DC0-A

Polyvinyl chloride-covered cord, 0.5mm_2 (oilproof), 3 cores, Standard length: 2m

The XS2F-D421 Straight Cable Connector is also available. Refer to the output circuit diagram on page A-237.

Cable drawing direction	No. of conductors	Cord length	Model
Straight	3	2 m	XS2F-D421-DC0-A
	4		XS2F-D421-D80-A
	3	5 m	XS2F-D421-GC0-A
	4		XS2F-D421-G80-A

Attachments

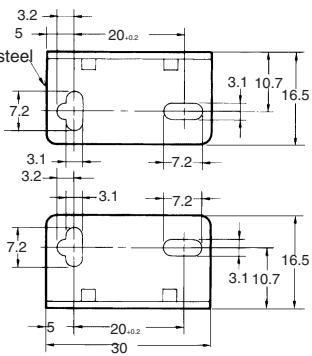

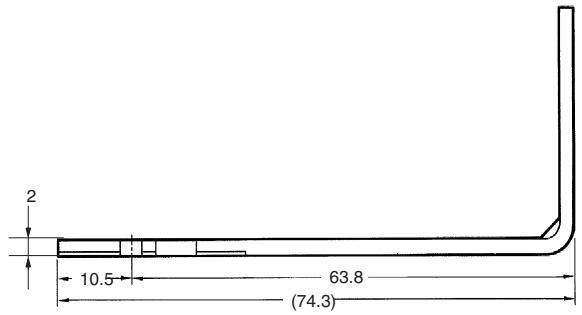

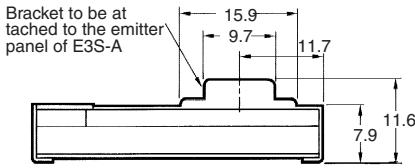

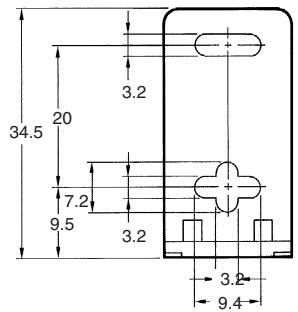

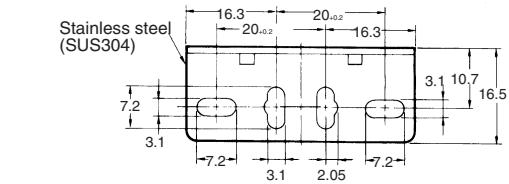

Standard Mounting Bracket (for E3S-A Horizontal Sensor) E39-L69

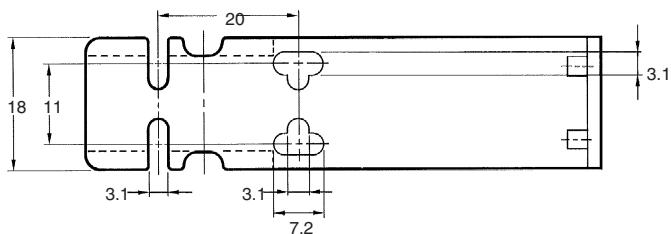

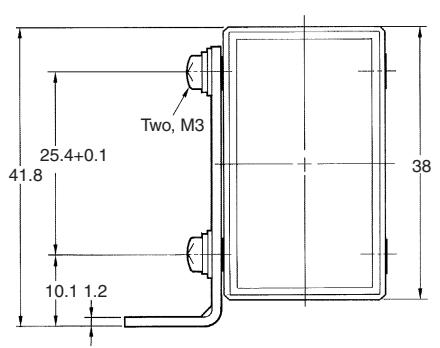

Standard Mounting Bracket (for E3S-A Vertical Sensor) E39-L70

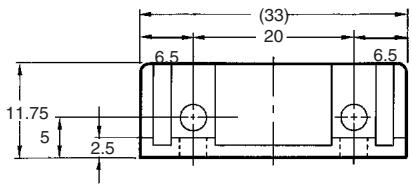

Close Mounting Plate (for E3S-A Connector Type) E39-L60

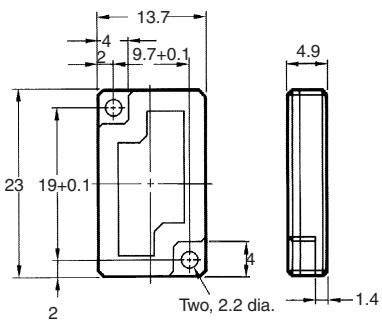

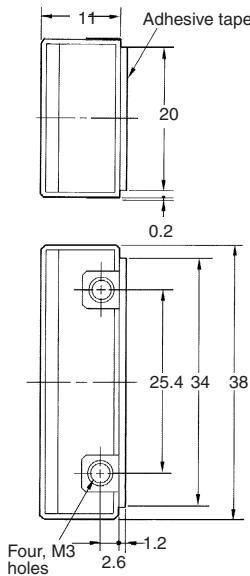

Sensitivity Adjustor Knob (for E3S-A) E39-G2

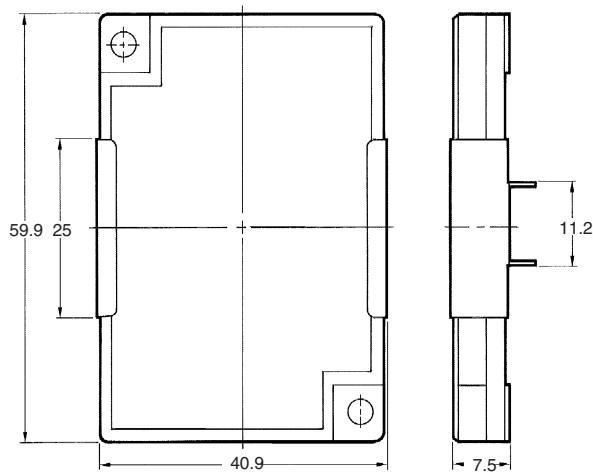

Retroreflector (Included with E3S-□R□□) E39-R1

Accessories (Order Separately)

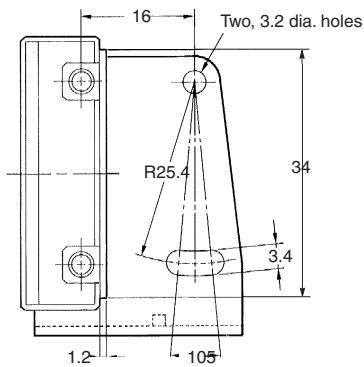

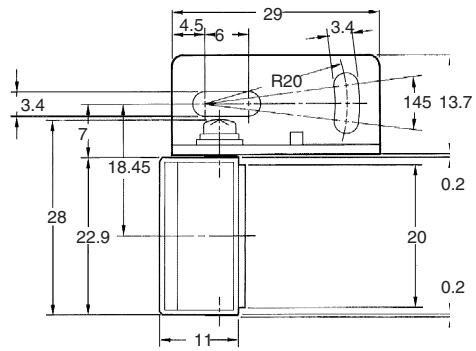

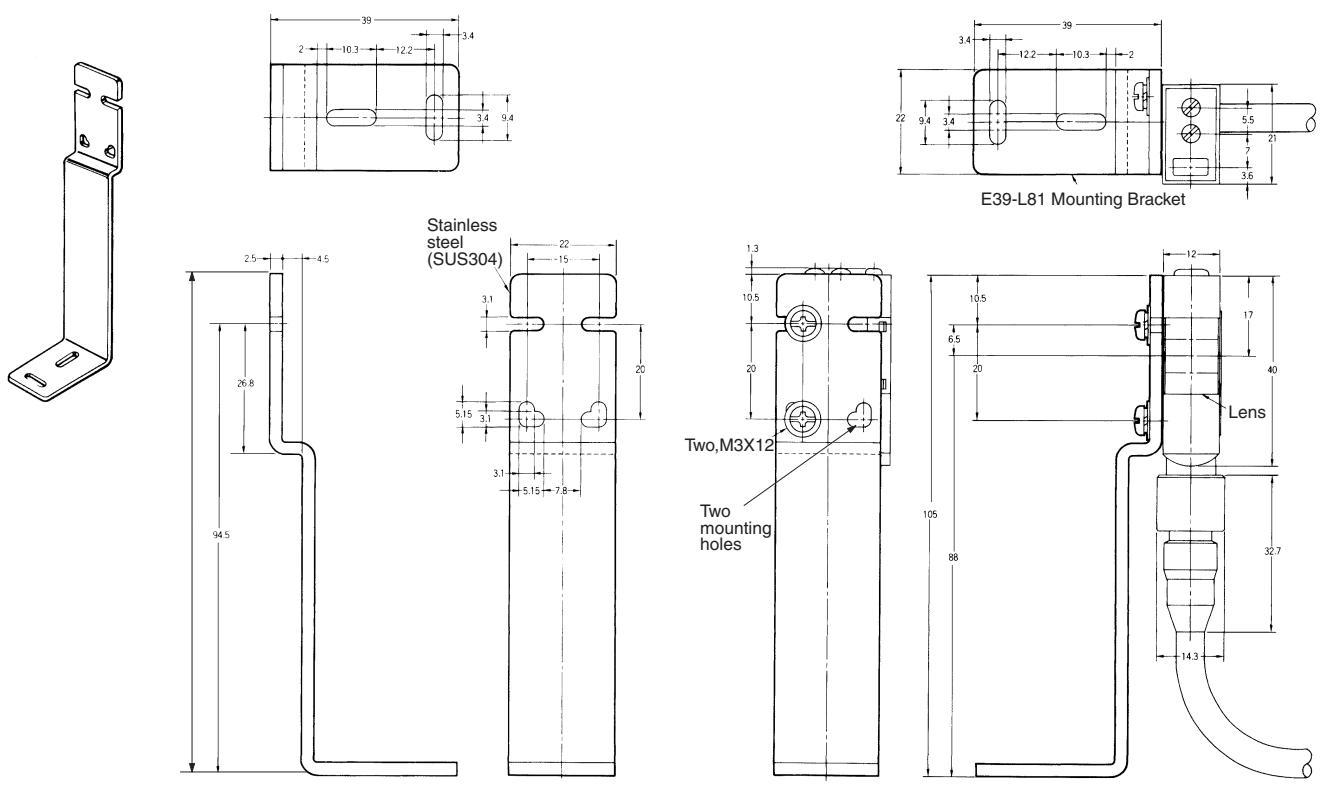

Vertical Mounting Bracket (for E3S-A) E39-L59

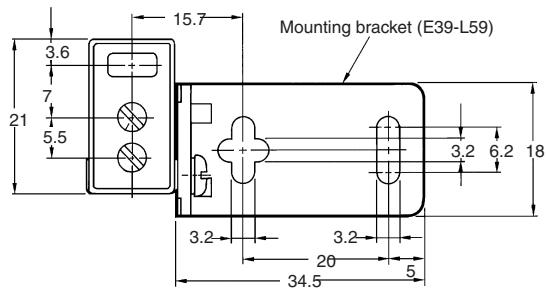

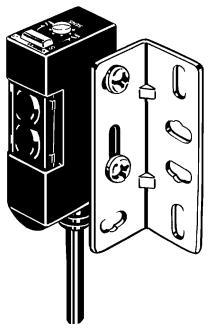

Mounting Example of E3S-A on E39-L59

Mounting Example of E3S-A on E39-L81

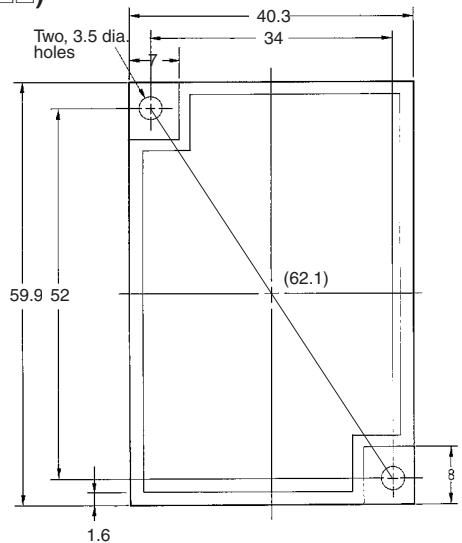

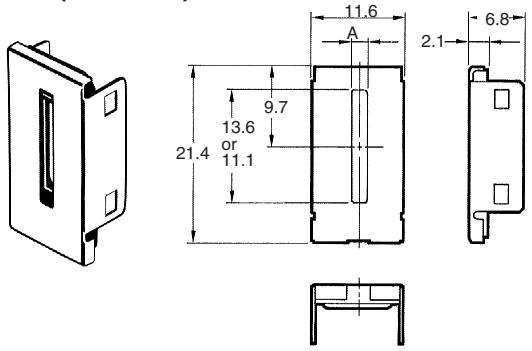

Slit (for E3S-A) E39-S46

Note: The width of A is 0.5 mm,1 mm ,or 2 mm depending on the model.

Filters for Mutual Interference Prevention (for E3S-A)
E39-E6

Note: Two vertical filters and two horizontal filters are sold together.

Mini-reflector E39-R4

Optical Axis Confirmation Reflector (for E3S-A) E39-R5

Small Reflector E39-R3

E39-R3 - With Enclosed Mounting Bracket

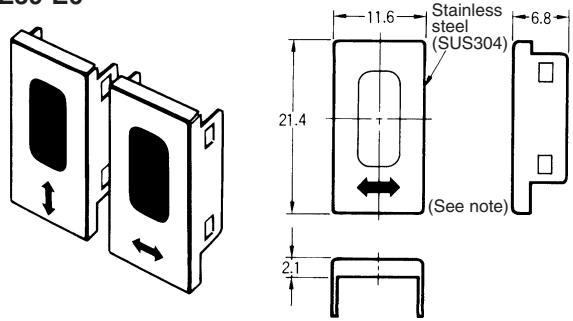

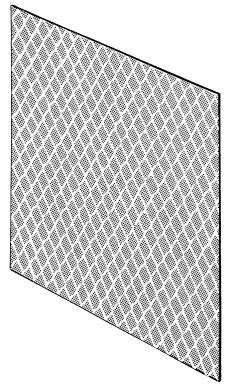

Reflecting Tape E39-RS1

Reflecting Tape E39-RS2

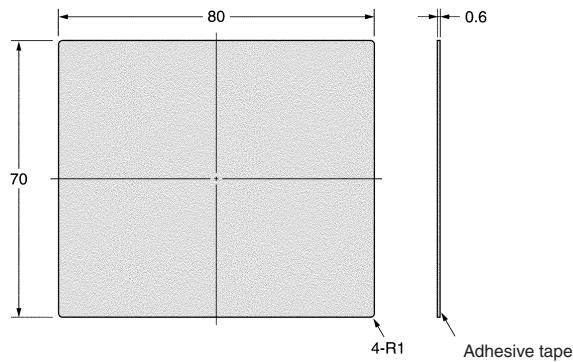

Reflecting Tape E39-RS3

Item	E39-R3	E39-RS1	E39-RS2	E39-RS3	E39-R4
Directional angle	30° min.				2 to 20°
Ambient temperature	Operating: -25°C to 55°C Storage: -40°C to 70°C	Operating: -25°C to 55°C Storage: 0°C to 40°C			Operating: -25°C to 55°C Storage: -40°C to 70°C
Ambient humidity	Operating: 35% to 85% Storage: 35% to 95%	Operating: 35% to 85% Storage: 35% to 85%			Operating: 35% to 85% Storage: 35% to 95%
Enclosure rating	IP67

Note: The above reflector tapes are polarizing.

Installation

Connections (Without Self-diagnostic Function)

Load (Relay)

Sensing method	Through-beam	Retroreflective / diffuse reflective
Connection method	*12 to 24 V 0 V Blue Emitter	**100 mA max. Load Receiver Black *12 to 24 V Brown Blue 0 V Blue	0 V Blue *12 to 24 V Brown Load *100 mA max 100 V Output

• 10 to 30 V for the E3S-A
  If the load is a relay, insert a surge absorbing diode between the coils of the relay.
  * The connection examples are for sensors with the NPN output.

With Sensor Controller S3D2

Sensing method	Through-beam	Retroreflective / diffuse reflective
Connection method	Brown Emitter Receiver Blue Blue IN1 Black 12 V 0 V S3D2	Brown Black Blue IN 1 V 0 V S3D2

Plug (for E3S-A with connector)

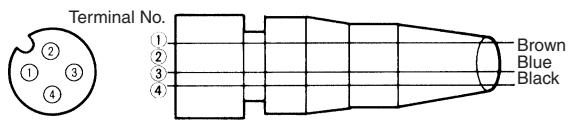

Internal Connection

Item	Color of cord	Connection pin No.	Application
For DC	Brown	1	Power supply (+V)
	Black	4	Output
	Blue	3	Power supply (-V)

Note: Pin No. 2 and 4 are connected internally.

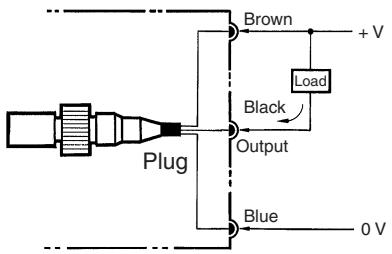

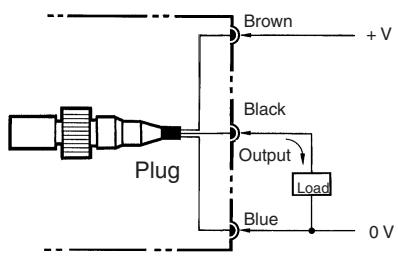

External connection

NPN Output

PNP Output

Tightening Plug

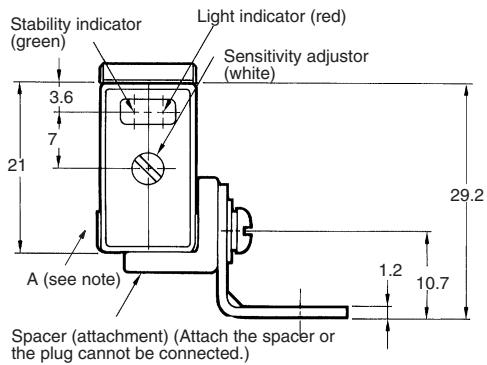

Turn part B by hand (do not use a pliers or the plug will be damaged) and tighten it with part C so that length A is nearly zero. Part B must be tightened properly with part C, or otherwise part B could be loosen by vibration and the sensor will not maintain the specified enclosure ratings.

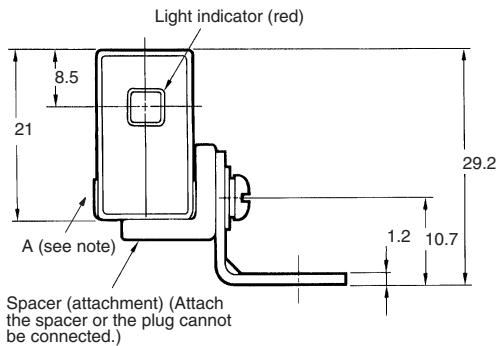

Note: Use the spacer (sold together) to mount the photoelectric sensor with or without the enclosed mounting bracket (refer to Dimensions (page A-244)).

Precautions

The supplied voltage must be within the rated voltage range. Unregulated full-or half-wave rectifiers must not be used as power supplies.

If the input/output lines of the photoelectric sensor are placed in the same conduit or duct as power lines or high-voltage lines, the photoelectric sensor could be induced to malfunction, or even be damaged, by electrical noise. Either separate the wiring, or use shielded lines as input/output lines to the photoelectric sensor.

Do not use a hammer to hit the amplifier when mounting or the amplifier will loose watertightness.

Note the following when using the E39-R3, E39-RSA, or E39-RSB reflector (tape):

1. Before applying adhesive tape to the reflector, make sure that the reflector is free from oil or dust, or otherwise the adhesive tape will not stick to the reflector properly.
2. Do not cut the reflector or the reflector will loose watertightness.
3. Do not press the reflector with a metal object or a nail, or otherwise the reflector will not function properly.

Position of Optical Axis of Through-beam Model

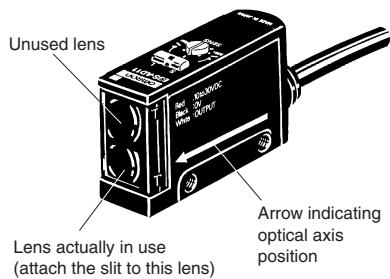

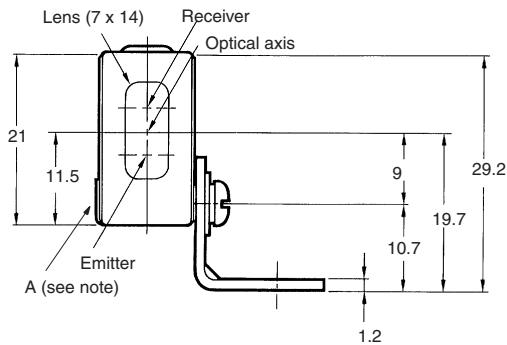

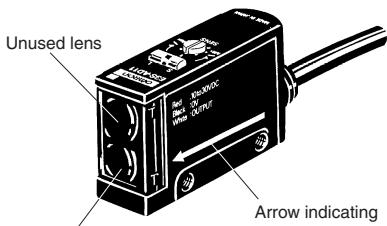

Unlike conventional through-beam models, the E3S Through-beam Photoelectric Sensor incorporates 2 lenses. But the lens actually in use is the one marked with an arrow indicating the position of the optical axis. When using a slit, attach it to the lens marked with the arrow.

Lens actually in use
(attach the slit to this lens)
Arrow indicating
optical axis
position

Position of Arrow Indicating Optical Axis

Model	Position of lens in use
E3S-A (vertical)	Top
E3S-A (horizontal)	Bottom

Adjustor Cap

In order to prevent the sensitivity or OFF-delay time that has been set from changing accidentally enclosed, cover the adjustors with the adjustor cap (enclosed).

Mutual Interference Filter (E39-E6/-E8)

A set of 4 filters are sold together for two through-beam models (for 2 each of emitters and receivers).

For mounting, refer to the figure of the slit for the E3S-A Photoelectric Sensor.

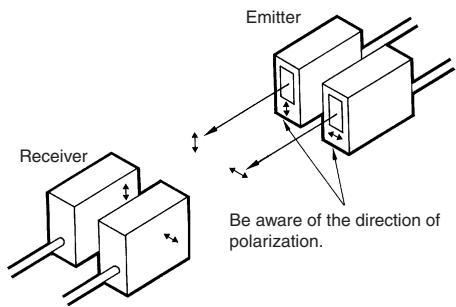

The arrow printed on the cover indicates the direction of polarization. By attaching the filters opposite to each other in polarization to the emitters and the receivers (refer to the figure) in rows, mutual interference can be prevented (in any case, the filter attached to an emitter and to the corresponding receiver must be the same in direction of polarization or the photoelectric sensor will not function).

Mounting Bracket

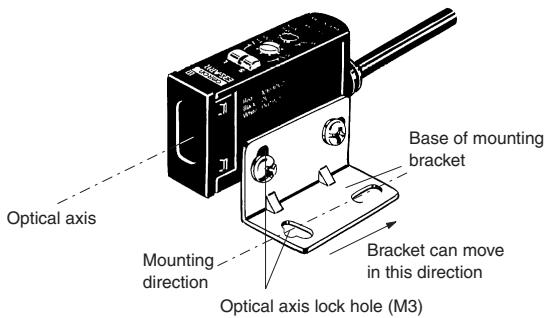

The direction of the optical axis coincides with the mounting direction of the E3S when the mounting screw is inserted into the lock hole of the mounting bracket. Unlike conventional photoelectric sensors, if the sensing object (or the retroreflector in the case of a through-beam sensor) is in the mounting direction of the photoelectric sensor, the object is detected with the incident light without the time-consuming adjustment of the optical axis (but if the mounting surface is not flat, the adjustment of the optical axis may still be required).

Note: The maximum tightening torque applied to the screw is 5.5kgf× cm (0.53 N x m).

Installation of Accessories

Sensitivity Adjustor Knob (Attachment)

To temporarily use the knob to adjust the sensitivity of the photoelectric sensor, insert side A into the shaft of the sensitivity adjustor.

To permanently use the knob to adjust the sensitivity of the photoelectric sensor, insert side B into the shaft (the knob cannot be removed if once side B is inserted into the shaft).

Slit (E39-S46 Order Separately) for E3S-A

Use the rubber attachment with the metal cover if a slit width of 2mm is required. Insert the 0.5- or 1-mm slit between the metal cover and rubber attachment if a slit width of 0.5 or 1mm is desired. These slits fit into the rubber attachment.

Note: Apply the slit to the lens of the photoelectric sensor marked with an arrow indicating the position of the optical axis (apply it to the bottom lens of horizontal sensors and the top lens of vertical sensors).

Optical Axis Reflector (E39-R5 Order Separately)

Use this attachment when the set distance is long and adjustment is mechanically difficult with a sensing object.

Attach the reflector to the receiver (refer to the figure).

Look at the reflector from right behind the emitter. The reflector should be bright with red light when the optical beam strikes the reflector. If the emitter has a turbo function, the reflector looks brighter with the function switched on.

When the reflector is removed, the light beam strikes the receiver.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
