USER MANUAL X17 INFOCUS

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Reference Guide CD

Quick Start Guide

Warranty Booklet

Safety Booklet

Registration Card

+
Remote Control & Battery

Power Cord
VGA Cable

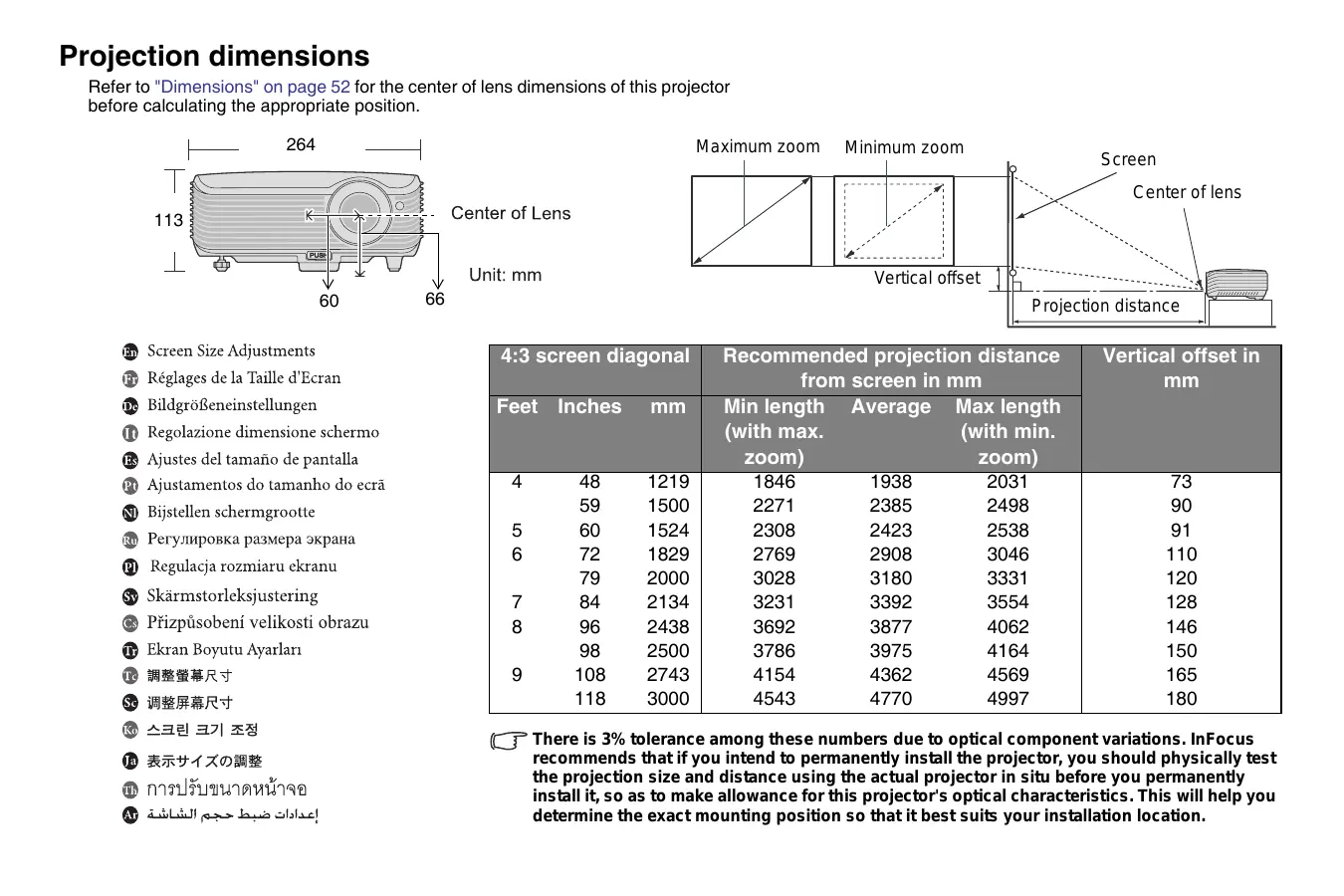

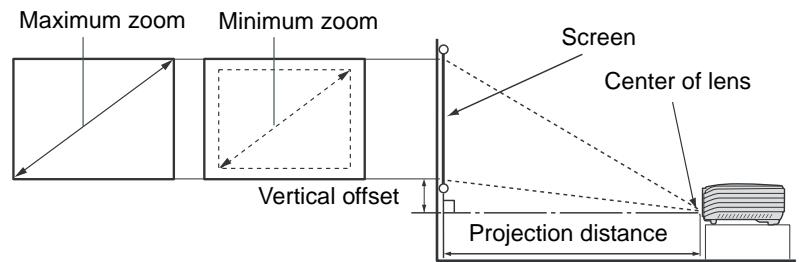

Projection dimensions

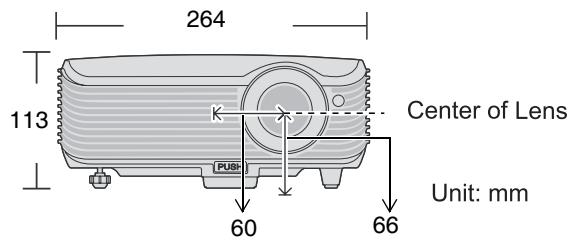

Refer to "Dimensions" on page 52 for the center of lens dimensions of this projector before calculating the appropriate position.

Screen Size Adjustments
Réglages de la Taille d'Ecran
Bildgroßeneinstellungen
16 Regolazione dimensione schermo
Ajustes del tiempo de pantalla
Pt Ajustamentos do tamanho do ecra
Bijstellen schermgrootte
PeryJINpOBKa pa3Mepa 3KpaHa
Regulacja rozmiaru ekranu
Skärmtorleksjustering
Prizpúsobeni velikosti obrazu
Ekran Boyutu Ayarli
调整螢幕尺寸
调整屏幕尺寸
Ko 3
13 表示サイズの調整
16 nnnn nnne
A aLwJgBwJdSf

4:3 screen diagonal			Recommended projection distance from screen in mm			Vertical offset in mm
Feet	Inches	mm	Min length (with max. zoom)	Average	Max length (with min. zoom)
4	48	1219	1846	1938	2031	73
	59	1500	2271	2385	2498	90
5	60	1524	2308	2423	2538	91
6	72	1829	2769	2908	3046	110
	79	2000	3028	3180	3331	120
7	84	2134	3231	3392	3554	128
8	96	2438	3692	3877	4062	146
	98	2500	3786	3975	4164	150
9	108	2743	4154	4362	4569	165
	118	3000	4543	4770	4997	180

There is 3% tolerance among these numbers due to optical component variations. InFocus recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Questions? Get help at: www.infocus.com/support
