LightPro IN0046 - Projector INFOCUS - Free user manual and instructions

Product Type	Video Projector
Brand	InFocus
Model	LightPro IN0046
Display Technology	Texas Instruments DLP
Native Resolution	WXGA (1280 x 800)
Aspect Ratio	16:10
Brightness	4700 Lumens
Contrast Ratio	30000:1
Light Source	UHP Lamp, up to 15000 hours
Lens	1.3x zoom (manual)
Vertical Keystone Correction	±40°
Projection Distance	1.0 - 7.7 m (3.28 - 22.26 ft)
Image Offset	112.4%
Connectivity Inputs	VGA, Composite, S-Video, HDMI 1.4, RJ45, 3.5mm Audio In
Connectivity Outputs	VGA, 3.5mm Audio Out, USB-A (5V/1.5A)
Other Interfaces	RS232, USB-A (service)
Power Consumption (Max)	267 W
Power Consumption (Standby)	< 0.5 W
Dimensions (L x W x H)	313 x 236 x 96.4 mm
Weight	2.9 kg
Fan Noise	27 dB
Built-in Speaker	10 W (mono)
Operating Temperature	5°C to 40°C
Security	Kensington Lock, PIN Code Lock & Timer
In the Box	Projector, VGA Cable, Power Cord, Remote Control (batteries not included), Simplified User Guide

Frequently Asked Questions - LightPro IN0046 INFOCUS

How do I turn on the projector?

Connect the power cable, attach a source, remove the lens cap, and press the Power button on the keypad or remote. The Power LED will flash blue then become solid blue.

What should I do if the image is distorted or trapezoidal?

Use the Keystone correction: press Menu, go to Image > V Keystone or H Keystone, and adjust using the arrow keys. Ensure the projector is perpendicular to the screen.

How can I watch 3D content?

Connect a 3D source, press Menu, go to Display > Display Mode > 3D, and set 3D Mode to On. Use DLP-Link compatible 3D glasses. The input frame rate should be 60 Hz.

How do I clean the projector?

Unplug the projector. Clean the lens with a lightly damp cloth, the case with a soft dry cloth, and the air vents with a soft brush or vacuum designed for electronics. Do not use solvents.

What is the lamp life and how do I replace it?

The lamp lasts up to 15,000 hours. To replace, turn off and unplug the projector, let it cool, then open the lamp door (labeled 12 on top). Refer to the manual for detailed steps. Reset the lamp timer via the OSD menu.

The remote control is not working. What can I do?

Check batteries (AAA, not included) – replace if needed. Ensure the remote is within 5 m of the projector and within 60° angle of the IR sensor. Avoid bright light sources near the sensor.

What inputs does the projector support?

It has one VGA, one Composite, one S-Video, two HDMI 1.4 ports, and one RJ45 for LAN. Audio input is via a 3.5mm jack.

My image is blurry – how can I fix it?

Adjust the focus ring on the lens. Also check the distance from the screen and ensure the lens is clean. If using a computer, verify the resolution is supported (up to 1920x1200).

Can I mount the projector on the ceiling?

Yes, use a ceiling mount with M4x10 screws. Ensure at least 10 cm clearance between ceiling and projector. Follow the mounting hole diagram in the manual (pages 25-26). Incorrect installation may void warranty.

How do I enable Eco mode to save lamp life?

Press the Eco button on the remote, or go to Menu > Display > Image Settings > Brightness Mode and select Eco. This reduces brightness and extends lamp life.

USER MANUAL LightPro IN0046 INFOCUS

White projector with 'In focus' branding and 'LightPro' text, no visible additional signage or symbols

USERS GUIDE INFOCUS LIGHTPRO VISTA II, GENESIS III, GENESIS IV, ORBITAL SERIES

InFocus

REGULATORY MODE	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P 4K
P122 INFOCUS	LIGHTPRO VISTA II STANDARD THROW	- IN0044SL IN0046SL	IN0048SL	-
P123 INFOCUS	LIGHTPRO VISTA II SHORT THROW	- IN0044ST IN0046ST IN0048ST	-
P124	INFOCUS LIGHTPRO GENESIS III	STANDARD THROW	IN0002SL	IN0004SL	IN0006SL	-
P125	INFOCUS LIGHTPRO GENESIS IV	STANDARD THROW	IN0022SL	IN0024SL	IN0026SL	IN0028SL
P126	INFOCUS LIGHTPRO GENESIS IV	SHORT THROW	-	IN0024ST	IN0026ST	-
P134	INFOCUS LIGHTPRO ORBITAL	STANDARD THROW	-	-	-	IN0061SL

TABLE OF CONTENTS

1. ABOUT THIS GUIDE......4

1.1 DESCRIPTION OF THE USER 4
1.2 CONVENTIONS USED IN THIS GUIDE....4
1.3 EXPLANATION OF SAFETY WARNINGS 4
1.4 RETAINING INSTRUCTIONS 4
1.5 OBTAINING DOCUMENTATION AND INFORMATION ....5
1.6 DOCUMENTATION FEEDBACK......5
1.7 SUPPORT AND SERVICE....5

2. PRODUCT DESCRIPTION....6

2.1 FEATURES 6
2.2 INTENDED USE AND REASONABLY FORESEEABLE MISUSE 8
2.3 PRODUCT ELEMENTS....8
2.3.1 FRONT 8
2.3.2 RIGHT SIDE 10
2.3.3 LEFT SIDE 11
2.3.4 TOP 13

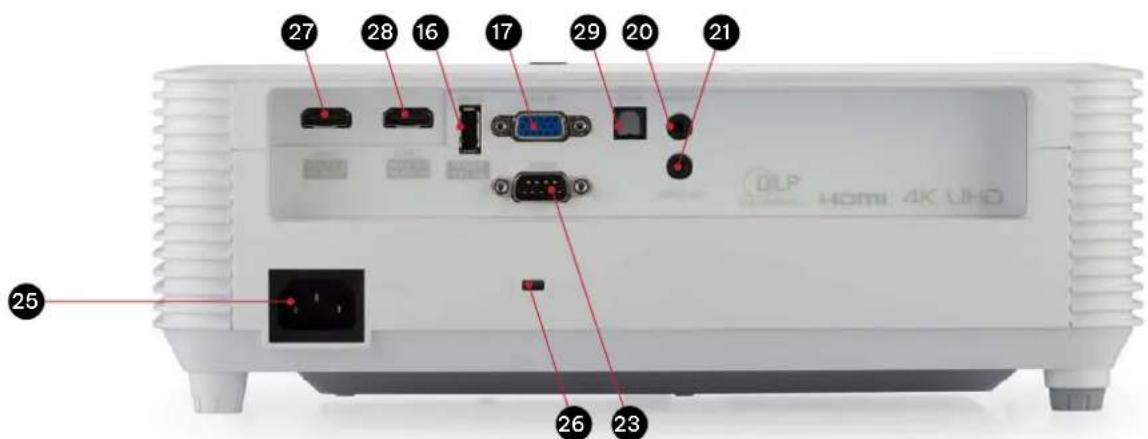

2.3.5 BACK 14

3. SAFETY 16

4. UNPACKING AND INSTALLING ....17

4.1 PACKAGING CONTENTS 17
4.2 INSTALLATION INSTRUCTIONS ....17
4.3 PLACEMENT AND DISTANCE FROM THE SCREEN....17

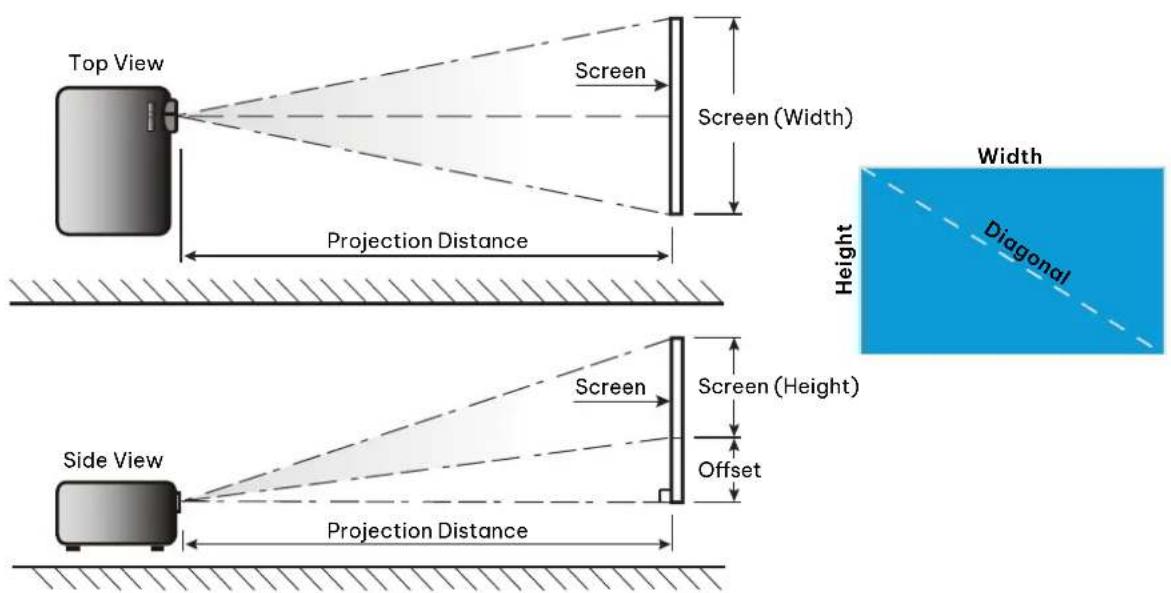

4.3.1 PROJECTION DISTANCE AND SCREEN SIZE....17

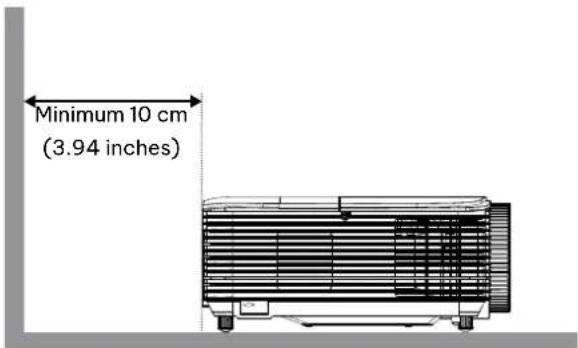

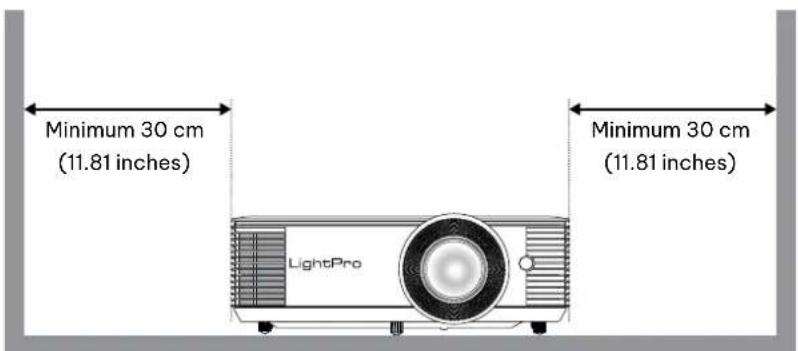

4.4 CLEARANCE 24

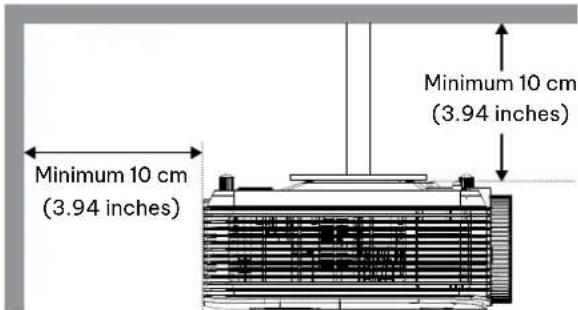

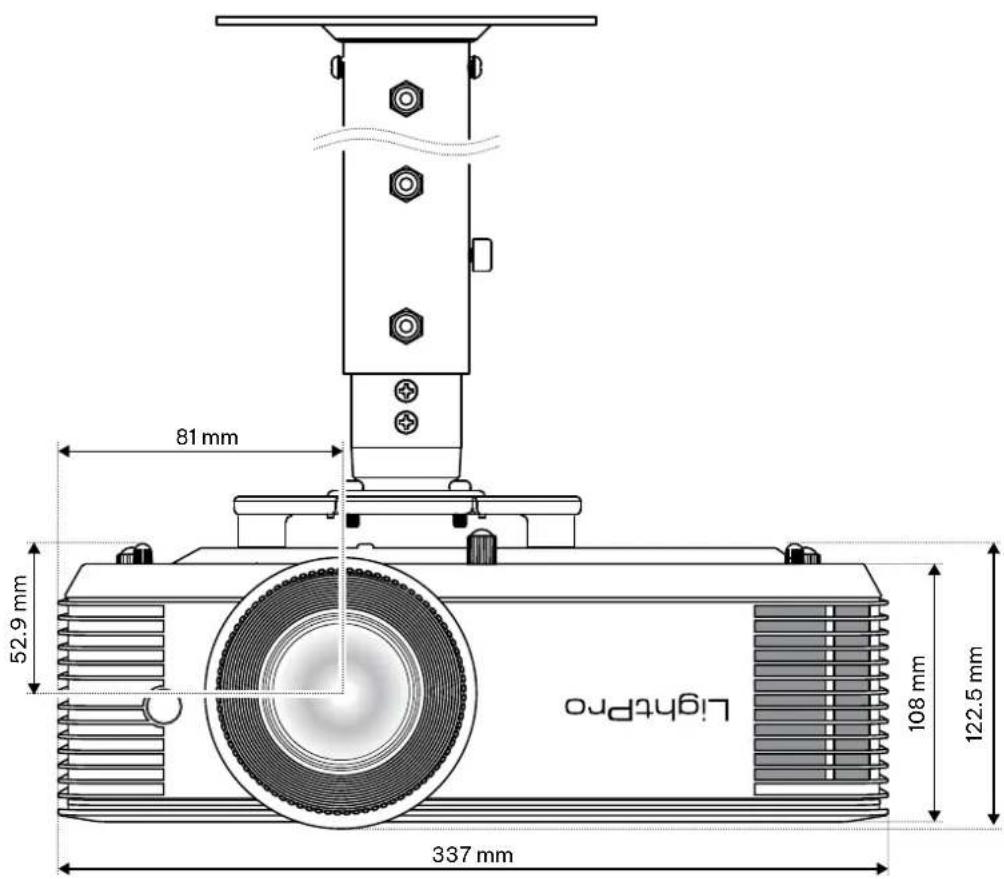

4.5 CEILING MOUNT 25

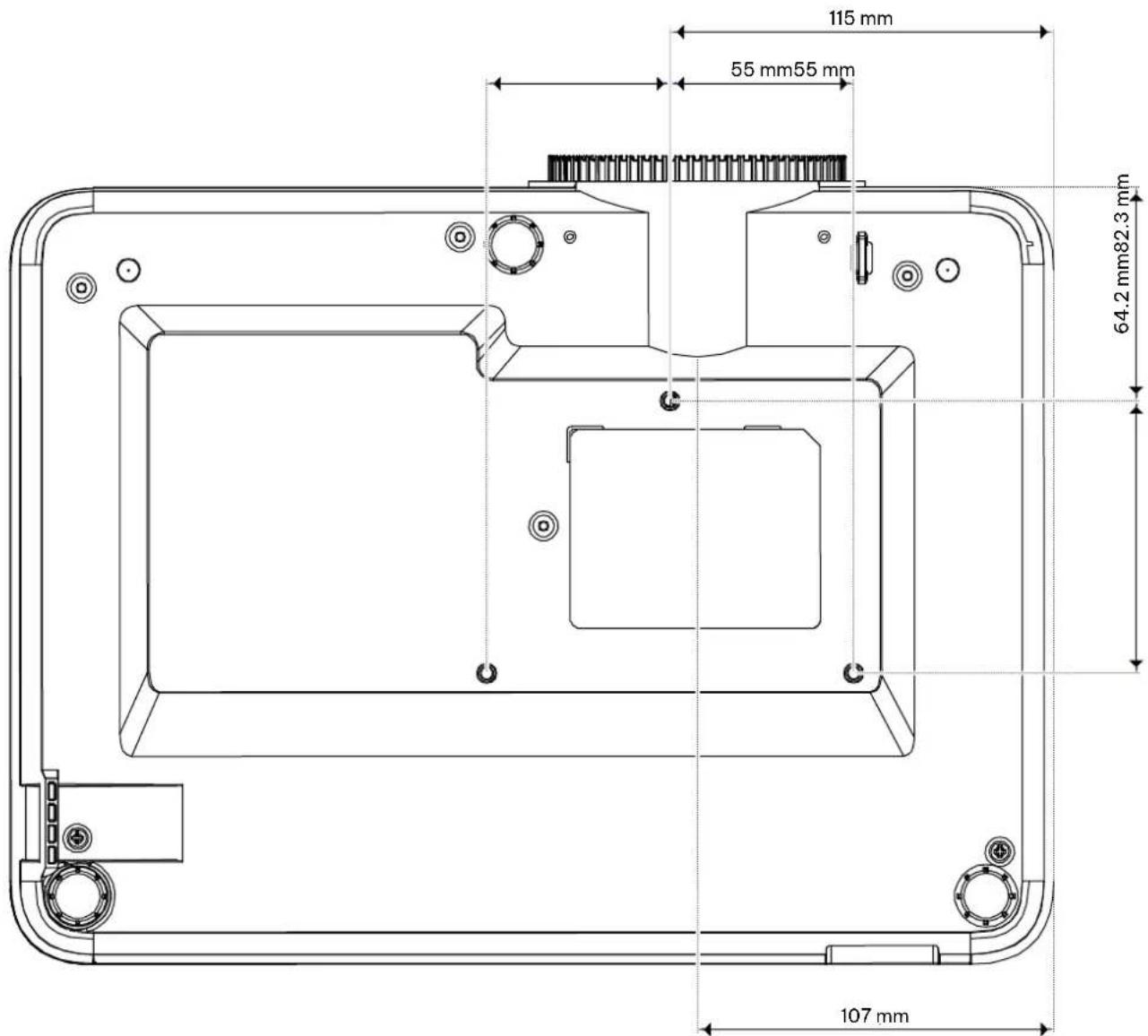

4.6 MOUNTING HOLE DIAGRAM 26

5. ADJUSTING....27

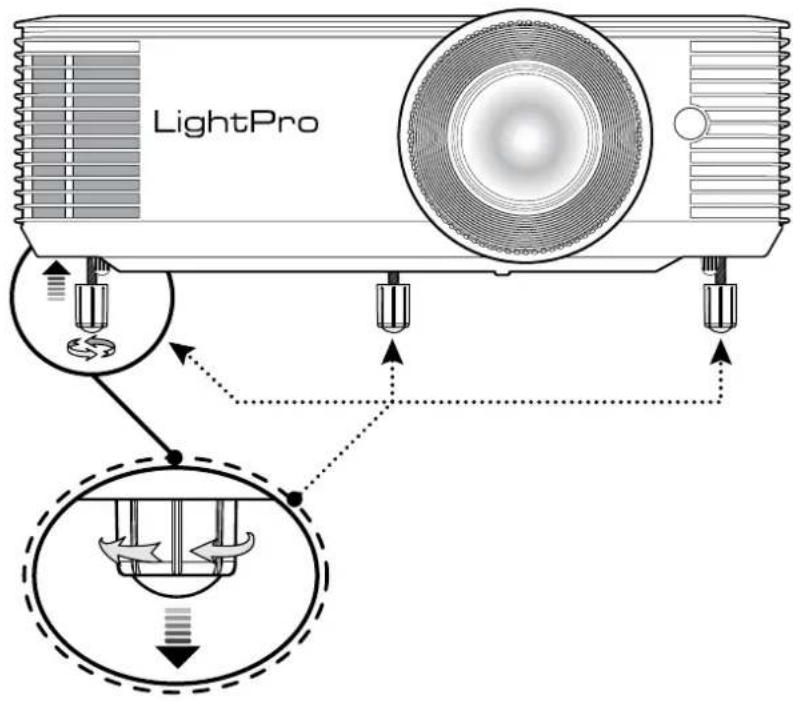

5.1 ADJUSTING THE IMAGE HEIGHT AND TILT 27
5.2 ADJUSTING THE ZOOM, LENS SHIFT AND FOCUS....27
5.3 ADJUSTING THE VERTICAL AND HORIZONTAL KEYSTONE 27

6. CONNECTING 29

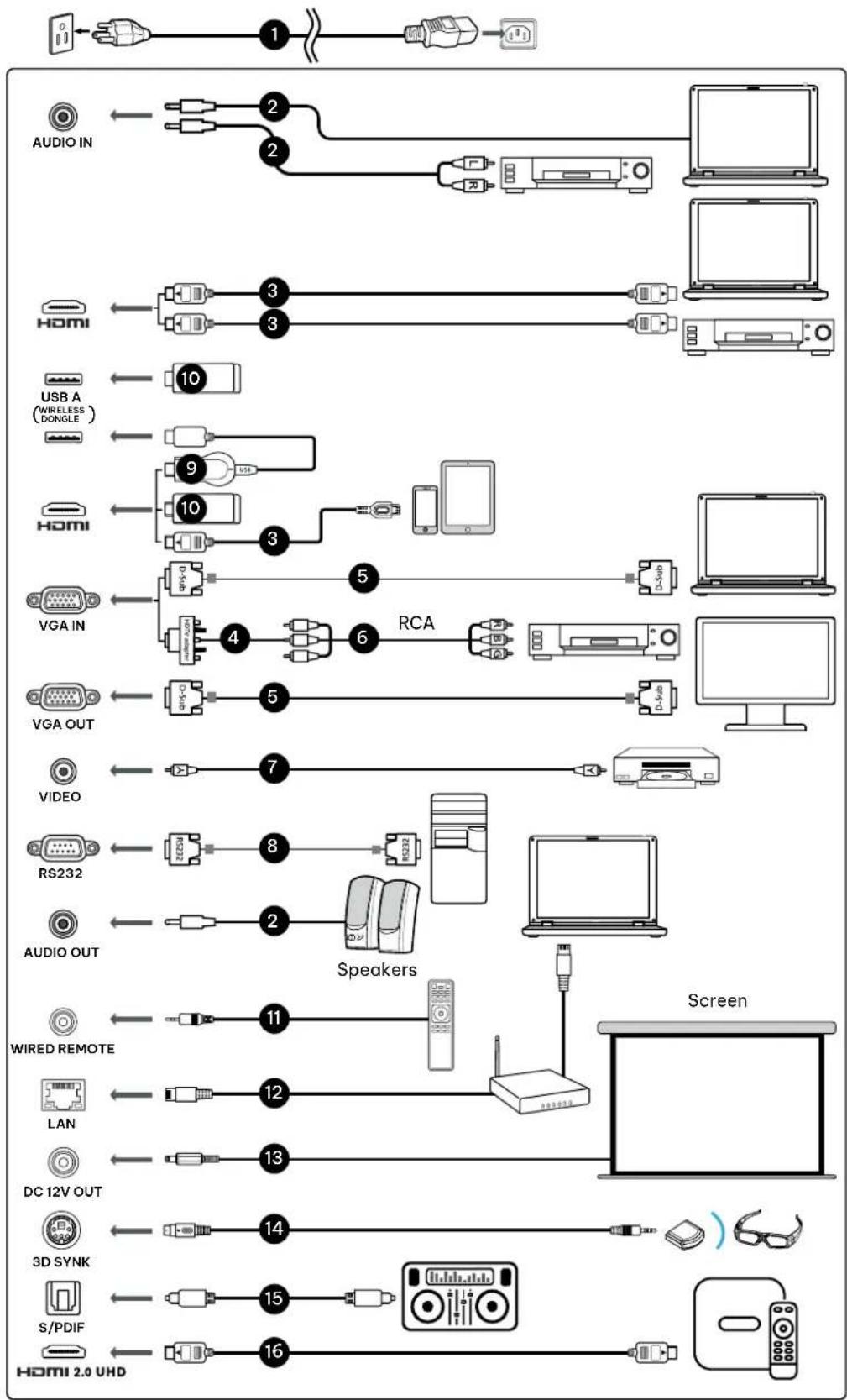

6.1 CONNECTION DIAGRAM 29

7. USING 30

7.1 LEDS 30
7.2 KEYPAD....30

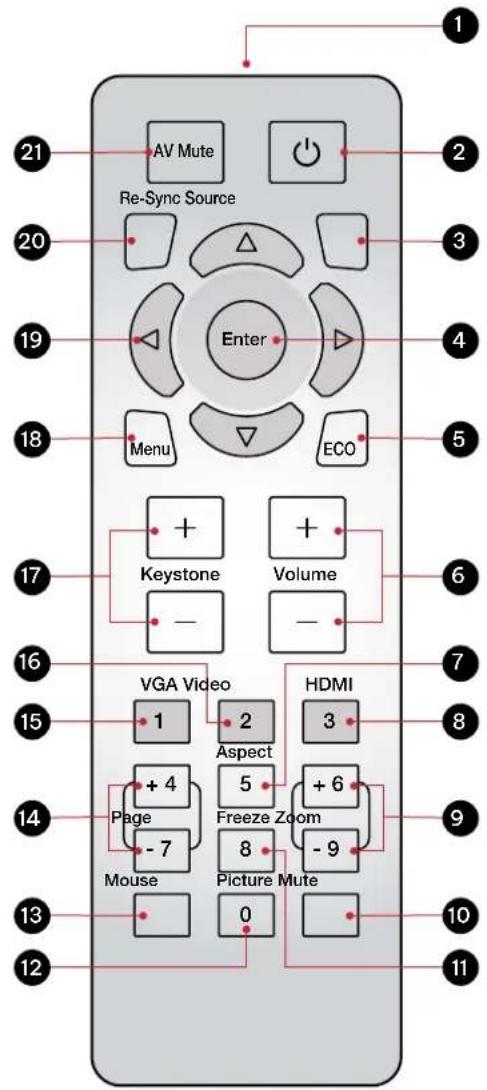

7.3 REMOTE CONTROL 31

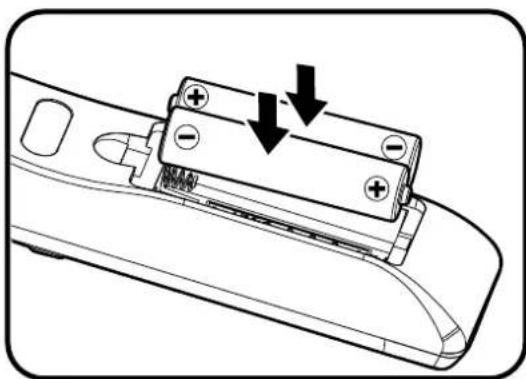

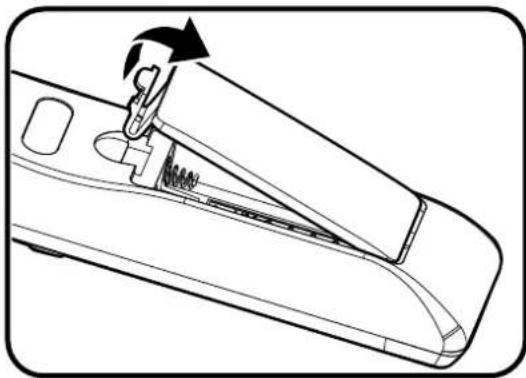

7.3.1 INSTALLING BATTERIES IN THE REMOTE CONTROL 32
7.3.2 REMOTE CONTROL IR CODES 33

7.4 REMOTE CONTROL EFFECTIVE RANGE 33

7.5 TURNING THE PROJECTOR ON 34

7.6 SELECTING A INPUT SOURCE....34

7.7 TURNING THE PROJECTOR TO STANDBY MODE 34

7.8 VIEWING 3D CONTENT 35

7.8.1 PHOTOSENSITIVE SEIZURE WARNING AND OTHER HEALTH RISKS 35
7.8.2 ENABLEING 3D MODE 36
7.8.3 ENABLING AUTO 3D MODE 36

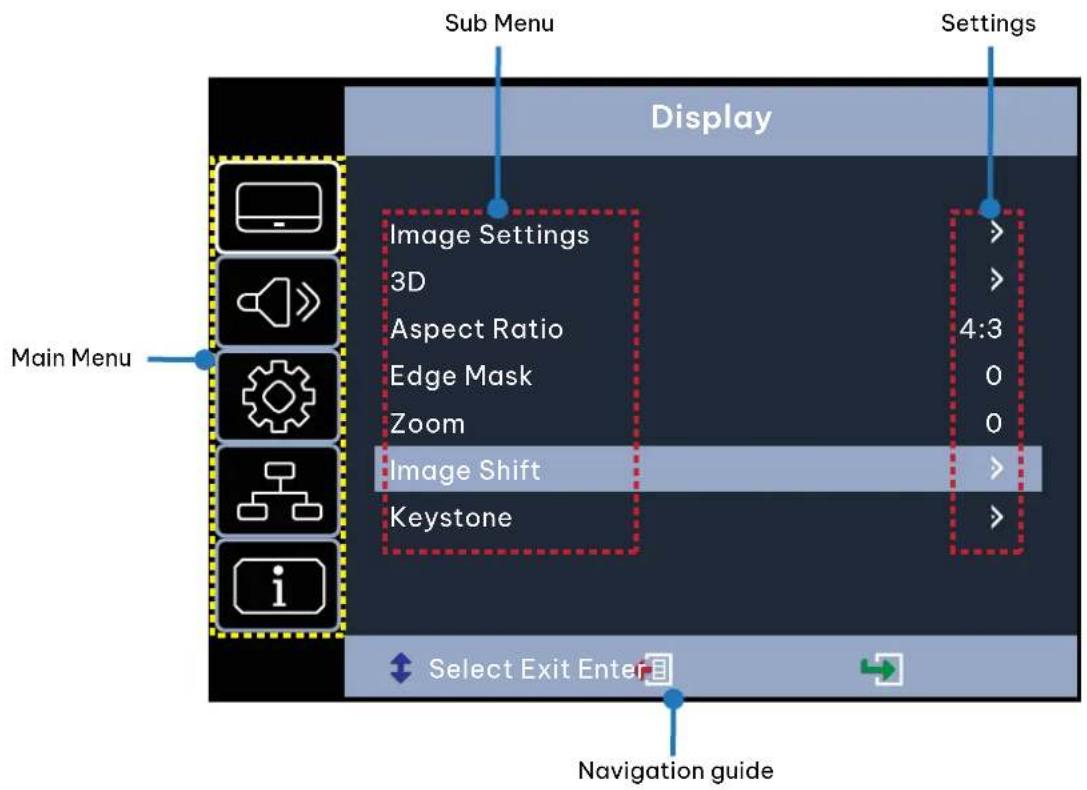

8. USING THE ON SCREEN DISPLAY (OSD)......37

8.1 SELECTING THE LANGUAGE FOR THE ON SCREEN MENU 37

8.2 SELECTING A DISPLAY MODE....37

8.3 ADJUSTING THE IMAGE COLOUR AND TEMPERATURE 38

8.4 ADJUSTING THE SHARPNESS OF THE IMAGE.... 38

8.5 MAGNIFYING THE IMAGE....38

8.6 SELECTING AN ASPECT RATIO 38

9.3 CLEANING THE AIR VENTS 45

10. SANITATION......45

11. DISPOSAL......46

11.1 DISPOSAL OF ELECTRICAL COMPONENTS 46

11.2 DISPOSAL OF PACKAGING WASTE 46

12. TROUBLESHOOTING....47

12.1 LED INDICATOR LIGHTS 47

12.2 SOLVING ON / OFF ISSUES 47

12.3 SOLVING IMAGE ISSUES....47

12.4 SOLVING VIDEO, AUDIO AND REMOTE CONTROL ISSUES 48

12.5 SERVICING....48

13. ADDITIONAL INFORMATION .... 49

13.1 RS232 PIN ASSIGNMENTS....49

13.2 RS232 PROTOCOL FUNCTION LIST 49

13.3 SUPPORTED RESOLUTIONS AND REFRESH RATES 49

13.4 ON SCREEN DISPLAY (OSD) MENU TREE 51

14. SPECIFICATIONS .... 59

14.1 VISTA II, P122 & P123, SPECIFICATIONS....59

14.2 GENESIS III, P124, SPECIFICATIONS....61

14.3 GENESIS IV, P125 & P126, SPECIFICATIONS 63

14.4 ORBITAL, P134, SPECIFICATIONS 65

15. PRODUCT COMPLIANCE....67

15.1 FOR USERS IN THE UNITED STATES ....67

15.2 FOR USERS IN CANADA....67

15.3 FOR USERS IN EUROPEAN UNION 68

15.4 FOR USERS IN THE UNITED KINGDON AND NORTHERN IRELAND 68

15.5 FOR USERS IN RUSSIA 69

1. ABOUT THIS GUIDE

1.1 DESCRIPTION OF THE USER

This document is intended for anyone who will install, setup, or use the projector.

1.2 CONVENTIONS USED IN THIS GUIDE

The following style conventions are used in this document:

Bold

• Names of product elements, commands, options, and programs.
• Names of interface elements (such windows, dialog boxes, buttons, fields, and menus).
• Interface elements the user selects, clicks, taps, or types.

Italic

• Publication titles.
• Emphasis (for example, a new term).

1.3 EXPLANATION OF SAFETY WARNINGS

WARNING

"WARNING" indicates a hazard with a medium to high level of risk which, could result in death or serious injury.

ATTENTION

"ATTENTION" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

INFORMATION

"INFORMATION" Indicates information considered important, but not hazard-related.

1.4 RETAINING INSTRUCTIONS

Keep all safety information and instructions for future reference and pass them on to subsequent users of the product.

WARNING

Ensure that each person who uses the product has read and understood this guide and its safety instructions before using this product. Failure to do so can result in serious injury or death.

ATTENTION

Follow all the instructions. This will avoid fire, explosions, electric shocks, or other hazards that may result in damage to property and/or severe or fatal injuries.

INFORMATION

The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.

1.5 OBTAINING DOCUMENTATION AND INFORMATION

The latest version of this document can be obtained by visiting:

• https://infocus.com/product/infocus-vista-ii-series/
• https://infocus.com/product/infocus-genesis-iii/
• https://infocus.com/product/infocus-genesis-iv/
• https://infocus.com/product/orbital/

1.6 DOCUMENTATION FEEDBACK

If you are reading product documentation on the internet, any comments can be submitted Here. We appreciate your comments.

1.7 SUPPORT AND SERVICE

Please contact the support team in your region for technical and product support. Alternatively, you may contact your local distributor if you are in Asia or Australia.

Americas

Monday - Friday

6am - 5pm PST

[phone]

[e-mail]

infocus.com/support

Europe, Middle East & Africa

Monday - Friday

8am - 5pm CET

[e-mail]

infocus.com/support

Asia Pacific

Monday - Friday

8am - 5pm ICT

[e-mail]

infocus.com/support

2. PRODUCT DESCRIPTION

2.1 FEATURES

GENESIS III

GENESIS IV VISTA II ORBITAL

P124 P125 P126 P122 P123 P134

IN0002SL

IN0004SL

IN0006SL

IN0022SP

IN0024SL

IN0026SL

IN0028SL

IN0024ST

IN0026ST

IN0044SL

IN0046SL

IN0048SL

IN0044ST

IN0046ST

IN0048ST

IN0061SL

Nine Picture Modes including DICOM Simulation,User Definable and ISF Night & Day

●

●

●

●

●

●

●

●

●

●

●

Seven Wall Colour Modes

●

●

●

●

●

●

●

●

●

●

●

Brightness, Sharpness, Contrast, Colour, Tint,Gamma Adjustment Settings

●

●

●

●

●

●

●

●

●

●

●

10 Step BrilliantColor Implementation

●

●

●

●

●

●

●

●

●

●

●

Individual Hue, Saturation and Gain Adjustmentsfor RGB, C, M, Y.W

●

●

●

●

●

●

●

●

●

●

●

RGB Gain/Bias Adjustments

●

●

●

●

●

●

●

●

●

●

●

Five Colour Space Adjustment Settings

●

●

●

●

●

●

●

●

●

●

●

White and Black Level Adjustments

●

●

●

●

●

●

●

●

●

●

●

IRE and Signal Settings and Adjustments

●

●

●

●

●

●

●

●

●

●

●

Aspect Ratio Format Settings

●

●

●

●

●

●

●

●

●

●

●

4:3

●

●

●

●

●

●

●

●

●

●

●

16:9

●

●

●

●

●

●

●

●

●

●

●

16:10

●

●

●

●

●

●

●

●

●

●

●

Letter Box

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Native

●

●

●

●

●

●

●

●

●

●

●

Auto

●

●

●

●

●

●

●

●

●

●

●

Digital Edge Masking

●

●

●

●

●

●

●

●

●

●

●

Digital Image Shift - Horizontal & Vertical

●

●

●

●

●

●

●

●

●

●

●

Digital Zoom

●

●

●

●

●

●

●

●

●

●

●

Vertical Keystone Adjustment

●

●

●

●

●

●

●

●

●

●

●

3D Activation, DLP - Link Settings & Formats

●

●

●

●

●

●

●

●

●

●

●

3D Sync Invert

●

●

●

●

●

●

●

●

●

●

●

2D to 3D Setting

●

●

●

●

●

●

●

●

●

●

●

Enhanced Low Latency Gaming Mode

●

●

●

●

●

●

●

●

●

●

●

Picture Mode Lock

●

●

●

●

●

●

●

●

●

●

●

27 Selectable OSD Languages

●

●

●

●

●

●

●

●

●

●

●

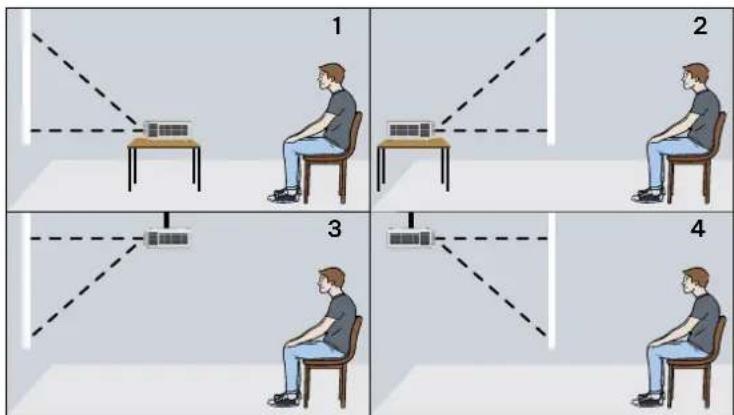

Projection Modes - Front, Rear, Front Ceiling, RearCeiling OSD Menu Positioning

●

●

●

●

●

●

●

●

●

●

●

Screen Type - Aspect Ratio Locking 16:10

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Screen Type - Aspect Ratio Locking 16:9

●

●

●

●

●

●

●

●

●

●

●

Security On/Off Setting

●

●

●

●

●

●

●

●

●

●

●

Security Timer

●

●

●

●

●

●

●

●

●

●

●

Security Password Selector

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Assignable Project ID Number

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Audio Input and Volume Settings

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

HDMI Link Activation and Settings

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Startup Logo Removal and Background Colour

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Selector Projector Information Messaging Override

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Input Source Lock Auto Source Setting High Altitude Setting Keypad Lock Setting Built in Test Patterns IR Faction Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

15 user presets with single key activation Direct Power On Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Signal Power On Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Auto Power Off Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Sleep Timer Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Quick Resume Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

VGA Out Standby Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

USB-A Power Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Lamp Usage Reminder Setting

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Lamp Brightness Mode

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Projector Information Table

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

24/7 Operation

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Waveform Lamp Colour Enhancement AV Mute

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

AV Mute

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Crestron Connect Certified

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

2.2 INTENDED USE AND REASONABLY FORESEEABLE MISUSE

The product may only be used in accordance with the instructions described in this guide. Any use other than those described in this guide is considered non-intended use and will void the warranty.

The ambient operating environment should be free of airborne smoke, grease, oil, and other contaminants that can affect the operation or performance of the projector.

WARNING

Do not use the product near water or moisture. Do not expose the product to rain, steam or condensation to reduce the risk of fire or electric shock.

2.3 PRODUCT ELEMENTS

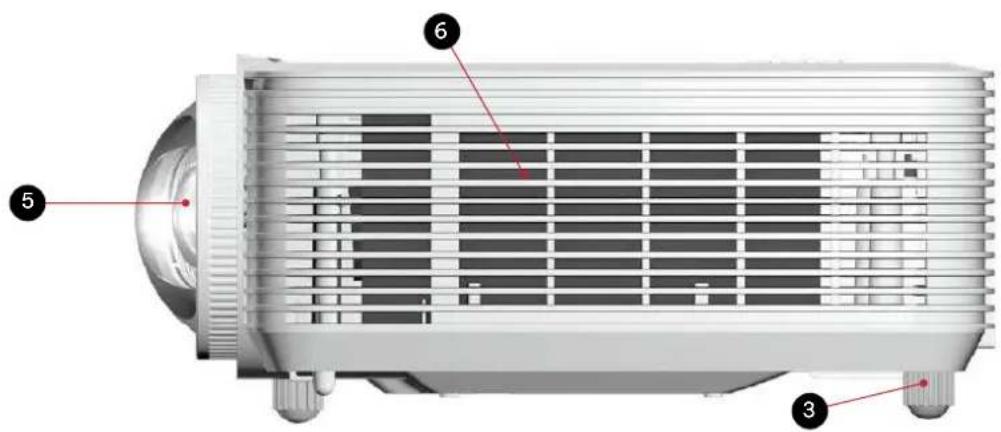

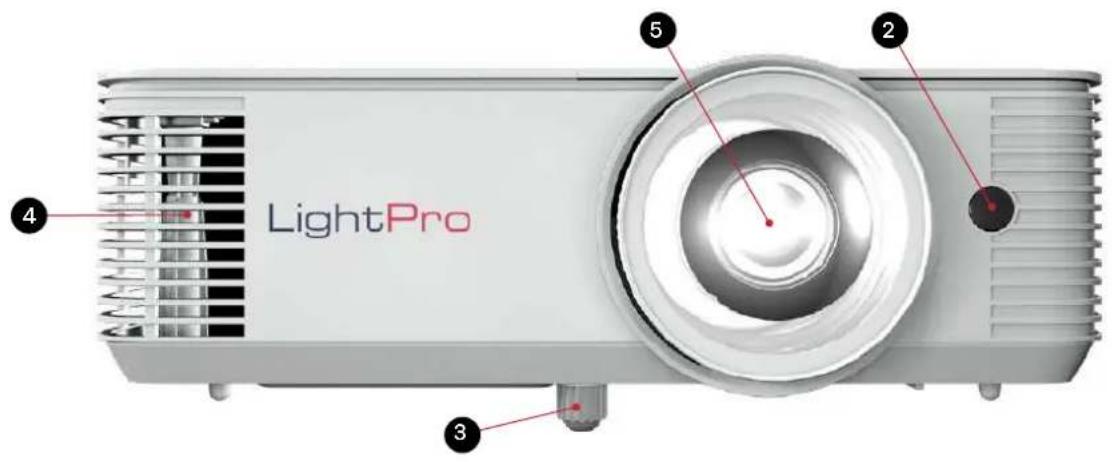

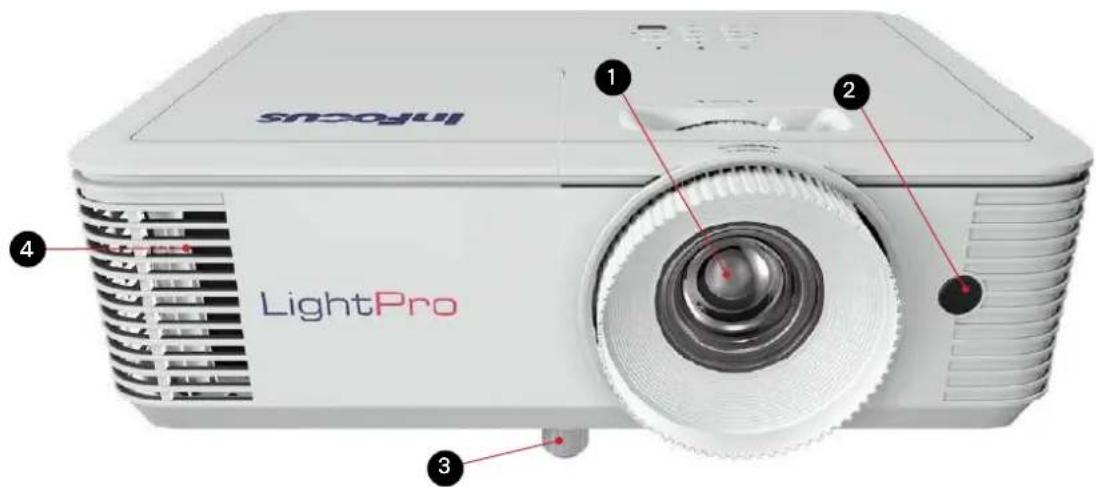

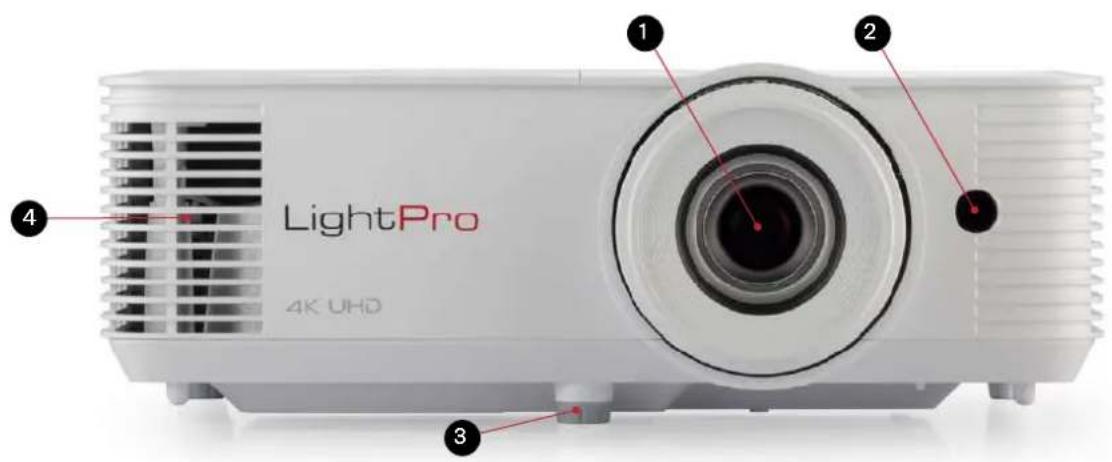

2.3.1 FRONT

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P122 INFOC	US LIGHTPRO VISTA II STANDARD	THROW - IN0044SL IN0046SL IN0048$L
P124 INFOC	US LIGHTPRO GENESIS III STANDARD	THROW IN0002SL IN0004SL IN0006SL -
P125	INFOCUS LIGHTPRO GENESIS IV	STANDARD THROW	IN0022SL	IN0024SL	IN0026SL

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P123 INFOCUS	US LIGHTPRO VISTA II SHORT THROW - IN0044ST IN0046ST	IN0048ST
P126 INFOCUS	US LIGHTPRO GENESIS IV SHORT THROW - IN0024ST IN00	26ST -

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	4K
P134 INFOC	US LIGHTPRO ORBITAL STANDARD	THROW	IN0061SL

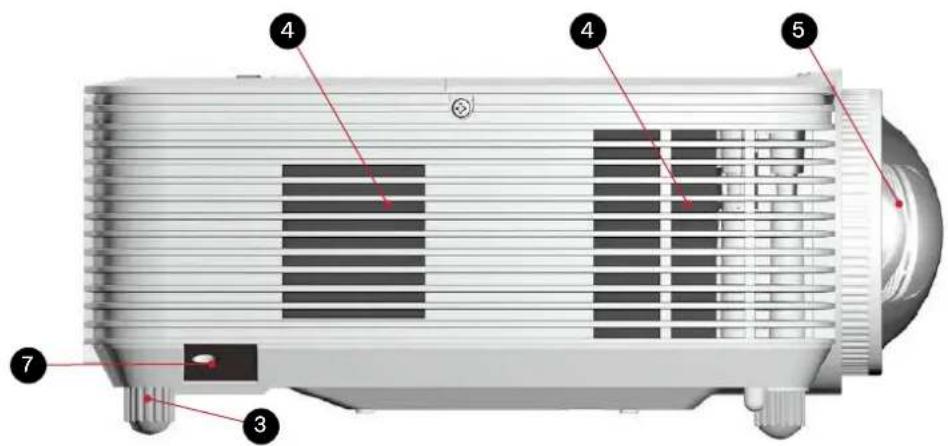

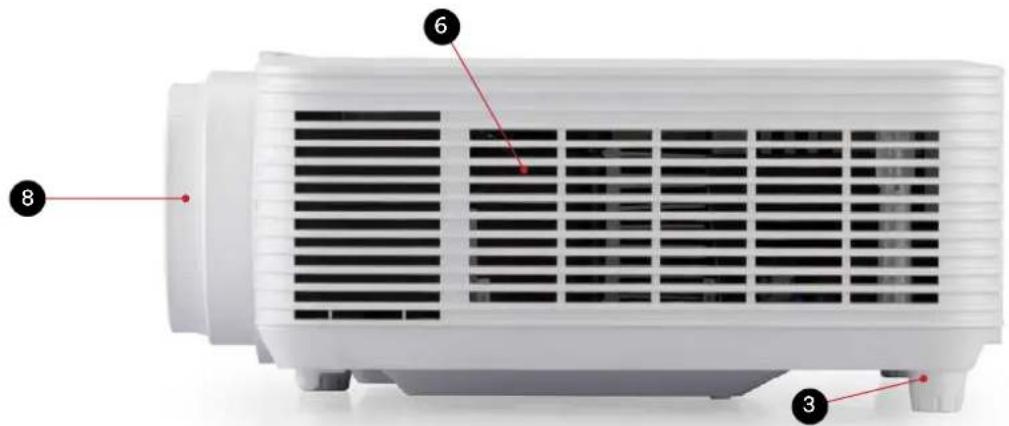

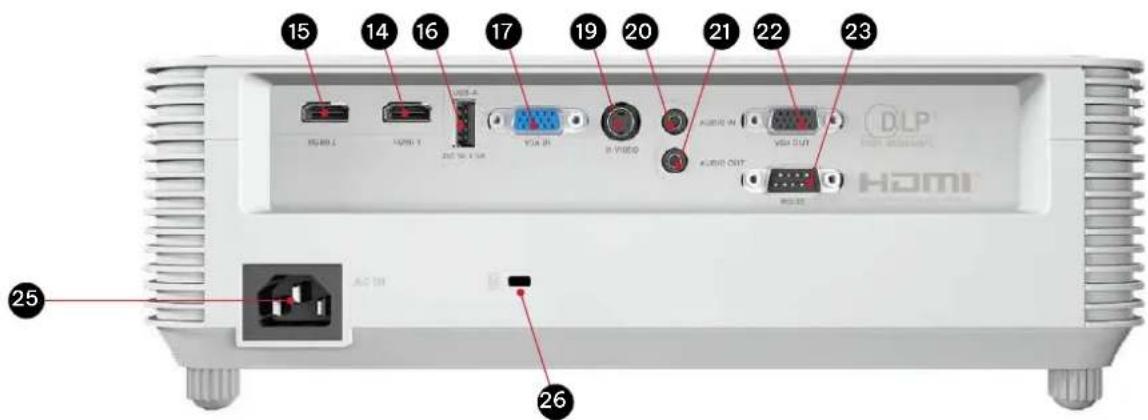

2.3.2 RIGHT SIDE

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P122 INFOC	US LIGHTPRO VISTA II STANDARD	THROW - IN0044SL IN0046SL IN0048$L
P124 INFOC	US LIGHTPRO GENESIS III STANDARD	THROW IN0002SL IN0004SL IN0006SL -
P125 INFOC	US LIGHTPRO GENESIS IV STANDARD	THROW IN0022SL IN0024SL IN0026SL IN0028SL

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P123	INFOCUS LIGHTPRO VISTA II	SHORT THROW	-	IN0044ST	IN0046ST	IN0048ST
P126	INFOCUS LIGHTPRO GENESIS IV	SHORT THROW	-	IN0024ST	IN0026ST	-

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	4K
P134	INFOCUS LIGHTPRO ORBITAL	STANDARD THROW	IN0061SL

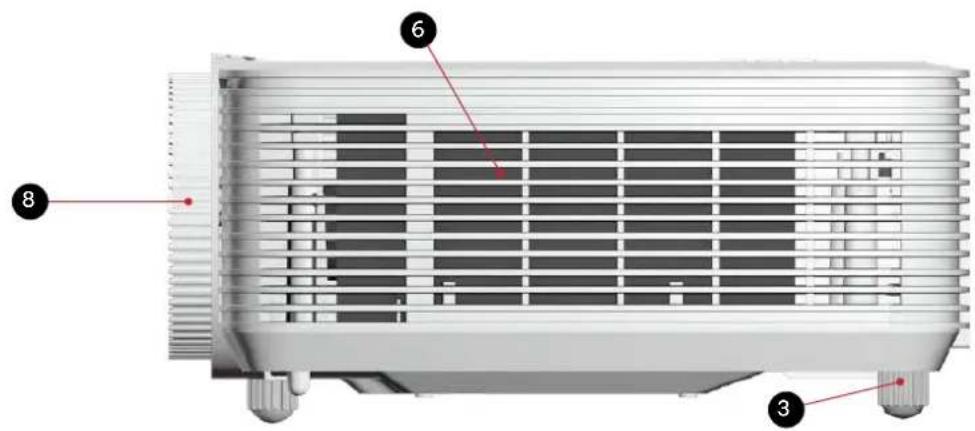

2.3.3 LEFT SIDE

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P122 INFOCUS	US LIGHTPRO VISTA II STANDARD	THROW - IN0044SL IN0046SL IN0048SL
P124 INFOCUS	US LIGHTPRO GENESIS III STANDARD	THROW IN0002SL IN0004SL IN0006SL -
P125	INFOCUS LIGHTPRO GENESIS IV	STANDARD THROW	IN0022SL	IN0024SL	IN0026SL

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P123 INFOCUS	US LIGHTPRO VISTA II SHORT THROW - IN0044ST IN0046ST	IN0048ST
P126 INFOCUS	US LIGHTPRO GENESIS IV SHORT THROW - IN0024ST IN00	26ST -

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	4K
P134	INFOCUS LIGHTPRO ORBITAL	STANDARD THROW	IN0061SL

2.3.4 TOP

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P122 INFOC	US LIGHTPRO VISTA II STANDARD	THROW - IN0044SL IN0046SL IN0048SL
P124 INFOC	US LIGHTPRO GENESIS III STANDARD	THROW IN0002SL IN0004SL IN0006SL -
P125 INFOC	US LIGHTPRO GENESIS IV STANDARD	THROW IN0022SL IN0024SL IN0026SL IN0028SL

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P123	INFOCUS LIGHTPRO VISTA II	SHORT THROW	-	IN0044ST	IN0046ST	IN0048ST
P126	INFOCUS LIGHTPRO GENESIS IV	SHORT THROW	-	IN0024ST	IN0026ST	-

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	4K
P134 INFOC	US LIGHTPRO ORBITAL STANDARD	THROW IN0061SL

2.3.5 BACK

a)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P122 INFOCUS LIGHTPRO VISTA II STANDARD	THROW - IN0044SL IN0046SL IN0048$L
P123	INFOCUS LIGHTPRO VISTA II	SHORT THROW	-	IN0024ST	IN0026ST

b)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P124	INFOCUS LIGHTPRO GENESIS III	STANDARD THROW	IN0002SL	IN0004SL	IN0006SL

c)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	SVGA XGA	WXGA 1080P
P125 INFOCUS	US LIGHTPRO GENESIS IV STANDARD	THROW IN0022SL IN0024SL IN0026	SL IN0028SL
P126	INFOCUS LIGHTPRO GENESIS IV	SHORT THROW	-	IN0024ST	IN0026ST

d)

REGULATORY MODEL	SERIES NAME	LENS TYPE/ RESOLUTION	4K
P134	INFOCUS LIGHTPRO ORBITAL	STANDARD THROW	IN0061SL

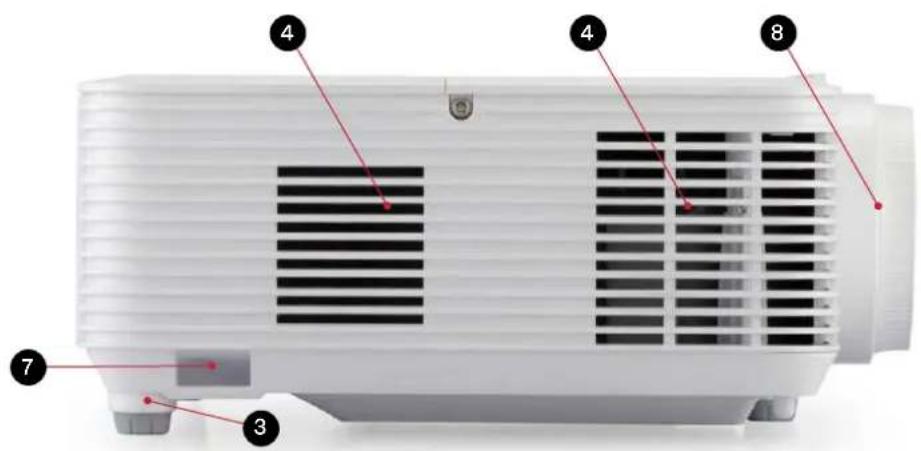

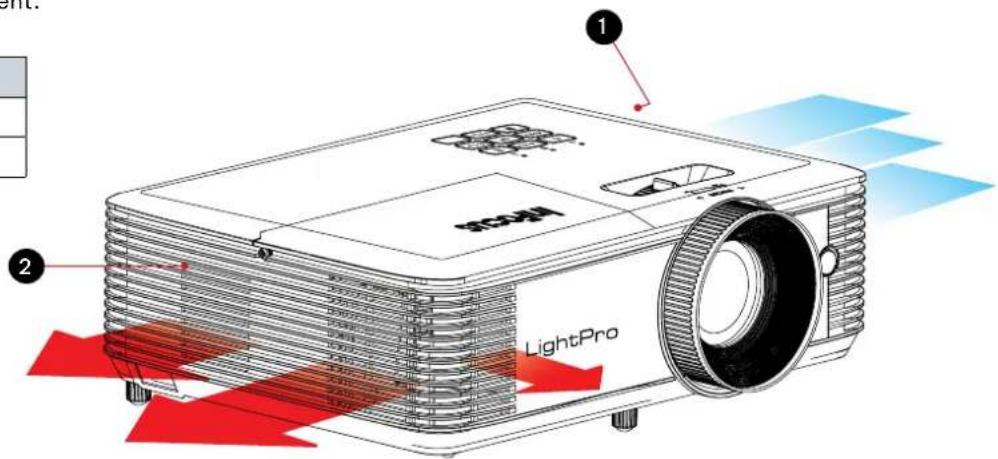

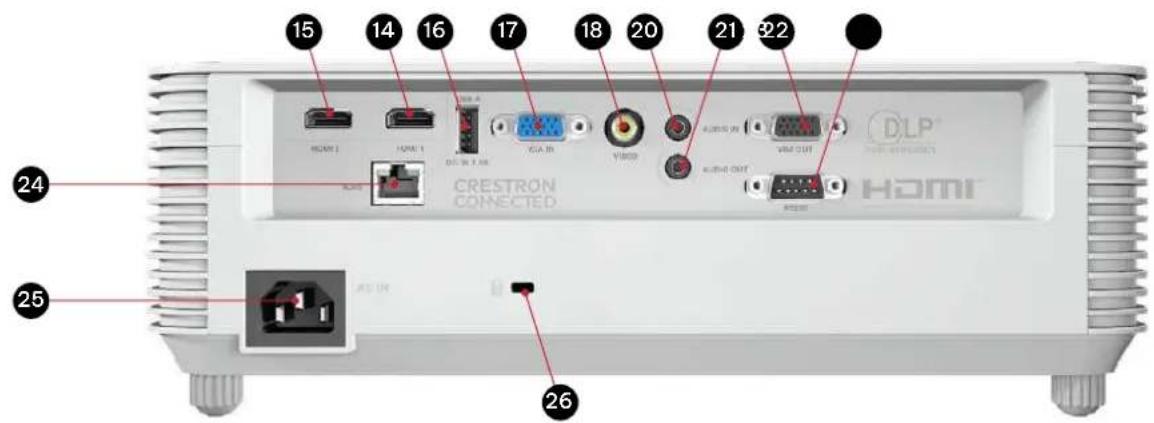

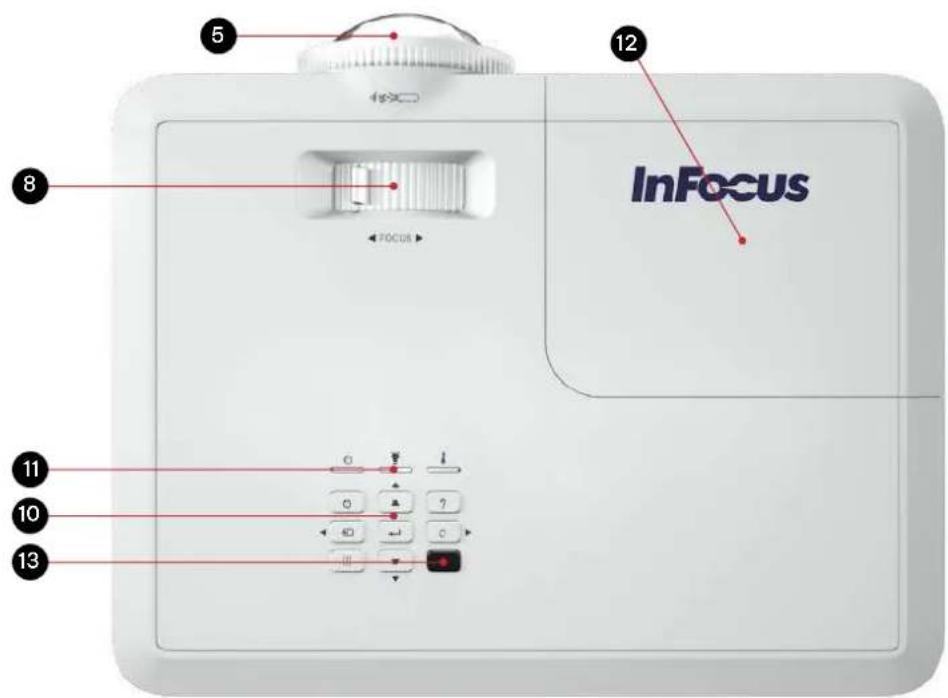

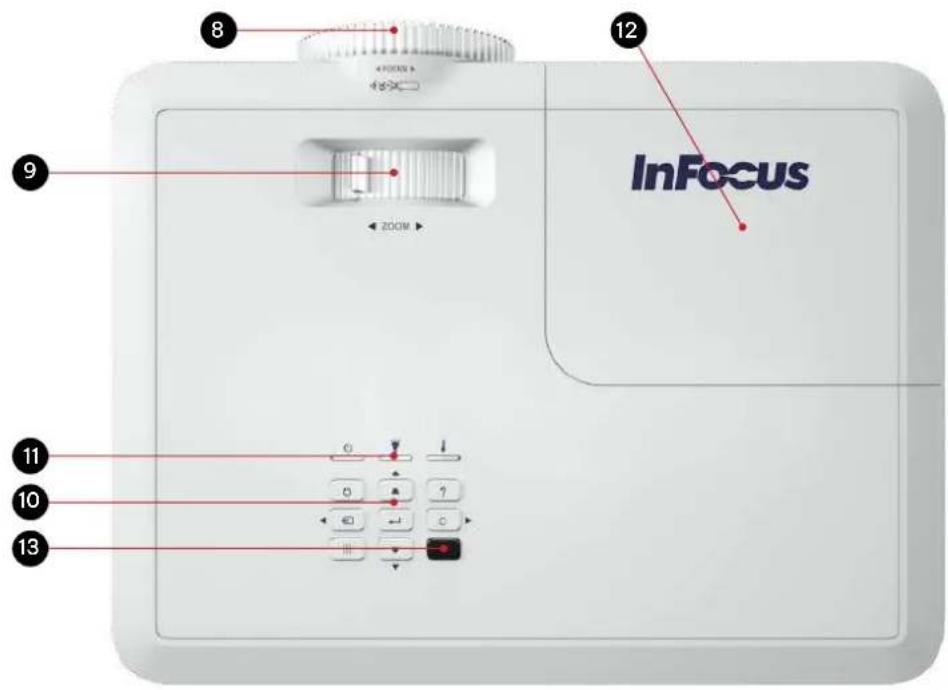

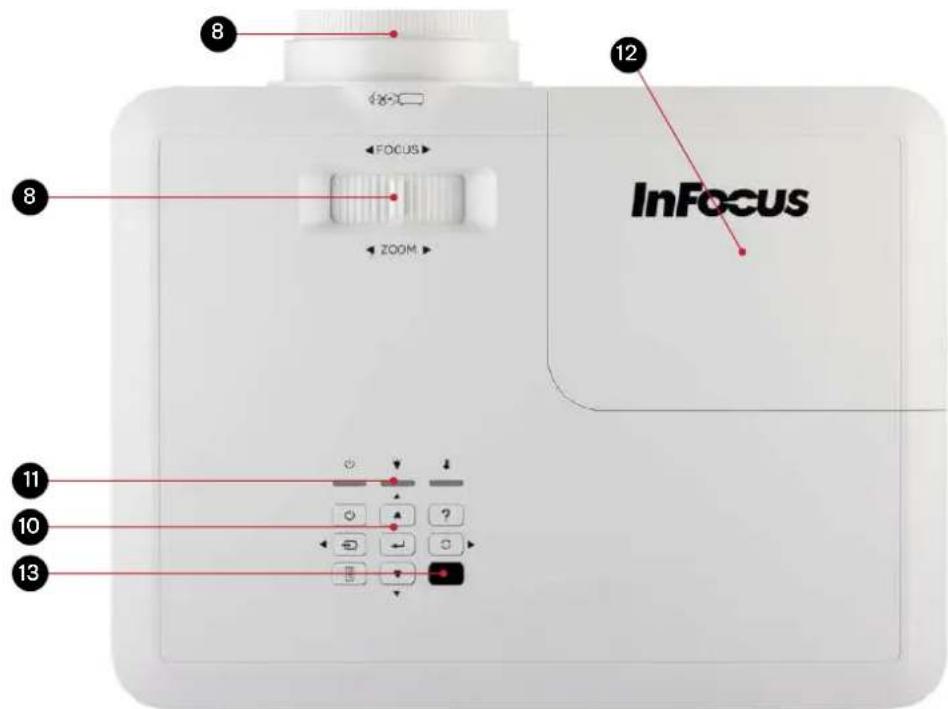

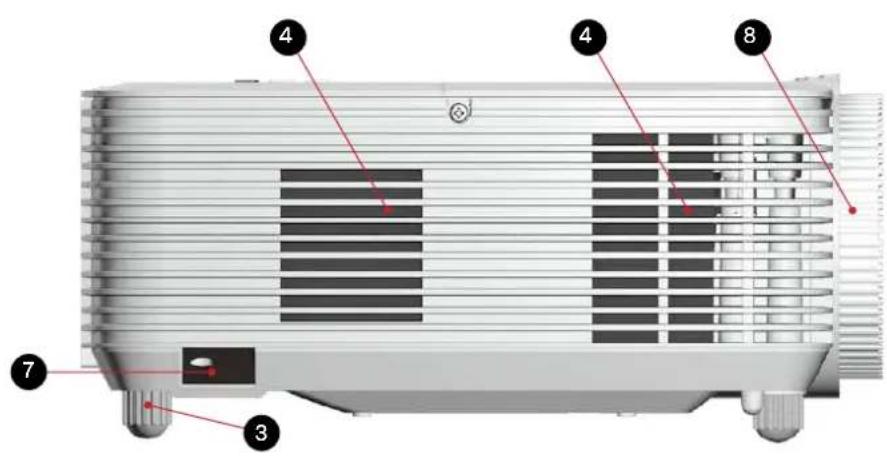

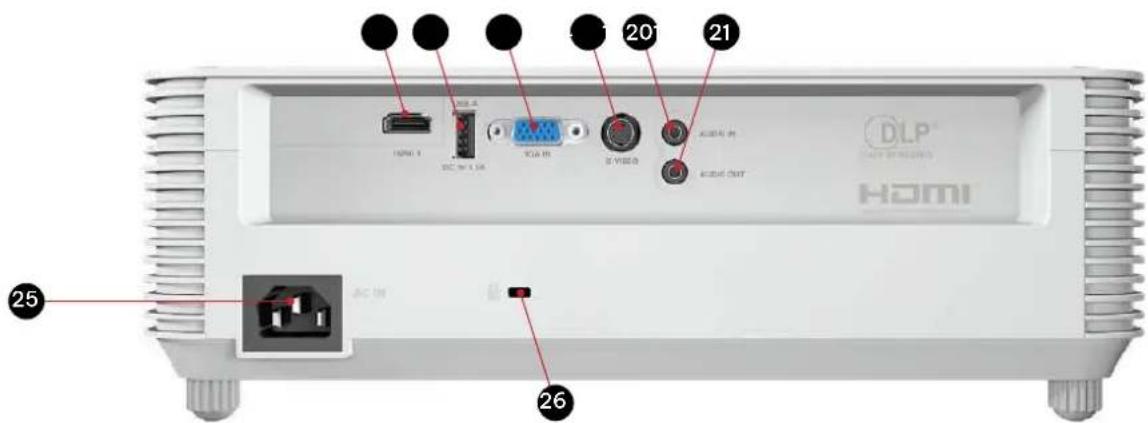

REFERENCE DESCRIPTION		REFERENCE DESCRIPTION
1 Standard throw zoom lens		16	USB A for service and wireless dongle power 5V/1.5A
2 Remote control IR receiver 1
3 Adjustable feet		17 VGA Input
4 Air exhaust grill		18 Composite Input
5 Short throw fixed lens		19 S-VIDEO Input
6 Air Intake grill		20 3.5mm Audio Input
7 Cable and Lock slot		21 3.5mm Audio Output
8 Focus adjustment ring		22 VGA Output
9 Zoom adjustment ring		23 RS232 Control
10 Keypad		24 RJ45 Networking and Control
11 LED function lights		25 Power Cord AC IN
12 Lamp door		26 Kensington Lock Slot
13 Remote control IR receiver 2		27 HDMI 1, 2.0
14 HDMI 1, 1.4 Input		28 HDMI 2, 2.0
15 HDMI 2, 1.4 Input		29 S/PDIF Digital Audio Interface

3. SAFETY

Please refer to the projector's safety guide.

WARNING

Read and understand this guide and its safety instructions before using this product. Failure to do so can result in serious injury.

4.1 PACKAGING CONTENTS

The projector packaging will contain:

• Projector
• Power cable
  • VGA cable or HDMI cable
• Remote control (batteries not included)
• Simplified users guide

4.2 INSTALLATION INSTRUCTIONS

Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

1. Table mounted front proejection
2. Table mounted rear projection
3. Ceiling mounted front projection
4. Ceiling mounted rear projection

4.3 PLACEMENT AND DISTANCE FROM THE SCREEN

The projected image size will increase based on the projector's distance from the screen or projection surface. You can use the following tables to determine the best location for the projector and screen.

4.3.1 PROJECTION DISTANCE AND SCREEN SIZE

IN0044SL_RT_XGA 1.3* ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30	0.61	0.46	24.02	18.11	0.9	1.2	35.43	47.24	7	2.8
40	0.81	0.61	31.89	24.02	1.2	1.6	47.24	62.99	9	3.5
50	1.02	0.76	40.16	29.92	1.5	2.0	59.06	78.74	12	4.7
60	1.22	0.91	48.03	35.83	1.8	2.4	70.87	94.49	14	5.5
70	1.42	1.07	55.91	42.13	2.1	2.7	82.68	106.30	16	6.3
80	1.63	1.22	64.17	48.03	2.4	3.1	94.49	122.05	18	7.1
90	1.83	1.37	72.05	53.94	2.7	3.5	106.30	137.80	21	8.3
100	2.03	1.52	79.92	59.84	3.0	3.9	118.11	153.54	23	9.1
120	2.44	1.83	96.06	72.05	3.6	4.7	141.73	185.04	27	10.6
150	3.05	2.29	120.08	90.16	4.5	5.9	177.17	232.28	34	13.4
200	4.06	3.05	159.84	120.08	6.0	7.8	236.22	307.09	46	18.1
250	5.08	3.81	200.00	150.00	7.5	9.8	295.28	385.83	57	22.4
300	6.1	4.57	240.16	179.92	9.0	-	354.33	-	69	27.2

IN0046SL_RT_WXGA 1.3× ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30	0.65	0.4	25.59	15.75	0.8	1.0	31.5	39.4	5	1.97
40	0.86	0.54	33.86	21.26	1.0	1.3	39.4	51.2	7	2.76
50	1.08	0.67	42.52	26.38	1.3	1.7	51.2	66.9	9	3.54
60	1.29	0.81	50.79	31.89	1.5	2.0	59.1	78.7	10	3.94
70	1.51	0.94	59.45	37.01	1.8	2.3	70.9	90.6	12	4.72
80	1.72	1.08	67.72	42.52	2.0	2.7	78.7	106.3	13	5.12
90	1.94	1.21	76.38	47.64	2.3	3.0	90.6	118.1	15	5.91
100	2.15	1.35	84.65	53.15	2.6	3.3	102.4	129.9	16	6.30
120	2.58	1.62	101.57	63.78	3.1	4.0	122.0	157.5	20	7.87
150	3.23	2.02	127.17	79.53	3.8	5.0	149.6	196.9	25	9.84
200	4.31	2.69	169.69	105.91	5.1	6.7	200.8	263.8	34	13.39
250	5.38	3.37	211.81	132.68	6.4	8.3	252.0	326.8	41	16.14
300	6.46	4.04	254.33	159.06	7.7	-	303.1	-	52	20.47

IN0048SL_RT_1080p 1.3× ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30 0.66	0.37	25.98	14.57	0.813	1.50	39.376	2.36
40	0.89	0.50	35.04	19.69	1	1.3	39.37	51.18	8	3.15
50	1.11	0.62	43.70	24.41	1.3	1.6	51.18	62.99	10	3.94
60	1.33	0.75	52.36	29.53	1.5	2	59.06	78.74	12	4.72
70	1.55	0.87	61.02	34.25	1.8	2.3	70.87	90.55	14	5.51
80	1.77	1.00	69.69	39.37	2	2.6	78.74	102.36	16	6.30
90	1.99	1.12	78.35	44.09	2.3	2.9	90.55	114.17	18	7.09
100	2.21	1.25	87.01	49.21	2.5	3.3	98.43	129.92	19	7.48
120	2.66	1.49	104.72	58.66	3	3.9	118.11	153.54	24	9.45
150	3.32	1.87	130.71	73.62	3.8	4.9	149.61	192.91	30	11.81
200	4.43	2.49	174.41	98.03	5	6.5	196.85	255.91	40	15.75
250	5.53	3.11	217.72	122.44	6.3	8.1	248.03	318.90	50	19.69
300	6.64	3.74	261.42	147.24	7.5	-	295.28	-	59	23.23

IN0044ST_ST_XGA 1:1× ZOOM

Diagonal Screen (inch)	Screen size				Projection distance		Offset
	(m) (inch)		(m) (inch)				(cm) (inch)
	Width	Height Width	Height	Wide Wide
40	0.81	0.61	32.01	24.02	0.5	19.69	9	3.54
50	1.02	0.76	40.00	30.00	0.63	24.80	11.8	4.65
60	1.22	0.91	47.99	35.98	0.75	29.53	13.6	5.35
70	1.42	1.07	55.98	42.01	0.88	34.65	16.3	6.42
80	1.63	1.22	64.02	47.99	1	39.37	18.1	7.13
90	1.83	1.37	72.01	54.02	1.13	44.49	20.8	8.19
100	2.03	1.52	80.00	60.00	1.25	49.21	22.6	8.90
120	2.44	1.83	95.98	72.01	1.5	59.06	27.1	10.67
150	3.05	2.29	120.00	90.00	1.88	74.02	34.4	13.54
180	3.66	2.74	144.02	107.99	2.26	88.98	40.7	16.02
250	5.08	3.81	200.00	150.00	3.13	123.23	57	22.44
303	6.16	4.62	242.40	181.81	3.8	149.61	69.2	27.24

IN0046ST_ST_WXGA 1:1× ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)				(cm) (inch)
	Width	Height	Width	Height	Wide Wide
40	0.86	0.54	33.92	21.20	0.45	17.72	7.15	2.81
50	1.08	0.67	42.40	26.50	0.56	22.05	8.69	3.42
60	1.29	0.81	50.88	31.80	0.67	26.38	10.23	4.03
70	1.51	0.94	59.36	37.10	0.79	31.10	11.77	4.63
80	1.72	1.08	67.84	42.40	0.9	35.43	13.3	5.24
90	1.94	1.21	76.32	47.70	1.01	39.76	14.84	5.84
100	2.15	1.35	84.80	53.00	1.12	44.09	16.38	6.45
120	2.58	1.62	101.76	63.60	1.35	53.15	20.46	8.06
150	3.23	2.02	127.20	79.50	1.68	66.14	25.07	9.87
180	3.88	2.42	152.64	95.40	2.02	79.53	29.68	11.69
250	5.38	3.37	212.00	132.50	2.81	110.63	41.45	16.32
302.9	6.52	4.08	256.86	160.54	3.4	133.86	50.24	19.78

IN0048ST_ST_1080p1:1× ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)				(cm) (inch)
	Width	Height	Width	Height	Wide Wide
40	0.89	0.50	34.86	19.61	0.44	17.32	8.19	3.22
50	1.11	0.62	43.58	24.51	0.55	21.65	9.74	3.83
60	1.33	0.75	52.30	29.42	0.66	25.98	12.28	4.83
70	1.55	0.87	61.01	34.32	0.77	30.31	13.83	5.44
80	1.77	1.00	69.72	39.22	0.88	34.65	16.38	6.45
90	1.99	1.12	78.44	44.12	0.99	38.98	17.93	7.06
100	2.21	1.25	87.16	49.03	1.10	43.31	19.47	7.67
120	2.66	1.49	104.59	58.83	1.32	51.97	23.57	9.28
150	3.32	1.87	130.74	73.54	1.65	64.96	30.21	11.89
180	3.98	2.24	156.88	88.25	1.98	77.95	35.85	14.11
250	5.53	3.11	217.89	122.57	2.75	108.27	49.68	19.56
302.9	6.71	3.77	264.00	148.50	3.33	131.10	60.81	23.94

IN0002SL, IN0004SL, IN0022SL, IN0024SL_RT_SVGA & XGA_1.1* ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30 0.61	0.46	24.00	18.00	1.18	1.32	46.56	51.84	6.86	2.70
40	0.81	0.61	32.00	24.00	1.58	1.76	62.08	69.12	9.14	3.60
50	1.02	0.76	40.00	30.00	1.97	2.19	77.60	86.40	11.43	4.50
60	1.22	0.91	48.00	36.00	2.37	2.63	93.12	103.68	13.72	5.40
70	1.42	1.07	56.00	42.00	2.76	3.07	108.64	120.96	16.00	6.30
80	1.63	1.22	64.00	48.00	3.15	3.51	124.16	138.24	18.29	7.20
90	1.83	1.37	72.00	54.00	3.55	3.95	139.68	155.52	20.57	8.10
100	2.03	1.52	80.00	60.00	3.94	4.39	155.20	172.80	22.86	9.00
120	2.44	1.83	96.00	72.00	4.73	5.27	186.24	207.36	27.43	10.80
150	3.05	2.29	120.00	90.00	5.91	6.58	232.80	259.20	34.29	13.50
200	4.06	3.05	160.00	120.00	7.88	8.78	310.40	345.60	45.72	18.00
250	5.08	3.81	200.00	150.00	9.86	10.97	388.00	432.00	57.15	22.50
300	6.10	4.57	240.00	180.00	11.83	13.17	465.60	518.40	68.58	27.00

IN0006SL, IN0026SL_RT_WXGA_1.1* ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30	0.65	0.40	25.44	15.90	1.00	1.11	39.18	43.76	5.01	1.97
40	0.86	0.54	33.92	21.20	1.33	1.48	52.24	58.34	6.68	2.63
50	1.08	0.67	42.40	26.50	1.66	1.85	65.30	72.93	8.35	3.29
60	1.29	0.81	50.88	31.80	1.99	2.22	78.36	87.51	10.02	3.94
70	1.51	0.94	59.36	37.10	2.32	2.59	91.41	102.10	11.68	4.60
80	1.72	1.08	67.84	42.40	2.65	2.96	104.47	116.68	13.35	5.26
90	1.94	1.21	76.32	47.70	2.99	3.33	117.53	131.27	15.02	5.91
100	2.15	1.35	84.80	53.00	3.32	3.70	130.59	145.86	16.69	6.57
120	2.58	1.62	101.76	63.60	3.98	4.45	156.71	175.03	20.03	7.89
150	3.23	2.02	127.20	79.50	4.98	5.56	195.89	218.78	25.04	9.86
200	4.31	2.69	169.60	106.00	6.63	7.41	261.18	291.71	33.39	13.14
250	5.38	3.37	212.00	132.50	8.29	9.26	326.48	364.64	41.73	16.43
300	6.46	4.04	254.40	159.00	9.95	11.11	391.78	437.57	50.08	19.72

IN0028SL_RT_1080p_1.1* ZOOM

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)						(cm) (inch)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30 0.66	0.37	26.15	4.71	0.98	1.08	38.44	42.36	5.98	2.35
40	0.89	0.50	34.86	19.61	1.30	1.43	51.25	56.48	7.97	3.14
50	1.11	0.62	43.58	24.51	1.63	1.79	64.06	70.60	9.96	3.92
60	1.33	0.75	52.29	29.42	1.95	2.15	76.87	84.72	11.95	4.71
70	1.55	0.87	61.01	34.32	2.28	2.51	89.69	98.84	13.95	5.49
80	1.77	1.00	69.73	39.22	2.60	2.87	102.50	112.96	15.94	6.28
90	1.99	1.12	78.44	44.12	2.93	3.23	115.31	127.08	17.93	7.06
100	2.21	1.25	87.16	49.03	3.25	3.59	128.12	141.20	19.92	7.84
120	2.66	1.49	104.59	58.83	3.91	4.30	153.75	169.43	23.91	9.41
150	3.32	1.87	130.74	73.54	4.88	5.38	192.18	211.79	29.89	11.77
200	4.43	2.49	174.32	98.05	6.51	7.17	256.24	282.39	39.85	15.69
250	5.53	3.11	217.89	122.57	8.14	8.97	320.30	352.99	49.81	19.61
300	6.64	3.74	261.47	147.08	9.76	10.76	384.36	423.59	59.77	23.53

IN0024ST_ST_XGA_Fixed Lens

Diagonal Screen (inch)	Screen size				Projection distance		Offset
	(m) (inch)		(m) (inch)				(cm) (inch)
	Width	Height	Width	Height Wide	Wide
30	0.61	0.46	24.00	18.00	0.32	12.48	5.67	2.23
40	0.81	0.61	32.00	24.00	0.42	16.64	7.56	2.98
50	1.02	0.76	40.00	30.00	0.53	20.80	9.45	3.72
60	1.22	0.91	48.00	36.00	0.63	24.96	11.34	4.46
70	1.42	1.07	56.00	42.00	0.74	29.12	13.23	5.21
80	1.63	1.22	64.00	48.00	0.85	33.28	15.12	5.95
90	1.83	1.37	72.00	54.00	0.95	37.44	17.01	6.70
100	2.03	1.52	80.00	60.00	1.06	41.60	18.90	7.44
120	2.44	1.83	96.00	72.00	1.27	49.92	22.68	8.93
150	3.05	2.29	120.00	90.00	1.58	62.40	28.35	11.16
200	4.06	3.05	160.00	120.00	2.11	83.20	37.80	14.88
250	5.08	3.81	200.00	150.00	2.64	104.00	47.24	18.60
300	6.10	4.57	240.00	180.00	3.17	124.80	56.69	22.32

IN0026ST_ST_WXGA_Fixed Lens

Diagonal Screen (inch)	Screen size Projection distance Offset
	(m) (inch)		(m) (inch)				(cm) (inch)
	Width	Height	Width	Height	Wide Wide
30 0.65	0.40	25.44	15.90	0.34	13.23	5.01	1.97
40	0.86	0.54	0.54	33.92	21.20	0.45	17.64	6.68
50	1.08	0.67	0.67	42.40	26.50	0.56	22.05	8.35
60	1.29	0.81	0.81	50.88	31.80	0.67	26.46	10.02
70	1.51	0.94	0.94	59.36	37.10	0.78	30.87	11.68
80	1.72	1.08	1.08	67.84	42.40	0.90	35.28	13.35
90	1.94	1.21	1.21	76.32	47.70	1.01	39.69	15.02
100	2.15	1.35	1.35	84.80	53.00	1.12	44.10	16.69
120	2.58	1.62	1.62	101.76	63.60	1.34	52.92	20.03
150	3.23	2.02	2.02	127.20	79.50	1.68	66.14	25.04
200	4.31	2.69	2.69	169.60	106.00	2.24	88.19	33.39
250	5.38	3.37	3.37	212.00	132.50	2.80	110.24	41.73
300	6.46	4.04	4.04	254.40	159.00	3.36	132.29	50.08

IN0061SL_RT_4K_1.3x ZOOM

Diagonal Screen (inch)	Screen Size W x H				Projection distance (D)				Offset (HD)
	(m) (inch)		(m) (feet)						(m) (feet)
	Width	Height	Width	Height	Wide Tele	Wide Tele
30	0.66	0.37	26.1	14.7	-	1.06	-	3.46	0.02	0.07
40	0.89	0.50	34.9	19.6	1.07	1.41	3.51	4.62	0.03	0.09
60	1.33	0.75	52.3	29.4	1.61	2.11	5.27	6.93	0.04	0.13
70	1.55	0.87	61.0	34.3	1.88	2.46	6.15	8.08	0.05	0.16
80	1.77	1.00	69.7	39.2	2.14	2.82	7.03	9.24	0.05	0.18
90	1.99	1.12	78.4	44.1	2.41	3.17	7.91	10.39	0.06	0.20
100	2.21	1.25	87.2	49.0	2.68	3.52	8.78	11.55	0.07	0.22
120	2.66	1.49	104.6	58.8	3.21	4.22	10.54	13.86	0.08	0.27
150	3.32	1.87	130.7	73.5	4.02	5.28	13.18	17.32	0.10	0.34
180	3.98	2.24	156.9	88.2	4.82	6.34	15.81	20.79	0.12	0.40
200	4.43	2.49	174.3	98.1	5.36	7.04	17.57	23.10	0.14	0.45
250	5.53	3.11	217.9	122.6	6.70	8.80	21.96	28.87	0.17	0.56
300.6	6.65	3.74	262.0	147.4	8.05	-	26.40	-	0.21	0.68

4.4 CLEARANCE

Allow at least 30cm clearance around the intake and exhaust vent and ensure that the intake vents do not recycle hot air from the exhaust vent.

REFERENCE DESCRIPTION

1 Air intake vent

2 Air outtake vent

When operating the projector in an enclosed space:

• The surrounding air temperature within the enclosure should not exceed operation temperature while the projector is running
• The air intake and exhaust vents should be unobstructed
• The enclosure should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air

4.5 CEILING MOUNT

• Screw type: M4×10
  • Minimum screw length: 10mm

INFORMATION

Please note that damage resulting from incorrect installation will void the warranty. If you buy a ceiling mount from another company, please be sure to use the correct screw size.

Screw size will vary depending on the thickness of the mounting plate.

4.6 MOUNTING HOLE DIAGRAM

When using a ceiling mount, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.

Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.

Avoid installing the projector near a heat source.

5.1 ADJUSTING THE IMAGE HEIGHT AND TILT

The projector's height and tilt can be adjusted with the tilt adjustment feet and ring. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the foot clockwise or counterclockwise to raise or lower the projector.

5.2 ADJUSTING THE ZOOM, LENS SHIFT AND FOCUS

To adjust the image size, turn the zoom ring clockwise or counterclockwise to increase or decrease the projected image size.

To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically. (Not available on all models.)

To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

5.3 ADJUSTING THE VERTICAL AND HORIZONTAL KEYSTONE

If one side of the image is shorter than the other, for example the top is shorter than the bottom, you can either reposition the projector or use keystone correction.

To adjust the top or bottom of the picture (the pitch), angle the projector lower or higher. If that is not possible, adjust the vertical keystone:

Press the Menu button on the projector keypad or the Menu button on the remote control to open the OSD menu.

Select Image > V Keystone

Adjust the settings by using the arrow keys keys

Press the Return symbol or Enter button to select a setting.

Press the Menu symbol or Menu button to close the OSD menu. The menu will close and the projector will automatically save the new settings.

To adjust the left or right side of the picture (the yaw), turn the projector slightly left or right. If that is not possible, adjust the horizontal keystone:

Press the Menu button on the projector keypad or the Menu button on the remote control to open the OSD menu.

Select Image > H Keystone

Note horizontal keystone correction is not available on all models

Adjust the settings by using the Arrow keys.

Press press the Return symbol or Enter button to select a setting.

Press the Menu button to close the OSD menu. The menu will close and the projector will automatically save the new settings.

INFORMATION

Ensure that the projection screen or projection surface is within the required distance from the projector. Refer to "4.3 Placement distance from screen" for more information.

6.1 CONNECTION DIAGRAM

REFERENCE DESCRIPTION

1 Power cord

2 Audio cable

3 HDMI (MHL) cable

4 VGA to component/HDTV adapter

5 VGA cable

6 3 RCA component cable

7 Composite video cable

8 RS232 cable

REFERENCE DESCRIPTION

9 WirelessHD dongle

10 Wireless dongle

11 Wired remote control

12 LAN cable

13 12V DC cable

14 3D SYNC cable

15 S/PDIF

16 HDMI 2.0 UHD

INFORMATION

Not all inputs are available on all models.

7. USING

7.1 LEDS

REFERENCE DESCRIPTION
1 Power
2 Lamp
3 Temperature

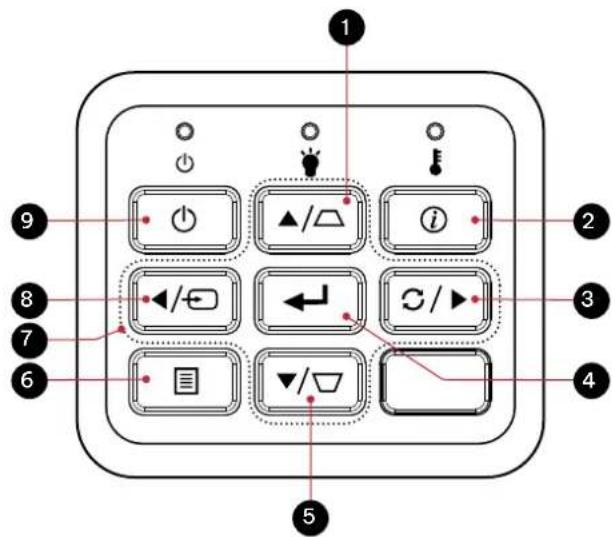

7.2 KEYPAD

REFERENCE DESCRIPTION

1 Up / Keystone correction +

2 Information

3 Right / Re-sync

4 Enter

5 Power Down / Keystone correction -

6 Menu

7 Directional arrows

8 Left / Source

9 Power

7.3 REMOTE CONTROL

REFERENCE DESCRIPTION
1 IR LED
2 Power
3 Source
4 Enter
5 ECO
6 Volume
7 Aspect
8	HDMI - Press once for HDMI 1and twice for HDMI 2
9 Zoom
10 Mute
11 Freeze
12 Picture
13 Mouse
14 Page
15 VGA
16 Video
17 Keystone correction
18 Menu
19 Directional keys
20 Re-sync
21 AV Mute

INFORMATION

Some keys may have no function for models that do not support the key's feature.

7.3.1 INSTALLING BATTERIES IN THE REMOTE CONTROL

The remote requires two AAA batteries (not included).

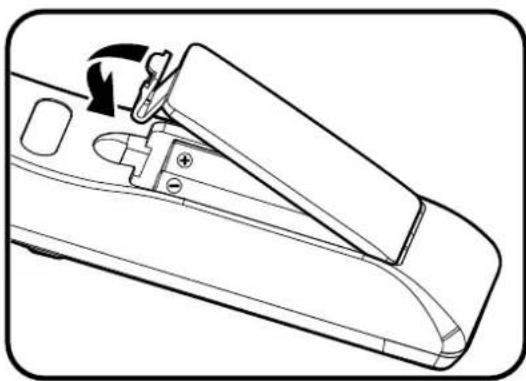

1. Remove the battery cover on the back of the remote control.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1. Insert AAA batteries in the battery compartment. Ensure each battery's polarity ± is aligned correctly.

Diagram of a remote control panel with two arrows indicating downward movement (no text or symbols present)

1. Replace back cover on the remote control and press down until it clicks in to place.

Line drawing of a mechanical component with an arrow indicating rotation or assembly (no text or symbols)

ATTENTION

The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Incorrect battery usage may cause leakage of battery fluid and battery rupture, which could result in fire, injury or corrosion of the remote. When replacing batteries, take the following precautions.

Do not use batteries of different types or mix old and new batteries.

Remove the batteries if you will not be using the projector for a long period of time.

Do not expose batteries to heat or flame and do not put them in water.

Dispose of used batteries according to local regulations.

Keep batteries out of the reach of children. Batteries are choking hazards and are very dangerous if swallowed.

7.3.2 REMOTE CONTROL IR CODES

NUMBER	FUNCTION REPEATFORMAT BYTE1 BYTE2 BYTE3 BYTE4 COMMENTS
1 AV m	ute F1 87 4E 51 AE
2	Power On/Off	F1	87	4E	17	E8
3	Re-Sync	F1	87	4E	33	CC
4	Up	F2	87	4E	13	EC	Do Volume+ when no OSD
5	Source	F1	87	4E	10	EF
6	Left	F2	87	4E	11	EE	Do Source when no OSD
7	Enter	F1	87	4E	32	CD
8	Right	F2	87	4E	12	ED	Do Re-Sync when no OSD
9	Menu	F1	87	4E	02	FD
10	Down	F2	87	4E	14	EB	Do Volume- when no OSD
11	Eco	F1	87	4E	77	88	Open Brightness Mode menu
12	Keystone+	F2	87	4E	20	DF
13	Volume+	F2	87	4E	08	F7
14	Keystone-	F2	87	4E	21	DE
15	Volume-	F2	87	4E	04	FB
16	VGA (1)	F1	87	4E	19	E6
17	Video (2)	F1	87	4E	1A	E5
18	HDMI (3)	F1	87	4E	71	8E	Toggle HDMI 1 and HDMI 2
19	Page+ (4)	F1	87	4E	7D	82	Page+ not supported
20	Aspect (5)	F1	87	4E	34	CB
21	Zoom+	F1	87	4E	52	AD
22	page- (7)	F1	87	4E	7E	81	Page- not supported
23	Freeze	F1	87	4E	0E	F1
24	Zoom-	F1	87	4E	53	AC
25	Mouse	F1	87	4E	3E	C1	Mouse not supported
26	Picture	F1	87	4E	2C	D3	Open Display Mode menu
27	Mute	F1	87	4E	29	D6

7.4 REMOTE CONTROL EFFECTIVE RANGE

You can locate the infrared (IR) remote control sensors on the top of the projector next to the keypad and on the front to the left of the lens. Hold the remote control at an angle within 60 degrees perpendicular of the projector's IR remote control sensor. Ensure that there are no obstacles between the remote control and the IR sensor on the projector.

The distance between the remote control and the IR sensor should be less than 12 meters (39.4 feet). If the remote control is less than 20cm (8 inches) from the IR sensor, the remote control might become ineffective. The effective range is approximately 5 meters (16.4 feet) when reflecting the IR beam using a screen. The range will depend on the screen's surface and reflectivity. Direct sunlight or fluorescent lamps can reduce the range of the remote control.

7.5 TURNING THE PROJECTOR ON

1. Securely connect the mains cable to the projector and to a mains outlet. When connected, the Power LED will turn red.
2. Connect a signal/source cable to a source device and the projector.
3. Remove the lens cap.
4. Press the Power V2.0 02/2025 on the keypad or the ⏻ symbol on the remote control.

The InFocus startup screen will appear after approximately 10 seconds. The Power LED will flash blue and then steady blue.

ATTENTION

Make sure that people cannot step on any electrical cables or trip over the cables. Do not put objects on the cables.

7.6 SELECTING A INPUT SOURCE

1. Turn on the connected source, such as a computer or DVD player, or connect a digital media player, such as a Google Chromecast.
2. Press the Source button on the keypad or remote control to select the input source.
3. Play the content on the source device.

INFORMATION

You can set up the projector to automatically detect an active source and turn itself on and project the source content automatically. To turn on this feature, press the Menu button on the remote control or keypad, navigate to Settings > Power Settings > Signal Power, and select On.

INFORMATION

Your projector has a Direct Power On setting. This setting will automatically turn on the projector when a power source is connected. To turn on this feature, press the Menu button on the remote control or keypad, navigate to Settings > Power Settings > Direct Power On, and select on.

7.7 TURNING THE PROJECTOR TO STANDBY MODE

1. Press the Power button on the keypad or remote control.
   The following message will appear: Power Off?

2. Press the Power button again to confirm turning off your projector. If the Power button is not pressed a second time, the message will disappear after 10 seconds and the projector will not turn off. The cooling fans will operate for about 10 seconds and the Power LED will flash blue. When the Power LED changes to solid red, the projector has entered standby mode.

3. Replace the lens cap.

INFORMATION

If you want to turn the projector on again, wait 100 seconds.

Always allow the projector fan to turn off after you power down and before you unplug the projector power cable from the electrical outlet.

7.8 VIEWING 3D CONTENT

Please follow all warnings and precautions as recommended before you or your child use the 3D function of this projector and view 3D projected content.

ATTENTION

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised when viewing 3D content.

7.8.1 PHOTOSENSITIVE SEIZURE WARNING AND OTHER HEALTH RISKS

ATTENTION

- Some viewers may experience an epileptic seizure or stroke when exposed to specific flashing images or lights contained in certain Projector pictures or video games. If you suffer from or have a family history of epilepsy or strokes, please consult with a medical specialist before using the 3Dfunction.

- Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures.

• We recommend that the projectors 3D functionality not be used by pregnant women, sufferers of serious medical conditions, persons who are sleep-deprived or under the influence of alcohol.

- If you experience any of the following symptoms, stop viewing 3D content immediately and consult a medical specialist: (1) altered vision; (2) lightheadedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; or (10) disorientation. Children and teenagers may be more likely than adults to experience these symptoms. Parents should monitor their children and ask whether they are experiencing these symptoms.

- Watching 3D projected content may also cause motion sickness, perceptual aftereffects, disorientation, eye strain, and decreased postural stability. Users should take frequent breaks to lessen the potential of these effects. If you have any of the above symptoms, immediately discontinue using this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

- Watching 3D projected content while sitting too close to the screen for an extended period may damage your eyesight. The ideal viewing distance should be at least three times the screen height. We recommend that the viewer's eyes are level with the screen.

- Watching 3D projected content while wearing 3D glasses for an extended period may cause headaches or fatigue. If you experience a headache, tiredness or dizziness, stop viewing the 3D projection and rest.

- Do not use 3D glasses for any other purpose than for watching 3D projected content.

- Wearing the 3D glasses for any other purpose (such as spectacles, sunglasses, protective goggles, etc.) may be physically harmful to you and weaken your eyesight.

- Viewing 3D projected content may cause disorientation for some viewers. Accordingly, DO NOT place your 3D projector near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over.

To enable 3D mode, the input frame rate should be set to 60Hz. Other frame rate are not supported. For the best 3D performance, use a resolution of 1920×1080. 4K (3840×2160) resolution is not supported in 3D mode.

1. Select Display > Display Mode > 3D > 3D Mode.

2. Select On.

If the 3D Mode is set to Off, the 2D-3D and 3D sync Invert functions will not be selectable. These functions can only be selected if the 3D mode is set to On.

1. Press Enter.

2. If you only want to view the left or right frame: Select Display > Display Mode > 3D > 3D-2D. Select L (left) or R (right). Press Enter.

3. If you want to turn off the 3D sync invert function:

4. Select Display > Display Mode > 3D > 3D Sync Invert.

5. Select Off.
6. Press Enter.

7.8.3 ENABLING AUTO 3D MODE

1. Select Display > Display Mode > 3D > 3D Format.

2. Select Auto.

3. Press Enter.

Other options:

• SBS: Display 3D signal in "Side-by-Side" format.
• Top and Bottom: Display 3D signal in "Top and Bottom" format.
• Frame Sequential: Display 3D signal in "Frame Sequential" format.

The multilingual On Screen Display (OSD) menus can be used to setup and adjust the projector.

8.1 SELECTING THE LANGUAGE FOR THE ON SCREEN MENU

1. Select Setup > Options > Language
2. Select a language.
3. Press Enter.

8.2 SELECTING A DISPLAY MODE

1. Select Display > Image Settings > Display Mode.

2. Select a display mode:

3. Presentation: Suitable for giving presentations using a PC.

4. Bright: The brightest possible setting when using a PC.
5. HDR SIM.: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest whites, and vivid cinematic colour using the REC.2020 colour gamut. This mode will be automatically enabled if HDR content is sent to the projector (4K UHD Blu-ray, 1080p/4K UHDHDR/HLG games, or 4K UHD streaming video). While HDR mode is active, other displays cannot be selected as HDR delivers colour that is highly accurate and exceeds the colour performance of the other display modes. HDR mode can also be manually selected for use with non HLG content for simulation effect.

6. HLG SIM.: Decodes and displays Hybrid Log Gamma (HLG) content for the deepest blacks, brightest whites, and vivid cinematic colour using the REC.2020 colour gamut. This mode will be automatically enabled if HLG content is sent to the projector (4K UHD Blu-ray, 1080p/4K UHDHDR/HLG games, or 4K UHD streaming video). HLG mode can also be manually selected for use with non HLG content for simulation effect.
   • Cinema: Provides the best colour reproduction for watching movies.

7. Game: Increases the brightness and decreases the response time for playing video games with minimal lag.

8. sRGB: Standardized accurate colour reproduction.
9. DICOM SIM.: Simulation mode for viewing monochrome images such as X-rays.

10. User: Saved user settings.
    • 3D: To experience 3D, you will need 3D glasses and a video source that is capable of sending 3D content.

11. Press Enter.

INFORMATION

The display settings are only visible when an active source is connected to the projector.

8.3 ADJUSTING THE IMAGE COLOUR AND TEMPERATURE

1. Select Display > Image Settings > Color Settings > Color Temperature.
2. Select a value.
3. Press Enter.

INFORMATION

The display settings are only visible when an active source is connected to the projector.

8.4 ADJUSTING THE SHARPNESS OF THE IMAGE

1. Select Display > Image Settings > Color.
2. Press Enter.

8.5 MAGNIFYING THE IMAGE

1. Select Display > Zoom.
2. Press Enter.

8.6 SELECTING AN ASPECT RATIO

1. Select Display > Aspect Ratio.
2. Select the desired aspect ratio.
3. Press Enter.

1. Select Display > Image Settings > Brightness Mode.
2. Select a brightness mode.
3. Press Enter.

8.8 ENABLEING ECO MODE

1. Select Display > Image Settings > Brightness Mode.
2. Select Eco.
3. Press Enter.

8.9 ENABLING CLOSED CAPTIONS

1. Select Setup > Options > Closed Caption.
2. Select CC1 or CC2.
3. Press Enter.

8.10 DISPLAYING A TEST PATTERN

1. Select Setup > Test Pattern.
2. Select a test pattern.
3. Press Enter.

8.11 PREVENTING UNAUTHORIZED USE

1. Select Setup > Security > Security.
2. Select On. The default password is 1234.
3. Press Enter.

8.12 CHANGING THE PASSWORD

1. Select Setup > Security > Change Password.
2. Type the new password.
3. Press Enter.

INFORMATION

Do not lose the password. The password can only be reset at an authorized InFocus repair facility.

8.13 CONTROLLING THE PROJECTOR FROM A WEB BROWSER

1. Connect the projector to an active network port using the RJ45 port on the back of the projector.
2. Select Network > LAN > DHCP.
3. Select On.
4. Press Enter.
5. Select Network > LAN > IP Address to view the projector's IP address.
6. Open a web browser.

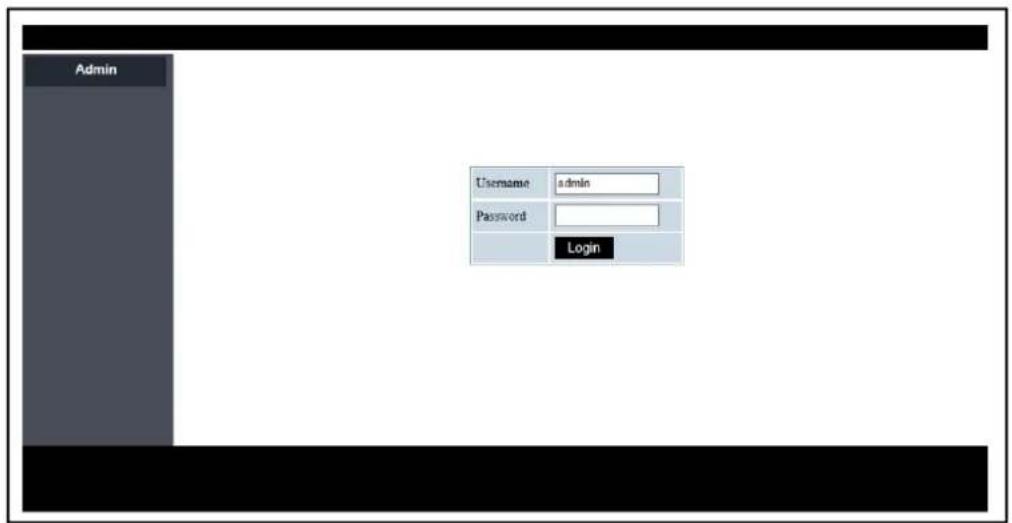

7. Type the projector's IP address type the user name and password. The default user name and password is admin.

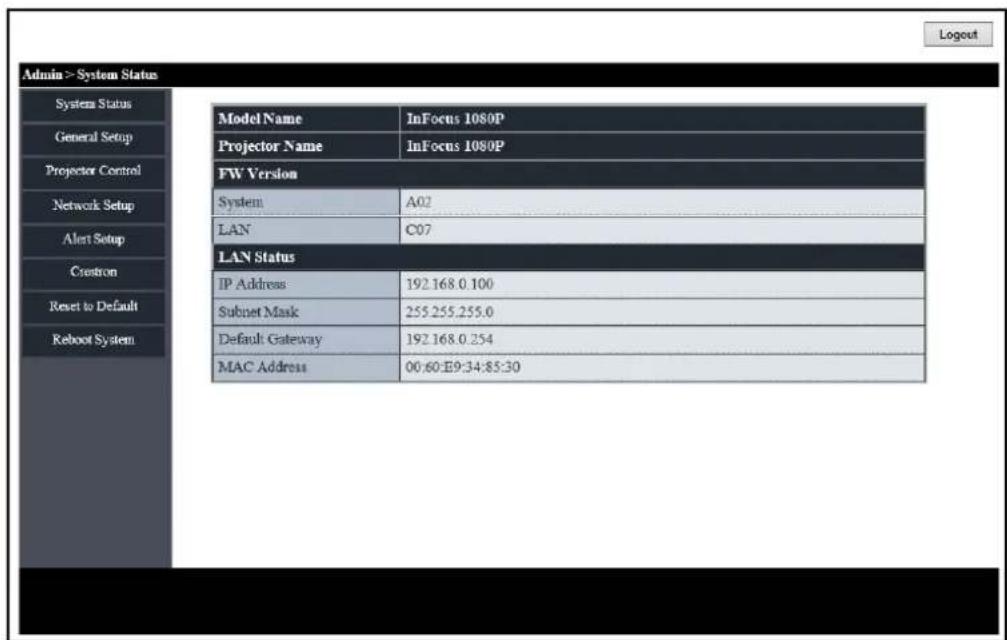

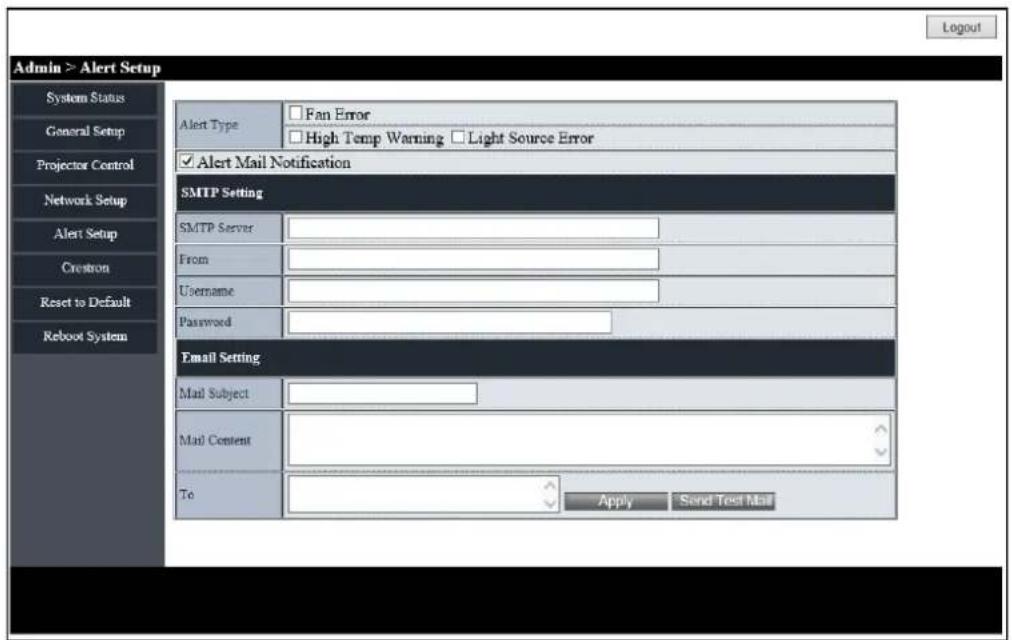

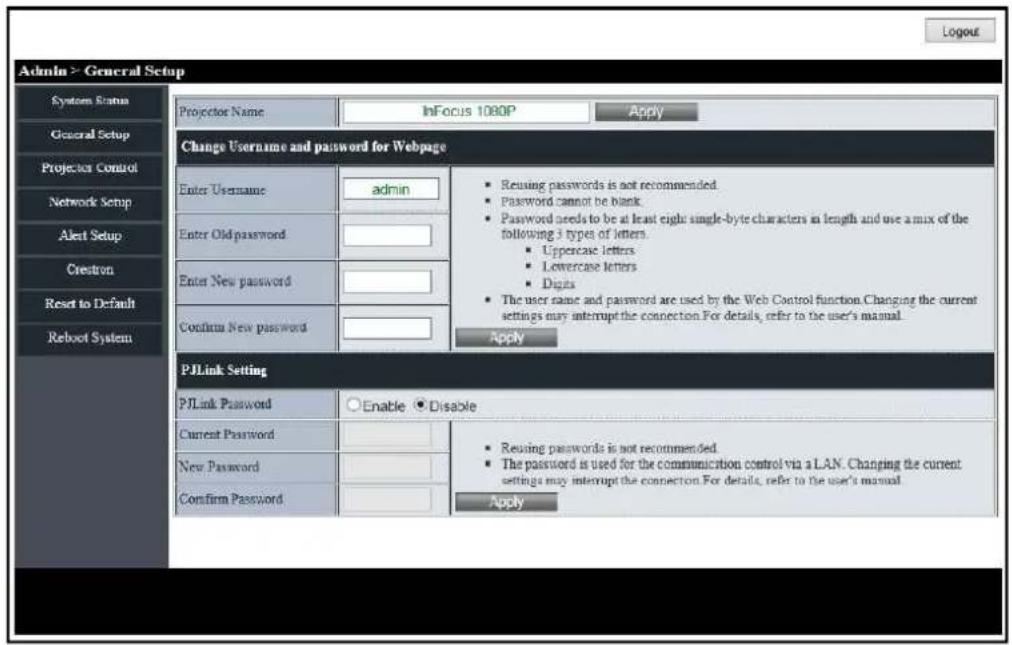

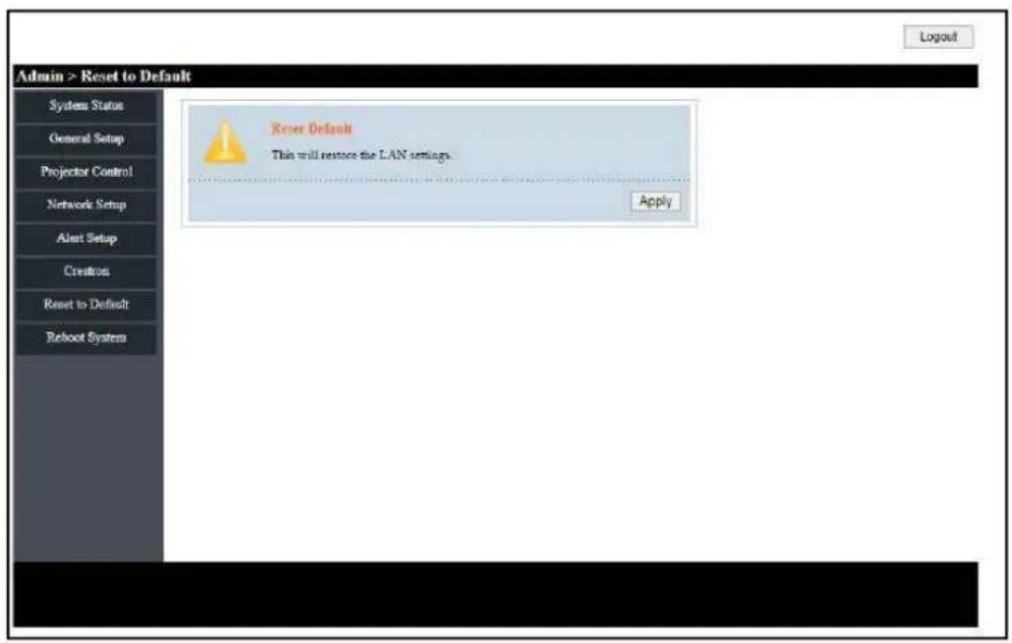

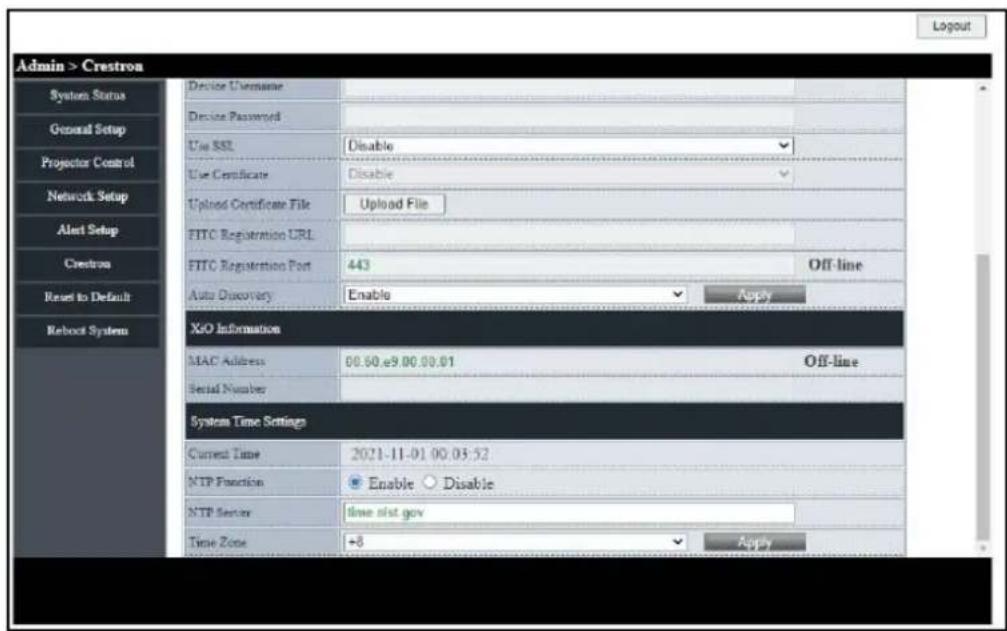

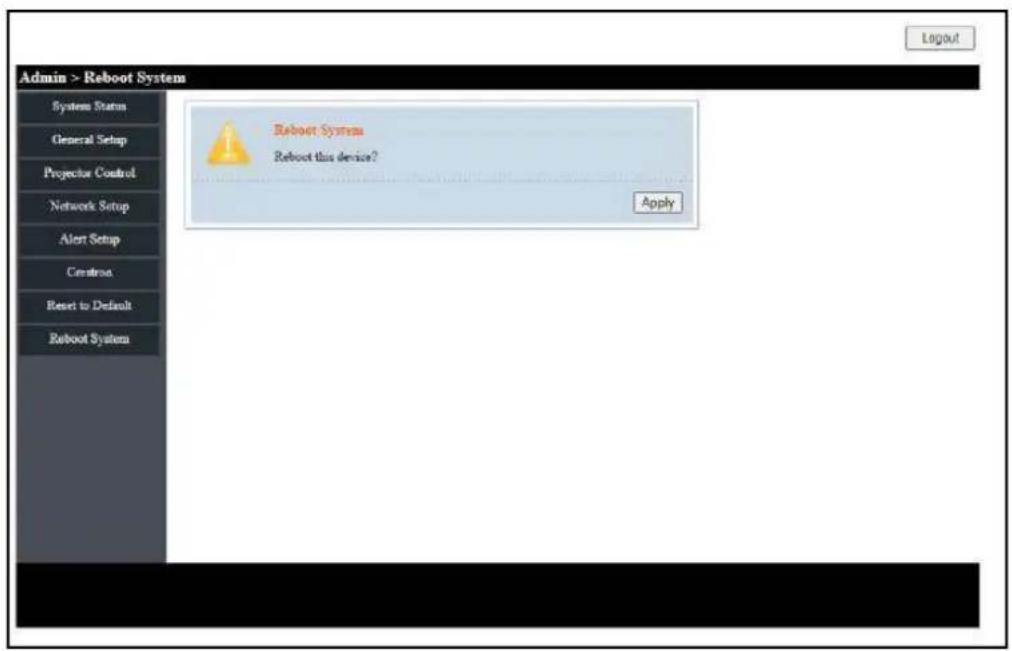

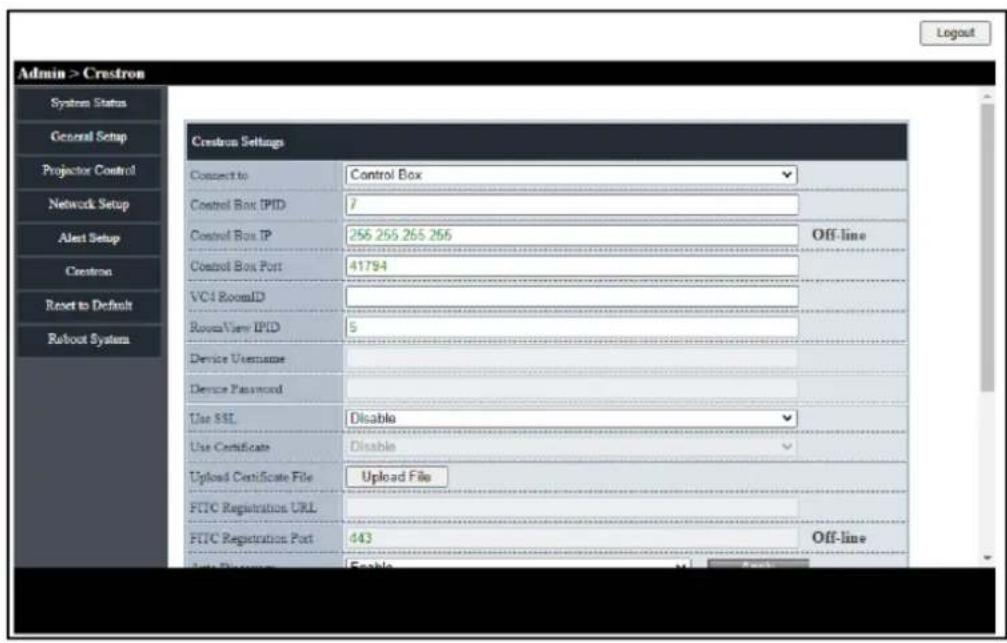

8. Click Login. The projector's configuration page appears.

INFORMATION

This section is only applicable to p122 and p123 Vista II products.

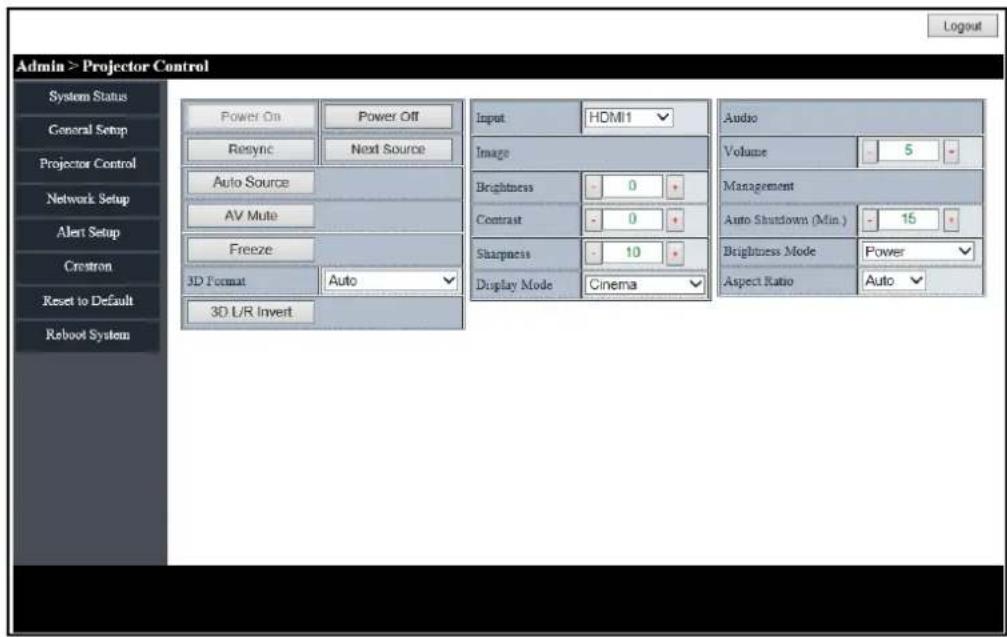

Web Control Aspect Ratio Support list below

Aspect Ratio XGA	WXGA 1080P
4:3	√ √	√
16:9	√ √	(Follow OSD->Screen Type)	√
16 :10		√ (Follow OSD->Screen Type)
LBX		√	√
Native	√ √	√
AUTO	√ √	√

Notice

If web page select the unsupport aspect ratio, projector will do nothing and the web will show the aspect ratio same with OSO.

The aspect ratio of WXGA model will change due to the screen type setting.

INFORMATION

Only applicable to Superior Series.

8.14 DIRECTLY CONNECTING A COMPUTER TO THE PROJECTOR

1. Select Network > LAN > DHCP.
2. Select Off.
3. Press Enter.
4. Select Network > LAN.

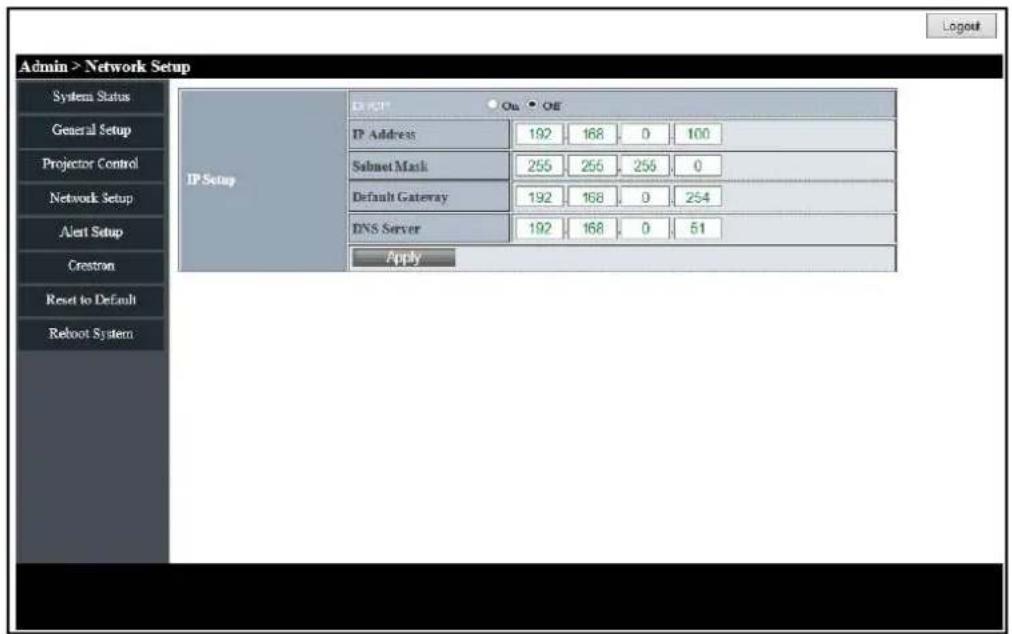

5. Configure the IP address, Subnet Mask, Gateway, and DNS settings.
6. Set the computer to use the same IP address, subnet mask, gateway, and DNS settings.
7. Open a web browser.
8. Type the projector's IP address type the user name and password. The default user name and password is admin.

INFORMATION

Only applicable to Superior Series.

9. CLEANING

Do not use canned air or any type of abrasive pad, paper towel, scouring powder, glass cleaner, or solvent (such as alcohol, paint thinner or benzene).

Unplug the projector before cleaning.

9.1 CLEANING THE LENS

Clean the projector's lens with a lightly damp cloth. Do not spray liquid directly onto the lens.

9.2 CLEANING THE CASE

Clean the projector's case using a lightly damp cloth.

9.3 CLEANING THE AIR VENTS

Clean the air intake vents with a soft and dry cloth, a soft brush, or a small vacuum cleaner designed for cleaning electrical devices.

10. SANITATION

• Using only lightly dampened microfibre cloth to avoid malfunction and possible permanent damage to electronic parts, lightly clean the surface of the product, avoiding any connection points, ventilation holes or the lens.
  • After the application, dry the product with a clean and dry microfibre cloth.

Please follow all safety and handling instructions listed with the cleaning solution and keep out of reach of children. For schools conducting an overall deep clean of their facilities, here are steps to appropriately protect your InFocus product in advance of chemicals being sprayed or fogging devices being employed:

• Disconnect the product from its power source.
• Cover the product to prevent damage to internal electronic components.
• Remember to remove any covering before use.

Please ensure that those with access to your InFocus products are aware of the cleaning procedure.

ATTENTION

Ensure your InFocus product is fully covered on all sides before facilities deep cleaning. Chemicals must not be allowed to enter or be sprayed on to the surface of the product, this will avoid any damage to the internal electronic components and outer casing parts.

INFORMATION

Good personal hygiene practices of washing and drying hands should be employed before and after use of InFocus products.

Should you have any questions relating to these procedures please contact InFocus Technical Support. Contact details can be found Here.

11. DISPOSAL

11.1 DISPOSAL OF ELECTRICAL COMPONENTS

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

The symbol on the product, the accessories or packaging indicates that this device shall not be treated as unsorted municipal waste, but shall be collected separately. Dispose of the device via a collection point for the recycling of waste electrical and electronic equipment if you live within the EU and in other European countries that operate separate collection systems for waste electrical and electronic equipment. By disposing of the device in the proper manner, you help to avoid possible hazards for the environment and public health that may otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources.

11.2 DISPOSAL OF PACKAGING WASTE

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health.

12.1 LED INDICATOR LIGHTS

The following table describes the LED indicator light colours and their meaning.

LED INDICATOR MEANING
Power Blue solid Normal operation
Power Blue flashing		The projector is warming up, shutting down, or cooling down. The remote control may be disabled while the indicator is flashing blue.
Power Red solid Standby mode
Power Off Off or Sleep mode
Lamp Red flashing lamp failure
Temperature Red flashing Fan failure
Temperature	Red solid Over temperature

The projector will automatically shutdown if there is a laser failure, a fan failure or if the projector has overheated. Unplug the power cable from the projector, wait 30 seconds, and try again. If the warning indicators light up or flash, contact your nearest service center for assistance.

12.2 SOLVING ON / OFF ISSUES

The following table provides solutions for potential issues that may occur when the projector is turned on or off.

ISSUE	CAUSE	SOLUTION
Projector will not turn on.	No power	Check that the power cable is connected. Check that the power indicator is on.
Projector will not turn on.	The projector has overheated	Make sure there is at least 30cm of clearance around the intake and exhaust vents. Wait five minutes and try turning the projector on again. If the projector is being used above 5500 ft/1600 m, use the On Screen Display (OSD) menu to set High Altitude to on.
Projector turns off by itself.	The Auto Power Off timer is set	Use the On Screen Display (OSD) menu to adjust the auto power of setting.

12.3 SOLVING IMAGE ISSUES

The following table provides solutions for potential image issues.

ISSUE	CAUSE	SOLUTION
No image	Incorrect source is selected.	Press the SOURCE button or one of the source buttons again.
No image	Source cable is not connected.	Ensure the source cable is securely connected to the projector and source device
No image	Source is not playing	Make sure the source has not stopped or paused the video. If the source is a computer, make sure the PC is not in a screen saving or power saving mode and resend the video to the projector.
No image	AV-Mute is on	Ensure the AV-MUTE (video off) buttons has not been pressed.
No image	Brightness and/or contrast setting is too low	Use the On Screen Display (OSD) menu to adjust the brightness and contrast
Image is reversed	Orientation is set incorrectly.	Use the On Screen Display (OSD) menu to adjust the orientation.
Image has slanted sides	Projector is not positioned perpendicularly to the screen.	Ensure the projector is centered on the screen and below the bottom of the screen
Image has slanted sides	Keystone is not set correctly.	Press the keystone + or - buttons to adjust the image alignment.
ISSUE CAUSE SOLUTION
Image is too small or too large.	Projector is too far from or too close to the screen.	Move the projector
Image is too small or too large.	The zoom is not set correctly.	Press the Zoom + or - buttons to adjust the zoom.
Image is too dark ECO mode is enabled		Check if the projector is in the Forced ECO mode because the ambient temperature is too high.
Image is blurry Focus is not set correctly. Use the focus ring to adjust the focus.
Image is blurry	Projector is too close or too far from the screen.	Ensure that the distance between the projector and screen is within the adjustment range of the lens.
Image is blurry	Smudge or condensation on the lens.	Clean the lens. Condensation may form on the lens if the projector is cold, brought into a warm place, and turned on.
Image is scrolling or flickering.	Source resolution and/or frequency is not supported.	Make sure that the source's resolution and frequency are supported by the projector.

12.4 SOLVING VIDEO, AUDIO AND REMOTE CONTROL ISSUES

The following table provides solutions for potential video, audio, and remote control issues.

ISSUE CAUSE SOLUTION
Video is frozen	The Freeze button has been pressed.	Press the Freeze button on the remote to unfreeze the video.
Video is stretched	16:9 (wide) source is setup incorrectly.	Ensure the source is set to use the 16:9 (wide) display format.
Video is stretched	Letterbox (LBX) source is setup incorrectly.	Use the On Screen Display (OSD) menu to set the aspect ratio to LBX.
Video is stretched	4:3 source is setup incorrectly.	Use the On Screen Display (OSD) menu to set the aspect ratio to 4:3.
No audio	Projector is muted.	Press the Mute button to unmute the projector.
No audio Volume setting is too low. Press the volume + button to increase the volume.
No audio	Source cable is not connected.	Ensure the source cable is securely connected to the projector and source device.
No audio Source is muted. Ensure the source has not been muted.
Remote does not work.	Batteries expired. Install new batteries.
Remote does not work.	Batteries installed incorrectly. Remove and reinstall the batteries.
Remote does not work.	Remote is too far from projector.	The remote should be within 16.4 feet (5m) of the projector.
Remote does not work.	IR receiver cannot detect remote.	Ensure there are no obstructions between the remote and the projector's IR receiver. Ensure the operating angle of the remote control is within ±20° to the projector's IR receiver. Ensure there are no fluorescent light sources shining on the projector's IR receiver.

If you are still experiencing technical issues with your projector, please contact InFocus Customer Support Here.

12.5 SERVICING

Servicing is required when the projector has been damaged, exposed to rain or moisture, does not operate normally, or has been dropped. All servicing and repairs should be performed by an authorized InFocus representative.

13.1 RS232 PIN ASSIGNMENTS

PIN NUMBER BO DETAILED TIMING
1 -
2 RDX
3 TXD
4 -
5 GND
6 -
7 -
8 -
9 -

13.2 RS232 PROTOCOL FUNCTION LIST

FUNCTION VALUE
BAUD RATE 1920
PARITY BIT NONE
DATA BIT	8
STOP BIT	1
LASER ON DELAY	20 SECONDS
POWER DOWN DELAY	20 SECONDS
SOURCE CHANGE DELAY	8 SECONDS
INTERCOMMAND DELAY MINIMUM	500 MILLISECONDS
INTERCHARACTER DELAY MINIUMUM	2 MILLISECONDS

13.3 SUPPORTED RESOLUTIONS AND REFRESH RATES

Video Compatibility

NTSC	NTSC M/J, 3.58MHz, 4.43MHz
PAL	PAL B/D/G/H/I/M/N, 4.43MHz
SECAM	SECAM B/D/G/K/K1/L, 4.25/4.4 MHz
SDTV	480i/p, 576i/p
HDTV	720p(50/60Hz), 1080i(50/60Hz), 1080P(50/60Hz)

Note Video timing detail

SIGNAL RESOLUTION REFRESH RATE (Hz) NOTES
TV (NTSC) 720×480 60			ForComposite Video /S-video
TV (PAL,SECAM) 720×576 50
SDTV (480I) 720×480 60			For Component
SDTV (480P) 720×480 60
SDTV (576I) 720×576 50
SDTV (576P) 720×576 50
HDTV (720p) 1280×720 50/60
HDTV (1080I)	1920×1080	50/60
HDTV (1080p)	1920×1080	24/50/60

True 3D Video Compatibility table

INPUT RESOLUTIONS	HDMI 1.4a 3D Input	Input timing
		1280×720P @ 50Hz	Top-and-Bottom
		1280×720P @ 60Hz	Top-and-Bottom
		1280×720P @ 50Hz	Frame packing
		1280×720P @ 60Hz	Frame packing
		1920×1080i @50 Hz Side-by-Side (Half)
		1920×1080i @60 Hz Side-by-Side (Half)
		1920×1080P @24 Hz	Top-and-Bottom
		1920×1080P @24 Hz	Frame packing
	HDMI 1.3	1920×1080i @ 50Hz	Side-by-Side(Half)	SBS mode is on
		1920×1080i @ 60Hz
		1280×720P @50Hz
		1280×720P @60Hz
		800×600 @ 60Hz
		1024×768 @ 60Hz
		1920×1080i @ 50Hz	Top-and-Bottom	TAB mode is on
		1920×1080i @ 60Hz
		1280×720P @50Hz
		1280×720P @60Hz
		800×600 @ 60Hz
		1024×768 @ 50Hz
		480i HQFS	3D format is Frame sequential

If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode Support NVIDIA 3DTV Play if there is no patent fee from InFocus

Note 1080i@25Hz and 720p@50Hz will run in 100Hz; other 3D timing will run in 120Hz.

VESA standards Computer Signal (Analog RGB Compatible)

SIGNAL RESOLUTION REFRESH RATE(HZ) NOTES FOR MAC
VGA 640×480	60/67/72/85 Mac 60/72/85/
SVGA	800×600	56/60 (*2)/72/85/120 (*2)	Mac 60/72/85
XGA	1024×768	48/50/60 (*2)/70/75/85/120 (*2)	Mac 60/70/75/85
HDTV(720P)	1280×720	50/60 (*2)/120 (*2)	Mac 60
WXGA	1280×768	60/75/85	Mac 60/75/85
	1280×800	48/50/60	Mac 60
WXGA (*3)	1366×768	60
SXGA 1280×1024	60/75/85	Mac 60/75
SXGA+	1400×1050	60
UXGA	1600×1200	60
HDTV(1080p)	1920×1080	24/50/60	Mac 60
WUXGA	1920×1200 (*1)	60/50hz	Mac 60

(*1) 1920×1200 @60Hz only support RB (reduced blanking)

(*2) Support 3D timing for 3D Ready projector (STD) and True 3D projector (Option)

(*3) Window 10 standard timing

13.4 ON SCREEN DISPLAY (OSD) MENU TREE


SETTING 1	SETTING 2	SETTING 3	VALUES	COMMENTS
Picture Mode			Presentation	RGB source default: PresentationYUV source default: Movie3D on default: 3DISF Day and ISF Night are valid while ISF Mode is On or Unlock
			Bright
			Movie
			sRGB
			DICOM SIM.
			User
			3D
			ISF Day
			ISF Night
Wall Colour			Whiteboard
			Blackboard
			Light Yellow
			Light Green
			Light Blue
			Pink
			Gray
Brightness			-50 ~ 50
Contrast			-50 ~ 50
Sharpness			1 ~ 15
Colour			-50 ~ 50	Only for YUV source
Tint			-50 ~50	Only for YUV source
SETTING 1 SETTING 2 SETTING 3 VALUES COMMENTS
Advanced	Gamma		Film	Picture Mode is DICOM SIM. Gamma item will be hide. Wall Colour is Blackboard. Gamma item will be hide.
			Video
			Graphics
			Standard (2.2)
			1,8
			2,0
			2,4
	BrilliantColorTM 1 ~ 10
	Colour Temp		Warm
			Medium
			Cold
	Colour Settings	Red- Hue -50 ~ 50
		Red- Saturation -50 ~ 50
		Red- Gain -50 ~ 50
		Exit
		Green- Hue -50 ~ 50
		Green- Saturation -50 ~ 50
		Green- Gain -50 ~ 50
		Exit
		Blue- Hue -50 ~ 50
		Blue- Saturation -50 ~ 50
		Blue- Gain	-50 ~ 50
		Exit
		Cyan- Hue	-50 ~ 50
		Cyan-Saturation	-50 ~ 50
		Cyan- Gain -50 ~ 50
		Exit
		Magenta- Hue	-50 ~ 50
		Magenta- Saturation	-50 ~ 50
		Magenta- Gain -50 ~ 50
		Exit
		Yellow- Hue	-50 ~ 50
		Yellow- Saturation	-50 ~ 50
		Yellow- Gain	-50 ~ 50
		Exit
		White- Red	-50 ~ 50
		White- Green	-50 ~ 50
		White- Blue	-50 ~ 50
		Exit
		Reset
		Exit
Advanced	RGB Gain/Bias	Red Gain -50 ~ 50
		Green Gain -50 ~ 50
		Blue Gain -50 ~ 50
		Red Bias -50 ~ 50
		Green Bias -50 ~ 50
		Blue Bias -50 ~ 50
		Reset
		Exit
	Colour Space		AUTO
			RGB Only for non-HDMI source
			RGB (0~255) Only for HDMI source
			RGB (16~235) Only for HDMI source
			YUV
	White Level		0 ~ 31	Only for Video
	Black Level		-5 ~ 5	Only for Video
	IRE		0	For Video Input Source NTSC Signal default: 7.5 PAL Signal default: 0 IRE Adjustment Only for NTSC-M/NTSC-J/NTSC-4.43/PAL-M/PAL-60
			7,5
	Signal	Automatic	Off	Only for Analog VGA source
			On
		Phase	0 ~ 31
		Frequency	-10 ~ 10
		H. Position	-5 ~ 5
		V. Position	-5 ~ 5
		Exit
	Exit

Display

INFORMATION

Zoom has a total of 30 step adjustment, each step representing 0.04× adjustment from -0.8 to 2.0× Brightness Power, each step represents 5% power adjustment from 100% to 50%.

SETTING 1 SETTING 2 SETTING 3 VALUES COMMENTS
Format			4:3
			16:9	For all models but WXGA models depend on Screen Type selection
			16:10	Only for WXGA models depend on Screen Type selection
			LBX	Only for WXGA, 1080p models.
			Native	Original image without any scaling
			Auto
Edge Mask			0 ~ 10
Zoom			-5 ~ 25
Image Shift	H -100 ~ 100	One step: 2
	V -100 ~ 100	One step: 2
	Exit
V Keystone			-40 ~ 40 for RT
			-20 ~ 20 (TBD)	for STNote: the V keystone range of 1080p ST: -10~10 in 3D mode by DDP4422 limitation
3D	3D Mode		Off
			DLP-Link
	3D-2D		3D
			L Only display	left frame
			R Only display	right frame
	3D Format		Auto
			SBS SBS = Side	by Side Half
			Top and Bottom
			Frame Sequential
	3D Sync. Invert		Off
			On
	Exit
Enhanced Gaming			Off 1. Only for	1920x1080 60Hz timing2. Disable Keystone/Overscan/Zoom/Image Shift/Aspect Ratio when turn On
			On
Picture Mode Lock			Off
			On

Audio

SETTING 1 SETTING 2 SETTING 3 VALUES
Mute --	Off / On (ICON)
Volume	--	0-10

Setup

INFORMATION

Power Mode, Eco/Active – Eco disables LAN and puts USB in to standby mode, Active leaves LAN active and USB in to standby.

SETTING 1 SETTING 2 SETTING 3 VALUES REMARK
Language			English English
			Deutsch German
			Français French
			Svenska Swedish
			Español Spanish
			Português Portuguese
			Polski Polish
			Nederlands Dutch
			हिकी	Hindi
			Norsk/Dansk Norwegian	gian/Danish
			Pilipino	Filipino
			Melayu	Malay
			Română Romanian
			Italiana	Italian
			簡体中文	Simplified Chinese
			Suomi	Finnish
			£λληνικά	Greek
			Русский	Russian
			Magyar	Hungarian
			Čeština	Czech
			عربية	Arabic
			ไทย	Thai
			Türkçe	Turkish
			يُسْرِافِ	Farsi
			Tiếng Việt Vietnamese
			Bahasa Indonesia	Indonesian
			बाल्ला	Bengali
Projection			Front (ICON)
			Rear (ICON)
			Front-Ceiling (ICON)
			Rear-Ceiling (ICON)
Menu Location			Top-Left (ICON)
			Top-Right (ICON)
			Center (ICON)
			Bottom-Left (ICON)
			Bottom-Right (ICON)
Screen Type			16:10	1. Only for WXGA models2. Relate to Format
			16:9
Security	Security		Off	Default PIN: 1234
			On
	Security Timer	Month 0 ~ 12
		Day 0 ~ 30
		Hour 0 ~ 24
	Change Password PIN is 4 digitals
Project ID 0 ~ 99
Audio Settings	Mute		Off
			On
	Volume 0 ~ 10
	Audio Input		Default Only for HDMI source
			AUDIO IN
	Exit
HDMI Link Settings	HDMI Link		Off
			On
	Power On Link		Mutual
			PJ -> Device
			Device -> PJ
	Power Off Link		Off
			On
Network	Network State Connect/Disconnect			DHCP Off, default IP configure setting:IP Address: 192.168.0.100Subnet Mask: 255.255.255.0Gateway: 192.168.0.254DNS: 192.168.0.1Support Network Functions:Crestron 2.0 => Port 41794 Extron => Port 2023AMX Device Discovery => Port 9131PJ Link => Port 4352 Telnet => Port 23HTTP => Port 80, Webpage Control
	DHCP		Off
			On
	IP Address		xxx.xxx.xxx.xxx
	Subnet mask		xxx.xxx.xxx.xxx
	Gateway		xxx.xxx.xxx.xxx
	DNS		xxx.xxx.xxx.xxx
	Apply	Yes
		No
	Exit
Advanced	Logo		Default
			Neutral	Same as below Background Colour setting
	Background Colour		Black
			Red
			Blue
			Green
			White
			Logo
	Information Hide		Off	Warning message & power off not hide
			On
	Exit

OPTIONS

SETTING 1 SETTING 2 SETTING 3 VALUES COMMENTS
Input Source			VGA
			Video
			HDMI 1
			HDMI 2
			Exit
Auto Source			Off
			On
High Altitude			Off
			On
Keypad Lock			Off 1. Keypad	unlock hotkey:Press the "Enter" key on keypad for 5s to release keypad lock2. Relate to IR Function:If Keypad Lock setting from Off to On, IR Function will be automatically changed to On.
			On
Test Pattern			Red Grid
			Green Grid
			Blue Grid
			White
Remote Settings	IR Function		Off Relate to Keypad Lock:If IR Function setting from On to Off, Keypad Lock will be automatically changed to Off.
			On
	User 1		AV Mute	Executed through the AV "Mute" key on the remote control
			Wall Colour
			Brightness
			Contrast
			Gamma
			Colour Temp.
			Colour Settings
			RGB Gain/Bias
			Language
			Projection
			Security
			Test Pattern
			Auto Power Off (min)
			Sleep Timer (min)
			Lamp Settings
			INFO
Advanced	Direct Power On		Off
			On
	Signal Power On		Off
			On
	Auto Power Off (min) 0 - 180 One step: 5
	Sleep Timer (min) 0 - 990 One step: 30
Advanced	Quick Resume		Off
			On
	VGA Out(Standby)		Off
			On
	USB Power		Off Standby not supported
			On
	Exit
Lamp Settings	Lamp Hours (Display Only) Range 0-99999
	Lamp Reminder		Off
			On
	Brightness Mode		Bright
			Eco
			Dynamic
	Lamp Reset		No
			Yes
	Exit
Reset			No
			Yes

Information

INFORMATION

The information menu provides information on the active source and other details of the projector, there are no adjustable settings in this section of the menu.

SETTING 1 SETTING 2 SETTING 3 VALUES COMMENTS
Regulatory P122 for RT P123 for ST
Serial Number (DisplayOnly)
Input Source (DisplayOnly)
Resolution (DisplayOnly)
Refresh Rate			(DisplayOnly)
Picture Mode			(DisplayOnly)
Lamp Hours	Bright		(DisplayOnly) Range 0~99999
	Eco.		(DisplayOnly) Range 0~99999
	Dynamic		(DisplayOnly) Range 0~99999
	Total		(DisplayOnly) Range 0~99999
Brightness Mode			(DisplayOnly)
Firmware Version	System		(DisplayOnly)
	MCU		(DisplayOnly)
Project ID			(DisplayOnly)

INFORMATION

All specifications are subject to change without notice.

14.1 VISTA II, P122 & P123, SPECIFICATIONS

	IN0044SL IN0046SL IN0048SL IN0044ST IN0046ST IN0048ST
Product Series VISTA II
Display Technology Texas Instruments DLP®
Panel Size 0.55" DMD 0.65" DMD 0.65" DMD 0.55" DMD 0.65" DMD
Native Resolution	XGA	WXGA	1080p	XGA	WXGA	1080p
Pixels	1024×768	1280×800	1920×1080	1024×768	1280×800	1920×1080
Aspect Ratio	4:3	16:10	16:9	4:3	16:10	16:9
Contrast Ratio	30000:1
Brightness (Lumens)	4600	4700	4400	4200	4300	4000
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15 ~ 97.55
Vertical Sync. Range (Hz)	54 ~ 85
Uniformity (%)	80
LENS
Lens	1.3×			1:1 Fixed
Lens Zoom Adjustment	Manual			-
Image Offset (%)	115	112,4	116	115	112,4	116
Focal Length (mm)	21.85 ~ 24.01			7,15
F-Stop	2,43	2,7	2,43	2,8	2,43	2,8
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	± 40°			± 20°
Projection Factor	1.48~1.93:1	1.19~1.54:1	1.13~1.47:1	0,617:1	0,521:1	0,496:1
Projection Distance (Meters/Feet)	1.0 ~ 9.1 / 3.28 ~ 29.85	1.0 ~ 7.7 / 3.28 ~ 22.26	1.0 ~ 10.0 / 3.28 ~ 32.80	0.4 ~ 3.8 / 1.31 ~ 12.46	0.4 ~ 3.4 / 1.31 ~ 11.15	0.4 ~ 3.3 / 1.31 ~ 10.82
Optical Zoom	1.3:1			1:1
Digital Zoom Demagnification / Magnification	0.8× ~ 2.0×
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)
Composite Video
S-Video
HDMI™ 1.4
RJ45 - LAN 10/100/1000
3.5 mm Stereo Mini Jack
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
CONNECTIVITY- OTHER
RS232
All Major 3D Formats
USB-A for Service
POWER
Power Supply 100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) <2.0
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in) 313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds) 2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in) 395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds) 4.1 / 9.0
Fan Noise (dB) 27
Audio (W) 1 x 10
Operating Temperature (Celsius/Fahrenheit)	5 ~ 40 / 41 ~ 104
Operating Humidity (%) 10 ~ 85
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-10 ~ 60 / 14 ~ 140
Storage Humidity (%)	10 ~ 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector
Simplified Users Guide
VGA Cable
Regional Power Cord
Remote Control (no Battery)

14.2 GENESIS III, P124, SPECIFICATIONS

	IN0002SL IN0004	SL IN0006SL
Product Series GENESIS III
Display Technology Texas Instruments DLP®
Panel Size 0.55" DMD 0.65" DMD
Native Resolution SVGA XGA WXGA
Pixels 800×600 1024×768 1280×800
Aspect Ratio	4:3		16:10
Contrast Ratio	30000:1
Brightness (Lumens)	4000
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15 - 97.55
Vertical Sync. Range (Hz)	54 - 85
Uniformity (%)	80
LENS
Lens	1.1×
Lens Zoom Adjustment	Manual
Image Offset (%)	115		112,4
Focal Length (mm)	21.85 ~ 24.01
F-Stop	2,41
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	± 40°
Projection Factor	1.94 ~ 2.16:1		1.54 ~ 1.72:1
Projection Distance (Meters/Feet)	1.2 ~ 12.0 / 3.94 ~ 39.36		1.0 ~ 10.0 / 3.28 ~ 32.80
Optical Zoom	1.1:1
Digital Zoom Demagnification / Magnification	0.8× - 2.0×
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	✓
Composite Video	-
S-Video	✓
HDMITM 1.4	✓
RJ45 - LAN 10/100/1000	-
3.5 mm Stereo Mini Jack	✓
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)	-
3.5 mm Stereo Mini Jack	✓
Powered USB-A for Wireless Dongle	✓
CONNECTIVITY-OTHER
RS232 -
All Major 3D Formats	☑
USB-A for Service	☑
POWER
Power Supply 100 - 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) <2.0
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in) 313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds) 2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in) 395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds) 4.1 / 9.0
Fan Noise (dB) 27
Audio (W) 1 x 10
Operating Temperature (Celsius/Fahrenheit)	5 ~ 40 / 41 ~ 104
Operating Humidity (%) 10 ~ 85
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-10 ~ 60 / 14 ~ 140
Storage Humidity (%)	10 ~ 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector	☑	☑	☑
Simplified Users Guide	☑	☑	☑
VGA Cable	☑	☑	☑
Regional Power Cord	☑	☑	☑
Remote Control (no Battery)	☑	☑	☑

14.3 GENESIS IV, P125 & P126, SPECIFICATIONS

	IN0022SL IN0024SL IN0026SL IN0028SL IN0024ST IN0026ST
Product Series GENESIS IV
Display Technology Texas Instruments DLP®
Panel Size 0.55" DMD 0.65" DMD 0.47" DMD 0.55" DMD 0.65" DMD
Native Resolution	SVGA	XGA	WXGA	1080p	XGA	WXGA
Pixels	800×600	1024×768	1280×800	1920×1080	1024×768	1280×800
Aspect Ratio	4:3		16:10	16:9	4:3	16:10
Contrast Ratio	30000:1
Brightness (Lumens)	4000				3800
Light Source	UHP Lamp
Light Source Life Maximum Hours	15000
Maximum Supported Resolution	1920×1200
Horizontal Sync. Range (KHz)	15 ~ 97.55
Vertical Sync. Range (Hz)	54 ~ 85
Uniformity (%)	80
LENS
Lens	1.1x				1:1 Fixed
Lens Zoom Adjustment	Manual				-
Image Offset (%)	115		112,4	116	115	112,4
Focal Length (mm)	21.85 ~ 24.01				7,15
F-Stop	2,41			2,1	2,7	2,8
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	± 40°				± 20°
Projection Factor	1.94 ~ 2.16:1		1.54 ~ 1.72:1	1.47 ~ 1.62:1	0.621:1	0.52:1
Projection Distance (Meters/Feet)	1.2 ~ 12.0 / 3.94 ~ 39.36		1.0 ~ 10.0 / 3.28 ~ 32.80	1.0 ~ 9.8m / 3.28 ~32.14	0.4 ~ 3.76 / 1.31 ~ 12.33	0.4 ~ 3.37 / 1.31 ~ 11.05
Optical Zoom	1.1:1			1:1
Digital Zoom Demagnification / Magnification	0.8x ~ 2.0x
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	☑
Composite Video	-
S-Video	☑
HDMI™ 1.4	☑☑
RJ45 - LAN 10/100/1000	-
3.5 mm Stereo Mini Jack	☑
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)	☑
3.5 mm Stereo Mini Jack	☑
Powered USB-A for Wireless Dongle	☑
CONNECTIVITY- OTHER
RS232	☑
All Major 3D Formats	☑
USB-A for Service	☑
POWER
Power Supply 100 - 240 V AC; 50 - 60 Hz
Power Consumption Max (W) 267
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) <2.0
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in) 313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds) 2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in) 395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds) 4.1 / 9.0
Fan Noise (dB) 27
Audio (W) 1 x 10
Operating Temperature (Celsius/Fahrenheit)	5 - 40 / 41 - 104
Operating Humidity (%) 10 - 85
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-10 - 60 / 14 - 140
Storage Humidity (%)	10 - 85
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental	WEEE, EU RoHS, China RoHS, CEL, CECP
IN THE BOX
Projector	☑	☑	☑	☑	☑	☑
Simplified Users Guide	☑	☑	☑	☑	☑	☑
VGA Cable	☑	☑	☑	☑	☑	☑
Regional Power Cord	☑	☑	☑	☑	☑	☑
Remote Control (no Battery)	☑	☑	☑	☑	☑	☑

14.4 ORBITAL, P134, SPECIFICATIONS

	IN0061SL
Product Series ORBITAL
Display Technology Texas Instruments DLP®
Panel Size 0.47" DMD
Native Resolution 4K UHD
Pixels 3840 x 2160
Aspect Ratio 16:9
Contrast Ratio 1000000:1
Brightness (Lumens) 4000
Light Source UHP Lamp
Light Source Life Maximum Hours 15000
Maximum Supported Resolution 3840 x 2160
Horizontal Sync. Range (KHz)	15 - 150
Vertical Sync. Range (Hz)	24 - 240
Uniformity (%)	80
LENS
Lens	1.3×
Lens Zoom Adjustment	Manual
Image Offset (%)	115
Focal Length (mm)	12.81 ~ 16.74
F-Stop	2,43
Keystone Adjustment	Manual/Automatic
Vertical Keystone Correction	± 30°
Projection Factor	1.21 ~ 2.59:1
Projection Distance (Meters/Feet)	1.0 ~ 8.1 / 3.2 ~ 26.6
Optical Zoom	1.3:1
Digital Zoom Demagnification / Magnification	0.8× ~ 2.0×
Focus Adjustment	Manual
CONNECTIVITY-INPUTS
Mini D-sub 15-pin (VGA)	√
Composite Video	-
S-Video	-
HDMITM 2.0 (HDCP 2.2)	√√
RJ45 - LAN 10/100/1000	-
3.5 mm Stereo Mini Jack	√
CONNECTIVITY-OUTPUTS
Mini D-sub 15-pin (VGA)	-
3.5 mm Stereo Mini Jack	√
Powered USB-A 5v 1.5A	√
S/PDIF Optical Audio	√
CONNECTIVITY- OTHER
RS232	✓
All Major 3D Formats	✓
POWER
Power Supply 100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W) 300
Power Consumption Min. (W) 210
Power Consumption Network Standby (W) -
Power Consumption Standby (W) <0.5
GENERAL
Product Dimensions (L x W x H) (mm / in) 313 x 234 x 96.4 / 12.4 x	9.2 x 3.8
Product Weight (Kilograms/Pounds) 3.2/7.0
Packaged Dimensions (L x W x H) (mm / in) 400 x 337 x 168 / 15.7 x	13.3 x 6.6
Packaged Weight (Kilograms/Pounds) 4.4 / 9.7
Fan Noise (dB) 27
Audio (W) 1 x 10
Operating Temperature (Celsius/Fahrenheit) 0 ~ 40 / 32 ~ 104
Operating Humidity (%) 10 ~ 80
Max Operating Altitude (meters / feet)	3048 / 10000
Storage Temperature (Celsius/Fahrenheit)	-20 ~ 60 / -4 ~ 140
Storage Humidity (%)	10 ~ 80
Security	Kensington Security SlotTM, PIN Code Lock & Timer
Safety and Regulatory	CB, CE, EAC, cTUVus, CCC, FCC, UKCA
Environmental	WEEE, EU RoHS, China RoHS
IN THE BOX
Projector	✓
Simplified Users Guide	✓
HDMI Cable	✓
Regional Power Cord	✓
Remote Control (no Battery)	✓

15.1 FOR USERS IN THE UNITED STATES

INFORMATION

FCC COMPLIANCE STATEMENT – CLASS B

This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual may cause interference to radio communications. It has been tested and found to comply with the limits for a Class "B" computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, or any other form of communication, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate the product. Where shielded interface cables have been provided with the product, specified additional components or accessories elsewhere defined to be used with the installation of the product, they shall be used in order to ensure compliance with FCC regulations.

US Importer and Local Representative in accordance with FCC regulations

Maxnerva Technology Services USA LLC

13190 SW 68th Parkway, Suite 120

Portland, Oregon 97223.

15.2 FOR USERS IN CANADA

INFORMATION

This Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions:

(*1) this device may not cause interference, and
(*2) this device must accept any interference, including interference that may cause undesired operation of the device.

The user is cautioned that this device should be used only as specified within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC equipment provided that the following conditions are met. If the cables include a EMI ferrite core, attach the ferrite core end of the cable to the projector. Use the cables which are included with the projector or specified.

**Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Complies with IDA Standards DA103121

15.3 FOR USERS IN EUROPEAN UNION

INFORMATION

EU COMPLIANCE

INFORMATION

CE COMPLIANCE STATEMENT

Electromagnetic Compatibility Statement: Meets 2014/30/EU Directive Low Voltage Directive: Meets 2014/35/EU Directive

EU Importer

Grand Field Technology Limited

Room 1001, 10/F, Houston Centre, 63 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong.

EU Authorised Representative

24hour Solutions B.V.

Van Nelleweg 1,

3044 BC, Rotterdam,

The Netherlands

[e-mail]

www.24hour-ar.com

15.4 FOR USERS IN THE UNITED KINGDON AND NORTHERN IRELAND

INFORMATION

UK COMPLIANCE

INFORMATION

UKCA COMPLIANCE STATEMENT

Electromagnetic Compatibility Regulations 2016

Electrical Equipment (Safety) Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

Regulations 2012

Manufacturer, Importer and Authorised Representative in accordance with natational directives

Manufacturer

Maxnerva Technology Services Limited

Room 1001, 10/F, Houston Centre, 63 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong.

UK Authorised Representative in accordance with UK regulations

24hour Solutions Ltd.

15 Beaufort Court

Admirals Way, Canary Wharf

London, E14 9XL, UK

[phone]

Company ID 13630765

Russian Authorised Representative

Maxnerva has appointed AUVIX LLC, 129085, c. Moscow, Zvezdny Boulevard, 21, bldg. 1. as the authorised representative in Russia and this product is compliant with TR TC 004/2011, TR TC 020/2011 and TR CU 020/2011 local conformity testing and approvals.
