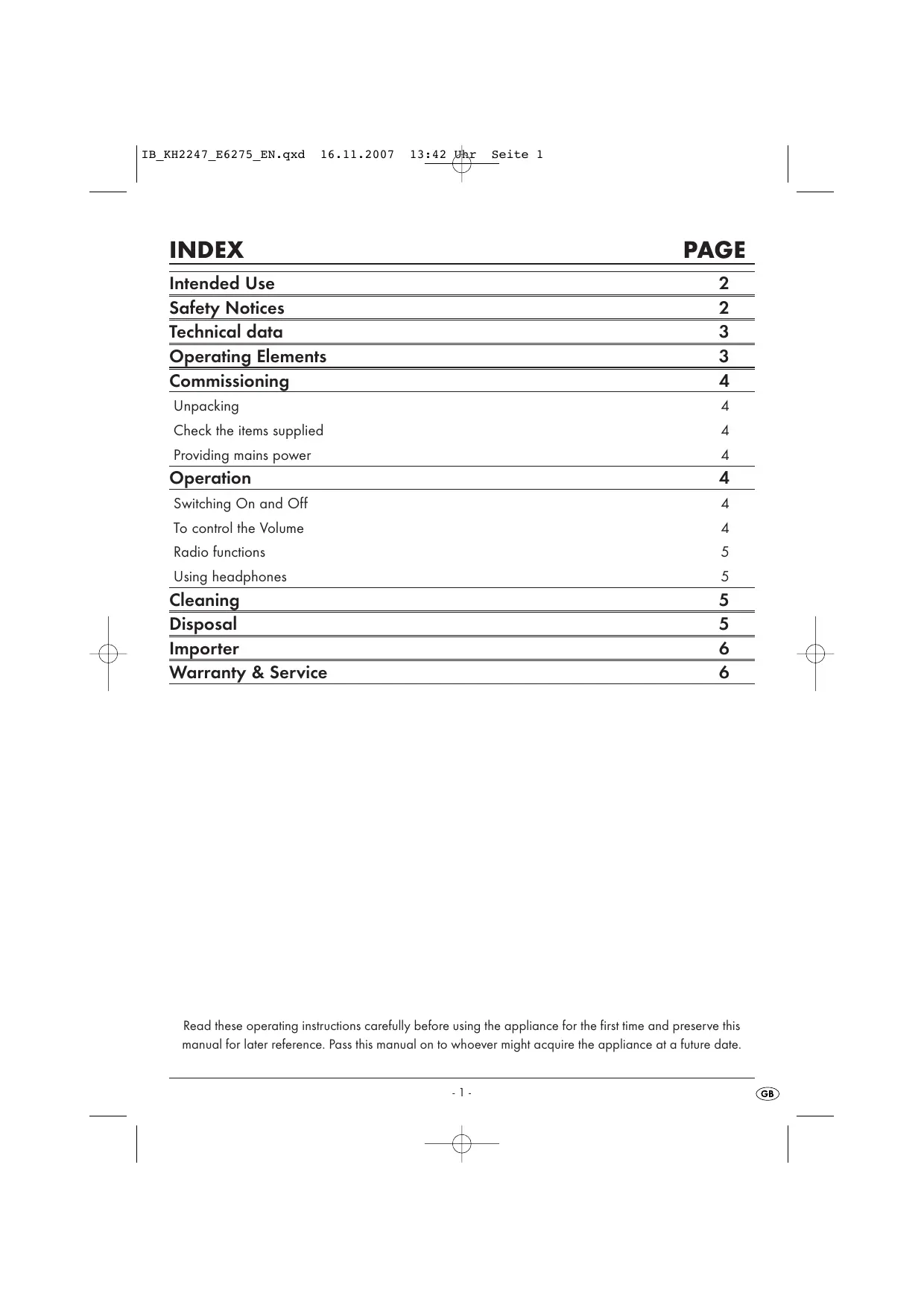

INDEX

PAGE

Intended Use	2
Safety Notices	2
Technical data	3
Operating Elements	3
Commissioning	4
Unpacking	4
Check the items supplied	4
Providing mains power	4
Operation	4
Switching On and Off	4
To control the Volume	4
Radio functions	5
Using headphones	5
Cleaning	5
Disposal	5
Importer	6
Warranty & Service	6

Read these operating instructions carefully before using the appliance for the first time and preserve this manual for later reference. Pass this manual on to whoever might acquire the appliance at a future date.

Intended Use

The radio is intended for listening to radio transmissions. The radio is not intended for utilisation in commercial or industrial applications.

No warranty claims will be granted for damage resulting from improper use!

Safety Notices

• This appliance is not suitable for children or for people whose physical, sensorial or intellectual faculties prevent the safe usage of the appliance without support or supervision. Children should be supervised to ensure that they do not play with the appliance.
• To avoid potential risks, after use and before cleaning ALWAYS remove a connected power adapter from the wall power socket.
• Check the appliance and all parts for visible damage. The safety concept can work only if the appliance is in a faultless condition.
• The power plug must always be easily accessible, so that the appliance can be quickly separated from the mains in the event of an emergency.

Risk of explosion!

Do not throw batteries into a fire. Do not recharge the batteries.

Risk of electrical shocks.

• Connect the power adapter only to correctly installed and earthed mains sockets. Check that the electricity type and mains voltage matches the information given on the power adapter type plate.
• ONLY use power adapters with an output voltage of 6V ---

When connecting a power adapter ensure that the polarity of the barrel connector concurs with that at the jack socket DC IN.

NEVER submerse the appliance in water.

Wipe it only with a slightly damp cloth.

• Do not attempt to open the housing or repair the radio. Should you do so, the device may no longer be safe and the warranty is voided.

Risk of fire!

• Do not use the appliance in the vicinity of hot surfaces.
• Do not locate the appliance in places exposed to direct sunlight, if you do, it may overheat and become irreparably damaged.
• Do not leave the appliance unattended when in use.
• Do not cover the radio while it is switched on.
• Do not place any open sources of fire, like candles, on the device.

Notice regarding separation from mains-power

• The volume controller on this appliance does not completely disconnect it from the power network. Additionally, it consumes power for as long as the power adapter is connected to the mains supply. To completely separate the appliance from mains-power, the power adapter MUST be removed from the wall socket.

Risk of personal injury!

• Keep children away from the connecting cable and the appliance. Children frequently underestimate the dangers of electrical appliances.
• Do not operate the appliance if it has sustained a fall or is damaged. Arrange for the appliance to be checked and/or repaired by qualified technicians.
• Keep batteries away from children. Children can put batteries into their mouths and swallow them.

Thunderstorm warning!

Before a storm and/or a thunderstorm with a risk of lightning, please separate the appliance from the electrical power source!

Technical data

Battery operation

4 × 1.5 ~V, Type AA/LR6/Mignon

Operation with power adapter

DC IN 6 V = 300 mA,

5 mm Barrel connector -

Frequency range radio:

VHF (FM): 87.5 - 108 MHz

MW (AM): 540 - 1600 kHz

Dimensions

(L× D× H) ： 191× 60× 135mm

Weight: 416 g approx.

Operating temperature: 10^ +40^ C

Operation humidity: 0 80%

(No condensation)

Subject to technical changes.

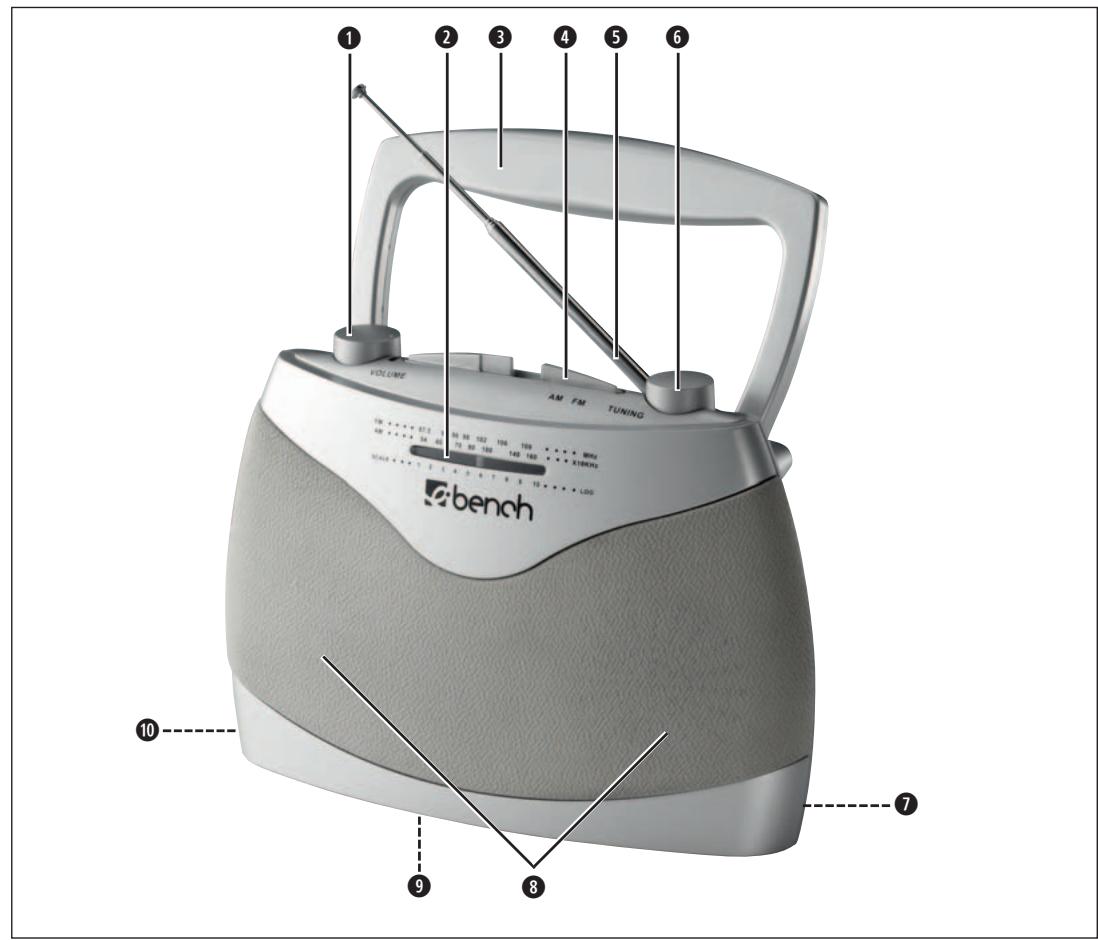

Operating Elements

On/Off switch with volume controller
Frequency scale
3 Carrying handle
4 Selector switch AM/FM (Medium wave/Short wave)
5 Telescopic antenna
6 Frequency regulator
DC 6 V: Input for power adapter (on the right side)
8 Loudspeaker
9 Battery compartment (on the bottom)
10 Headphone connector (on the left side)

Commissioning

Unpacking

1. Take the radio out of the packaging.
2. Remove all adhesive tapes and foils.

Important!

Do not permit small children to play with plastic packaging. There is a risk of suffocation!

Check the items supplied

Before taking the appliance into use check to ensure that all of the items listed have been supplied and that there are no visible signs of damage.

Radio
- This operating manual

Providing mains power

You can provide the radio with power either via batteries or from a power adapter. Should a power adapter be connected, power provision from the batteries is switched off.

Operation with batteries

For battery operation, you must first insert four 1.5 V, Type AA/LR6/Mignon batteries (not supplied) into the battery compartment 9.

1. Open the battery compartment on the bottom of the radio in that you remove the cover in the direction of the arrow.
2. Insert the four batteries into the battery compartment ⑨, ensuring their positionings comply with the polarity markings given in the battery compartment ⑨.
3. Replace the battery compartment cover.

Interaction with batteries

Leaking batteries can cause damage to the appliance.

• If you do not intend to use the appliance for an extended period, remove the batteries.

• Always change all batteries at the same time and always use batteries of the same type.

• Should the batteries leak, wear protective gloves and clean the battery compartment with a dry cloth.

Operation over a power adapter

You can connect a power adapter to the radio via a 5mm barrel connector. The secondary voltage must be 6V and the barrel connector must be poled positive on the inside.

• Connect the barrel connector of the power adapter to the jack socket DC 6 V ⑦ on the radio.
• Then insert the power adapter into a mains power socket whose voltage matches the information given on the power adapter type plate.

The radio now operates with electricity from the power adapter and the supply from the batteries is switched off.

Operation

Switching On and Off

To switch the radio on, turn the On/Off switch with volume controller 1 to the right, until you feel that a slight resistance has been overcome.
- To switch the radio off, turn the On/Off switch with volume controller 1 to the left, until you feel that a slight resistance has been overcome.

To control the Volume

• Turn the On/Off switch with volume controller ① to the right to increase the sound volume.
• Turn the On/Off switch with volume controller 1 to the left to reduce the sound volume.

Radio functions

Switch the radio on.

Selecting a waveband

• Slide the switch AM/FM 4 to the left for medium wave reception (MW) resp. to the right for short wave reception (VHF).
  Pull out the telescopic antenna 5.

Adjusting the frequency

Using the frequency regulator 6 you can adjust the radio to receive your desired radio station 2.
- Adjust the antenna 5 positioning so that radio reception is optimal.

Using headphones

You can connect headphones to the radio with a 3.5mm jack plug. The headphone socket 10 is located on the left side of the radio. When you have connected headphones, the loudspeakers are disconnected and you will only hear sound via the headphones.
- Insert the headphone jackplug into the headphones connection 10.

Important!

Listening to music with headphones for long periods and at high volume levels can lead to hearing damage!

Cleaning

Risk of potentially fatal electrical shock:

• Never submerge the appliance into water or other liquids!
• Do not allow any liquids to penetrate the housing.

Cleaning the housing:

Clean the housing surface with a slightly damp cloth Never use benzene, solvents or detergents that can damage plastics!

Disposal

Disposing of the appliance

Do not, under any circumstances, discard the appliance in the household refuse. Dispose of

the appliance through an approved disposal centre or at your community waste facility. This product is subject to the provisions of European Guideline 2002/96/EC.

Take note of the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Disposing of batteries

Do not dispose of the batteries with household waste. Every consumer is legally obliged to dispose of batteries at a collection site of his community/city district or at a retail store.

This obligation is intended to ensure that batteries are disposed of in an environmentally safe fashion. Only dispose of batteries when they are fully discharged.

Disposal of packaging

Dispose of all packaging materials in an environmentally friendly manner.

Importer

KOMPERNASS GMBH

Burgstrasse 21

D-44867 Bochum

www.kompernass.com

Warranty & Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, not for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.

Your statutory rights are not restricted in any way by this warranty. This warranty is valid for the original purchaser only, it is not transferable.

GB DES Ltd

Units 14-15

Bilston Industrial Estate

Oxford Street

Bilston

WV14 7EG

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]
