USER MANUAL KH 2201 PROJECTION CLOCK EBENCH

Safety instructions 4 Intended Use

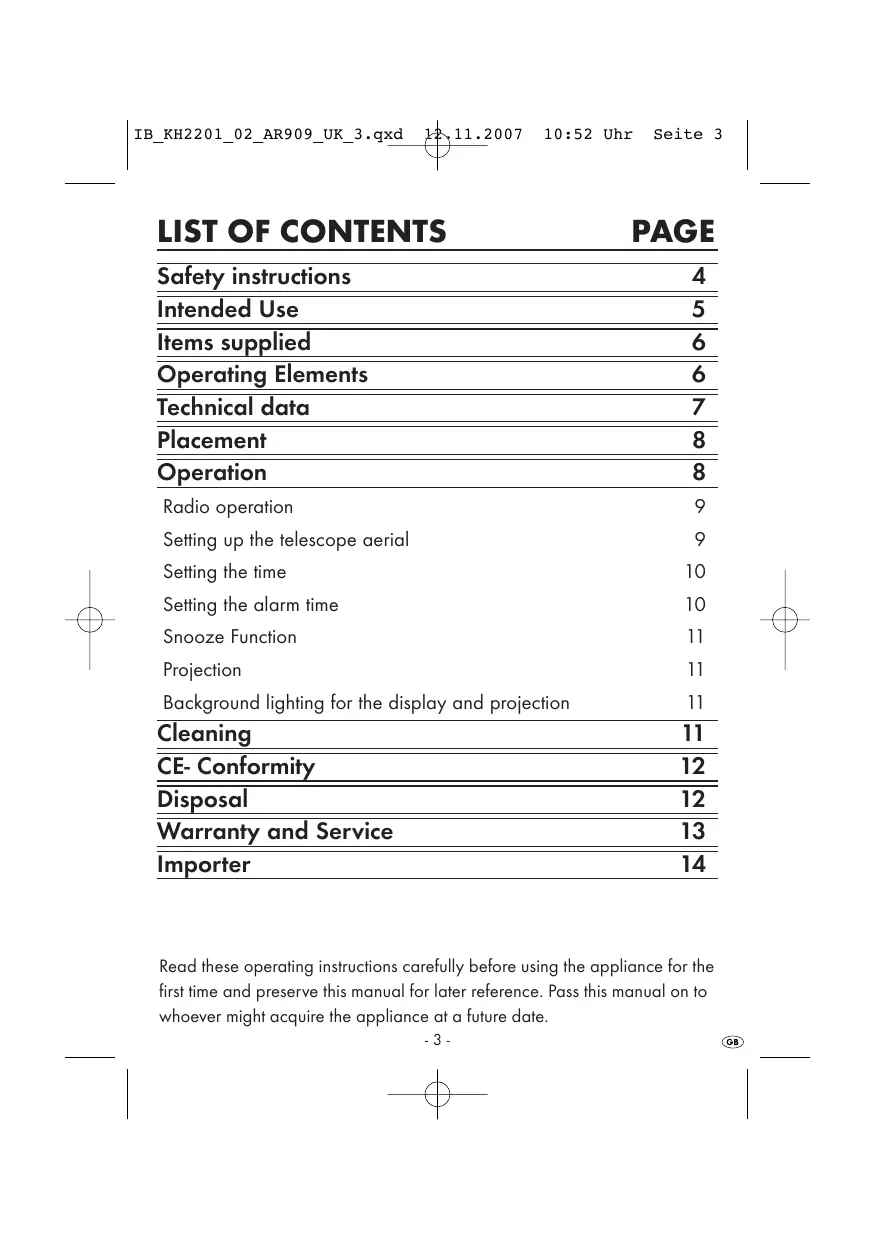

Placement Operation Radio operation Setting up the telescope aerial 9 Setting the time 10 Setting the alarm time 10 Snooze Function 1 Projection n Background lighting for the display and projection n Cleaning 1 CE- Conformity 12 Disposal 12 Warranty and Service 13 Importer 14 Read these operating instructions carefully before using the appliance for the first time and preserve this manual for later reference. Pass this manual on to whoever might acquire the appliance at a future date. -3- @æ

IB_KH2201 02 AR909 UK 3.qxd D 2007 10:52 Uhr Seite 4 PROJECTION CLOCK Safety instructions À To avoid fatal injury through electric shock: + Use the clock in dry environments only. + Make sure that fluids or any other objects do not get inside the device. + Do not place objects containing fluids, e.g. flower vases, on the appliance. À To avoid burn and other i +_ Place the appliance in an open and well-ventilated area so that heat juries: pockets cannot be created within it. Never cover the ventilation slits! +_ Do not place open fire sources, e.g. candles, on the appliance. + Avoid close proximity to heat sources, e.g. direct solar radiation, heaters and other appliances etc.! +_ This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiences in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. + Children should be supervised to ensure that they do not play with the appliance.. À Electro-magnetic fields This appliance complies with the statutory limits for electro-magnetic compatibilityl If you still have any doubis regarding its use in bedrooms: +_ Place the appliance about half a meter from the bed. From this distance the electro magnetic fields are no longer effective even for electro sensitive people itself.

IB_KH2201 02 AR909 UK 3.qxd D 2007 10:52 Uhr Seite 5 @© Note: This appliance is equipped with nonsslip rubber feet. As floor and furniture upper surfaces comprise of various materials and are cleaned with various types of polishes and/or cleaning agents, it cannot be completely excluded that some of these substances contain components that could attack the rubber pads and soften them. If possible place an antislip material under the feet of the appliance. @© Note: In certain countries there could be special regulations in force regarding the allocated radio frequency ranges. Take note that you may not exploit these radio services, pass details heard from them on to third parties or otherwise improperly misuse them. Intended Use The equipment is intended for employment as an alarm clock, using a tone signal, and for receiving radio transmissions. Any other usage of, or modification to, the appliance is deemed to be improper usage and carries the risk of serious personal injury. The manufacturer accepis no liability for damages that result from improper use of the appliance or are caused by the incorrect operation of it. Not intended for commercial use.

007 10:52 Uhr Seite 6 IB_KH2201 02 AR909 UK 3.qxd : 1 Items supplied After unpacking the appliance, immediately check to determine that all listed items are present and that the appliance is in a faultless condition. 1 Projection clock with radio, 1 Operating manual The batteries and a 3V-mains adaptor (accessories), required for operation, are not included in the supply. Operating Elements © Projection lens @ Telescopic antenna © Button Snooze © Projection, Display illumination | © Display o © Frequency scale © Button Alarm © Button Hour © Button Time © Button Min (Minute) © Loudspeakers @ Projection focus © Tuning wheel © Volume controller VOLUME / BUZZ ® External 3V Direct current connection for 4.0 mm x 1.7 mm barrel connector © Battery Compartment ©® Switch-Projection ON/OFF ® Switch - Alarm ON/OFF © Waveband selector FM/AM @ Stand-up support (only Model KH 2202) er -6-

007 10:52 Uhr Seite 7 IB_KH2201 02 AR909 UK 3.qxd À 1 Technical data Power rating: 3 V= Rated current: 300 mA Frequency range : FM (VHF) 87.5 - 108 MHz AM [MW] 530 - 1600 kHz Dimensions: KH 2201 14.2 cm x 13.1 cm x 3.8 cm KH 2202 17 em x 8.8 cm x 4.2 cm Weight : KH 2201 and KH 2202: ca. 245 gr. Operating temperature : 5°C - 40°C at <85% rel. humidity Batteries: (Batteries not supplied) + Model KH 2201: 1.5 V Type Mignon/AA + Model KH 2202: 1.5 V Type Micro/AAA +2 x 1.5 V for radio operation, display illumination and projection +_1x1.5 V forthe LCD clock [the compariment is described in “CLOCK USE") Mains adapter: {tem not supplied) Rated voltage: DC 3V (+/- 5%] Rated current: min. 300 mA Barrel connector: 4.0 mm x 1.7 mm When using a 3 V mains adaptor, a battery must be inserted into the compartment “CLOCK USE”. Otherwise, the clock will not function. -7- æ

IB_KH2201 02 AR909 UK 3.qxd : 1 Placement 007 10:52 Uhr Seite 8 +_ Place the projection clock onto a level surface. +_ Position the projection clock such that the projection lens @ is directed onto an empty surface. Only Model KH 2202: +. Fold out the stand-up support @. Operation Connect the external mains adaptor This appliance can be operated with an external mains adaptor. Please use only mains adaptors that meet these specifications: Rated voltage: DC 3V (+/-5%] Rated current: min. 300 mA Barrel connector: 4.0 mm x 1.7 mm À Attention: Make certain that the polarity is correct - both for the batteries as well as for the mains adaptor. Take note of the markings on the 3V direct current connection ©® «2€. False polarity will damage the appliance.

007 10:52 Uhr Seite 9 IB_KH2201 02 AR909 UK 3.qxd À 1 Radio operation

1. To switch on, turn the volume controller VOLUME / BUZZ ©, until an audible

3. Set the waveband selector switch ® to the desired wavelengih range

4. Adjust the tuning wheel ® to select the desired radio station. The frequencies

can be read off from the frequency scale @.

5. To switch off, turn the volume controller VOLUME / BUZZ @ until an

audible »Click« is heard (KH 2201.Turn the volume controller upwards, KH 2202: Turn the volume controller to the rear). Setting up the telescope aerial On Model KH 2201: +_ Extend the telescope aerial @ completely. The telescope aerial @ on Model KH 2201 is not rotatable. If you try to turn the telescope aerial @, the aerial mounting will be damaged. On Model KH 2202: + Remove the telescope aerial @ from its retainer and set it up. +_ Extend the telescope aerial @ completely. To improve reception in the FM frequency range, slowly turn the end of the telescope aerial @ in various directions. As soon as you have found a position with good reception from your desired radio station, leave the telescope aerial @ in this position. For the reception of AM transmitters, an aerial is built into the appliance. For improved reception, alter the position of the appliance in radio mode. -9- æ

007 10:52 Uhr Seite 10 IB_KH2201 02 AR909 UK 3.qxd À 1 Setting the time Whilst holding the button TIME @ pressed down:

1. Press several times consecutively, or press and hold, the button HOUR @,

2. Release the button HOUR @, as soon as the desired hours setting is shown

3. Press several times consecutively, or press and hold, the button MIN ®,

4. Release the button MIN ©®, as soon as the desired minutes setting is shown

in the Display @. The set fime is automatically accepted as soon as the TIME button @ is released. Setting the alarm time IFhe clock is set correcily, as described above:

1. Switch the radio off. Place the volume controller VOLUME / BUZZ @ to

BUZZ (a »Click« is audible]. Whilst holding the button ALARM @ pressed down:

2. Press several times consecutively, or press and hold, the button HOUR @,

3. Release the button HOUR @, as soon as the desired hours setting is shown

4. Press several times consecutively, or press and hold, the button MIN ®,

5. Release the button MIN @, as soon as the desired minutes setting is shown

in the Display @. The adjusted alarm time will be automatically accepted as soon as the button ALARM @ is released.

6. To activate the alarm time function, place the switch @ ALARM On/Off to

IB_KH2201 02 AR909 UK 3.qxd À 1 Snooze Function Pressing the SNOOZE @ button interrupts the alarm tone for 8 minutes. After these 8 minutes, the alarm tone is repeated. Place the switch @ ALARM On/Off to “OFF" to completely switch off the alarm function. Projection Attention! When used properly, the radiation from the projection of the display is not at all dangerous! However, avoid looking directly into the light beam and do not aim the beam at other persons or at animals. To display the correct time on the wall or the ceiling, the hinged projection element must be swung forwards and the room must be appropriately darkened.

1. Place the switch Projection On/Off @ to position ON.

2. Setthe projection element as desired. The time is projected onto the required

position. Projection distance approx. 40cm - 3m.

3. Adjust the clarity of the projection with the projection focus ®.

Background lighting for the display and projection Pressing the button Projection/Display Illumination @ activates the display illumination and the time projection for approx. 10 seconds. Cleaning + Keep the appliance and the ventilation openings clean at all times. + Fluids may not, under any circumstances, penetrate into the interior of the appliance. + Use a soft cloth to clean the appliance housing. + Never use detergenis or solvents that could damage plastics.

007 10:52 Uhr Seite 12 IB_KH2201 02 AR909 UK 3.qxd À 1 CE- Conformity This consumer electronics appliance, being in conformity with their fundamental requirements and directions, complies with the relevant regulations of both the EMC Guidelines 2004/108/EG and the Guidelines for Low Voltage Appliances 2006/95/EG. Disposal mms Do not dispose of the appliance in your normal domestic waste. This appliance is subject to the European Guidelines 2002/96/EG. Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. Disposing of batteries! Do not dispose of the batteries with household waste. Every consumer is obliged by law to deposit all batteries at a collecting point of his community/his precinct or to return them to a shop. This obligation is intended to ensure that batteries are disposed of in an environmentally safe fashion. Only dispose of batteries when they are fully discharged. ES Dispose of all packaging materials in an environmental} friendly manner.

007 10:52 Uhr Seite 13 IB_KH2201 02 AR909 UK 3.qxd À 1 Warranty and Service The warranty given for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a postfree despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, not for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. DES Ltd Units 14-15 Bilston Industrial Estate Oxford Street Bilston WY14 7EG Tel.: [phone] Fax: [phone] e-mail: support. [e-mail] -13- C2
