PANINI PRESS BSG520XL - Kitchen appliance BREVILLE - Free user manual and instructions

USER MANUAL PANINI PRESS BSG520XL BREVILLE

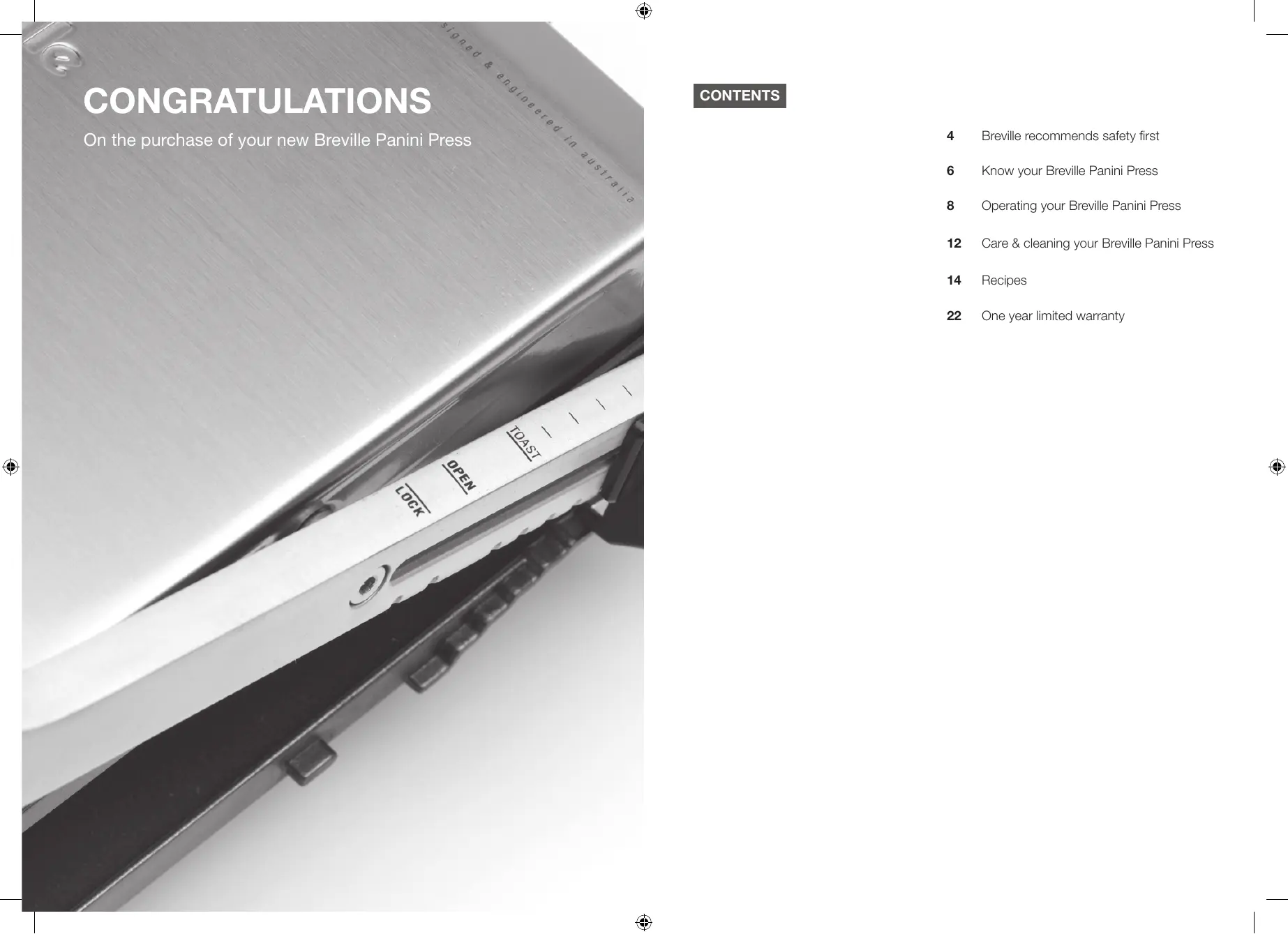

CONGRATULATIONS On the purchase of your new Breville Panini Press 4 Brevile recommendk safety first 6 Know your Breville Panini Press 8 Operating your Breville Panini Press 12 Care & cleaning your Breville Panini Press 14 Recipes 22 One year limited warranty

We at Brevill are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise à degree of care when using any electrical appliance and adhere to the following precautions: IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

+ Carefully read all instructions before operation and save for future reference. Remove any packaging material and promotional stickers before using the panini press for the first time. To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance. Do not place the panini press near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water. Keep the panini press clear of walls, curtains and other heat or steam sensitive materials. Do not place the Breville Panini Press on or near a hot gas or electric burner, or where it could touch a heated oven. Use the panini press well away from walls. Provide adequate space above and on all sides for air circulation around the panini press. Do not place the panini press on any surface that may be affected by heat. The use of a heat resistant matt is recommended on these surfaces. + Do not use on a sink drain board. + Always use the panini press on a dry, level surface. + Do not touch hot surfaces. Use the handle to lift and open the top plate. Take care when using the Adjustable Height Control. Do not leave the panini press unattended when in use. Do not place anything on top of the panini press when the lid is closed, when in use and when stored. Always remove the plug from the wall outlet and allow to cool if the appliance is not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance. Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning the panini press. Keep the exterior housing and the non-stick cooking plates clean. Follow the cleaning instructions provided in this book. Refer to care and cleaning (Page 12) If the appliance is of the grounded type, the extension cord should be a grounding 8-wire cord. The use of accessory attachments not recommended by Breville may cause injuries. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

APPLIANCES + Fully unwind the cord before use. + To protect against electric shock, do not immerse the cord, plug or appliance in water or any other liquid. Do not allow the cord to hang over the edge of a table or bench, touch hot surfaces or become knotted. + This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. It is recommended to regularly inspect the appliance. Do not use the appliance if the power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorized Breville Service Center for examination and/or repair. + Any maintenance other than cleaning should be performed at an authorized Breville Service Center. + This appliance is for household use only. Do not use in moving vehicles or boats. Do not use outdoors. Do not use this appliance for anything other than its intended use. Misuse may cause injury. NOTE: Your Breville appliance comes with the unique Assist Plug'", conveniently designed with a finger hole in the power plug, for easy and safe removal from the outlet. For safety reasons it is recommended you plug your Breville appliance directly into the power outlet. DO NOT use in conjunction with a power strip or extension cord. ELECTRIC CORD STATEMENT Your panini press has a short cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with the cord. Do not allow children to be near or use this appliance without close adult supervision. If you must use a longer power cord or an extension cord when using the appliance, the cord must be arranged so it will not drape or hang over the edge of a countertop, tabletop or surface area where it can be pulled on by children or tripped over. To prevent electric shock, personal injury or fire, the electrical rating of the extension cord you use must be the same or more than the wattage of the appliance (wattage is marked on the underside of the appliance).

SAVE THESE INSTRUCTIONS

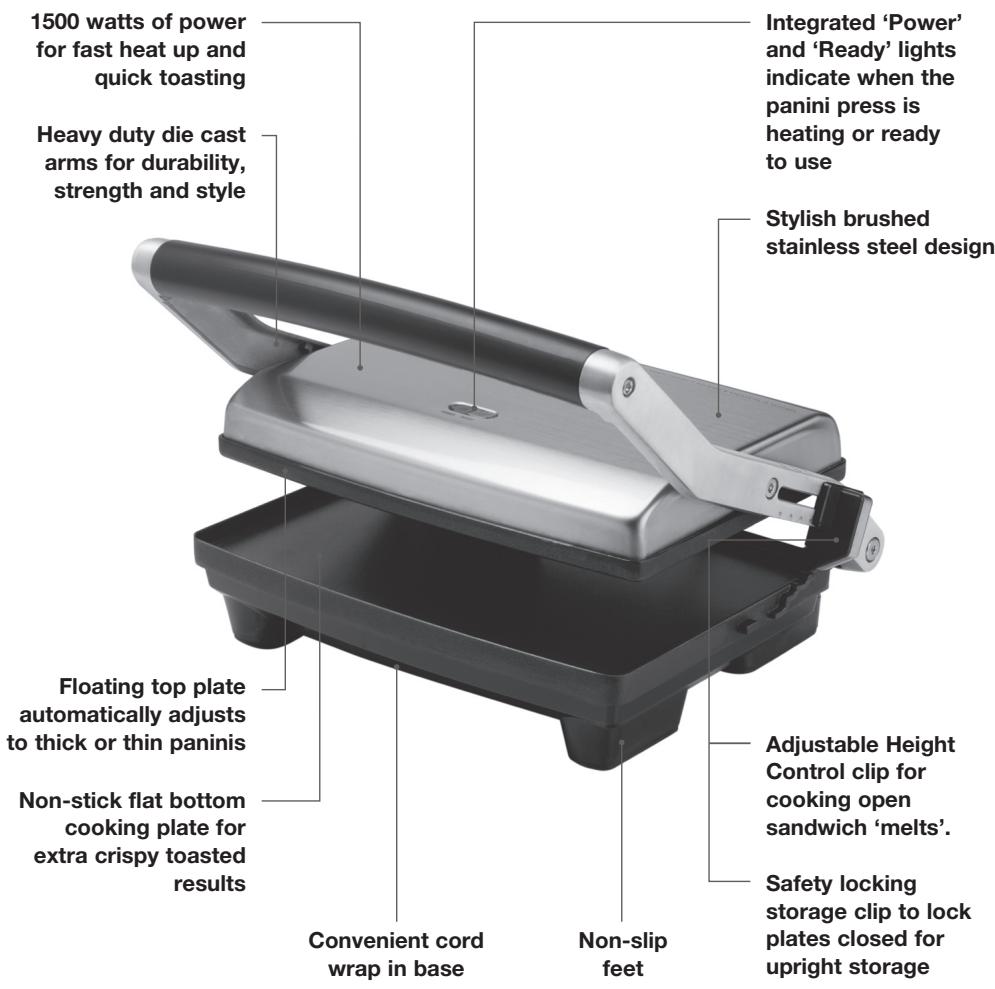

1500 watts of power for fast heat up and quick toasting Integrated ‘Power’ and ‘Ready lights indicate when the panini press is heating or ready to use Heavy duty die cast arms for durability, strength and style Stylish brushed stainless steel design Floating top plate automatically adjusts to thick or thin paninis Adjustable Height Control clip for cooking open sandwich ‘melts’. Non-stick flat bottom cooking plate for extra crispy toasted results Safety locking storage clip to lock Convenient cord Non-slip plates closed for wrap in base feet upright storage

Before first use Remove any promotional materials and packaging materials before use. Check that the cooking plates are clean and free of dust. If necessary, wipe with a soft, damp cloth. When using the panini press for the first time you may notice a fine smoke haze. This is caused by the heating of some of the components. There is no need for concern. To use as a panini press

1. Insert the power plug into a 110/120 volt

power outlet. The Red power ‘On' light Will illuminate. 2.Allow the panini press to pre-heat with the top cooking plate in the closed position until the green ‘READY light illuminates.

3. During this time, prepare the panini. When

the green ‘Ready! light illuminates, place the panini onto the bottom cooking plate. Always place panini towards the rear of the bottom cooking plate.

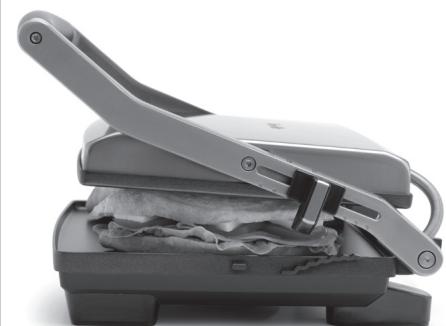

4. Close the top cooking plate. The top

cooking plate has a floating hinge that is designed to evenly press down on the panini (see Fig. 1). Fig. 1

5. Toasting should take approximately 5-8

minutes. Exact toasting time will be a matter of taste. It will also depend on the type of bread and type of filling used. 6.When the panini is cooked, use the handle to open the panini press and raise the top cooking plate. Remove the panini with the help of a plastic or wooden spatula. Never use metal tongs or a knife as these can cause damage to the non- stick coating. NOTE: Always allow the panini press to pre-heat until the green ‘READY’ light illuminates. NOTE: The locking storage clip should not be used to clamp down the top cooking plate when the paninis are in the panini press. The weight of the top cooking plate will gradually press down the sandwich during the cooking process. NOTE: When using the panini press for the first time you may notice a fine smoke haze. This is caused by the heating of some of the components. There is no need for concern.

ACCESSIBLE SURFACES MAY

BE HIGH WHEN THE APPLIANCE

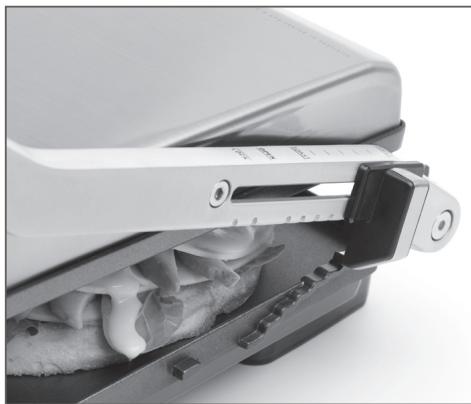

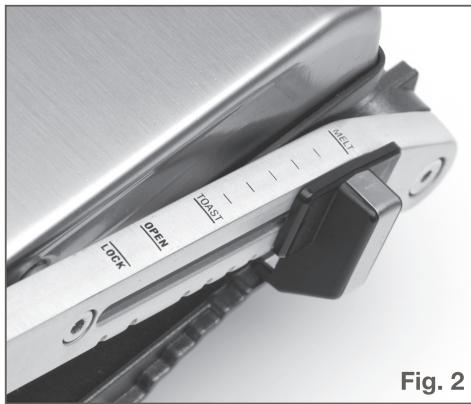

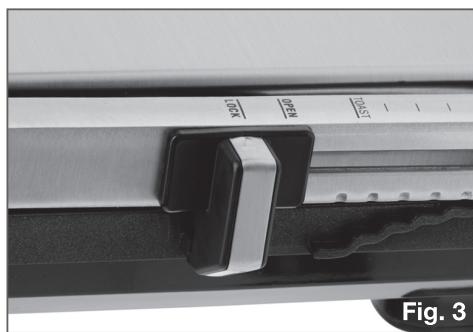

"MELTS" Your panini press has an Adjustable Height Control feature which allows you to fix the top plate to a range of positions above the bottom plate. This allows your panini press to be used as an open toaster ideal for toasting open sandwich style ‘melts'. It can also be used for toasting sandwiches and snacks where you don't need to apply the weight of the top plate. Open sandwich melts 1.Allow the panini press to pre-heat until the green ‘READY light illuminates. 2.Place sandwich to be melted on bottom plate. 3.Move the Adjustable Height Control clip on the right hand side of the panini press to the desired height (see Fig. 2). 4.Slowly lower the top plate until it rests on the Adjustable Height Control clip. 5.The top plate will radiate the desired heat to melt ingredients such as cheese. 6.Toasting ‘melts’ should take approximately 3-4 minutes. However exact toasting time will be a matter of taste. It will also depend on the height of the top plate. NOTE: The panini press should be used to heat sandwich fillings and deli meats or reheat pre-cooked fillings. Always ensure uncooked meats are cooked before using them as sandwich fillings in toasted sandwiches. Adjustable Height Control Toasts or melts any bread thickness in minutes. NOTE: The Adjustable Height Control can be moved to accommodate thick or thin melts by sliding the clip forwards or backwards along the arm.

Bread Most types of bread can be used; white, wholemeal, kibbled wheat, wholegrain, raisin loaf and so on. The panini press is ideal for toasting focaccia, Turkish bread, baguette as well as bread rolls. Raisin bread, brioche or other sweet breads which contain a high sugar content will tend to brown quicker. Filings Try to use canned or pre-cooked fruit as fresh fruit may give off excessive juices when heated. Be careful when biting into paninis containing filings such as cheese and tomato or jam as they retain heat and can burn if eaten too quickly. Versatility The flat bottom plate design makes the panini press ideal for toasting plain bread and Turkish bread without any fillings or spreads. The flat bottom plate is also perfect for cooking breakfast items such as eggs and pancakes. Fat free snacks Due to the non-stick flat plate design, it is not necessary to use any butter or margarine on the outside of your toasted snacks. NOTE: When using the flat bottom plate to cook breakfast items, move the Adjustable Height Control clip so that the top plate floats above the food. The top plate will radiate heat onto the food, shortening the cooking time.

Before cleaning, remove the plug from the power outlet. Allow your panini press to cool before cleaning. The appliance is easier to clean when slightly warm. Always clean your panini press after each use to prevent a build up of baked-on foods. Wipe cooking plates with a soft cloth. If cooked on food is not removed by this method, reheat the unit for 1-2 minutes, then brush with a little oil or melted butter. Allow to stand for five minutes then wipe with a damp cloth. NOTE: The cooking plates are coated with a non-stick surface, do not use abrasives. Storage To store your panini press: 1.Unplug from the power outlet. 2.Allow the panini press to fully cool. 3.Slide the Adjustable Height Control clip towards the front handle to the LOCK position so that the top and bottom cooking plates are locked together (See Fig 3). 4.Wrap the cord in the cord storage area below the appliance (See Fig 4). 5.The panini press can be stored upright or flat on a dry, level surface. d Fig. 4 NOTE: The storage clip should not be used to clamp down the top plate when paninis are in the panini press.

DO NOT IMMERSE ANY PART

PRESS IN WATER OR ANY

Serves 2 3 bacon rashers, thinly sliced 1 tablespoon extra virgin olive oil 3.50z (100g) button mushrooms, sliced % cup shallots, thinly sliced Freshly ground black pepper 3 x 20z (60g) eggs, lightly beaten 1 tablespoon freshly chopped herbs % cup thinly sliced roasted bell peppers 1 large focaccia, halved 4oz (125) sliced Swiss cheese .Pre-heat the panini press until the green “READY” light illuminates. .Meanwhile, fry bacon in a non-stick frypan until crisp. Remove from pan and set aside. Sauté mushrooms and shallots in frypan until any liquid has evaporated. Remove from heat.

3.Beat eggs lightly adding pepper and herbs. Pour mixture over mushrooms in pan. Return to medium heat and cook until eggs are set but soft in the center, approximately 3-5 minutes. 4.Remove omelette from frypan and roughly chop.

5. Cut focaccia in half to form a sandwich.

Fill focaccias with omelette, bell pepper, cheese and bacon. 6.Cook focaccia until golden, crisp and heated through, approximately 8 minutes. Serve with salad greens.

CHAR GRILLED CHICKEN LAVOSH

WITH MANGO & PINENUT

MAYONNAISE Serves 2-3 Y cup mayonnaise %2 tablespoon chili salsa 1 teaspoons grated lime rind %2 tablespoon lime juice 4oz (125) canned mango pieces, drained 1% tablespoon toasted pinenuts 1 char-grilled chicken breast, sliced thinly 2 sheets lavash bread 1 avocado, sliced 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Combine mayonnaise, salsa, rind, juice, mango, pinenuts and chicken. 3.Spread chicken mixture over each lavash. Top with avocado and roll tightly. 4.Cook lavash rolls until golden, crisp and heated through, approximately 8 minutes. Serve sliced on an angle with salad greens.

Serves 2 2 large crusty round rolls 8.50z (100g) black olive paste 70z (200g) can tuna, drained 6 marinated baby artichokes 4oz (125g) Brie cheese, thinly sliced Pre-heat the panini press until the green “READY” light illuminates. 2.Cut rolls in half and spread with olive paste. Fill with tuna, artichokes and cheese. 3.Cook until golden, crisp and heated through, approximately 8 minutes.

Serves 2-3 2 round Pita bread 2.50z (70g) cream cheese 3 teaspoons seeded mustard % tablespoon lemon juice Y% cup grated canned beets, drained 3.50z (100g) shaved rare roast beef 2.50z (70g) marinated roasted eggplant .Pre-heat the panini press until the green “READY” light illuminates.

Combine cream cheese, mustard and lemon juice. Spread each Pita bread with cream cheese mixture. Top with beets, roast beef and eggplant. Roll tightly.

. Cook Pita bread until golden, crisp and heated through, approximately 10 minutes. Serve Sliced.

Serves 2-3 1 tablespoons oil 4oz (125g) ground lamb mince 2 tablespoons finely chopped onion Y cup diced tomato 1 tablespoons freshly chopped mint Y teaspoon ground cilantro Pinch ground ginger 4 teaspoon ground cumin Y teaspoon turmeric Salt and freshly ground black pepper, to taste 3 pita breads 3 slices Swiss cheese Tatziki dip, for serving 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Heat oil in a non-stick frypan, sauté lamb mince, onions, tomato, mint, spices and seasonings until browned and cookedl. Drain.

3. Split pitas open to form pockets. Fill with

lamb mixture and insert a cheese slice into each pocket. 4.Cook pitas until golden, crisp and heated through, approximately 10 minutes. Serve with tatziki dip.

WARM CAESAR SANDWICH

Serves 2 3 bacon rashers, thinly sliced 2 round Turkish breads 1 char-grilled chicken breast fille, thinly sliced 1 hard boiled egg, peeled and sliced Y cup prepared garlic croutons 10 (30g) baby spinach leaves 20z (609) freshly grated Parmesan cheese Caesar salad dressing, for serving Pre-heat the the panini press until the green “READY” light illuminates. 2.Meanwhile heat a non-stick frypan and fry bacon until crispy. Cut Turkish bread in half to form a sandwich. Fill with bacon, chicken, eggs, croutons, spinach and cheese. 3.Cook Turkish bread until golden, crisp and cooked through, approximately 6 minutes. Serve drizzled with Caesar salad dressing.

RECIPES - FLAVORFUL PANINIS & SANDWICHES

MEDITERRANEAN LAYERED TWISTS Serves 2-3 2 twist or cob bread rolls 2 tablespoons pesto 3.50z (100g) marinated roasted eggplant 40z (125g) marinated roasted red bell pepper 20z (60g) char-grilled sliced sweet potato 3.50z (100g) marinated semi-dried tomatoes, drained 20z (60g) mushrooms, sliced 3.50z (100g) sliced Swiss cheese .Pre-heat the panini press until the green “READY” light illuminates.

. Cut bread rolls in half and spread with pesto. Fill with eggplant, bell pepper, sweet potato, dried tomato, mushrooms and cheese. 3.Cook bread rolls until golden, crisp and heated through, approximately 8 minutes. GORGONZOLA PANINI Serves 2 10z (30g) herb and garlic butter 4 slices crusty country-style bread 1.50z (50g) English spinach leaves 20z (60g) Gorgonzola cheese, crumbled 20z (60g) marinated roasted bell pepper 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Spread herb and garlic butter over bread slices and fill with spinach, cheese and bell pepper. 3.Cook until golden, crisp and heated through approximately 6 minutes. Serve cut in half.

Serves 2-3 4 slices rye bread % tablespoon extra virgin olive oil 1 tablespoon sun-dried tomato paste 20z (60g) hummus 4 stuffed vine leaves 70z (200g) artichoke hearts, drained & sliced 4 slices Swiss cheese 1.Pre-heat the panini press until the green “READY” light illuminates: 2.Combine oil and tomato paste. Spread rye bread with tomato mixture then hummus. Fill with vine leaves, artichokes and cheese to make 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 8 minutes Serve cut in half. PROSCIUTTO BAGUETTE Serves 2 2 small-medium baguette rolls 2.75oz (809) Italian prosciutto, thinly sliced 2.50z (75g) bocconcini cheese, thinly sliced 4 basil leaves Freshly ground black pepper 1 tablespoons extra virgin olive oil 1.Pre-heat the panini press until the green “READY” light iluminates. 2.Cut baguette in half. Fill with layers of prosciutto, cheese and basil. Season to taste and drizzle with oil. 3.Cook baguettes until golden, crisp and heated through, approximately 6-8 minutes. Serve cut in half.

PEPPER Serves 2 1 large round foccacia 30z (90g) softened goat's cheese 4 tablespoon roughly chopped Italian parsley % tablespoon roughly chopped basil 1 clove garlic, thinly sliced 1 tablespoons drained capers 1 tablespoons lemon juice Yk tablespoon sweet Thai chilli sauce 20z (60g) marinated roasted zucchini 20z (60g) semi dried tomatoes .Pre-heat the panini press until the green “READY” light illuminates. Cut focaccia in half to form a sandwich. Combine goat's cheese, parsley, basil, garlic, capers, lemon juice and chilli sauce. Spread focaccia with goat's cheese mixture. Fill with zucchini and tomatoes.

3.Cook focaccias until golden, crisp and heated through, approximately 8 minutes.

PRAWN AND WATERCRESS

SANDWICHES Serves 2 4 slices wholegrain bread 2.50z (70g) cream cheese, softened 20z (60g) herb & garlic butter 2.50z (75g) watercress 13.50z (400g) medium cooked king prawns, peeled and de-veined Pre-heat the panini press until the green “READY” light illuminates.

Spread bread with combined cream cheese and garlic butter. Fill with watercress and prawns to make 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 8 minutes.

ITALIAN FONTINA TOAST

Serves 2 4 slices white bread 3.50z (100g) Italian fontina cheese, sliced 8.50z (100g) marinated roasted red bell pepper 8.50z (100g) sliced marinated mushrooms. Freshly ground black pepper, to taste 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Fill bread with layers of cheese, bell pepper and mushrooms. Season with pepper. Make into 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 6-8 minutes. NOTE: Fontina cheese may be substituted with Parmesan or Romano cheese.

SALSA VERDE Serves 2 1 char-grilled chicken breast fillet, sliced 1 clove garlic, thinly sliced 18 cup chopped parsley 1 tablespoon finely chopped sage % cup stuffed pimento green olives, chopped 1 tablespoons drained capers 1 tablespoon extra virgin olive oil %k teaspoon freshly grated lime rind %k tablespoon lemon juice 4 large slices Ciabatta bread 4 large slices Swiss cheese .Pre-heat the panini press until the green “READY” light illuminates.

.Combine chicken, garic, parsley, sage, olives, capers, oil, rind and juice. Fill bread with chicken mixture and sliced cheese to make 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 8-10 minutes. CRISPY SWORDFISH SANDWICHES Serves 2 80z (250g) fresh swordfish fillets thinly sliced 1% tablespoons extra virgin olive oil 2 tablespoons freshly chopped herbs (basil, garlic chives, thyme, dill) Y teaspoon paprika Salt and freshly ground black pepper, to taste 1 large focaccia 2 tablespoons mayonnaise 4 tomato slices Yk tablespoon drained capers 6 baby English spinach leaves 1.Pre-heat the panini press until the green “READY” light illuminates.

2. Brush fish filets with half the olive oil.

Coat filets with combined herbs, paprika and seasonings. 3.Heat remaining oil in a frypan. Fry fish until golden. Remove and drain. 4.Cut focaccia in half to form a sandwich and spread mayonnaise. Fill with fish, tomato, capers and spinach. 5.Cook focaccias until golden, crisp, and heated through, approximately 5 minutes. NOTE: Large focaccia may need to be cut in haff to fit into the panini press.

Serves 2 2.750z (80g) cream cheese, softened 4 slices textured Country style bread 8.50z (250g) bittersweet chocolate, coarsely grated Vanilla ice-cream, for serving .Pre-heat the panini press until the green “READY” light illuminates.

.Spread cream cheese over bread slices and sprinkle with grated chocolate. Sandwich together. 3.Cook until golden, crisp and heated through, approximately 6 minutes. Serve with vanilla ice-cream.

CRISP BERRY AND MASCARPONE

SANDWICHES Serves 2 3.50z (100g) Mascarpone cheese 4 slices Country styled bread Y2 punnet strawberries, hulled and sliced 2 punnet raspberries 1 tablespoons honey 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Spread cheese over bread slices. Fill with berries and drizzle with honey to make 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 8 minutes.

CRISPY BRIOCHE WITH BERRIES

AND ICE-CREAM Serves 2 Y2 punnet strawberries, hulled % punnet blueberries: 2 punnet raspberries Y% cup port 1 loaf brioche Vanilla ice-cream, for serving Icing sugar, for serving Pre-heat the panini press until the green “READY” light illuminates. 2.Puree berries and port until smooth. Set aside. Cut 4 slices from brioche and cook until toasted, approximately 5 minutes. 3.Arrange toasted brioche on 2 large, white plates. Top with ice-cream and drizzle with berry sauce. Dust with icing sugar and serve immediately.

SWEET NECTARINE SANDWICH

Serves 2 1.50z (4007) unsalted butter, softened 4 slices soy and linseed grain bread 2 nectarines, peeled and sliced 1 teaspoon ground cinnamon 2 tablespoons caster sugar 1.Pre-heat the panini press until the green “READY” light illuminates. 2.Spread butter over bread slices. Fill with sliced nectarine and sprinkle with combined cinnamon and sugar to make 2 sandwiches. 3.Cook until golden, crisp and heated through, approximately 8 minutes.

Serves 2 2 small plain rounds of focaccia 2.750z (80g) fresh ricotta cheese 3 fresh figs, thinly sliced 6 small fresh mint leaves 1 tablespoon caster sugar 1.Pre-heat the panini press until the green “READY” light illuminates.

2. Cut focaccias in half to form a sandwich.

Spread with ricotta cheese. Fill with figs, mint leaves and sprinkling of caster sugar. 3.Cook until golden, crisp and heated through, approximately 8 minutes.

Brevile®* warrants this Breville® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed “instructions for use" booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HW! Breville® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you.

ANY WARRANTY OF MERCHANTABILITY

OR FITNESS WITH RESPECT TO THIS

PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province. If the appliance should become defective Within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center. Toll free phone number: 1-866-BREVILLE (1-866-273-8455) Internet email: AskUs@BrevileUSA.com (in USA) AskUs@Breville.ca (in Canada) “HW Brevile® products are distributed in Canada by Anglo Canadian Housewares, L.P. and in USA by Metro/Thebe Inc.
