Product type	TV cabinet
Brand	VOGELS
Model	CFF 140
Dimensions (W x H x D)	140 x 45 x 40 cm (estimated)
Weight	25 kg (estimated)
Materials	Medium-density fibreboard (MDF) and solid wood (estimated)
Finish	Durable coating
Maximum load	50 kg (estimated)
TV compatibility	Up to 65 inches (estimated)
Main functions	Storage for audiovisual equipment, TV support
Wall mounting	No, floor-standing unit
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products or solvents.
Safety	Use the provided fixings for assembly. Do not overload the shelves.
Spare parts and repairability	Contact VOGELS customer service for spare parts.
Guarantee	5 years against defects in materials and workmanship
General information	Product designed from sustainable materials. Compliant with safety standards.

Frequently Asked Questions - CFF 140 VOGELS

How to assemble the VOGELS CFF 140 TV cabinet?

Carefully follow the provided instruction manual. Make sure to use the appropriate fixings for your wall type. Correct assembly is essential and Vogel's does not assume liability.

Can I attach the additional CFM 105 module to this cabinet?

No, the base module CFM 105 and the AV module CFM 060 can only be assembled together. They cannot be mounted on the CFF140 floor-standing cabinet. They can be wall-mounted next to the cabinet to create a visual set.

What materials are used for the CFF 140?

The cabinet is made from medium-density fibreboard (MDF) and solid wood, with a durable finish.

What is the load capacity of the cabinet?

The maximum load is estimated at 50 kg for the entire cabinet. Do not exceed this limit to avoid risk of damage.

How to maintain the VOGELS CFF 140 TV cabinet?

Clean with a soft, dry cloth. Avoid abrasive products, solvents, or acids that could damage the finish.

Is this cabinet compatible with a 65-inch television?

Yes, the CFF140 can accommodate a television up to 65 inches, provided the total weight does not exceed the load capacity.

What is the guarantee period?

Vogel's offers a 5-year guarantee against defects in materials and workmanship. Normal wear and tear is excluded.

Can I mount the cabinet on the wall?

No, the CFF140 is a floor-standing cabinet. It is not designed for wall mounting.

What to do if a part is missing or damaged?

Contact VOGELS customer service with your proof of purchase to obtain spare parts.

How to ask a question or get additional help?

You can ask your question on the notice-facile.com page or consult the complete user manual available for free download.

USER MANUAL CFF 140 VOGELS

Flatscreen furniture today & tomorrow

MOUNTING INSTRUCTIONS

3D rendered image of a simple desk with a bench and two legs (no text or symbols)

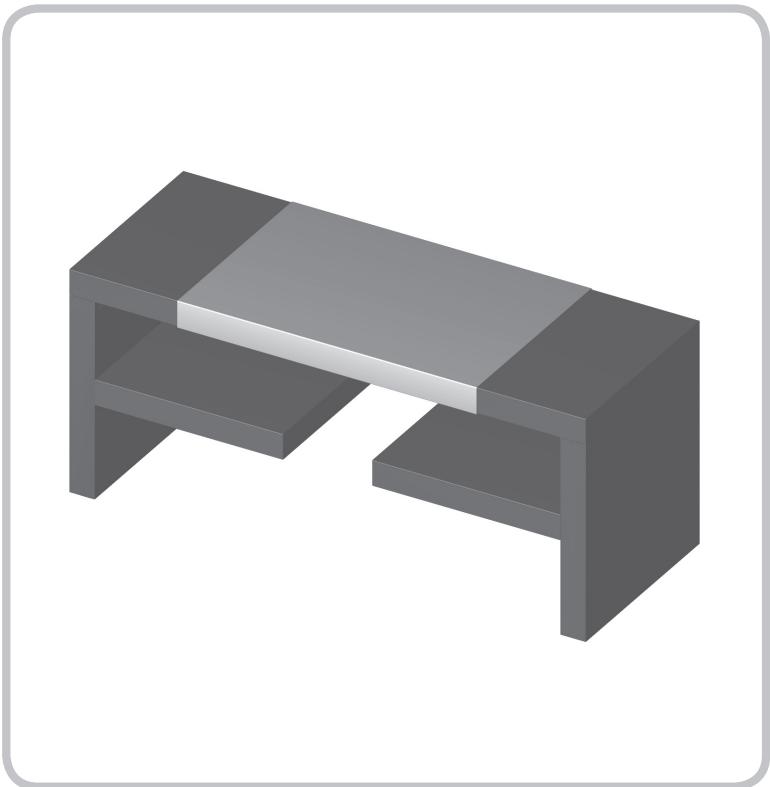

CFF 140 floor furniture

3D rendered image of a gray rectangular object with two side compartments, no text or symbols visible

CFW 140 wall furniture

Mounting instructions Consignes d'installation Montageanleitung Montagevoorschrift Instrucciones de montaje Istruzioni di montaggio

Instruções de montagem Összeállítási útmutató Instrukcja montażu Инструкция по сборке и установке

MADE IN THE NETHERLANDS VOGEL'S PRODUCTS B.V. EINDHOVEN THE NETHERLANDS WWW.VOGELS.COM

Innovating your Audio/Video Experience

WARNING

EN

Warning

Correct installation is extremely essential, and falls outside the scope of responsibility of Vogel's. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid wood columns with a maximum of 3 mm wall finishing. For walls made of other materials, for example hollow bricks, please consult your installer and/or specialist supplier.

Please note:

Only the Basic module (CFM 105) and the AV module (CFM 060) can be connected together. These modules can not be connected to the wall furniture (CFW140) or the floor furniture (CFF140).

With the help of a spirit level, the modules can however be fixed to the wall directly next to these pieces of furniture, so that it appears as a whole. (When the modules are fixed to the wall, they can still be adjusted horizontally, so that the module connects to the wall or floor furniture.)

FR

Avertissement

Congratulations on the purchase of this Vogel's product! The product you now have in your possession is made of durable materials and is based on a design, every detail of which has been meticulously thought-out. That is why Vogel's gives you a 5-year guarantee for defects in materials or manufacturing.

GUARANTEE TERMS AND CONDITIONS

1. Vogel's guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product, free of cost. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to Vogel's together with the original purchase document (invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date of purchase.
3. Vogel's guarantee shall lapse in the following cases:

- If the product has not been drilled, installed and used in accordance with the Instructions for Use;

- If the product has been altered or repaired by someone a party other than Vogel's;

- If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence;

- If the product is used for different equipment than is mentioned on or in the packing.

VOGEL'S PRODUCTS BV, HONDSRUGLAAN 93, 5628 DB EINDHOVEN, THE NETHERLANDS

NL

CONDITIONS DE LA GARANTIE

VOGEL'S PRODUCTS BV, HONDSRUGLAAN 93, 5628 DB EINDHOVEN, HOLLANDIA

IT

VOGEL'S PRODUCTS BV, HONDSRUGLAAN 93, 5628 DB EINDHOVEN, HOLANDIA

RU

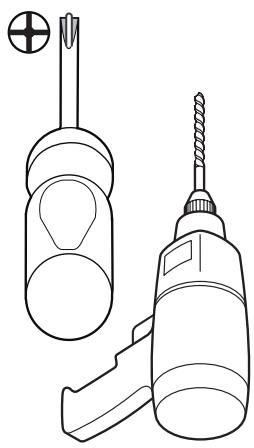

Line drawing of a screwdriver with a circular head and pointer (no text or symbols)

Line drawing of two electric drill bit designs with screwdriver and plunger (no text or symbols)

3D rendering of a simple gray office desk with a flat top and two side legs (no text or symbols)

CFF 140 floor

page 5

3D rendering of a rectangular electronic component with two recessed plates (no text or symbols)

CFF 140 wall

page 13

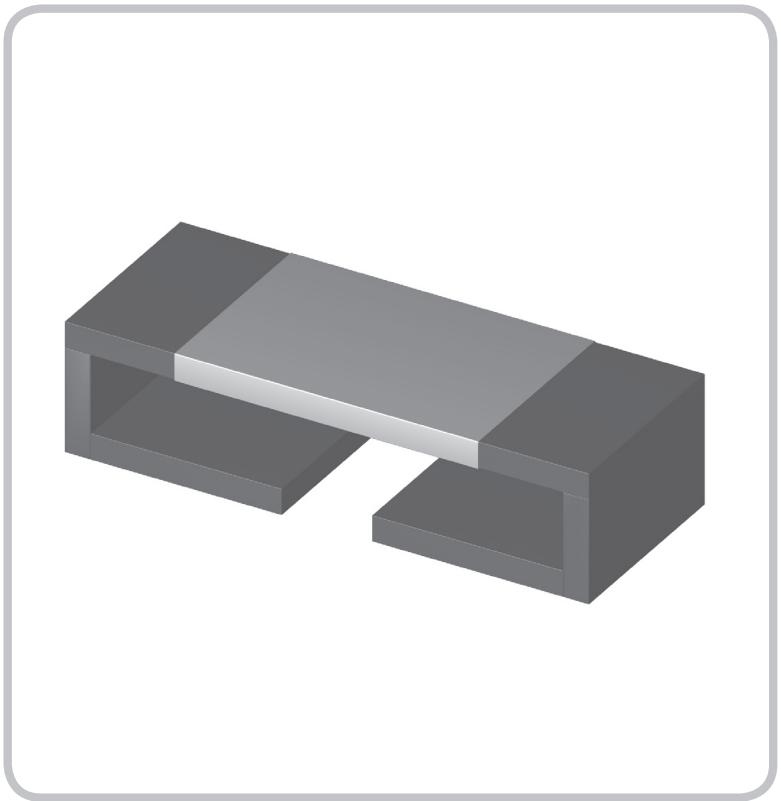

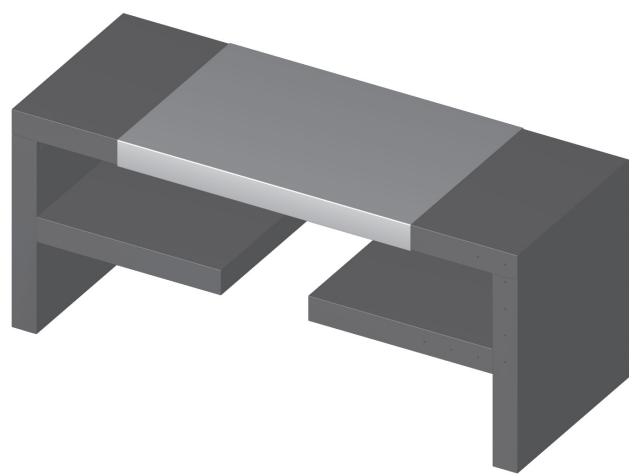

3D rendering of a simple desk with a curved table and two legs (no text or symbols)

CFF 140 floor furniture

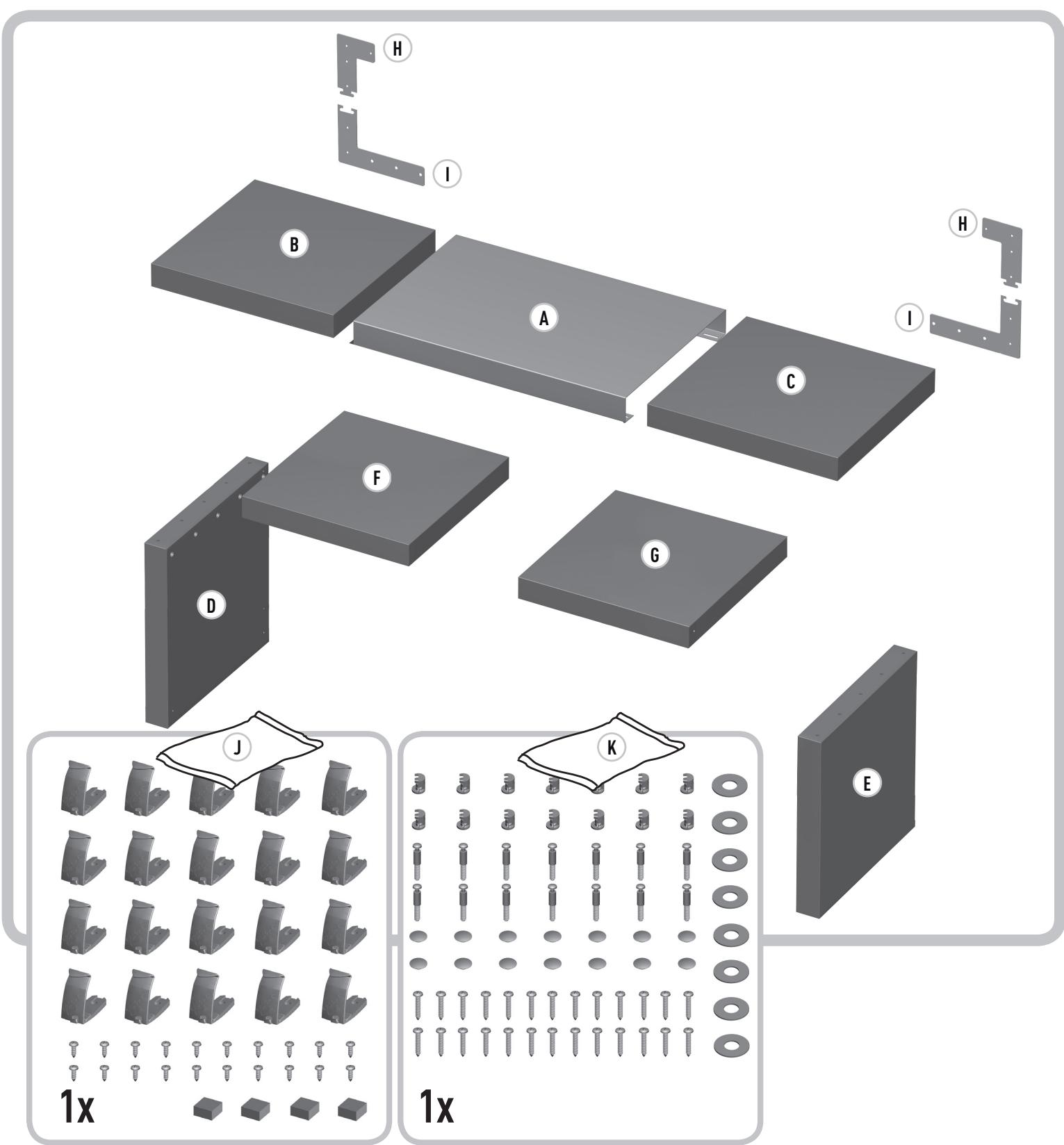

CONTENT OF THE BOX CFF 140

3D rendered image of a simple table with a flat top and two side legs (no text or symbols)

B A C H I H F G D J K E 1x 1x

CFF 140

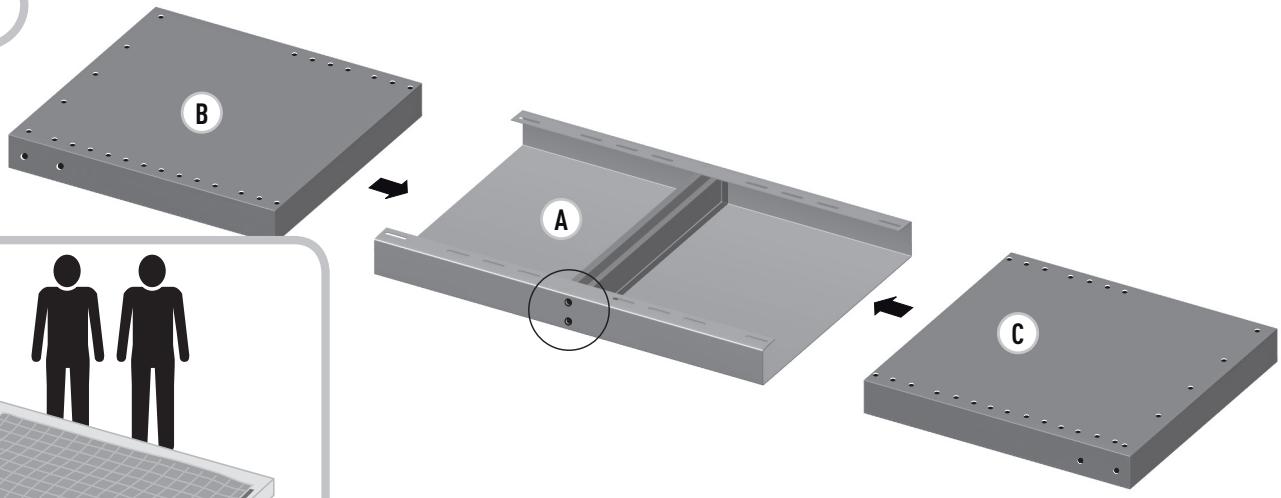

1


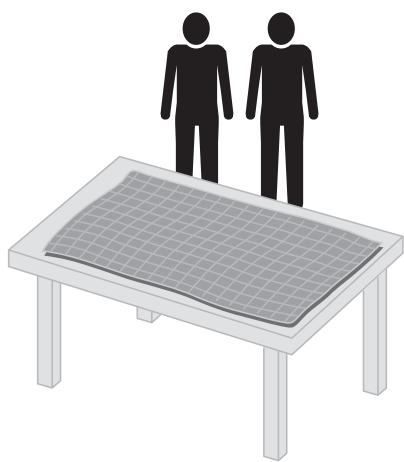

Illustration of two human figures standing on a table with a grid-patterned panel underneath (no text or symbols)

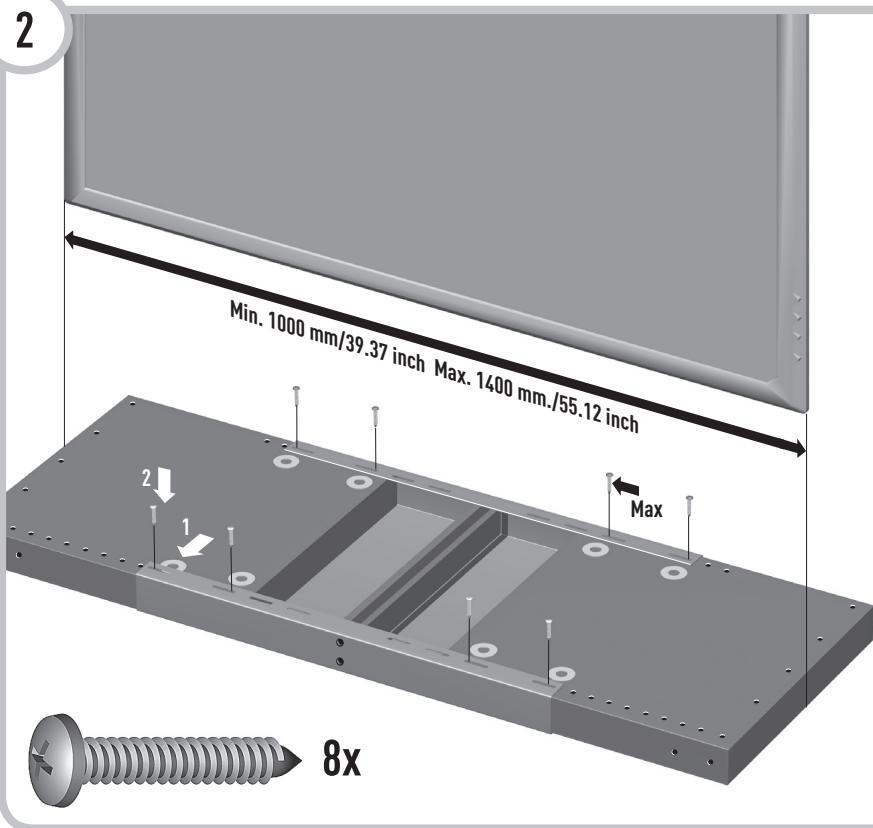

2 Min. 1000 mm/39.37 inch Max. 1400 mm./55.12 inch 2 1 Max 8x

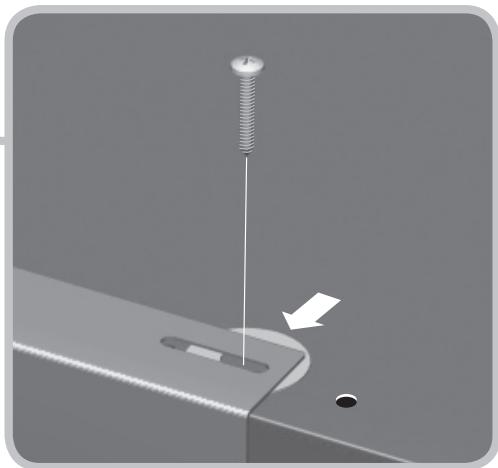

Close-up of a mechanical component with a screw and pin, showing a downward arrow indicating motion (no text or symbols)

Pure diagram of a rectangular panel with internal lines and control points, no text or symbols present

Pure diagram of a rectangular frame with corner markers and dots, no text or symbols present

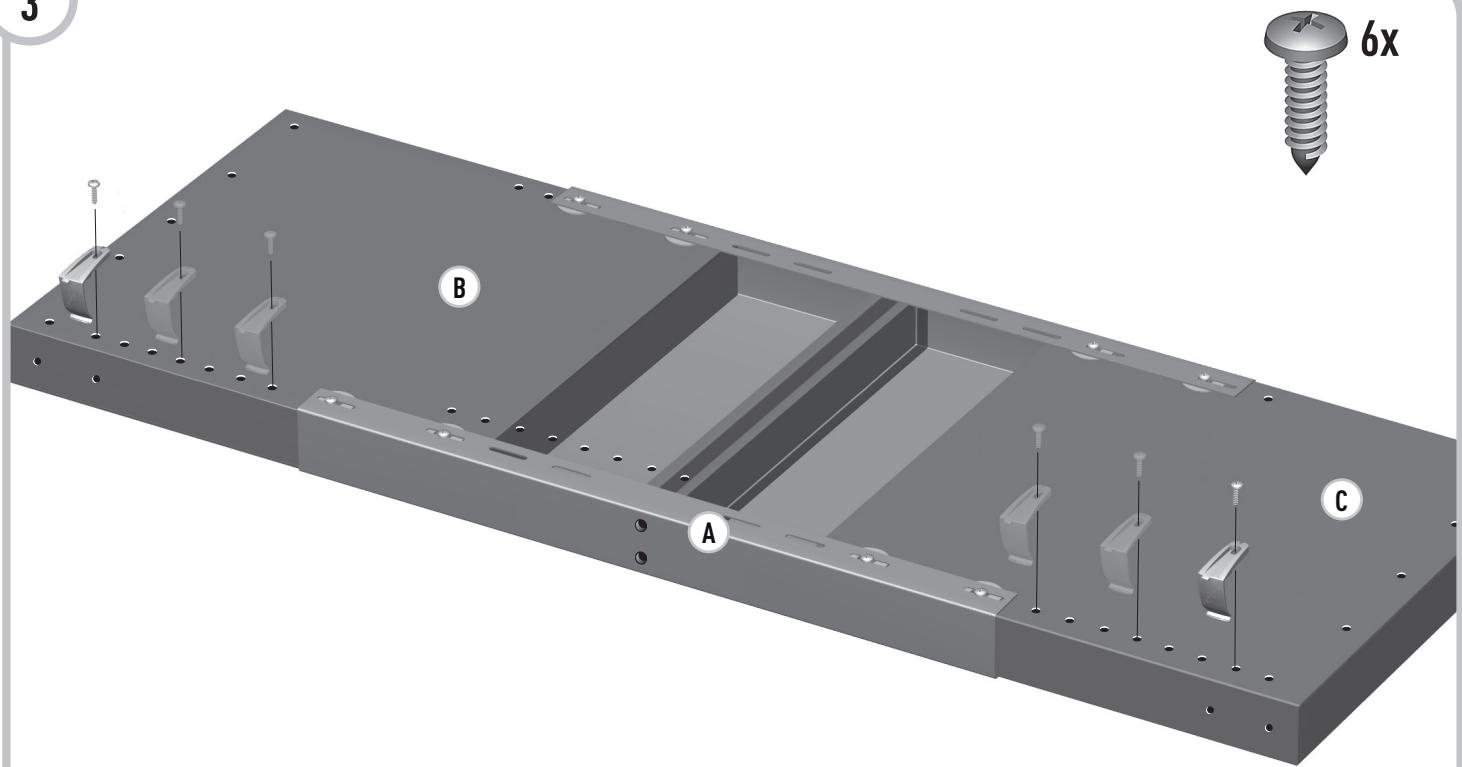

3

6x A B C

4

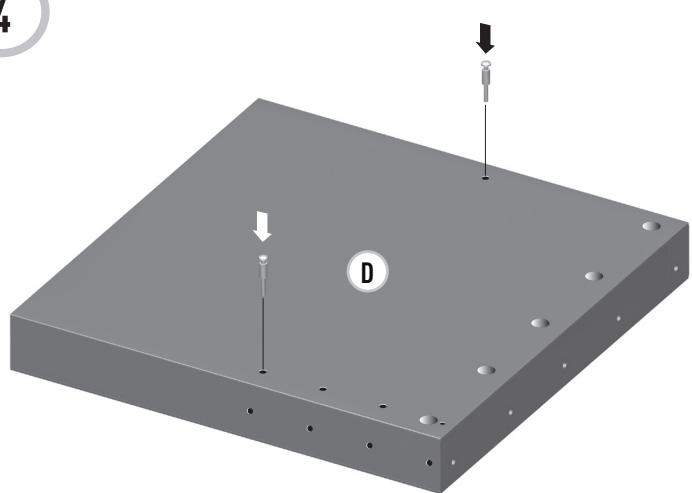

3D diagram of a gray rectangular plate with mounting holes and two arrows indicating direction, labeled 'D' (no text or symbols on the plate itself)

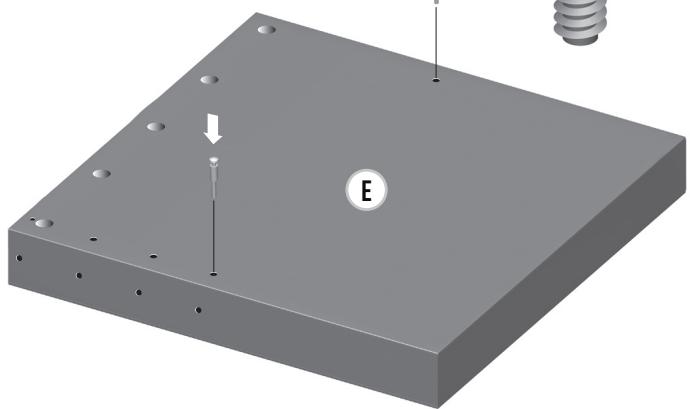

3D diagram of a mechanical component with labeled point E and directional arrow (no text or symbols beyond labels)

4x

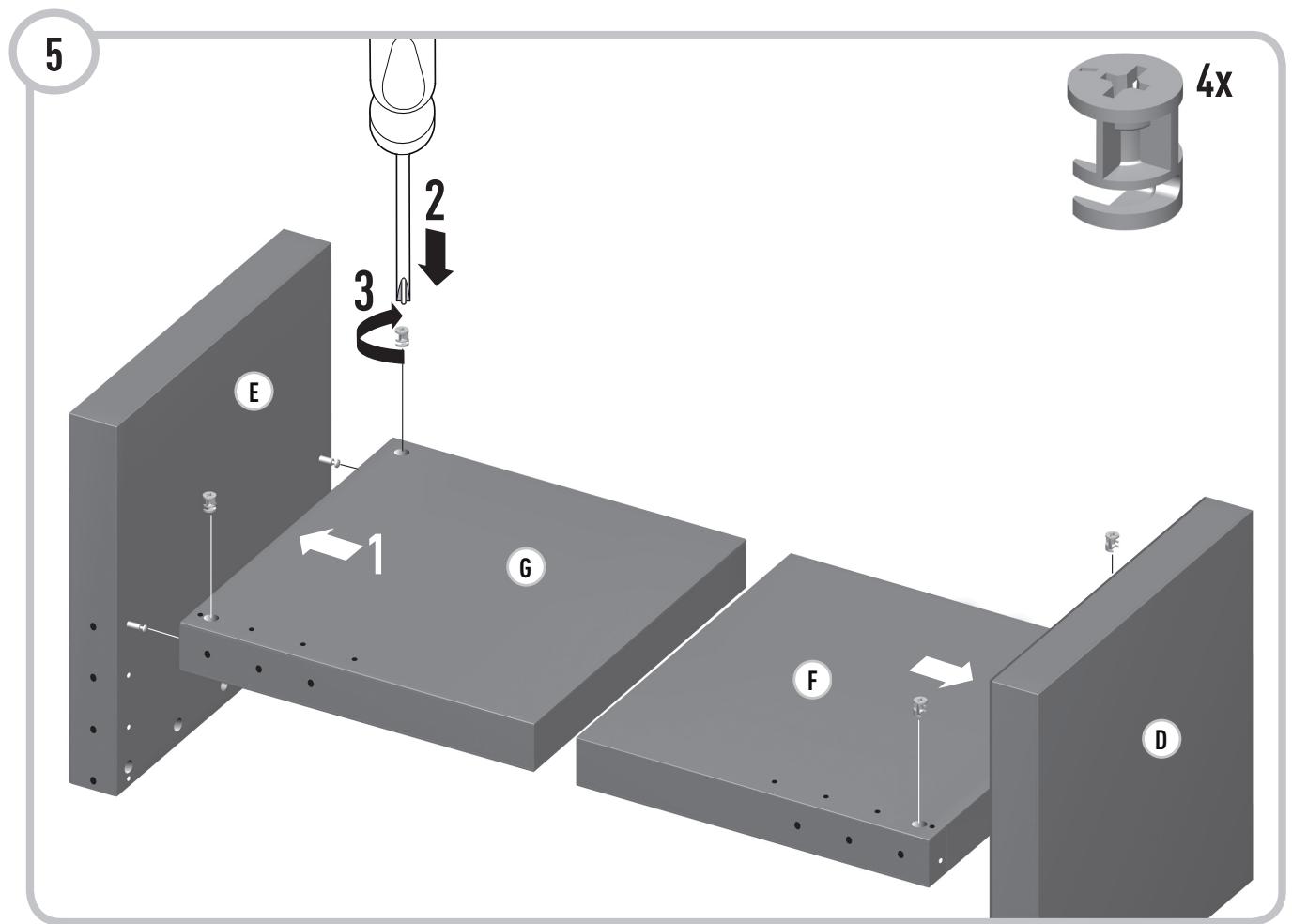

5 2 3 4x E 1 G F D

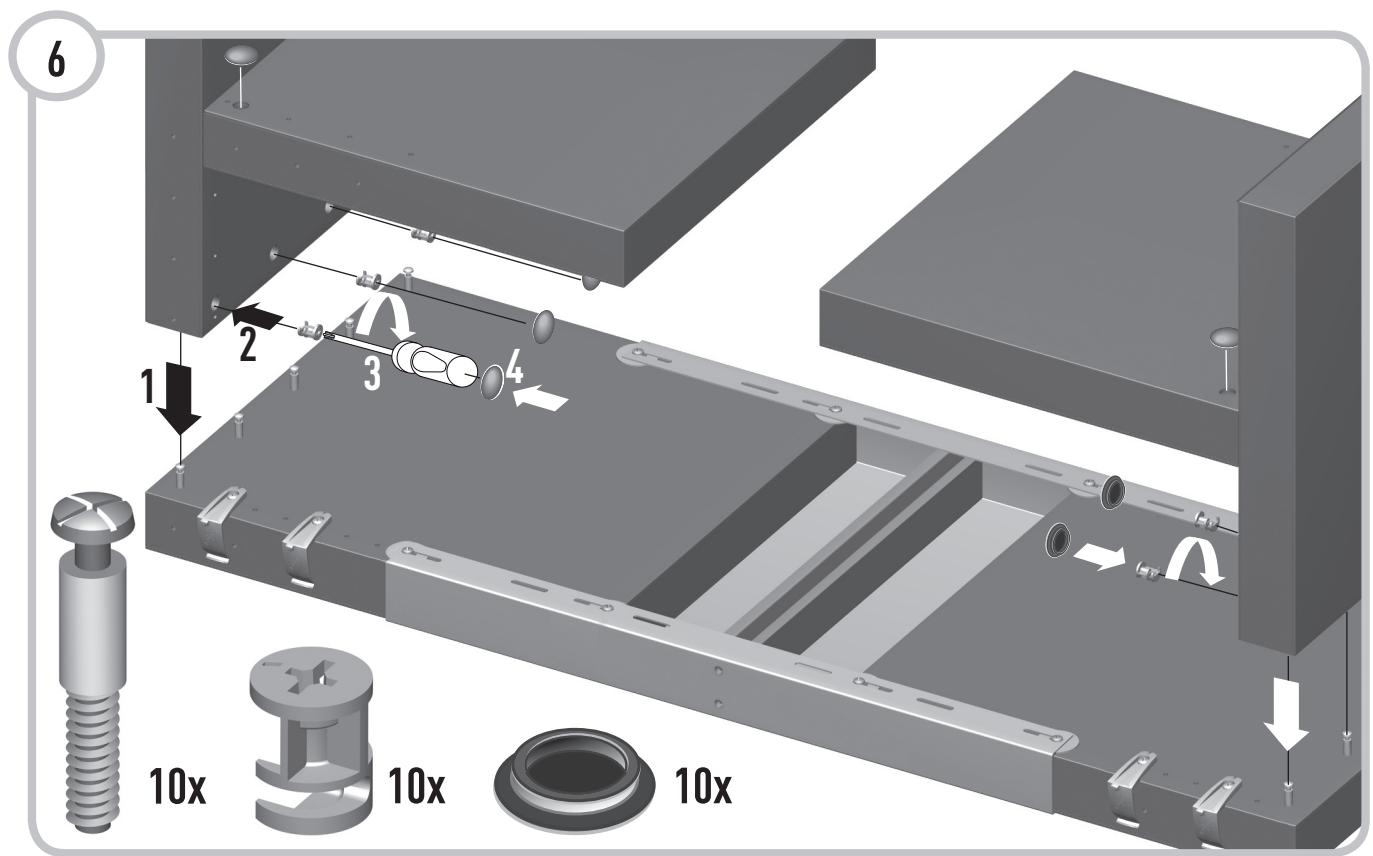

6 1 2 3 4 10x 10x 10x

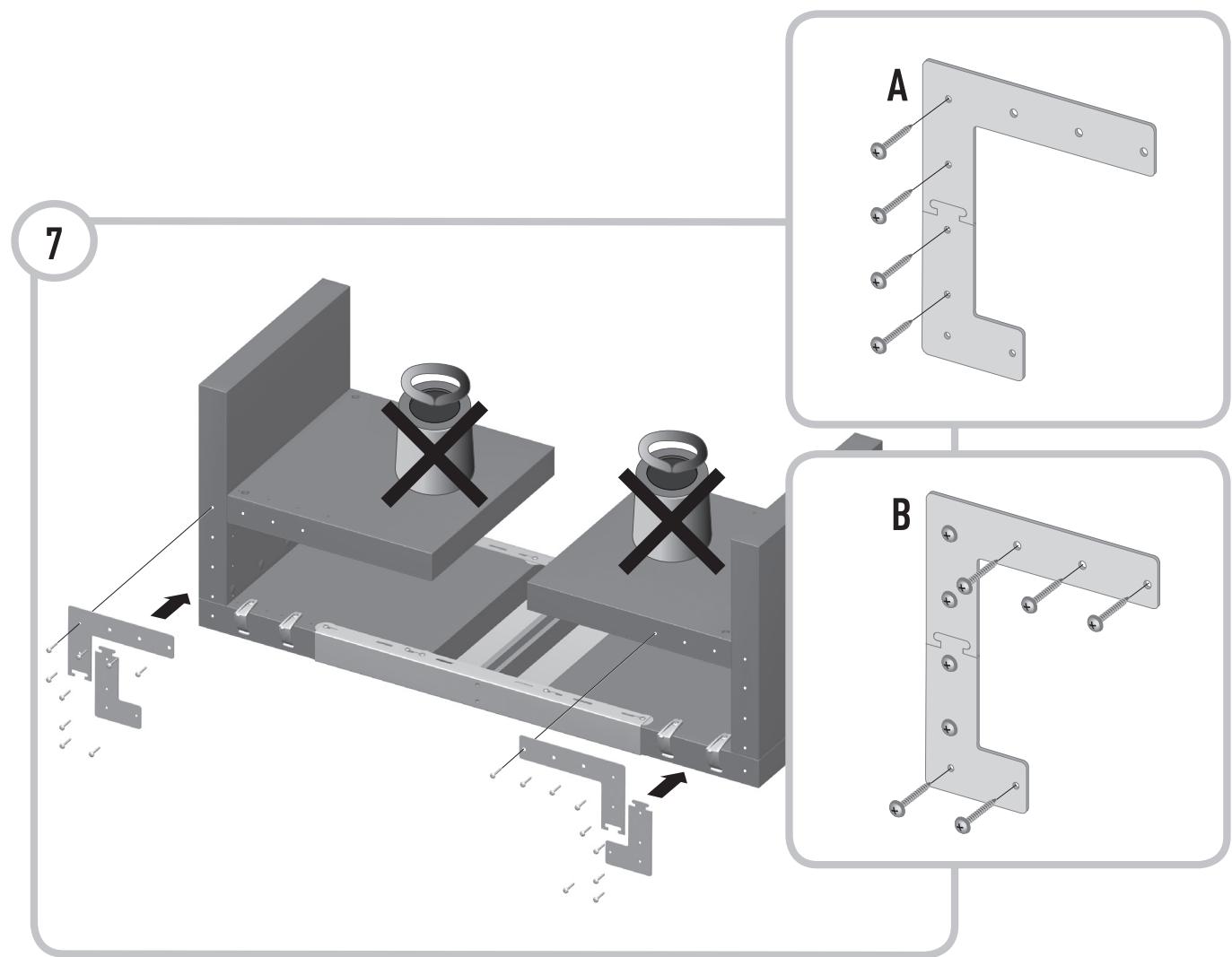

7 A B

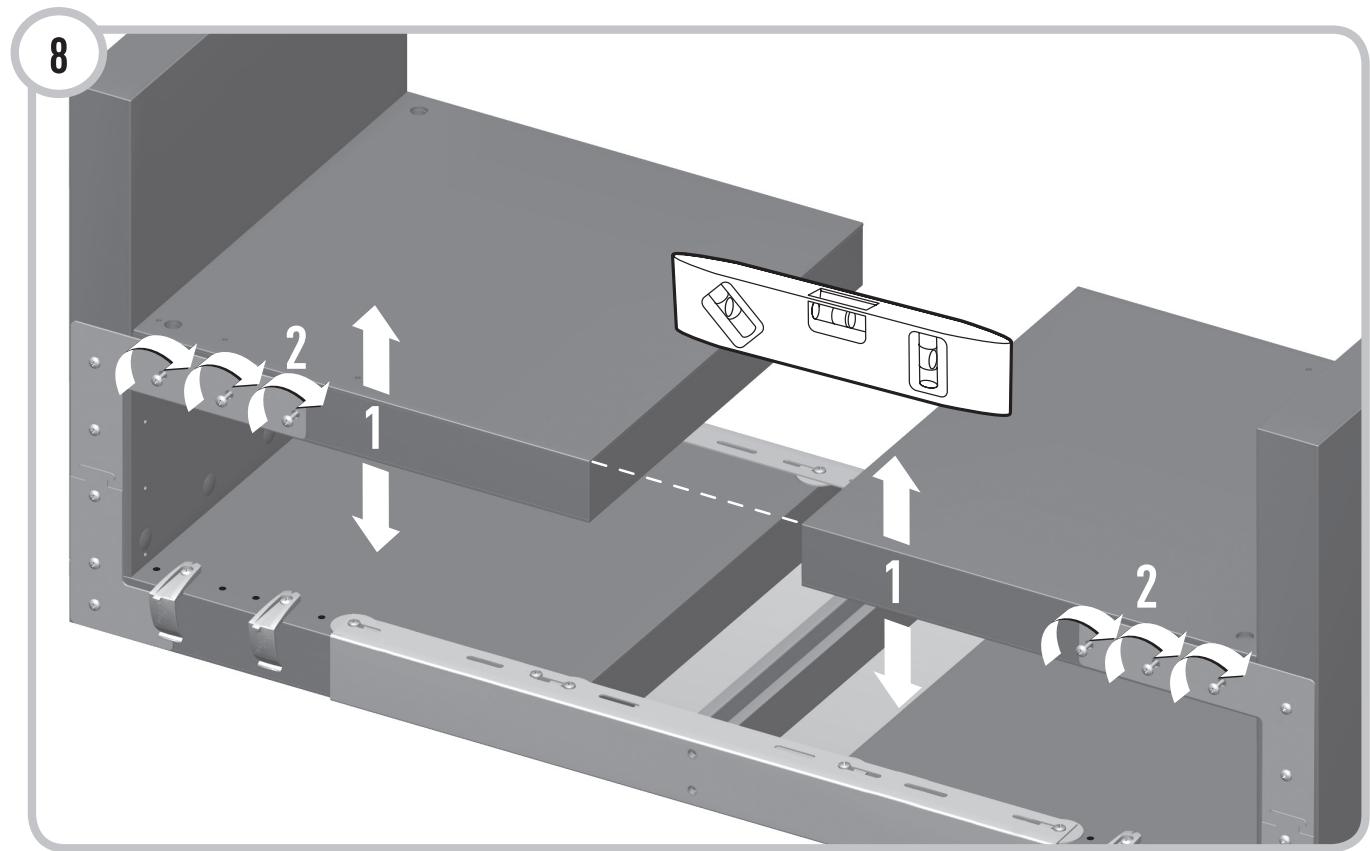

8 2 1 1 2

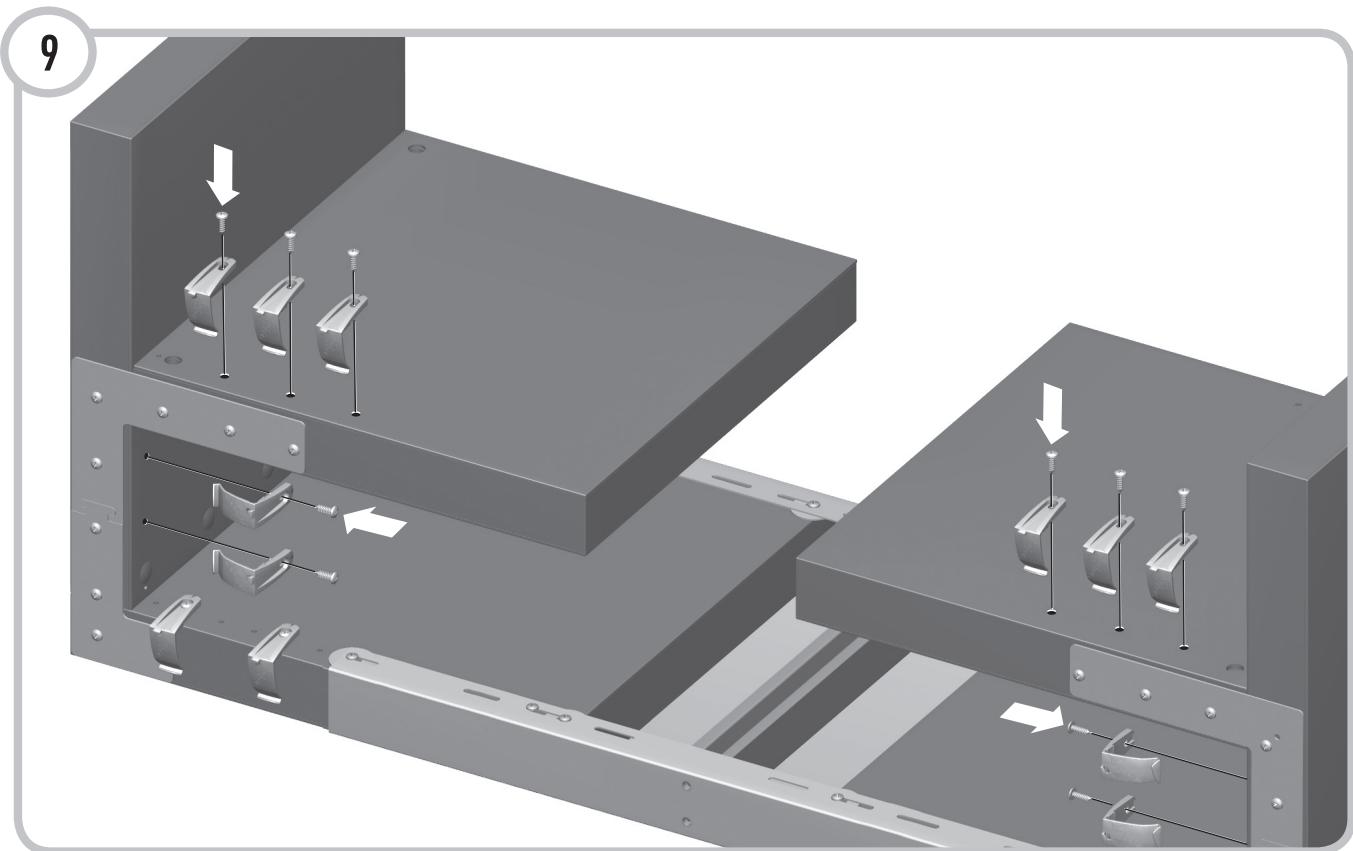

3D mechanical assembly diagram showing two components with mounting brackets and internal fasteners, no text or symbols present

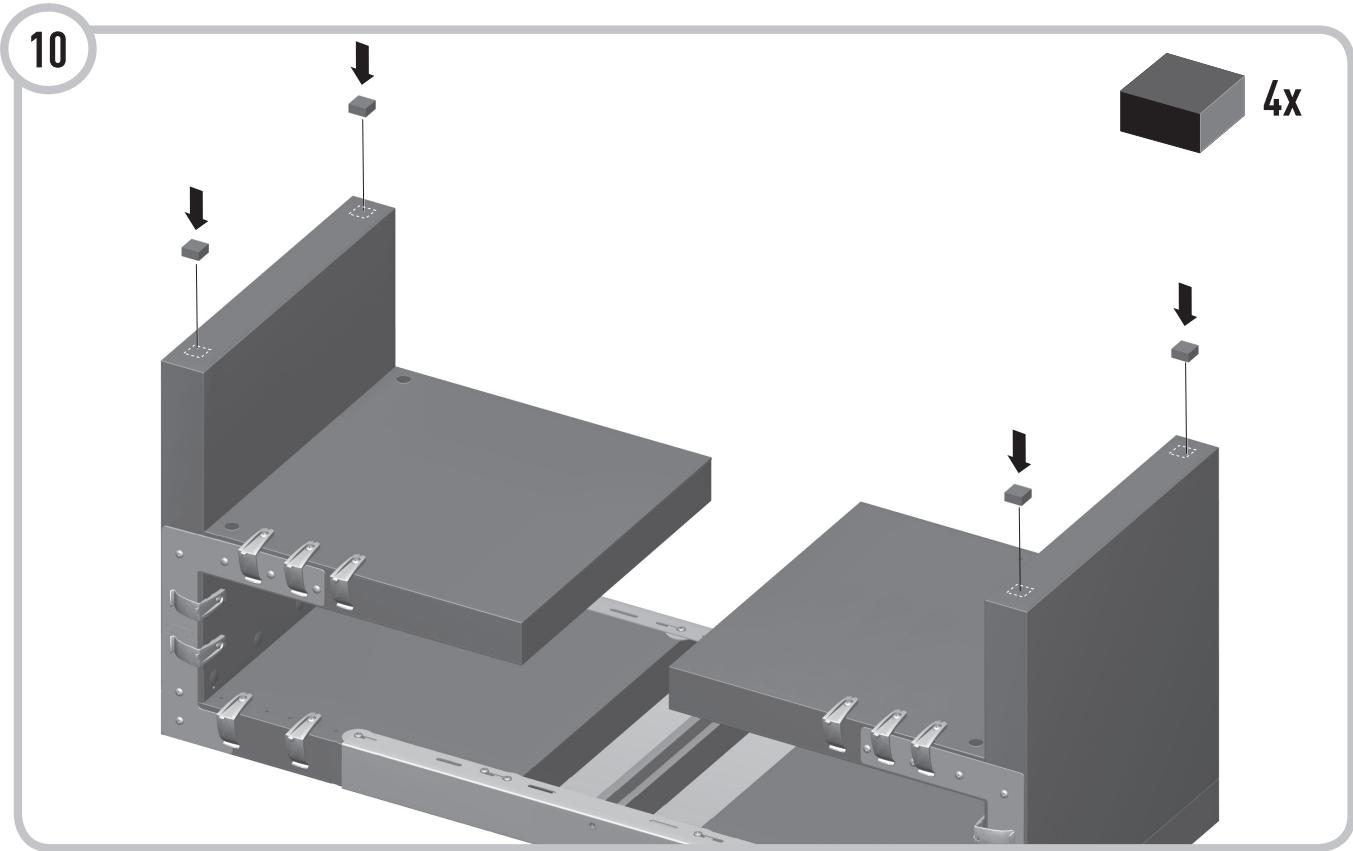

10 4X

11

3D rendering of a simple desk with two legs and a central table (no text or symbols)

3D rendering of a minimalist table with two rectangular blocks and one central platform (no text or symbols)

CFW 140 wall furniture

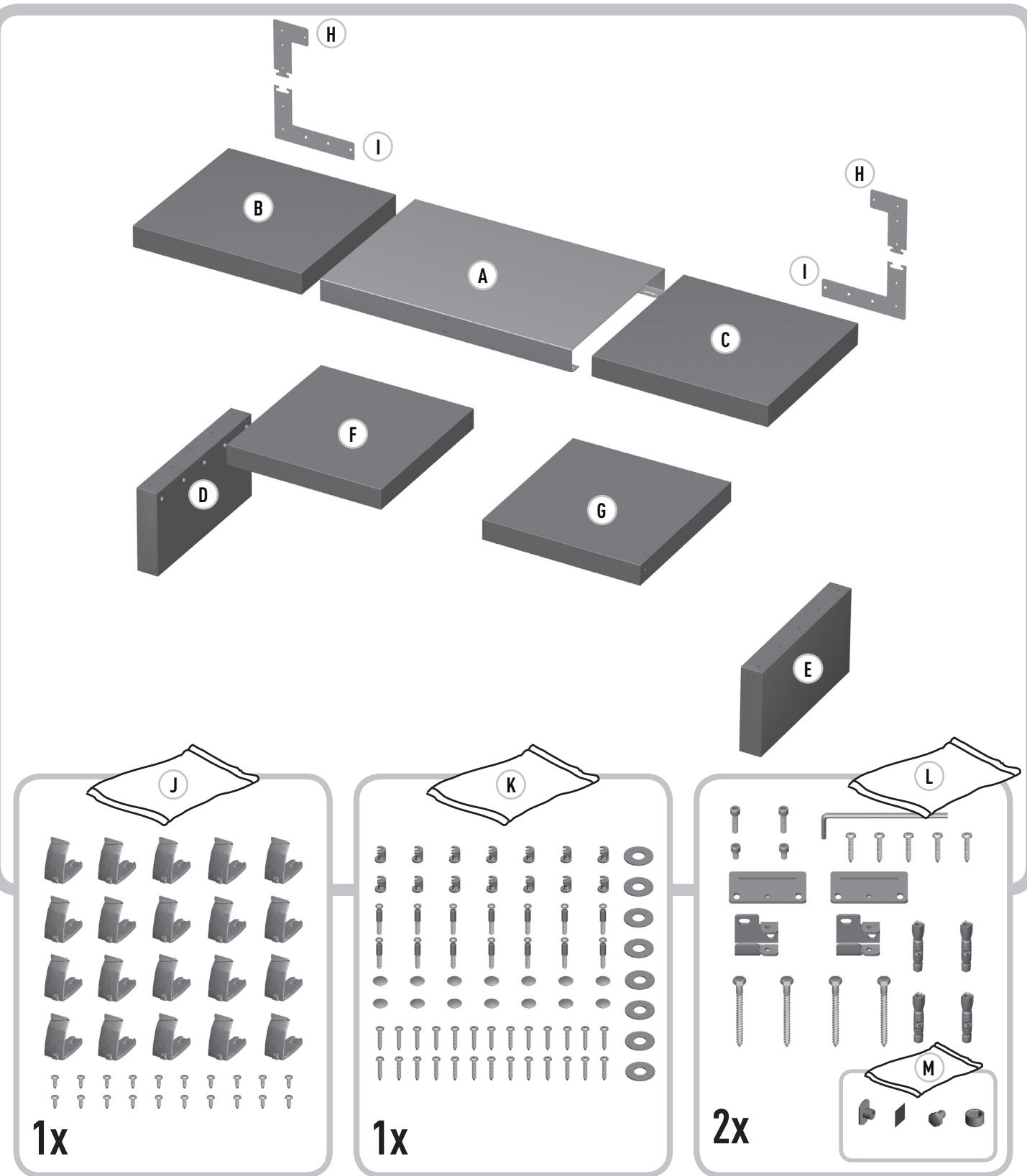

CONTENT OF TE BOX CFW 140

B A C H I H F D G E J K L 1x 1x 2x M 1x

CFW 140

1

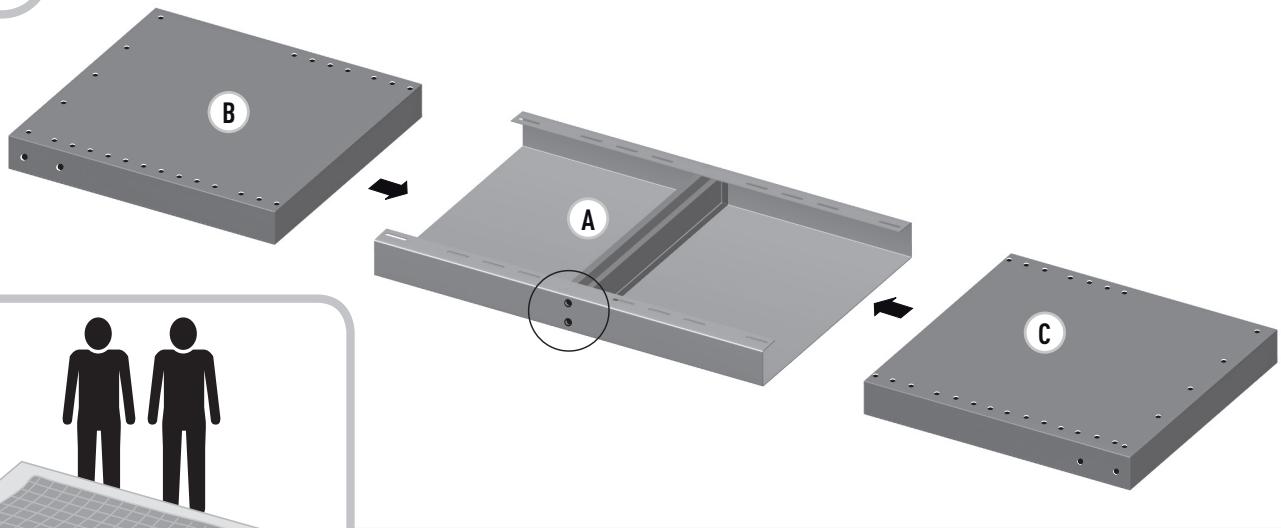

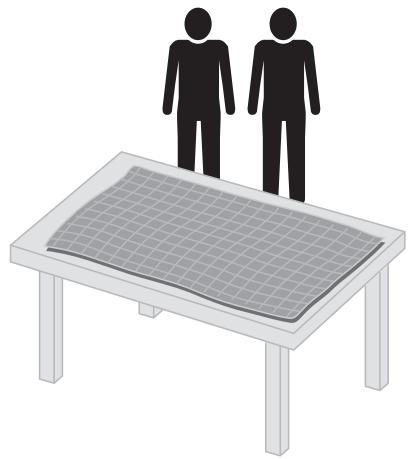

Illustration of two human figures standing on a table with a grid-patterned surface (no text or symbols)

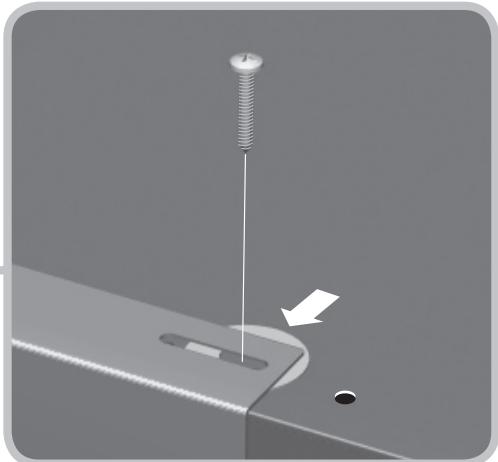

3D mechanical assembly diagram showing a screw inserted into a bracket with a pin and arrow indicating direction (no text or symbols)

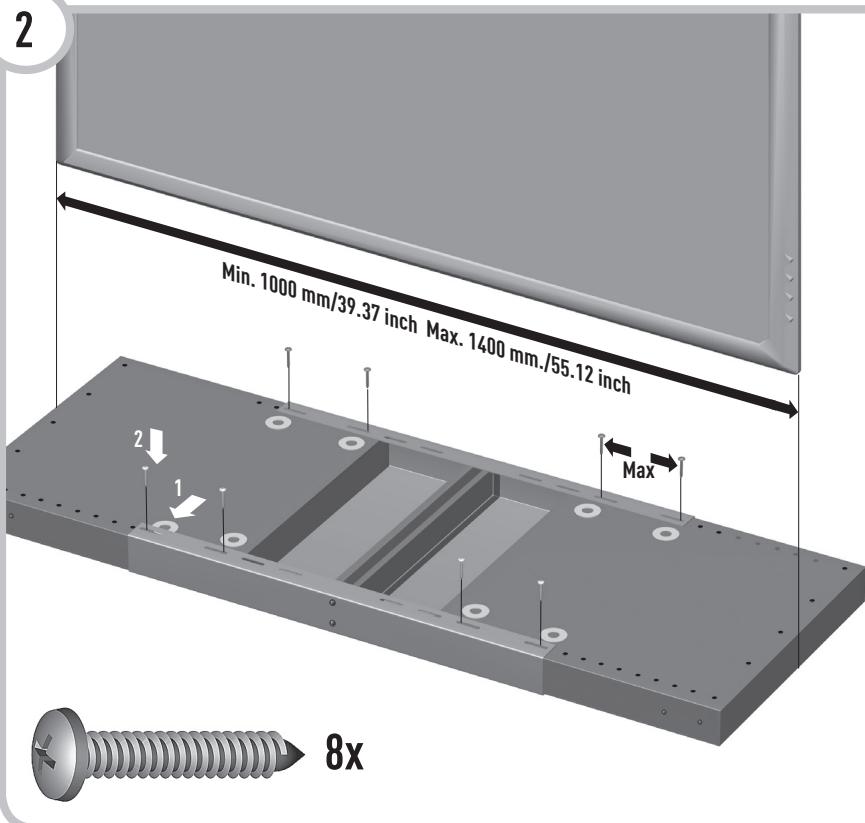

2 Min. 1000 mm/39.37 inch Max. 1400 mm./55.12 inch 2 1 Max 8x

Two identical gray rectangular panels with dotted and solid circular markers, no text or symbols present.

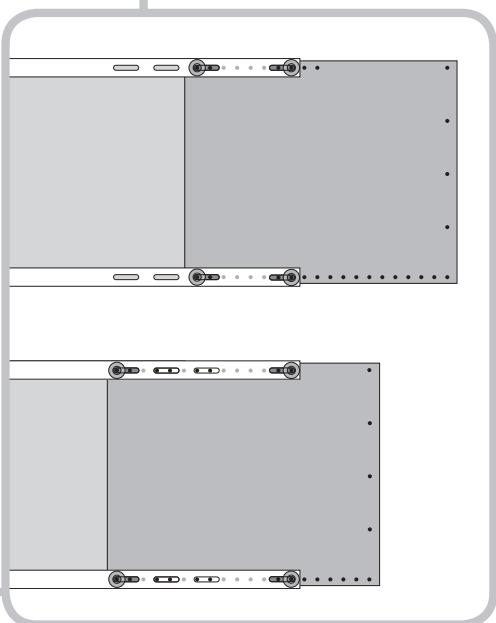

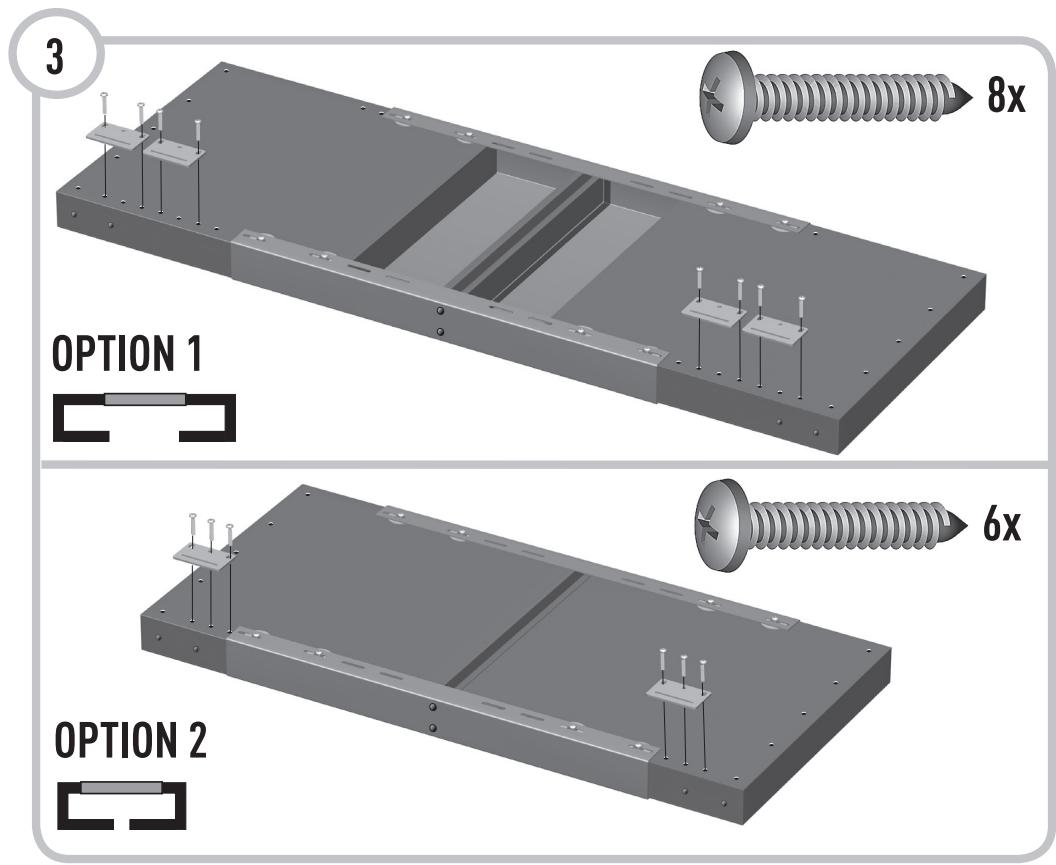

3 8x OPTION 1 6x OPTION 2

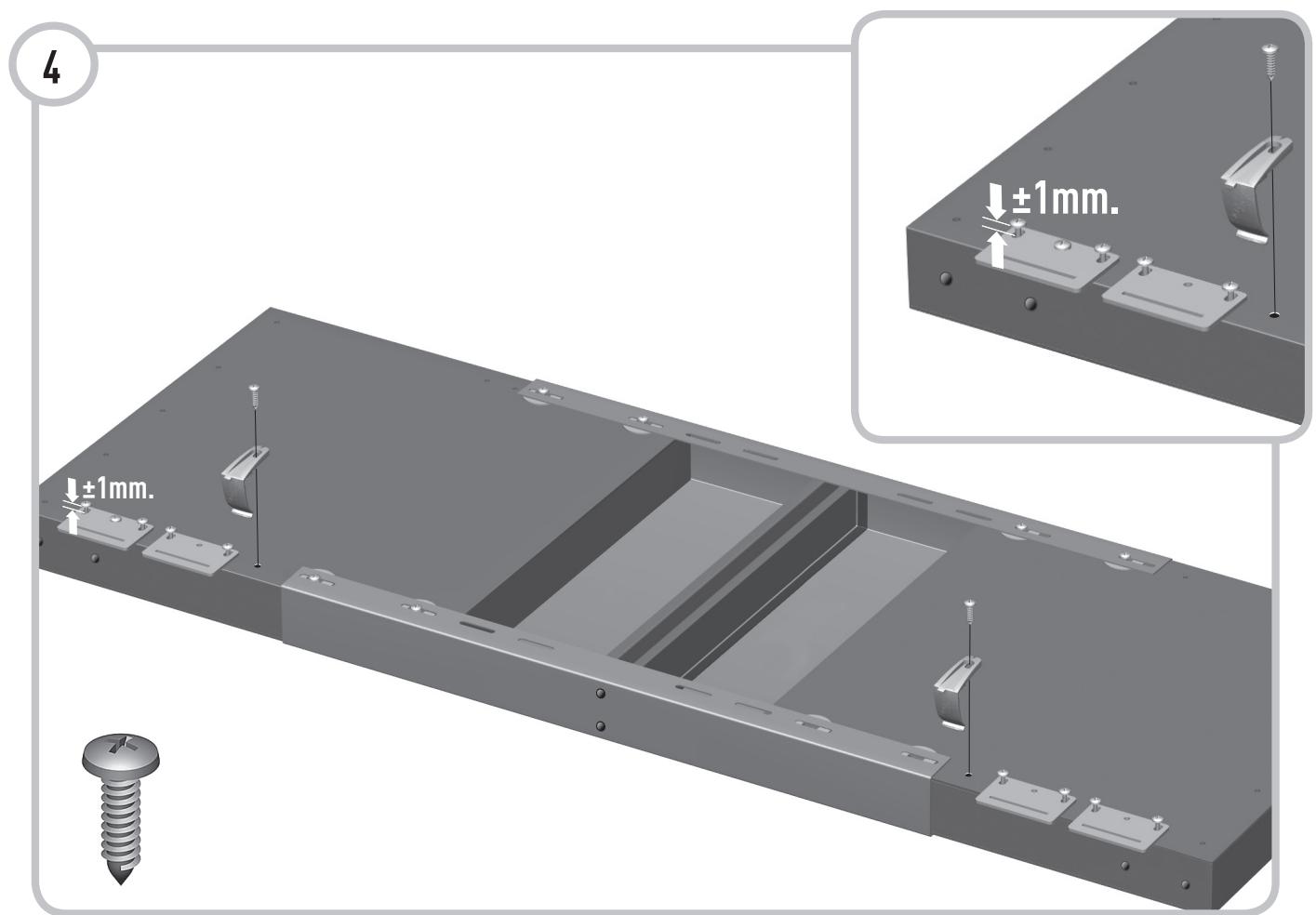

4 ±1mm. ±1mm.

5

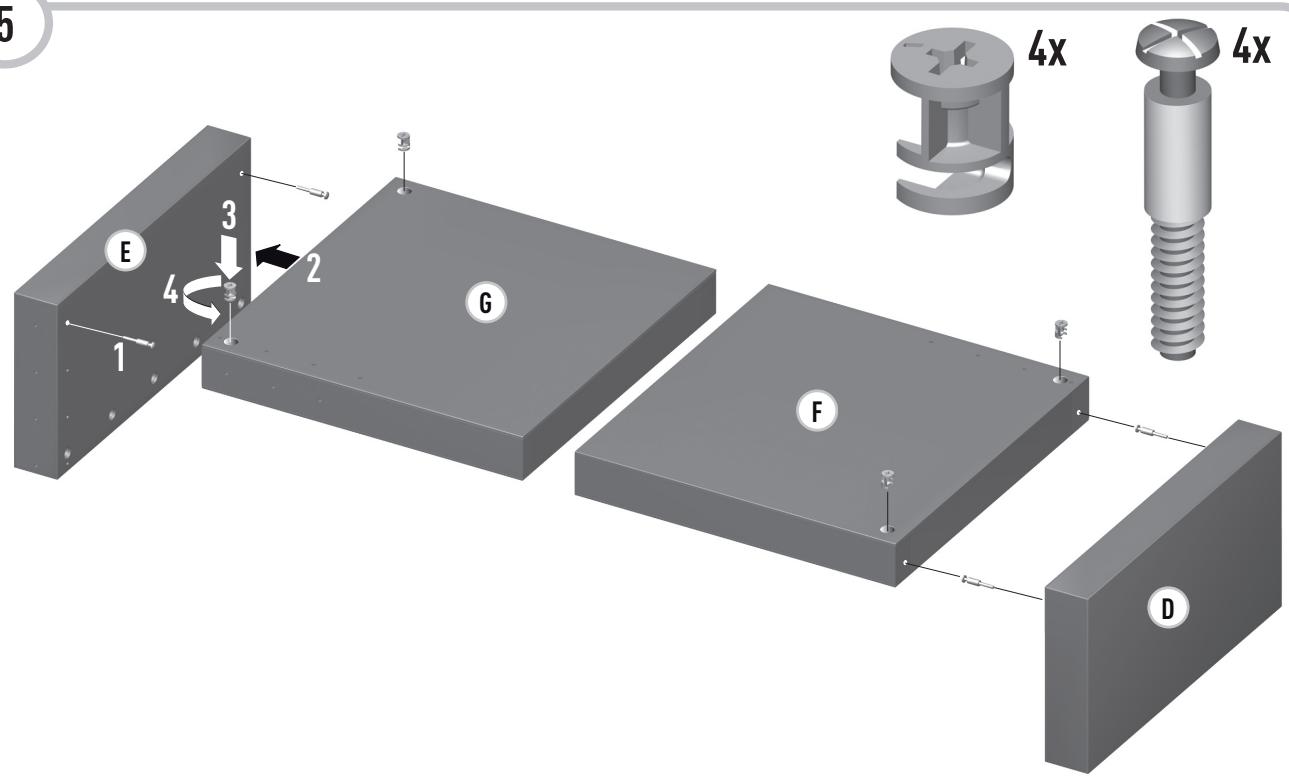

5 4X 4X 3 2 1 E G F D

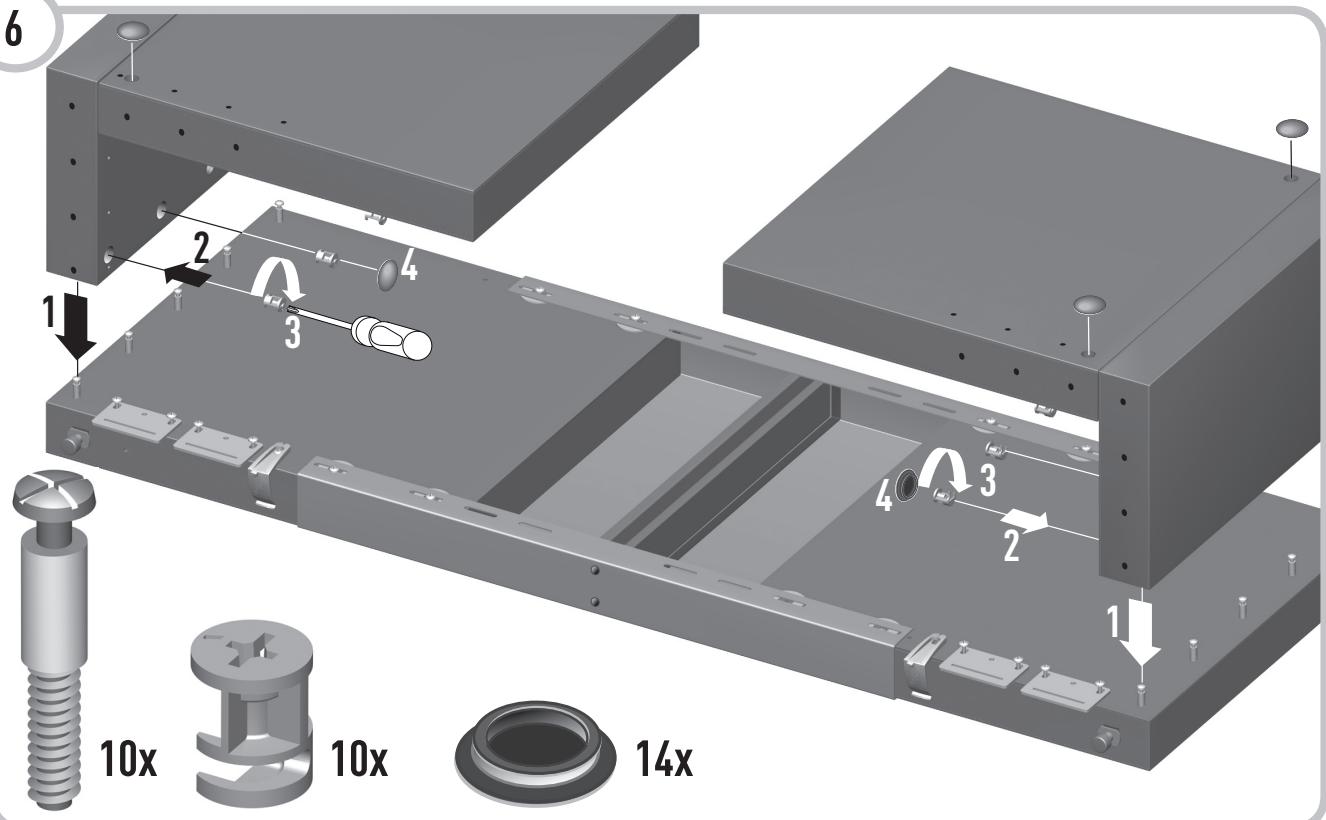

6 1 2 3 4 10x 10x 14x

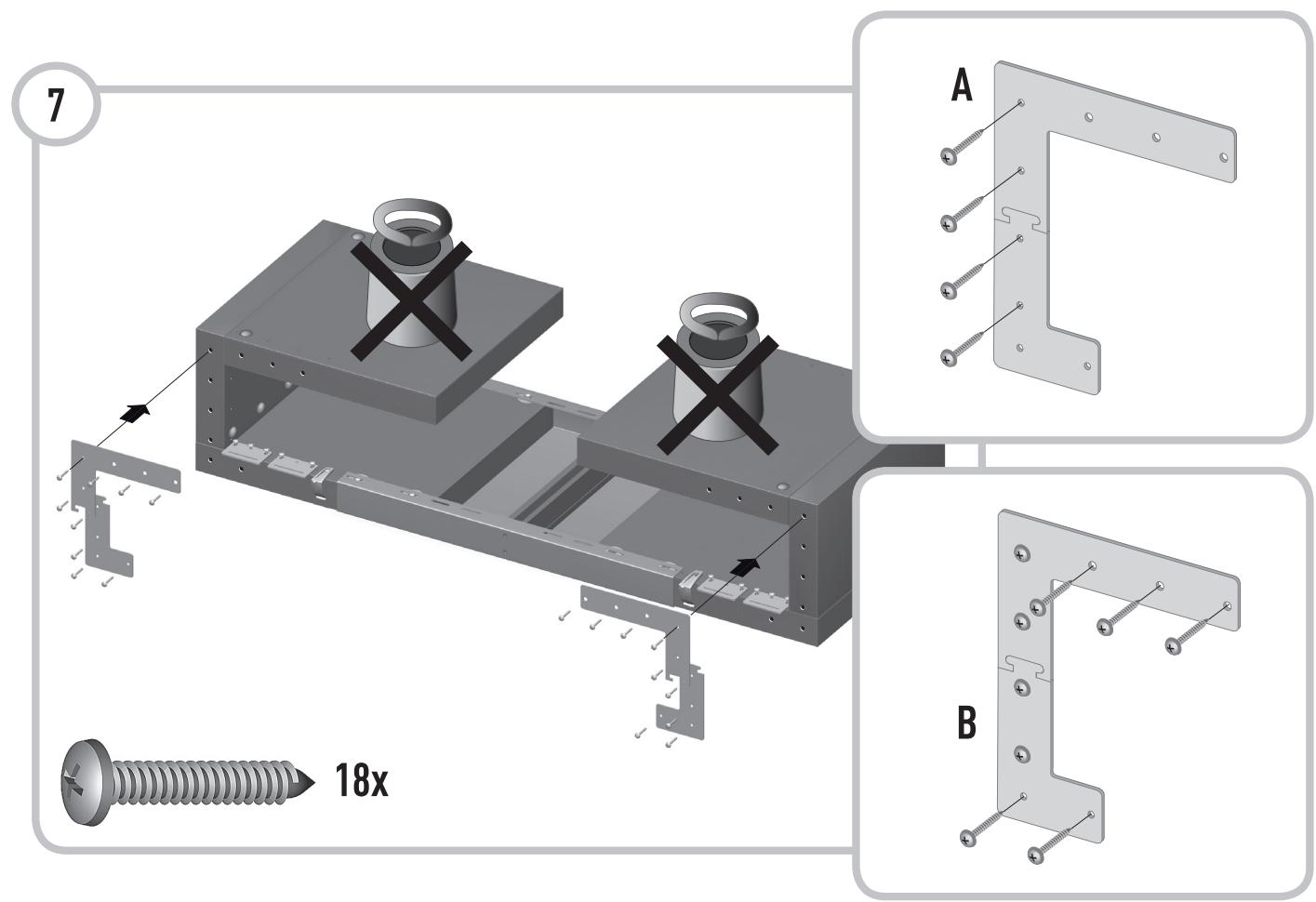

7 A 18x B

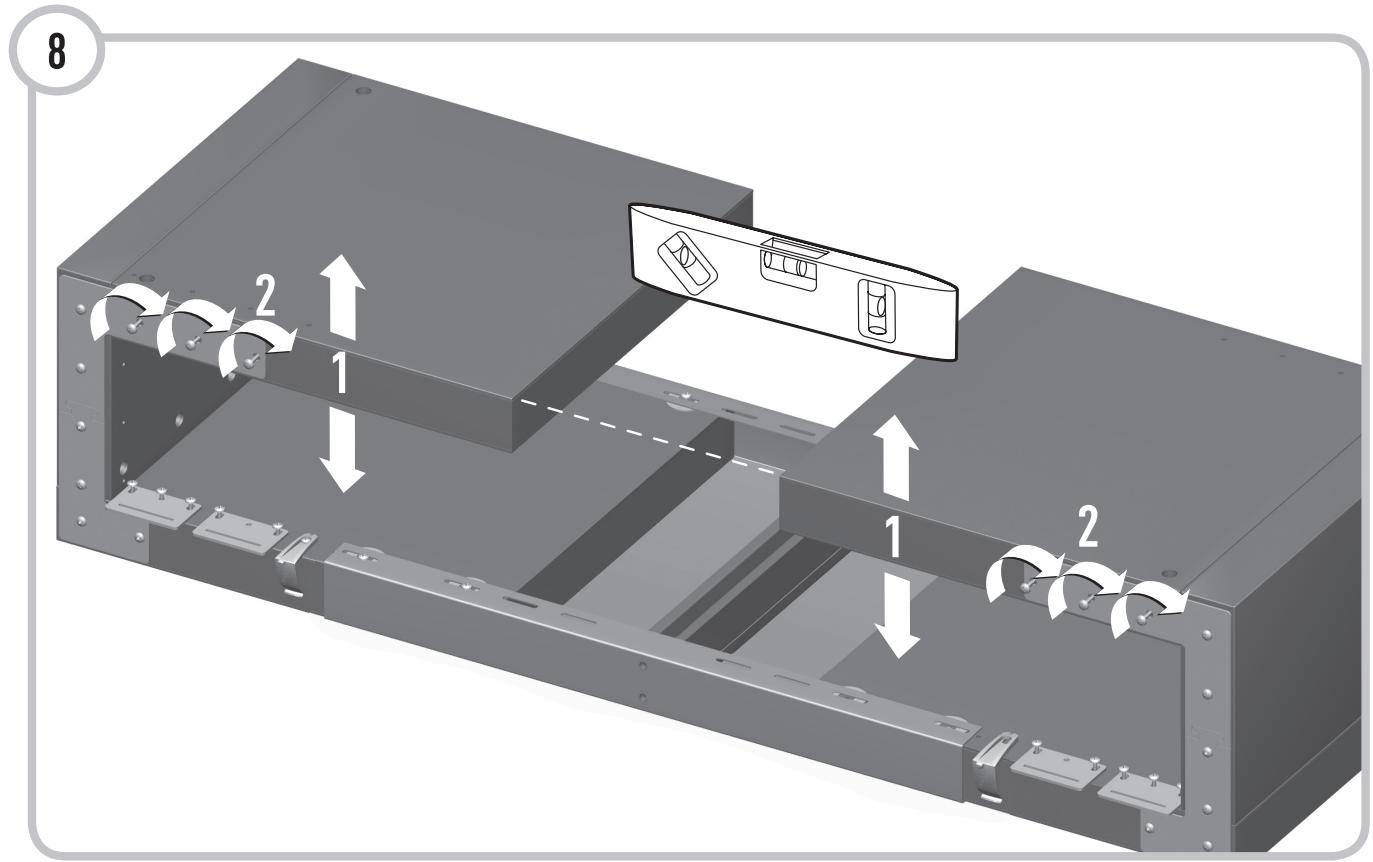

8 2 1 1 2

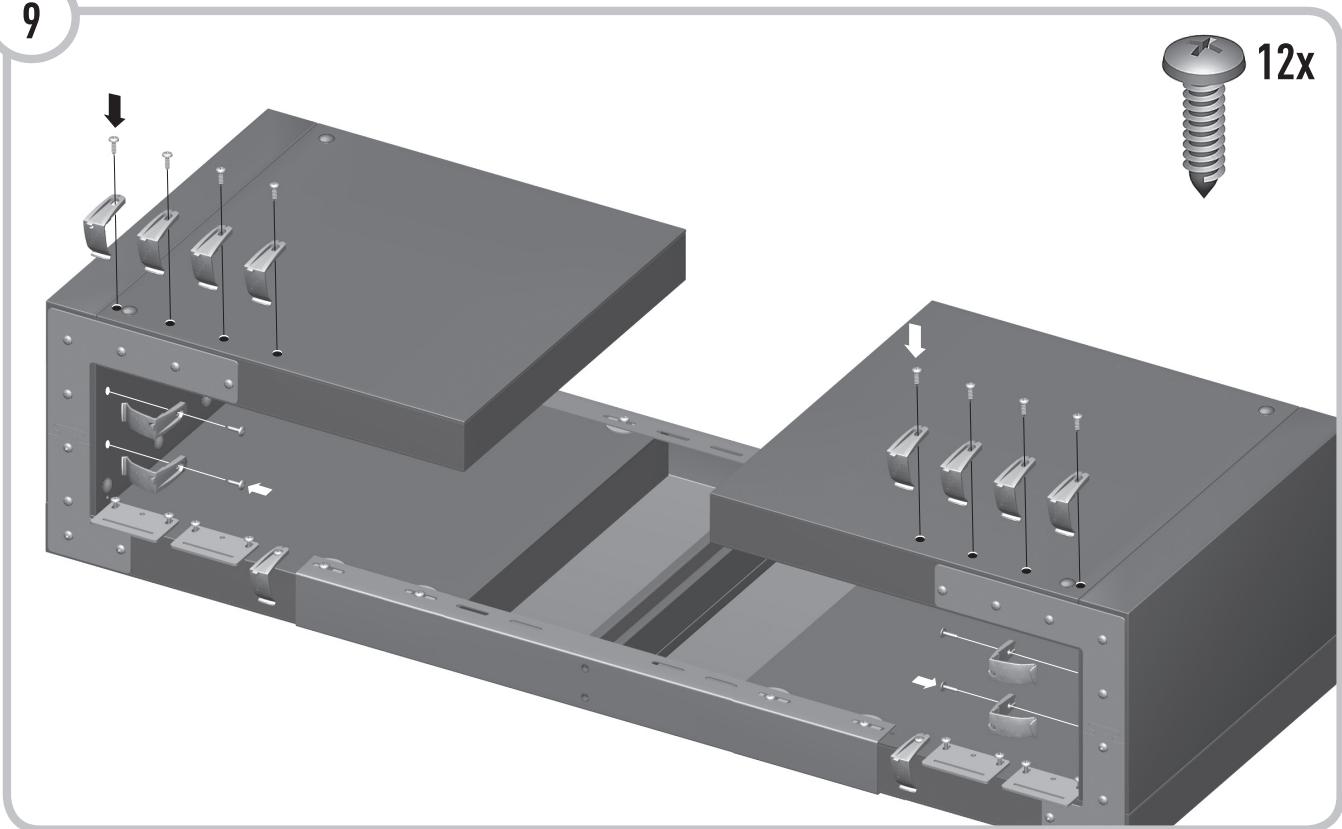

9

3D mechanical assembly diagram showing internal components and mounting features, with a 12x magnified view of a screw (no text or symbols present)

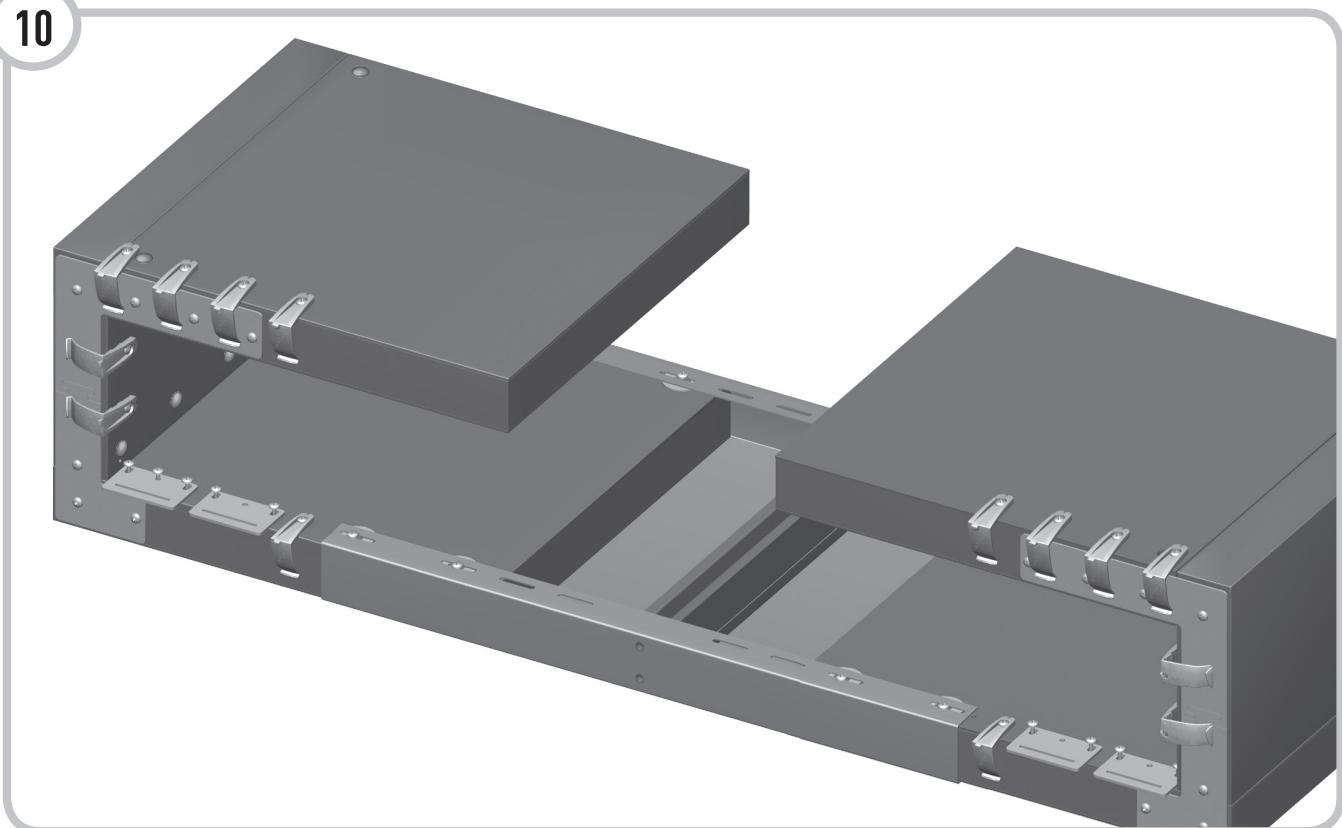

3D CAD rendering of a mechanical assembly with metal brackets and mounting holes (no text or symbols visible)

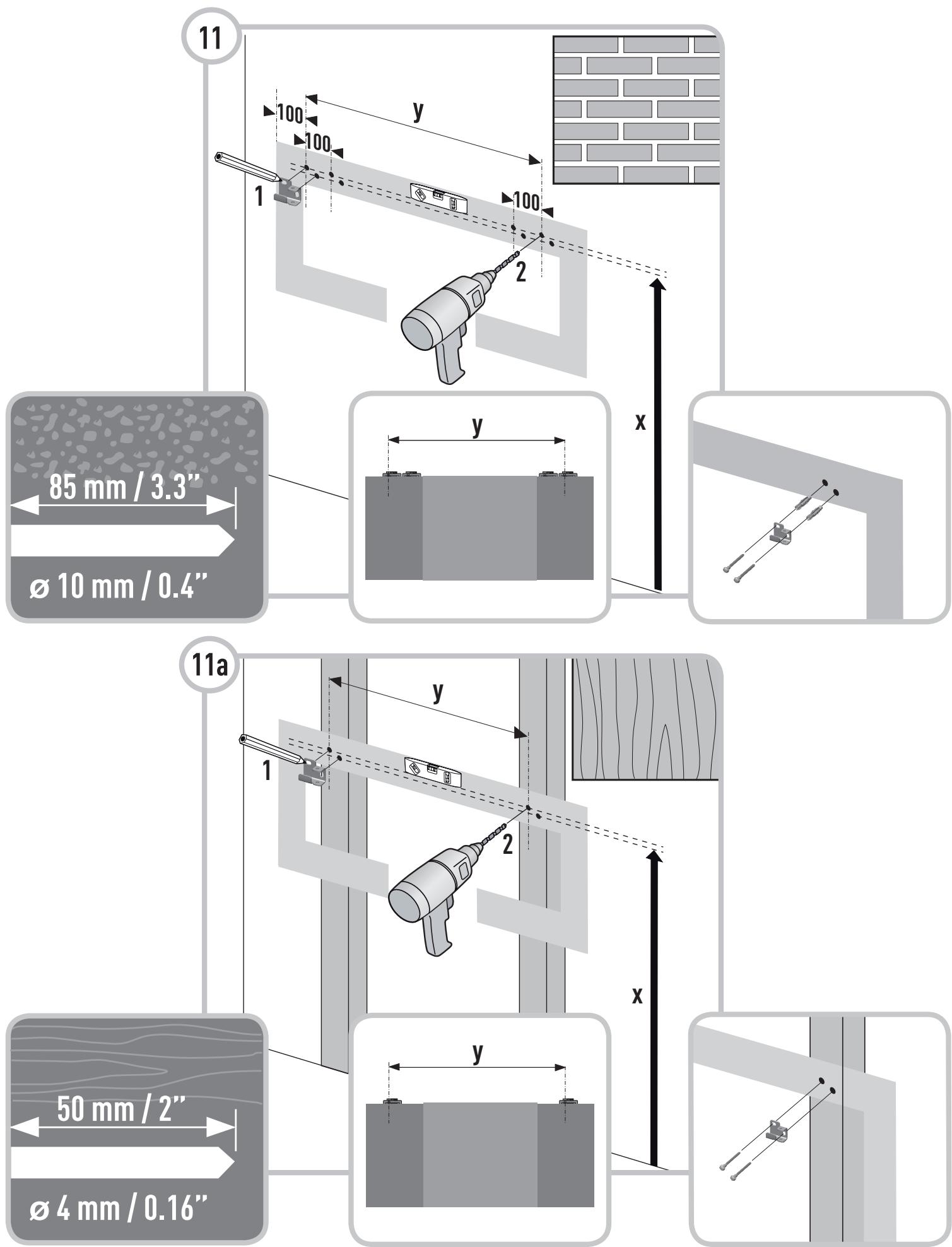

11 100 y 100 100 2 x 85 mm / 3.3" Ø 10 mm / 0.4" 11a 1 y 2 x 50 mm / 2" Ø 4 mm / 0.16"

12

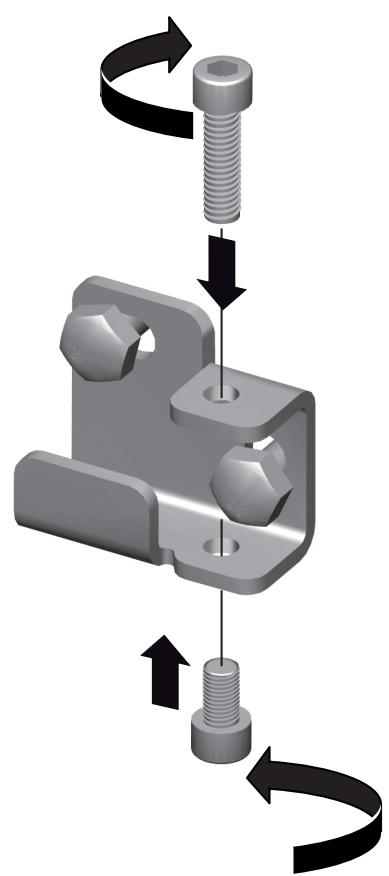

Mechanical assembly diagram showing a bolt and nut assembly with rotational arrows indicating motion (no text or symbols)

2x

2x

Solid gray square with rounded corners (no text or symbols)

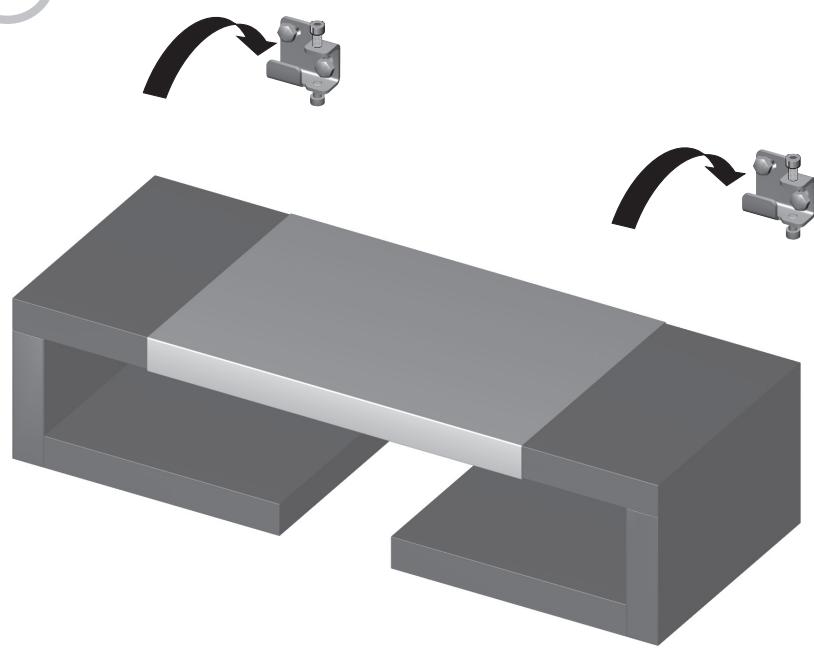

13

3D diagram of a mechanical assembly with two connected components and curved arrows indicating motion (no text or symbols)

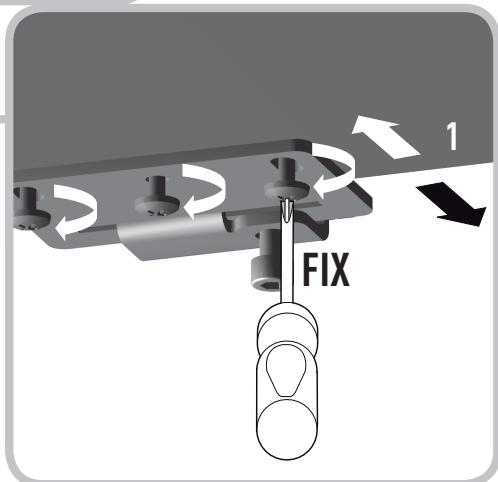

1 FIX

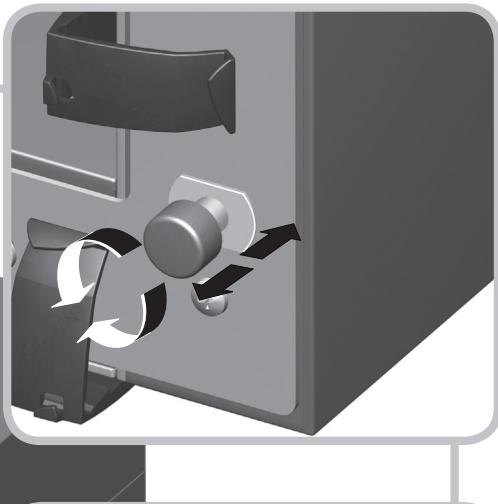

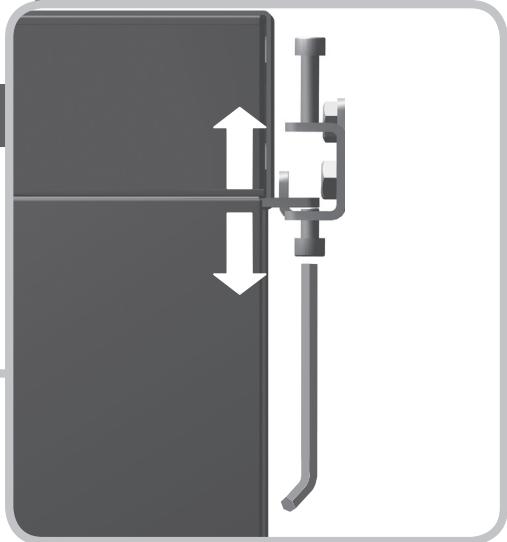

Diagram of a mechanical or electrical component with two opposing bidirectional arrows, no text or symbols present.

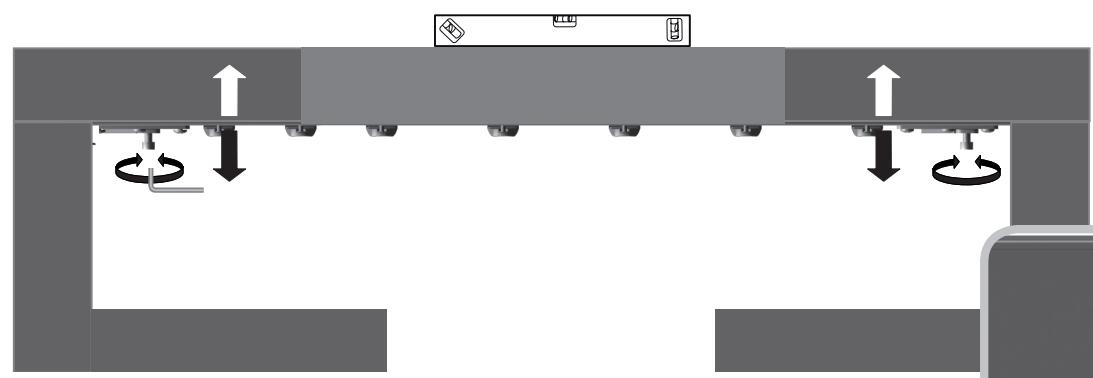

14

3D mechanical assembly diagram showing a bracket with mounting holes and connected pulleys (no text or symbols)

Mechanical component diagram showing a rotary knob and directional arrows indicating motion (no text or symbols)

Pure mechanical diagram showing a lever and pivot with no text or symbols

15

Pure mechanical assembly diagram showing two horizontal components with circular arrows indicating motion or force directions (no text or symbols)

Pure mechanical assembly diagram showing a bracket and pipe connection without any text or symbols

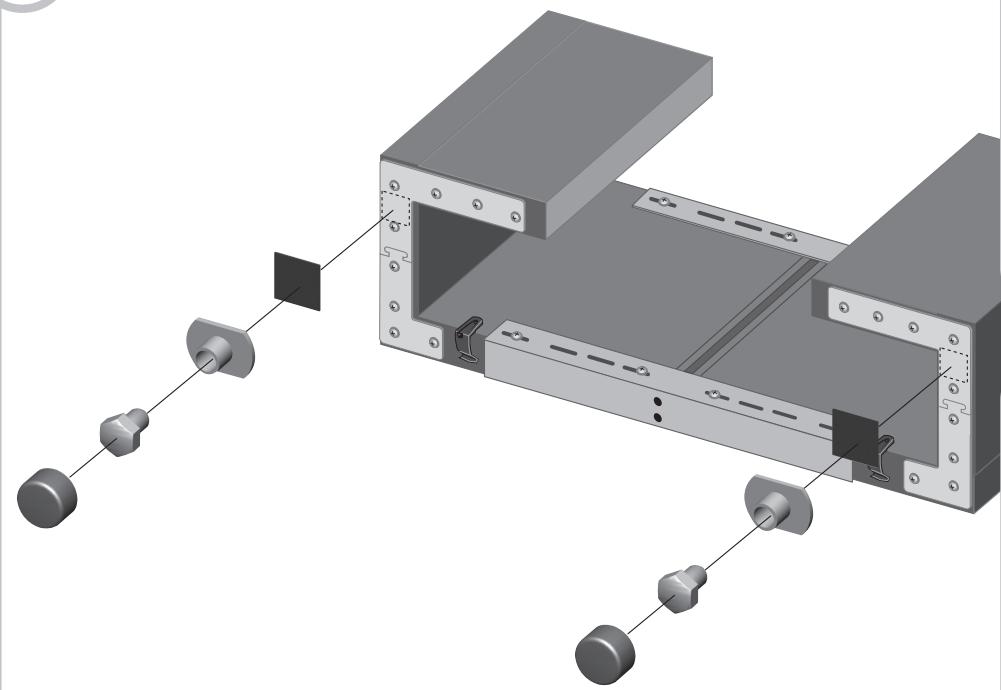

16

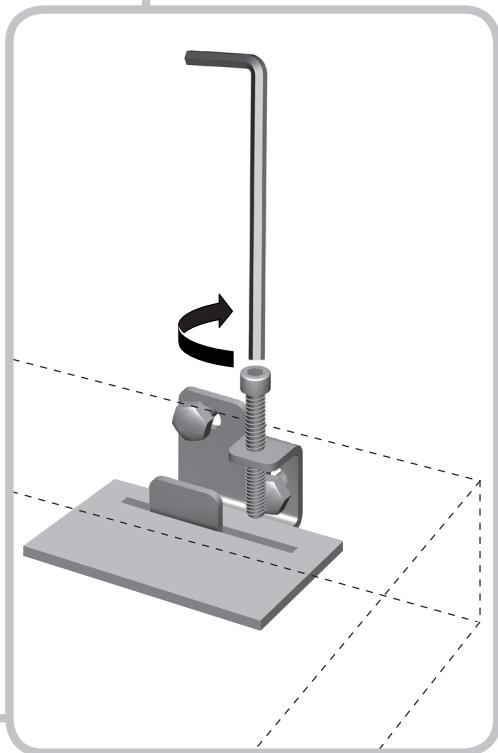

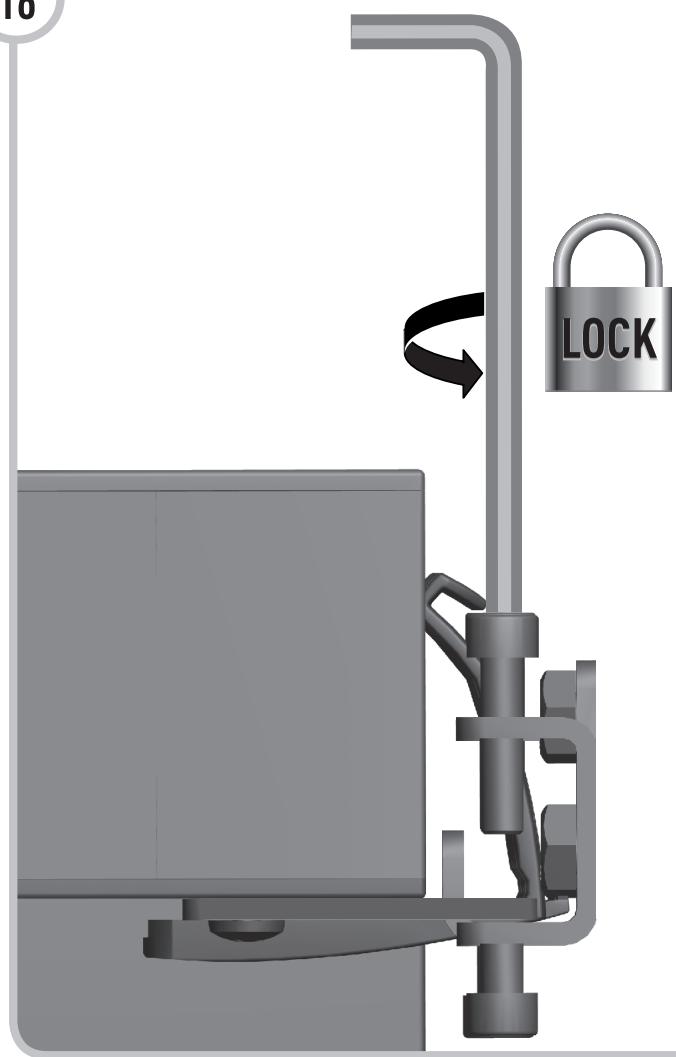

10 LOCK

3D diagram of a mechanical clamp or bracket assembly with a rotating lever and base plate (no text or symbols)

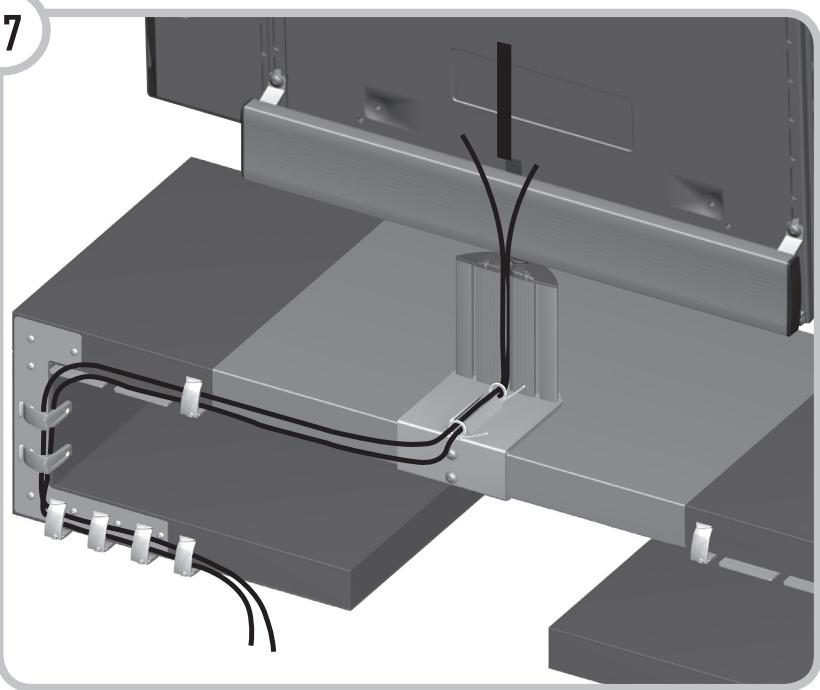

CABLE INLAY SYSTEM

17

3D mechanical assembly diagram showing cable connections and mounting components (no text or symbols)

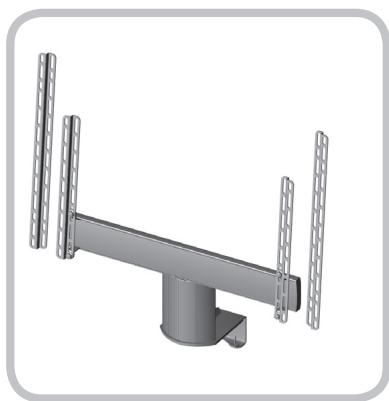

3D rendering of a mechanical support structure with vertical metal rods and a central cylindrical base (no text or symbols)

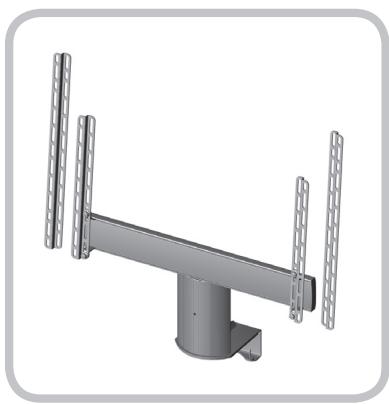

CFA 140 manual accessory

3D rendering of a mechanical support structure with vertical metal bars (no text or symbols)

CFAE 140 RC electronic accessory

CE

Power: 12 V DC, 500 mA Weight: CFAE 140 RC: 5.3kg/11.7 lbs
