Product type	Electric heating pad
Brand	SOLAC
Model	CT8630
Power supply	Mains (230 V ~ 50 Hz)
Power	~100 W (estimated)
Dimensions (approx.)	40 x 30 cm (estimated)
Weight (approx.)	0.5 kg
Number of temperature settings	4 (30°C, 35°C, 40°C, 45°C)
Built-in timer	Yes, from 10 to 120 minutes (increments of 5 min up to 50 min, then 10 min)
Automatic shut-off	Yes, after the set time
Remote control	With LCD screen, on/off, temperature, timer, +/- buttons
Removable cover	Yes, machine washable at 40°C (delicate cycle)
Washable cushion	Yes, hand or machine wash (40°C max), after removing the cord
Safety	Do not fold, do not use wet, avoid use by children without supervision
Error display	ER in case of connection fault
Material	Fabric (cover) and integrated heating elements
Recommended use	Relief of muscle pain, under supervision

Frequently Asked Questions - CT8630 SOLAC

How to turn on the heating pad?

First connect the power cord to the product, then plug it into the mains. Press the ON/OFF button (4.1) on the remote control to turn on the device. The screen lights up and displays by default the minimum temperature setting (1) and 120 minutes of operation.

How to adjust the temperature?

Press the Temperature button (4.6), then use the + (4.8) or - (4.9) buttons to increase or decrease the setting. There are 4 settings: 1 (30°C), 2 (35°C), 3 (40°C), 4 (45°C). Confirm by pressing the Temperature button again or wait a few seconds. The target temperature is reached after 10 minutes.

How to set the timer?

Press the Timer button (4.7), then use + or - to change the time before automatic shut-off. The time can be set from 10 to 120 minutes. Increments are 5 minutes up to 50 minutes, then 10 minutes beyond. Confirm by pressing the Timer button again or wait. The countdown is displayed minute by minute.

Can I use the heating pad while sleeping?

No, it is imperative to turn off the pad before falling asleep. Prolonged use at maximum power may cause burns. Moreover, the device turns off automatically after the set time, but it is not recommended to use it without supervision.

How to wash the heating pad?

Always unplug the power cord (3) before washing. The cover and cushion can be machine washed at 40°C maximum, delicate cycle. You can also hand wash with a mild detergent. Do not wring. Let dry flat, in open air, until completely dry before reuse.

What to do if the screen displays 'ER'?

The ER symbol indicates a malfunction or improper connection of the power cord to the product. Check that the connector is fully inserted, then turn off the remote control (OFF position) and turn it back on. If the problem persists, contact an authorized technical service.

Can the pad be used by children?

The pad should not be used by young children unless the control has been adjusted by an adult or the child has been instructed on safe operation. Direct supervision is required for invalid, disabled, or heat-insensitive persons. Children must not play with the device.

What is the maximum temperature reached?

The maximum temperature is 45°C (setting 4). It is not advisable to use this setting for extended periods to avoid burns. The selected temperature is effective after 10 minutes and remains stable.

What to do if the power cord is damaged?

Do not use the pad if the cord is damaged. Call an Authorized Technical Service for replacement or repair, as special tools are required. Do not attempt to repair it yourself.

How to completely turn off the device?

Press the ON/OFF button (4.1) to select the OFF position. Then unplug the power cord from the mains. Store the pad in a dry place, without folding it or placing heavy objects on it.

USER MANUAL CT8630 SOLAC

ALMOHADILLAS ELECTRICAS

ELECTRIC PILLOWS

WARNING: When you want to dispose of the appliance, NEVER throw it in the rubbish. Take it to your nearest RECYCLING POINT or waste collection centre for treatment. If you do that, you will be helping to look after the environment.

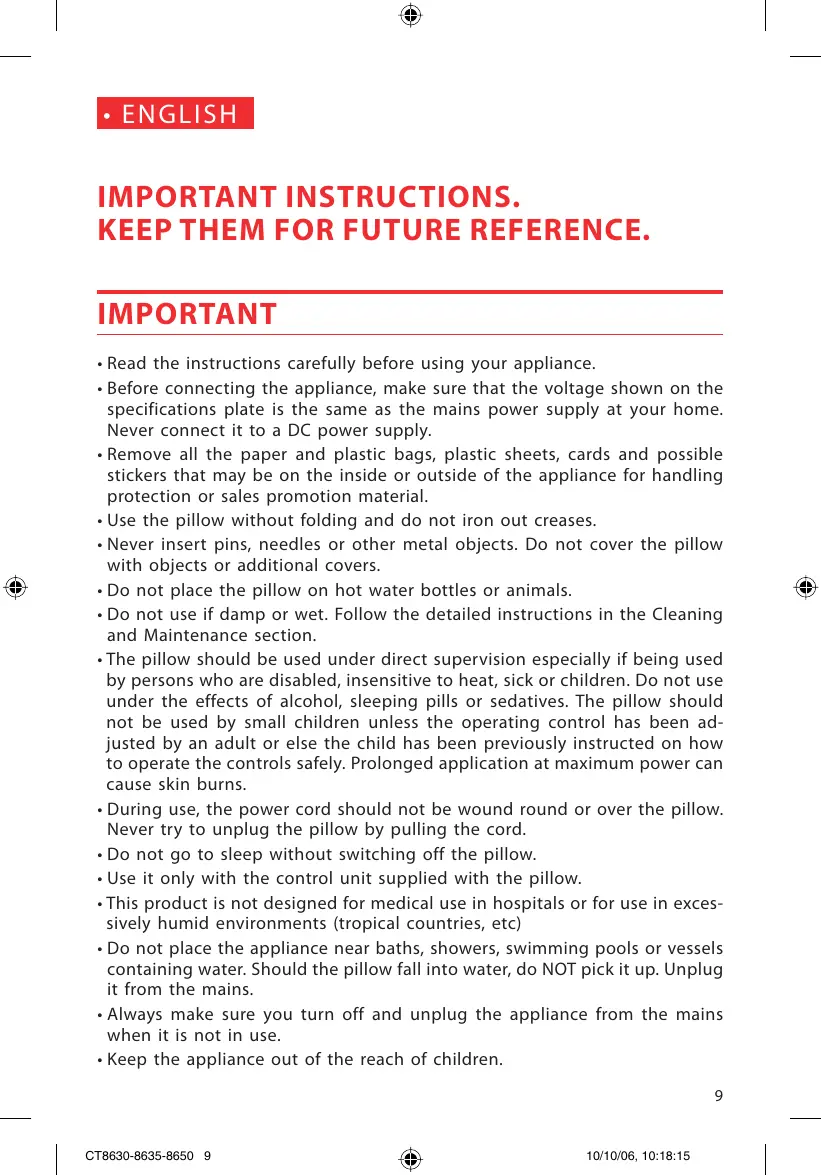

IMPORTANT INSTRUCTIONS. KEEP THEM FOR FUTURE REFERENCE.

IMPORTANT

• Read the instructions carefully before using your appliance.
• Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home. Never connect it to a DC power supply.
• Remove all the paper and plastic bags, plastic sheets, cards and possible stickers that may be on the inside or outside of the appliance for handling protection or sales promotion material.
• Use the pillow without folding and do not iron out creases.
• Never insert pins, needles or other metal objects. Do not cover the pillow with objects or additional covers.
• Do not place the pillow on hot water bottles or animals.
• Do not use if damp or wet. Follow the detailed instructions in the Cleaning and Maintenance section.
• The pillow should be used under direct supervision especially if being used by persons who are disabled, insensitive to heat, sick or children. Do not use under the effects of alcohol, sleeping pills or sedatives. The pillow should not be used by small children unless the operating control has been adjusted by an adult or else the child has been previously instructed on how to operate the controls safely. Prolonged application at maximum power can cause skin burns.
• During use, the power cord should not be wound round or over the pillow. Never try to unplug the pillow by pulling the cord.
• Do not go to sleep without switching off the pillow.
• Use it only with the control unit supplied with the pillow.
• This product is not designed for medical use in hospitals or for use in excessively humid environments (tropical countries, etc)
• Do not place the appliance near baths, showers, swimming pools or vessels containing water. Should the pillow fall into water, do NOT pick it up. Unplug it from the mains.
• Always make sure you turn off and unplug the appliance from the mains when it is not in use.

• Keep the appliance out of the reach of children.

• Do not use your pillow if the power cord is damaged or the appliance is faulty. Take it to an Authorized Service Centre to have it repaired or replaced, as proper tools are required to do so.

• If you decide not to use the pillow again, it is best to put it out of service. To do so, unplug the appliance and cut the power cord. In addition, it is best to disable the parts of the appliance that could be dangerous, especially for children, as they might use it improperly during play.
• Check the pillow frequently for signs of wear or damage. If these signs appear, or if the product has been used improperly, take it to an Authorised Service Shop.
• Electrodomesticos Solac, S.A. hereby disclaims all liability for injuries or damage that could be caused to persons, animals or property due to the failure to heed these warnings.

MAIN COMPONENTS

• Connect the power cord (3) first to the product and then connect it to the mains.
• Place the switch on the control (4.1) in the ON position.
• The selection that appears on the screen automatically is the minimum temperature position 1 and 120 minutes of operation before the appliance switches off automatically.

10

SELECTING THE TEMPERATURE

• To change the temperature selection, press the temperature button (4.6); you can increase the temperature position by pressing the selection increase button (4.8). If a position higher than 1 is selected, you can reduce the temperature position by pressing the selection reduction button (4.9).
• To confirm your selection, press the temperature button again (4.6) or else it confirms automatically after a few seconds. The temperature that corresponds to the selected temperature position appears on the screen when you confirm the selection (4.2).
• There are 4 temperature positions that correspond to the following temperatures:

Position 1: 30^

Position 2: 35^

Position 3: 40^

Position 4: 45^ C

• The selected temperature will be reached after 10 minutes and it will remain stable after this time regardless of how long the appliance is left running.

• When the appliance is switched on, the time selected by default before the product switches off is 120 minutes. It is possible to reduce this time by pressing the timer button (4.7) and then pressing the selection reduction button (4.9). If a time of less than 120 min. is selected, you can use the selection increase button (4.8) to increase the time before the appliance switches off automatically.
• From 10 to 50 minutes, these buttons allow you to increase/reduce the time by five minutes every time they are pressed. After 50 minutes these buttons change the time by 10 minutes.
• To confirm your selection, press the timer button again (4.7) or else it confirms automatically once a few seconds have passed since your last selection.
• When you confirm the selection, the selected time appears on the screen (4.5) and the time starts to count down one minute at a time; this also appears on the screen (4.4).
• Once the selected time has passed, the appliance stops heating up, the screen shows the FF symbol and the light on the control flashes until any button is pressed.
• If any operating error is detected or the power cord is not properly connected to the product, the screen shows the ER symbol and the light flashes. Make sure the cord is properly connected, switch off the control and switch it back on.

• The light of the screen is blue; it comes on while the control is being used and switches off automatically after 5 seconds. If you want it to light up again, press the selection increase button 4.8 or the selection reduction button 4.9.

• To switch the appliance off, select the OFF position on the control (4.1). Unplug the appliance.

CLEANING AND MAINTENANCE

• Both the cover (1) and the pillow (2) can be washed by machine using a setting for delicate garments (maximum temperature: 30^ ).
• To wash the pillow, ALWAYS unplug the power cord (3); it must never come into contact with water.
• It is advisable to wash the pillow only if it becomes dirty or dusty. If you wash it too often the product can wear out very quickly.

To wash the pillow by hand, follow these instructions:

• Use neutral soap in warm water (maximum temperature: 30^ ). Soak the pillow in water for 15 minutes.
• Carefully rinse the pillow with cold water, without wringing or squeezing it: simply shake it to remove the excess water.
• Hang the pillow in the air in horizontal position and allow it to drip dry until completely dry.
• After washing the pillow or its cover, make sure they are completely dry before using them again.
• Storage: Keep this product in a dry place with as few folds as possible and do not place any heavy objects on it that could cause permanent creases.
