USER MANUAL LOOLA MAXI-COSI

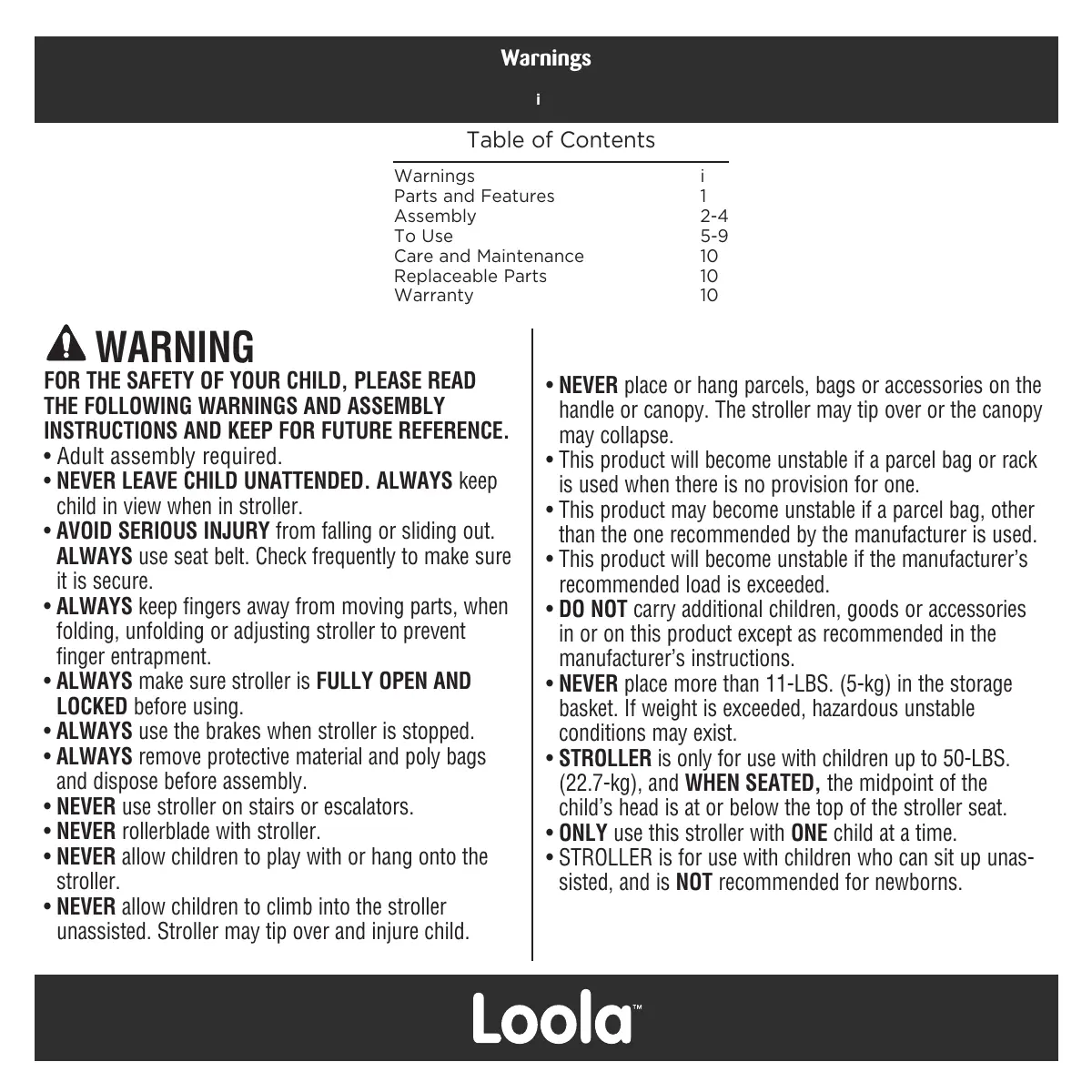

Table of Contents Warnings Parts and Features Assembly To Use Care and Maintenance Replaceable Parts Warranty

FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE. •A dult assembly required. • NEVER LEAVE CHILD UNATTENDED. Always keep child in view when in stroller. • AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. Check frequently to make sure it is secure. • ALWAYS keep fingers away from moving parts, when folding, unfolding or adjusting stroller to prevent finger entrapment. • ALWAYS make sure stroller is fully open and locked before using. • ALWAYS use the brakes when stroller is stopped. • ALWAYS remove protective material and poly bags and dispose before assembly. • NEVER use stroller on stairs or escalators. • NEVER rollerblade with stroller. • NEVER allow children to play with or hang onto the stroller. • NEVER allow children to climb into the stroller unassisted. Stroller may tip over and injure child.

i 1 2-4 5-9 10 10 10

• NEVER place or hang parcels, bags or accessories on the handle or canopy. The stroller may tip over or the canopy may collapse. • This product will become unstable if a parcel bag or rack is used when there is no provision for one. • This product may become unstable if a parcel bag, other than the one recommended by the manufacturer is used. • This product will become unstable if the manufacturer’s recommended load is exceeded. • DO NOT carry additional children, goods or accessories in or on this product except as recommended in the manufacturer’s instructions. • NEVER place more than 11-LBS. (5-kg) in the storage basket. If weight is exceeded, hazardous unstable conditions may exist. • STROLLER is only for use with children up to 50-LBS. (22.7-kg), and when seated, the midpoint of the child’s head is at or below the top of the stroller seat. • ONLY use this stroller with ONE child at a time. • STROLLER is for use with children who can sit up unassisted, and is NOT recommended for newborns.

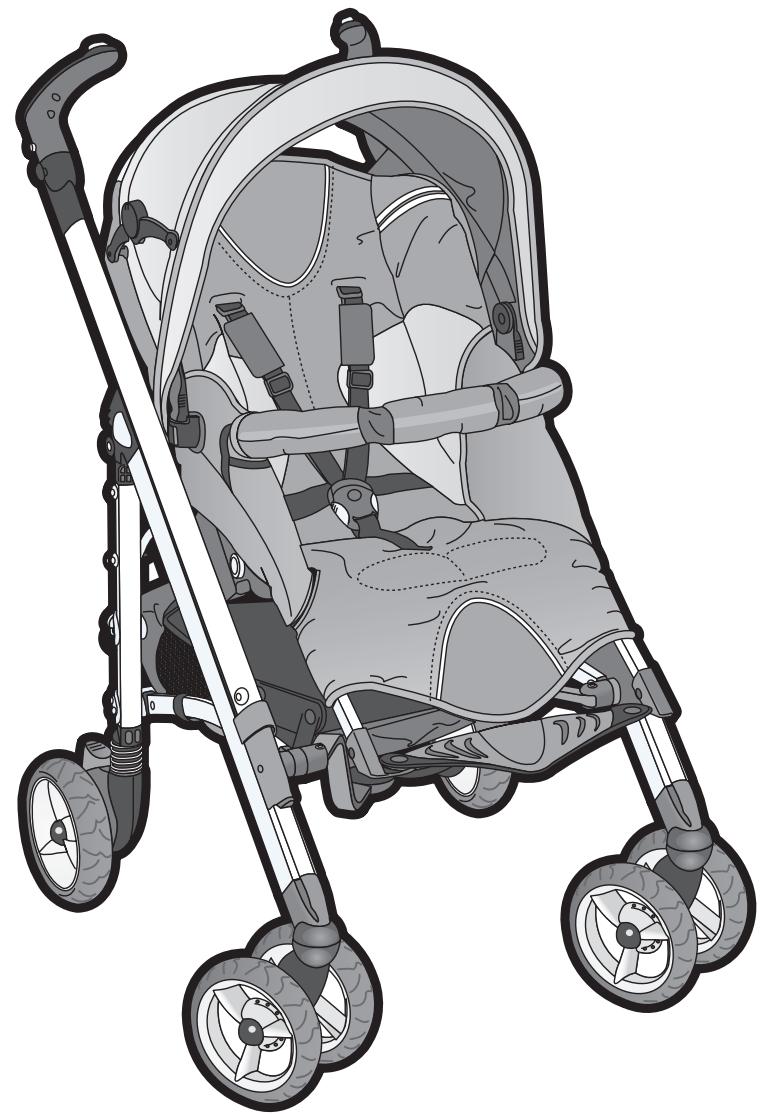

Parts and Features 1

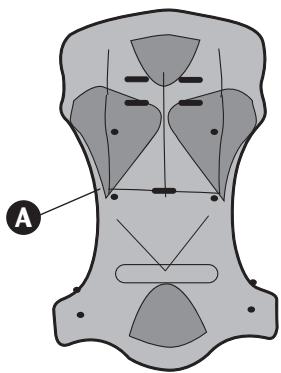

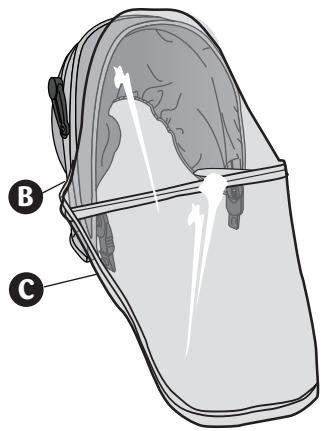

A Seat pad B Canopy C Rainshield

B D Adjustable handles

A E Frame with wheels & basket

C F Fold lock G Seat with restraint H Bumper bar I Car seat adaptors (2)

• Lay out and identify all parts. •D o not return this product to the place of purchase. If any parts are missing, call Consumer Relations at (800) 951-4113. Or visit our website at www.maxi-cosi.com. • Include the model number (01401) and manufacture date (found on the back of the stroller) and a brief description of the part. • Keep these instructions for future use.

•M axi-Cosi® MicoTM infant car seat sold separately.

1 Remove Shipping Tabs

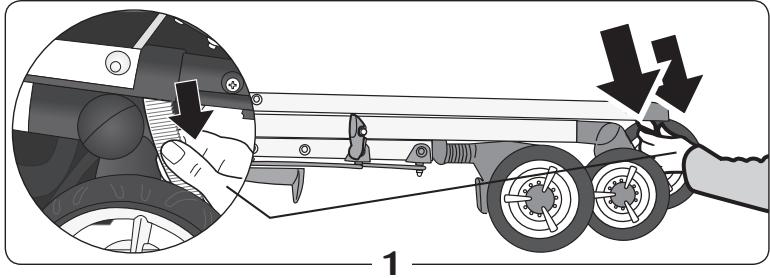

Pull hard to remove shipping tabs above each front wheel (Figure 1).

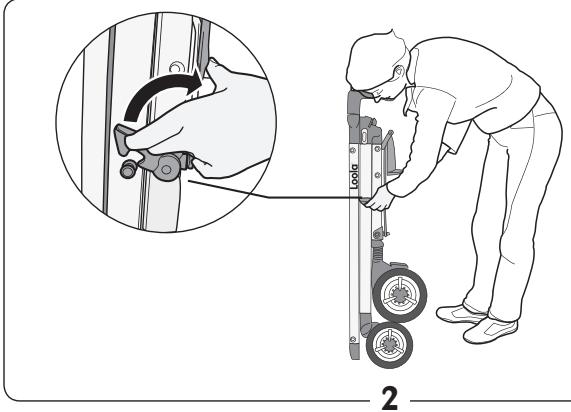

Release the fold lock from the post at the side of the frame (Figure 2).

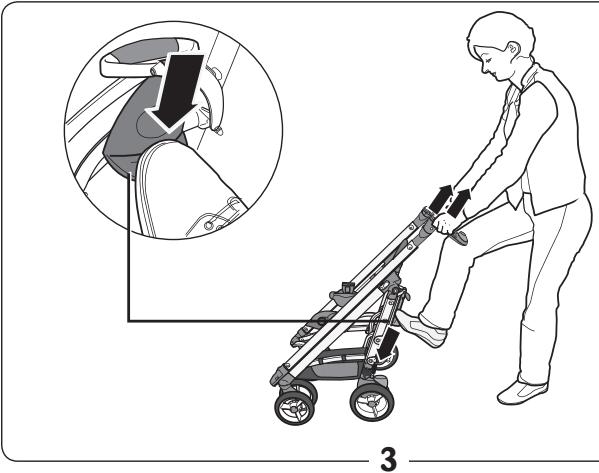

Stand at the back of the stroller. Push the foot pedal downward while pulling the handles upward (Figure 3). Push down on handles to confirm stroller is locked open.

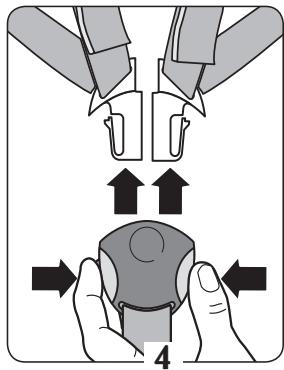

1. Open seat by pulling sides outward. 2. Release shoulder restraint straps from buckle (Figure 4).

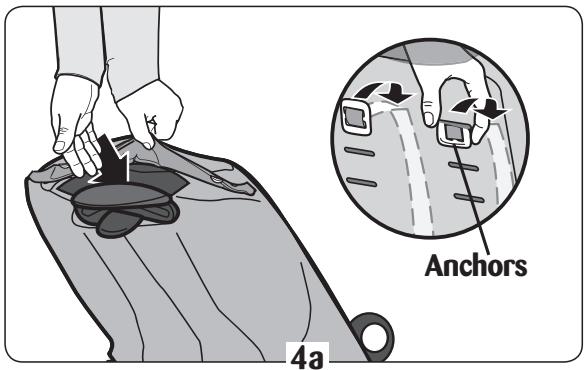

3. Access back of seat as shown and push shoulder strap anchors through seat to release them (Figure 4a). NOTE: Rotate anchors 90° to pass through seat.

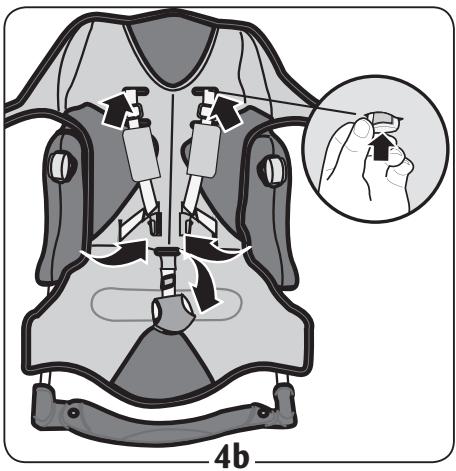

4. Feed crotch strap and buckle through slot in seat pad (Figure 4b). 5. Remove shoulder pads. Feed shoulder strap anchors through waist slots. Reinstall shoulder pads then feed straps through desired shoulder slots (Figure 4b). Feed straps through the corresponding holes in seat. Pull on shoulder straps to ensure they are secure. Twist straps to ensure they lay flat. 6. Starting at the top, snap the seat pad onto seat. The frame should go into the pocket at the bottom rear of the pad (Figure 4c). NOTE: There are a total of ten snaps around the outside of the frame and four snaps in the inside of the seat.

• For proper installation of the restraint system, make sure both anchors lay flat against the back board. • NEVER use stroller without BOTH restraint and crotch straps.

To attach seat in front or rear facing position, lower seat into the slots on each side of the stroller until it clicks into position (Figure 5). Pull up on seat to ensure it is attached securely. To remove, press seat release buttons on each side (Figure 5a). Lift seat.

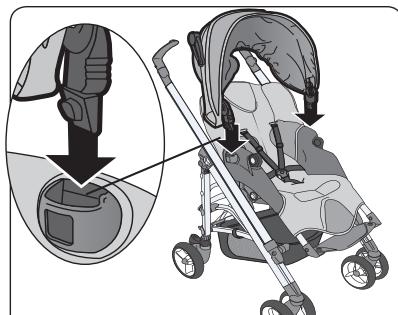

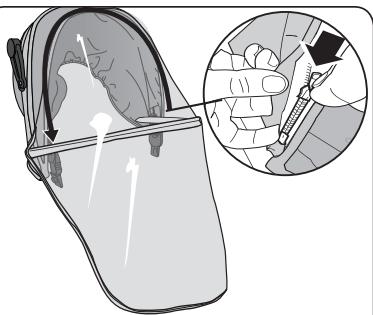

If desired, remove rainshield by unzipping and removing it from the canopy (Figure 6). Slide clips into each side of the seat (Figure 6a). Pull the back of canopy over the back of the seat.

NOTE: To open canopy, pull canopy open and press down hinge on each side. To close, press up on center of hinges and fold canopy back.

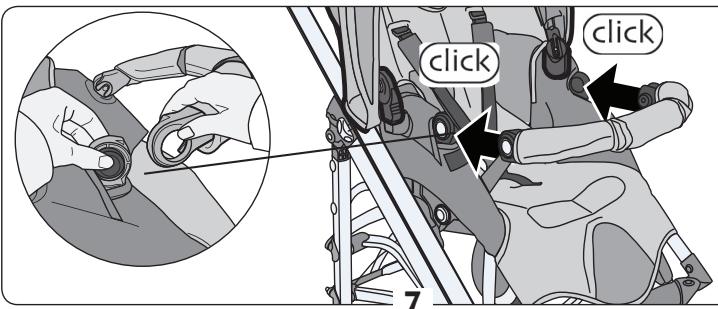

Press buttons on each side of the seat and slide bumper bar on until you hear “click” (Figure 7). Pull to confirm it is assembled securely. To remove bumper bar press the buttons and pull bar off.

To Use 5 NOTES: The seat can be positioned facing backward or forward. The seat is suitable for children from 6 months to age 4 (maximum 50-LBS. / 22.7-kg). If your child is unable to sit up unassisted, use a reclined or semi-reclined position.

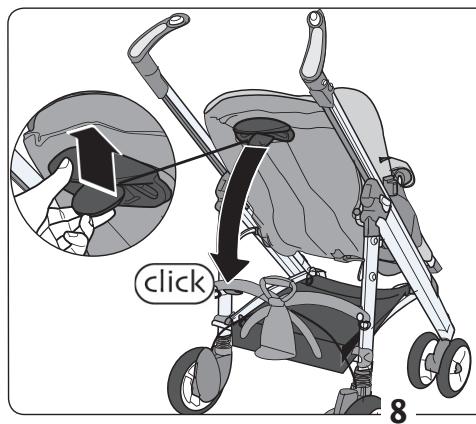

The front and rear-facing seat can be adjusted to four positions. Squeeze the recline handle and tilt the seat to the desired position (Figure8). Seat “clicks” when locked in place.

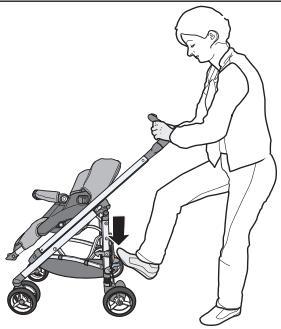

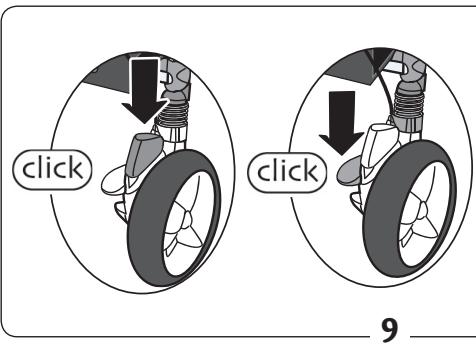

Always use the parking brake, even when standing still for only a few moments. Push down on the red pedal to lock the parking brake (Figure 9). Push down on the blue pedal to release the parking brake.

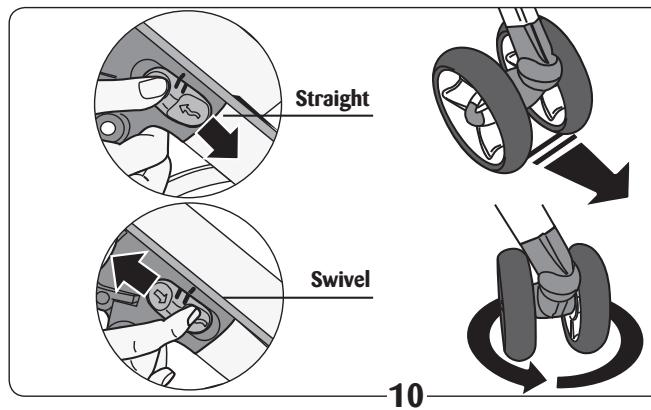

TIP: Lock the swivel wheels when using the stroller in a straight direction for a long period. To keep wheels straight, push the swivel locks downward until you hear a “click” (Figure 10). To swivel, push the swivel locks up. NOTE: Push stroller forward to straighen front wheels and lock them into position.

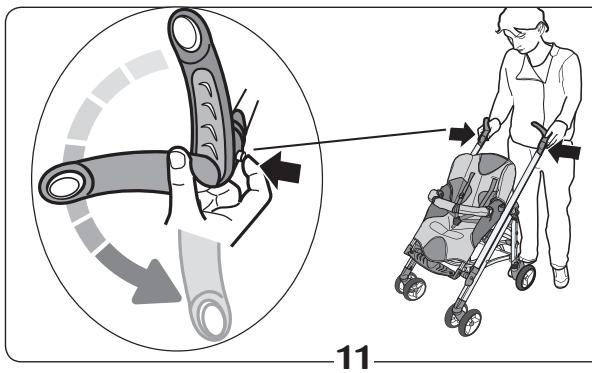

Press the button on the side of each handle and rotate the handle to desired position (Figure 11). The handle will “click” into place.

NOTE: There are three positions (facing up, downward and inward).

WARNING – SUFFOCATION HAZARD • Be sure rainshield doesn’t cover the child’s face.

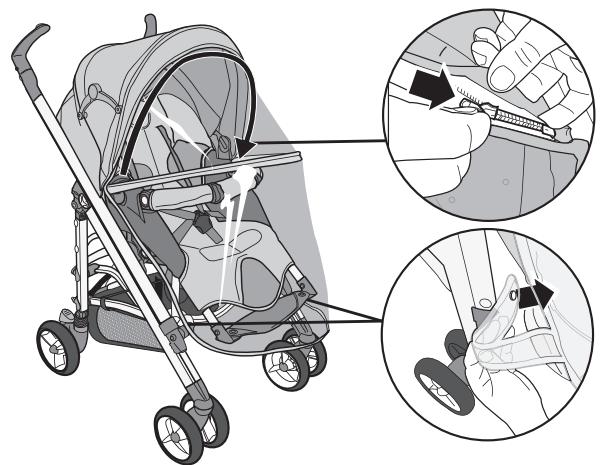

Open canopy. Zip top of rainshield to canopy. At the footrest, secure snaps underneath seat (Figure 12).

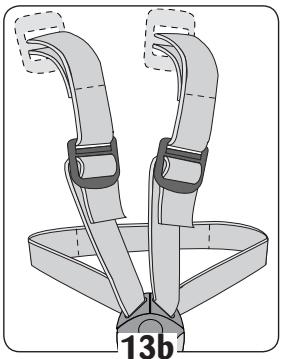

• NEVER LEAVE CHILD UNATTENDED. Always keep child in view when in stroller. • AVOID SERIOUS INJURY from falling or sliding out. Always use seat belt. Check frequently to make sure it is secure. Belts must be threaded exactly as shown (Figure 13b). • Failure to follow these instructions could result in the serious injury or death of your child.

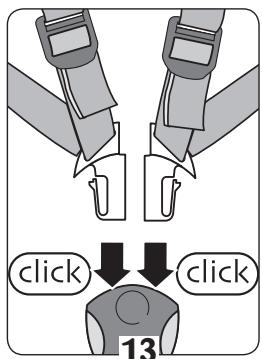

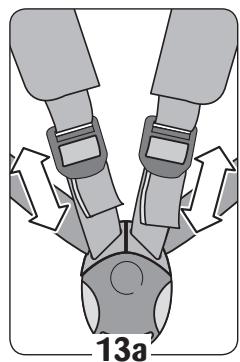

System Place your child in the stroller, with the crotch strap between the child’s legs. Slide each clip into buckle until you hear a “click” (Figure 13). Tighten straps snugly around your child (Figure 13a).

• For proper installation of the restraint system, make sure both anchors lay flat against the back board. • NEVER use stroller without BOTH restraint and crotch straps.

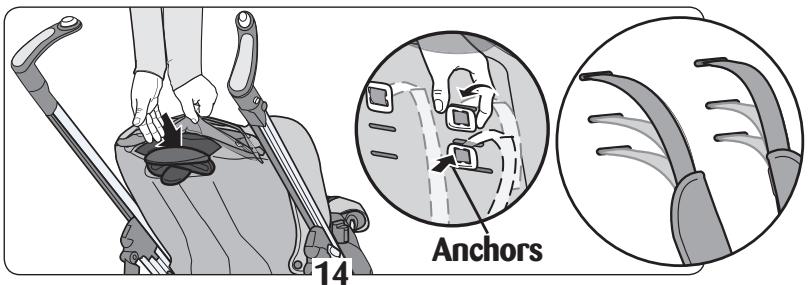

14 Adjust Restraint Height

The shoulder straps have three height positions for your growing child. Access the anchors in front of the recline handle. Push each anchor through the seat back and into the desired slot (Figure 14). Be sure the anchors lay flat against the seat back.

15 Fold Stroller NOTE: To access fold release handle while seat is in rear-facing position, the seat must be fully reclined.

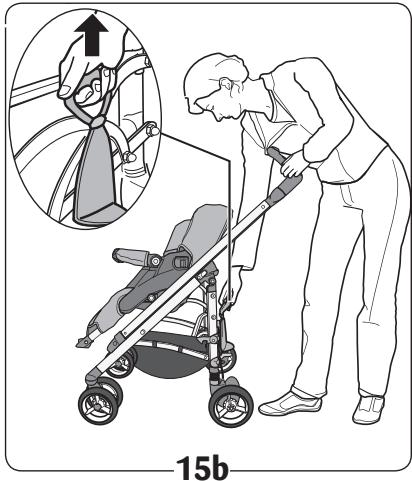

1. Lock wheels in fixed/straight position (Figure 15). 2. Press button on both handles and push handles down (Figure 15a). 3. Pull fold release handle upward (Figure 15b). 4. Push handles down until you engage fold lock (Figure 15c).

WARNING To avoid serious injury: • Use only MicoTM infant car seat (not included) with this stroller (model 22371). • Please refer to the manufacturer’s instructions for the use of your infant car seat. • ALWAYS install car seat facing to the rear of the stroller. • ALWAYS use the restraint system in the car seat.

16 To Attach Mico Infant Car Seat

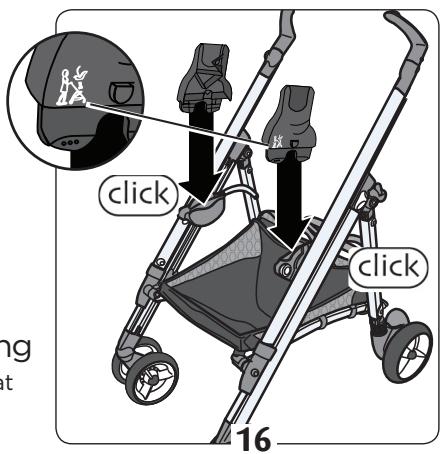

TM Push the parking brake down. Remove stroller seat and bumper bar. Position car seat adapters with icon toward the front of the stroller as shown (Figure 16). Press each car seat adapter into slot until it clicks.

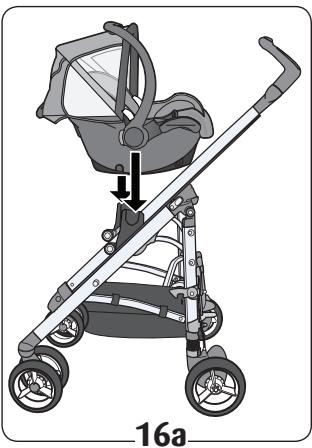

Car seat must be positioned so that child faces the person pushing the stroller. Lower car seat onto car seat adapters until both sides “click” (Figure 16a). Pull up on car seat to ensure it is attached properly to stroller.

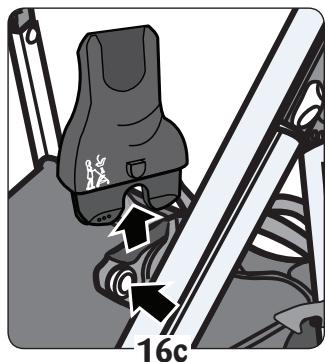

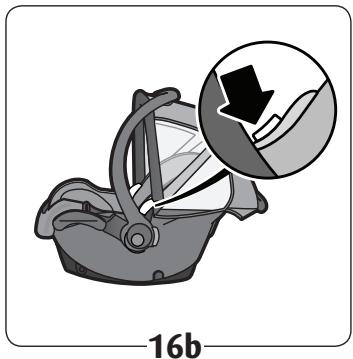

To remove car seat, press both buttons on car seat (Figure 16b). Lift car seat up. To remove car seat adapters, press button to release (Figure 16c).

Care and Maintenance

Bumper Bar Pad: Detach adhesive patches.

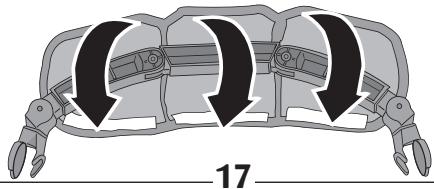

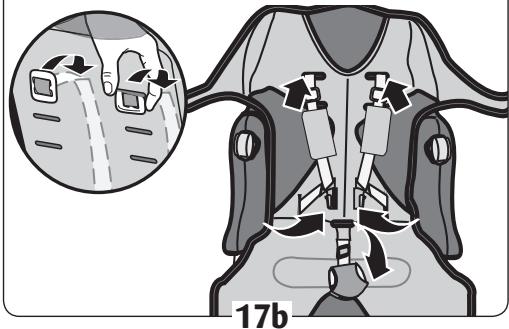

•H and or machine wash in cold water, delicate cycle. No bleach. Line dry. Do not iron or dry clean. • If desired, remove seat pad and bumper bar pad to clean by detaching as shown (Figure 17-17b). TIP: Remove seat and bumper bar from stroller and place seat on a table to ease pad removal. Reverse procedure to attach pads.

17 Seat Pad - A: Unsnap at bottom behind seat pad.

•P eriodically check for loose screws, worn parts, torn material or loose stitching. Tighten or replace parts as needed.

Replaceable Parts • • • • •

eat S Seat pad Bumper bar with bumper pad Canopy Rainshield

• To order parts call (800) 951-4113. • Include the model number (01401) and manufacture date (found on the stroller) and a brief description of the part.

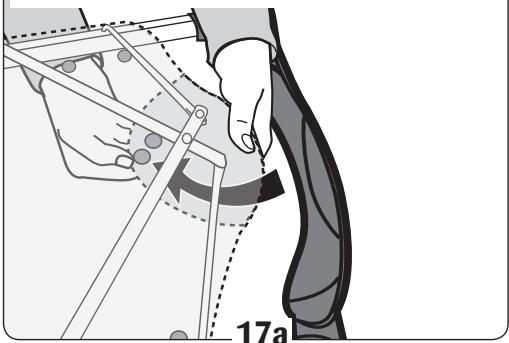

17a B: Detach restraint from pad (see step 14).

Two-Year Limited Warranty Dorel Juvenile Group, Inc. warrants to the original purchaser that this product (LoolaTM Stroller), is free from material and workmanship defects when used under normal conditions for a period of two (2) years from the date of purchase. Should the product contain defects in material or workmanship Dorel Juvenile Group, Inc., will repair or replace the product, at our option, free of charge. Purchaser will be responsible for all costs associated with packaging and shipping the product to Dorel Juvenile Group Consumer Relations Department at the address noted on the front of this document and all other freight or insurance costs associated with the return. Dorel Juvenile Group will bear the cost of shipping the repaired or replaced product to the purchaser. Product should be returned in its original package accompanied by a proof of purchase, either a sales receipt or other proof that the product is within the warranty period. This warranty is void if the owner repairs or modifies the product or the product has been damaged as a result of misuse. This warranty excludes any liability other than that expressly stated previously, including but not limited to, any incidental or inconsequential damages. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT MAY VARY FROM STATE TO STATE.
