USER MANUAL A780GM-LE-128M ASROCK

Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations English passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” ASRock Website: http://www.asrock.com Published April 2009 Copyright©2009 ASRock INC. All rights reserved.

ASRock A780GM-LE/128M Motherboard Motherboard Layout

ATX 12V Power Connector (ATX12V1) PS2_USB_PW1 Jumper CPU Heatsink Retention Module AM2 940-Pin CPU Socket 2 x 240-pin DDR2 DIMM Slots (Dual Channel A: DDRII_1, DDRII_2; Yellow) CPU Fan Connector (CPU_FAN1) Power Fan Connector (PWR_FAN1) ATX Power Connector (ATXPWR1) Clear CMOS Jumper (CLRCMOS1) Primary IDE Connector (IDE1, Blue) Sixth SATAII Connector (SATAII_6 (PORT 5)) Fifth SATAII Connector (SATAII_5 (PORT 4)) Fourth SATAII Connector (SATAII_4 (PORT 3)) Southbridge Controller Chassis Speaker Header (SPEAKER 1, Purple) System Panel Header (PANEL1, Orange) Third SATAII Connector (SATAII_3 (PORT 2)) Secondary SATAII Connector (SATAII_2 (PORT 1)) Primary SATAII Connector (SATAII_1 (PORT 0)) Chassis Fan Connector (CHA_FAN1) USB 2.0 Header (USB6_7, Blue) SPI Flash Memory (8Mb) USB 2.0 Header (USB8_9, Blue) USB 2.0 Header (USB10_11, Blue) Floppy Connector (FLOPPY1) Infrared Module Header (IR1) Print Port Header (LPT1, Purple) Front Panel Audio Header (HD_AUDIO1, Lime) Internal Audio Connector: CD1 (Black) PCI Slots (PCI1- 2) PCI Express 2.0 x16 Slot (PCIE2; Green) PCI Express 2.0 x1 Slot (PCIE1; Green) Northbridge Controller Serial Port Connector (COM1)

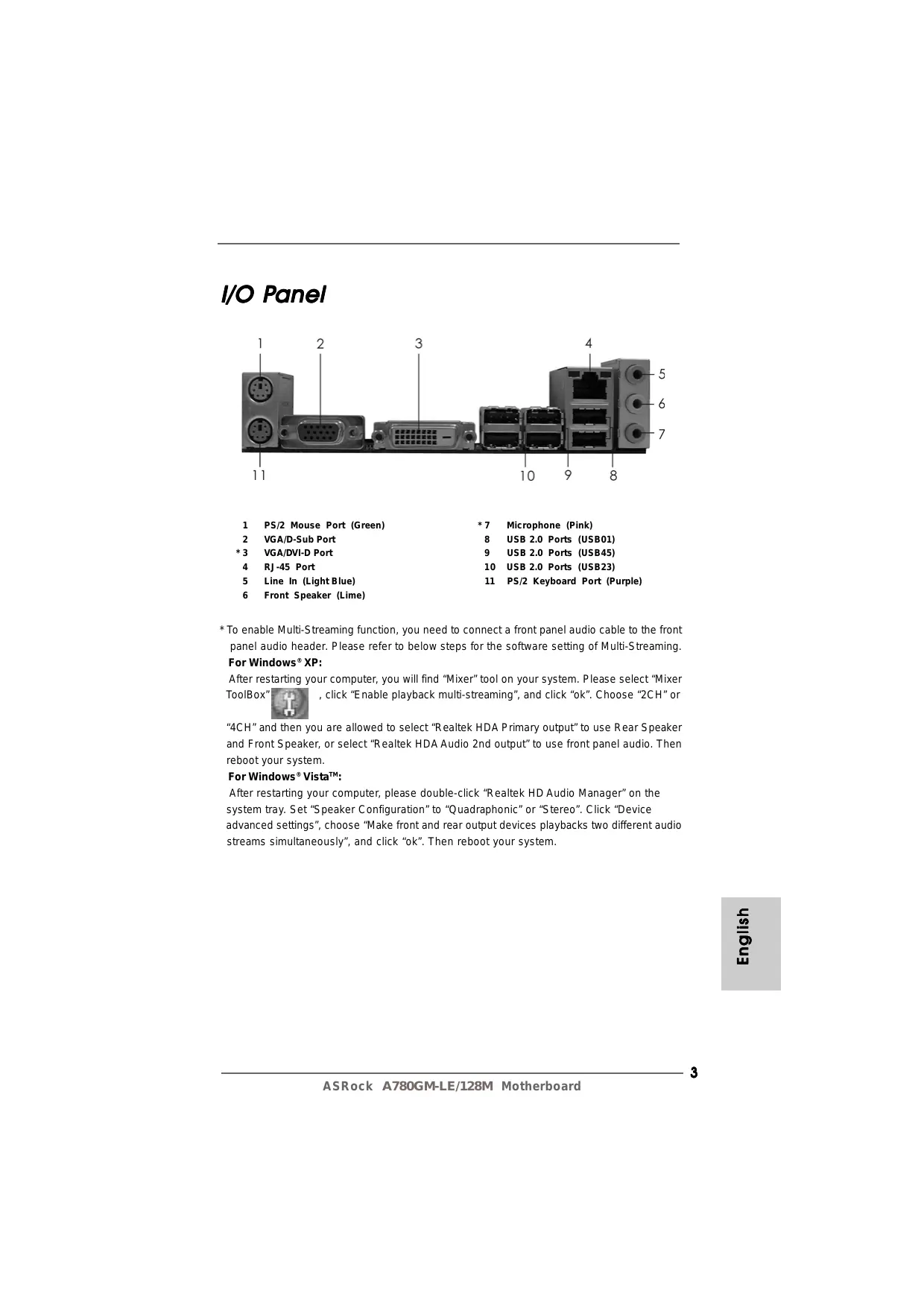

ASRock A780GM-LE/128M Motherboard I/O PPanel anel

PS/2 Mouse Port (Green) VGA/D-Sub Port VGA/DVI-D Port RJ-45 Port Line In (Light Blue) Front Speaker (Lime)

Microphone (Pink) USB 2.0 Ports (USB01) USB 2.0 Ports (USB45) USB 2.0 Ports (USB23) PS/2 Keyboard Port (Purple)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. Please refer to below steps for the software setting of Multi-Streaming. For Windows® XP: After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or English “4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then reboot your system. For Windows® VistaTM: After restarting your computer, please double-click “Realtek HD Audio Manager” on the system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device advanced settings”, choose “Make front and rear output devices playbacks two different audio streams simultaneously”, and click “ok”. Then reboot your system.

ASRock A780GM-LE/128M Motherboard

1. Introduction

Thank you for purchasing ASRock A780GM-LE/128M motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to BIOS setup and information of the Support CD. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. www.asrock.com/support/index.asp

Package Contents 1 x ASRock A780GM-LE/128M Motherboard (Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm) 1 x ASRock A780GM-LE/128M Quick Installation Guide 2 x ASRock A780GM-LE/128M Support CD 1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor) 1 x Serial ATA (SATA) Data Cable (Optional) 1 x Serial ATA (SATA) HDD Power Cable (Optional) 1 x I/O Shield English ASRock A780GM-LE/128M Motherboard Specifications Platform CPU Chipset Memory Expansion Slot Graphics Audio LAN - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm - Support for Socket AM2+ / AM2 processors: AMD PhenomTM FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor - Support for AM3 processors: AMD PhenomTM II X4 / X3 and Athlon II X4 / X3 / X2 processors - Supports AMD OverDriveTM with ACC feature (Advanced Clock Calibration) - AMD LIVE!TM Ready - Supports AMD’s Cool ‘n’ QuietTM Technology - FSB 2600 MHz (5.2 GT/s) - Supports Untied Overclocking Technology (see CAUTION 1) - Supports Hyper-Transport 3.0 (HT 3.0) Technology - Northbridge: AMD 780G - Southbridge: AMD SB710 - Dual Channel DDR2 Memory Technology (see CAUTION 2) - 2 x DDR2 DIMM slots - Support DDR2 1066/800/667/533 non-ECC, un-buffered memory (see CAUTION 3) - Max. capacity of system memory: 8GB (see CAUTION 4) - 1 x PCI Express 2.0 x16 slot (green @ x16 mode) - 1 x PCI Express 2.0 x1 slot - 2 x PCI slots - Supports ATITM Hybrid CrossFireXTM - Integrated AMD Radeon HD 3200 graphics - DX10 class iGPU, Pixel Shader 4.0 - Max. shared memory 512MB (see CAUTION 5) - Integrated 128MB side port memory for iGPU - Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers - Supports HDCP function with DVI-D port - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback (see CAUTION 6) - 5.1 CH Windows® VistaTM Premium Level HD Audio (ALC662 Audio Codec) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111DL - Supports Wake-On-LAN English

ASRock A780GM-LE/128M Motherboard Rear Panel I/O Connector BIOS Feature Support CD English Unique Feature I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x VGA/D-Sub Port - 1 x VGA/DVI-D Port - 6 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in/Front Speaker/Microphone - 6 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and “Hot Plug” functions (see CAUTION 7) - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x Print port header - 1 x COM port header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 4 pin 12V power connector - CD in header - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) (see CAUTION 8) - 8Mb AMI BIOS - AMI Legal BIOS - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - VCCM, NB Voltage Multi-adjustment - Supports Smart BIOS - Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDriveTM Utility - ASRock OC Tuner (see CAUTION 9) - Intelligent Energy Saver (see CAUTION 10) - Instant Boot - ASRock Instant Flash (see CAUTION 11) - Hybrid Booster: - CPU Frequency Stepless Control (see CAUTION 12) - ASRock U-COP (see CAUTION 13) - Boot Failure Guard (B.F.G.)

ASRock A780GM-LE/128M Motherboard Hardware Monitor

Certifications - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% (see CAUTION 14) - CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore - Microsoft® Windows® XP / XP Media Center / XP 64-bit / VistaTM / VistaTM 64-bit compliant - FCC, CE, Microsoft® WHQL Certificated

For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. CAUTION!

This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 27 for details. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 13 for proper installation. Whether 1066MHz memory speed is supported depends on the AM2+ CPU you adopt. If you want to adopt DDR2 1066 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules. ASRock website http://www.asrock.com Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® VistaTM. For Windows® XP 64-bit and Windows® VistaTM 64-bit with 64-bit CPU, there is no such limitation. The maximum shared memory size is defined by the chipset vendor and is subject to change. Please check AMD website for the latest information. 1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires the proper hardware configuration. Please refer to page 9 and 10 for the minimum hardware requirement and the passed 1080p Blu-ray (BD) / HD-DVD films in our lab test. English

ASRock A780GM-LE/128M Motherboard

Before installing SATAII hard disk to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 28 of “User Manual” in the support CD to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly. Power Management for USB 2.0 works fine under Microsoft® Windows® VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2. It is a user-friendly ASRock overclocking tool which allows you to surveil your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows ® environment. Please visit our website for the operation procedures of ASRock OC Tuner. ASRock website: http://www.asrock.com Featuring an advanced proprietary hardware and software design, Intelligent Energy Saver is a revolutionary technology that delivers unparalleled power savings. The voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle. In other words, it is able to provide exceptional power saving and improve power efficiency without sacrificing computing performance. To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option in the BIOS setup in advance. Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS without entering operating systems first like MS-DOS or Windows®. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system. Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. This motherboard supports ASRock AM2 Boost overclocking technology. If you enable this function in the BIOS setup, the memory performance will improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU reference clock. However, we can not guarantee the system stability for all CPU/DRAM configurations. If your system is unstable after AM2 Boost function is enabled, it may not be applicative to your system. You may choose to disable this function for keeping the stability of your system.

ASRock A780GM-LE/128M Motherboard Minimum Hardware Requirement for 1080p Blu-ray VD Playback Suppor -DVD Supportt (BD) / HD -D 1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires the proper hardware configuration. Please refer to below table for the minimum hardware requirement. CPU VGA Memory Suggested OS AMD Sempron Dual Core 2100 Onboard VGA with DVI-D port Dual Channel DDR2 533, 1GB x 2 Windows® VistaTM or Windows® VistaTM 64

If you need to use CyberLink PowerDVD Ultra version 7.3, we suggest to disable Hardware Acceleration function for better playback performance and compatibility. After executing CyberLink PowerDVD Ultra program, please follow below steps to disable Hardware Acceleration function. A. Right-click the main page of CyberLink PowerDVD Ultra program. B. Click “Configuration”. C. Select “Video”. D. Click “Enable hardware acceleration (ATI Avivo)” to remove the “V” mark in this item. E. Click “OK” to save the change.
Currently, 1080p Blu-ray (BD) / HD-DVD playback is only supported under Windows® VistaTM / VistaTM 64-bit OS. If you install Windows® XP / XP 64-bit OS, the function of 1080p Blu-ray (BD) / HD-DVD playback is not available, please visit our website for AMD 780G VGA driver update in the future. ASRock website http://www.asrock.com English

ASRock A780GM-LE/128M Motherboard

MPEG-4-AVC mentioned above refers to the same format of H.264.
Above passed films are tested under below configuration. Items Configurations CPU AMD Sempron Dual Core 2100 VGA Onboard VGA with DVI-D port Memory Dual Channel DDR2 533, 1GB x 2 Windows® VistaTM or Windows® VistaTM 64 Playback Software CyberLink PowerDVD Ultra (Version 7.3 or above) DVD Player Pioneer BDR-101A / LG GBW-H10N (BD) HP HD100 (HD-DVD) English ASRock A780GM-LE/128M Motherboard

2. Installation

This is a Micro ATX form factor (9.6-in x 7.8-in, 24.4 cm x 19.8 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings. Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

Unplug the power cord from the wall socket before touching any component. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components. Hold components by the edges and do not touch the ICs. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard. English

ASRock A780GM-LE/128M Motherboard

CPU Installation Unlock the socket by lifting the lever up to a 90 angle. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Carefully insert the CPU into the socket until it fits in place. The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins. Step 4. When the CPU is in place, press it firmly on the socket while you push down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked. Lever 90° Up CPU Golden Triangle Socket Corner Small Triangle STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 2, No. 6). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink. English ASRock A780GM-LE/128M Motherboard

2.3 Installation of Memor y Modules (DIMM)

A780GM-LE/128M motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip-type) memory modules in the DDR2 DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single channel mode.

It is not allowed to install a DDR memory module into DDR2 slot; otherwise, this motherboard and DIMM may be damaged. If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology. Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. English Step 1. Step 2. The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

ASRock A780GM-LE/128M Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. PCIE slots: PCIE1 (PCIE x1 slot; Green) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc. PCIE2 (PCIE x16 slot; Green) is used for PCI Express cards with x16 lane width graphics cards. Installing an expansion card Step 1. Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Align the card connector with the slot and press firmly until the card is completely seated on the slot. Fasten the card to the chassis with screws. English ASRock A780GM-LE/128M Motherboard

2.5 Dual Monitor and Surround Display Features

Dual Monitor Feature This motherboard supports dual monitor feature. With the internal dual VGA output support (DVI-D and D-Sub), you can easily enjoy the benefits of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for DVI-D and D-Sub to support dual VGA output so that DVI-D and D-sub can drive same or different display contents. To enable dual monitor feature, please follow the below steps:

1. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel. And

connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O panel. VGA/D-Sub port VGA/DVI-D port

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the benefits of dual monitor function after your system boots. If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer. Then you can start to use dual monitor function on this motherboard. When you playback HDCP-protected video from Blu-ray (BD) or HD-DVD disc, the content will be displayed only in one of the two monitors instead of both monitors.

1. Install the ATITM PCI Express VGA card on PCIE2 slot. Please refer to page 14 for

proper expansion card installation procedures for details.

2. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel. And

connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O panel. Connect the other DVI-D monitor cable and D-Sub monitor cable to the corresponding connectors of the add-on PCI Express VGA card on PCIE2 slot. ASRock A780GM-LE/128M Motherboard English Surround Display Feature This motherboard supports surround display upgrade. With the internal dual VGA output support (DVI-D and D-Sub) and the external add-on PCI Express VGA card, you can easily enjoy the benefits of surround display feature. Please refer to the following steps to set up a surround display environment:

3. Boot your system. Press <F2> to enter BIOS setup. Enter “Share Memory”

option to adjust the memory capability to [32MB], [64MB], [128MB] [256MB] or [512MB] to enable the function of VGA/D-sub. Please make sure that the value you select is less than the total capability of the system memory. If you do not adjust the BIOS setup, the default value of “Share Memory”, [Auto], will disable VGA/D-Sub function when the add-on VGA card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install them again.

5. Set up a multi-monitor display.

English For Windows® XP / XP 64-bit OS: Right click the desktop, choose “Properties”, and select the “Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the “Identify” button to display a large number on each monitor. B. Right-click the display icon in the Display Properties dialog that you wish to be your primary monitor, and then select “Primary”. When you use multiple monitors with your card, one monitor will always be Primary, and all additional monitors will be designated as Secondary. C. Select the display icon identified by the number 2. D. Click “Extend my Windows desktop onto this monitor”. E. Right-click the display icon and select “Attached”, if necessary. F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the diaplay icon identified by the number one, two, three and four. For Windows® VistaTM / VistaTM 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the number ”2” icon. B. Click the items “This is my main monitor” and “Extend the desktop onto this monitor”. C. Click “OK” to save your change. D. Repeat steps A through C for the display icon identified by the number three and four.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another.

ASRock A780GM-LE/128M Motherboard HDCP Function HDCP function is supported on this motherboard. To use HDCP function with this motherboard, you need to adopt the monitor that supports HDCP function as well. Therefore, you can enjoy the superior display quality with high-definition HDCP encryption contents. Please refer to below instruction for more details about HDCP function. What is HDCP? HDCP stands for High-Bandwidth Digital Content Protection, a specification developed by Intel® for protecting digital entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box - and the digital display, or receiver - such as a monitor, television or projector. In other words, HDCP specification is designed to protect the integrity of content as it is being transmitted. English Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible.

ASRock A780GM-LE/128M Motherboard

This motherboard supports ATITM Hybrid CrossFireXTM feature. ATITM Hybrid CrossFireXTM brings multi-GPU performance capabilities by enabling an AMD 780G integrated graphics processor and a discrete graphics processor to operate simultaneously with combined output to a single display for blisteringly-fast frame rates. Currently, ATITM Hybrid CrossFireXTM Technology is only supported with Windows® VistaTM OS, and is not available with Windows® XP OS. In the future, ATITM Hybrid CrossFireXTM may be supported with Windows® XP OS. Please visit our website for updated information. What does an ATITM Hybrid CrossFireXTM system include? An ATITM Hybrid CrossFireXTM system includes an ATITM RadeonTM 2400 or ATITM RadeonTM 3450 series graphics processor and a motherboard based on an AMD 780G integrated chipset, all operating in a Windows® VistaTM environment. Please refer to below PCI Express graphics card support list for ATITM Hybrid CrossFireXTM. For the future update of more compatible PCI Express graphics cards, please visit our website for further information. Vendor Chipset ATI

RADEON X2400PRO

RADEON HD2400XT *

Model Driver MSI RX2400 PRO-TD256EH Catalyst 8.512 POWERCOLOR HD2400 XT Catalyst 8.512 256MB DDR3 RADEON HD3450 POWERCOLOR AX3450 Catalyst 8.512 256MD2-S

Currently, RADEON HD2400XT series graphics cards are only supported with AMD Phenom CPU. Please visit our website for the future driver update and the latest information. Install one compatible PCI Express graphics card to PCIE2 slot (green). For the proper installation procedures, please refer to section “Expansion Slots”. Connect the monitor cable to the correspondent connector on the PCI Express graphics card on PCIE2 slot. Boot your system. Press <F2> to enter BIOS setup. Enter “Advanced” screen, and enter “Chipset Settings”. Then set the option “Surround View” to [Enabled]. Boot into OS. Please remove the ATITM driver if you have any VGA driver installed in your system. Install the onboard VGA driver from our support CD to your system for both the onboard VGA and the discrete graphics card. Restart your computer. Then you will find “ATI Catalyst Control Center” on your Windows® taskbar. ATI Catalyst Control Center

ASRock A780GM-LE/128M Motherboard Step 7. Double-click “ATI Catalyst Control Center”. Click “View”, click “CrossFireTM”, and then select the option “Enable CrossFireTM”. View Enable CrossFireTM CrossFireTM Step 8. Click “Yes” to continue. Step 9. Click “OK” to save your change. English Step 10. Reboot your system. Then you can freely enjoy the benefit of HybridTM CrossFireXTM feature.

Hybrid CrossFireXTM appearing here is a registered trademark of ATITM Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe.
For further information of ATITM Hybrid CrossFireXTM technology, please check AMD website for up dates and details.

ASRock A780GM-LE/128M Motherboard

Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins. Jumper

PS2_USB_PW1

Short Open Setting Short pin2, pin3 to enable +5VSB (standby) for PS/2 or USB wake up events. Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. (see p.2, No. 2) Clear CMOS Jumper (CLRCMOS1) (see p.2, No. 9) Default Clear CMOS Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clearCMOS action. English ASRock A780GM-LE/128M Motherboard

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

Floppy Connector (33-pin FLOPPY1) (see p.2 No. 25) the red-striped side to Pin1 Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the connector. Primary IDE connector (Blue) (39-pin IDE1, see p.2 No. 10) connect the blue end to the motherboard connect the black end to the IDE devices 80-conductor ATA 66/100/133 cable Note: Please refer to the instruction of your IDE device vendor for the details. Serial ATAII Connectors (SATAII_1 (PORT 0): see p.2, No. 19) (SATAII_2 (PORT 1): (SATAII_3 (PORT 2): see p.2, No. 17) (SATAII_4 (PORT 3): see p.2, No. 13) (SATAII_5 (PORT 4): see p.2, No. 12) (SATAII_6 (PORT 5): see p.2, No. 11) Serial ATA (SATA) Data Cable (Optional)

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2) English see p.2, No. 18) These six Serial ATAII (SATAII) connectors support SATAII or SATA hard disk for internal storage devices. The current SATAII interface allows up to

3.0 Gb/s data transfer rate.

Either end of the SATA data cable can be connected to the SATA / SATAII hard disk or the SATAII connector on the motherboard.

ASRock A780GM-LE/128M Motherboard Serial ATA (SATA) Power Cable (Optional) connect to the SATA HDD power connector connect to the power supply USB 2.0 Headers Please connect the black end of SATA power cable to the power connector on each drive. Then connect the white end of SATA power cable to the power connector of the power supply. Besides six default USB 2.0 ports on the I/O panel, there are three USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB10_11) (see p.2 No. 24) (9-pin USB8_9) (see p.2 No. 23) (9-pin USB6_7) (see p.2 No. 21) This is an interface for print port cable that allows convenient connection of printer devices. (25-pin LPT1) (see p.2 No. 27) This header supports an optional wireless transmitting and receiving infrared module. (5-pin IR1) English (see p.2 No. 26) Internal Audio Connectors (4-pin CD1) (CD1: see p.2 No. 29) CD1 This connector allows you to receive stereo audio input from sound sources such as a CD-ROM, DVD-ROM, TV tuner card, or MPEG card.

ASRock A780GM-LE/128M Motherboard Front Panel Audio Header (9-pin HD_AUDIO1) (see p.2, No. 28) This is an interface for the front panel audio cable that allows convenient connection and control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select Chipset Configuration. Set the Front Panel Control option from [Auto] to [Enabled]. F. Enter Windows system. Click the icon on the lower right hand taskbar to enter Realtek HD Audio Manager. For Windows® XP / XP 64-bit OS: Click “Audio I/O”, select “Connector Settings” , choose “Disable front panel jack detection”, and save the change by clicking “OK”. For Windows® VistaTM / VistaTM 64-bit OS: Click the right-top “Folder” icon , choose “Disable front System Panel Header (9-pin PANEL1) (see p.2 No. 16) English panel jack detection”, and save the change by clicking “OK”. G. To activate the front mic. For Windows® XP / XP 64-bit OS: Please select “Front Mic” as default record device. If you want to hear your voice through front mic, please deselect "Mute" icon in “Front Mic” of “Playback” portion. For Windows® VistaTM / VistaTM 64-bit OS: Go to the "Front Mic" Tab in the Realtek Control panel. Click "Set Default Device" to make the Front Mic as the default record device. This header accommodates several system front panel functions.

ASRock A780GM-LE/128M Motherboard Chassis Speaker Header Please connect the chassis speaker to this header. (4-pin SPEAKER 1) (see p.2 No. 15) Chassis and Power Fan Connectors Please connect the fan cables to the fan connectors and match the black wire to the ground pin. (3-pin CHA_FAN1) (see p.2 No. 20) (3-pin PWR_FAN1) (see p.2 No. 7) CPU Fan Connector Please connect the CPU fan

cable to this connector and match the black wire to the ground pin. (4-pin CPU_FAN1) (see p.2 No. 6) Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation ATX Power Connector

(24-pin ATXPWR1) Please connect an ATX power supply to this connector. (see p.2 No. 8) Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13. 20-Pin ATX Power Supply Installation English ATX 12V Power Connector (4-pin ATX12V1) (see p.2 No. 1)

Please note that it is necessary to connect a power supply with ATX 12V plug to this connector. Failing to do so will cause power up failure.

ASRock A780GM-LE/128M Motherboard This COM1 header supports a serial port module. (9-pin COM1) (see p.2 No.34) 2 . 9 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly. 2 . 1 0 Installing Windows ® XP / XP 64-bit / Vista TM / Vista TM 64-bit With RAID Functions If you want to install Windows® XP / XP 64-bit / VistaTM / VistaTM 64-bit on your SATA / SATAII HDDs with RAID functions, please refer to the document at the following path in the Support CD for detailed procedures: ..\ RAID Installation Guide tion If you want to install Windows® XP, Windows® XP 64-bit, Windows® VistaTM or Windows® VistaTM 64-bit OS on your SATA / SATAII HDDs without RAID functions, please follow below procedures according to the OS you install.

2.11.1 Installing Windows ® XP / XP 64-bit Without RAID

FFunctions unctions If you want to install Windows® XP or Windows® XP 64-bit on your SATA / SATAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs without NCQ and Hot Plug functions English

STEP 1: Set up BIOS. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. Set the “SATA Operation Mode” option to [IDE]. STEP 2: Install Windows® XP / Windows® XP 64-bit OS on your system.

ASRock A780GM-LE/128M Motherboard

2.11.2 Installing Windows ® Vista TM / Vista TM 64-bit Without

RAID FFunctions unctions If you want to install Windows® VistaTM or Windows® VistaTM 64-bit on your SATA / SATAII HDDs without RAID functions, please follow below steps. Using SATA / SATAII HDDs without NCQ and Hot Plug functions STEP 1: Set up BIOS. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. Set the “SATA Operation Mode” option to [IDE]. STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system. Using SATA / SATAII HDDs with NCQ and Hot Plug functions STEP 1: Set Up BIOS. Enter BIOS SETUP UTILITY

Advanced screen IDE Configuration. Set the “SATA Operation Mode” option to [AHCI]. STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system. Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive to boot your system, and follow the instruction to install Windows® VistaTM / Windows® VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows? ” page, please insert the ASRock Support CD into your optical drive, and click the “Load Driver” button on the left on the bottom to load the AMD AHCI drivers. AMD AHCI drivers are in the following path in our Support CD: (There are two ASRock Support CD in the motherboard gift box pack, please choose the one for Windows® VistaTM / VistaTM 64-bit.) .. \ I386 (For Windows® VistaTM OS) .. \ AMD64 (For Windows® VistaTM 64-bit OS) After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive again to continue the installation. English ASRock A780GM-LE/128M Motherboard 2 . 1 2 Untied Overclocking TTechnology echnology This motherboard supports Untied Overclocking Technology, which means during overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment. Please refer to the warning on page 7 for the possible overclocking risk before you apply Untied Overclocking Technology.

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF file) contained in the Support CD.

4. Sof

tware Suppor Software Supportt CD information English This motherboard supports various Microsoft® Windows® operating systems: XP / XP Media Center / XP 64-bit / VistaTM / VistaTM 64-bit. The Support CD that came with the motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file “ASSETUP. EXE” from the “BIN” folder in the Support CD to display the menus.

ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2)

ASRock A780GM-LE/128M Motherboard CD1

ASRock A780GM-LE/128M Motherboard

Spezifikationen Plattform CPU Chipsatz Speicher Erweiterungssteckplätze Onboard-VGA Deutsch Audio

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Deutsch

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard (SATAII_5 (PORT4): (SATAII_6 (PORT5): Deutsch

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2) Serial ATA- (SATA-) Datenkabel (Option) ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard ren

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Deutsch ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Surveillance système

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard F rançais ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2) (SATAII_5 (PORT4):

ASRock A780GM-LE/128M Motherboard (USB10_11 br.9) (voir p.2 No. 24) (USB8_9 br.9) (voir p.2 No. 23) (USB6_7 br.9) (voir p.2 No. 21)

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard (CHA_FAN1 br. 3) (voir p.2 No. 20) (PWR_FAN1 br. 3) (voir p.2 No. 7)

ASRock A780GM-LE/128M Motherboard ées

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard F rançais ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Italiano ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2) ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Italiano ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Conectores BIOS

ASRock A780GM-LE/128M Motherboard Monitor Hardware

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard Español

ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5) (SATAII_5 (PORT4): vea p.2, No. 12) (SATAII_6 (PORT5): vea p.2, No. 11)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2)

ASRock A780GM-LE/128M Motherboard (9-pin USB10_11) (ver p.2, No. 24) (9-pin USB8_9) (ver p.2, No. 23) (9-pin USB6_7) (ver p.2, No. 21) Conector de Audio Interno (4-pin CD1) (CD1: vea p.2, No. 29) CD1

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard (9-pin PANEL1) (vea p.2, No. 16) (4-pin SPEAKER1) (vea p.2, No. 15) (4-pin CPU_FAN1) (vea p.2, No. 6)

ASRock A780GM-LE/128M Motherboard Conector de ATX 12V power (4-pin ATX12V1) (vea p.2, No. 1)

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard Conectores BIOS

ASRock A780GM-LE/128M Motherboard ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard

ASRock A780GM-LE/128M Motherboard Conector Conector FDD Figura Descrição (SATAII_3 (PORT 2):

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2) P or tuguês

ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2)

ASRock A780GM-LE/128M Motherboard CD1

ASRock A780GM-LE/128M Motherboard

SATAII_4 SATAII_5 SATAII_6

(PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3

(PORT 0) (PORT 1) (PORT 2)

ASRock A780GM-LE/128M Motherboard CD1

ASRock A780GM-LE/128M Motherboard
